Computer - Fanless - Short Depth Model - Ultra Compact

HT B30K

The HT B30 range is based on the latest Intel chipset and Skylake processor platform, delivering even more power for maritime technology developers to design and build high-end vessel control and monitoring solutions that enable safer and more effecient maritime operations.

Fanless

Short Depth Model

TPM 2.0

Send Request

Description

Specifications

Installed Operating System Options:	None or Standard OS/Customized image, review datasheet for list.
Storage Options:	1 x SSD Type m.2 SATA: (240GB (599TBW), 480GB (945TBW), 960GB (1750TBW))
Processor / CPU and FSB Speed Options:	1 x Intel® Core™ i5-6300U, 2.4GHz / 3GHz 2/4 @15W, 403 GFLOPS or 1 x Intel® Core™ i7-6600U, 2.6GHz / 3.4GHz 2/4 @15W, 403 GFLOPS or 1 x Intel® Celeron® 3955U, 2.0GHz 2/2 @15W, 173 GFLOPS
Memory Options:	Dual Channel, DDR4-2133 SO-DIMM, 2 slots available 2x4GB (Standard), 2x8GB, 2x16GB (Max)
System+Graphics Chipset / Connectors:	System: Integrated in 6th Generation Intel® Core™ U-series processor Graphics: Intel® HD Graphics 520 (510 for G3955U CPU), Supports: OpenGL 4.4 (510), OpenGL 4.5 (520), DirectX 12.0, OpenCL 2.0. 3 independent displays possible (1 x DVI-I + 1 DVI-D + 1 x DP++ 1.2)
Max Resolution / Max Hz:	DP: 4096 x 2304@60Hz - DVI-I/D: 1920 x 1200@60Hz
BIOS:	ACPI support
PCI Slots / PCIe Slots:	None
Media Drive(s):	1 x SDXC (SDcard) slot
LPT / Parallel Port:	None
Serial Port(s):	None or Options: 1 or 2 x RS-232 COM Serial Ports DB9M, isolated 1 or 2 x RS-422/485 NMEA Isolated (PCA100293-1, 5-pin T. Block 3.81)

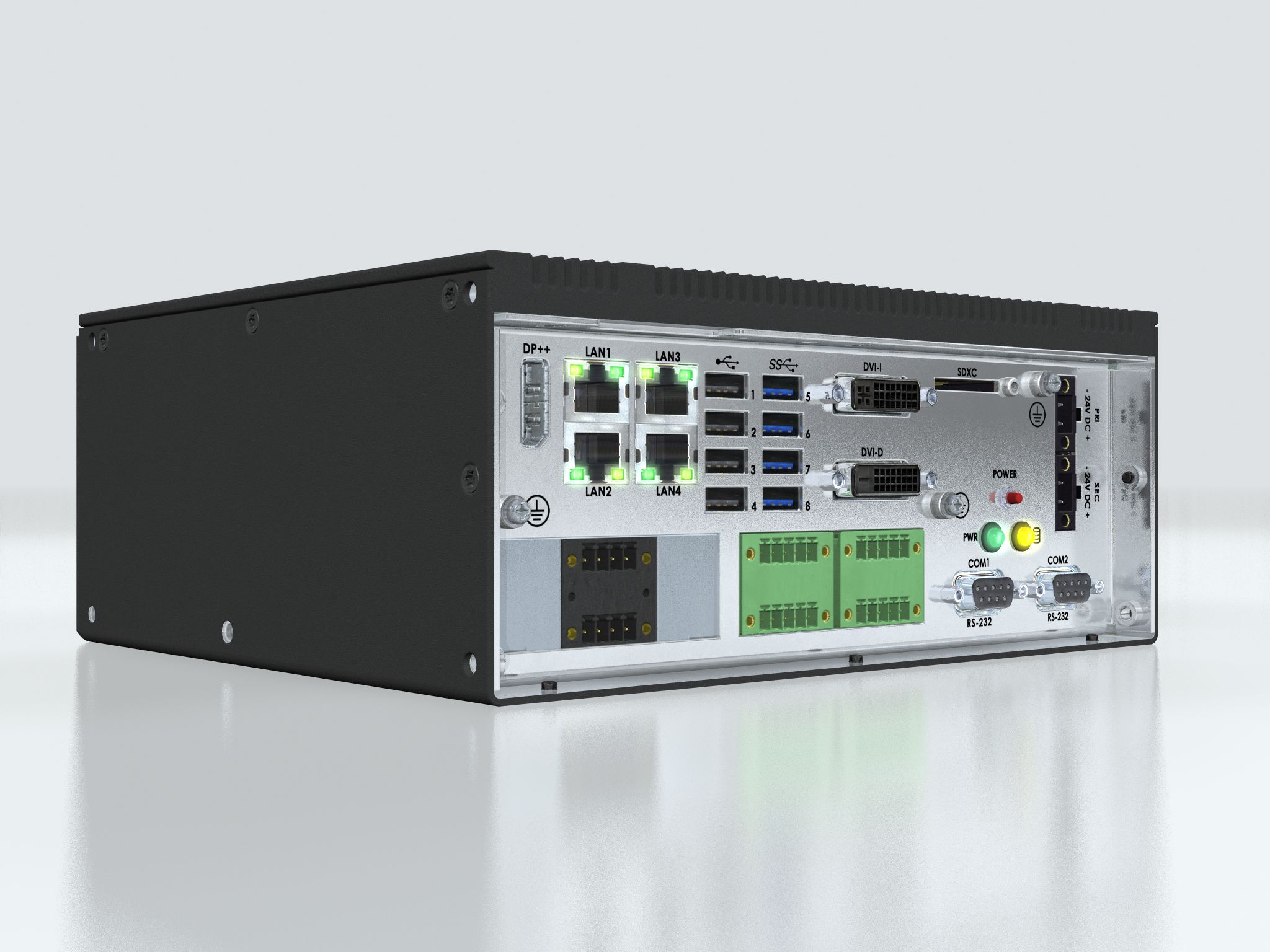

Ethernet Port(s):	2 x RJ-45 10/100/1000Mbps Gigabit LAN (Intel, Teaming Support) 2 x RJ-45 10/100/1000Mbps Gigabit LAN (Realtek, Teaming Support)
USB Port(s):	4 x USB2.0 Type A (<5m) + 4 x USB3.0 Type A (<3m)
Keyboard and Mouse Ports:	None or Option: 1 x PS/2 Keyboard + 1 x PS/2 Mouse
Audio Ports:	None or via Factory Option VSD203134-1
Buzzer:	None
Power Manager and Monitoring:	ACPI S3/S4 - TPM2.0, Temperatures, voltages, Battery load status Alarm&cooling fan status. Auto throttling control if CPU overheats RTC: > 0.5s/day* (requires calibration) Watchdog Timer: 256 Segments, 0, 1, 2...255 sec/min Battery: Normal operational conditions: life time >5 year, worst case conditions(@70C, 24/7): life time >2 year
Power Specifications and Consumption:	Dual 24VDC input, 24V nom., Galvanic isolated: 2 x 2-pin T. Block 5.08 Operating AC&DC: 43W (typ)* - 75W (max) - *At 25% load Max Allowed External USB load = 10W.
Digital I/O Connectors:	None or option: 1 x HT 00268 OPT-A1 (4 x Digital Input/Output isolated) module
Key Features:	Short Depth Model, HDD-Free Solution possible with SSD, Fanless, no moving parts, Aluminium Cooling Chassis w/no apertures, AC Power or Dual DC Power, Compact Form Factor, Includes Mounting Bracket, Flexibility of storage and support wide range of integrated interface modules, Firmware Raid
Product Dimensions and Weight:	W:220.00 [8.66"] x H:89.00 [3.50"] x D:192.00 [7.56"] mm [inch] 2.5kg / 5.5lbs
Product Carton Size and Weight:	L:405.00 [15.94"] x W:184.00 [7.24"] x H:373.00 [14.69"] mm [inch] 4.0 kg / 8.8lbs
User Controls / Activity:	Power (or Reset=optional model) Button, Power LED, Activity LED SSD
Factory Options:	• 1 or 2 x PCA200828-1 (4xCOM RS-422/485 isolated NMEA 4 channel) • 1 x HTA2020002-AD1033 (1 x CAN isolated, 2 channel) module • 1 x HTA2020002-SLCAN (1 x CAN isolated,2 channel,socketCAN) module • 1 x PCA100297-1 (4 x Digital Input/Output isolated) module • 1 x PCA100298-1 (LAN 10/100Mbps, 2 ports (RJ45) module • 1 x VSD203134-1 (2W Amplified Audio out via DB9F) • 1, 2 or 3 x PCA100309-1: Dual Isolated RS-232, 2xDB9M module • Recessed Power Button Option • Recessed Reset Button Option • Reset Button Option • Variations of Storage Devices, RAM Memory and Operating System * Contact us for possible combinations. Review separate datasheet

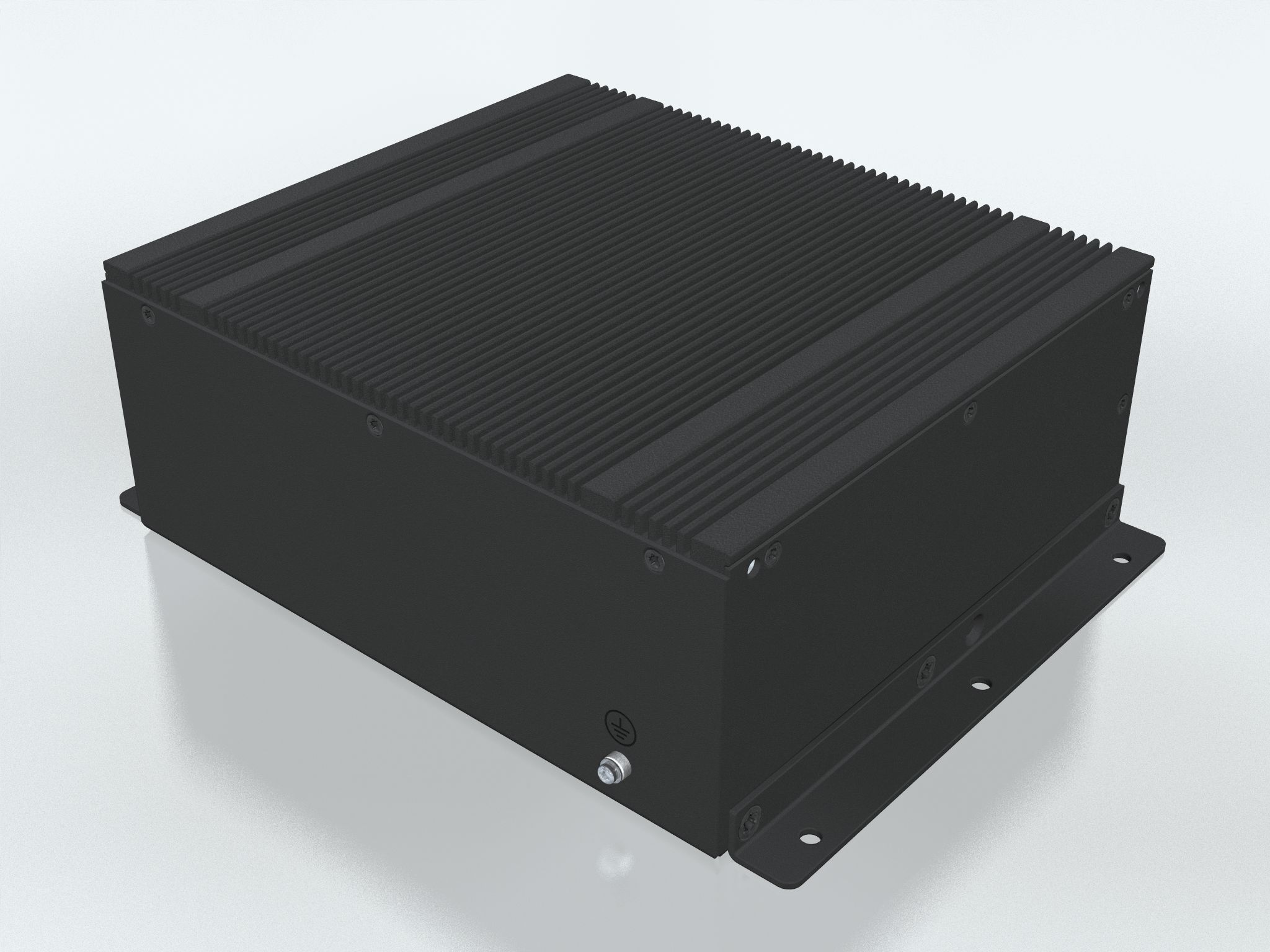

Accessories:	• HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module • HT 00228 OPT-A1: 1 x Mounting Plate with cable relief, RAL9011 • HT MBK STD-A2: 1 x Mounting Bracket Kit* • HT RET STD-A1: 1 x Cable Retainer/Relief Kit* • HT RMK STD-A1: 1 x 2U Rack Mount Kit, RAL9011 • HT RMK STD-H1: 1 x 2U Rack Mount Kit w/Handles, RAL9011 • HT SRK STD-A2: 1 x 3U 19" Slide Rack Mount Kit (For 1 or 2 x HTB30) • SF-41-20: 2 x 20" ball bearing sliding rail kit for 19" Rack* • SF-41-26: 2 x 26" ball bearing sliding rail kit for 19" Rack* • JH C01MF A-A: 1 x USB Cable 1m, Type A/Chassis mount receptacle • HT 00300 MSOS: OS options -> https://www.hattelandtechnology.com/os * Must be combined with HT SRK STD-A2 *** Included with delivery
Capabilities / Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 30.00 [11.81"] - Steering: 25.00 [9.84"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EN55024, EN55022 Class A, EU-RO-MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, BV - Bureau Veritas, KR - Korean Register of Shipping, LRS - Lloyd's Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m

Specifications last updated: April 8, 2025 @ 07:50
