PRODUCT DETAILS

✕

✕
 Marine & Offshore  / Computer  / Rackmount  / HTS41x11

HTS41x11

Overview

Computer - 4U Size - Server - Rackmount

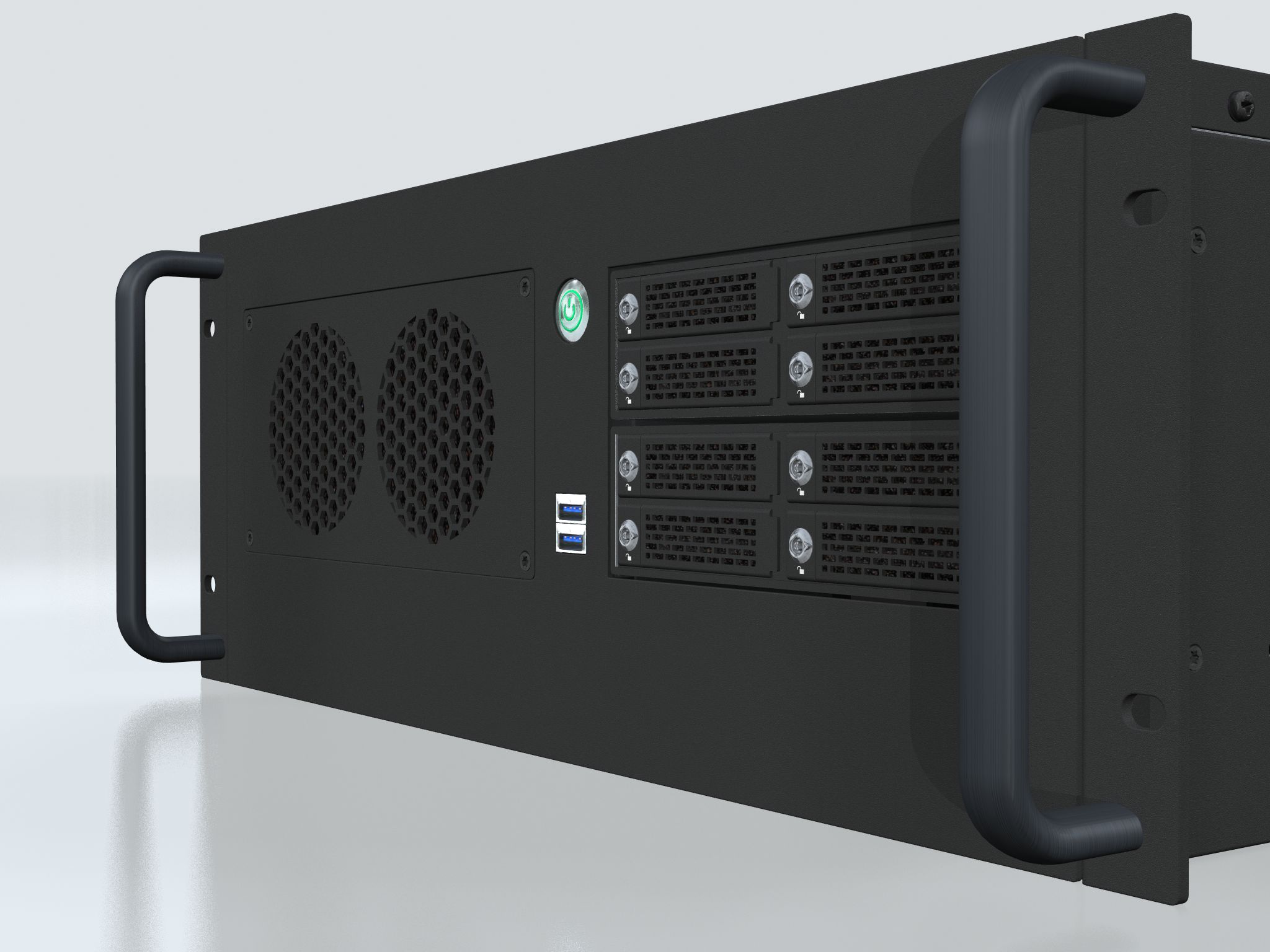

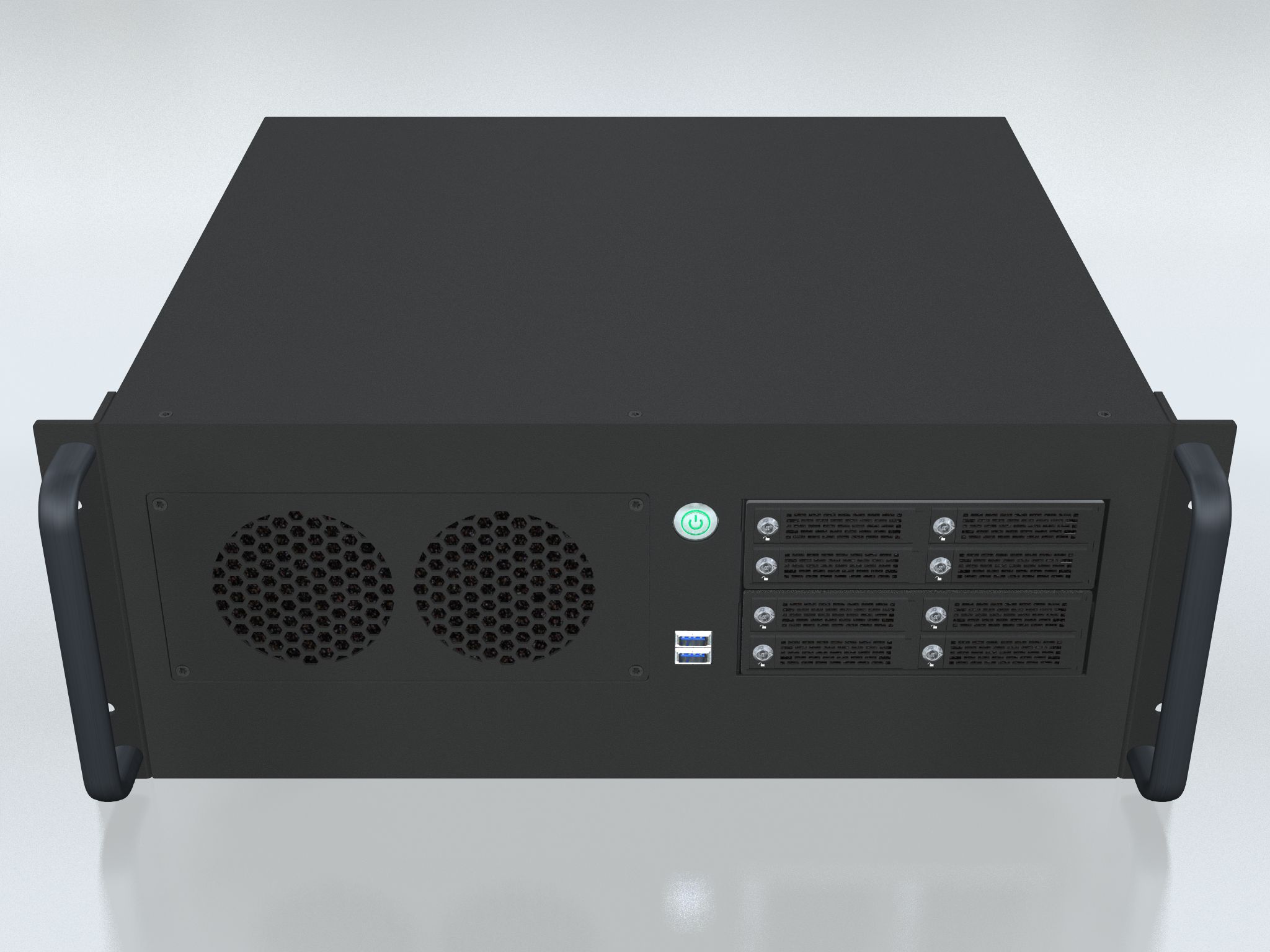

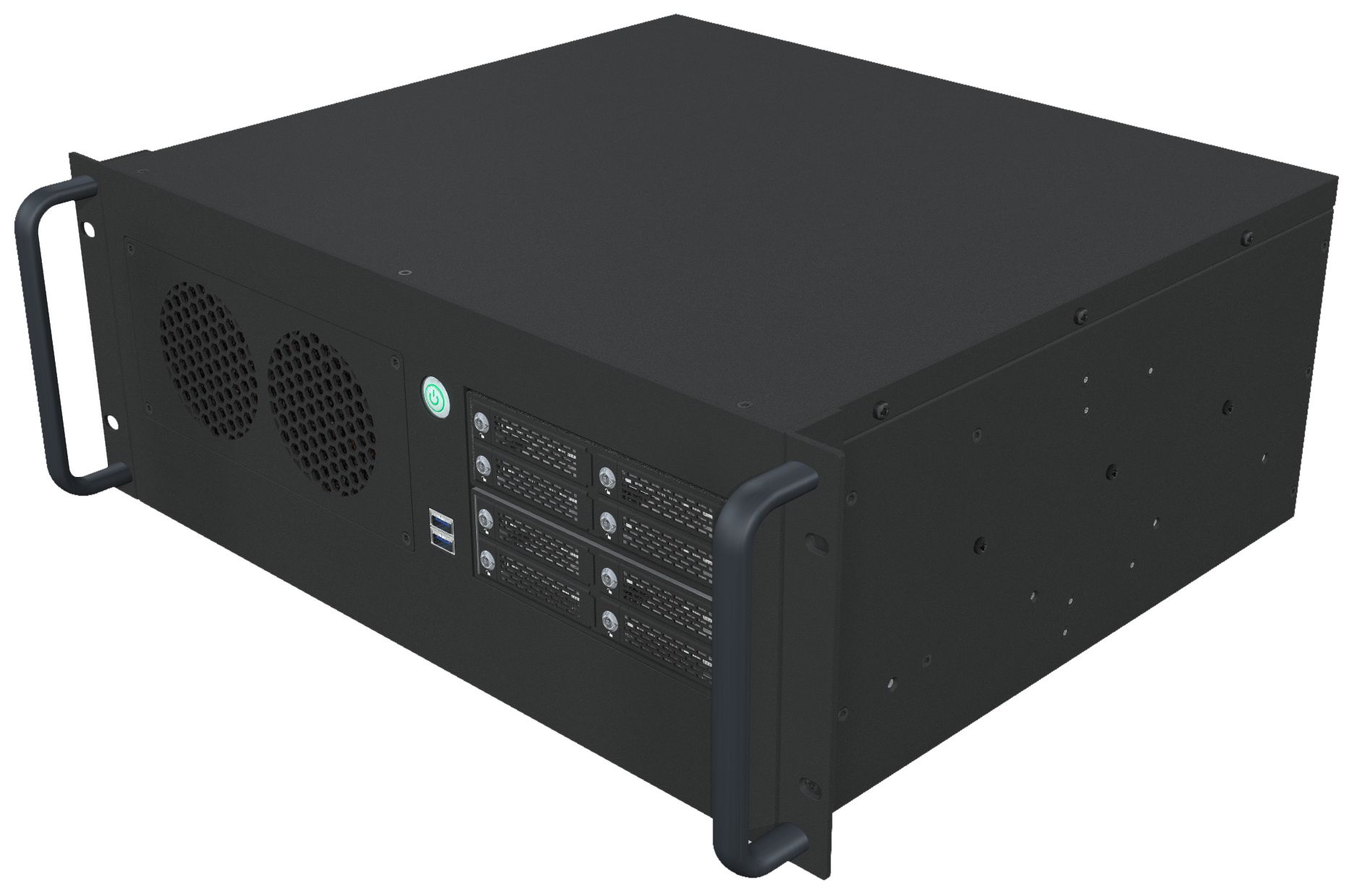

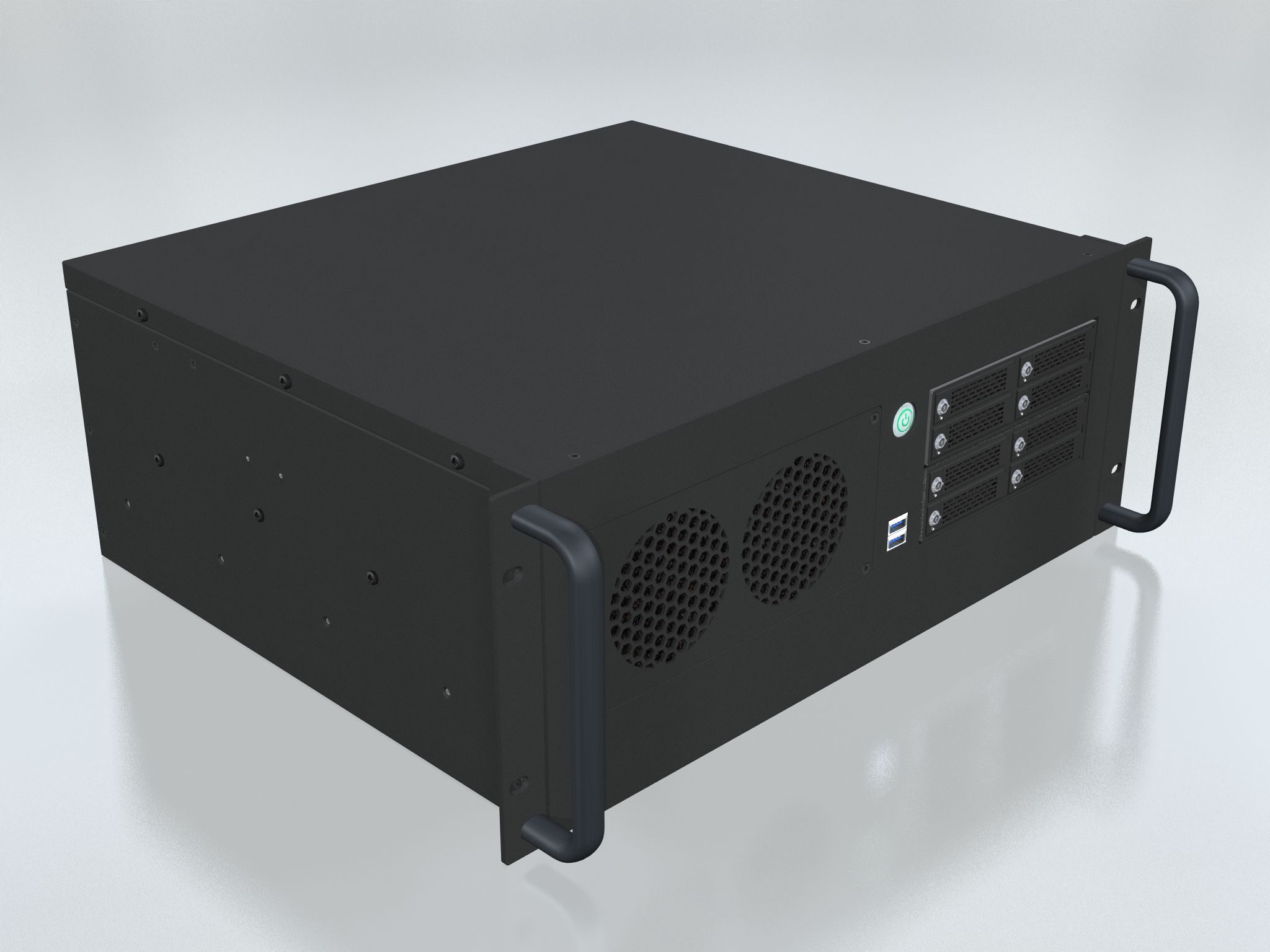

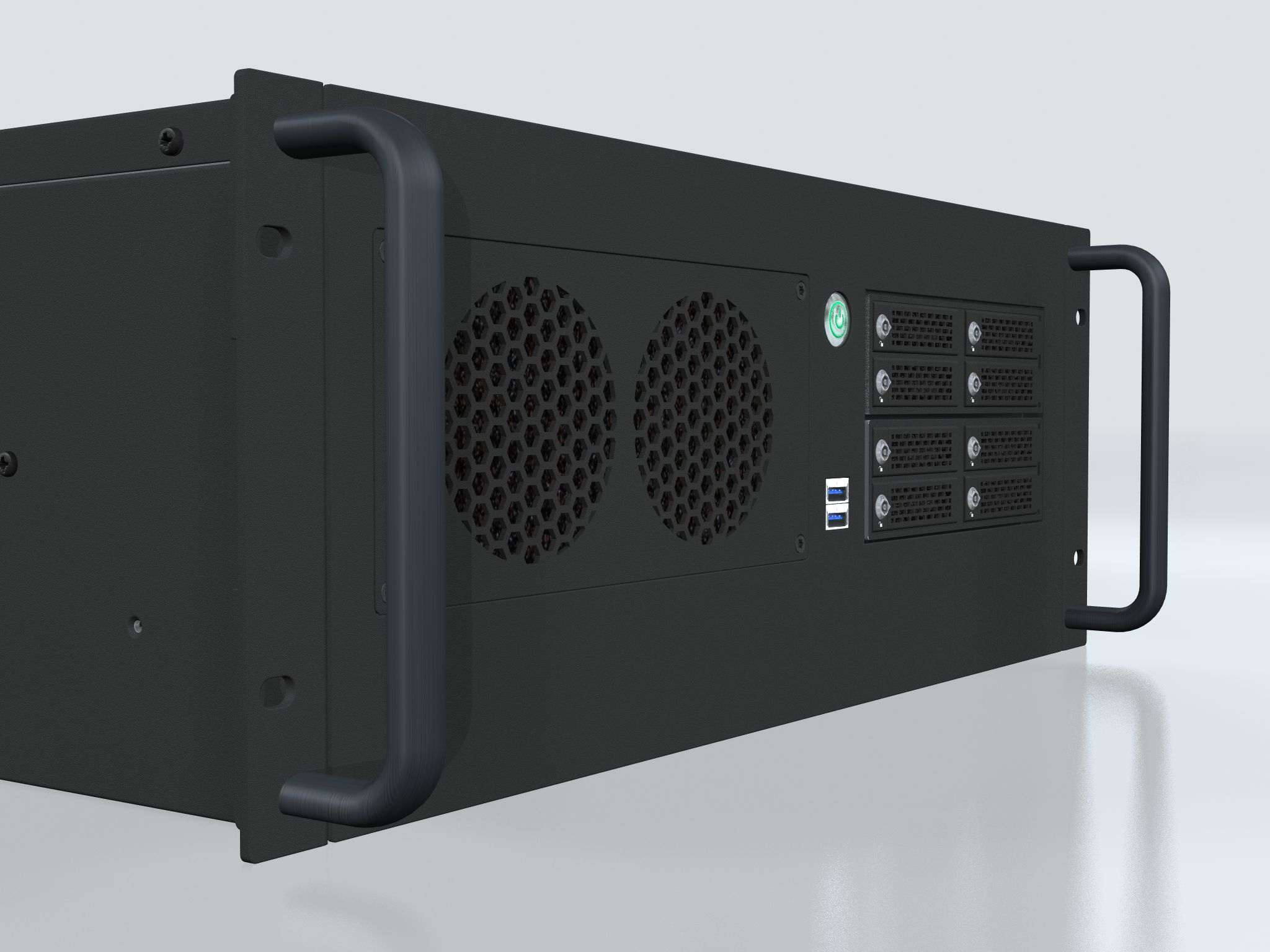

HTS41x11

The HTS41x11 4U series industrial & marine certified 19 rack servers are designed with latest Xeon architecture. A huge variety of I/O such as NMEA 0183 ports, serial interface, USB, Gigabit Ethernet ports, PCIe slots for extensions, High end Nvidia graphics, will fulfill a wide range of industrial and maritime applications.

Supports up to 10 x 2.5 SSD storage devices, Rugged and ready for most critical and harsh installations. Short depth of chassis makes this system perfect for installations where the available space is limited.

icon
4U Size
icon
Server
icon
TPM 2.0
Send Request

Description

Computer - Rackmount

  • High Performance Intel® C622 – Xeon Gold/Silver available

  • Rugged SHORT chassis

  • 19 inch rack 4U and table mount

  • Wide range of approved options for:
    • - Professional Nvidia Graphics Cards
    - Network*
    - COM Ports (RS422/485/232, CAN)
    - Digital I/O
    - Storage

  • Flexible design

  • Fully IEC 60945/IACS E10 tested, DNVGL-CG-0339

    • *10GbE Network functionality is also available onboard or as an additional PCIe 3.0 x16 card with either SFP+ or RJ-45 connectivity.
    Specifications
    Typenumber (Long): HTS41x11-xxxxx-AC xxxxxxx
    Installed Operating System Options: None or Standard OS/Customized image, review datasheet for list.
    Storage Options: Removable Front Tray options:
    4 x 2.5" Front removable with SSD SATA3/SAS 2.5" devices, Intel® SSD 24/7 Datacenter series
    or
    4 x or 8 2.5" Front removable with SSD SATA3 MLC 2.5" devices, Intel® SSD 24/7 Datacenter series
    Processor / CPU and FSB Speed Options: 1 x Intel® Xeon® Gold 6230R Processor** ,26-Core 2.10GHz - 4.00GHz, 35.75MB Cache
    1 x Intel® Xeon® Gold 6230 Processor** ,20-Core 2.10GHz - 3.90GHz, 27.5MB Cache
    1 x Intel® Xeon® Gold 6226R processor** ,16-Core 2.90GHz - 3.90GHz, 22MB Cache
    1 x Intel® Xeon® Silver 4216 Processor* ,16-Core 2.10GHz - 3.20GHz, 22MB Cache
    1 x Intel® Xeon® Silver 4210 Processor*, 10-Core 2.20GHz - 3.20GHz, 13.75MB Cache
    1 x Intel® Xeon® Silver 4215R Processor*, 8-Core 3.20GHz - 4.00GHz, 11MB Cache
    *Max speed for DDR4 memory: 2400Mhz.
    **Max speed for DDR4 memory: 2933Mhz.
    Memory Options: DDR4 RDIMM, 288-pin 1.2V-3200MHz Registred ECC, 32GB memory modules, 8 slots available
    System+Graphics Chipset / Connectors: Intel® C622
    Aspeed AST2500
    1 x VGA
    Max Resolution / Max Hz: 2048 x 1536
    BIOS: AMI UEFI
    PCI Slots / PCIe Slots: 1 x PCIe 3.0 x16
    1 x PCIe 3.0 x16 (x16 or x8)*
    1 x PCIe 3.0 x8 (x0 or x8)*
    1 x PCIe 3.0 x8
    1 x PCIe 3.0 x4 (in x8)
    *If the 2nd PCIe slot is x16 the 3rd slot will be x0, If the 2nd PCIe slot is x8 the 3rd slot will be x8
    Media Drive(s): None or via factory options:
    1 x CST-US777AK9563: Smart card reader
    1 x 90DD01Y0-B20010: DVD-RW/CD-RW
    LPT / Parallel Port: None or via Factory Option SX-118A
    Serial Port(s): 1 x COM (RS-232), DB9M
    Ethernet Port(s): 2 x 10 GBase-T (Intel®)
    USB Port(s): 2 x USB2.0 Rear: 2 x USB Type A
    2 x USB3.0 Rear: 2 x USB Type A
    2 x USB3.0 Front: 2 x USB Type A
    Keyboard and Mouse Ports: None
    Audio Ports: None
    Buzzer: None
    Power Manager and Monitoring: ACPI, Watchdog Timer: 256 Segments, 0, 1, 2...255 sec/min
    Power Specifications and Consumption: 1 x Std IEC inlet: 100-240V AC 50-60Hz (700W Autorange)
    875W (max)

    Optional Power Supply:
    1 x external filter: 100-240V AC 50-60Hz (1200W - Autorange)
    1200W (max)
    Digital I/O Connectors: None
    Key Features: Black (EP0301-4040627) Heavy-duty steel 4U Rackmount chassis with handles, 2 x Internal Cooling fans in front (80x80mm), Easy Removable Front Air Filter (spare part accessory available), Firmware Raid
    Product Dimensions and Weight: W:479.60 [18.88"] x H:177.00 [6.97"] x D:383.00 [15.08"] mm [inch]
    2U Rack size in height.
    Approx 15.0kg / 33.0lbs
    Product Carton Size and Weight: L:610.00 [24.02"] x W:570.00 [22.44" x H:360.00 [14.17"] mm [inch]
    15.0kg / 33.0lbs
    User Controls / Activity: Front: Power Button, Power LED, Activity LEDs SSD
    Factory Options: • NVIDIA T400: PCIe 3.0 x16, 3x mini DP, 4 GB GDDR6
    • NVIDIA T1000: PCIe 3.0 x16, 4x mini DP, 8 GB GDDR6
    • NVIDIA RTX 4000 Ada: PCIe 4.0 x16, 4x DP 1.4a, 20 GB GDDR6 *Pending
    • NVIDIA RTX 5000 Ada: PCIe 4.0 x16, 4x DP 1.4a, 32 GB GDDR6 *Pending
    • X710T2L / X710T2LBLK: Intel® Network Adapter (10GbE), 2 x RJ45
    • I350T4V2 / I350T4V2BLK: Intel® Network Adapter (1GbE), 4 x RJ45
    • X710DA2 / X710DA2BLK: Intel® Fiber Network Adapter (10GbE), 2 x SFP+
    • X710DA4 / X710DA4BLK: Intel® Fiber Network Adapter (10GbE), 4 x SFP+
    • PCA100309-1: Dual Isolated RS-232 module
    • CP-114EL-I ELEK KIT: 4xCOM,PCIe x1,1xDB44F to 4xDB9M isolated, RS-232/422/485)
    • AOM-TPM-9671H: TPM 1.2
    • PCA100309-1: Dual Isolated RS-232 module
    • PCA200828-2: COM RS-422/485 isolated module, NMEA 4 channel
    Accessories: • HT 00225 OPT-A1: 2 x 26" ball bearing sliding rail & mounting kit for 19" Rack
    • HT 00224 OPT-A1: 2 x 20" ball bearing sliding rail & mounting kit for 19" Rack

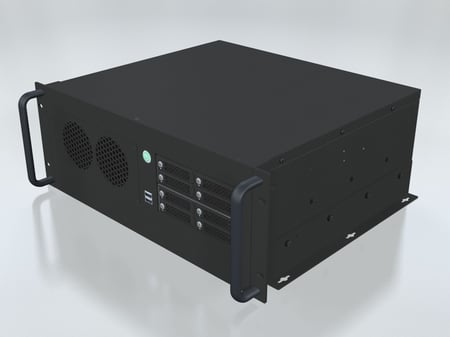

    • HT MBK STD-G1: 1 x Mounting Bracket Kit for HTS31xxx and HTS41xxx - L-Shaped
    • E10GSFPSR: 1 x Intel® Ethernet SFP+ Sr Optics
    • E10GSFPSRX: 1 x Intel® Ethernet SFP+ Sr(x) Optics
    • E10GSFPLR: 1 x Intel® Ethernet SFP+ LR Optics
    • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB external module
    • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB external module
    • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB external module
    • HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module
    • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB external module
    • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB external module
    • QSP-MINIDP/DPV3: DP adapter for Nvidia Graphics Card
    • ZA-A390: Mini DP to DVI(female)
    • ZA-A391: Mini DP to HDMI(female)
    Capabilities / Prepared for: See factory options
    Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
    Storage Temperature: -20.0°C / -4.0°F to 70.0°C / 158.0°F, Humidity up to 95%
    Compass Safe Distance: Standard: 300.00 [118.11"] - Steering: 180.00 [70.87"] cm [inch]
    Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition by DNV, ABS - American Bureau of Shipping, CCS - China Classification Society, KR - Korean Register of Shipping, BV - Bureau Veritas, ClassNK - Nippon Kaiji Kyokai, KR - Korean Register of Shipping, LRS - Lloyd's Register of Shipping

    Shock: 5g/11ms
    Vibration: 0.7g (IEC 60945 / IACS E10)
    Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
    Specifications last updated: June 3, 2025 @ 10:21
    Type Approvals
    Downloads
    Accessories

    Latest Product Updates

    Engineering Change Notifications (ECN):
    7 Jan 2025
    Graphic card NVIDIA T400 4GB and T1000 8GB used in Hatt...

    1 Nov 2024
    Graphic card A2000, A4000 and A5000 used in Hatteland T...

    28 Oct 2024
    Changes packaging marking with UKCA symbol - all produc...

    25 Oct 2023
    Graphic card A2000 6GB used in Hatteland Technology Com...

    10 Sep 2023
    CAN FW Update

    7 Aug 2023
    Changes product marking - all products

    23 Jun 2023
    CAN FW Update

    30 Jun 2022
    SSD - Storage Devices, m.2 and 2.5''

    5 Nov 2021
    Graphic Cards (factory options) used in Hatteland Techn...

    2 Nov 2021
    Intel® Ethernet Network Adapter used in Hatteland Techn...

    20 Oct 2021
    Default adapter kit removed from standard delivery

    News Stories:
    2 Jul 2021
    Official Product Launch

    3 Jun 2021
    Product released to website
