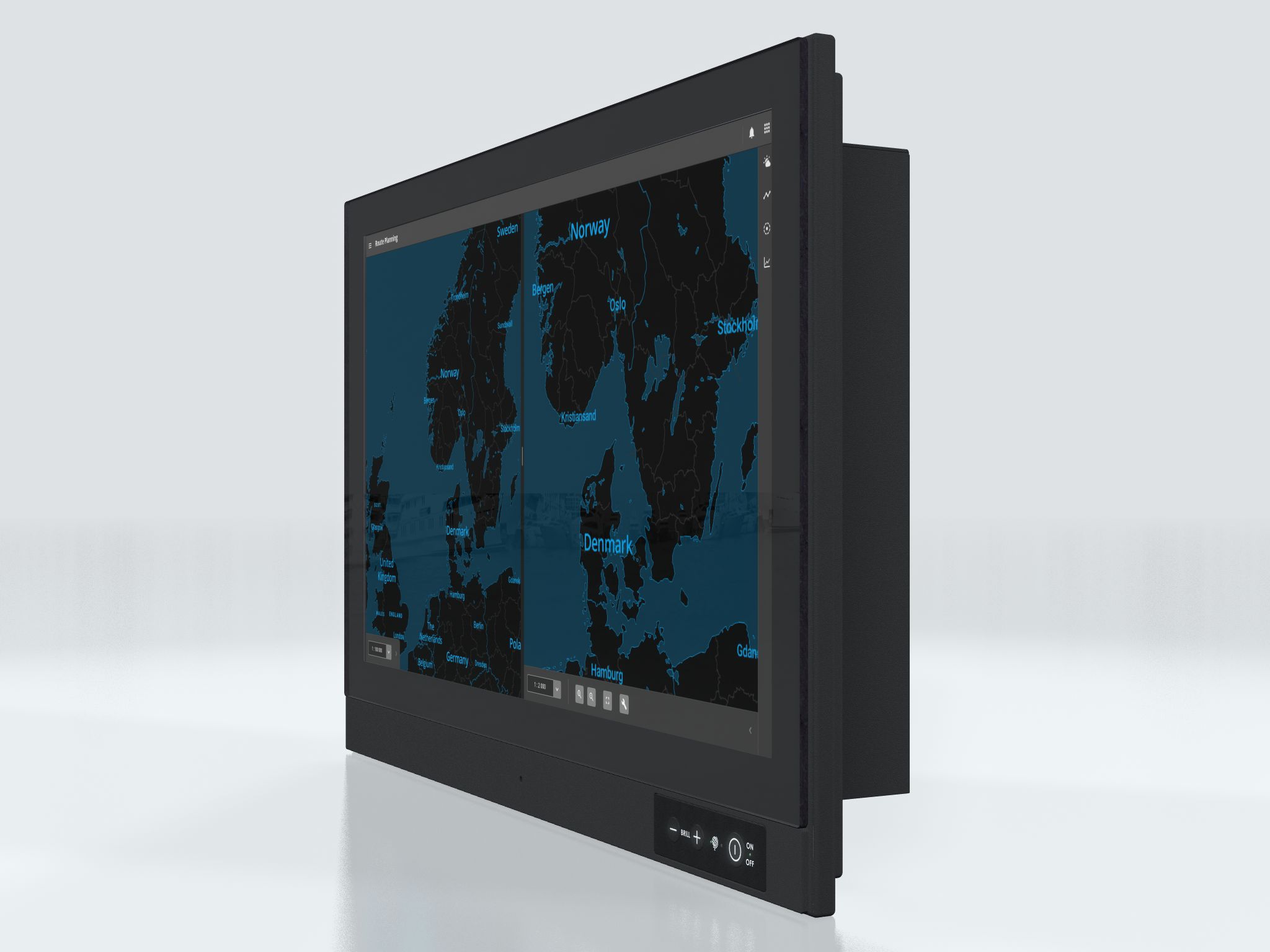

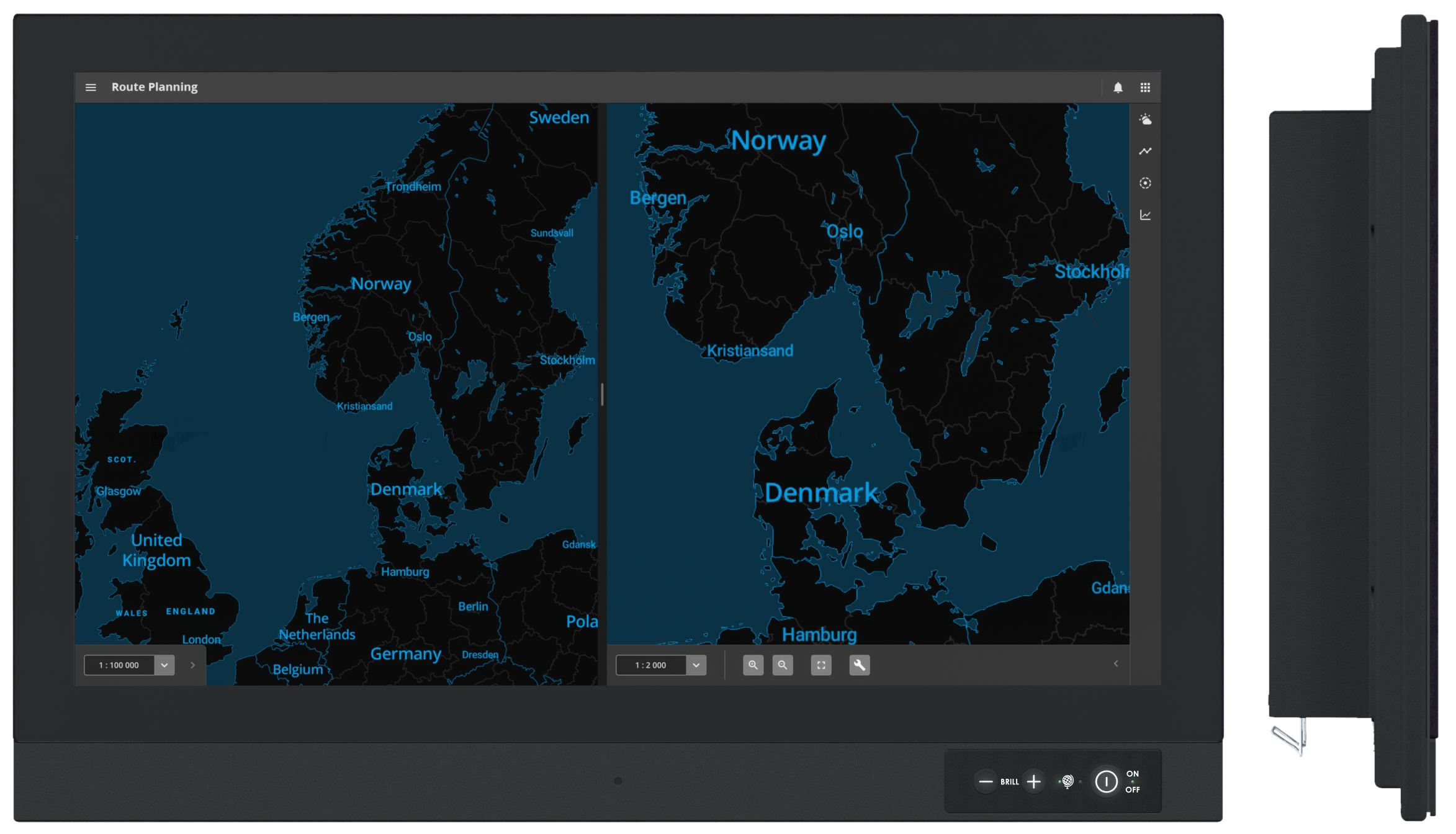

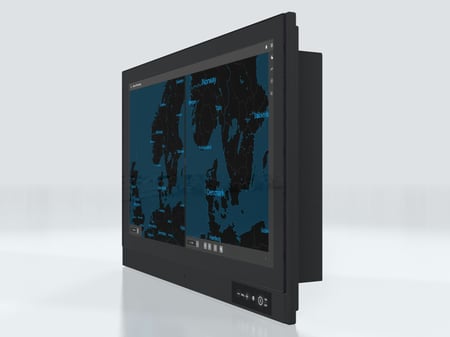

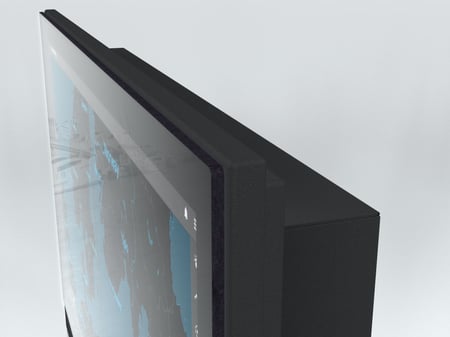

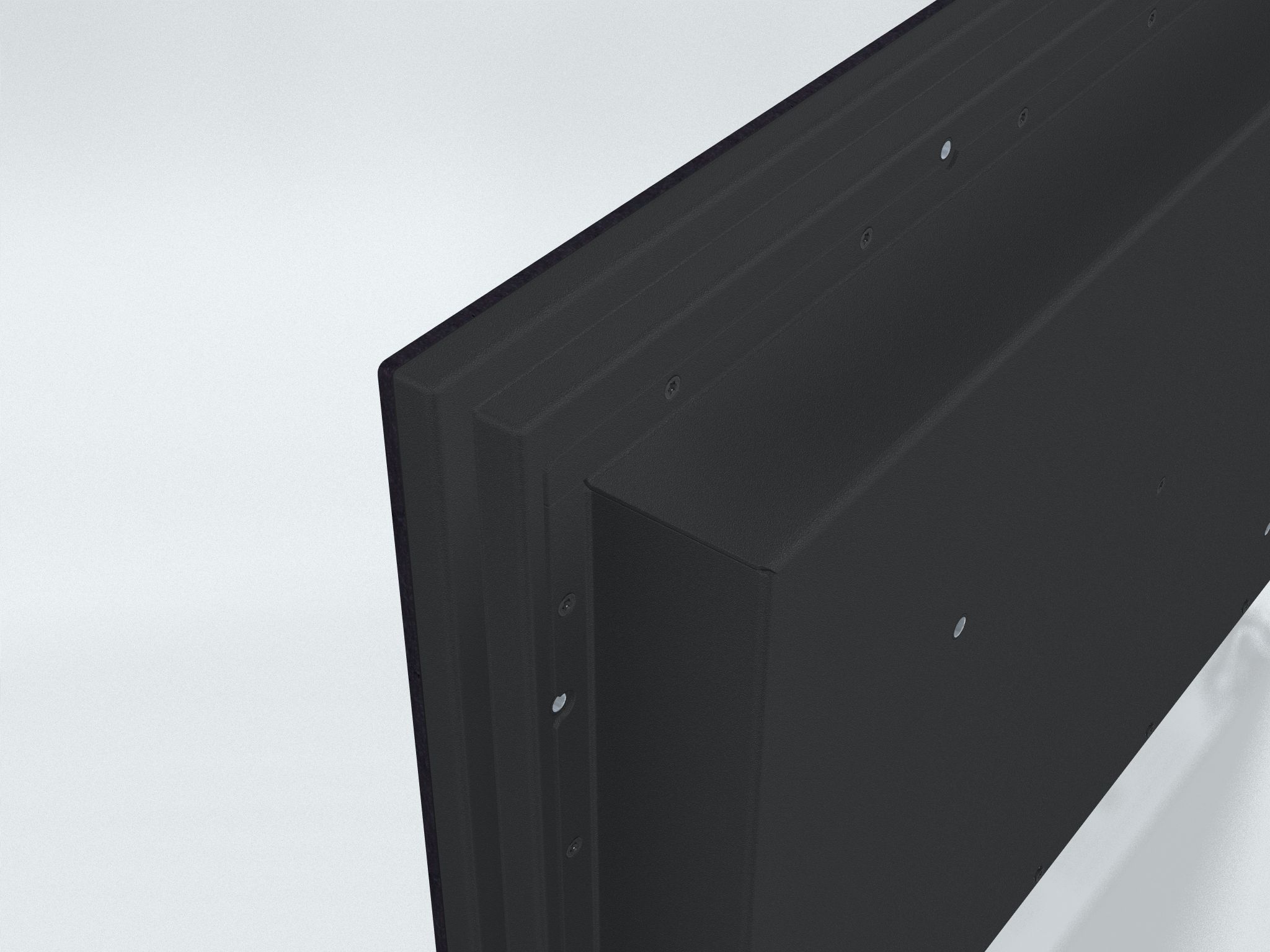

Monitor - HATTELAND® Series E

The HATTELAND® Single Cable Monitors (SCM) delivers a reliable all-in-one solution for diverse maritime applications and enables tangible cost savings for maritime technology and equipment manufacturers as well as systems integrators.

The integrated nature of HATTELAND® Single Cable Monitors (SCM) enables tangible cost savings for maritime technology and equipment manufacturers as well as systems integrators. The portfolio features a range of monitor sizes, new USB-C interface technology which carrying DP, power and USB signals, Daisy chain capability, which enables single cable operation. Providing full flexibility to integrate the highest quality monitors in a wider range of maritime technology. Especially suited to developing new bridge solutions, the units make it possible to continue improving safety and efficiency through safe navigation, while still retaining focus on quality and cost.

The units also meet the same extreme quality standards as the proven Series X monitor range and feature LED Backlight Technology, full dimming (0-100%) all as standard. In addition there are options such as USB-C PD Sink, Multi-Power (AC/DC) inputs, Single AC and DC input. The product range can also accommodate and combine multi-touch screen and optical bonding. By factory default the unit is ECDIS Compliant.

TFT Technology:	TFT Liquid Crystal Display module, VA (Vertical Alignment), a-si TFT Active Matrix, Widescreen, LED Backlight Technology
Viewable Size and Active Area:	21.5 inch - 476.064 [18.74''] (H) x 267.786 [10.52''] (V) mm [inch]
Native Resolution and Pixel Pitch:	1920 x 1080 (FHD) - 0.24795 (H) x 0.24795 (V) mm
Aspect Ratio and Response Time:	16:9 - 25ms (tr+tf) (typ)
Light Intensity and Contrast Ratio:	250 cd/m² (typ) - 3000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7M colors (RGB 8-bit)
Optimal Resolution and Hz:	1920 x 1080 @ 60 Hz
Detectable Resolutions:	• VGA: 640 x 480 (including 640 x 350) • SVGA: 800 x 600 (including 720 x 400) • XGA: 1024 x 768 • SXGA: 1280 x 1024 • UXGA: 1600 x 1200 • FHD: 1920 x 1080 [2] [2] Recommended for optimal picture quality [2] USB- C PD Supports DisplayPort signal - up to 1920 x 1080 (FHD)
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	USB-C PD/DP Display, LED Backlight Technology, Full Dimming 100%, Low Power Consumption, Daisy Chain (MST) Capability
Power Specifications and Consumption:	• Multi-Power Option: 100-240V AC - 50/60Hz + 24VDC • Single AC Power Option: 100-240V AC - 50/60Hz • Single DC Power Option: 12-24VDC • USB-C PD Sink: 20VDC/3A (Requested) • AC+DC: 26W (typ) - 38W (max) • AC: 26W (typ) - 38W (max) • USB-C PD SINK: 26W (typ) - 38W (max)

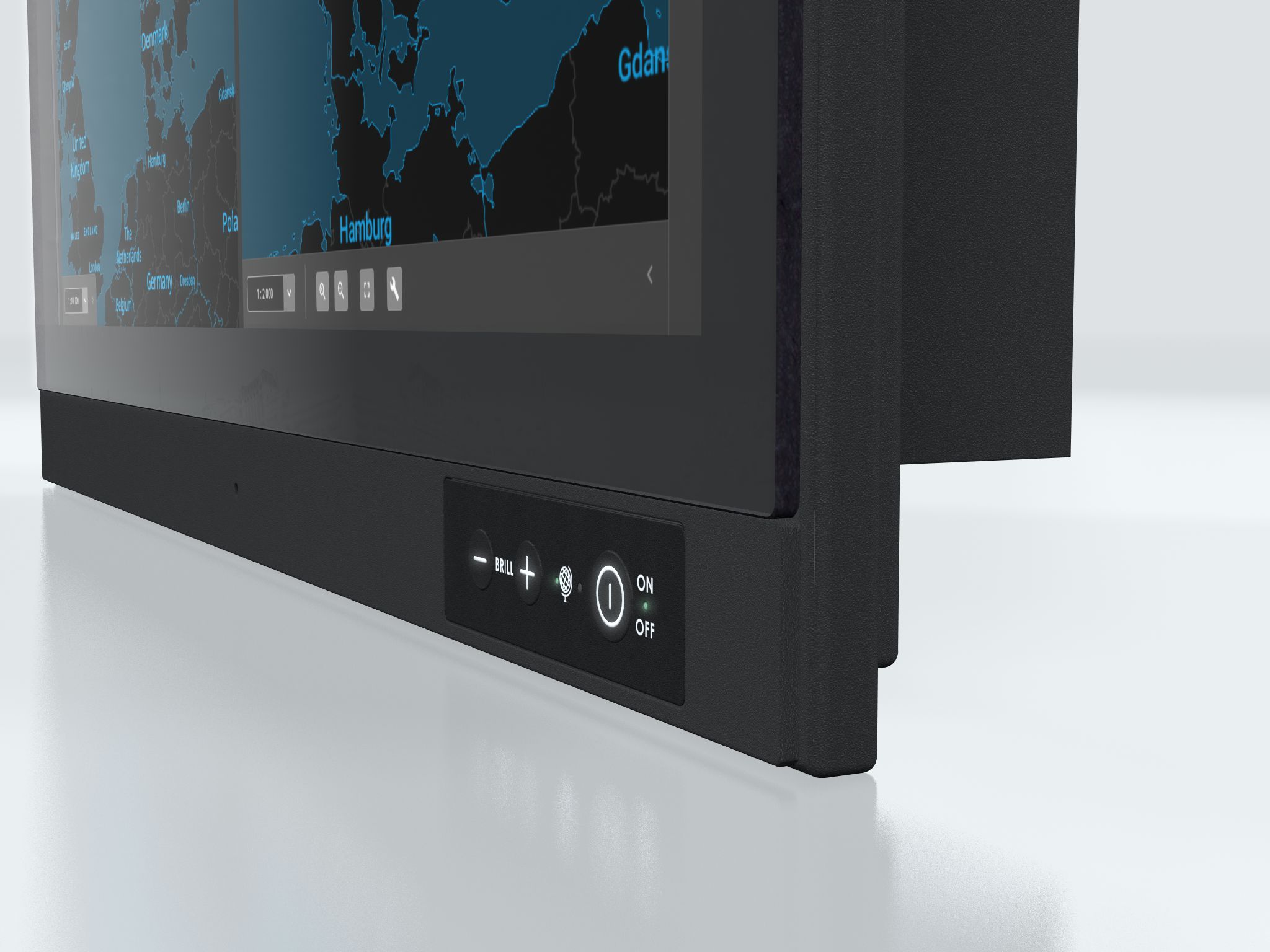

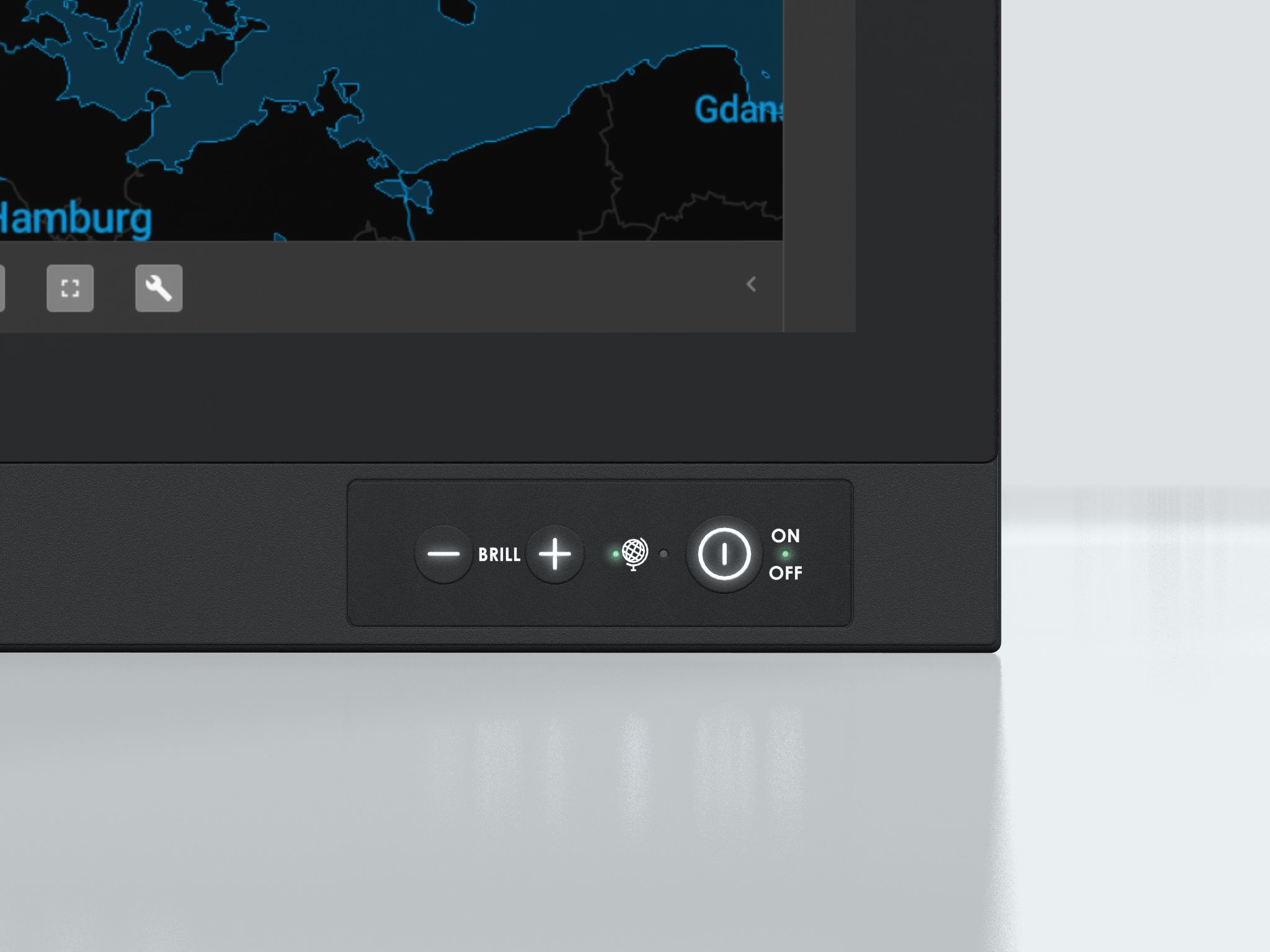

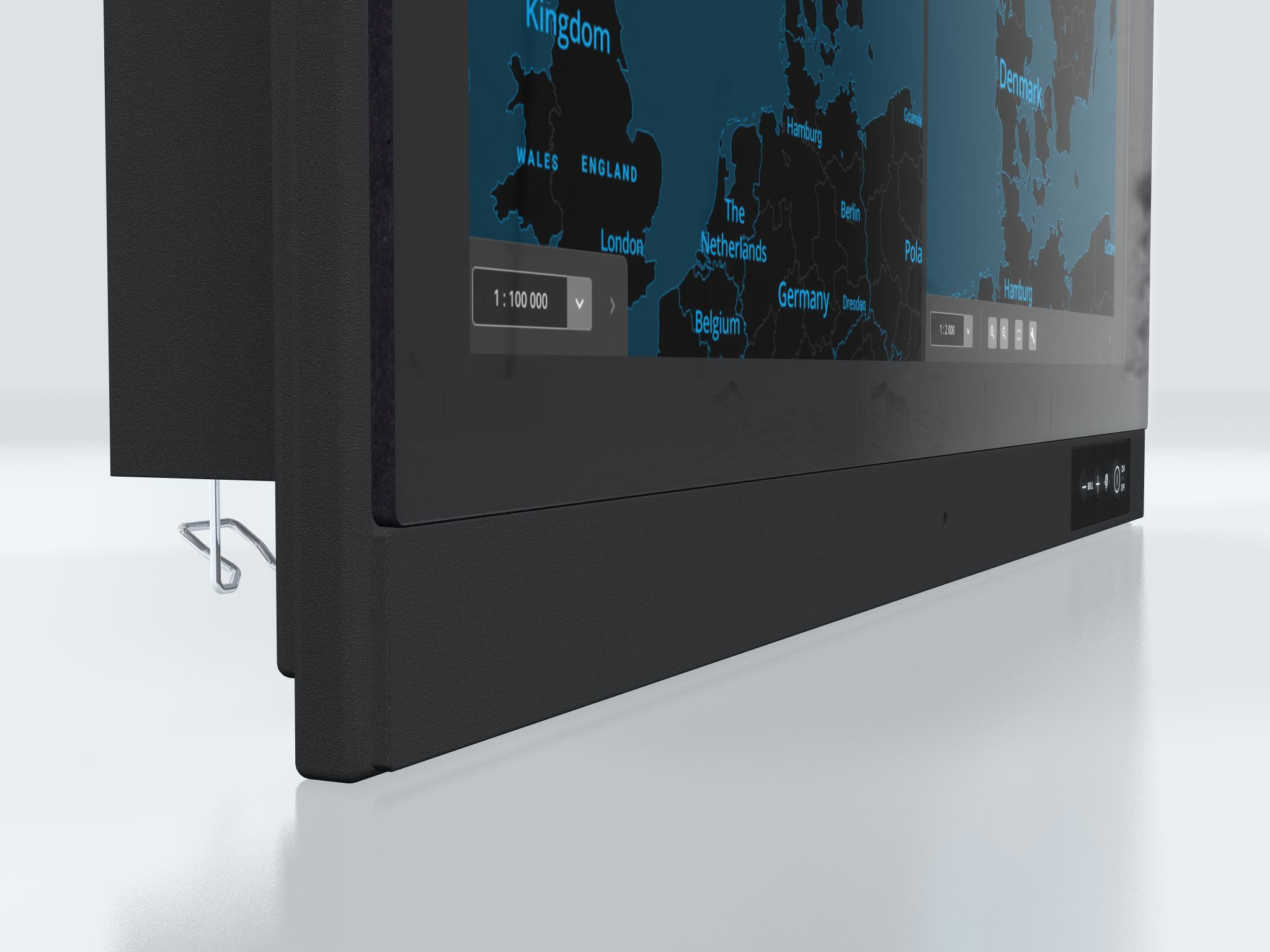

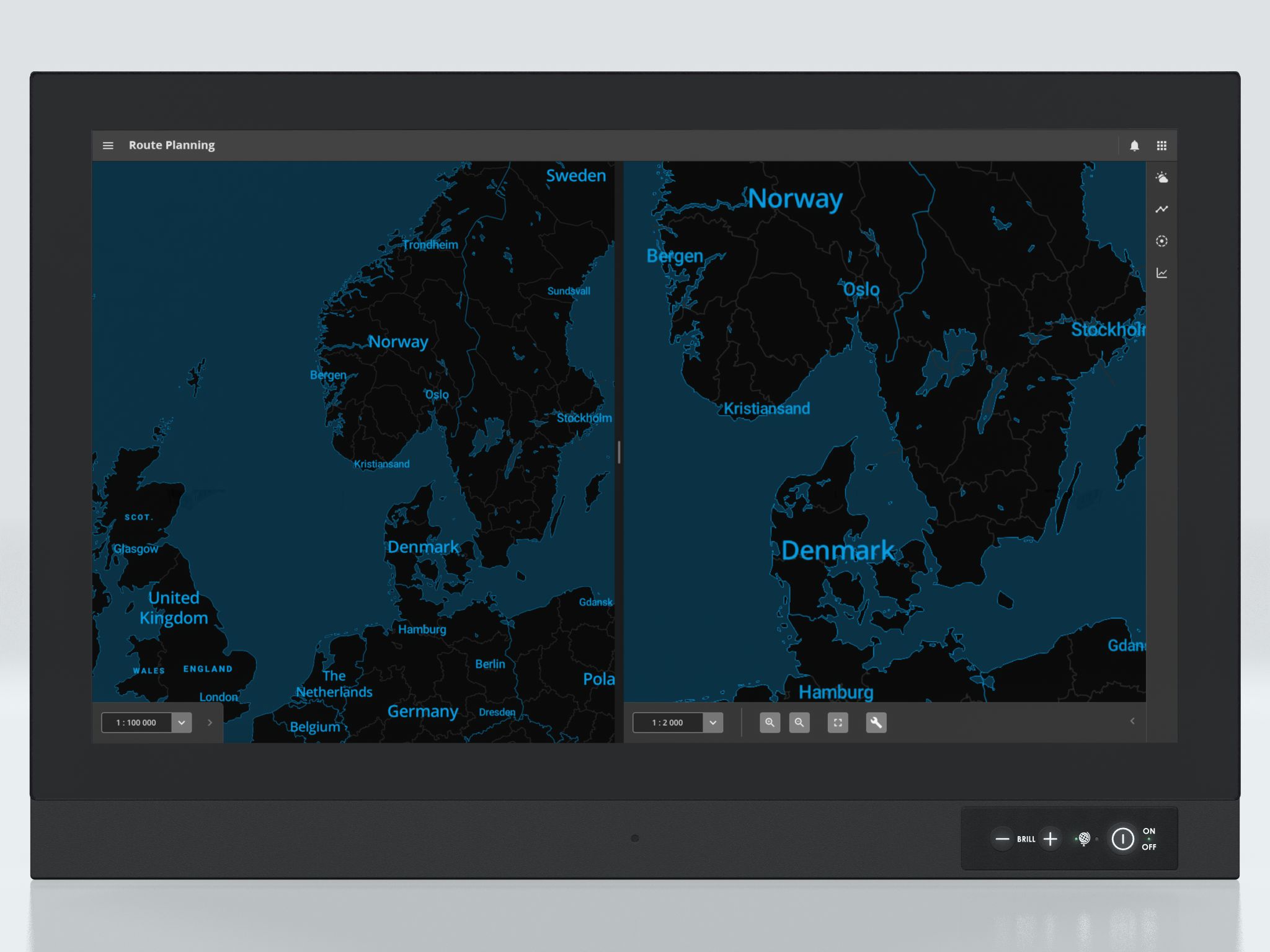

User Controls and Activity:	On front bezel IP66: • Power On/Off, Brightness Control (-/+), Power LED, ECDIS LED, Buzzer Remote Control: • DDC/CI over DP (over USB-C) • SCOM over DP (over USB-C)

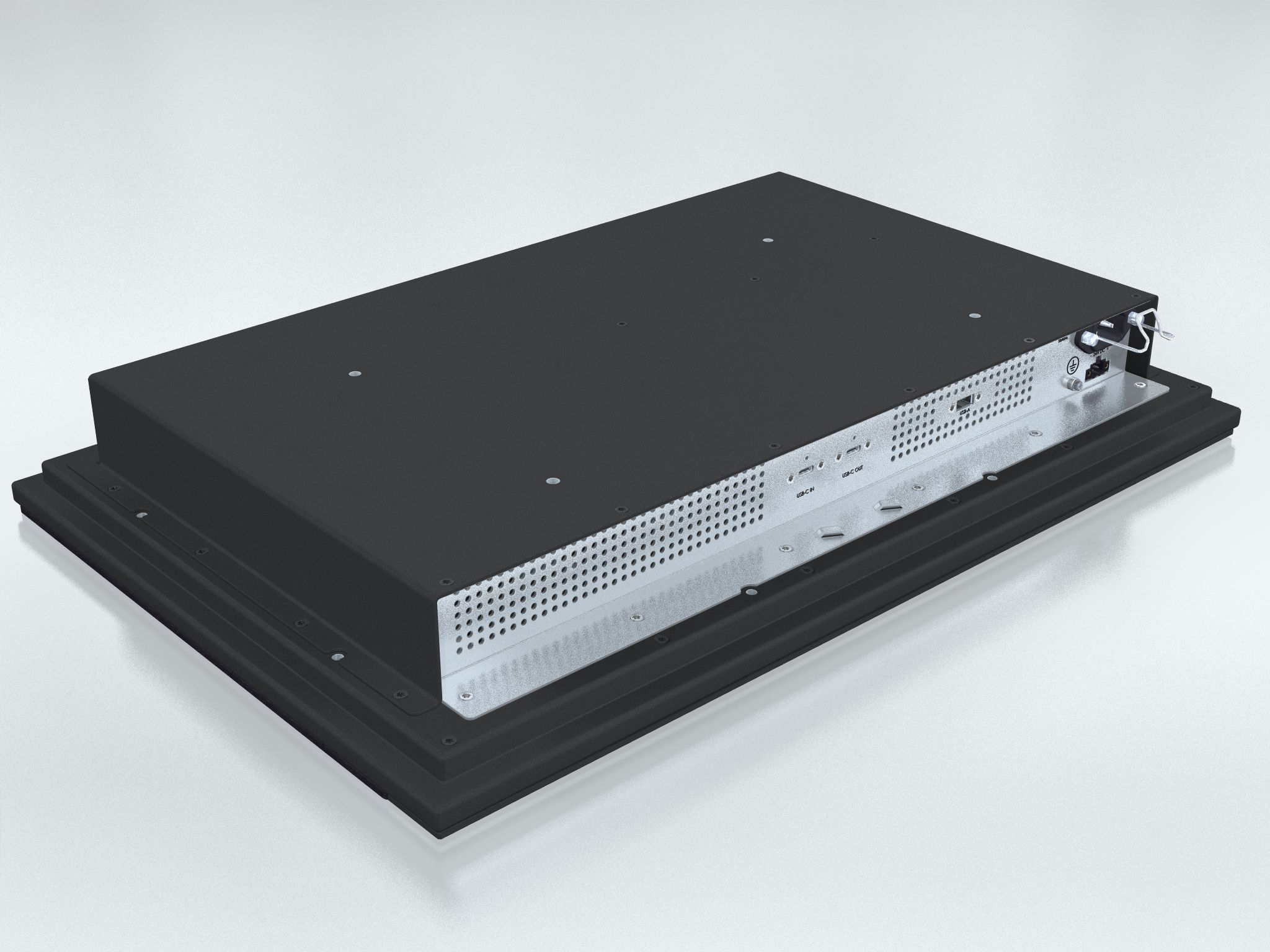

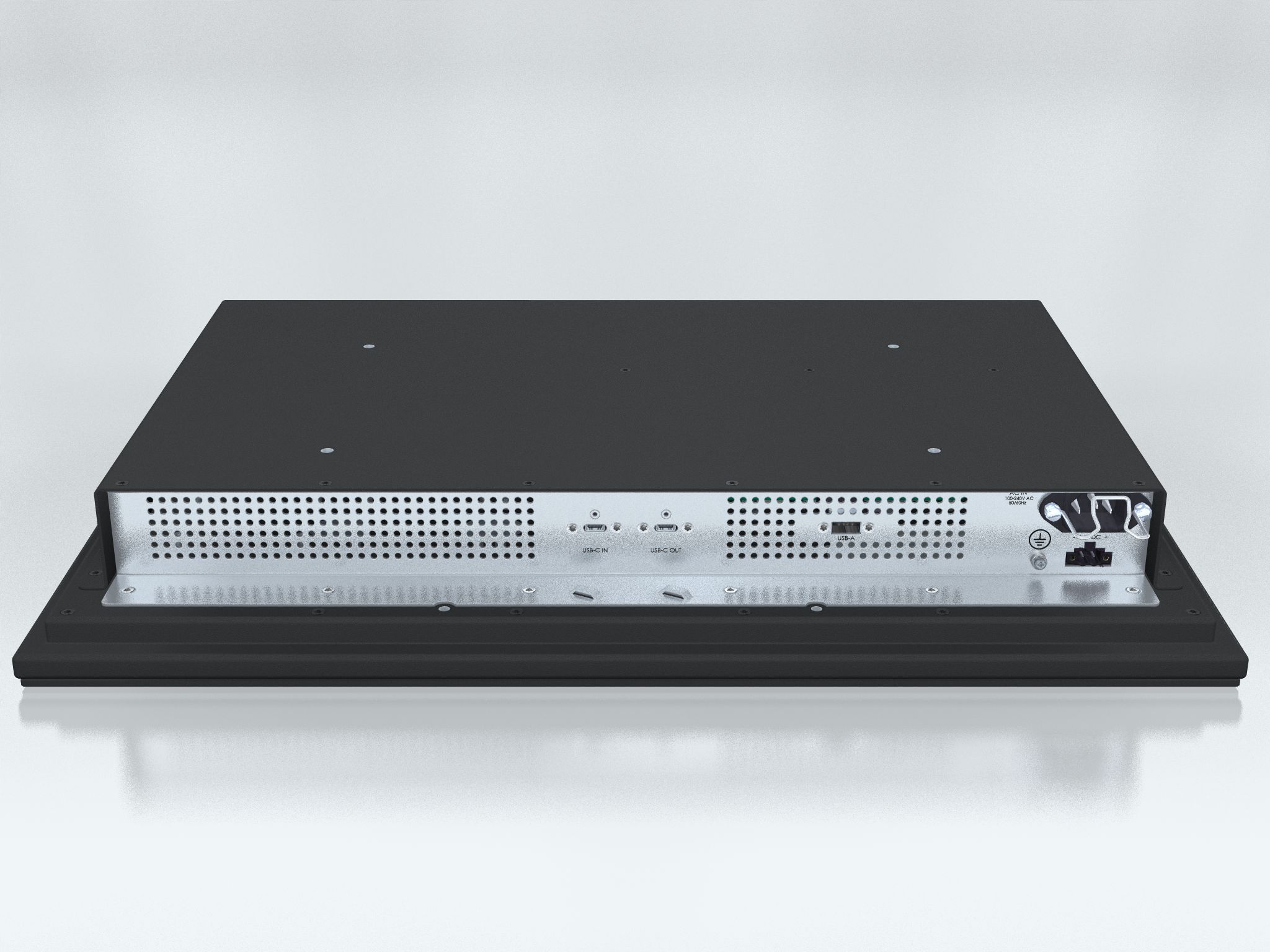

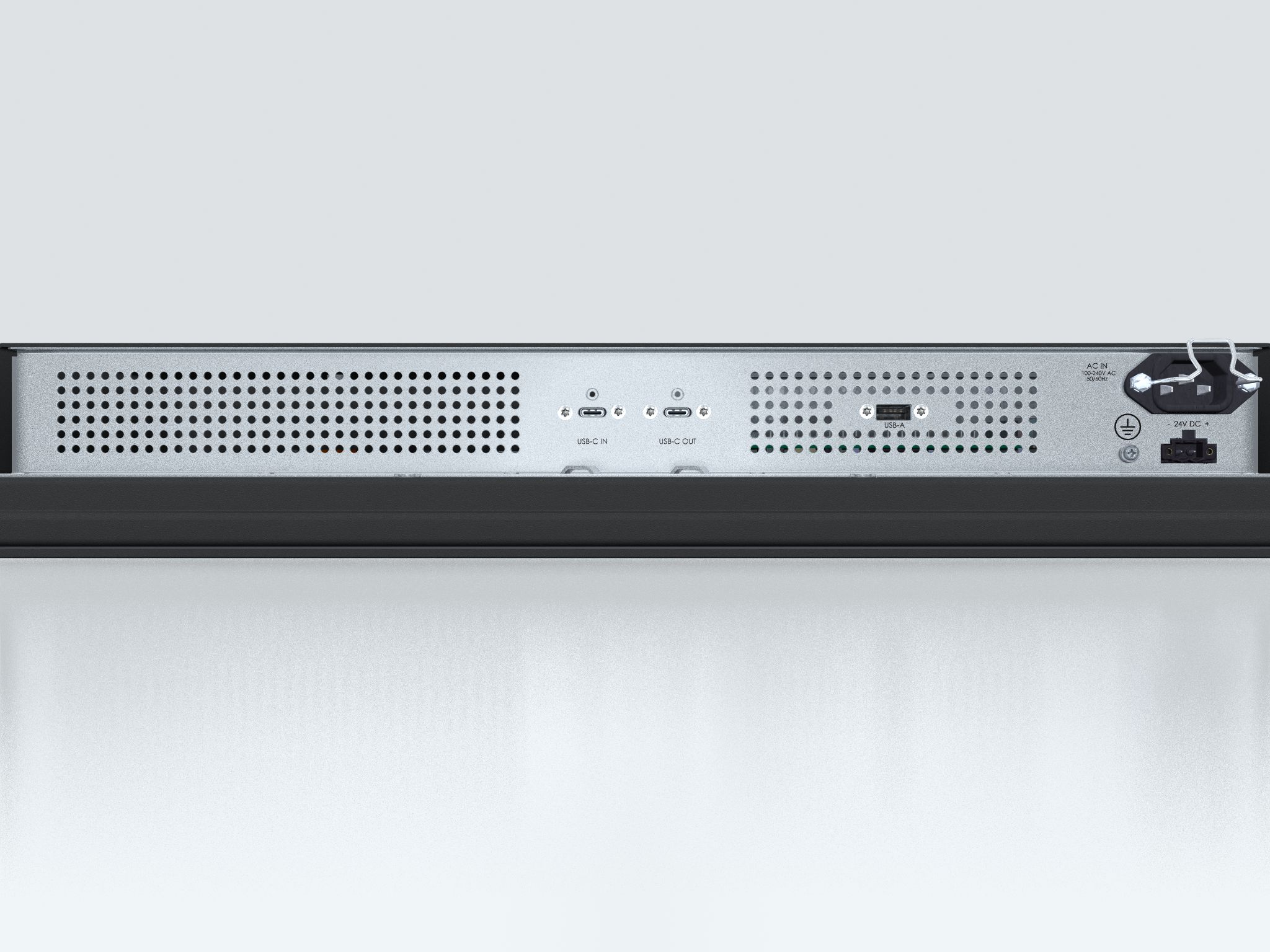

Connectors:	• USB-C Input: 1 x USB-C Female with DP, power (sink) and USB2.0 • USB-C Output: 1 x USB-C Female with DP and USB2.0 • USB 2.0 Input: 1 x USB 2.0 Host Type A Female • If AC Power: 1 x Std IEC inlet • If DC Power: 1 x 2-pin Terminal Block 5.08

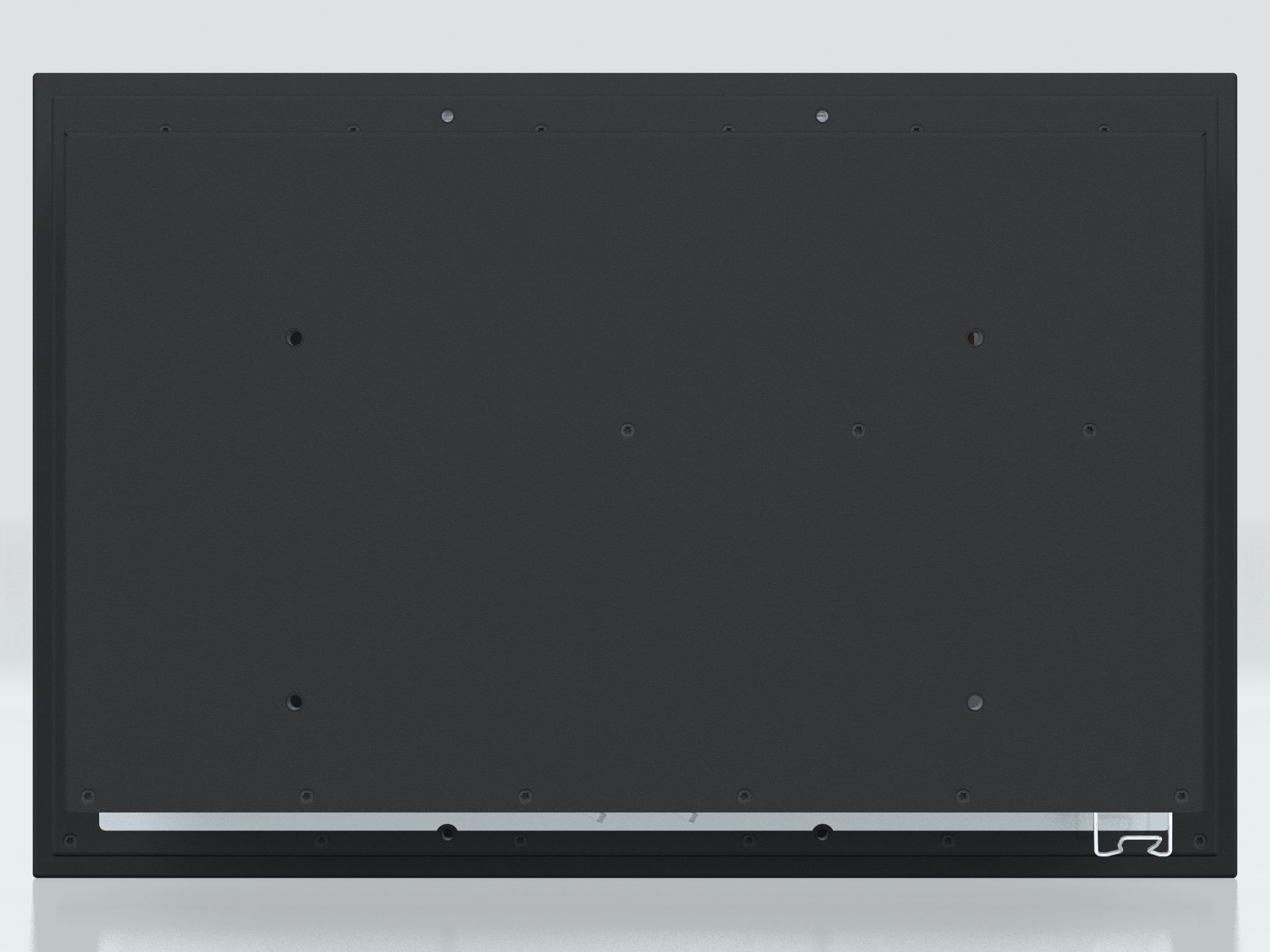

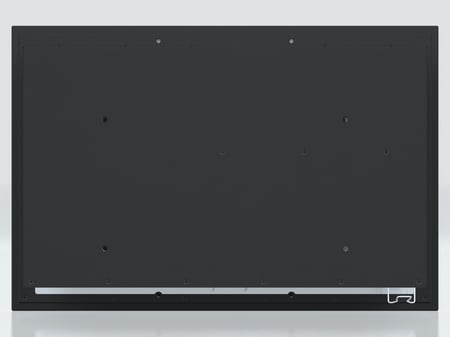

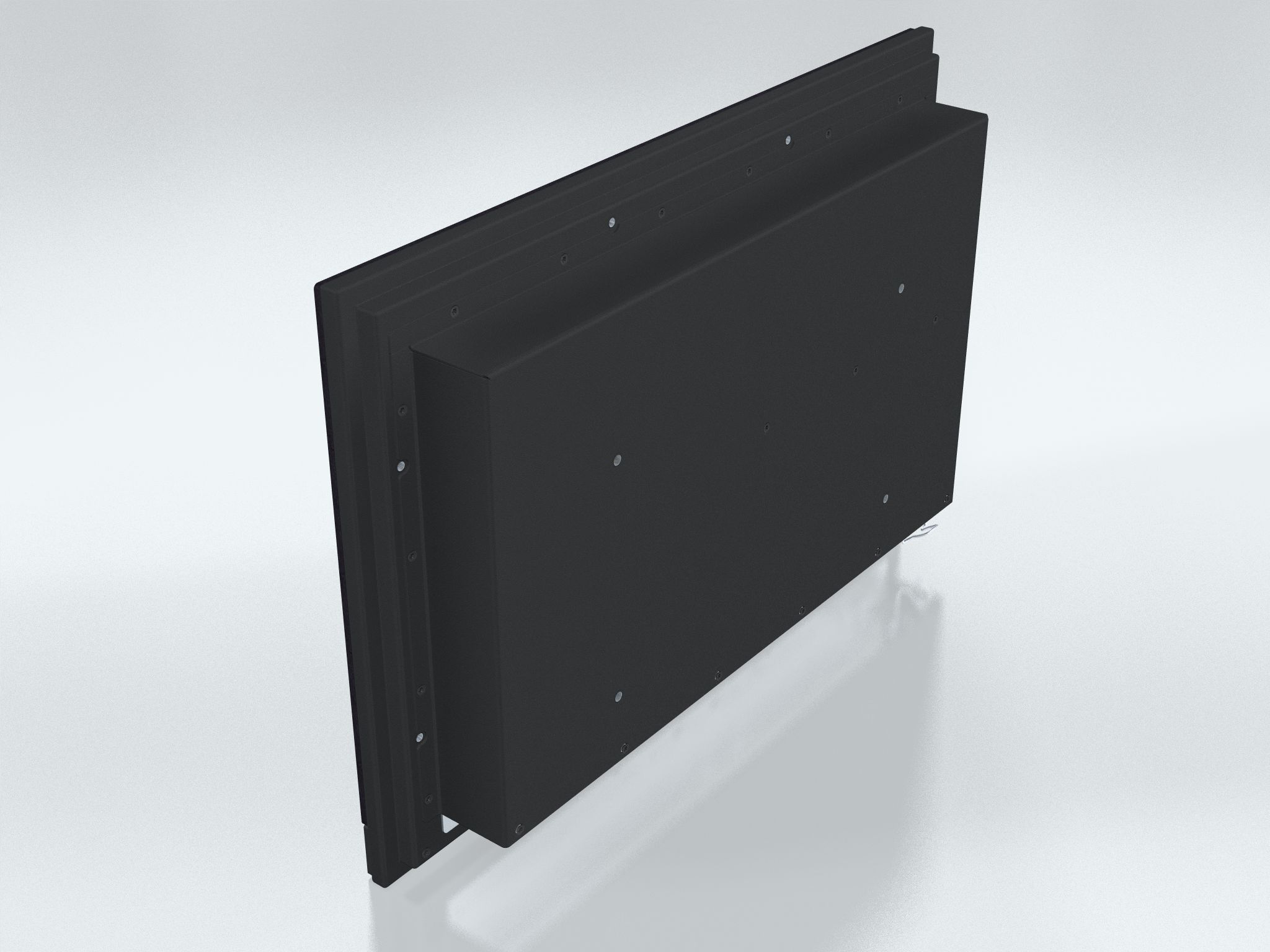

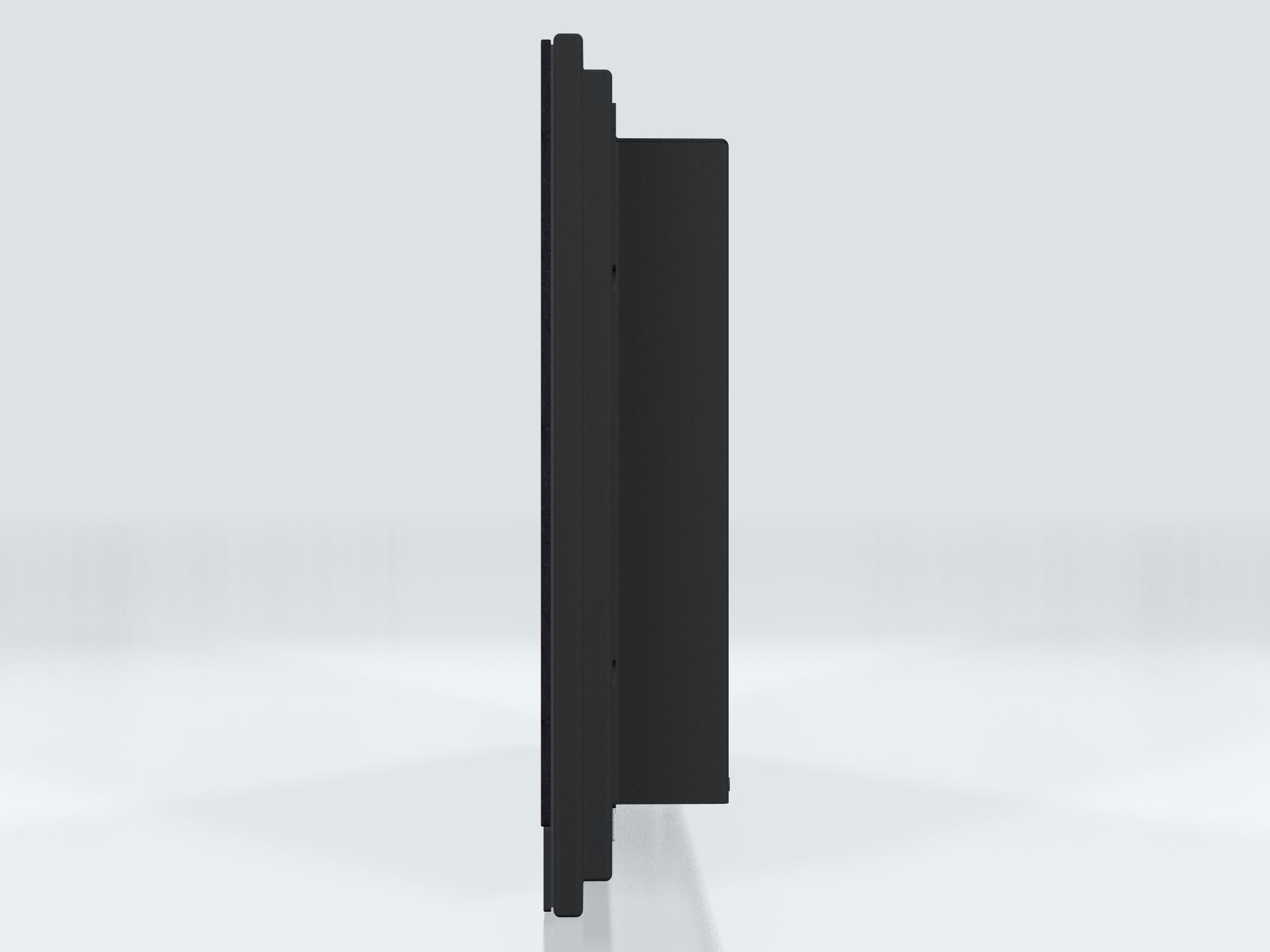

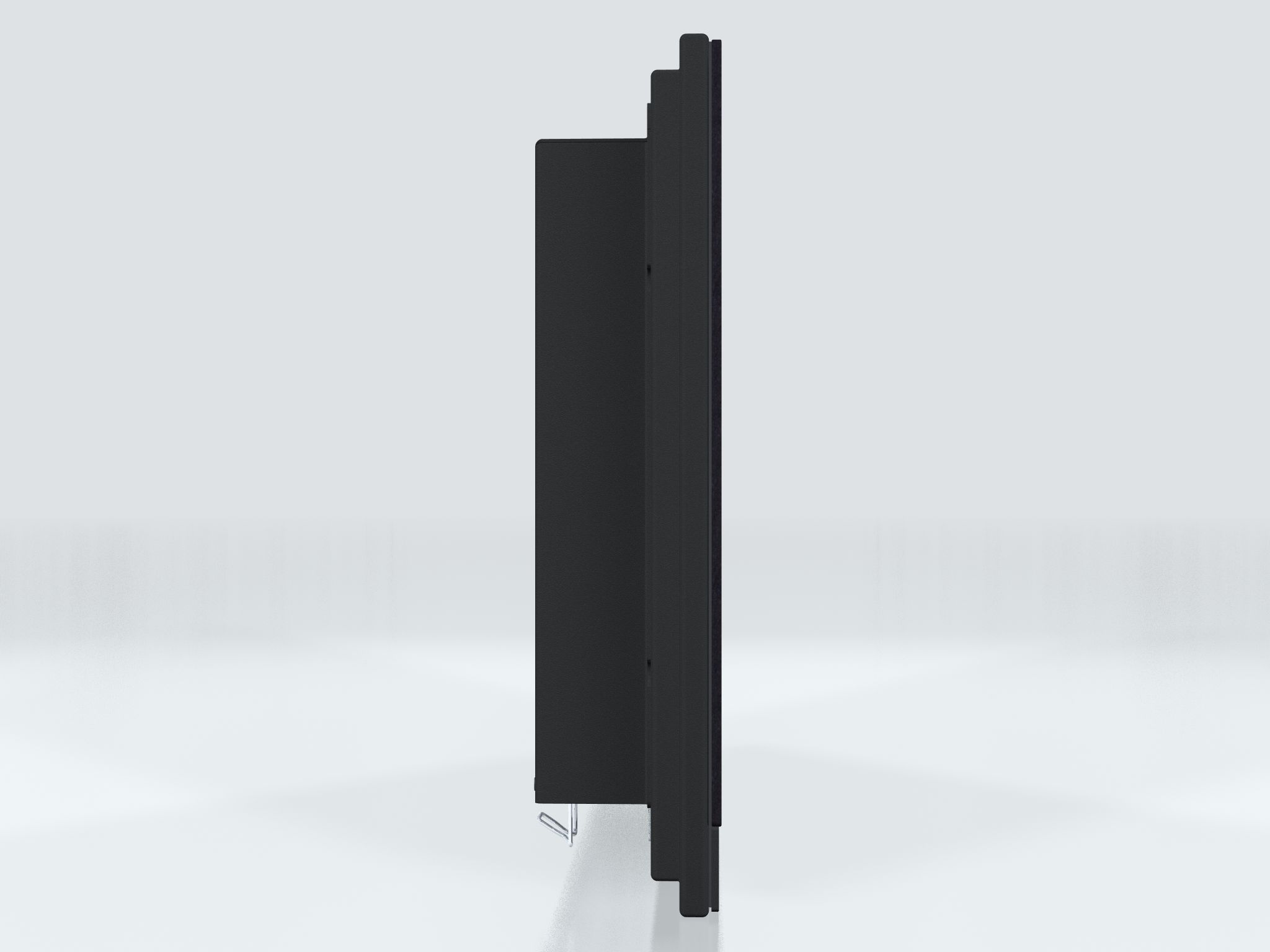

Product Dimensions and Weight:	W:536.00 [21.10''] x H:358.50 [14.11''] x D:78.50 [3.09''] VESA 280x150mm supported 7kg / 15.43lbs
Product Carton Size and Weight:	L:695.00 [27.36''] x W:174.00 [6.85''] x H:559.00 [22.00''] mm [inch] Weight approx: TBD
Factory Options:	• Projected Capacitive Touch Screen (Multitouch, USB, Pen/Glove support) • Optical Bonding Technology • Color Calibrated models (ECDIS)

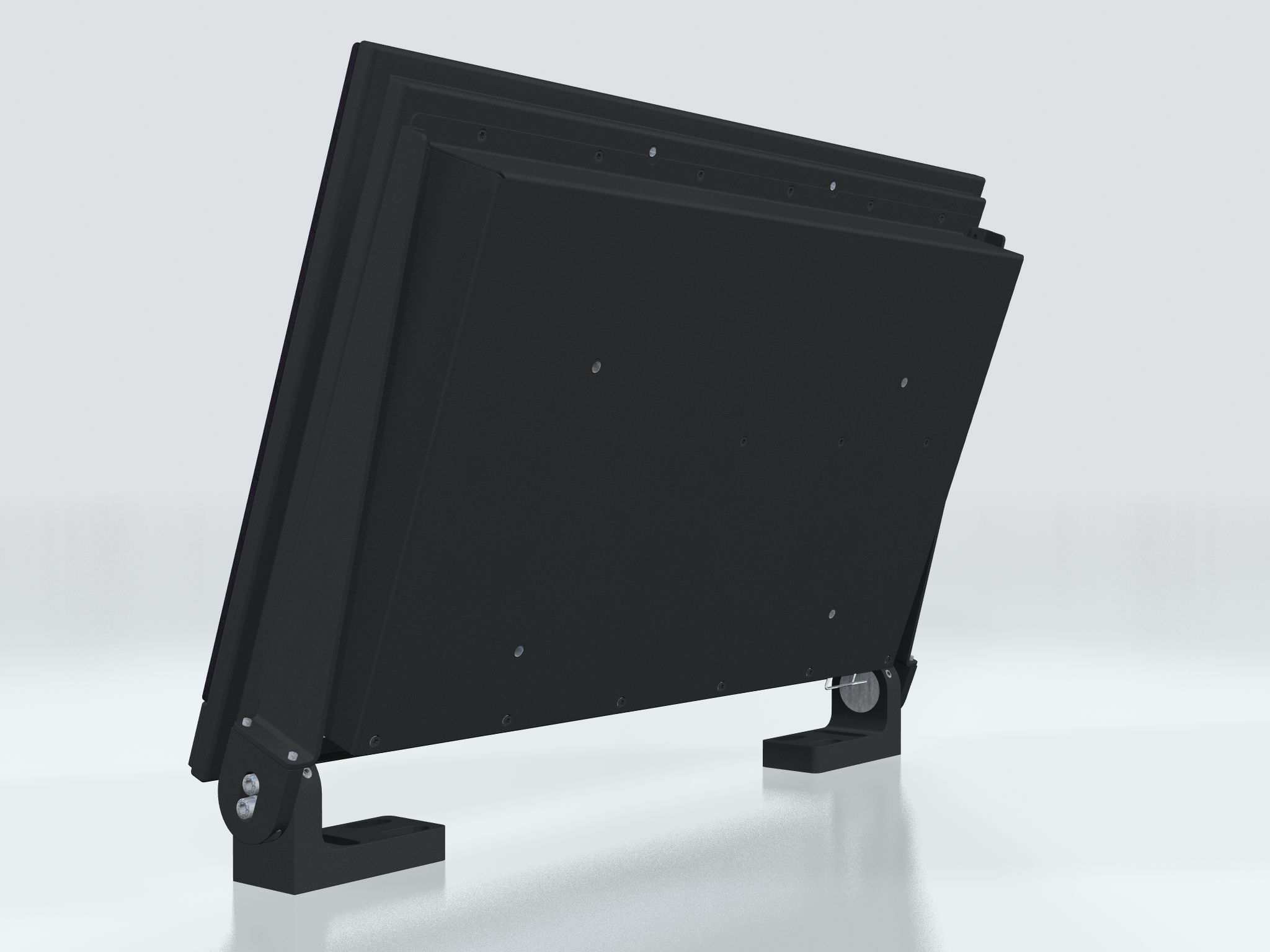

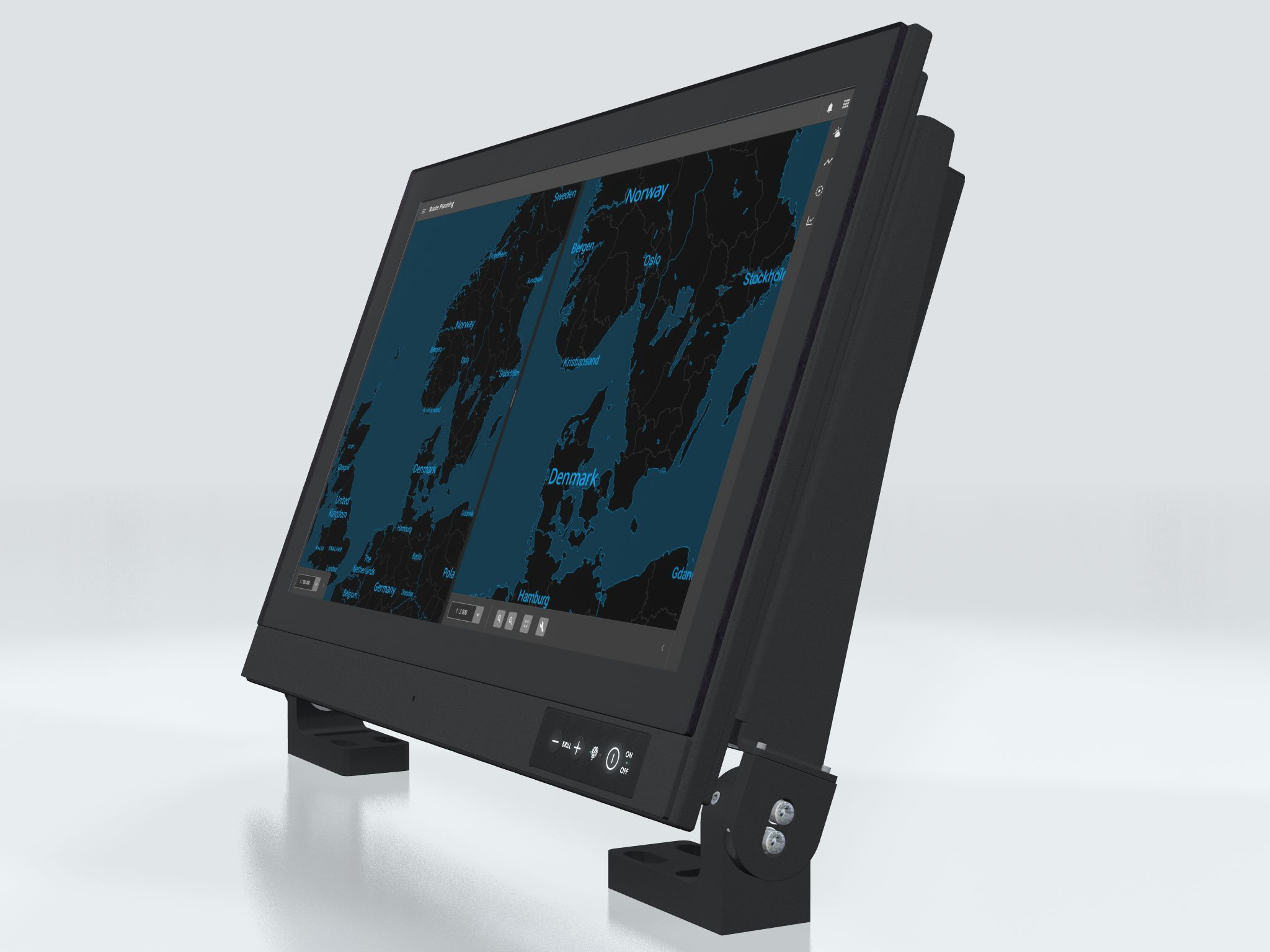

Accessories:	• HD CMB SE1-B1: 1 x Console Mount Kit. EN60945 Tested* • VSD203453-1: 1 x 2m USB-C (male) extension cable for 4K@24b@60Hz* • HD TMB SE1-B1: 1 x Table Mount Bracket. EN60945 Tested • HD VED SX1-A1: 1 x VESA Adapter, not EN60945 Tested • HT DPUSB-2-USBC-A1: 1 x DP&USB2.0 (Female) to USB-C (Male)Adapter cable 2m • HT HDMIUSB-2-USBC-A1: 1 x HDMI&USB2.0 (Female) to USB-C (Male)Adapter cable, 2m *Included in delivery
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F Humidity up to 95%
IP Rating:	IP66 front - IP20 rear (EN60529)
Compass Safe Distance:	Standard: 70.00 [27.56''] - Steering: 60.00 [23.62''] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition, KR - Korean Register of Shipping, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, LRS - Lloyd's Register of Shipping *=pending

Specifications last updated: November 8, 2024 @ 13:35
