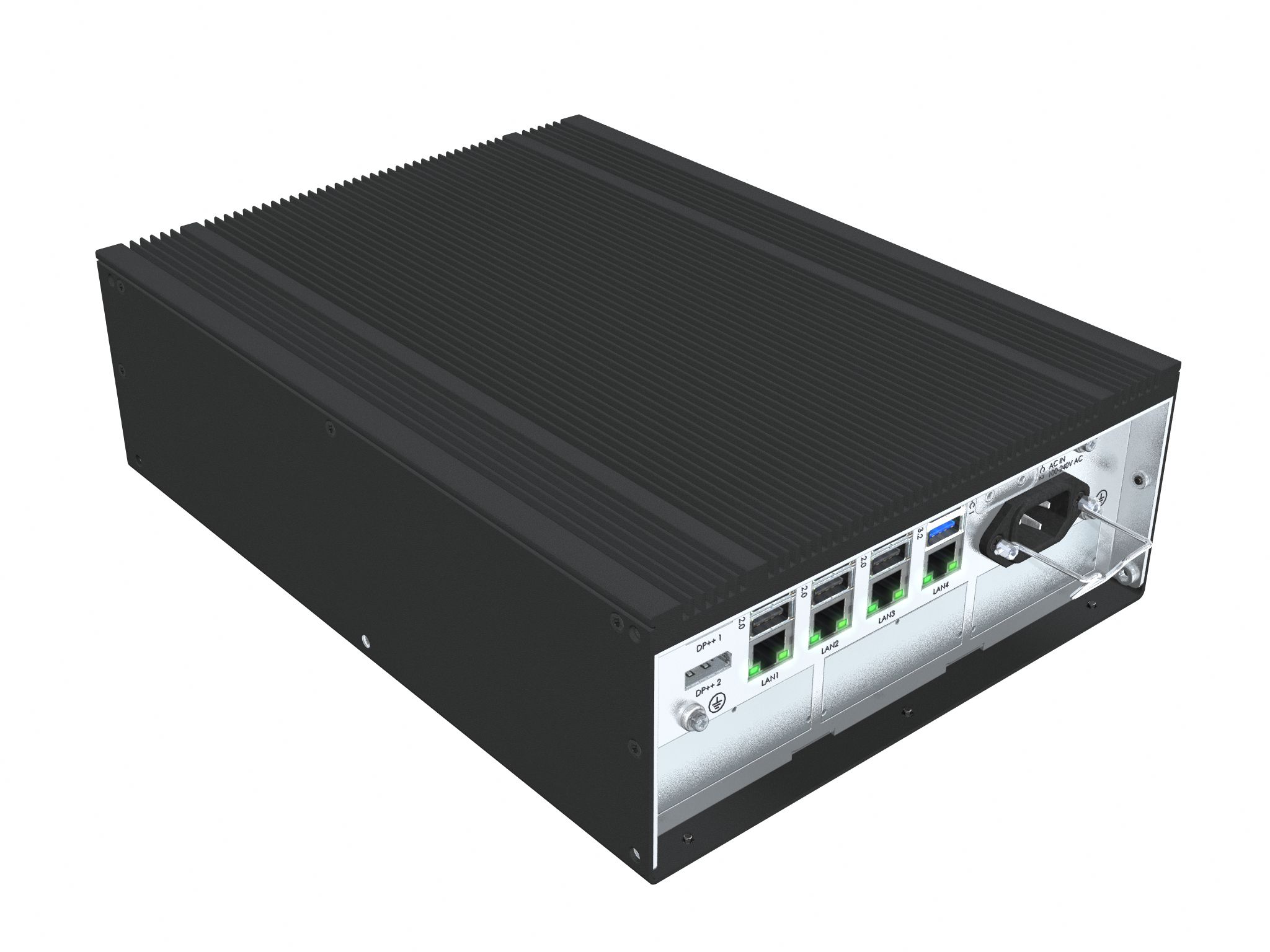

HTB40G-xx-xx xxxxxxx
|
None or Standard OS/Customized image, review datasheet for list.
|
1 x 2.5" SSD:
240GB (599TBW),480GB (945TBW),960GB (1750TBW), 1.9TB (8.8PBW).
|
1 x Intel® Core™ i7-1265UE (10 physical core / 12 thread), 3.5GHz / 4.7GHz @15W
or Intel® Core™ i5-1245UE (10 physical core / 12 thread), 3.3GHz / 4.4GHz @15W
or Intel® Core™ i3-1215UE (6 physical core / 8 thread), 3.3GHz / 4.4GHz @15W
or Intel® Core™ Celeron 7305E (5 physical core / 5 thread), 1.0 GHz @15W
|
2 x SO-DIMM SLOT DDR5-4800, Dual Channel, Max 2x32GB
2 x 8GB (Standard), 2 x 16GB, 2 x 32GB (Max).
1 x 8 GB RAM (Intel Iris Graphics requires 2 x GBRAM).
|
System: Integrated in 12th Generation Intel® Core™ U-series processor
Graphics: Intel® Iris® Xe Graphics eligible (For i7,i5)
Graphics: Intel® UHD Graphics for 12th Gen Intel® (For i3, Celeron)
Supports: OpenGL 4.6, DirectX 12.1, OpenCL 3.0

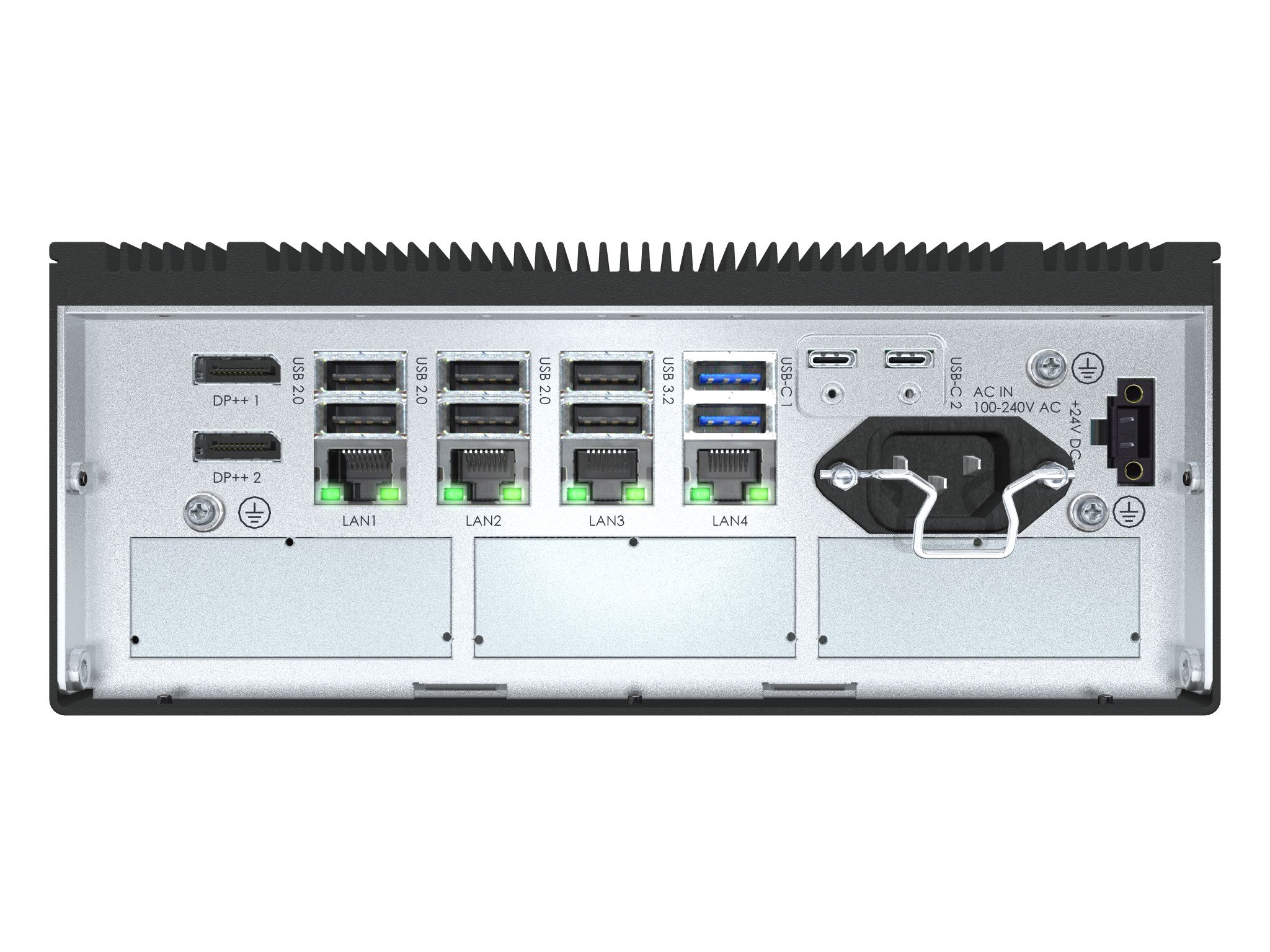

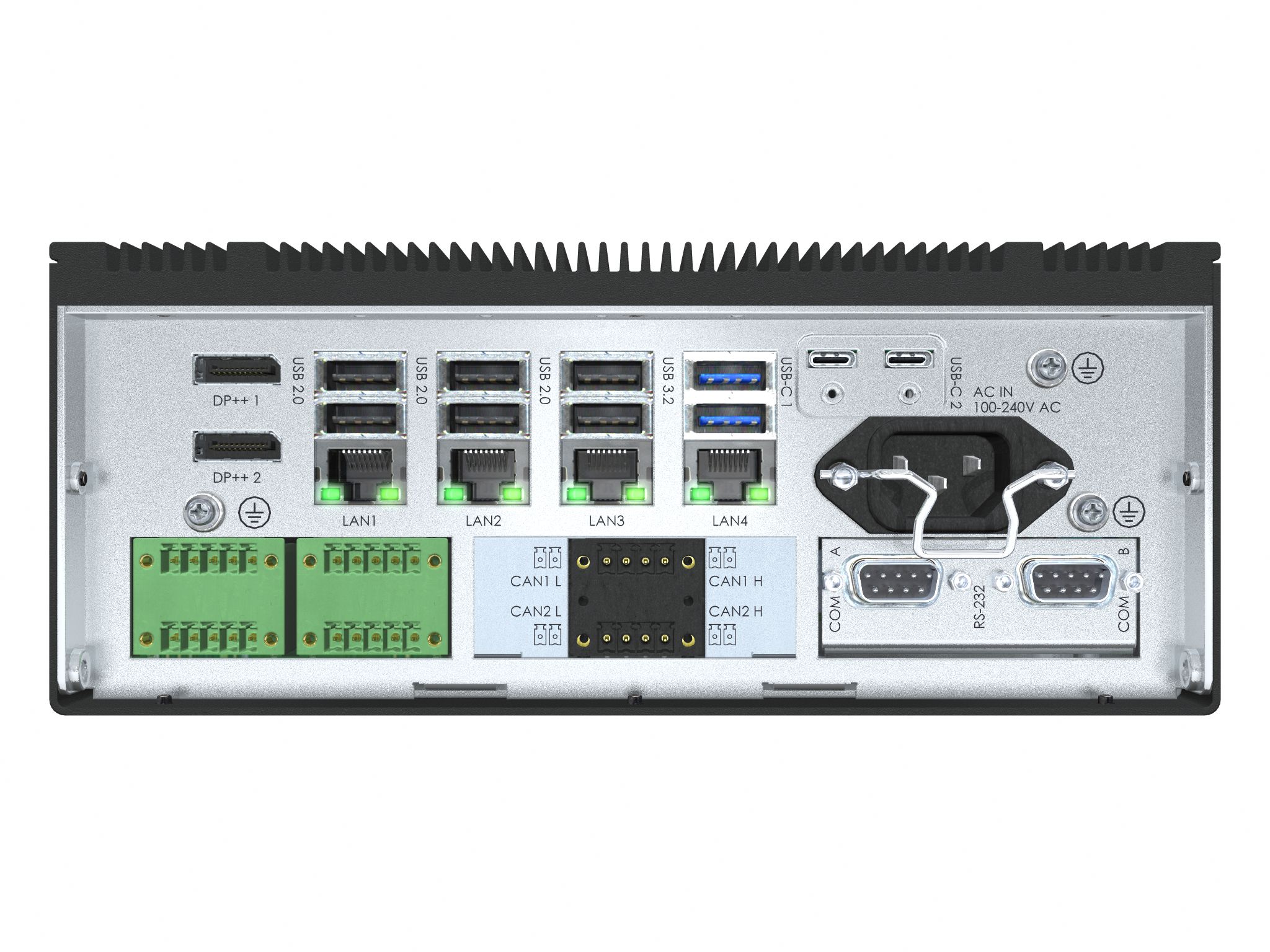

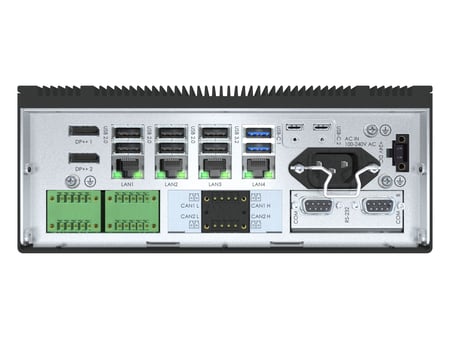

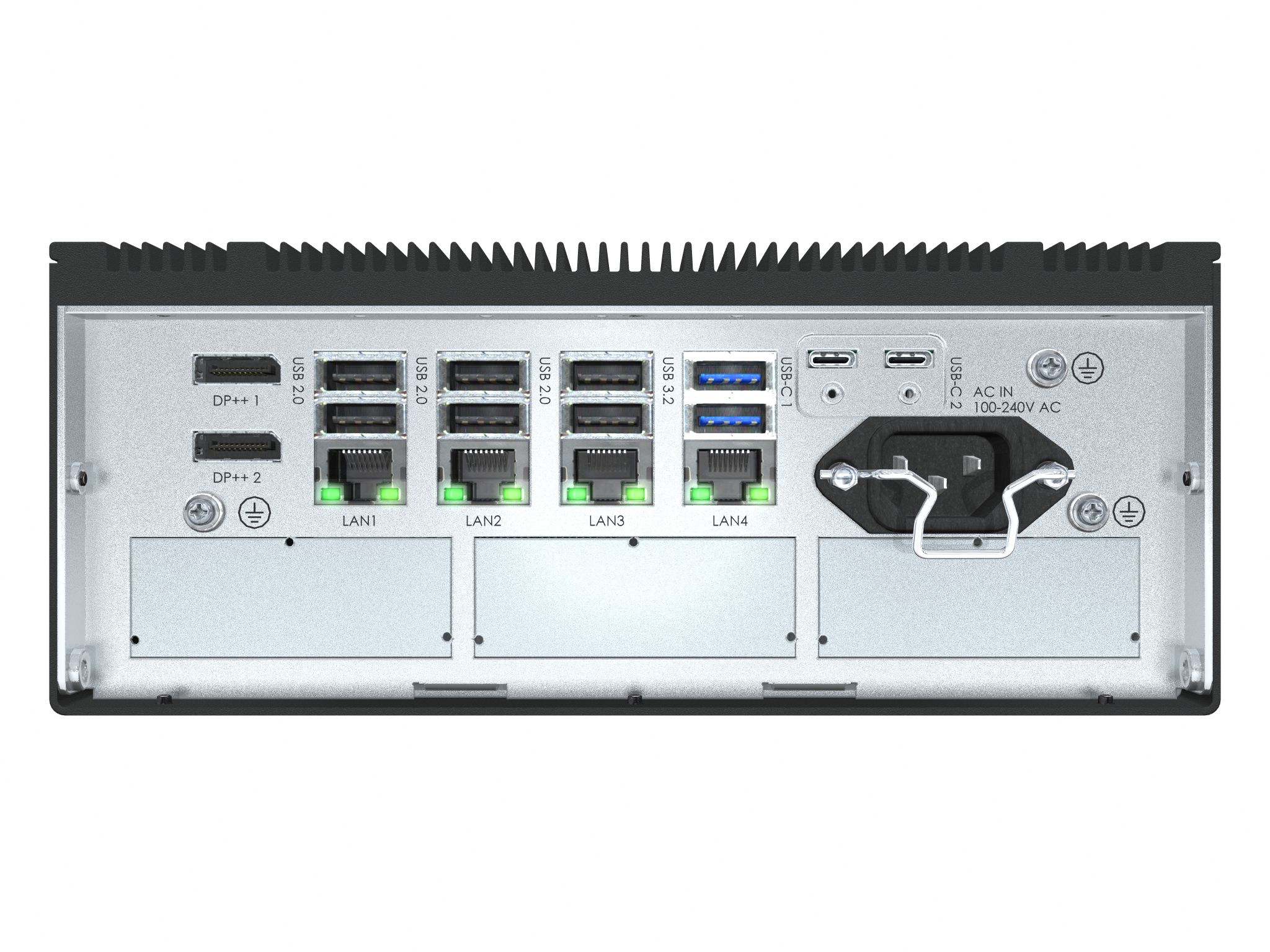

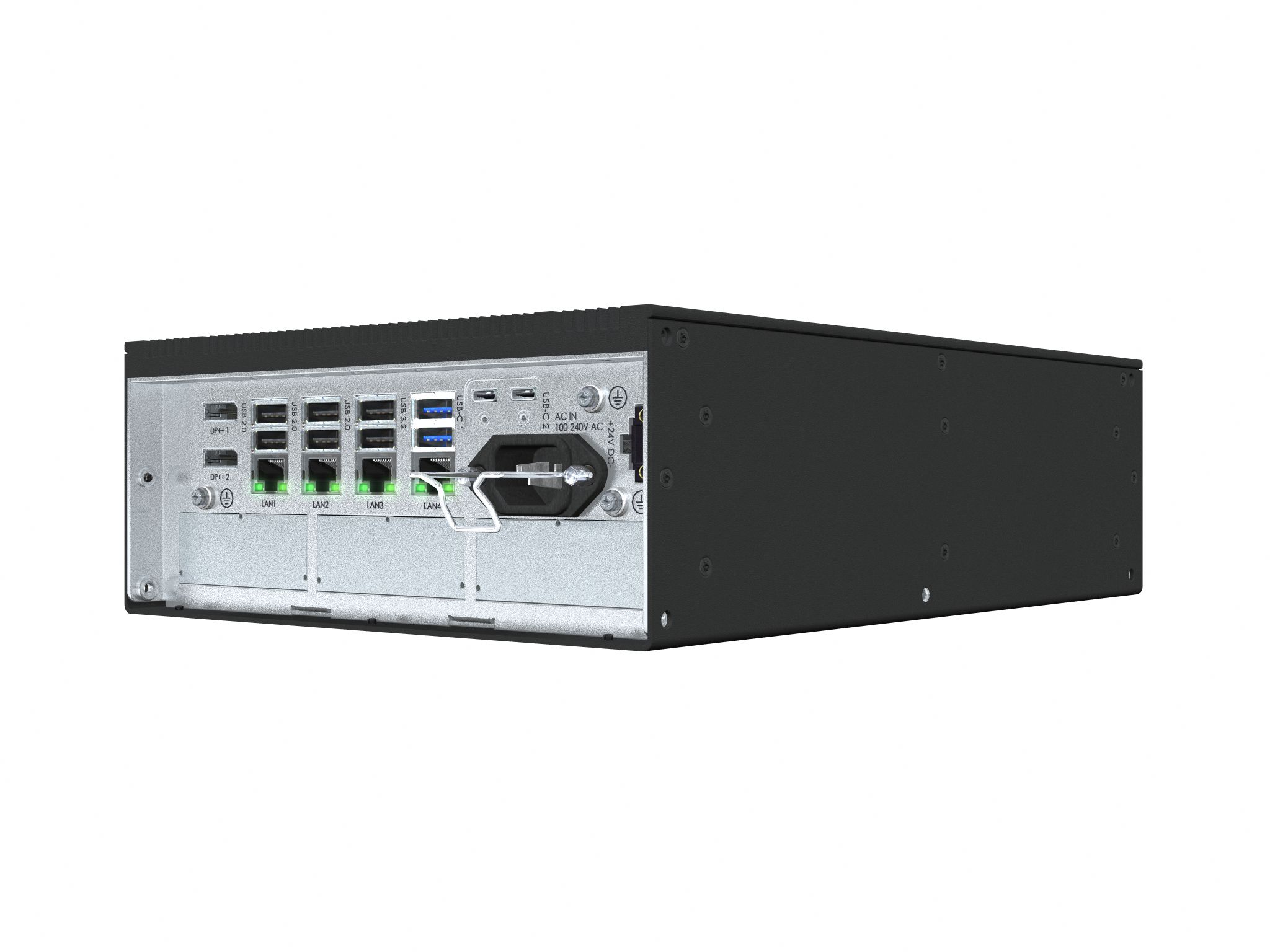

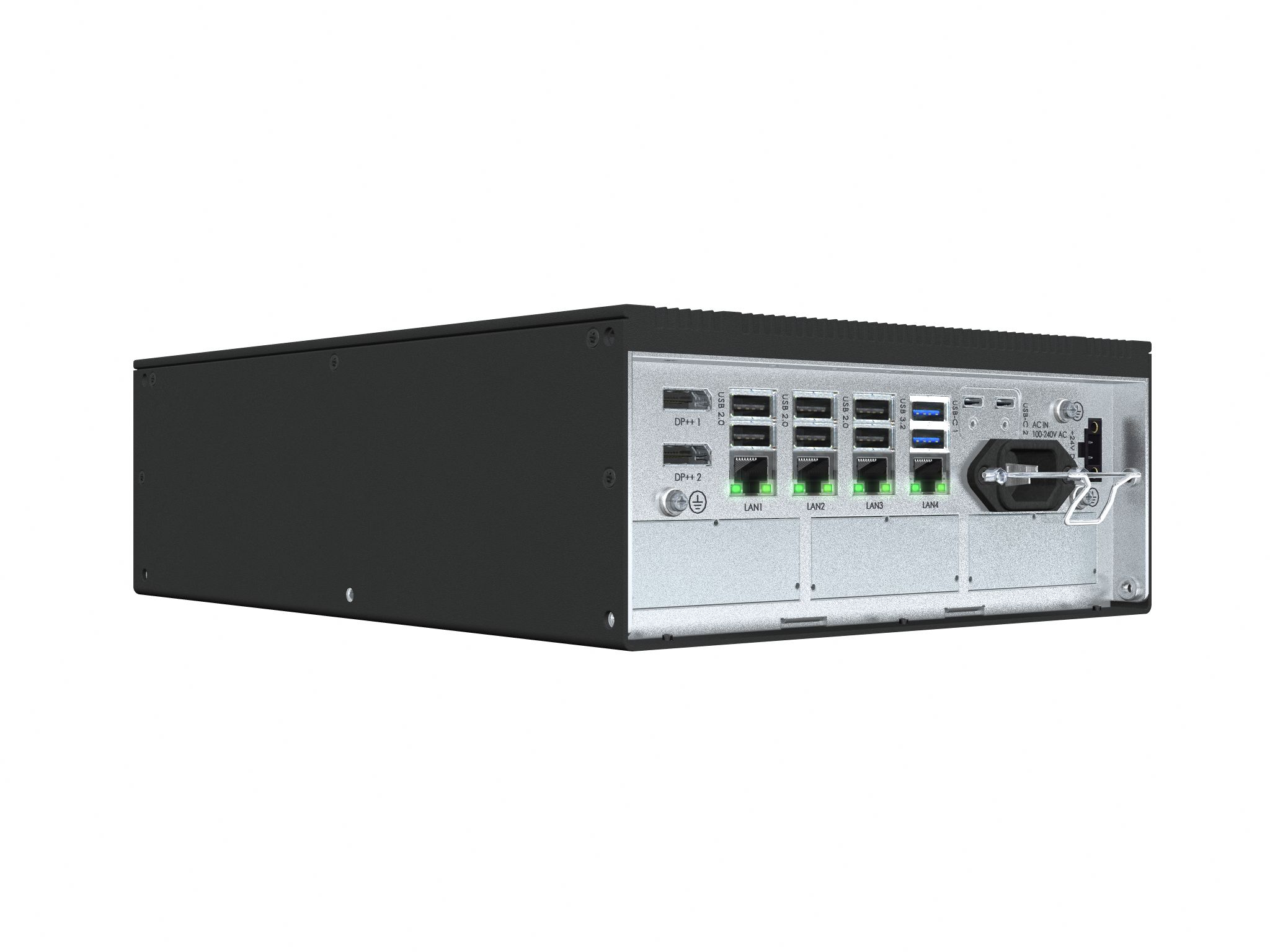

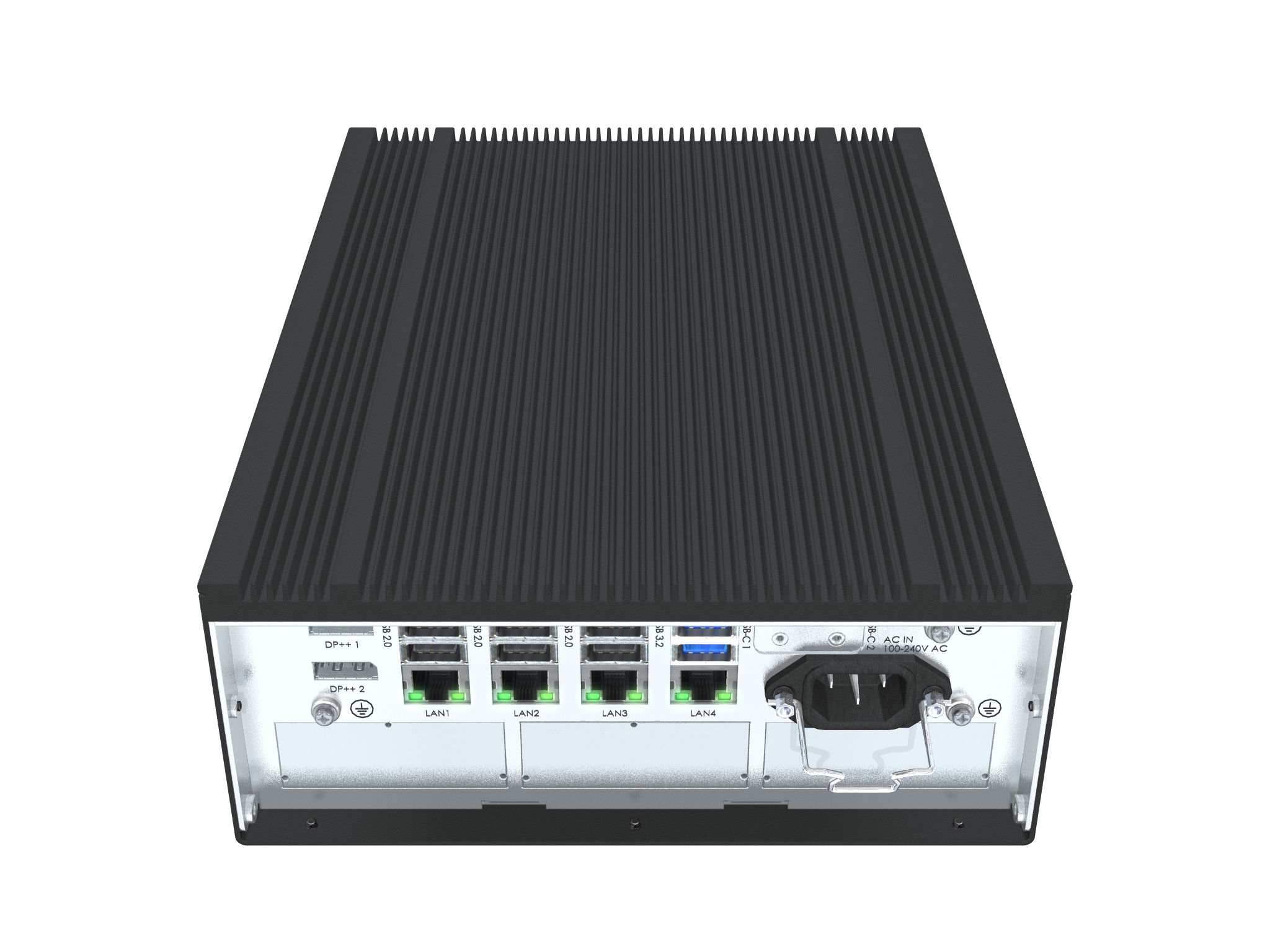

Connectors: 2 x DP++ 1.4a + 2 x USB-C
4 independent displays (valid combinations: ref Intel datasheet)
|
DP = 7680 x 4320 @ 60Hz Max
|
ACPI support
|
None
|
None
|
None
|
None or Options:
1 or 2 x RS-232 COM Serial Ports DB9M, isolated
1 or 2 x RS-422/485 NMEA Isolated (PCA100293-1, 5-pin T. Block 3.81)
|

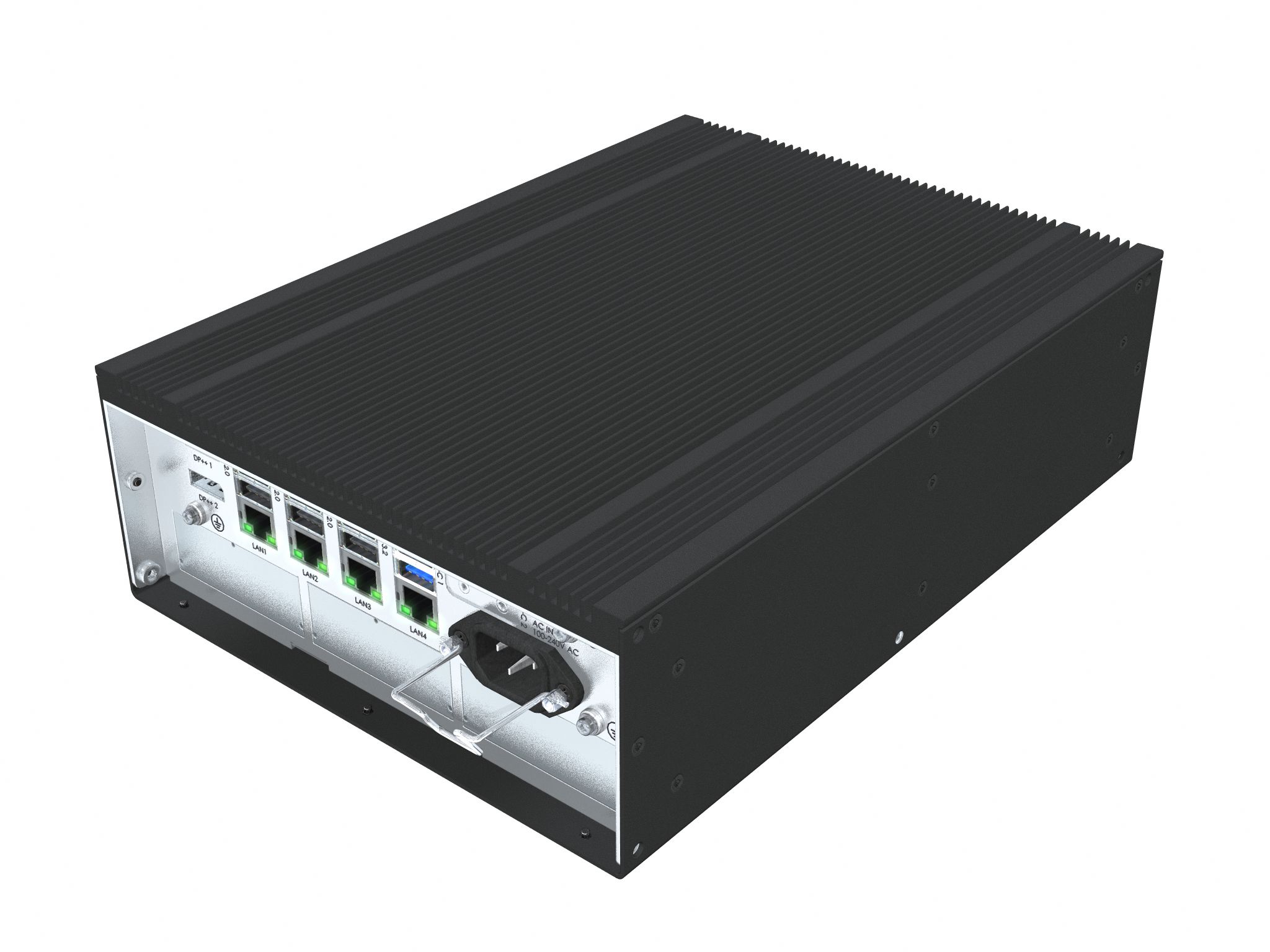

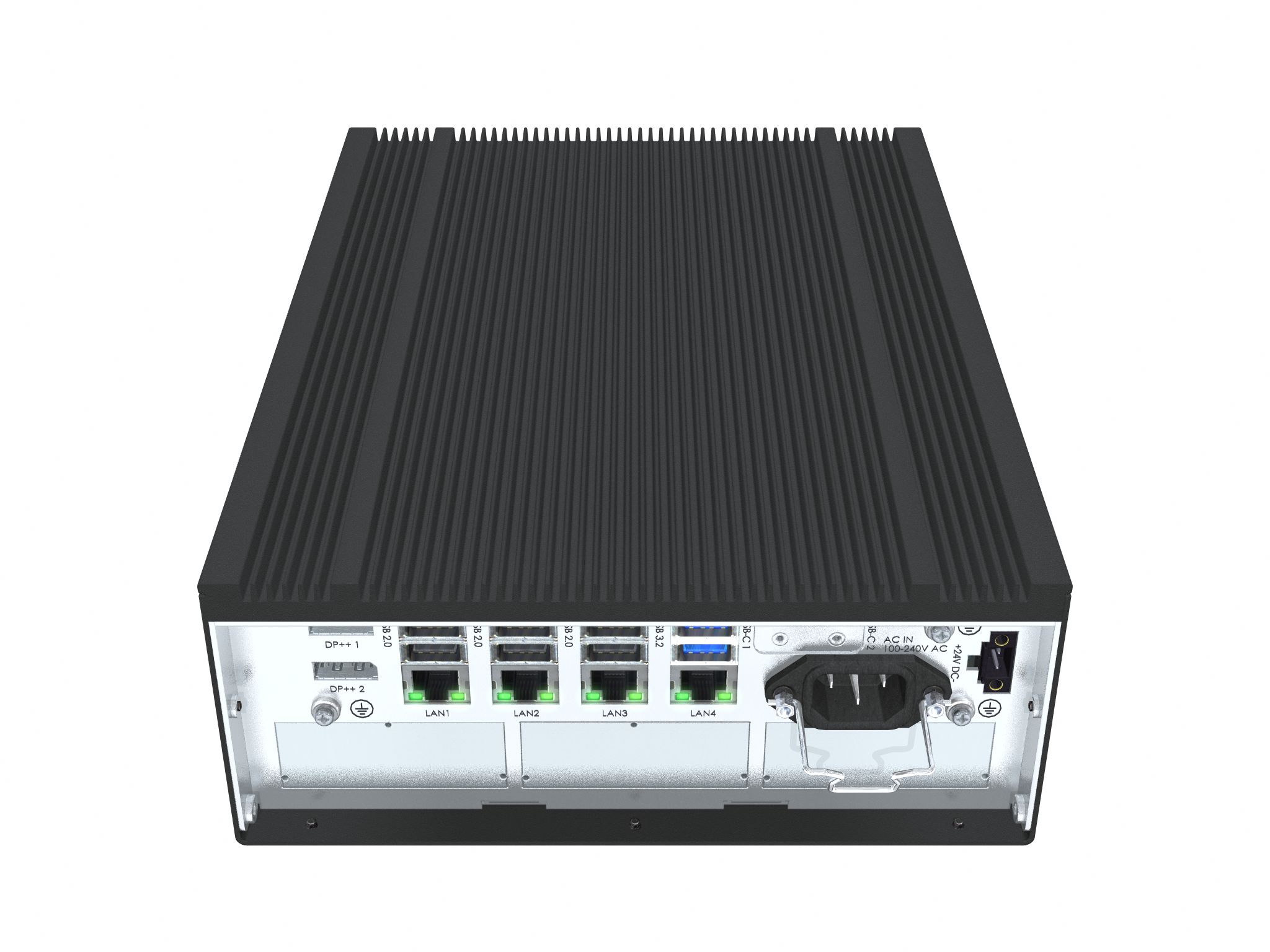

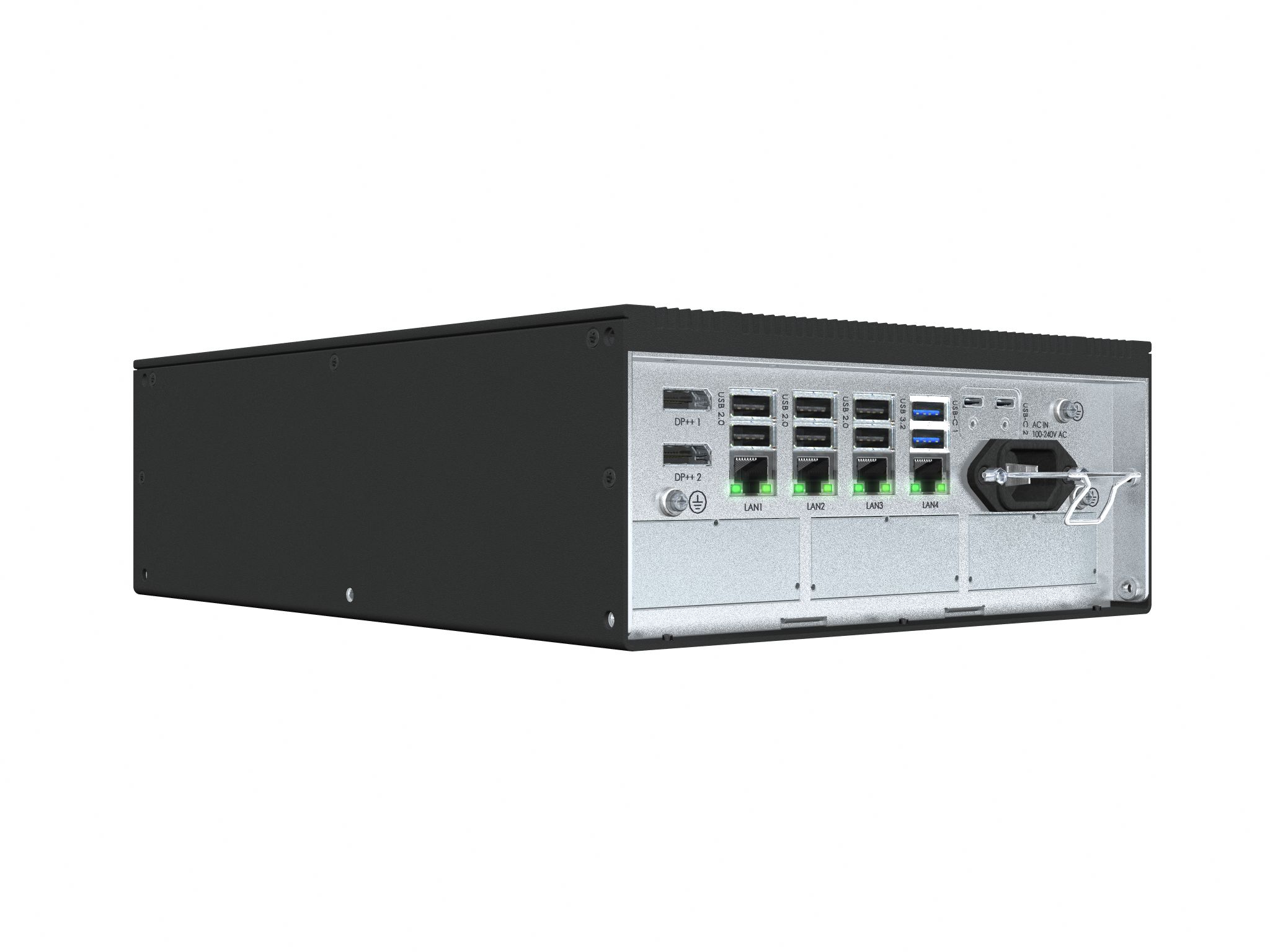

Ethernet #1: 1 x 10/100/1000Mbps, Realtek RTL8119I Gigabit LAN, 1 x RJ-45, Teaming
Ethernet #2: 1 x 10/100/1000Mbps, Realtek 8119I Gigabit LAN, 1 x RJ-45, Teaming
Ethernet #3: 1 x 10/100/1000Mbps, Intel® i226IT Gigabit LAN, 1 x RJ-45, Teaming
Ethernet #4: 1 x 10/100/1000Mbps, Intel® i219V LAN, 1 x RJ-45, Teaming
|
6 x USB2.0 Type A (<5m) + 2 x USB3.2 Type A (<3m)
For signal output: 2 x USB-C
|
None
|
None or via Factory Option VSD203134-1
|
None
|
ACPI S3/S4 - TPM2.0, Temperatures, voltages, Battery load status Alarm&cooling fan status. Auto throttling control if CPU overheats
RTC: > 0.5s/day* (requires calibration)
Watchdog Timer: 256 Segments, 0, 1, 2...255 sec/min
Battery: Normal operational conditions: life time >5 year, worst case conditions(@70C, 24/7): life time >2 year
|

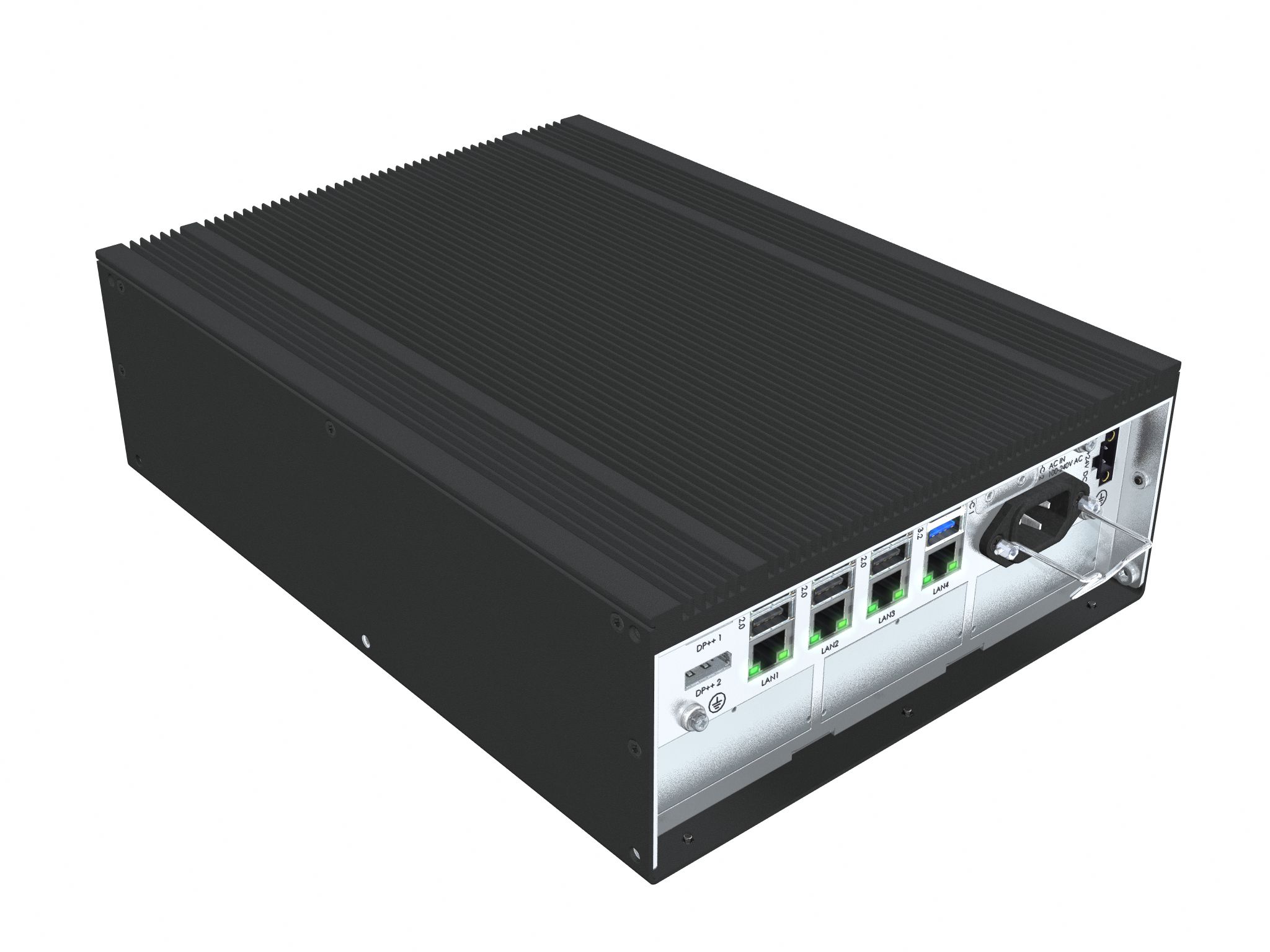

Multi Power: 100-240VAC 50/60Hz + 24VDC - 60W PSU 1 x STD IEC + 1 x 2-pin T-Block 5.08
Single AC Input: 100-240VAC 50/60Hz - 300W PSU 1 x STD IEC
Power Consumption - Operating AC & DC: 52W TBD (typ, at 25% load. Max Allowed External USB load = 10W.) - 75W (max)
Power Consumption - Operating AC: 52W TBD (typ, at 25% load. Max Allowed External USB load = 10W.) - 336W (max)
|
None or options:
PCA100297-1 (4 x Digital Input/Output isolated) module
HT 00273 OPT-A1/B1: 4 x Digital IN/OUT isolated, USB ext. module
|
Long Depth Model, HDD-Free Solution possible with SSD, Fanless, no moving parts, Aluminium Cooling Chassis w/no apertures, AC Power or Dual DC Power, Compact Form Factor, Includes Mounting Bracket, Flexibility of storage and support wide range of integrated interface modules, Firmware Raid
|
W:220.00 [8.66"] x H:89.00 [3.50"] x D:300.00 [11.81"] mm [inch]
3.7kg / 8.1lbs
|
L:405.00 [15.94"] x W:184.00 [7.24"] x H:373.00 [14.69"] mm [inch]
5.0 kg / 11.0lbs
|

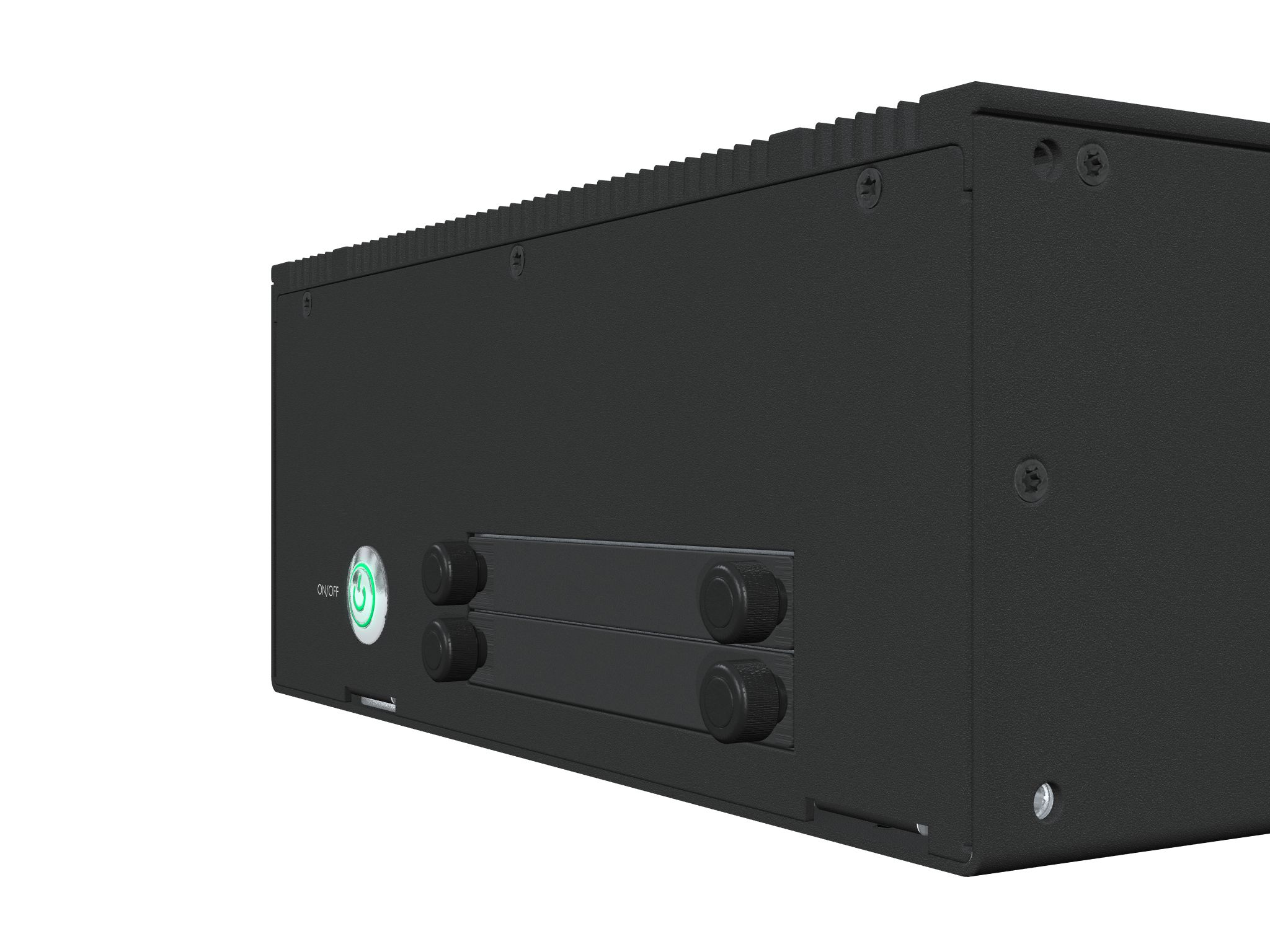

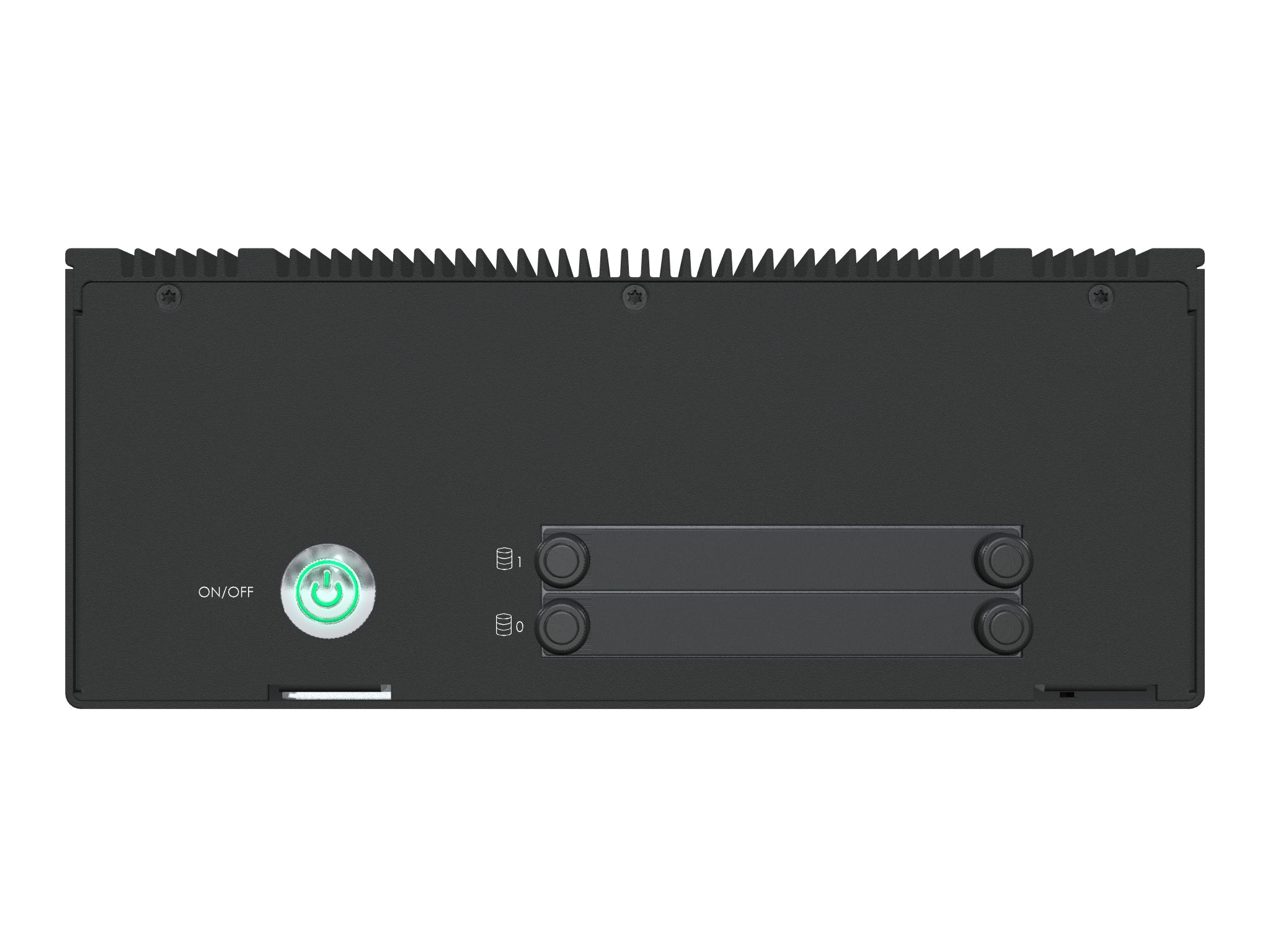

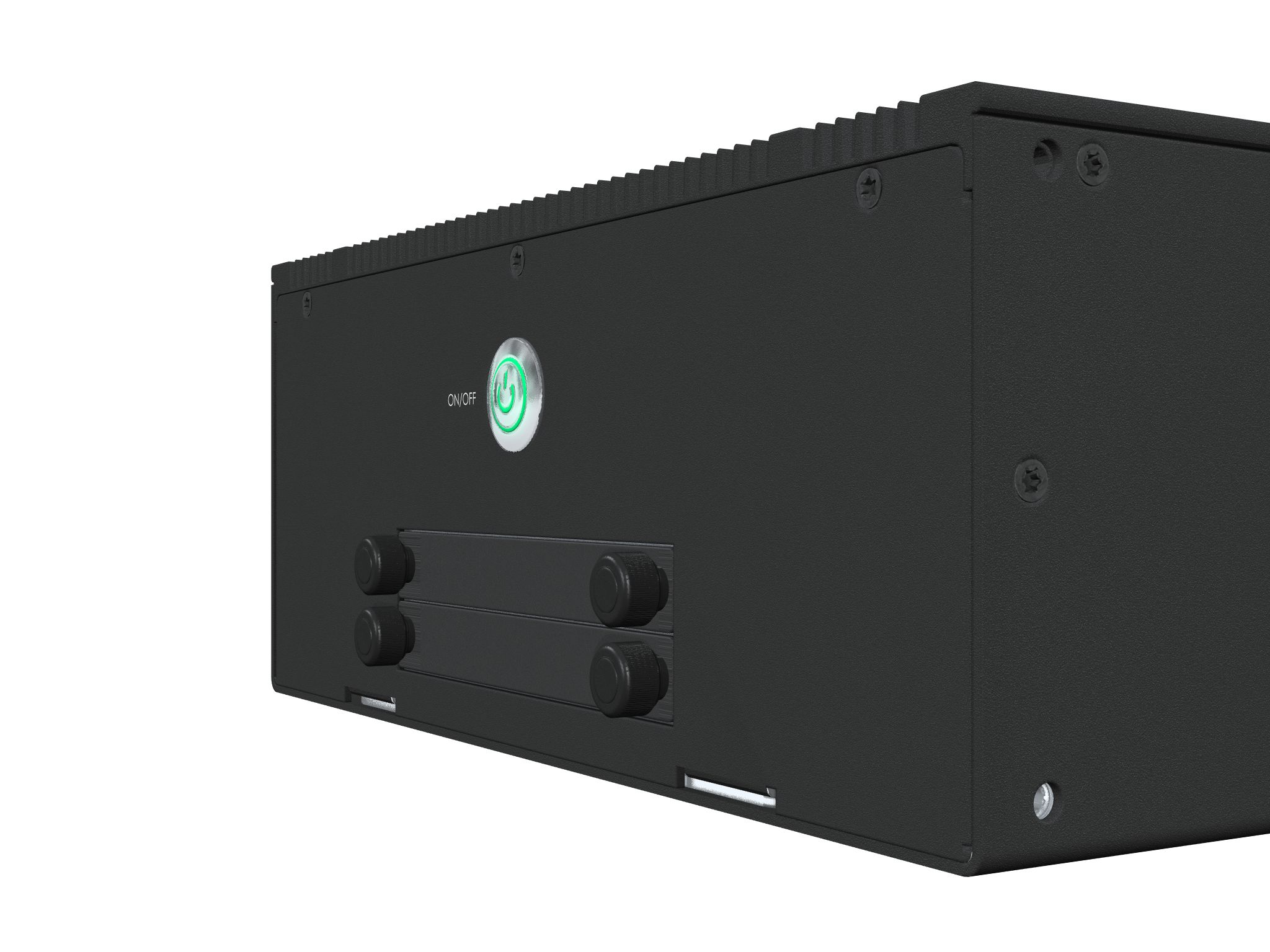

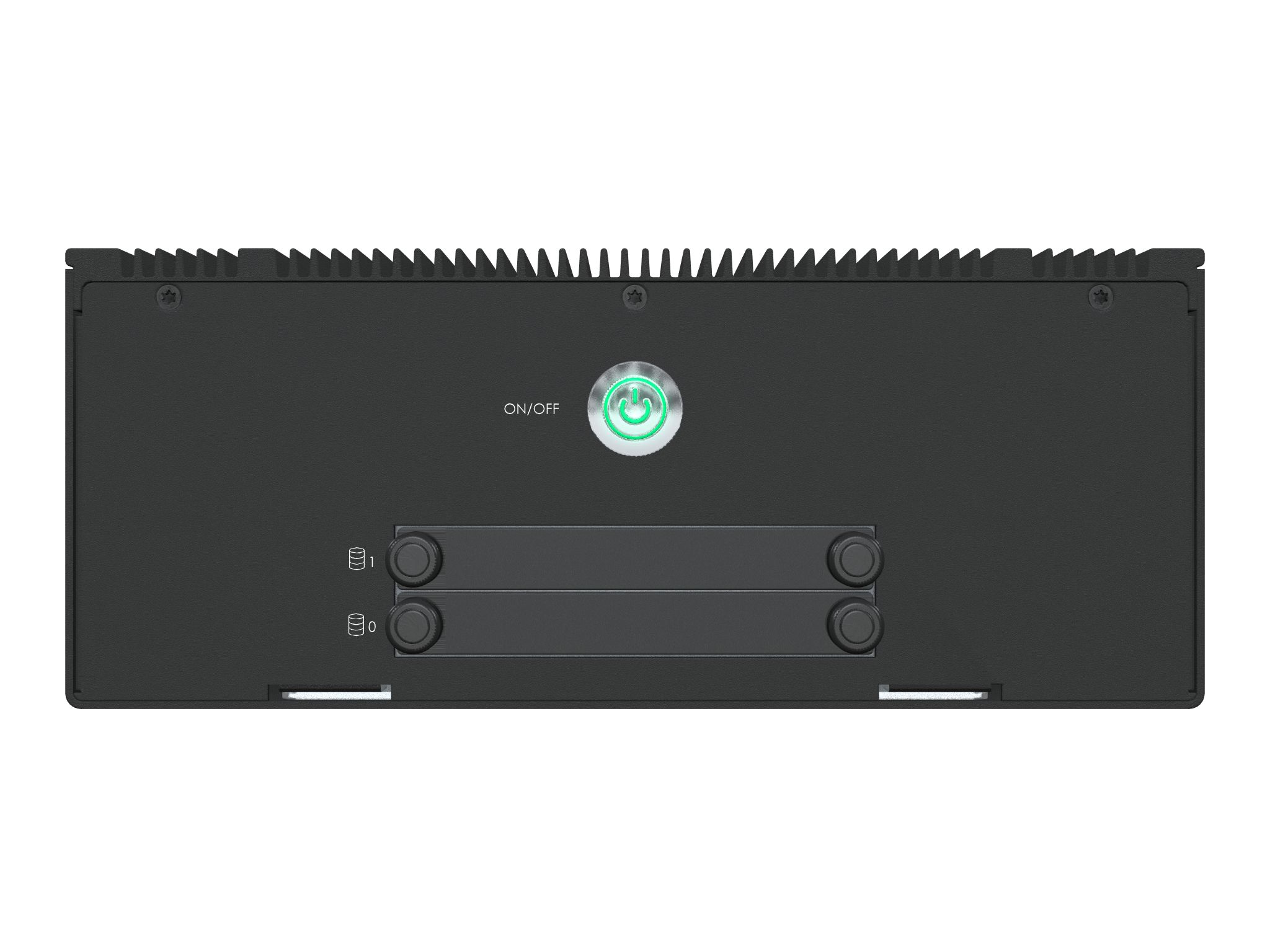

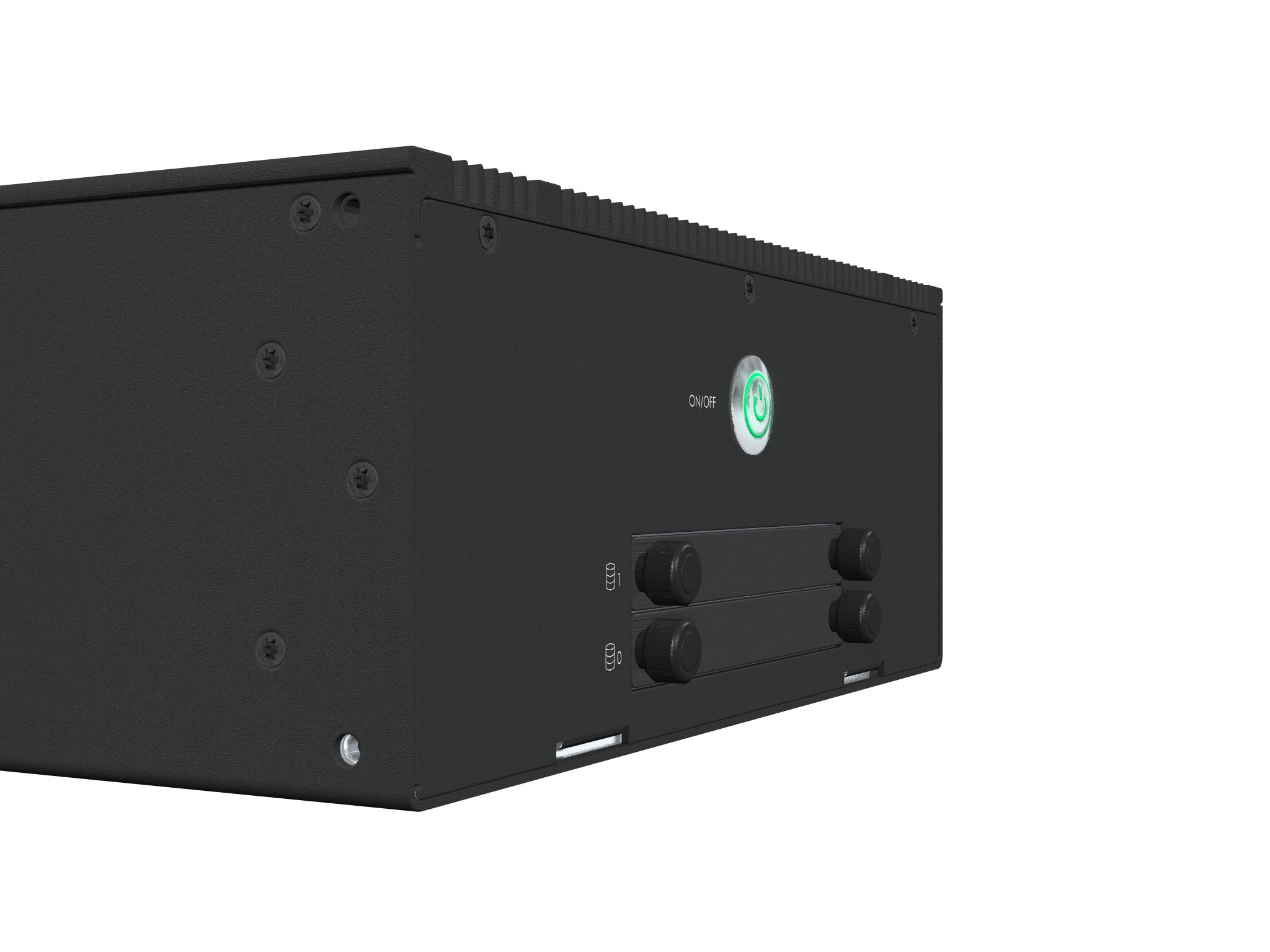

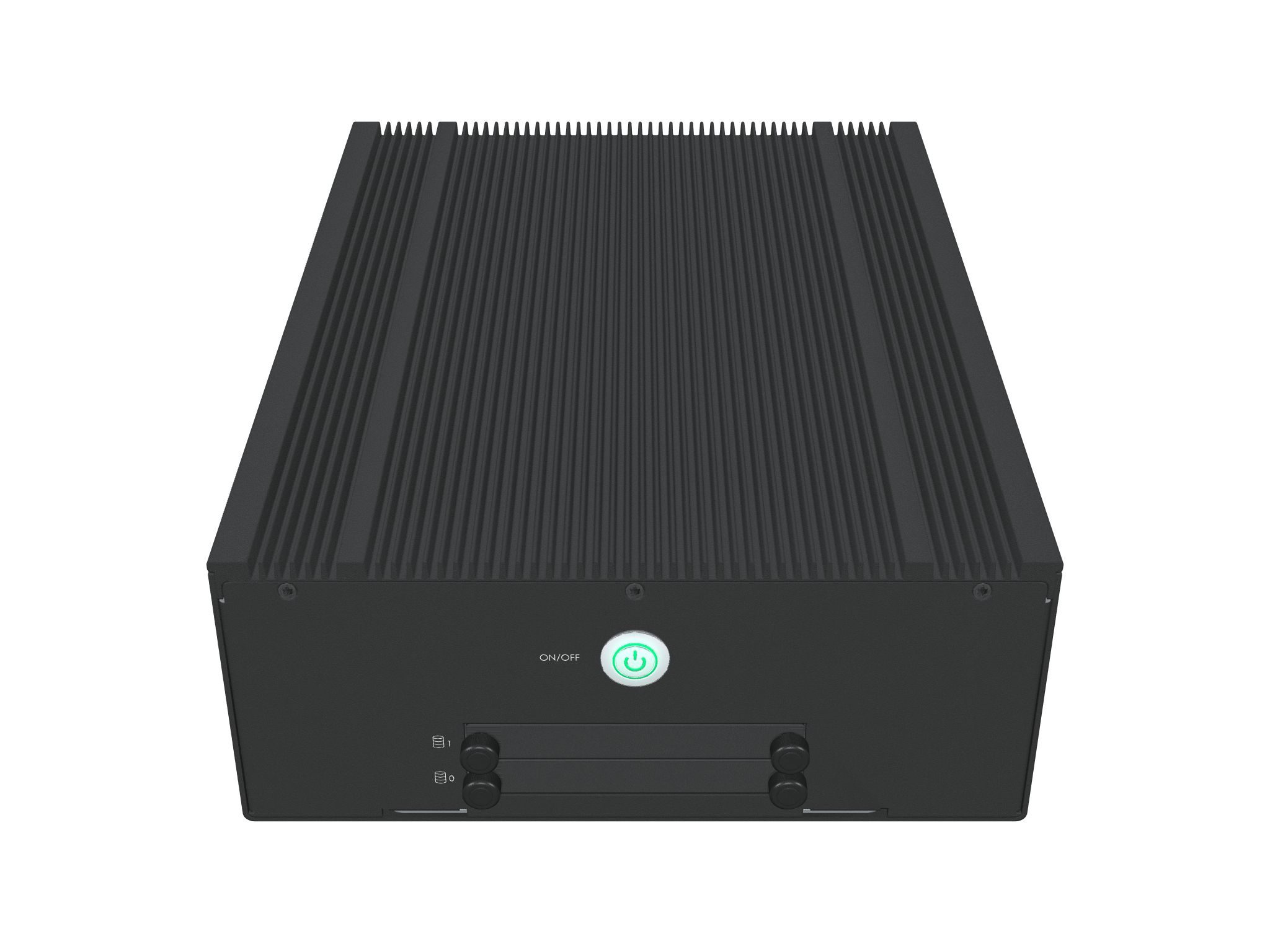

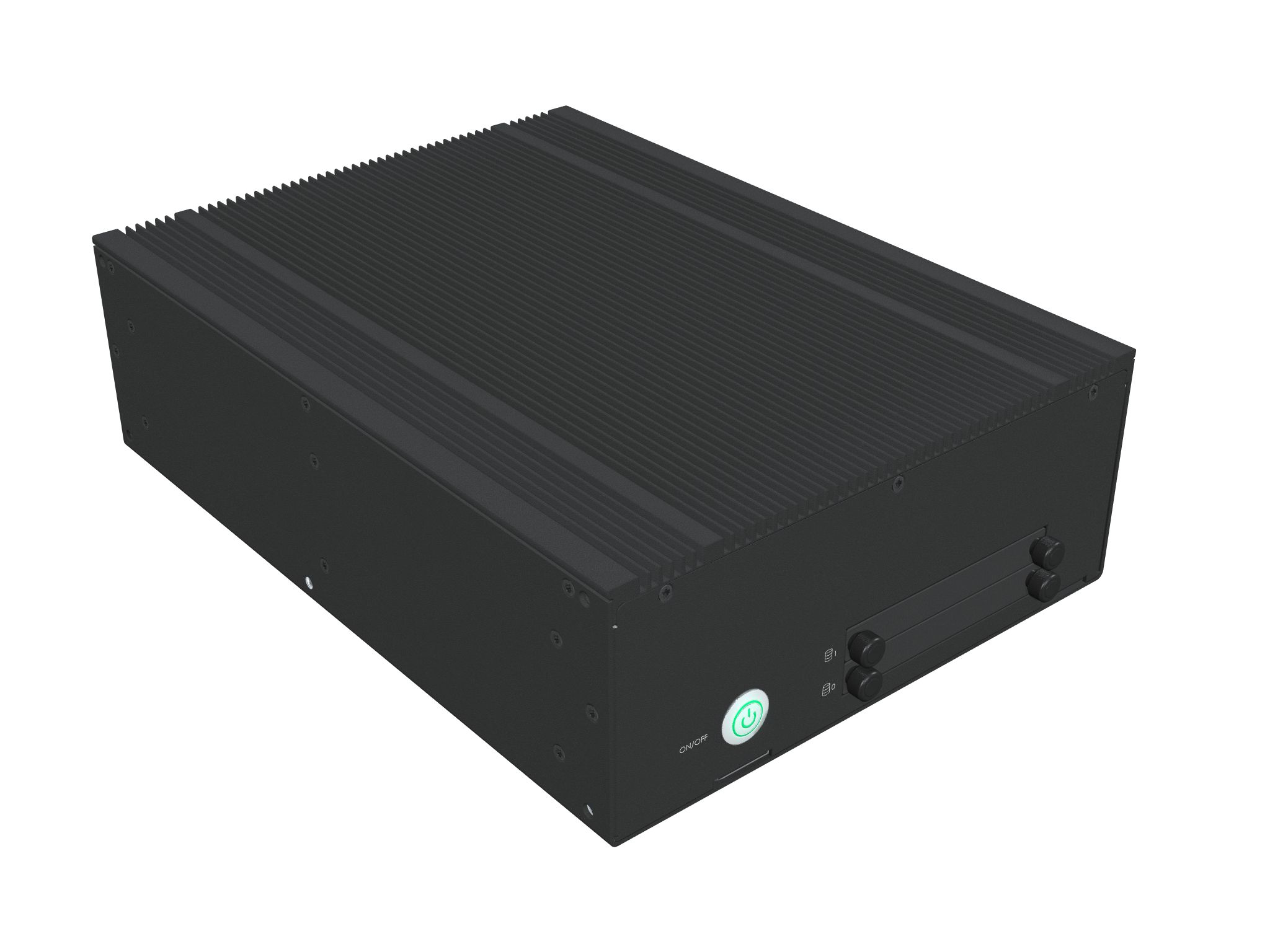

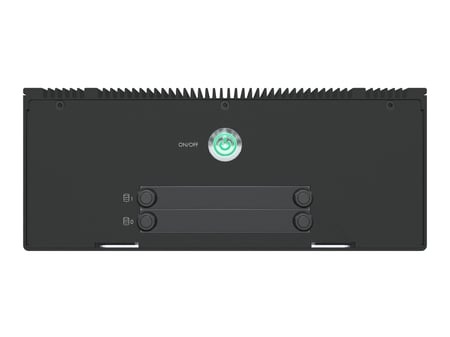

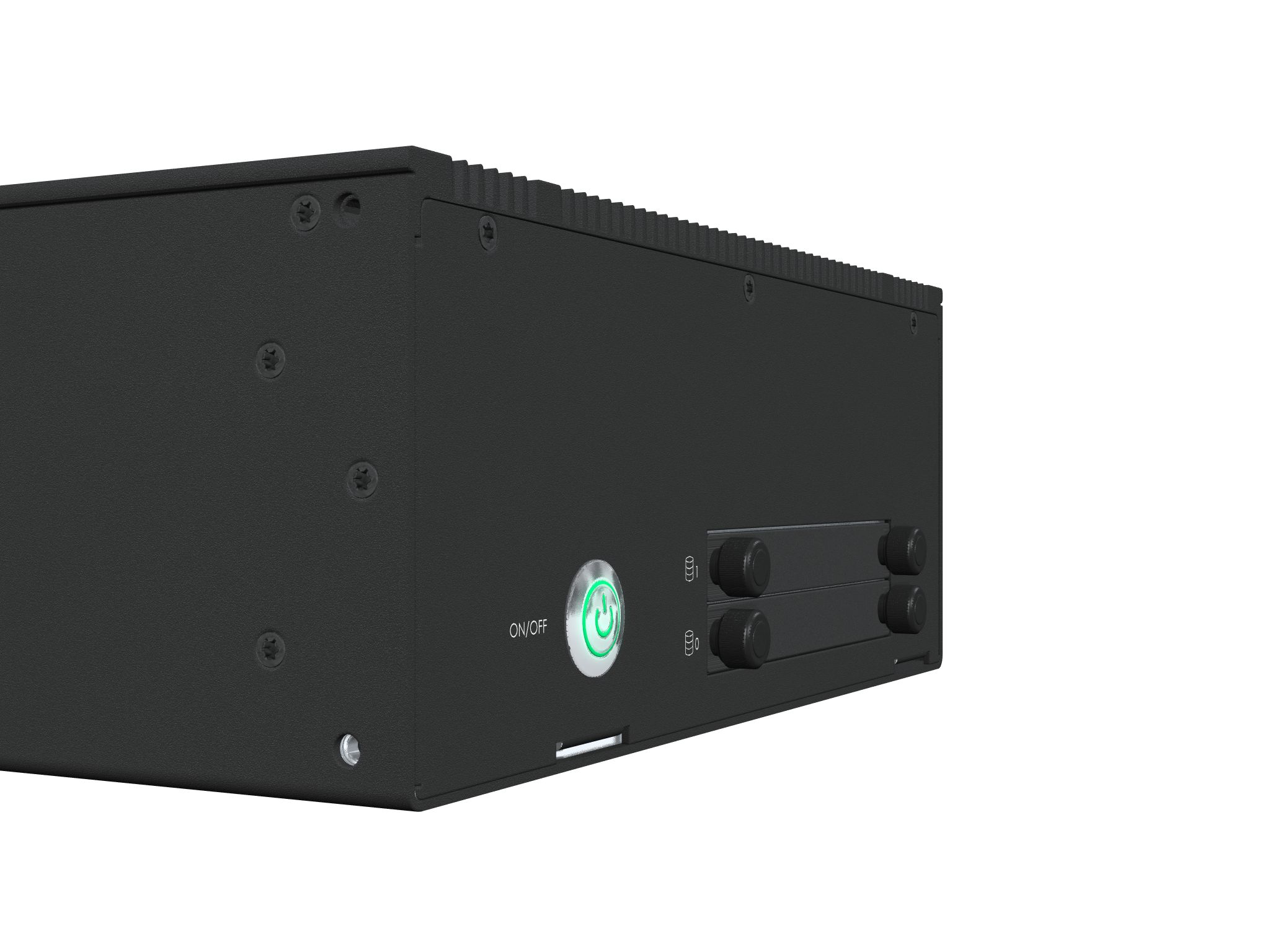

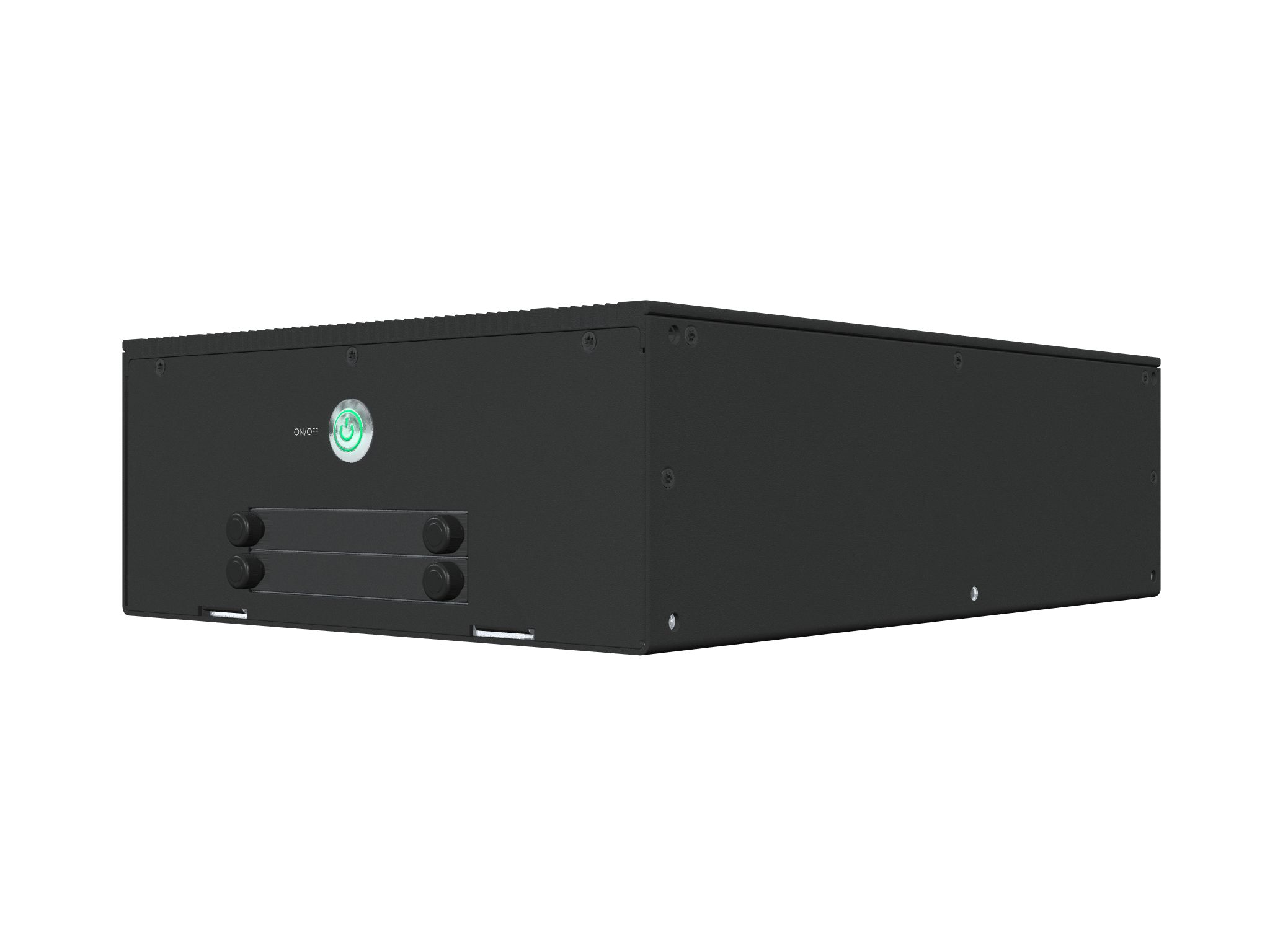

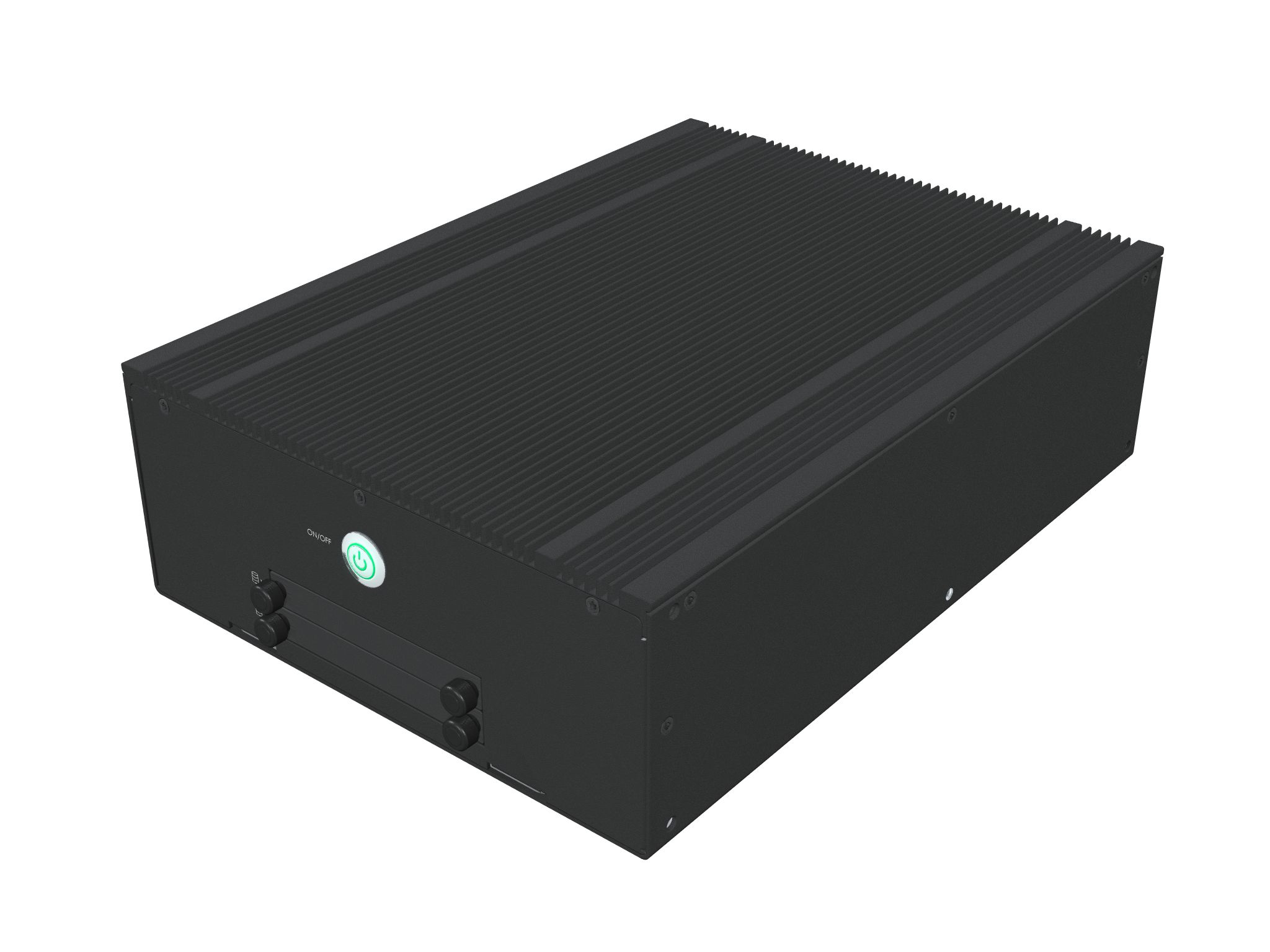

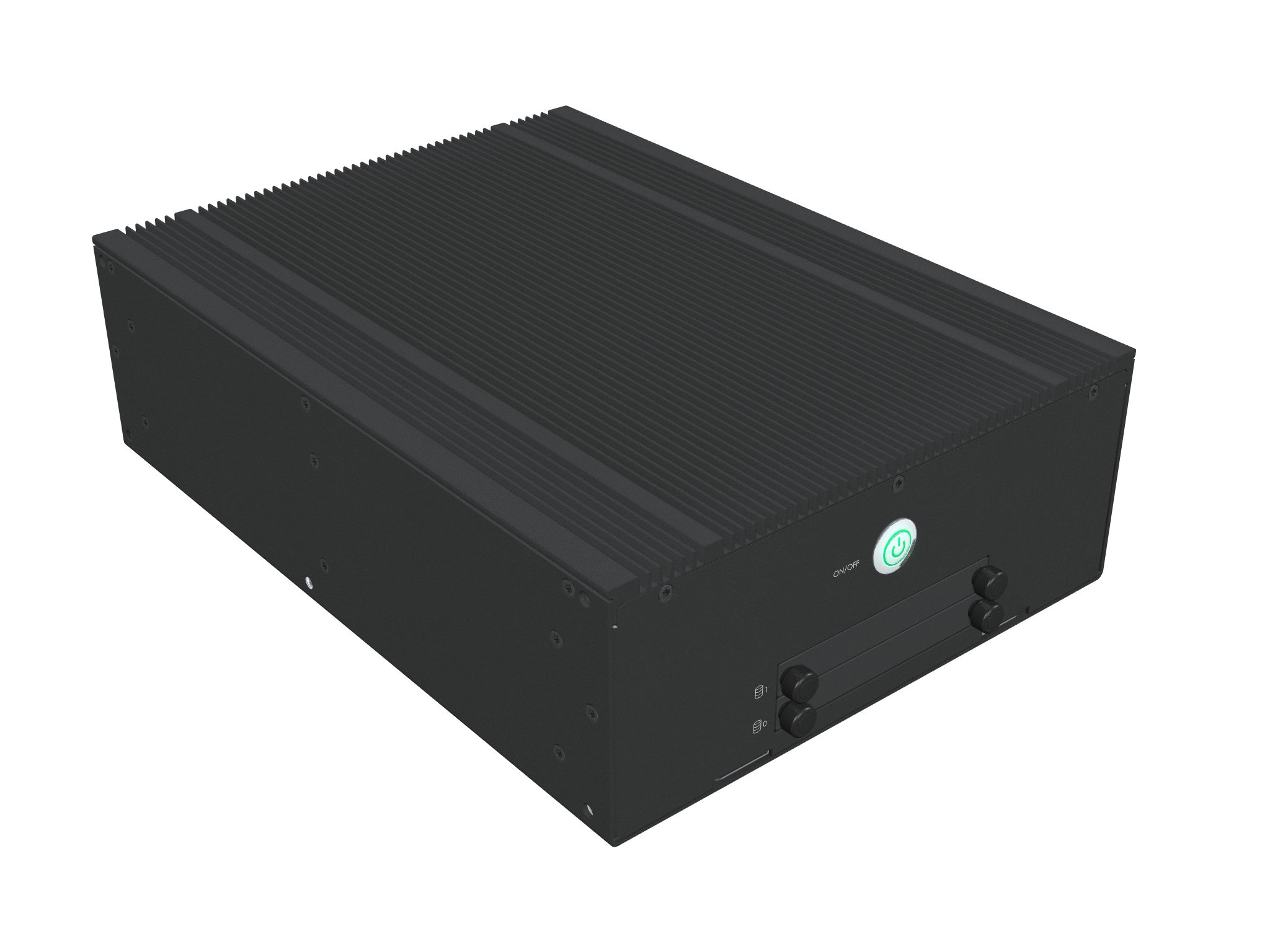

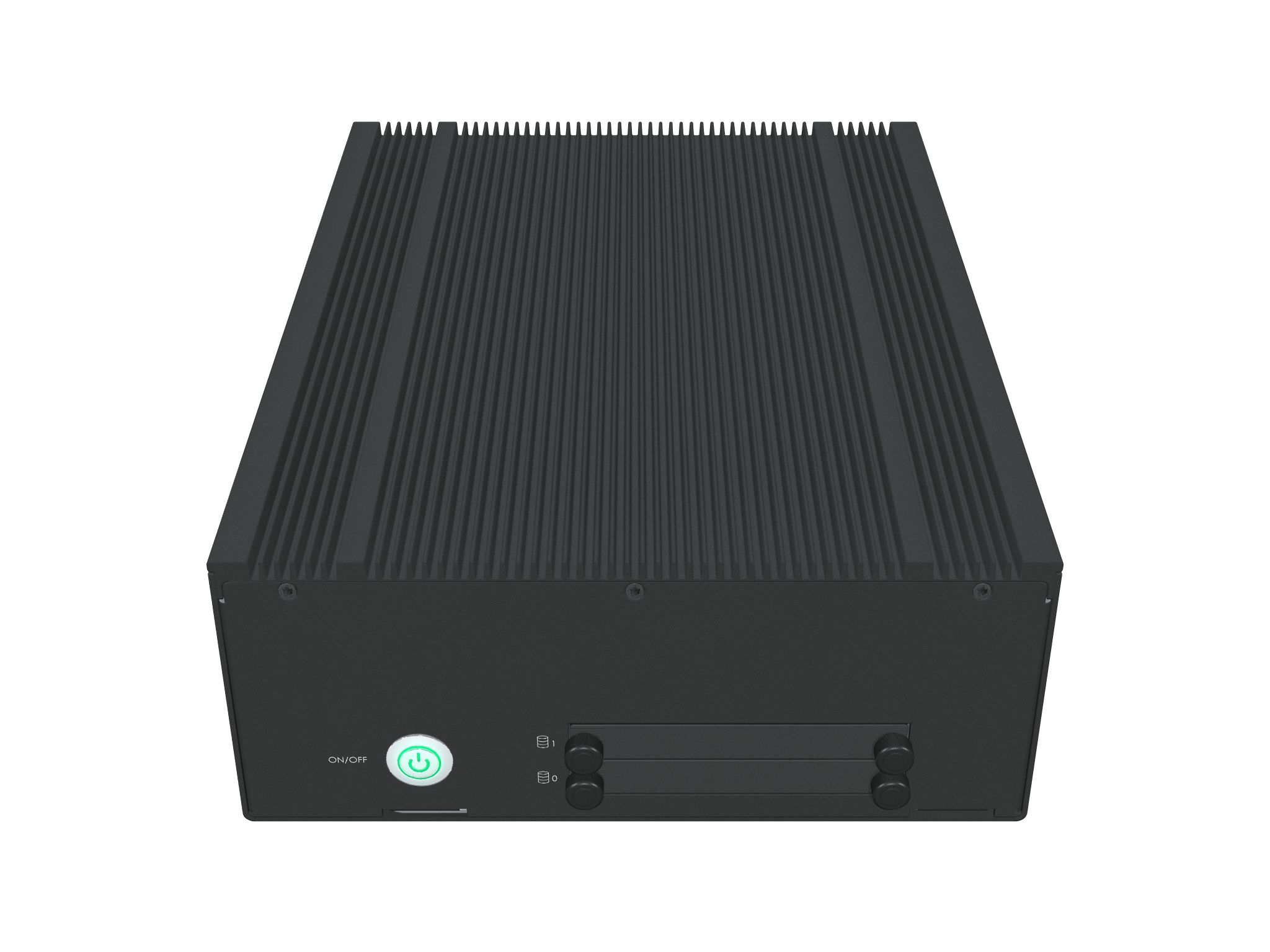

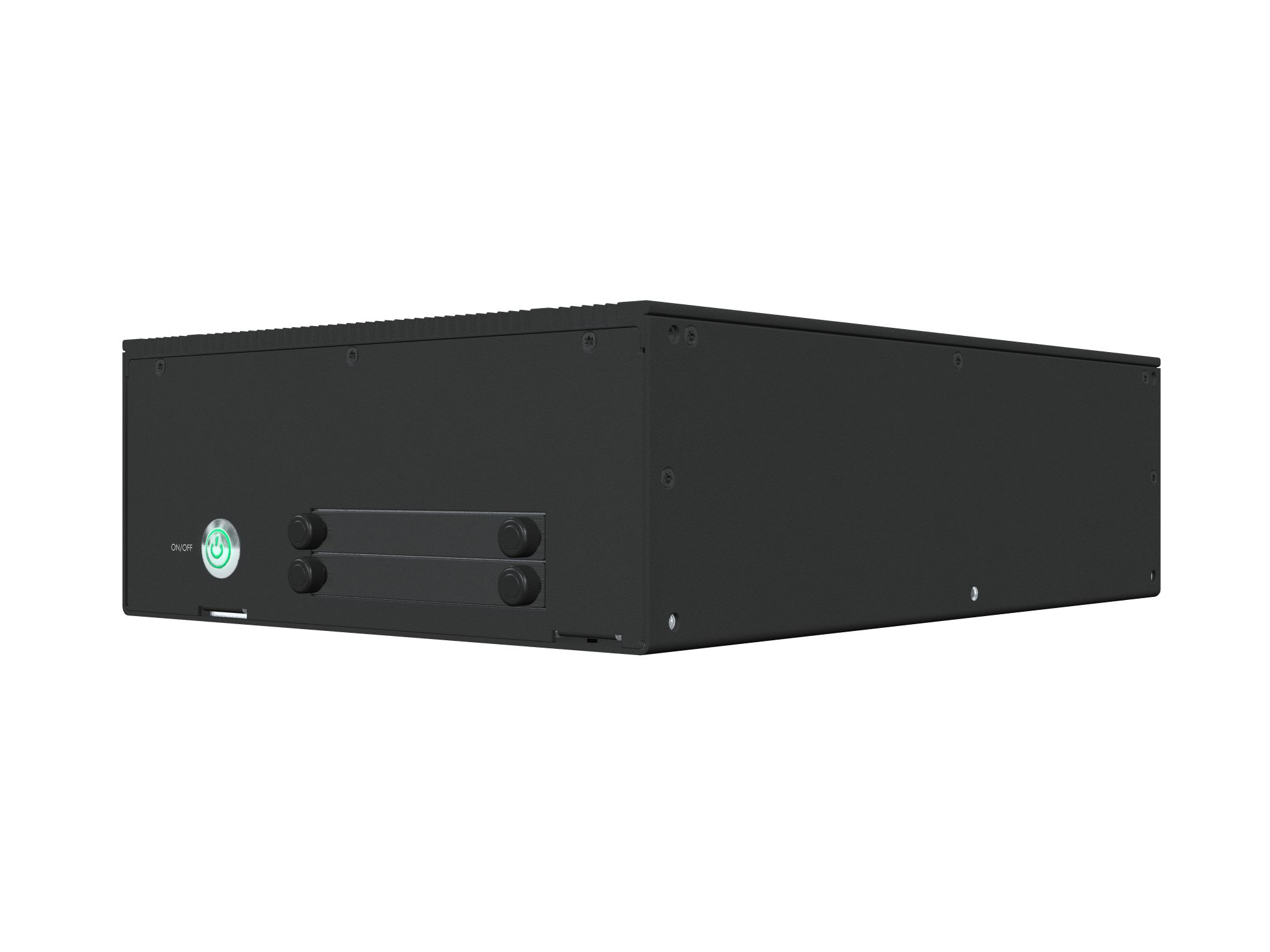

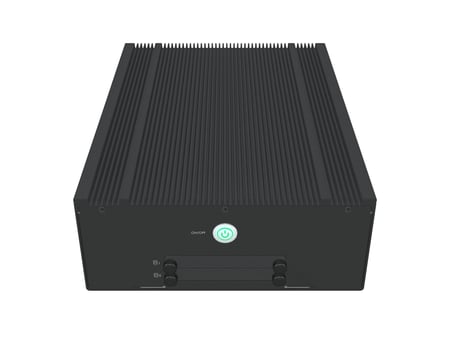

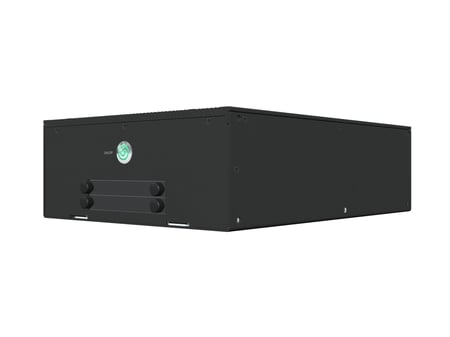

Power (or Reset=optional model) Button, Power LED, Activity LED SSD
|

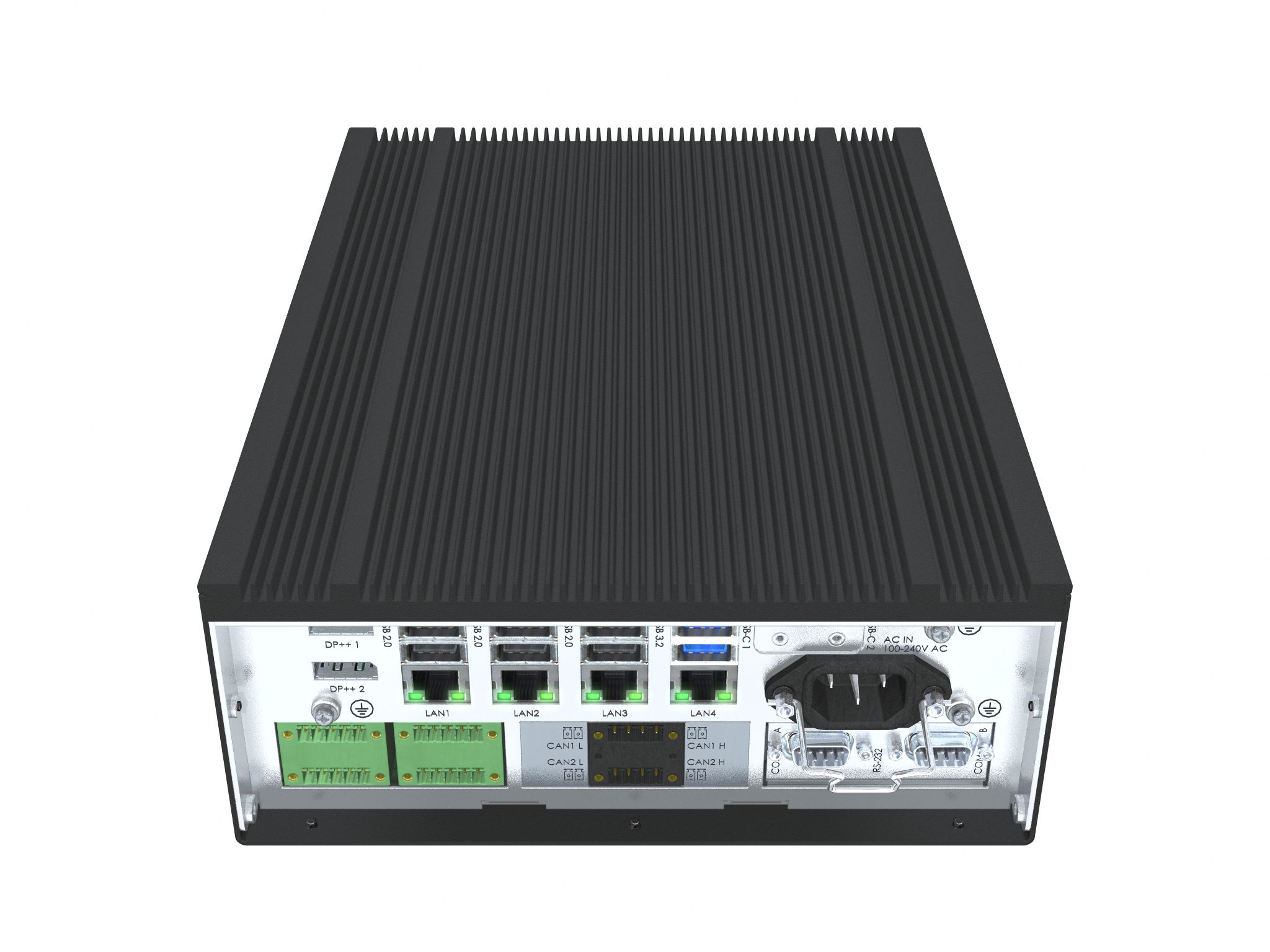

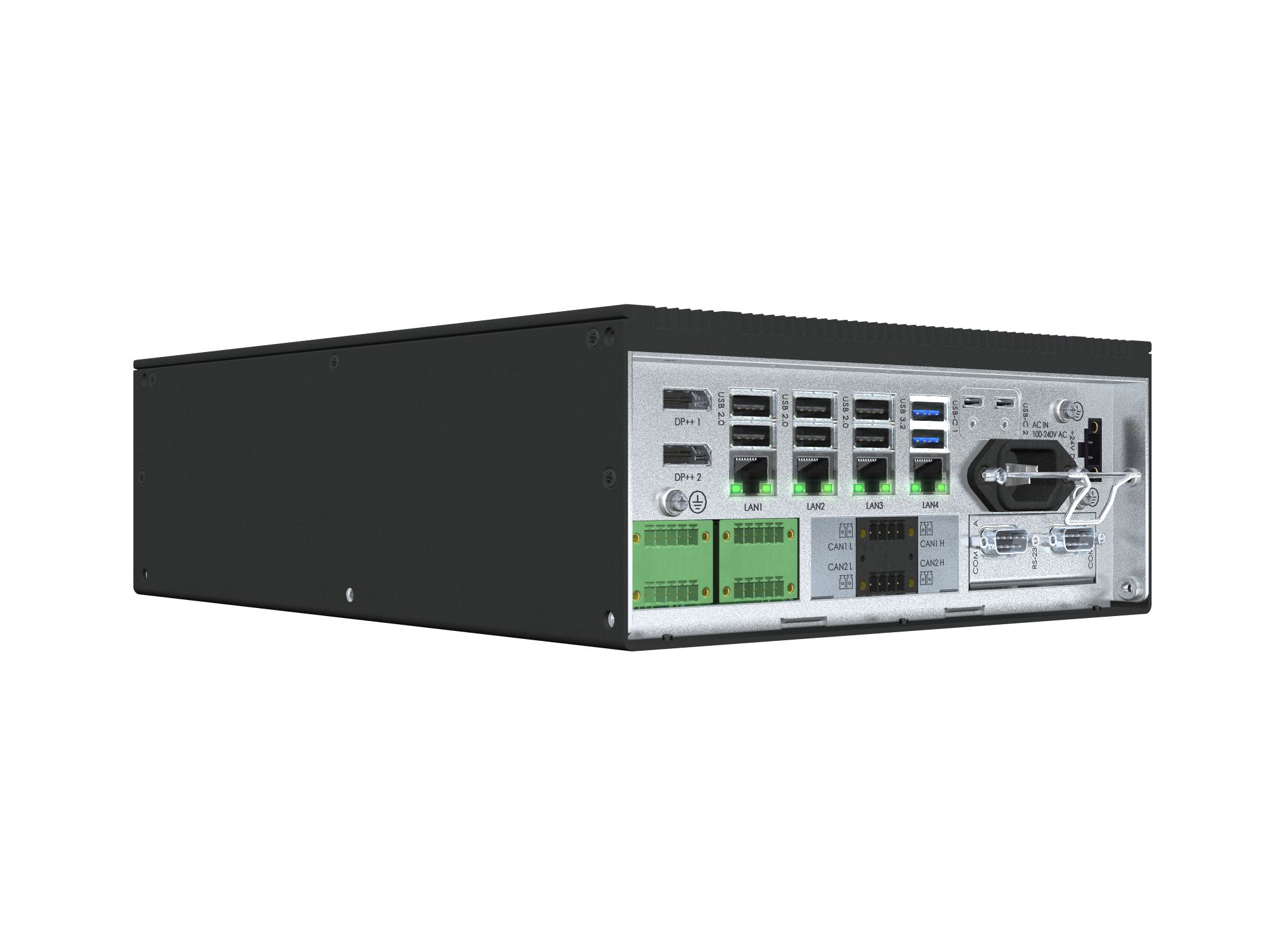

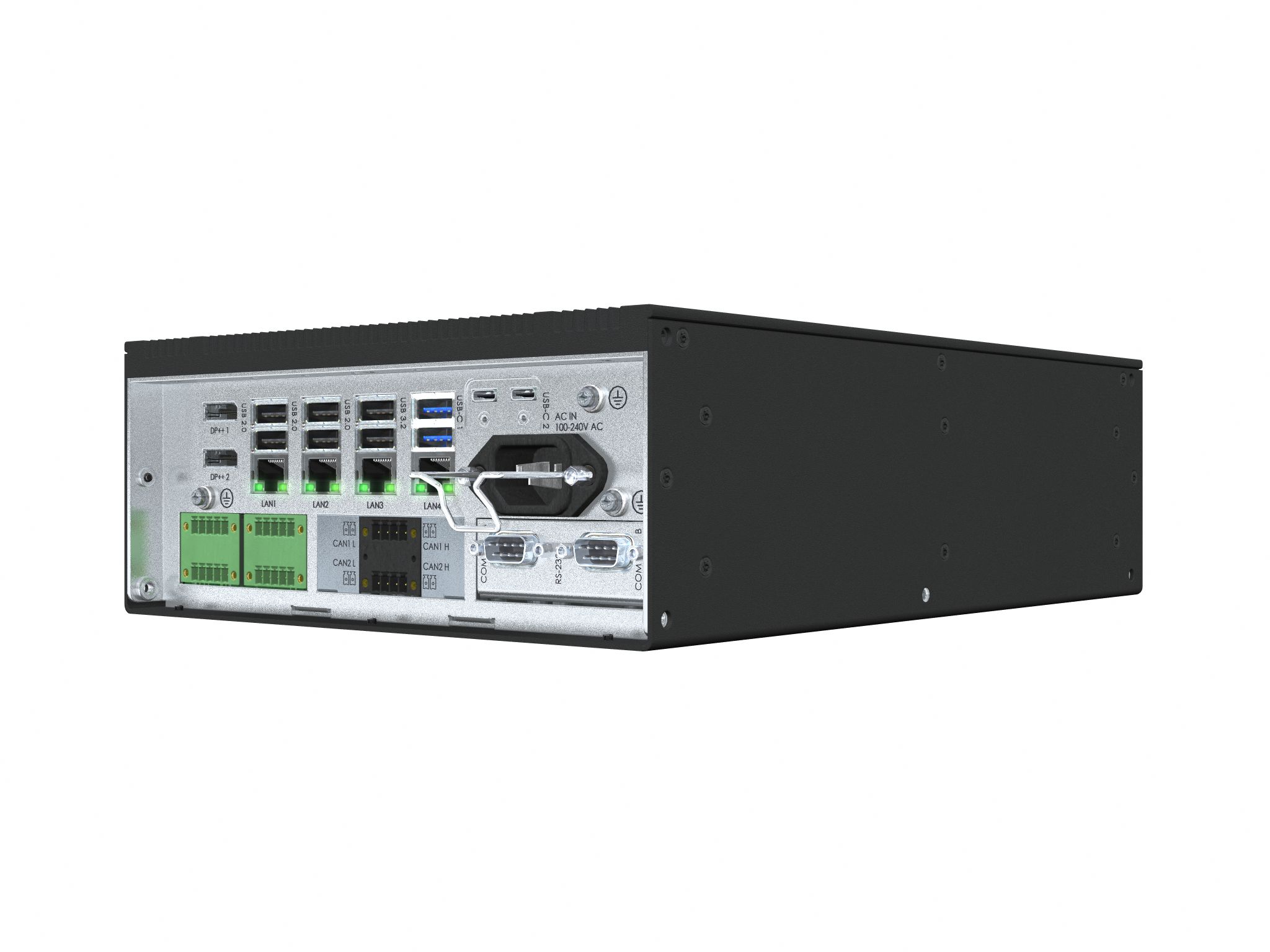

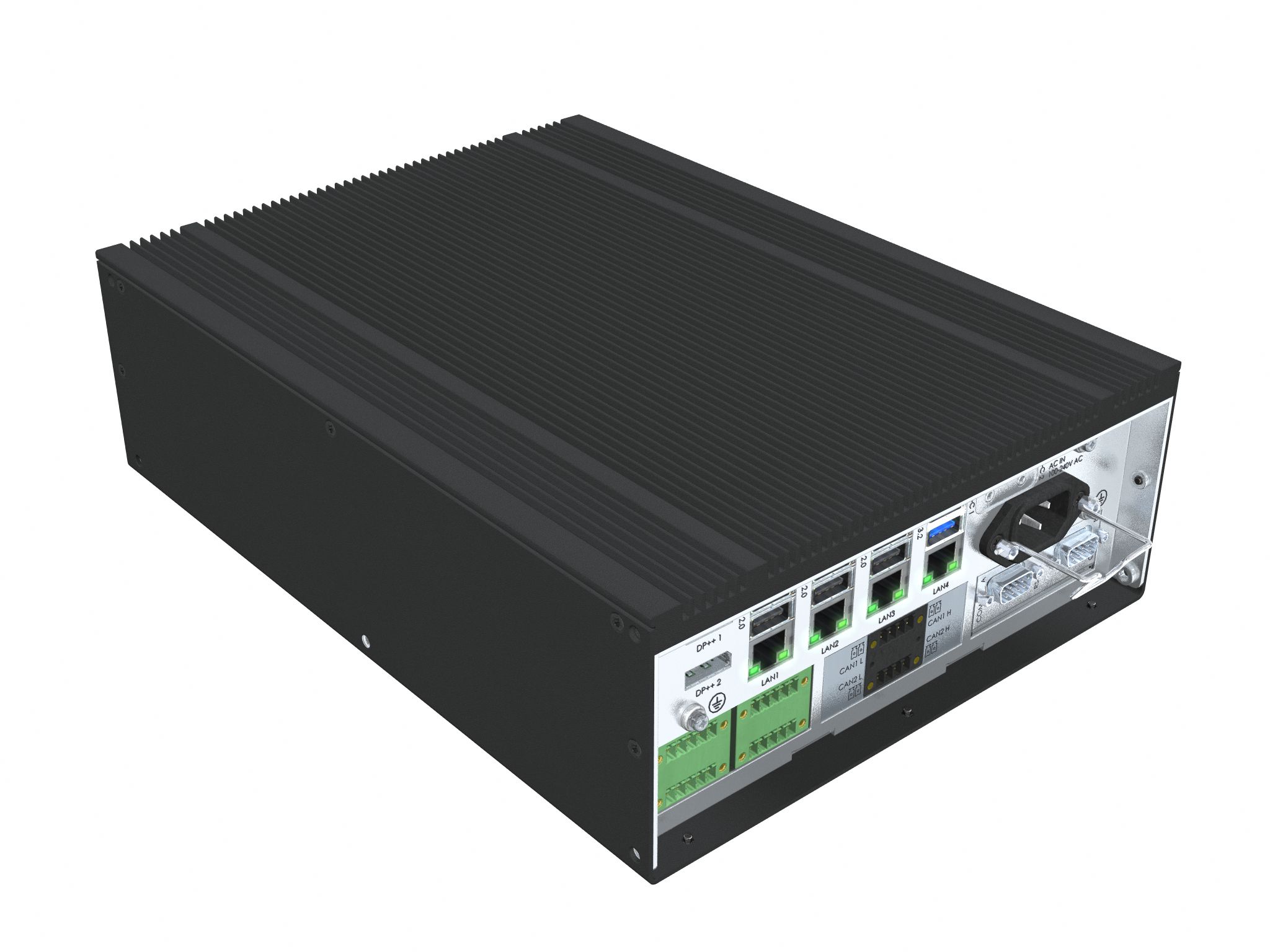

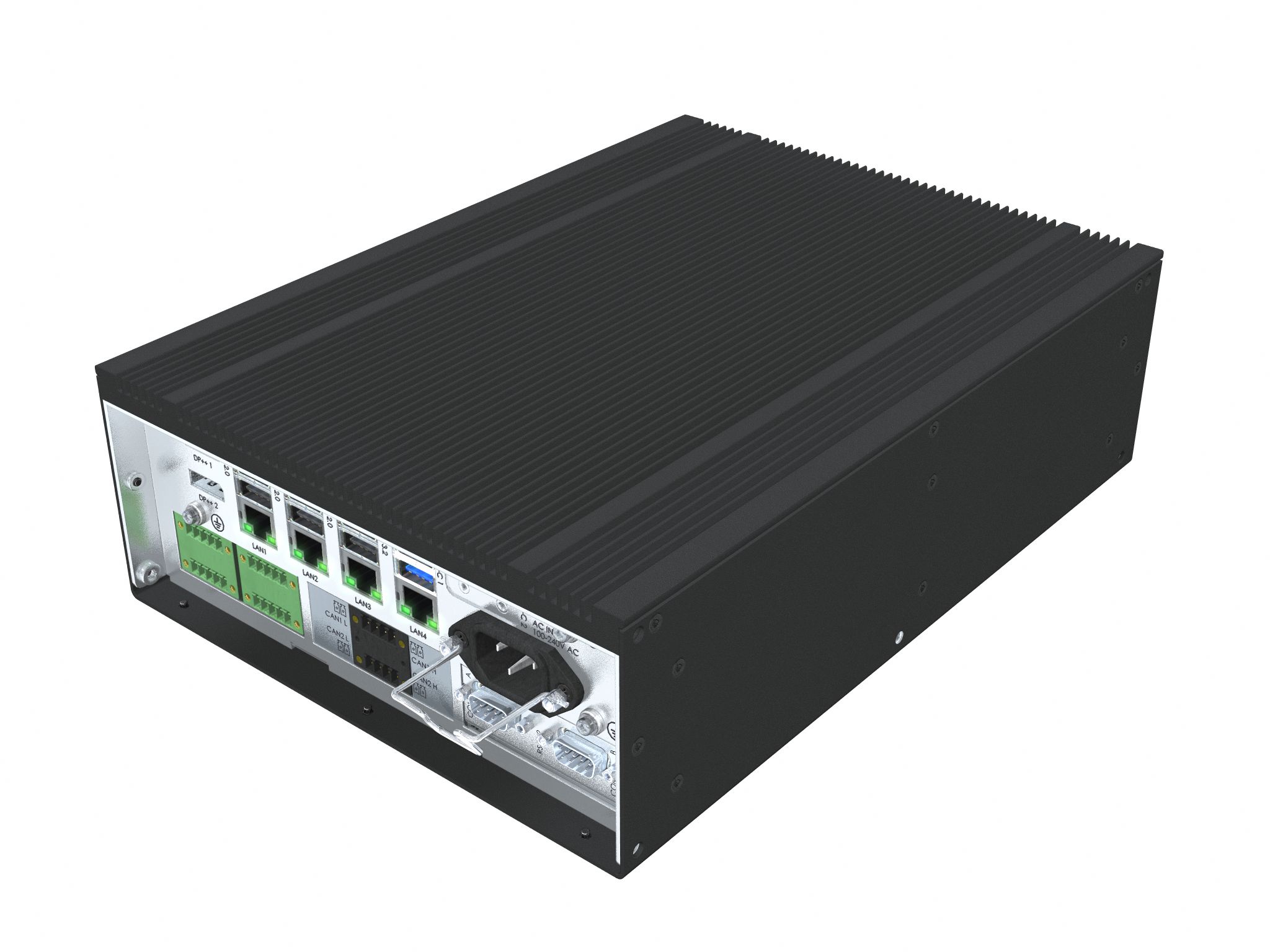

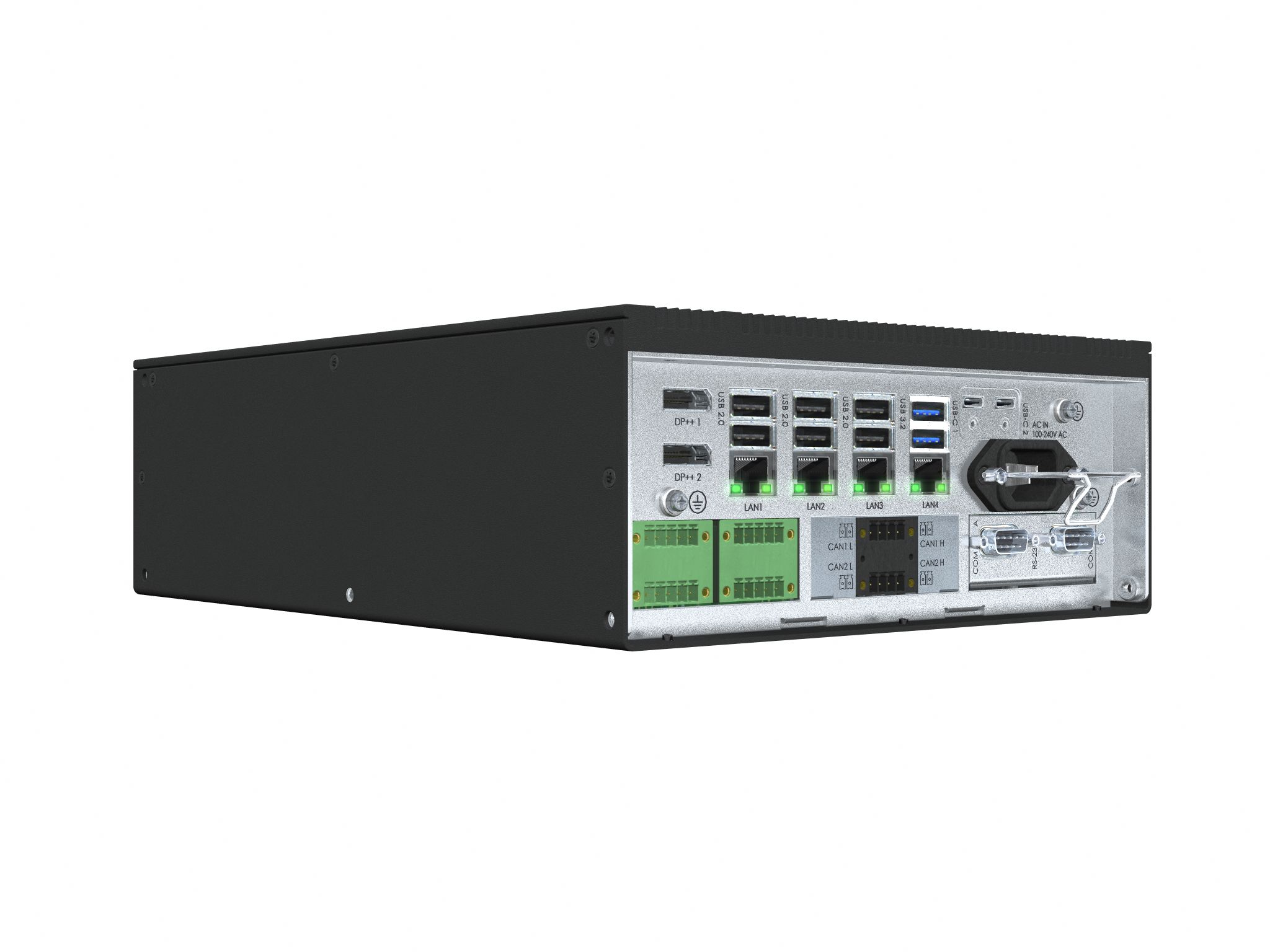

• 1 or 2 x PCA200828-1 (4 x COM RS-422/485 isolated NMEA 4 channel) module*
• 1 x HTA2020002-AD1033: CAN isolated, 2 channel module*
• 1 x HTA2020002-SLCAN: Socket CAN isolated, 2 channel module*
• 1 x PCA100297-1 (4 x Digital Input/Output isolated) module*
• 1 x PCA100298-1 (LAN 10/100Mbps, 2 ports (RJ45) module*
• 1 x VSD203134-1 (2W Amplified Audio out via DB9F)* - Pending EN60945
• 1, 2 or 3 x PCA100309-1: Dual Isolated RS-232, 2xDB9M module*
• 1 x PCBAA21001: LAN 1Gbps, 2 x SFP module*
• 1 x PCA200827-1: 2 x RJ-45, PoE 12V 5,5A receiver module*
• 1 x PCA200898-1: NMEA Kit (4xRS422/RS485 isolated) SW Configurable Pending
• 1 x HT EPB STD-A5: Remote-ON/OFF KIT
• Power Button Cover Option
• Variations of Storage Devices, RAM Memory and Operating System
* Contact us for possible combinations. Review separate datasheet for more info.
|
• HT 00262 OPT-A1/B1: 4 x RS-422/RS-485 isolated, USB ext. module
• HT 00263 OPT-A1/B1: 4 x RS-232 COM non-isolated, USB ext. module
• HT 00264 OPT-A1/B1: 1 x CAN isolated, 2 channel, USB ext. module [1]
• HT 00264 OPT-A2/B2: 1 x SLCAN isolated, 2 channel, USB ext. module [1]
• HT 00273 OPT-A1/B1: 4 x Digital IN/OUT isolated, USB ext. module
• HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module
• HT 00277 OPT-B1: 2 x LAN 1Gbps, SFP, USB ext. module
• HT 00228 OPT-A1: 1 x Mounting Plate with cable relief, RAL9011
• HT MBK STD-A1: 1 x Mounting Bracket Kit**
• HT RET STD-A1: 1 x Cable Retainer/Relief Kit**
• HT RMK STD-A1: 1 x 2U Rack Mount Kit RAL9011
• HT RMK STD-H1: 1 x 2U Rack Mount Kit w/Handles, RAL9011
• HT SRK STD-A2: 1 x 3U 19" Slide Rack Mount Kit (For 1 or 2 x HTB40)
• SF-41-20: 2 x 20" ball bearing sliding rail kit for 19" Rack*
• SF-41-26: 2 x 26" ball bearing sliding rail kit for 19" Rack*
• JH C01MF A-A: 1 x USB Cable 1m, Type A to Chassis mount receptacle
• HT 00300 MSOS: OS options: https://www.hattelandtechnology.com/os
• HT DPM2DVI-DF-A1: 1 x DP to DVI adapter
• SFP-1000Base-TX-C: SFP to 10/100/1000Base-T Copper Interface
• VSD203400-1: External Power Button Cable 2m
• VSD203400-2: External Power Button Cable 5m
• VSD203733-1: External Power Button Cable 4.6m (no power button included)
* Must be combined with HT SRK STD-A2
** Included with delivery
|
See factory options
|
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
|
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
|
Standard: 30.00 [11.81"] - Steering: 20.00 [7.87"] cm [inch]
|
IEC 60945 4th (EN 60945:2002), IACS E10, EN55024, EN55022 Class A, EU-RO-MR - Mutual Recognition*, CCS - China Classification Society*, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping*, BV - Bureau Veritas
* = pending
Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
|
