HD 55T22 MVD-T


Monitor - Widescreen - 4K UHD - LED - Chart Table Model - Optical Bonding - HATTELAND® Series X MVD - 55.0 inch

HD 55T22 MVD-T

The Series X Multi Vision Display (MVD) range of products provides large 4K resolution monitor solutions to maritime IBS, Automation and Command Control system integrators. The cutting edge high definition LED monitor technology used, with its high quality brightness and contrast, enables the presentation of large amounts of data onto one screen instead of multiple monitors.

icon
Widescreen
icon
High-res
icon
LED-backlit
icon
Chart Table Model
icon
Optical Bonding


Monitor - HATTELAND® Series X MVD

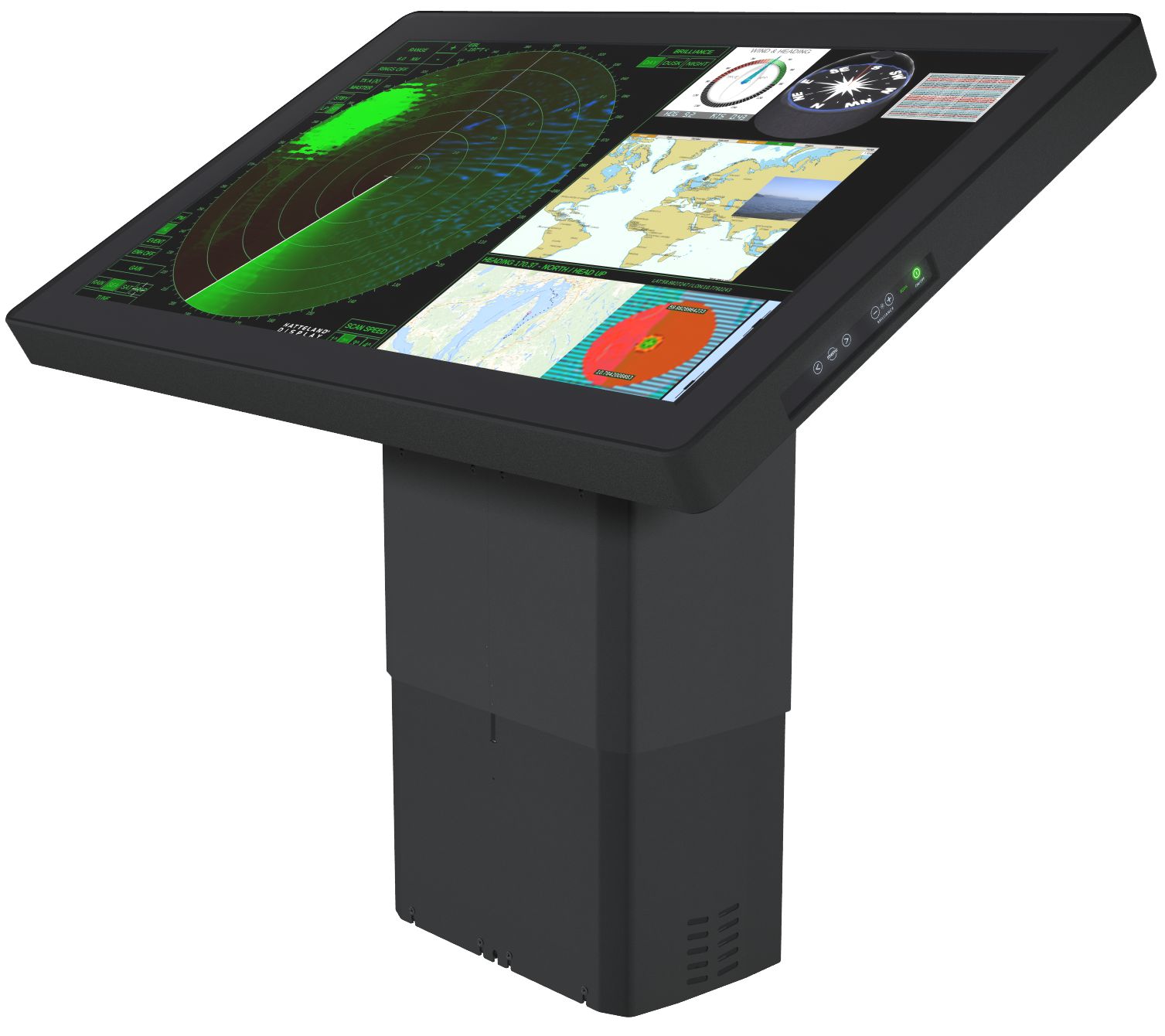

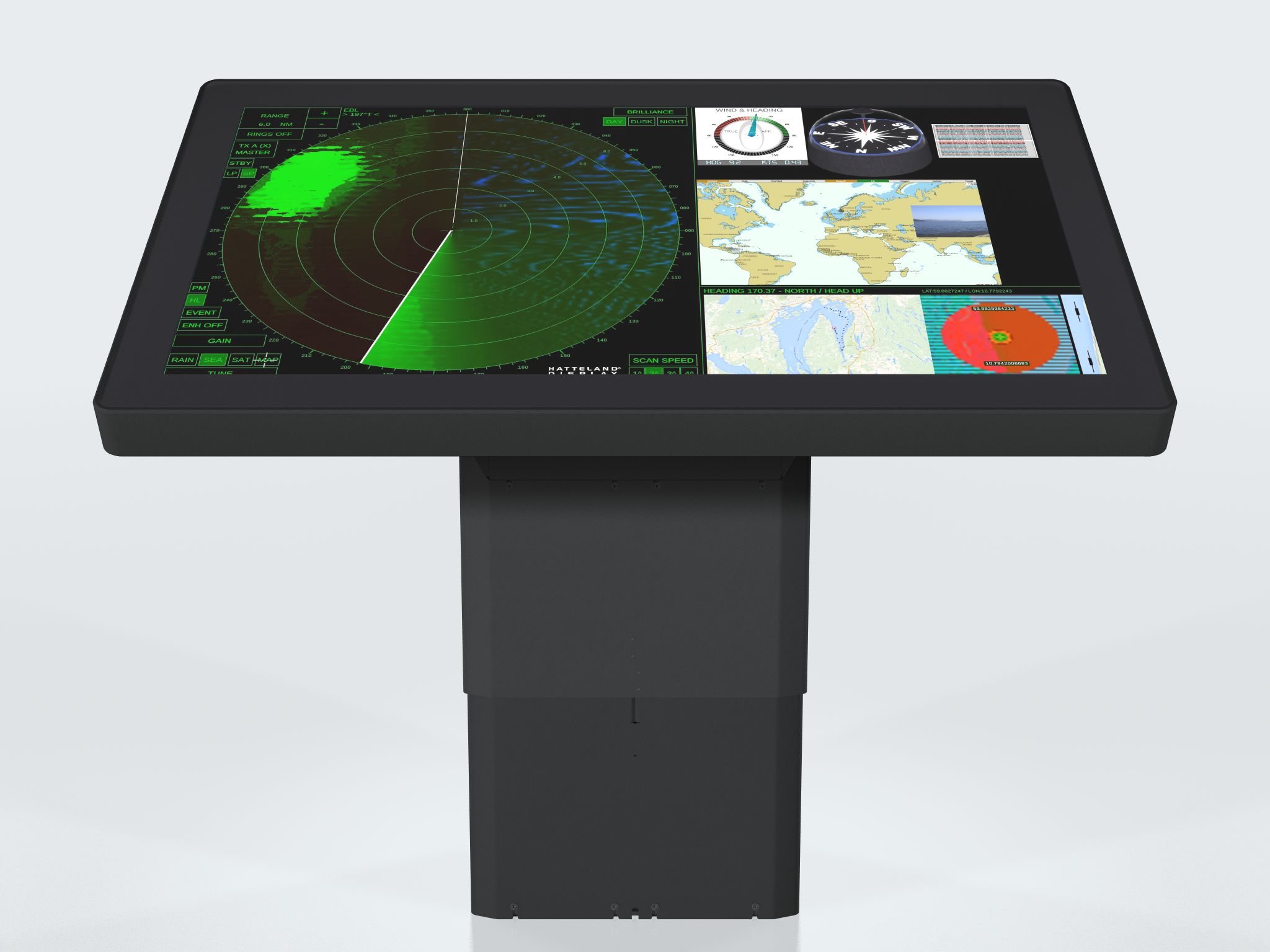

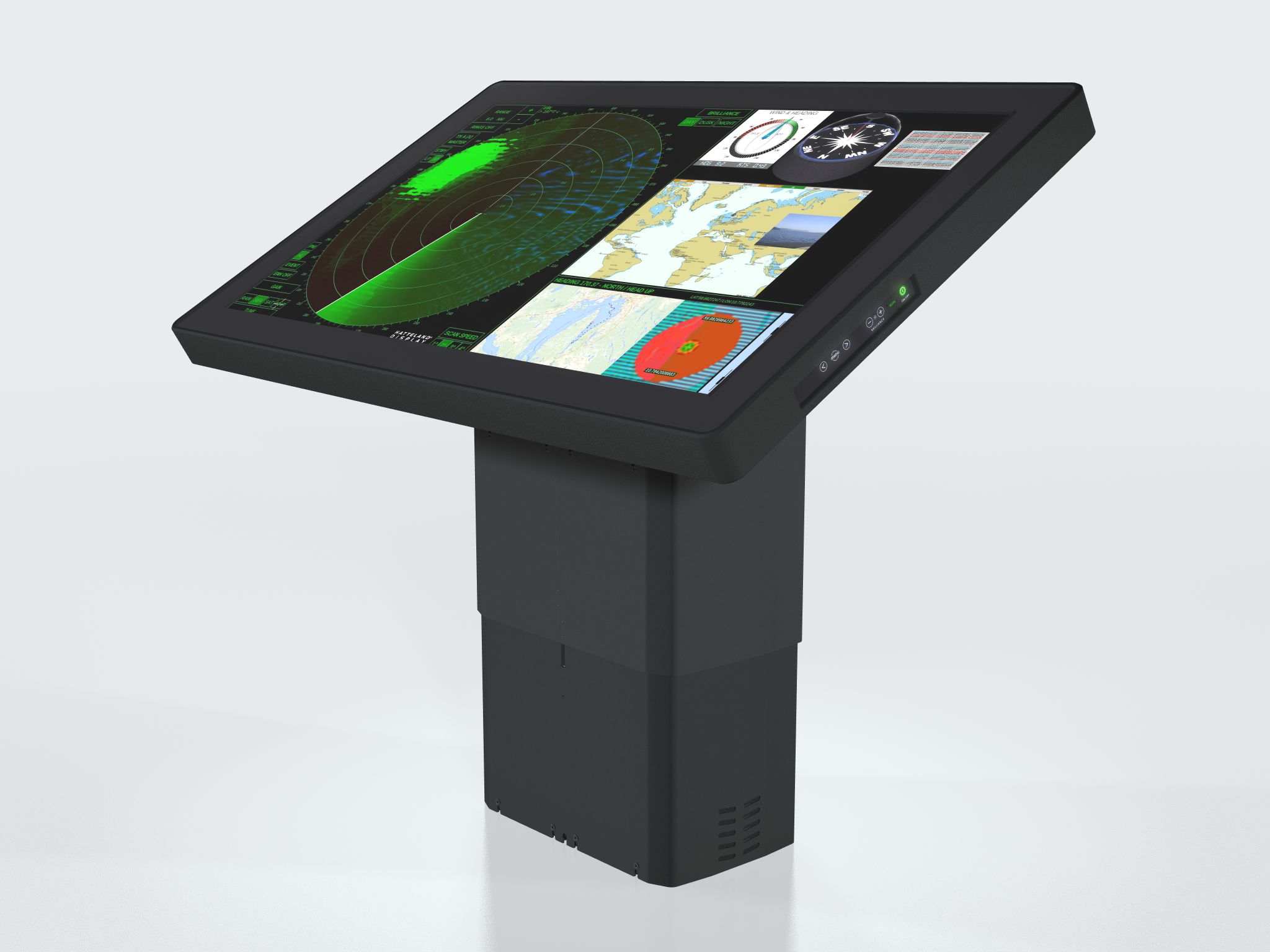

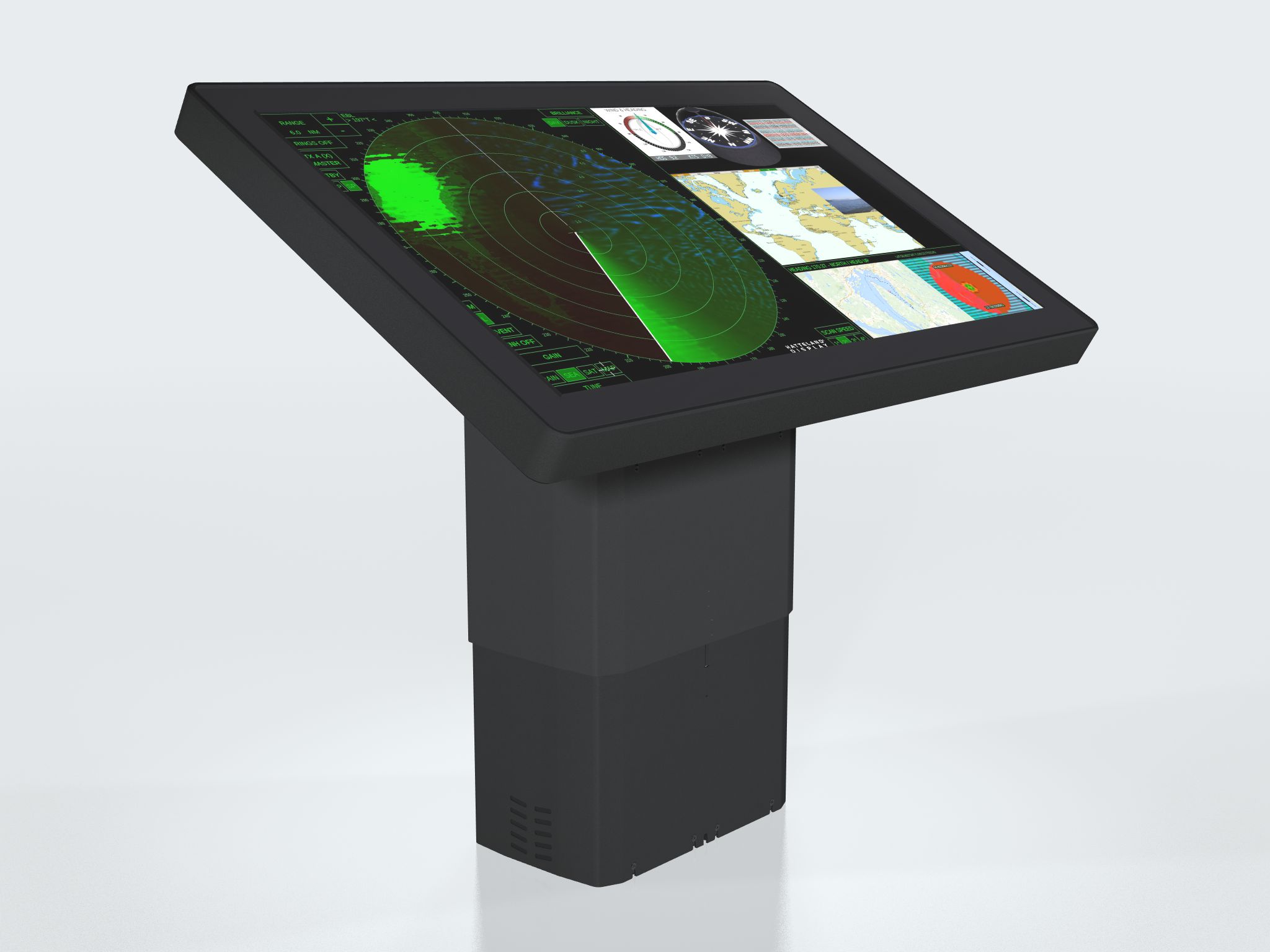

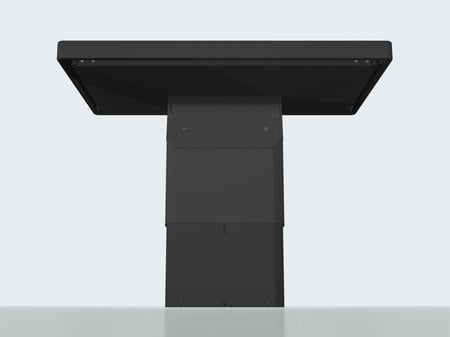

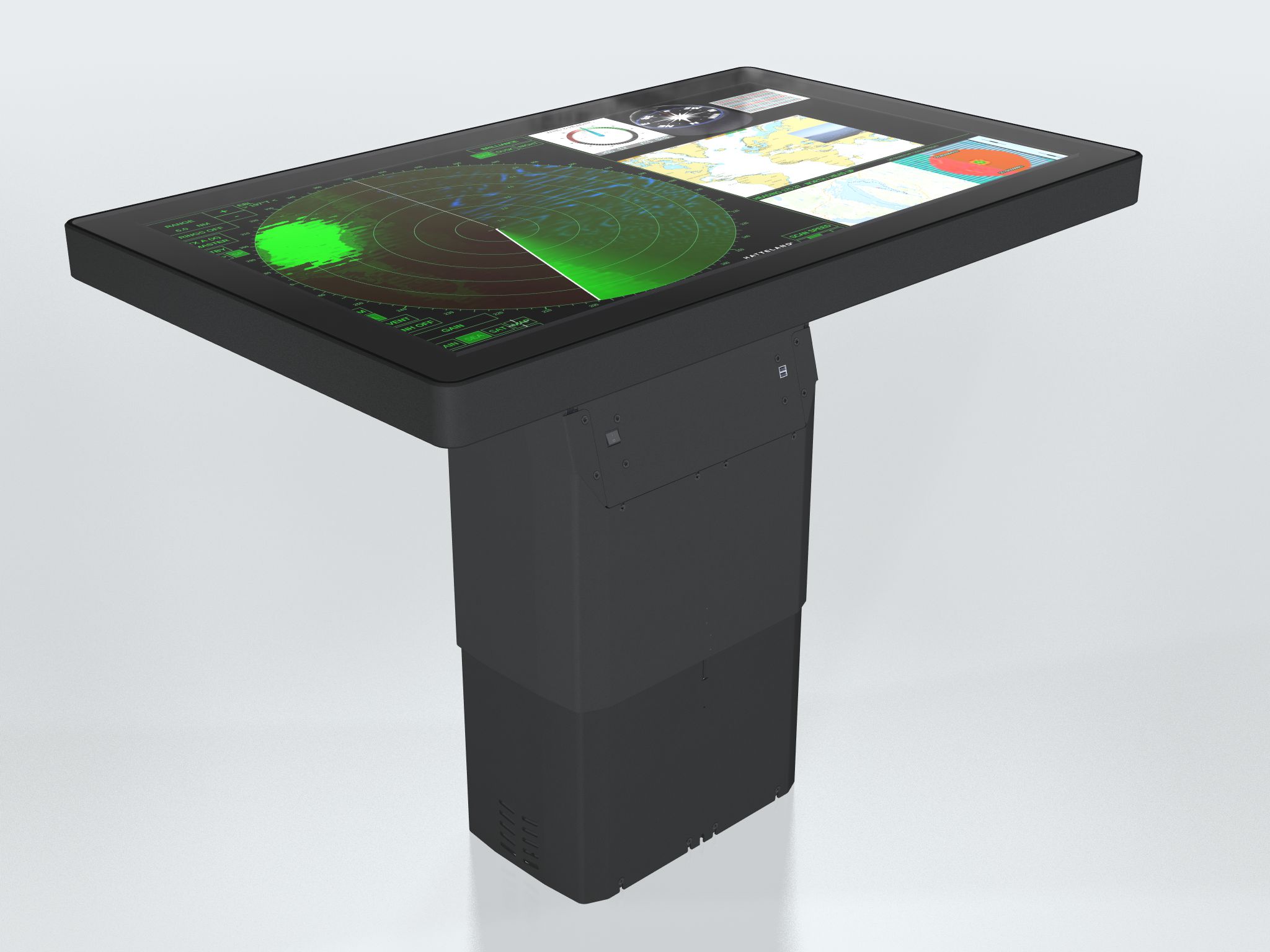

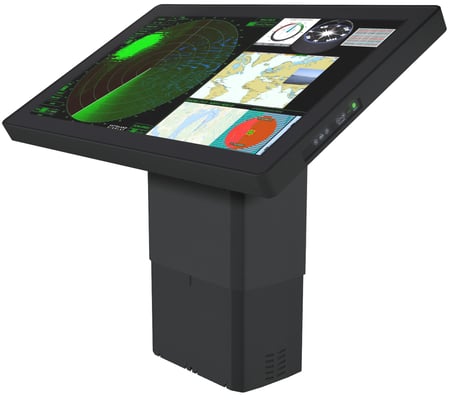

The 4K resolution 55'' Ultra-High Definition Chart & Planning table is approved for harsh maritime environments, where reliability and long life time are key factors. The 55'' MVD table is a robust, flexible and ergonomic solution, suitable for a wide range of applications including ECDIS, radar, voyage planning, safety systems and tactical command & control platforms. Features include an 40 point Multi-touch touch interface, optical bonding, multi data input, built in On-Screen Display (OSD), full dimming and the option to be supplied calibrated for ECDIS.

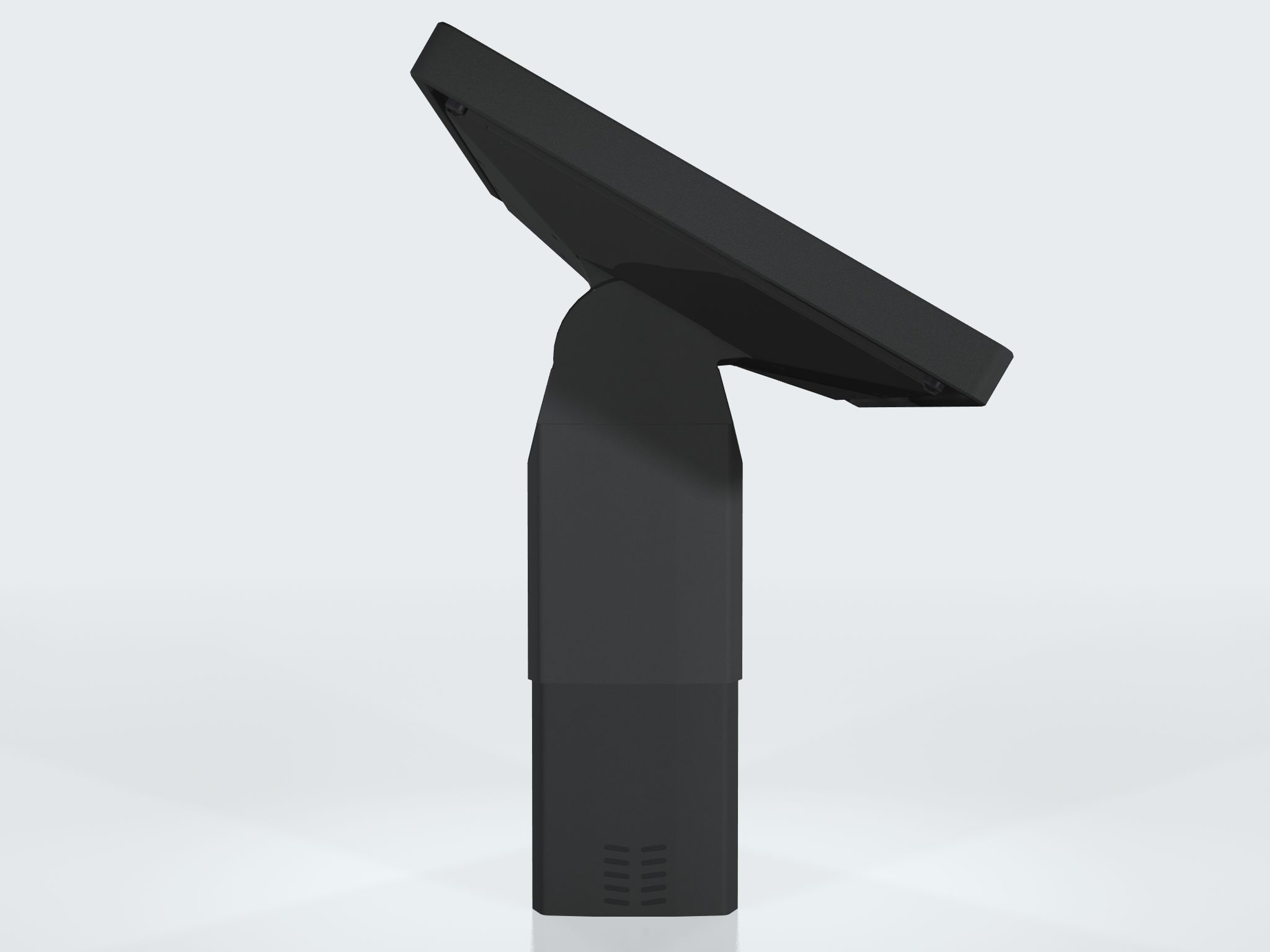

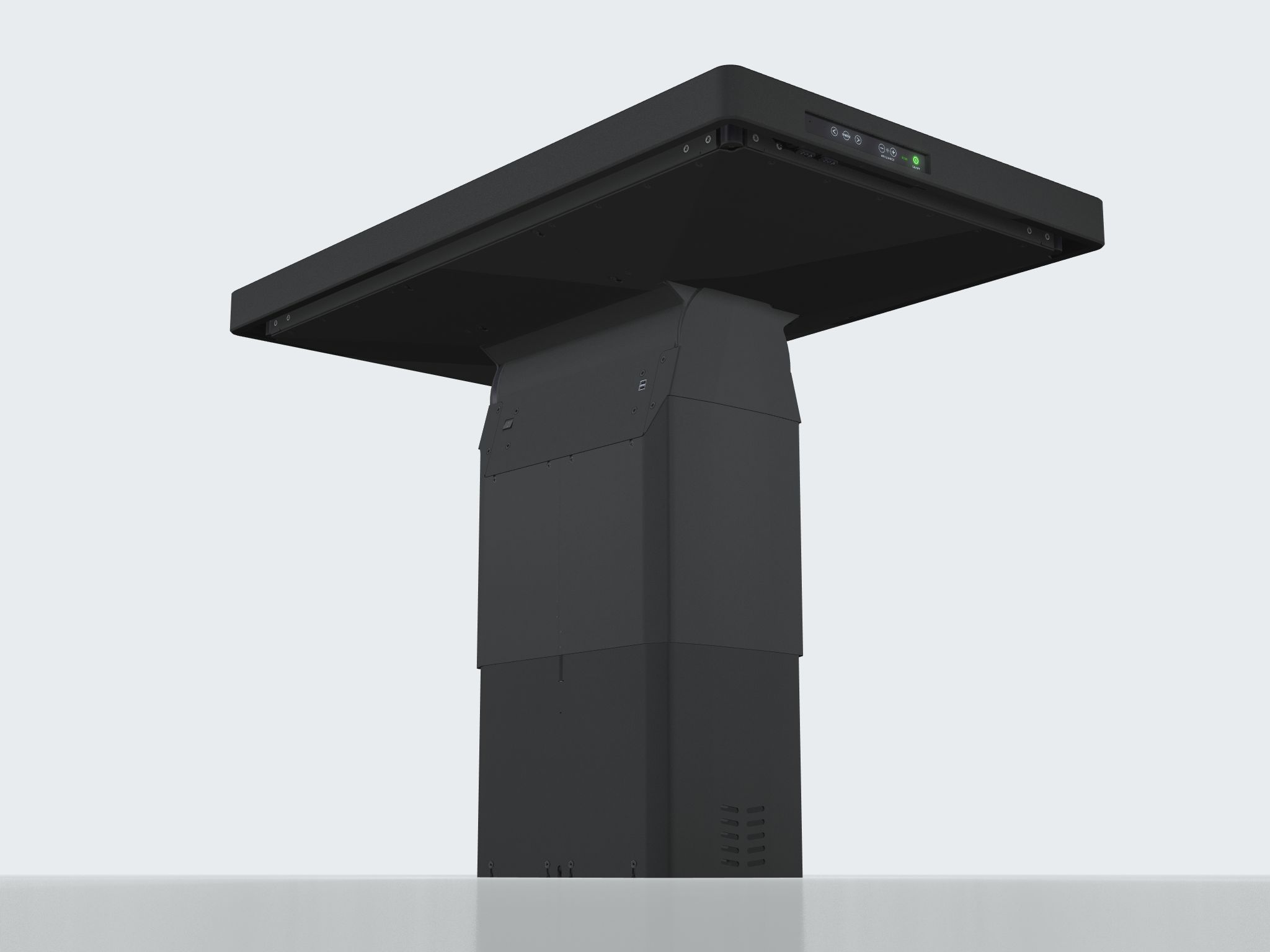

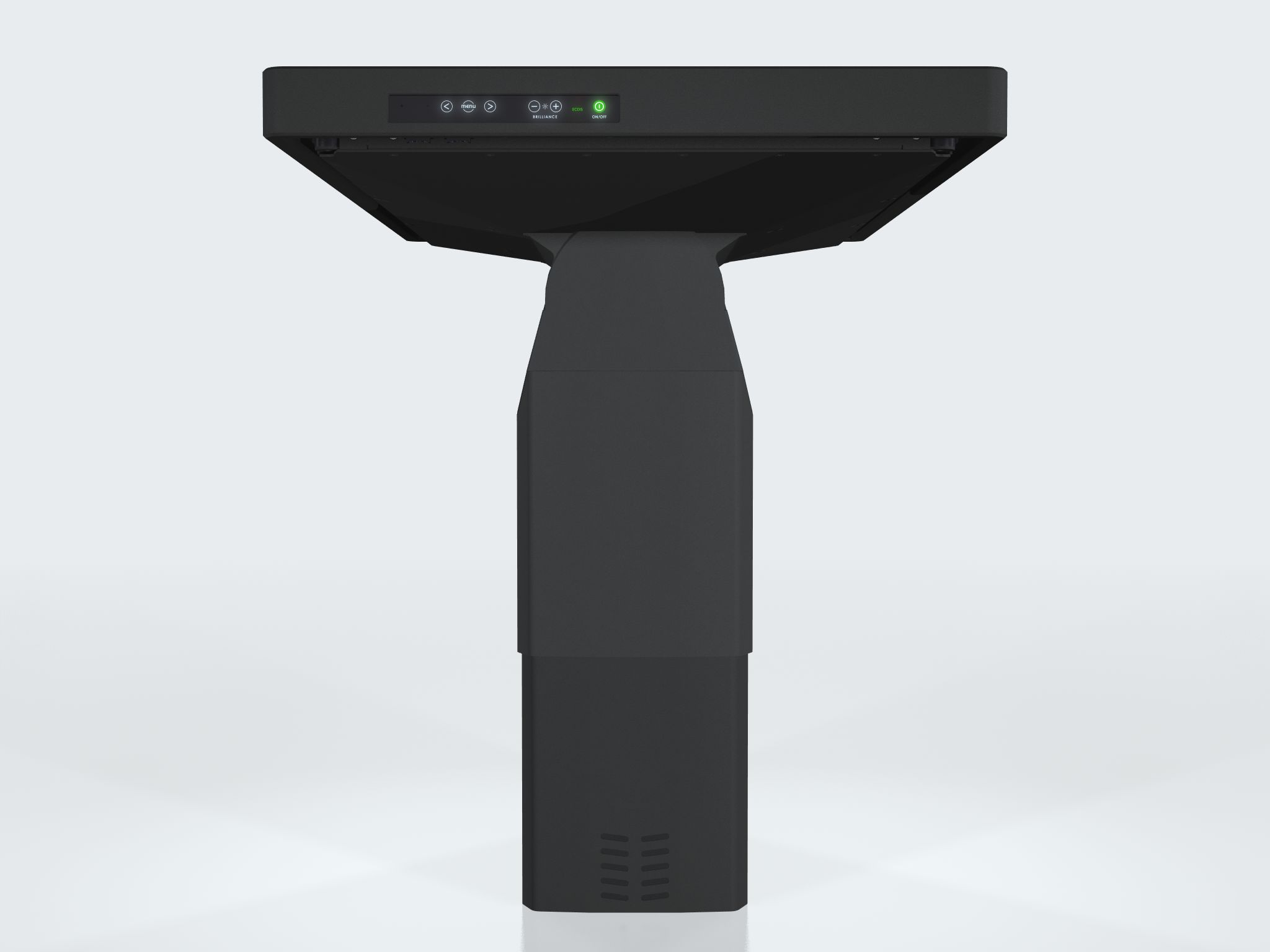

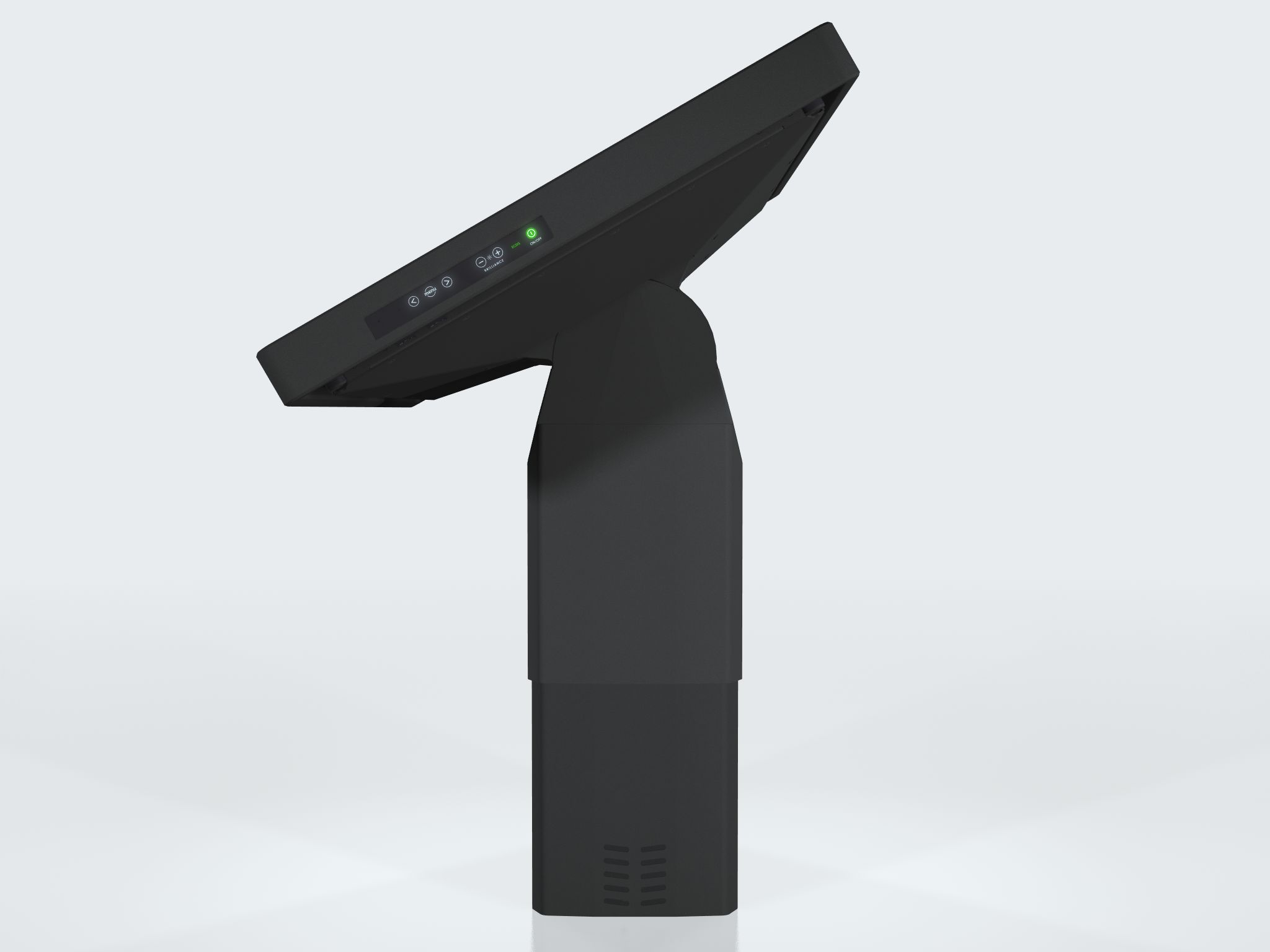

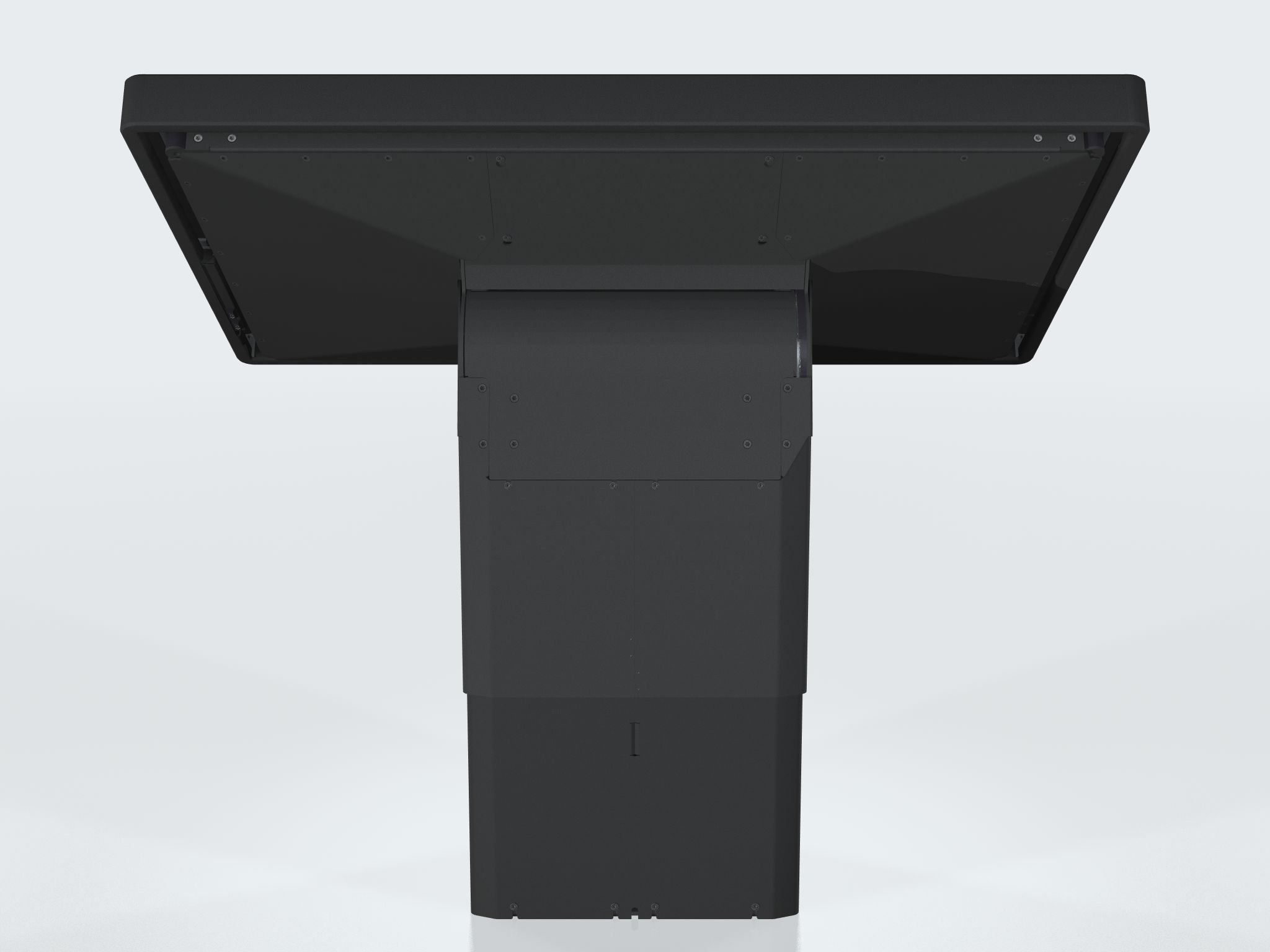

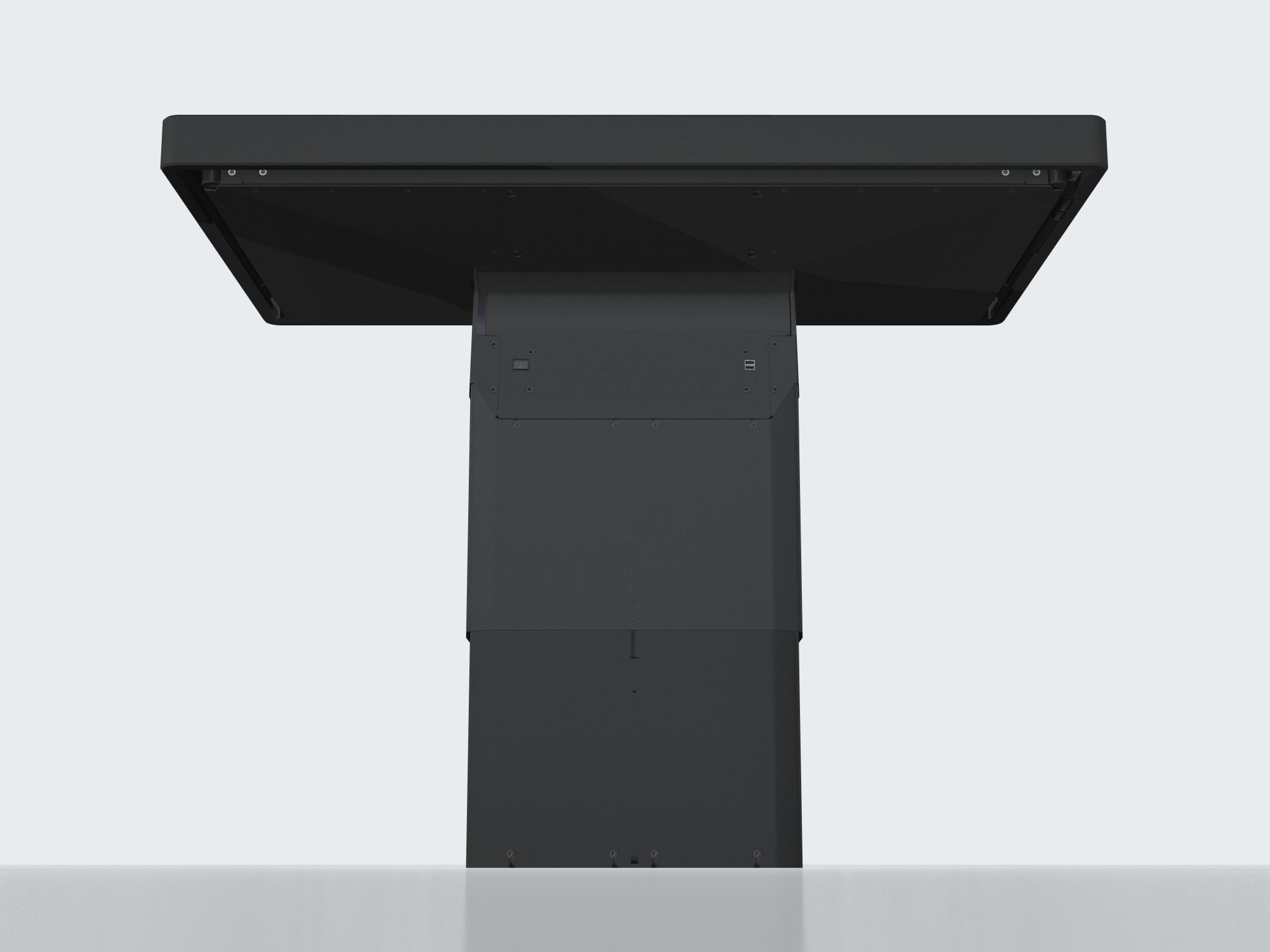

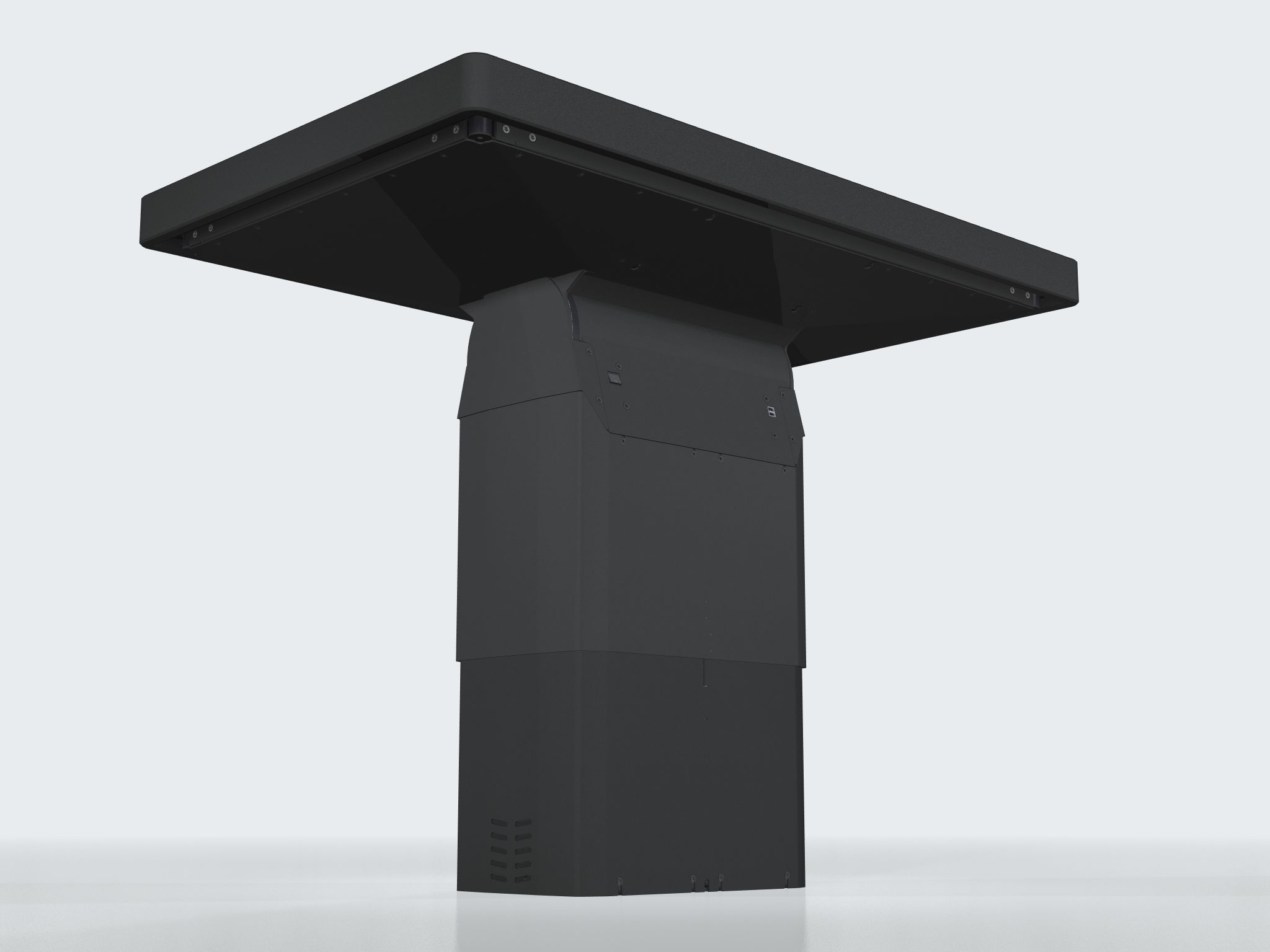

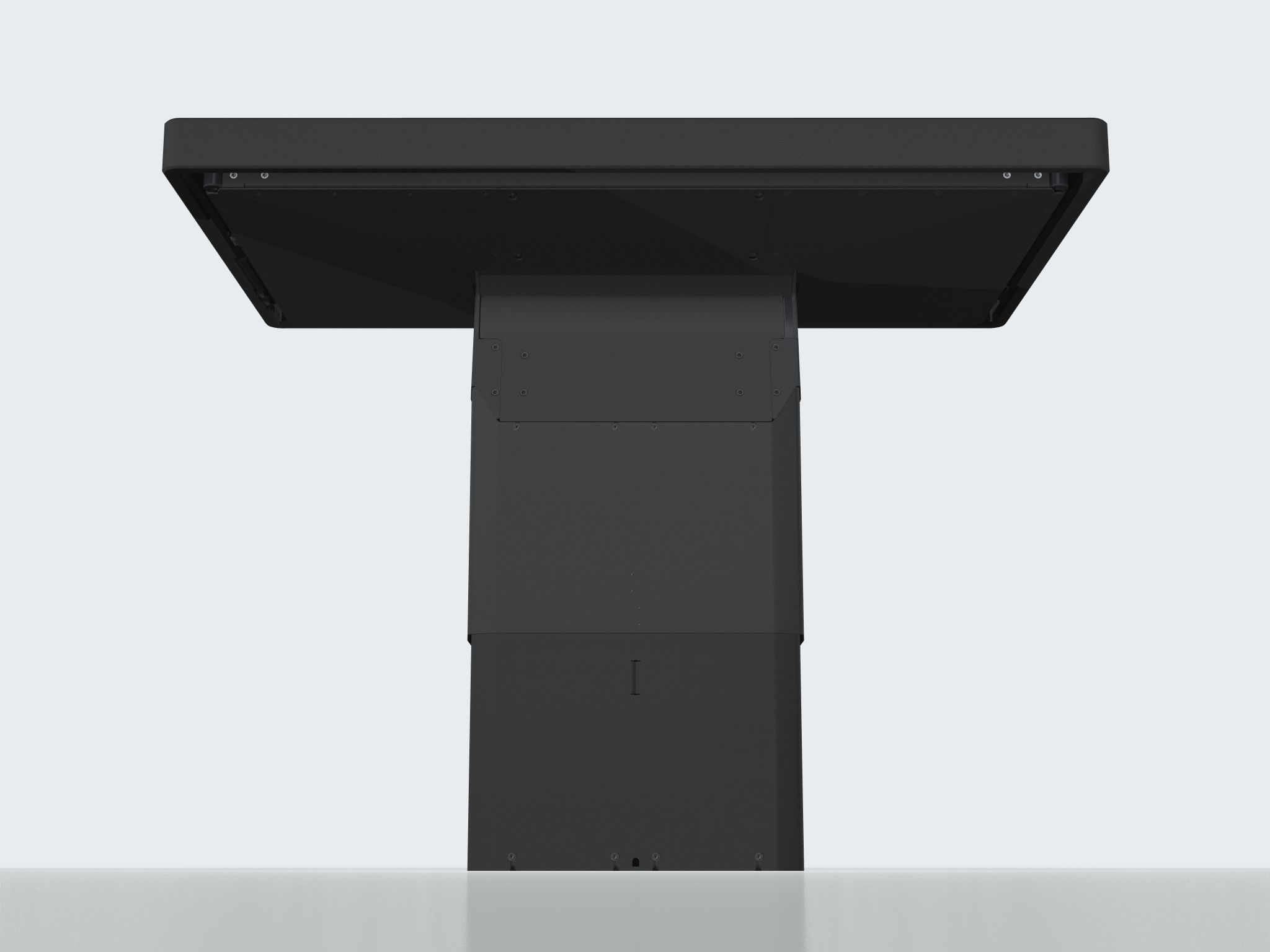

A mechanical pod that houses a Hatteland Technology HT C03/C02 computer (optional) provides lift and tilt capability for the Floor Stand Model (Chart Table configuration).
TFT Technology: LED Backlight Technology, TFT Active-matrix, Widescreen, RGB
Vertical Stripe, MVA (Multi-domain Vertical Alignment) LCD Technology
Viewable Size and Active Area: 55.0 inch - 1209.60 [47.62"] (H) x 680.40 [26.79"] (V) mm [inch]
Native Resolution and Pixel Pitch: 3840 x 2160 (UHD) - 0.315 (H) x 0.315 (V) mm
Aspect Ratio and Response Time: 16:9 - 6.5ms (typical) (G to G)
Light Intensity and Contrast Ratio: 450 cd/m² (typ) - 4000:1 (typ)
View Angle and Max Colors: 89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 3840 x 2160 @ 60 Hz
Detectable Resolutions: VGA (640 x 350) to UHD (3840 x 2160)
Composite Video Input(s): None
Supported Video Signals: None
Product Features: Full Dimming 0-100%, Multitouch, Optical Bonding Technology, PIP (Picture In Picture), Adjustable Floor Stand, 2 x USB2.0 External
Power Specifications and Consumption: 100-240V AC 50/60Hz
Operating with HT C02 computer: 350W (typ) - 1037W (max)

perating with HT C03 computer: 350W (typ) - 865W (max)

perating without HT C03/C02 computer: 300W (typ) - 625W (max)

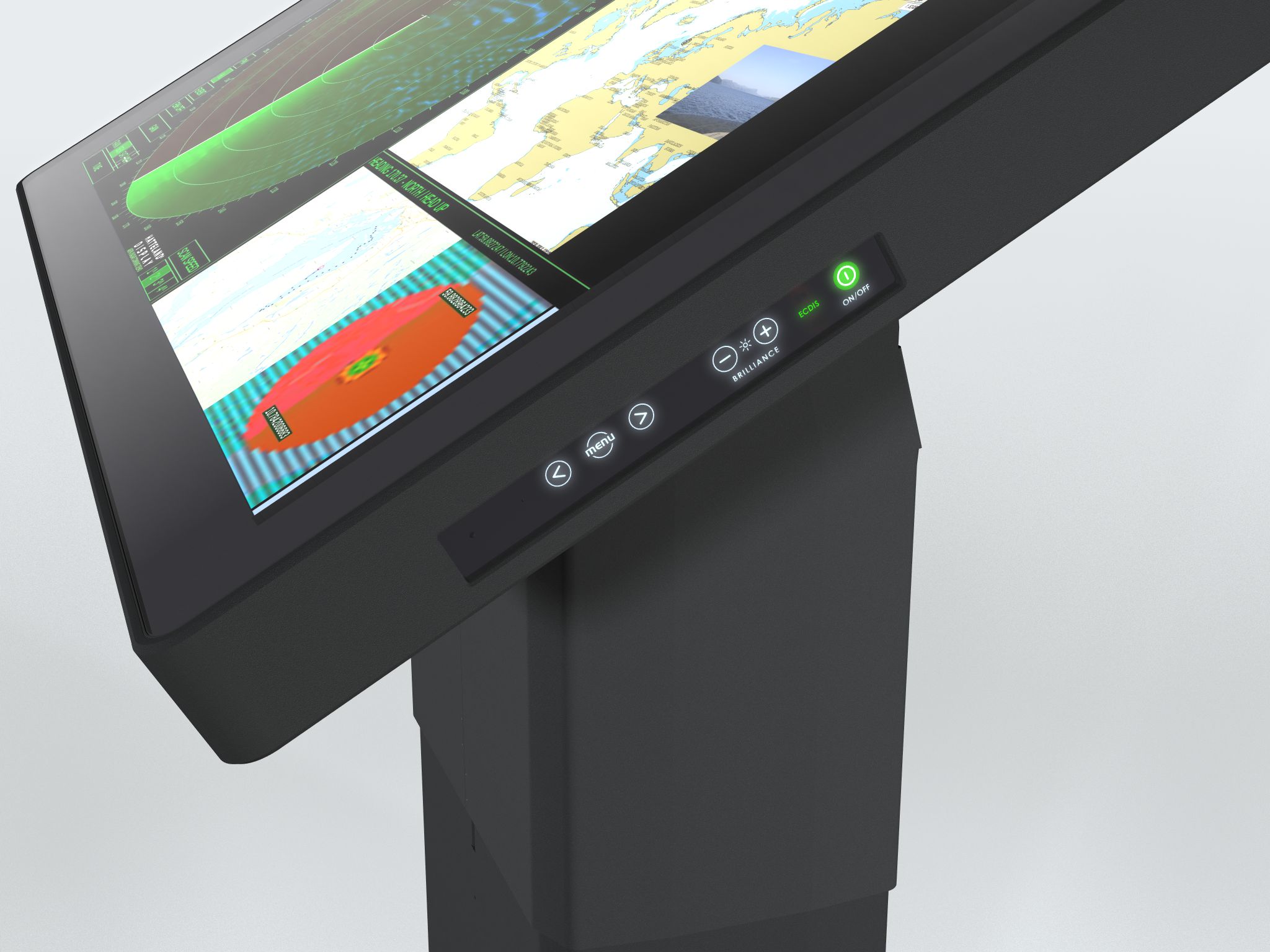

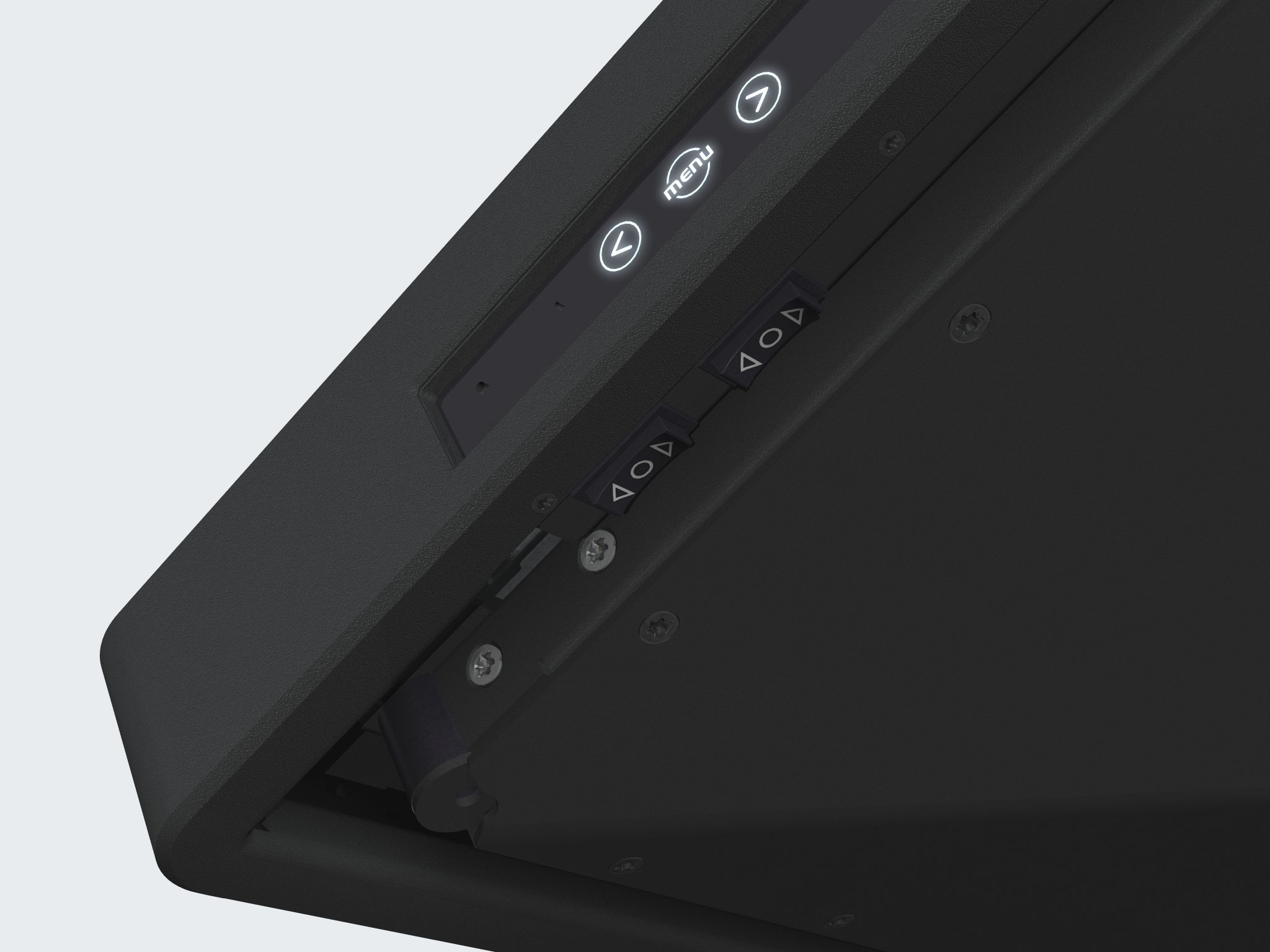

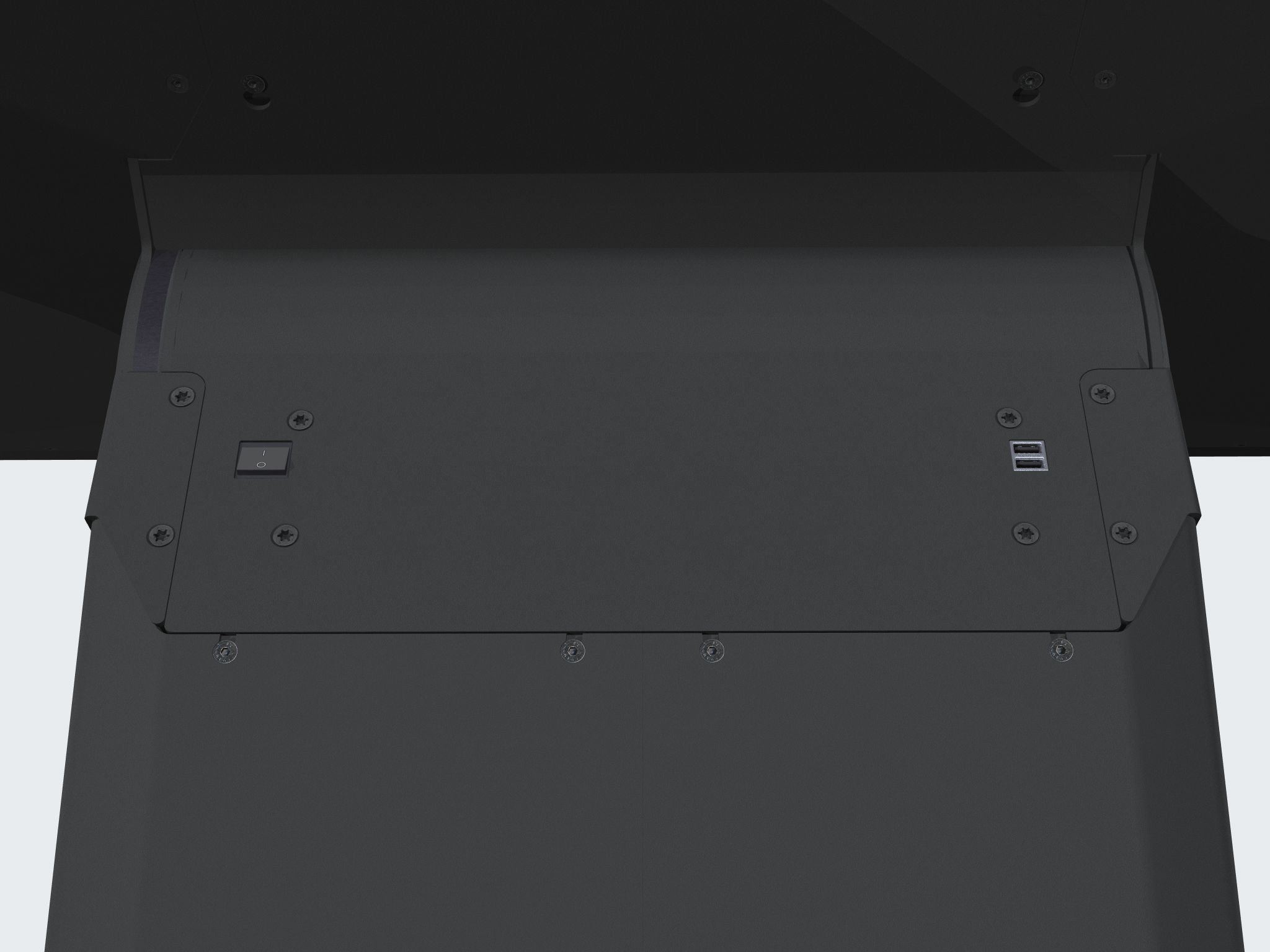

User Controls and Activity: Glass Display Control™ (GDC) IP66 with:
Power On/Off (display), On Screen Display Menu*, Brightness Control (-/+), Hotkeys (left/right), Mode Status Indicators (ECDIS, Service), Buzzer (not visible), Light Sensor (not visible)
*OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode

Additional Controls: Tilt and Lift buttons, Main Power ON/OFF switch
Connectors: • HDMI 1.4 Input: 2 x 19p HDMI (female) - Max 3840x2160@30Hz
• HDMI 2.0 Input: 1 x 19p HDMI (female) - Max 3840x2160@60Hz
• DP 1.2 Input*: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz
• SCOM+Touch*: 1 x USB TYPE A Connector (female)
• SCOM RS-422/485: 2 x 5-pin T. Block 3.81 non-isolated+Buzzer
• SCOM Ethernet: 1 x RJ45 Connector
• SCOM RS-232: 1 x 9p D-SUB (female) non-isolated
• User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT
• SW Interface: 1 x USB TYPE A (female) for Firmware Update

GDCx Interface: 1 x 15p D-SUB (male) for GDC Hardware Comm.

• AC Power IN: 1 x Junction Box enclosure w/Terminal Block
* By factory default connected to internal HT C03/C02 Compact Computer
Product Dimensions and Weight: W:1360.68 [53.57"] x H:See below x D:831.48 [32.74"] mm [inch]

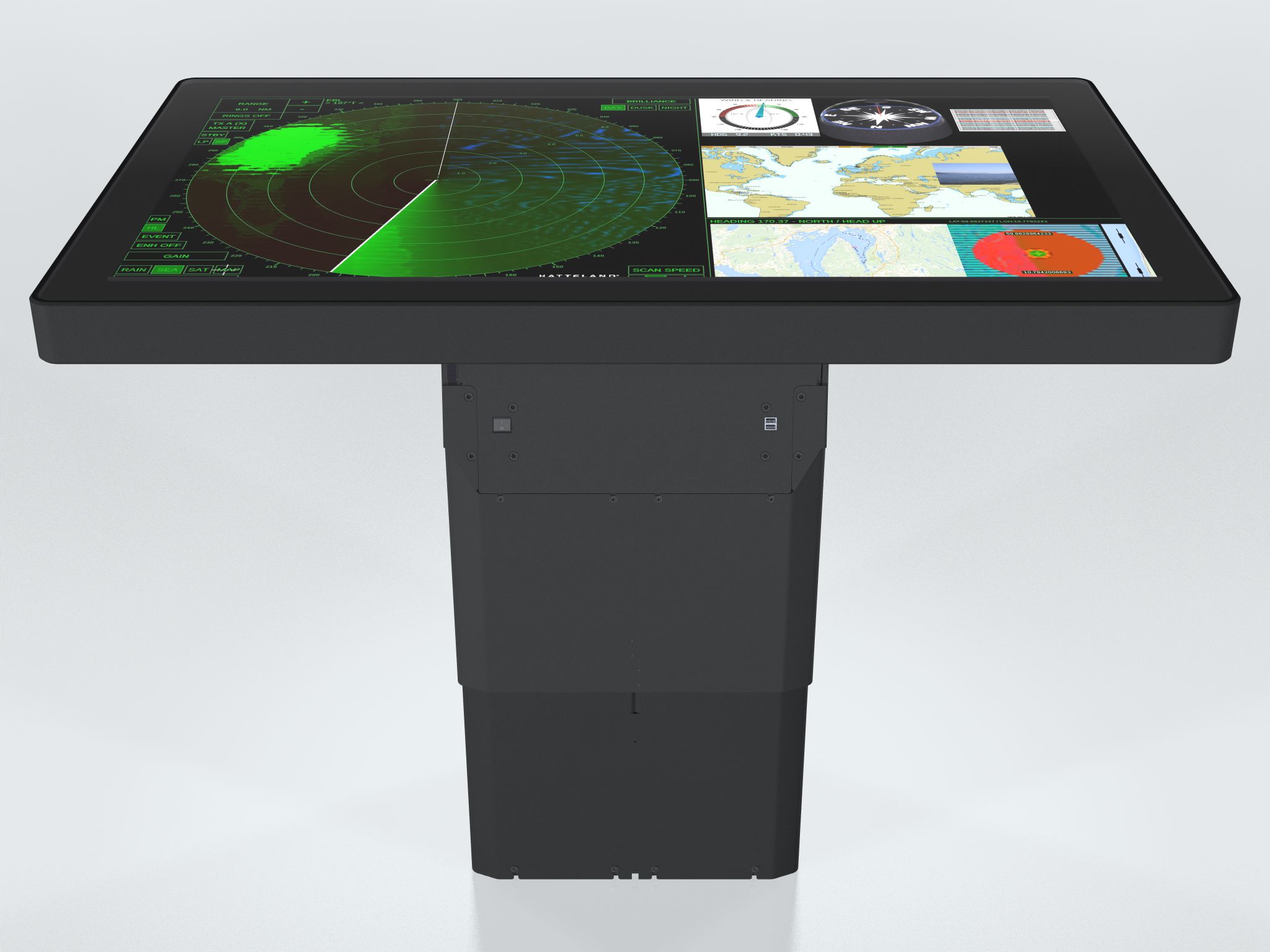

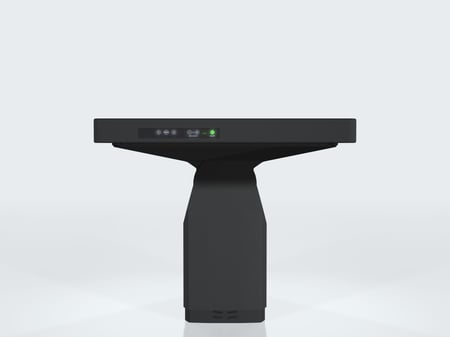

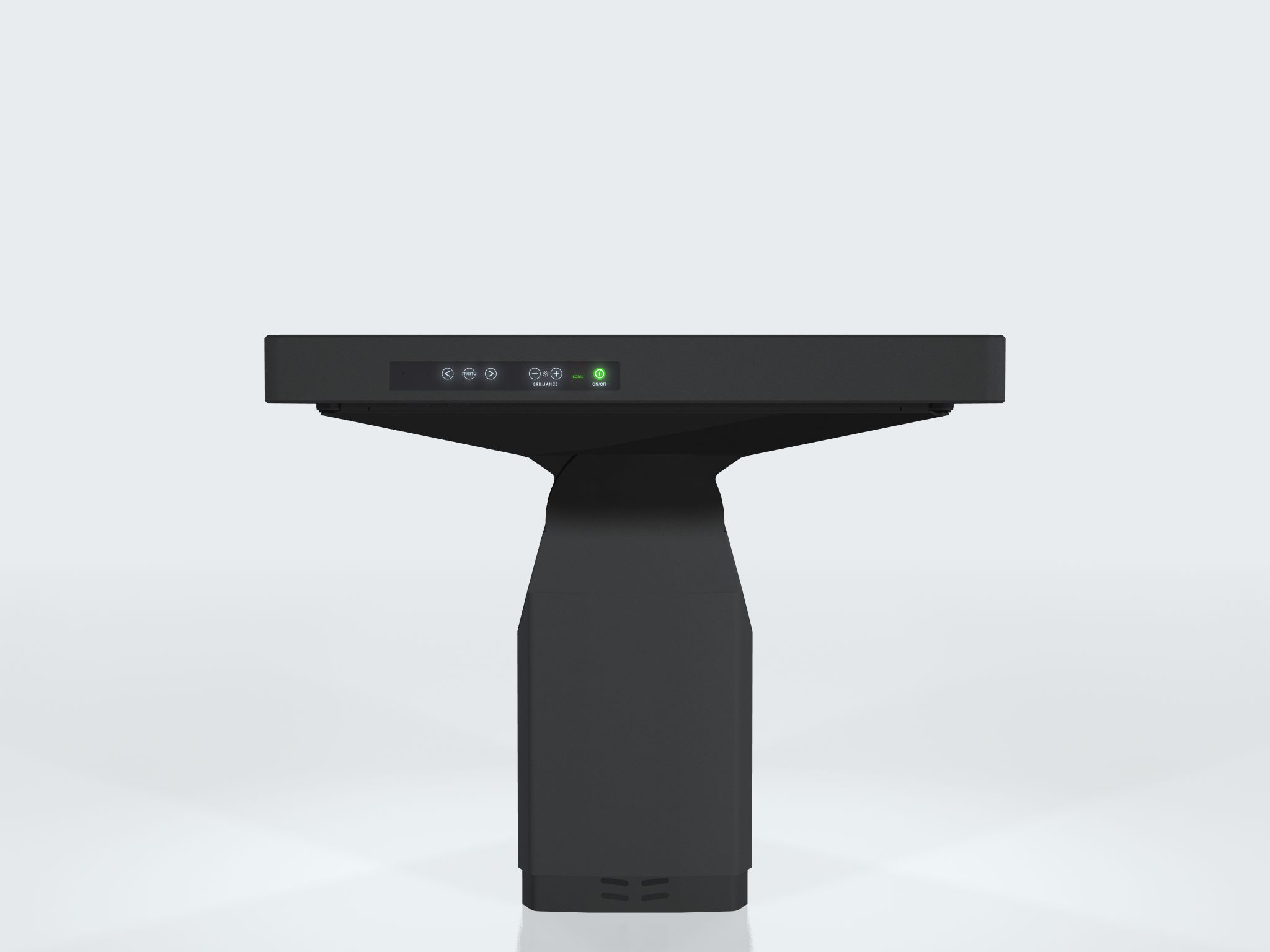

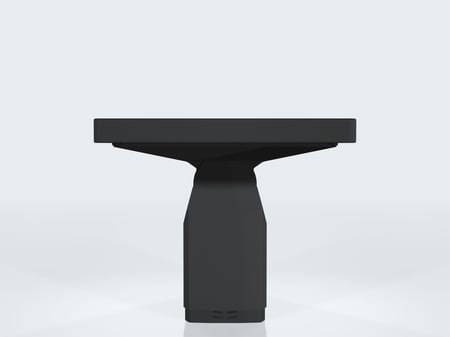

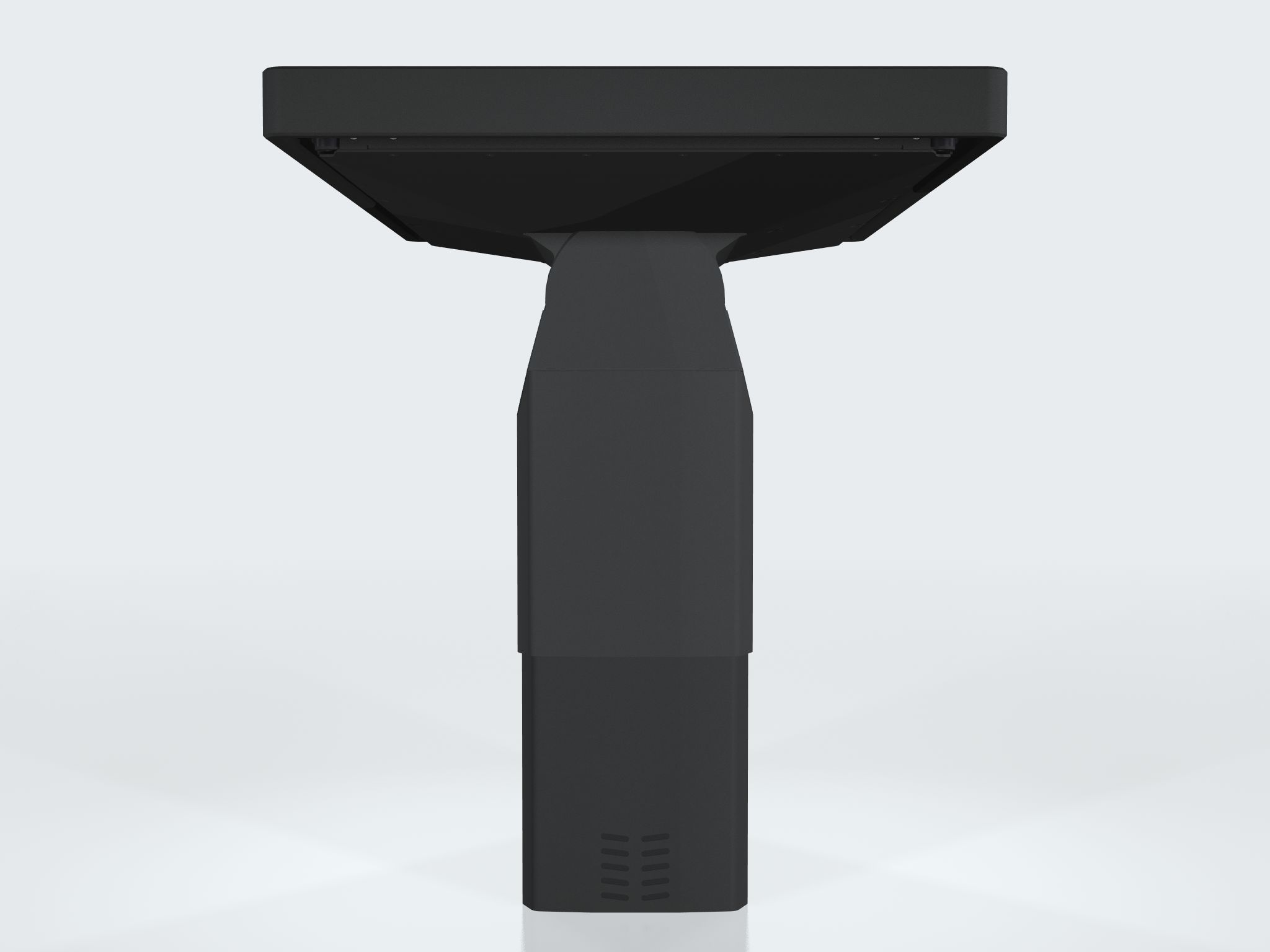

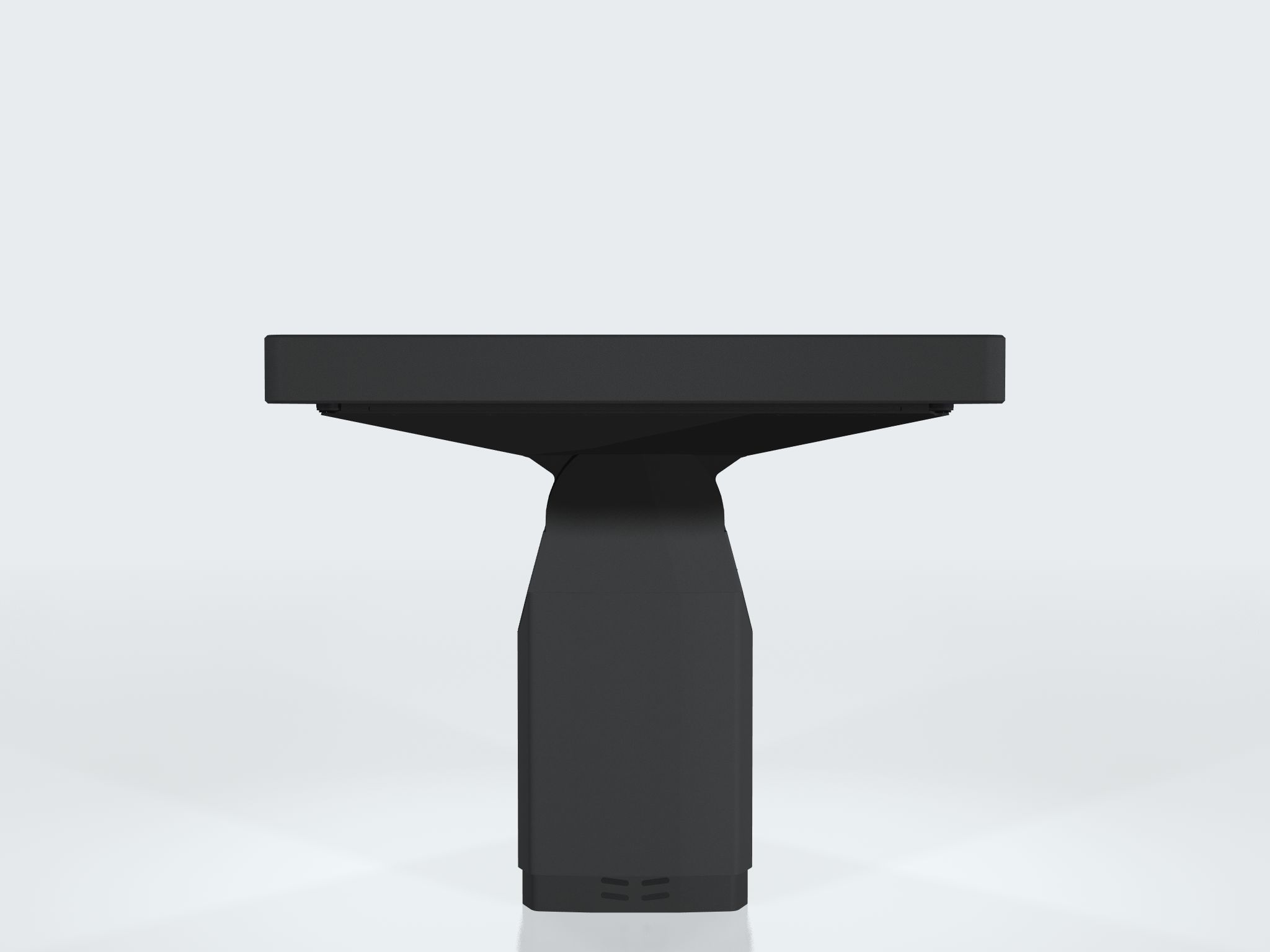

Height is adjustable from 761.00 [29.96"] to 1061.00 [41.77"] mm [inch]
Approx. 148.0kg / 325.6lbs (including optional HT C03/C02 computer)
Approx. 135.0kg / 297.0lbs (without optional HT C03/C02 computer)
Product Carton Size and Weight: L:1500 [59.06"] x W:980 [38.58"] x D:1000 [39.37"] mm [inch] - 1.47m³
215.0kg / 473.0lbs
Factory Options: • Color Calibrated models (ECDIS)
• Factory Integrated HT C02 computer - contact Sales for details.
Accessories: • HD 55CAS SX1-A1: 1 x Transport Case (60.0 kg / 132.0lbs) - 1.3m³
L:1470.00 [57.87"] x W:930.00 [36.61"] x D:1000.00 [39.37"] mm [inch]
• HD 55BAS SX1-A1: 1 x Base Mount Plate (not for permanent mount)
W:806.00 [31.73"] x H:610.00 [24.02"] x D:10.00 [0.39"] mm [inch]
• HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
• 5240-15: 1 x Fabric Protection Top Cover, Stretch/Washable, Cotton
Capabilities - Prepared for: • Tactor (Rotation Angle Value, X/Y Position, 1 x Button) supported Model
• Active Stylus Pen Supported Model
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating: Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance: Standard: 500.00 [196.85"] - Steering: 230.00 [90.55"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, BV - Bureau Veritas, KR - Korean Register of Shipping, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
Specifications last updated: May 8, 2025 @ 13:05
