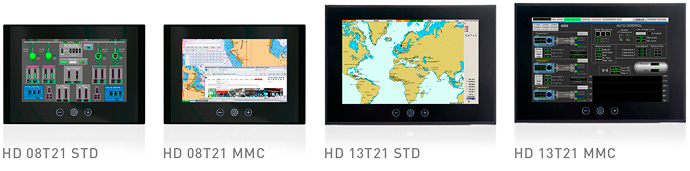

These models are ideal for applications such as engine control, propulsion and many other shipboard automation systems. Both sizes have Multitouch touchscreen support and offer a host of capability.
8 inch:Intel® Atom™ N450 based panel computer and DVI-I (RGB or DVI).
13.3 inch:Intel® GM45/P8400 Core™2 Duo or Intel® Atom™ N450 based panel computer and DVI-I (RGB or DVI).
KEY PERFORMANCE - Safety:
- Redundant power supply
- 2 x CAN w/separate CO processor,
running its own software (good for critical applications)
- Dual LAN
- Watchdog solution, that can include external
watchdog feature
- Watchdog relay output
- Isolated IO
- Industrial connectors
- Extended alarm function – after power loss
KEY PERFORMANCE - Functionality:- IO designed for control in industrial systems
- 2 x CAN option available
- 4 x COM (RS-422 / RS-485)
NMEA compliant, option available
KEY PERFORMANCE - Technical:- Low power consumption
- No moving parts
- Heat-pipe system (no fan)
- SSD disk (no rotating HDD)
- Touch screen and touch buttons, projected
capacitive technology
- Multitouch
Applications:- Engine control systems
- Log systems
- Automation systems
- Propulsion control
- Safety systems
- Information systems
