GUARANTEED RELIABILITY THROUGH

Type Approval and Testing

  • Overview
  • Classification Societies
  • Extensive Testing
  • Military and Naval
  • Testing and Customization

Overview



All Hatteland Technology products are normally tested and type approved to the required standards by the major classification societies, ensuring our displays, computers and panel computers are fit for the harsh environments encountered at sea.

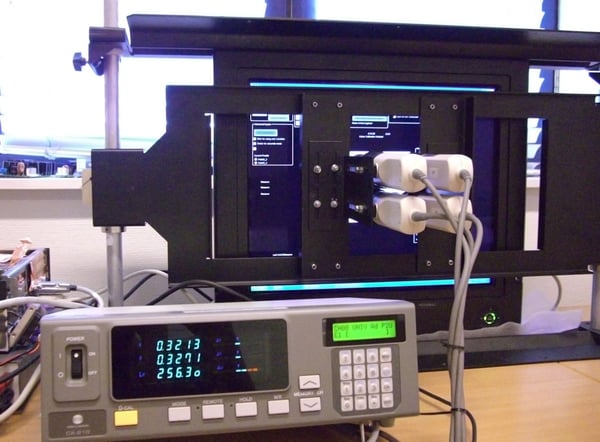

We also provide dedicated ECDIS calibration which enables us to deliver type approved ECDIS displays straight from the factory to you.



IMG_0509



Classification Societies



all_types_of_certificates



EU-RO-MR (Recognised Organisations Mutual Recognition) which covers;

- ABS (American Bureau of Shipping)

- BV (Bureau Veritas)

- ClassNK (Nippon Kaiji Kyokai)

- DNV (Det Norske Veritas)

- GL (Germanischer Lloyd)

- LRS (Lloyd’s Register of Shipping)



Optional (also covered by EU-RO-MR):

- CCS China Classification Society

- KR Korean Shipping

- RS Russian Maritime Register of Shipping



More information about EU-RO-MR, visit

EU RO Mutual Recognition Group website

Extensive Testing



To ensure the above mentioned type approvals, the products are tested by independent institutions according to the following standards, where applicable:

IEC 62288 - Maritime navigation and radiocommunication equipment and systems - Presentation of navigation-related information on shipborne navigational displays.

IEC 60529 - IP protection classes


IEC 61162 - Maritime navigation and radiocommunication equipment and systems - Digital interfaces


IEC 60945 4th


IACS E10


IEC 60950 - In accordance to and the coming Safety Standard IEC 62368-1 in 2020.



IMG_4068



CIMG2799



CIMG0095



Military and Naval



We have Type Approval from all major marine classification societies, ensuring our marine displays, computers and panel computers are fit for the harsh environments encountered on missions at sea.

- MIL-STD-461E/G


- MIL-STD-810F


- MIL-STD-167-1


- DO160F

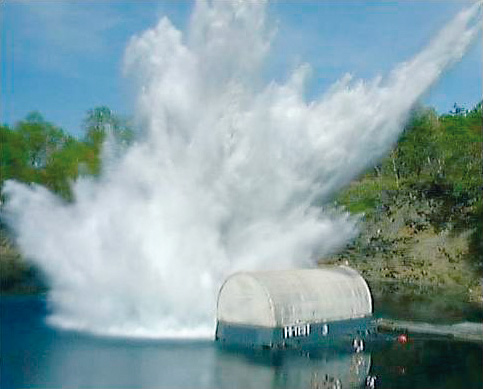

- MIL-S-901D, Grade A/B, Class 1 (Hard mounted)


- Extended IEC 60945


- EN60945 4th


- EN60529


- EN61174 (IEC1174) (on selected models)


- TEMPEST SDIP-27 Level B (on selected models)


- EU-RO-MR (Recognised Organisations Mutual Recognition)
  (Covers ABS - BV - DNV - GL - NK - LRS)


- Non ITAR products

Testing and Customization

Hatteland Technology works closely with systems integrators to ensure our products meet the most demanding requirements for maritime and naval applications.



Environmental Qualification Testing and Type Approval

Hatteland Technology's knowledge of international shipbuilding
standards and military specifications, coupled with our experience in qualification and certification of products to these standards is unsurpassed.



Barge_300DPI





Test Facilities

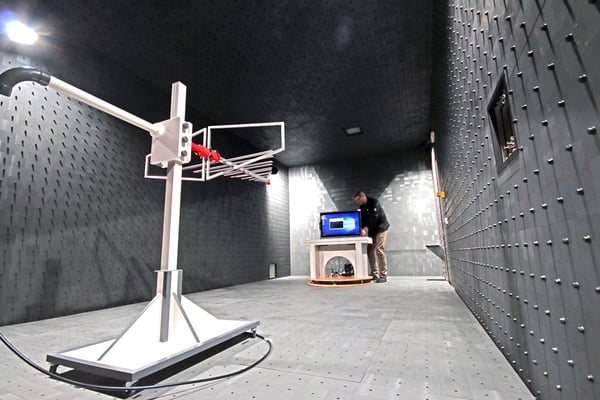

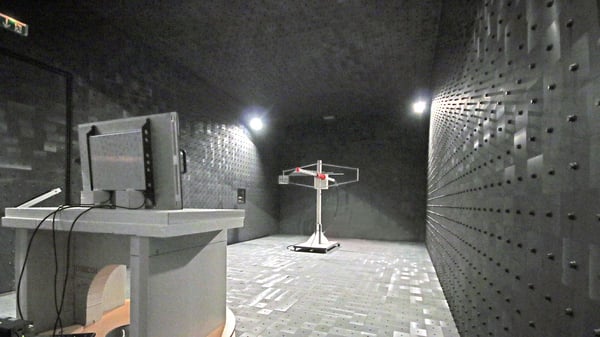

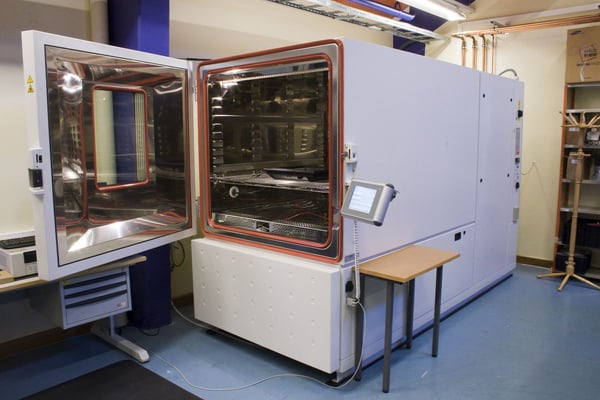

Hatteland Technology’s test laboratory is capable to perform in-house Highly Accelerated Life Tests (HALT) as well as a range of tests in accordance with IEC60945 to constantly improve products quality. Selected test equipment consists of: EMI/EMC Chamber, Climatic Chamber, Vibration Table, Heat Chambers and Thermographic Camera.



IMG_0514

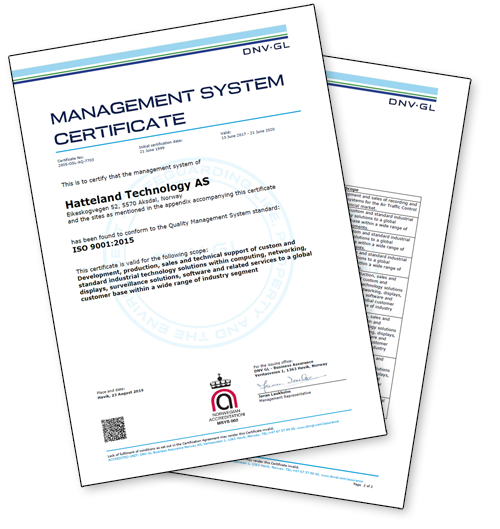

ISO-9001:2015 Approved Processes


Hatteland Technology’s quality system covers all functional areas and facilities to ensure the quality of our work products.



veritas_iso9001_2019





All Hatteland Technology products are normally tested and type approved to the required standards by the major classification societies, ensuring our displays, computers and panel computers are fit for the harsh environments encountered at sea.

In this archive you will find all the Type Approvals available for every product and accessories produced and released on website since 1995 (First approved product). Use the quick filter buttons to get started, or search in our database below.

ABS
American Bureau of Shipping
BSH
Bundesamt für Seeschiffahrt und Hydrographie
BV
Bureau Veritas
CCS
China Classification Society
ClassNK
Nippon Kaiji Kyokai
DNV
Det Norske Veritas
EU RO MR
Mutual Recognition by DNV
KR
Korean Register of Shipping
LRS
Lloyd's Register of Shipping
NSM
Norwegian National Security Authority
RINA
Registro Italiano Navale

Pending

Expires within 2 years

Reset Filters

or search for Type Approvals by Certificate Number, Society, Product Typenumber or Date (example 18 Dec 2013):
CENELEC/SC 31-7
EN 50016 EX-P

CE

Company Related

DNV 2.4

EN55022 - Class A

EN55024

EN61162

FCC

GL
Germanischer Lloyd

IACS E10

IEC 60092-504 3rd

IEC 60945 3rd
EN 60945:1996
IEC 60945 4th
EN 60945:2002

IP 66

MIL-S-901D Grade A

MIL-STD 461E - 1999

MIL-STD 461F&G

MIL-STD 810F&G

MIL-STD-1399, Section 300B

MIL-STD-167-1 Vibration

MIL-STD-167-1A

MIL-STD-810F
