INTRODUCTION

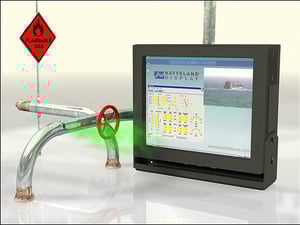

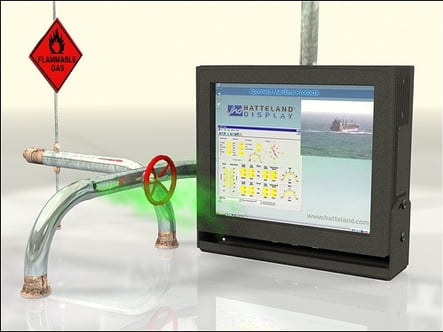

Jakob Hatteland Display is proud to announce the introduction of a new
19,0 inch (1280x1024) display intended for use in potentially explosive atmospheres.
ATEX Directive 94/9/EC, Explosion protection EEx nA II T5
- JH 19T02 MEX A2 -
PRODUCT MODELS
JH 19T02 MEX A2 - (24VDC Version)
BRIEF SPECIFICATIONS
Pixel Number: 1280 x 1024
Response Time: 15ms (typ)
Contrast Ratio: 700:1 (typ)
Light Intensity: 300 cd/m2 (typ)
Viewable Angle: +/- 85 deg. (typ) (Up/Down/Left/Right)
Power Consumption: 100W (max)
Signal inputs: DVI-D, VGA, S-VHS, Composite
Sync Range: 31,5 kHz to 91,1kHz (Hor) - 60 Hz to 85 Hz (Ver)
Dimensions: 456 (W) x 384 (H) x 147 (D) mm
Apparatus Grouping EEx nA II T5
TESTING AND APPROVALS
ATEX 94/9/EC : EN 50021
EMC Directive 89/336/EC : EN 55022 Class A - Emission
EMC Directive 89/336/EC : EN 55024 - Immunity
EN60529 : IP 66
DNV Certificate : DNV-2005-OSL-ATEX-0016
Backside User Controls behind hatch
Max tilting backward 20 degrees Max tilting forward 20 degrees
For further details and inquiries, please contact sales offices or main office.
