New product: New 19inch Rackmount Computer Server

INTRODUCTION

Jakob Hatteland Display AS is pleased to inform you that our new 19inch Rackmount Server Computer
HT 404XE STD-A1 is now tested according to the maritime standard
EN60945 4th (IEC945 4th) and IACS E-10.

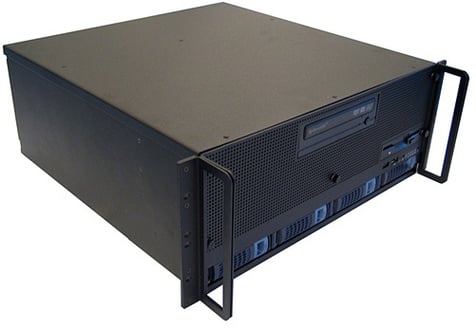

165_408



SPECIFICATIONS:

HT 404XE STD-A1

• 4U Rack Computer
• Dual Intel Xeon 64bit - Up to 3.6 Ghz (Socket 604)
• Dual Head Graphics Card, DVI-I, PCIe 16X, 128MB, Max 1920x1200
• Up to 32GB RAM
• Up to 4 x 250GB 3.5" SATA HDD
• 1 x DVD ± Dual/CD R/W Combo Recorder
• 1 x 1,44MB 3,5” FDD SLIM
• 1 x 10/100/1000Mbps Base-T Fast Ethernet, Wake-On-LAN
• 2 x RS-232 Serial Ports
• 1 x Parallel port
• 3 x USB rear ports + 1 x USB front port (2.0 & 1.1 support)
• 2 x PS/2 DIN connectors keyboard and mouse
• Dimensions: 19" x 4U x 450mm
• Power Supply 100/240VAC (47-63khz) - 500W redundant
• Click the attached links below for more detailed specifications.


HT 404XE STD-A1 - Also tested with several optional hardware:

2 Channel Fiber Fast Network Card (AT-2701FX/ST)
Raid Controller (SRCS16)
Remote Control / System Diagnostics (IPMI20-E)
Profibus Interface Card (CP5611)



MORE INFORMATION:

Datasheet, Technical Drawing and User Manual are available from the links attached.

For further details and inquiries, please contact our sales offices or our main office.

We are looking forward for your questions.
