At Hatteland Display, we have been busy developing new products to fill out our product range and meet your demanding requirements. This regular email will keep you informed with valuable information about our products, special offers and general company news. Thanks for being a valuable customer!

hd_hq



New Series X Remote Controller

The remote controller enables the control of Series X (12,15,17,19,24,26 inch) Displays by providing instant keypad functionality over RS-485/422 bus through the well implemented SCOM Protocol by Hatteland Display. A single press on the remote controller will trigger the same physical press on all connected/configured displays with the synchronized reaction of corresponding button presses.

The remote controller is a panel-less device, which only provides three physical buttons for user interaction, but conforms with the standardized 6 button functionality; (Brightness+, Brightness-, Menu, Navigation<, Navigation> and Power).

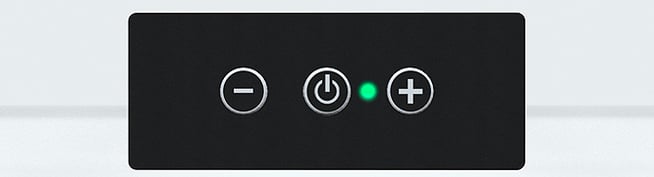

hdremsx1-a1_front


KEY Features

Typenumber: HD REM SX1-A1
Suitable for console panel mount
Includes mounting bracket

1 x 5-pin Terminal Block 3.81, non-isolated Connector
W:125.00 [4.92"] x H:35.00 [1.38"] x D:72.30 [2.83"] mm [inch]
Shipped with 2 x 5-pin Terminal Block 3.81 (Phoenix 1827732)
No Additional Operating System (OS) Drivers needed (COM:)

Pending: IEC 60945 4th (EN 60945:2002), IACS E10
Pending: EU RO MR - Mutual Recognition

Download Datasheet below.


Starts shipping Q4 2015

MSRP $495
