The Series X Maritime Multi Computers (MMCs) have been successfully adopted by integrators around the world and are used in a wide range of applications on board ships.

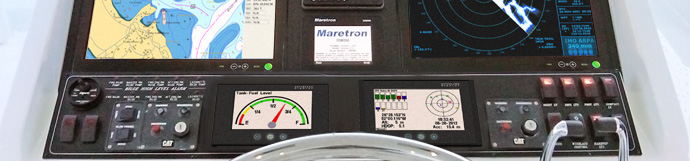

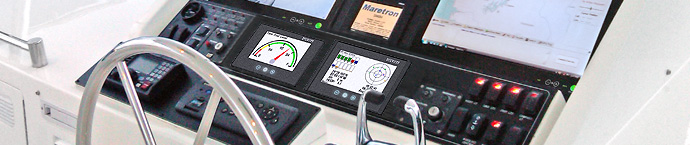

The small format Series X panel PC (8 and 13 inch) are especially ideal as HMI displays replacing outdated switch panels and thus reducing footprint in work panels and console spaces. There are touch display and panel PC models available to choose from, all designed and type-approved for the professional marine segment.

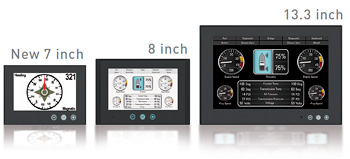

We are now expanding this range with the introduction of a new 7 inch size, and the upgrade of the current 13.3 inch model.
Our new 7 & 13 inch MMC models will come with Projective Capacitive Multi-Touch installed, Anti-Glare (AG) glass, plus a 12-24VDC PSU and our proprietary Glass Display Control with full dimming.
The integrator can develop software in Windows® 7 or Linux with the help of our API (SCOM). This new unit will be powered by an Intel® Atom™ N2600 1.86Hhz dual core processor, 8 - 128GB SSD, and will have 1 or 2GB RAM.
Options: Optical Bonding, 1 or more CAN ports, 1 or more Digital I/O's. Personalized company logo can be etched on top of the glass, or silk-screened beneath it for OEM branding purposes.
As with all Hatteland Display products, the 7, 8 & 13.3 inch panel computers meet IEC60945 standards, and are type-approved by all major maritime classification societies through the EU-RO certificatification.

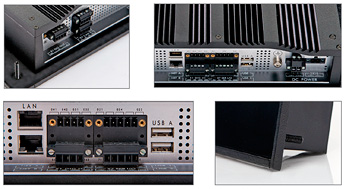

Key Features - Solid State Fanless Construction - No Moving Parts
- Aluminum Chassis with Glass Front - Reliable
- Embedded light sensor
- Variety of I/O
- Buzzer
The new 7 inch HMI display along with the existing 13.3 inch models will be displayed at our exclusive showroom in Oslo during the 2015 Norshipping week.
