HT 216

Overview

Computer - 2U Size - Rackmount - 2U

HT 216

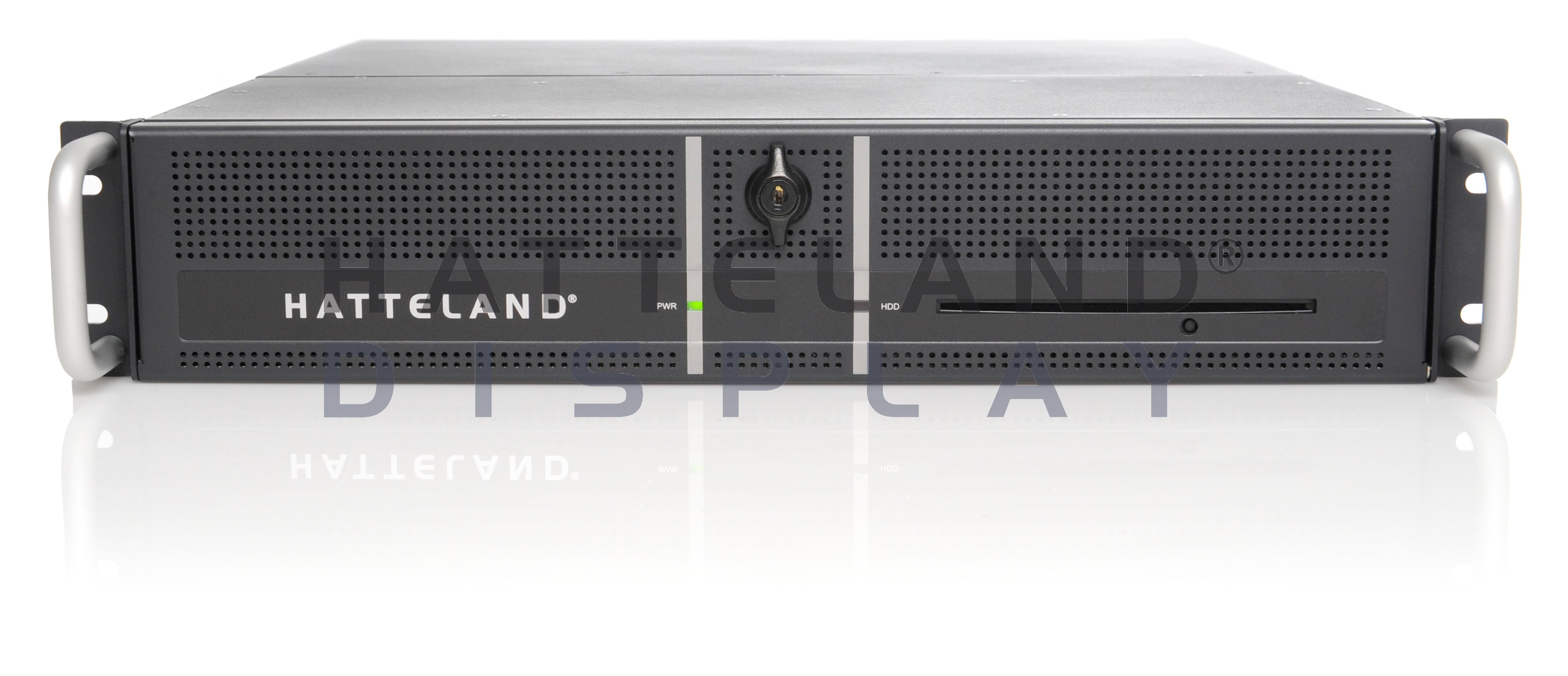

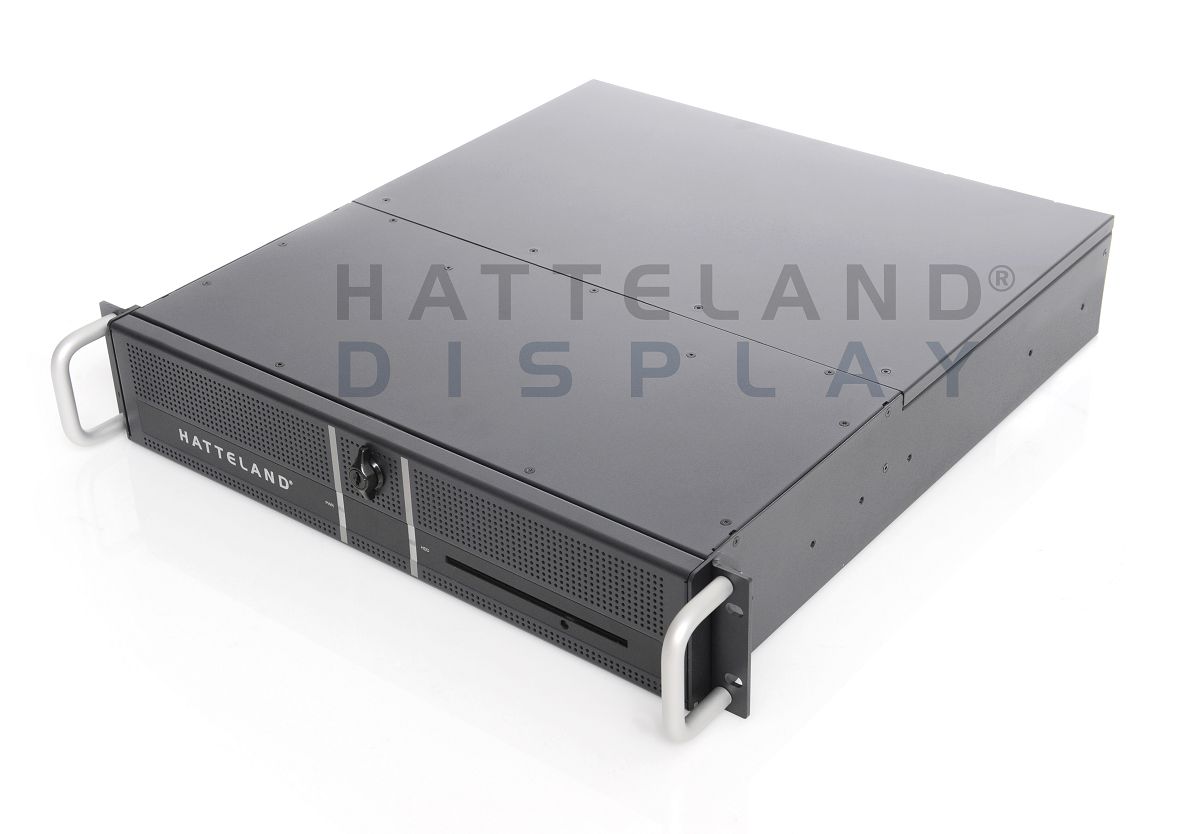

HT 216 Maritime Rackmount Computer Models. Next generation computer that features the latest Intel® processor technology. The standard model is aimed/designed to be used in marine applications. Normal installation is indoors and mounted into a standard 19'' rack.

icon
2U Size
Send Request
Description

Computer - Rackmount

The 2U computer is designed to handle a large number of hardware configurations, both with respect to Hatteland Display defined options such as; HDD, customer additional hardware and customer designed PCI card. The unit is RoHS Compliant.
Specifications
Typenumber (Long): HT 216 STx-Axxx
Installed Operating System Options: None or Microsoft® Windows® Embedded Enterprise
(32bit: XP Pro / Win Server 2003 / Win 7 Pro / Win Server 2008)

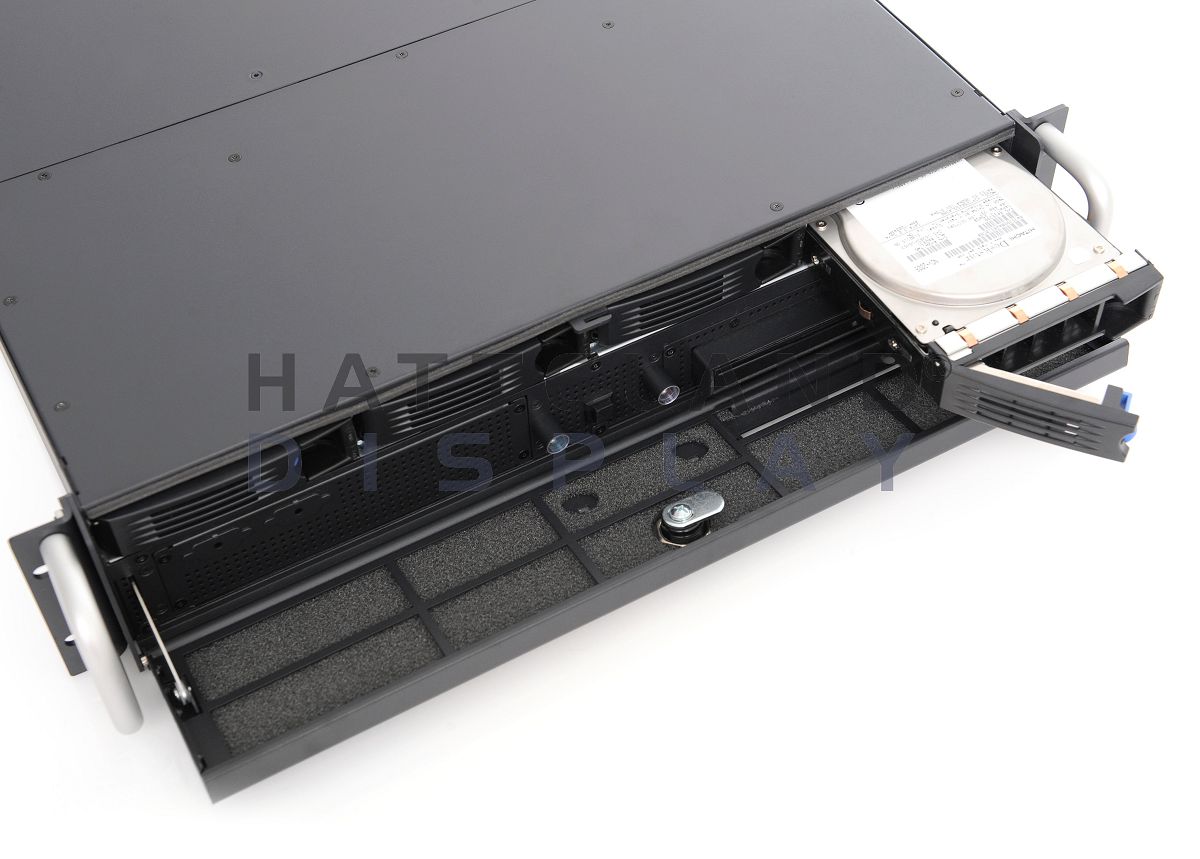

Storage Options: 1 to 4 x 500GB HDD 3.5" SATA, 7200 RPM, 8MB Cache
(Front-mounted removable disks)
Processor / CPU and FSB Speed Options: 1 x Intel® Core™2 Duo E6400, 2.13GHz, 1066MHz FSB, 2MB L2 Cache
Memory Options: 2 x 1GB Dual Channel DDR2 800/667MHz, SDRAM DIMM
System+Graphics Chipset / Connectors: Intel® Q965, ICH8DO / Integrated VGA, supports CRT with
1 x HD DB15F (female) VGA OUT
Max Resolution / Max Hz: 2048 x 1536 @ 85Hz
BIOS: AMIBIOS 8MB Flash. On-board BIOS Speaker
PCI Slots / PCIe Slots: 2xPCI 32bit, 3V/5V Interface + 1xPCIe x4
+ 1xPCIe x16 (add2/Graphic Mode)
All slots are Half Length and Low Profile
Media Drive(s): 1 x Slim DVD/CD-RW Recorder/Player Drive

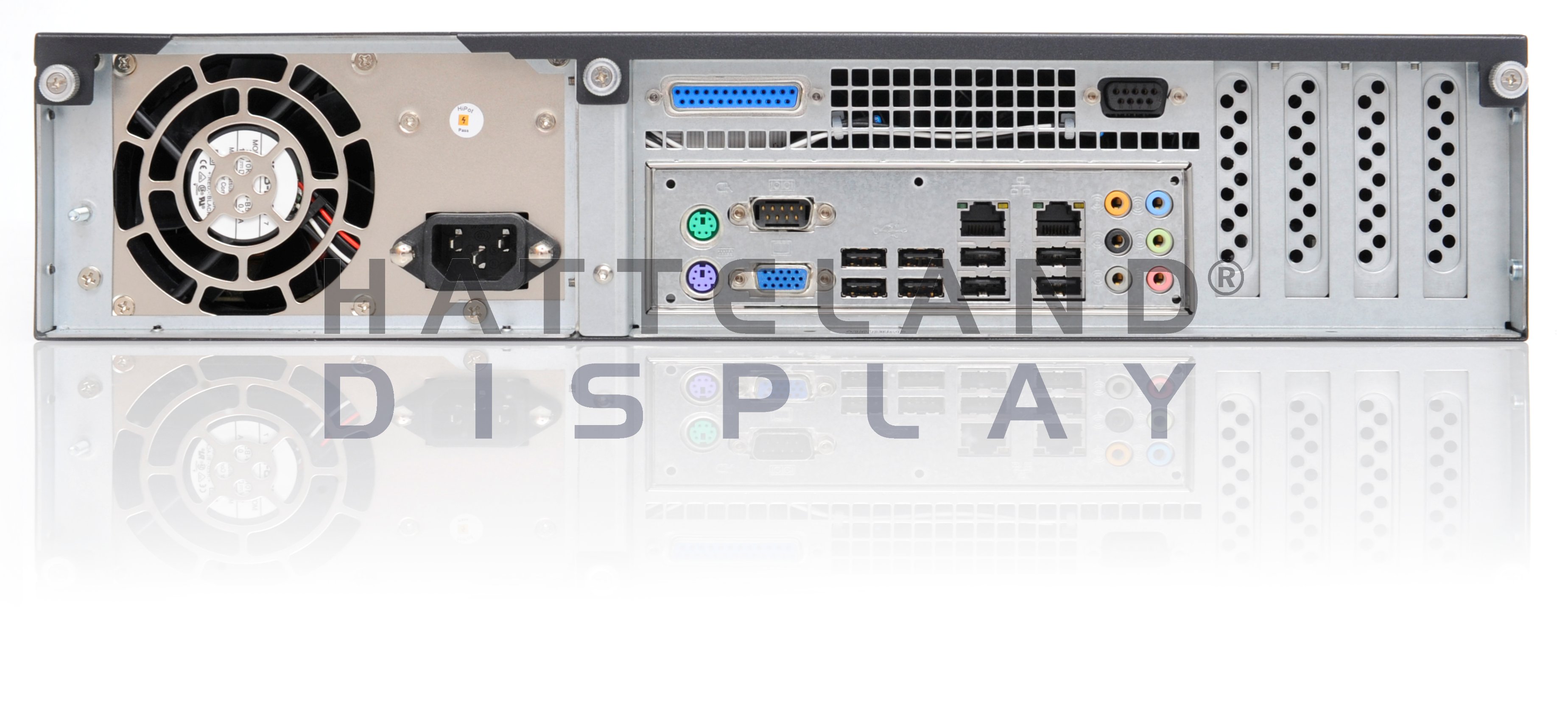

LPT / Parallel Port: 1 x DB25F Bi-Directional Centronics with SPP/EPP/ECP mode
Serial Port(s): 1 x DB9M RS-232 + 1 x DB9F RS-232/422/485 (electrical isolated)
Ethernet Port(s): 2 x RJ45 10/100/1000Mbps - Realtek RTL8111B
USB Port(s): 8 x USB2.0 Type A (rear) + 2 x USB2.0 (Internal Pin Header)
Keyboard and Mouse Ports: 1 x PS/2 Keyboard + 1 x PS/2 Mouse
Audio Ports: 6 x 3.5mm Jacks (LINE IN/LINE OUT/MIC IN)
AC97 Codec, 7.1 channel, HD Audio
Buzzer: None
Power Manager and Monitoring: ACPI
Power Specifications and Consumption: 115/230VAC - 50/60Hz (400W Autorange) - Operating 100W (typ)
AC Power IN: 1 x Std IEC inlet
Digital I/O Connectors: None

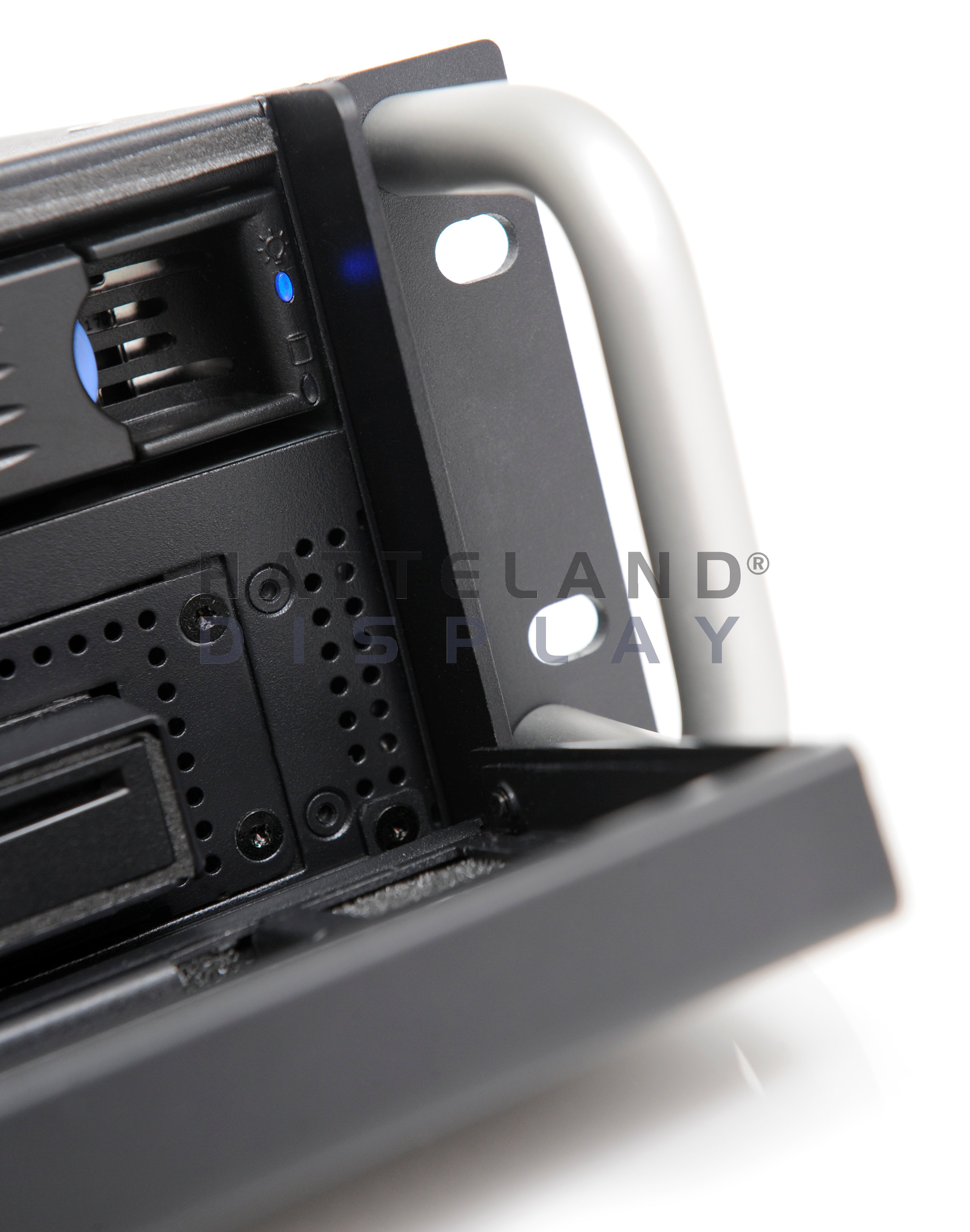

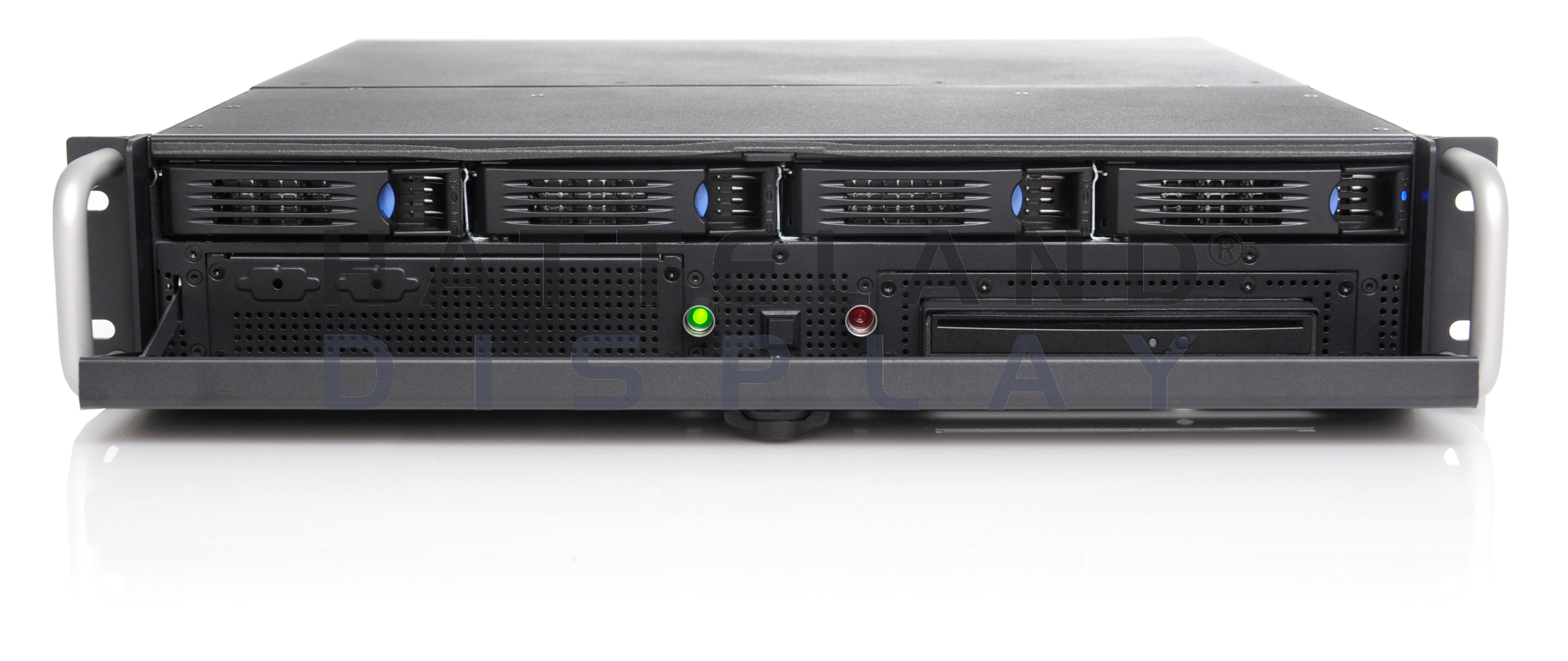

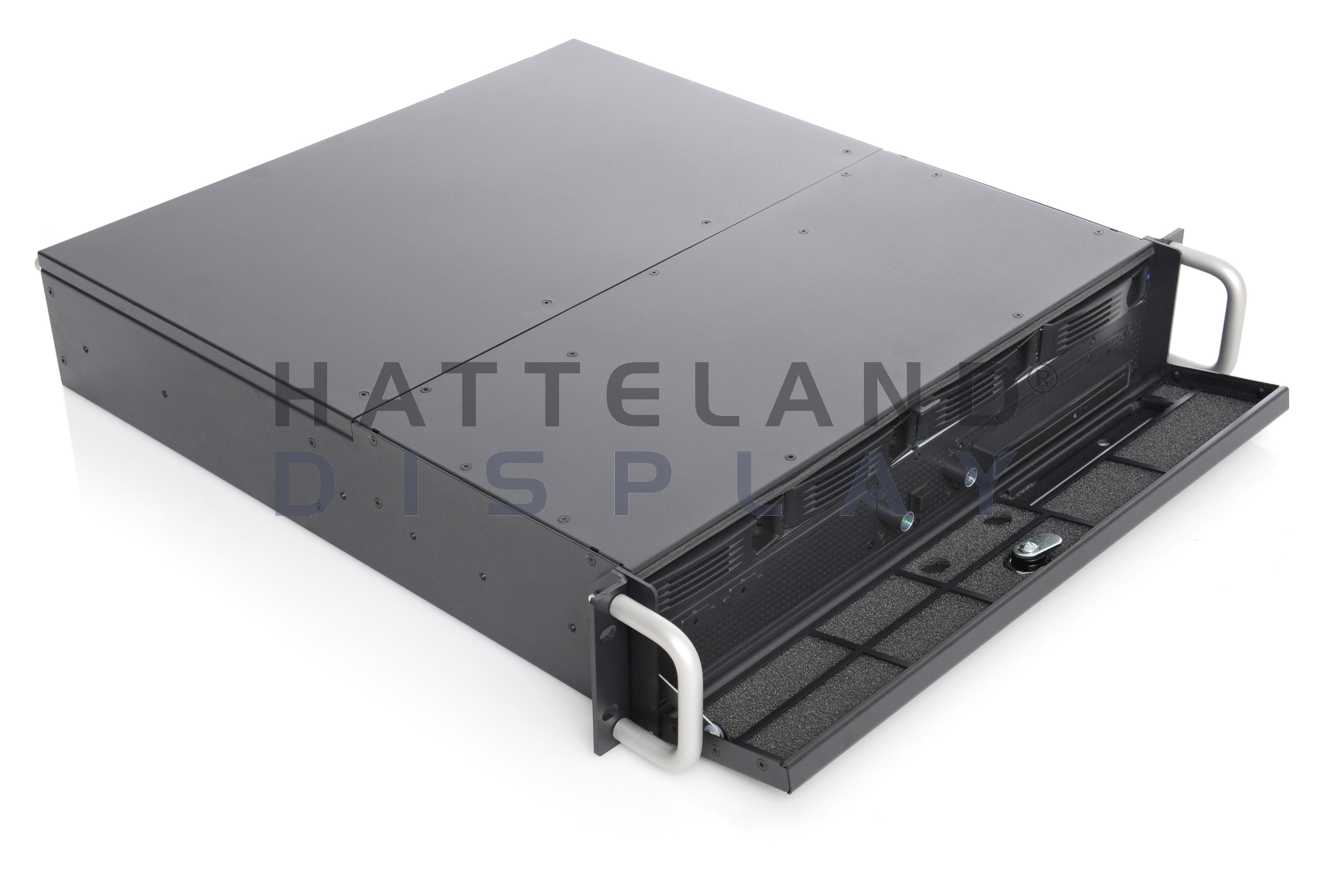

Key Features: Heavy-duty steel 2U Rackmount chassis with handles, Removable air filter and lockable front hatch door, Supports 2 x 5¼" disk bays (one slim, one full size), Supports 4 x 3½" disk bays, Rear cable strain reliefs with grounding thread, Rear PCI card support holder,fixed to chassis, 5 x Cooling fans (High/Low Pressure, PSU, CPU & PCI)
Product Dimensions and Weight: W:430.00 [16.93"] x H:80.00 [3.46"] x D:460.80 [18.14"] mm [inch]
2U Rack size in height. Approx 10kg / 22lbs
Product Carton Size and Weight: L:630.00 [24.80"] x W:580.00 [22.83"] x H:380.00 [14.96"] mm [inch]
30.0kg / 66.0lbs
User Controls / Activity: Power On/Off Push Button, Power LED, HDD LED
Factory Options: • 1 x Matrox DualHead® P690, PCIe x16 / PCIe x1 / PCI Low Profile
• 2 x Intel® 10/100/1000Mbps (Teaming, Low Profile)
• Future support for larger HDD sizes possible
Accessories: • HT 00250 OPT-A1: 2x20" ball bearing sliding rail/mount kit for 19" Rack
• JH C01MF A-A: 1 x USB Cable 1m, Type A to Chassis mount receptacle
• HT 00300 MSOS: OS options -> http://www.hatteland-display.com/os
Capabilities / Prepared for: • HT 00250 OPT-A1: 2x20" ball bearing sliding rail/mount kit for 19" Rack
• JH C01MF A-A: 1 x USB Cable 1m, Type A to Chassis mount receptacle
• HT 00300 MSOS: OS options -> http://www.hatteland-display.com/os
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance: Standard: 140.00 [55.12"] - Steering: 80.00 [31.50"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), EN61162, IACS E10, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition
Specifications last updated: June 3, 2025 @ 10:21
