HT 221
Computer - 2U Size - Rackmount - 2U
HT 221

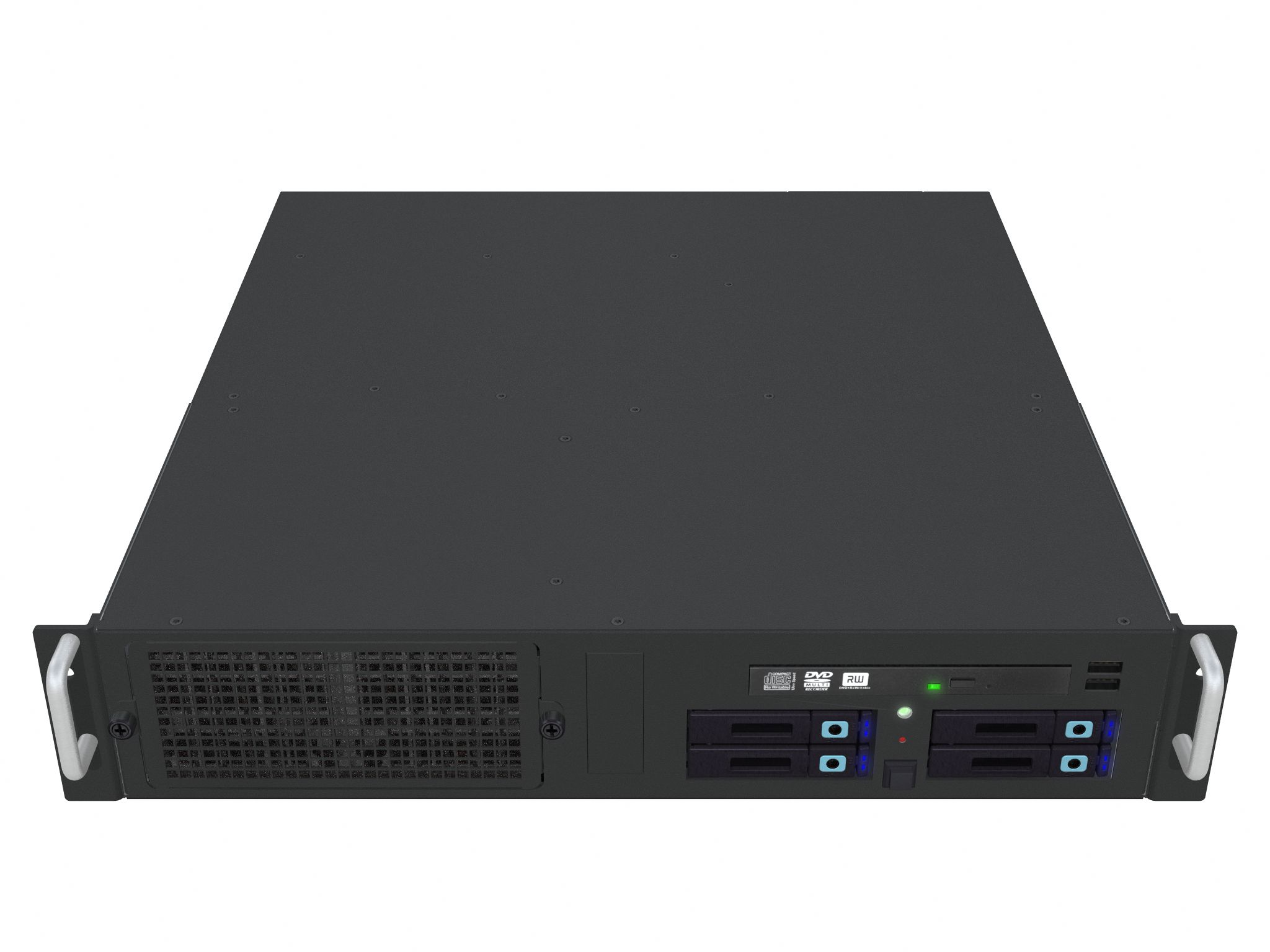

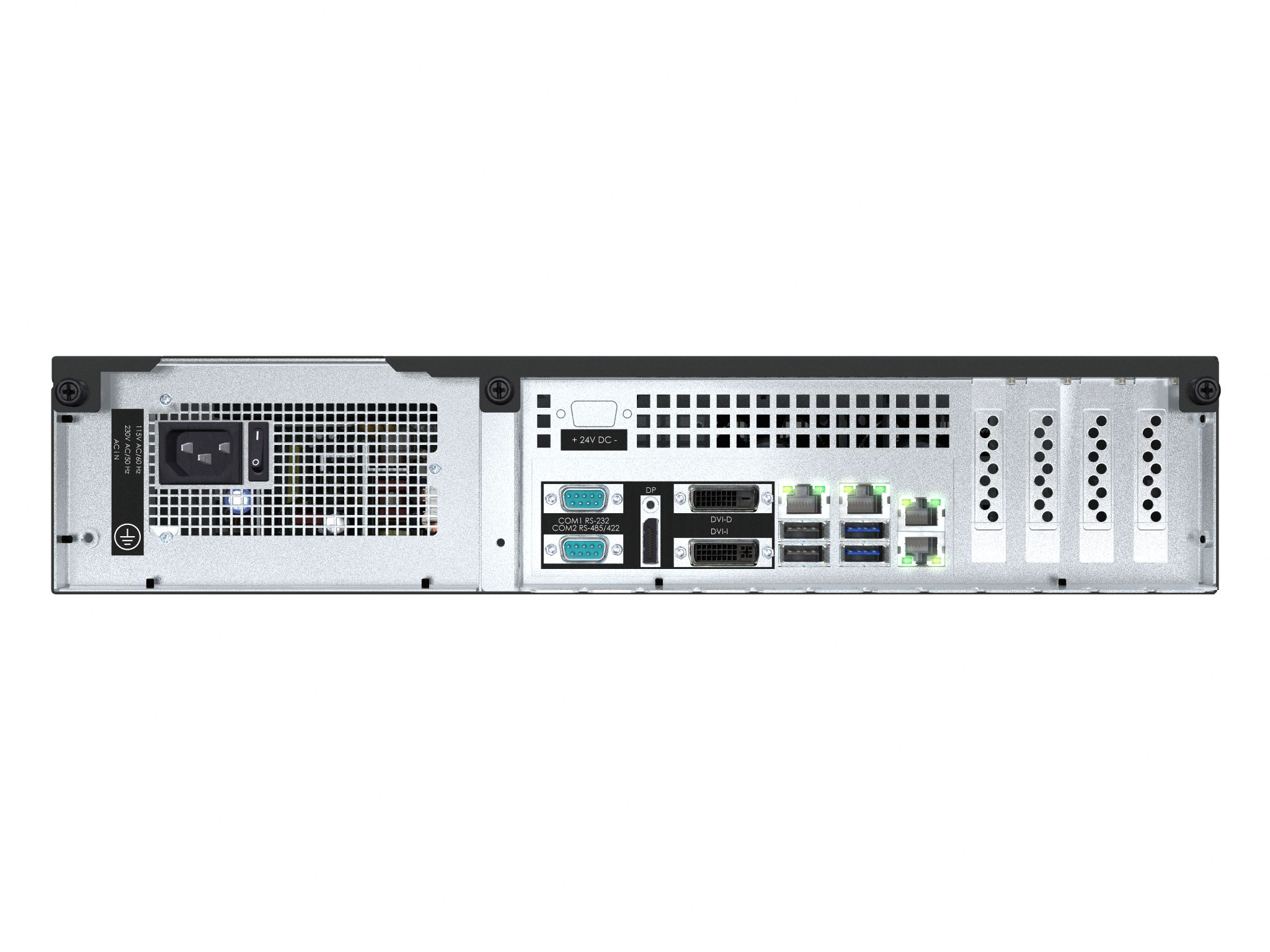

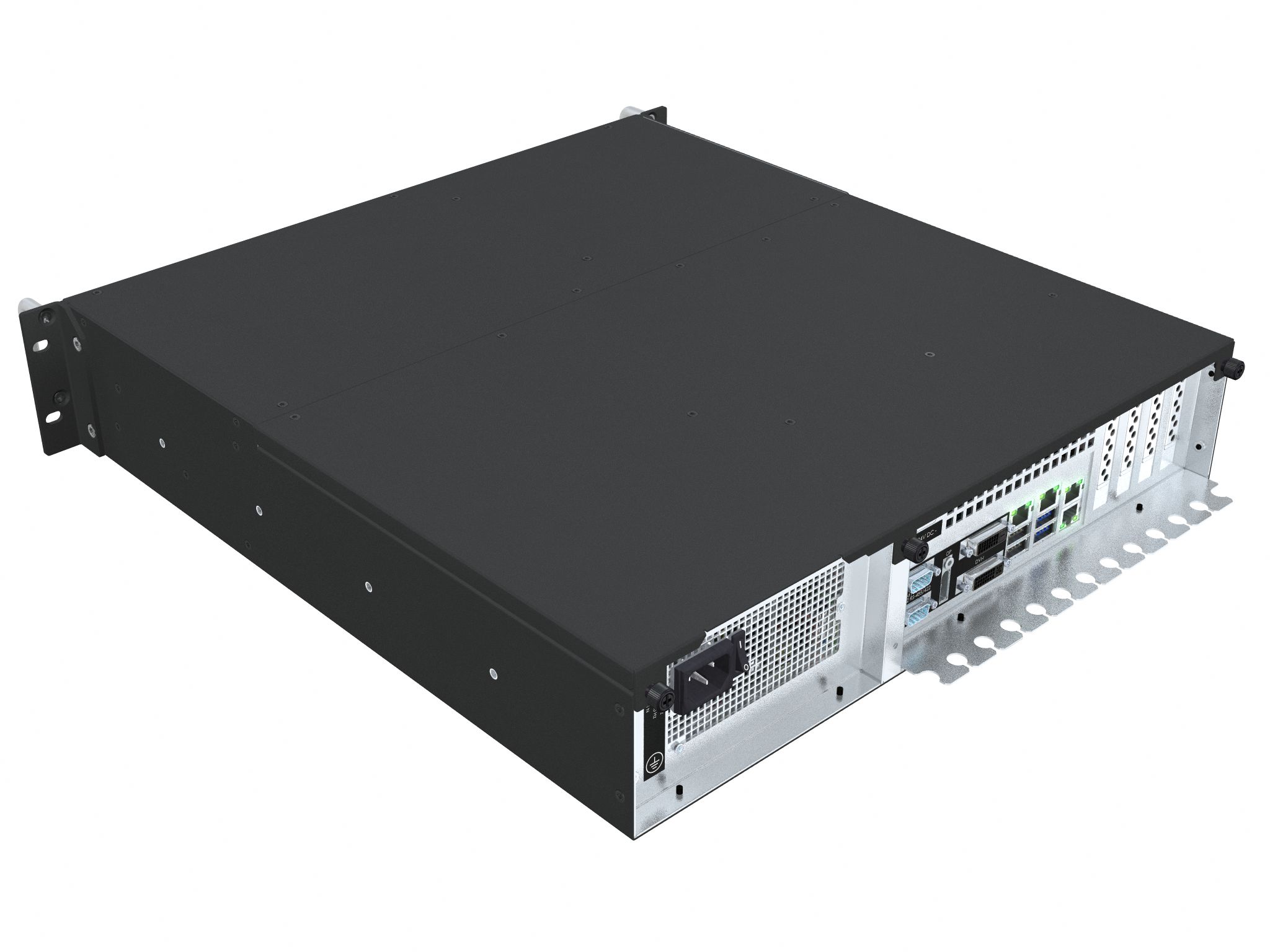

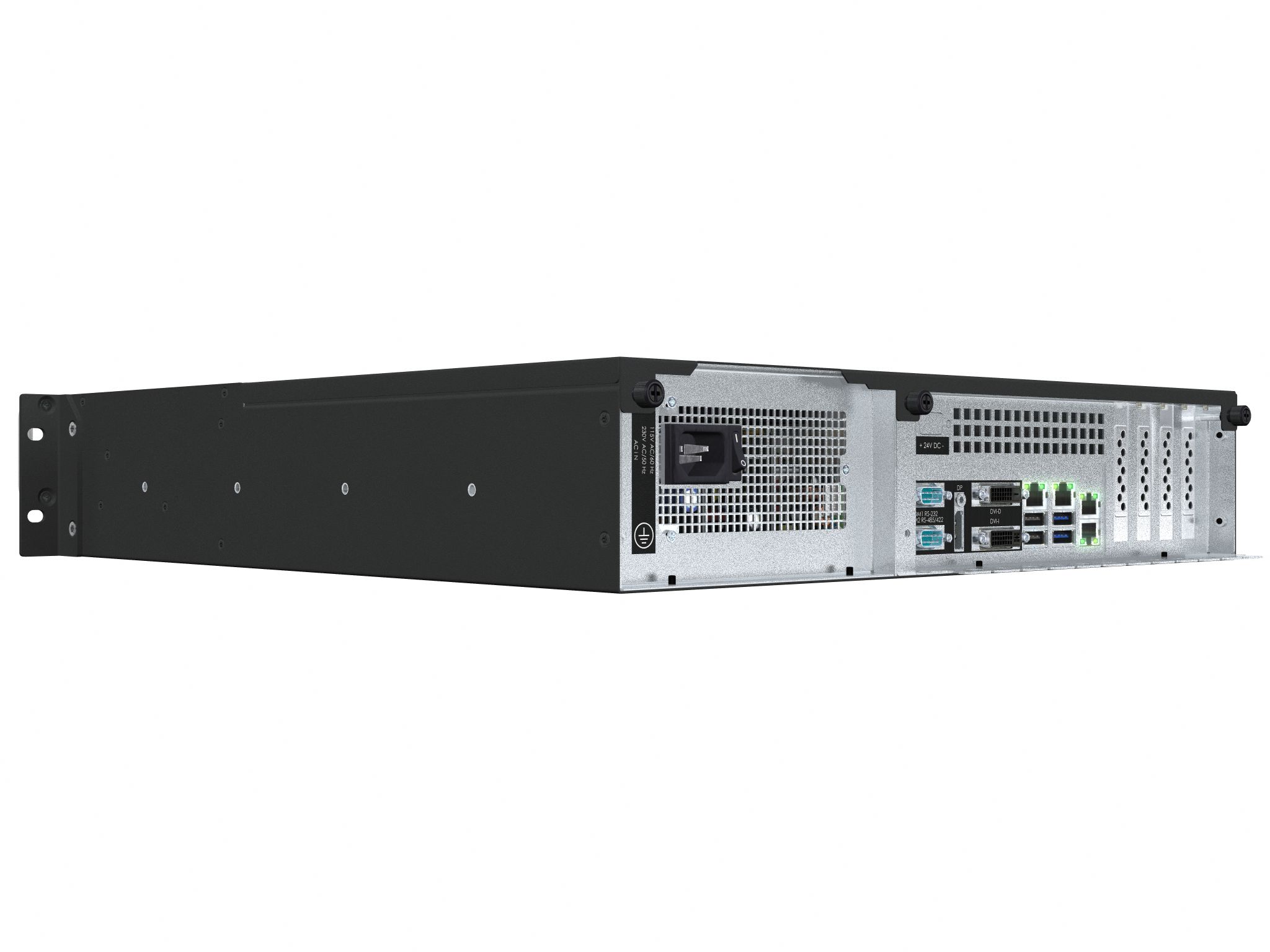

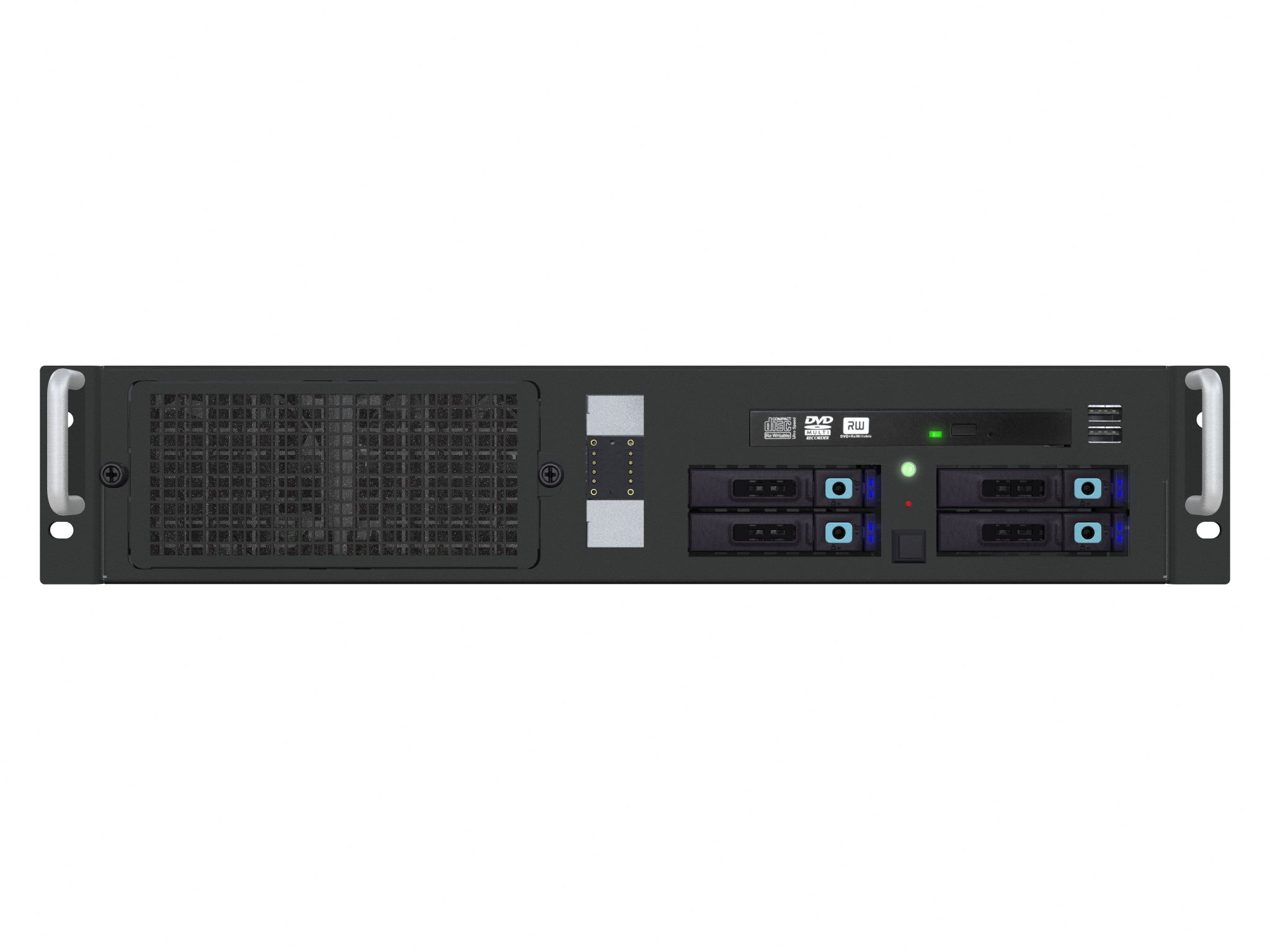

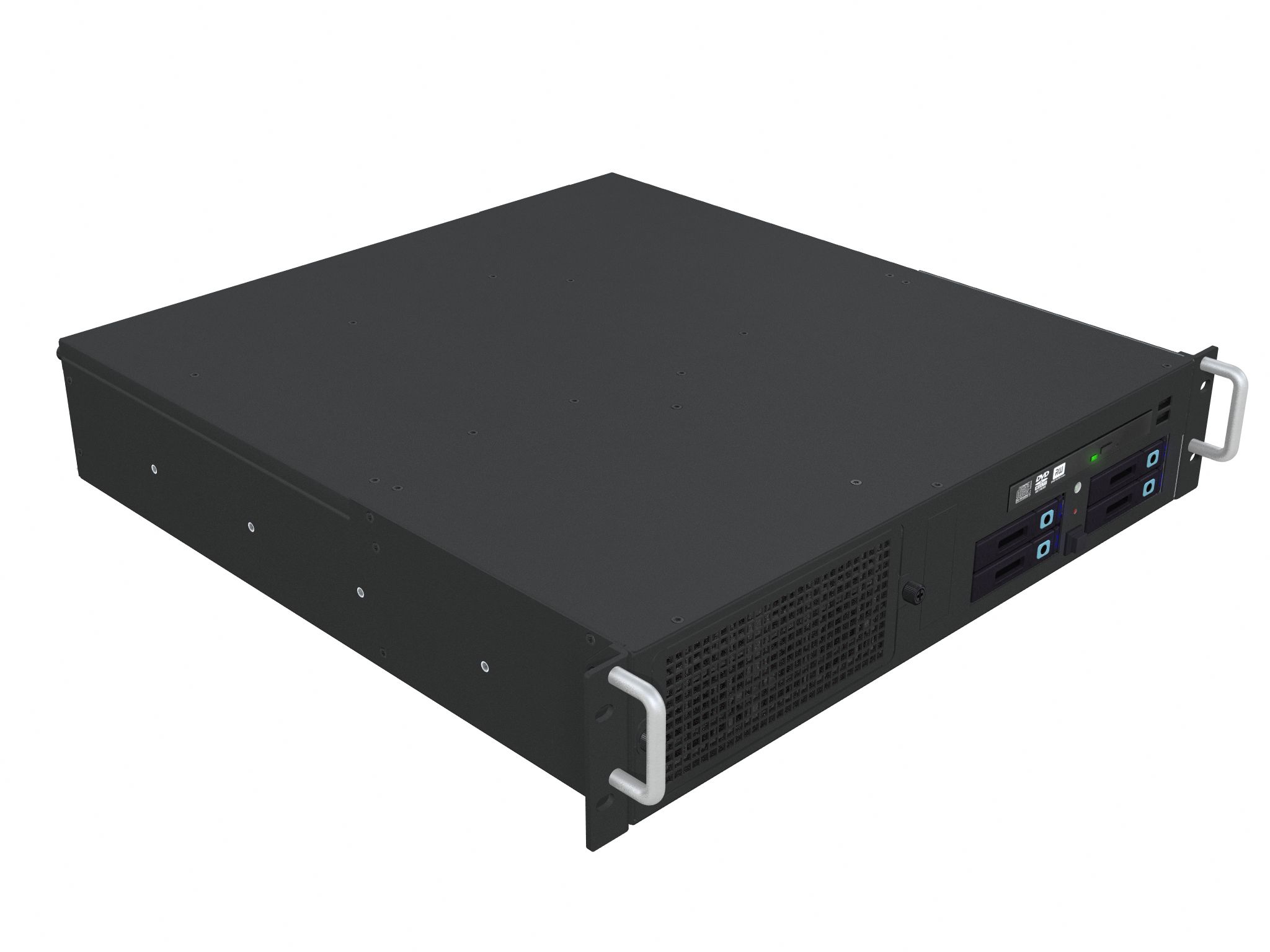

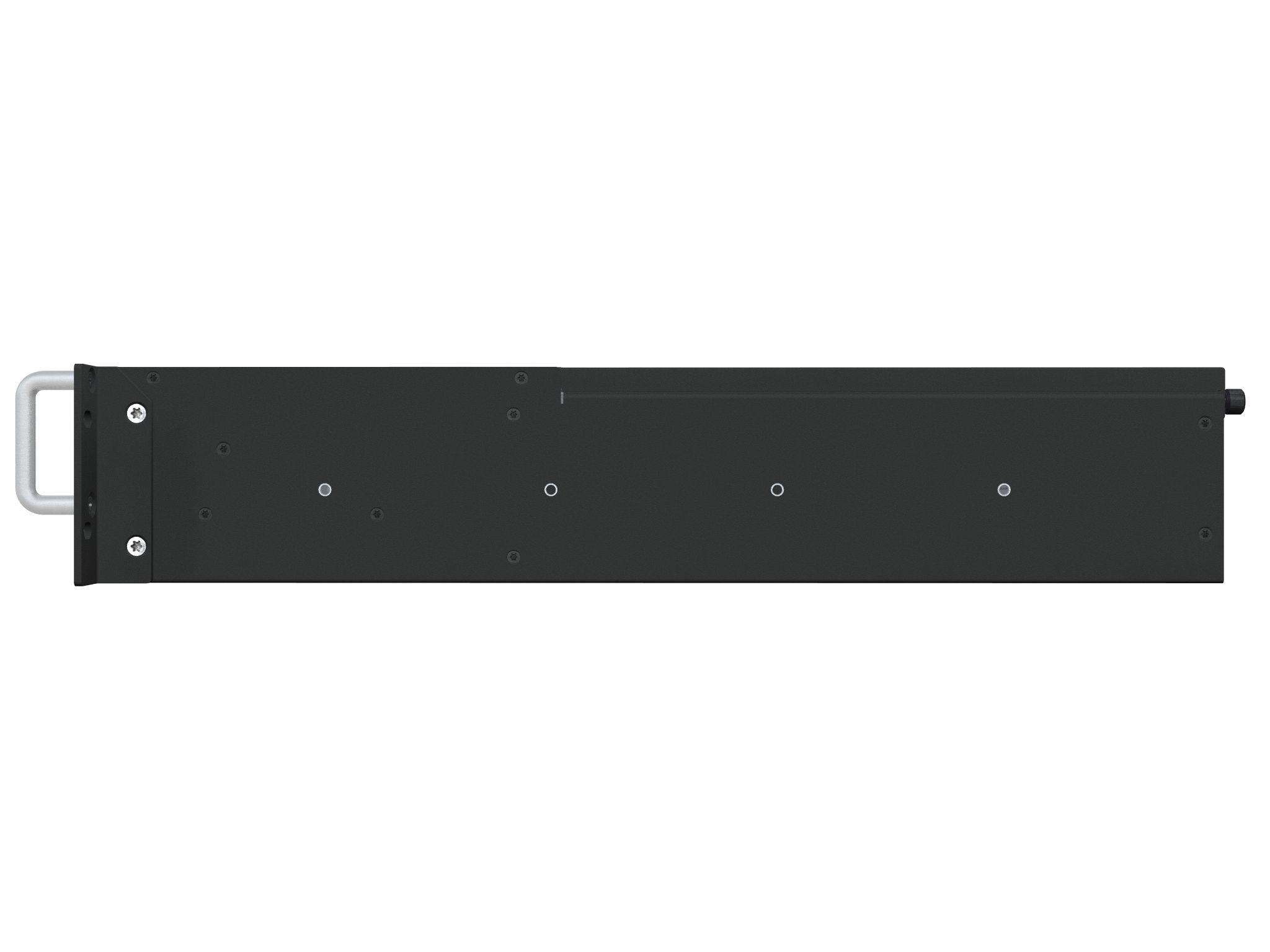

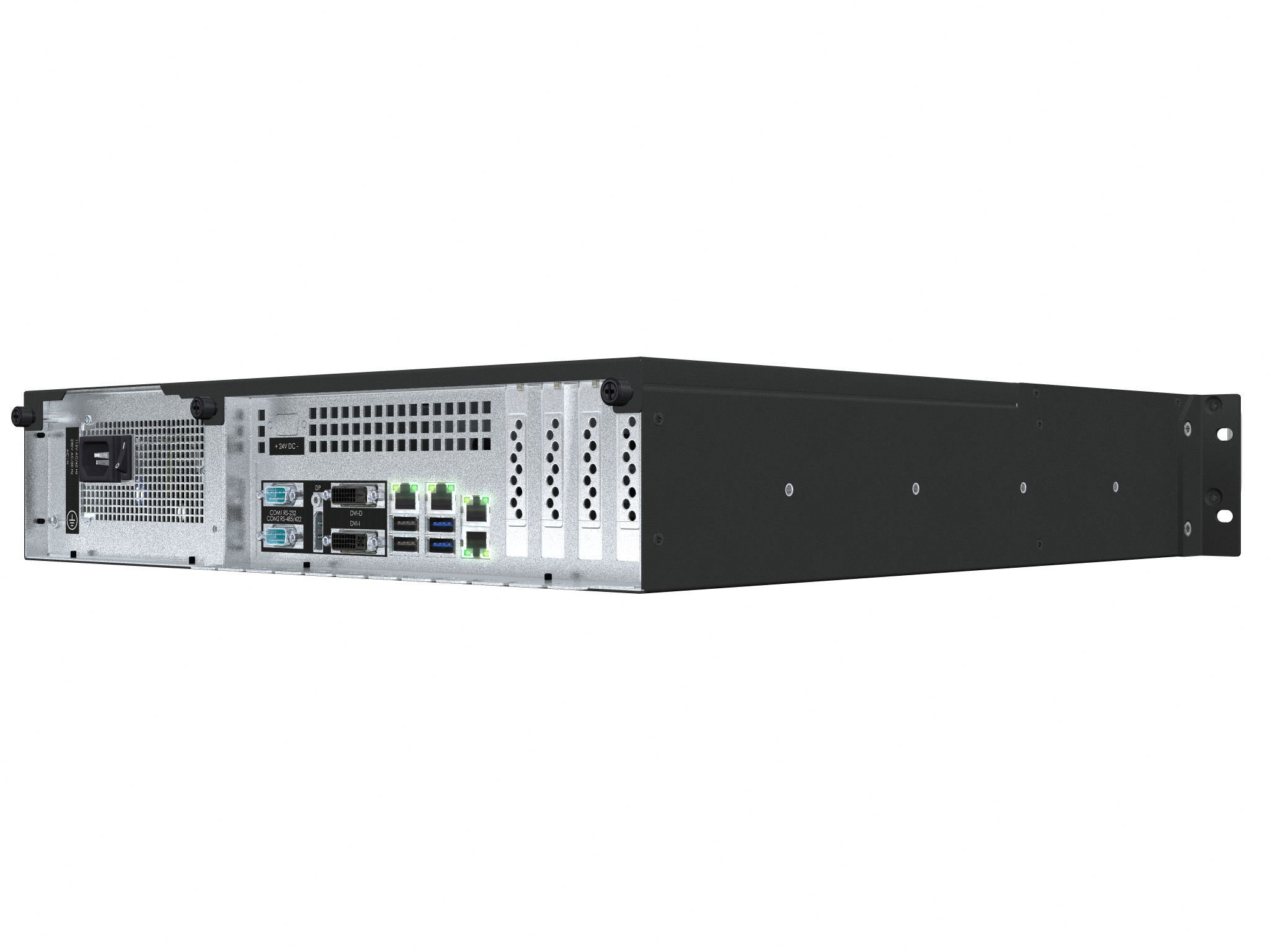

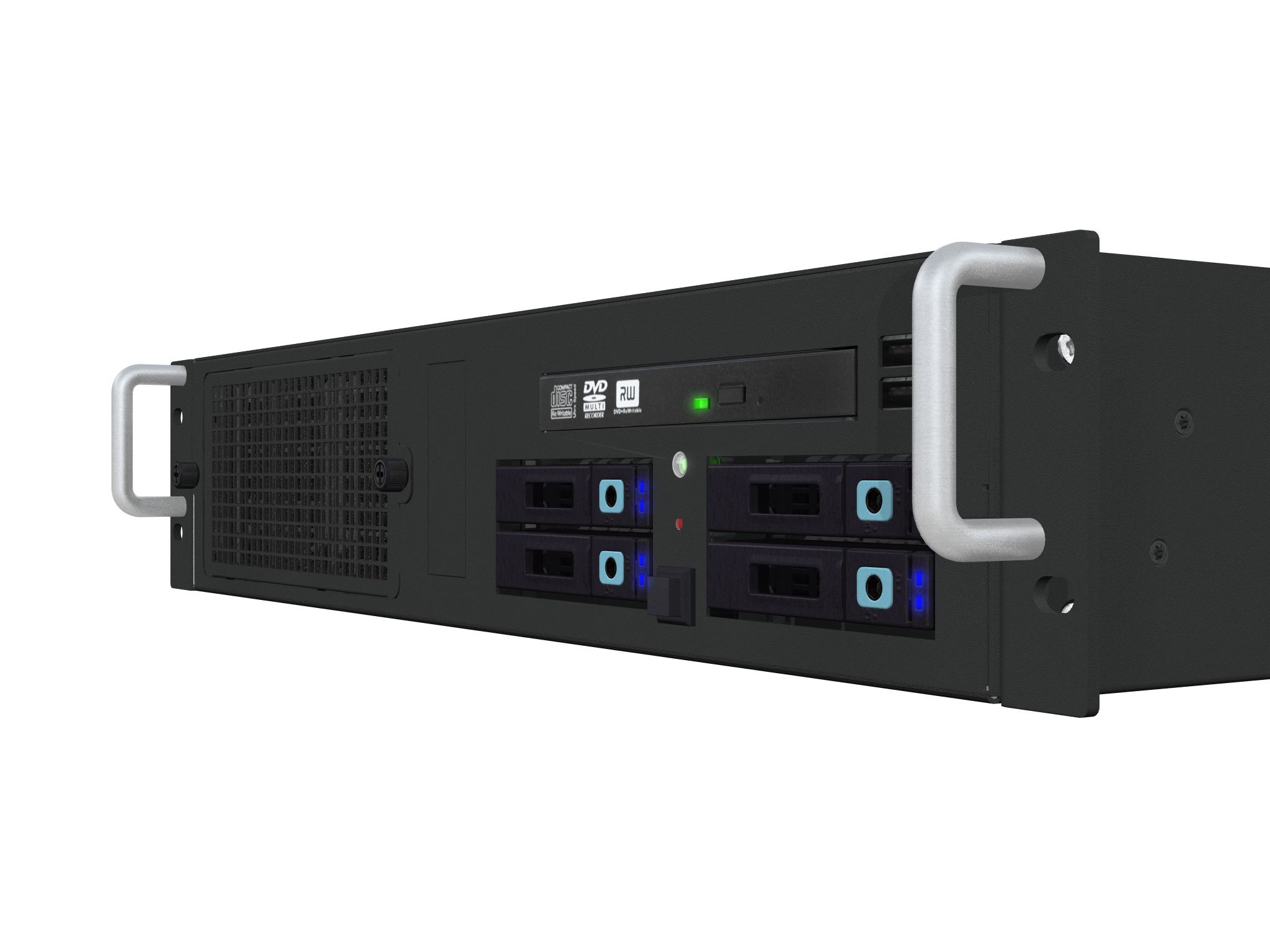

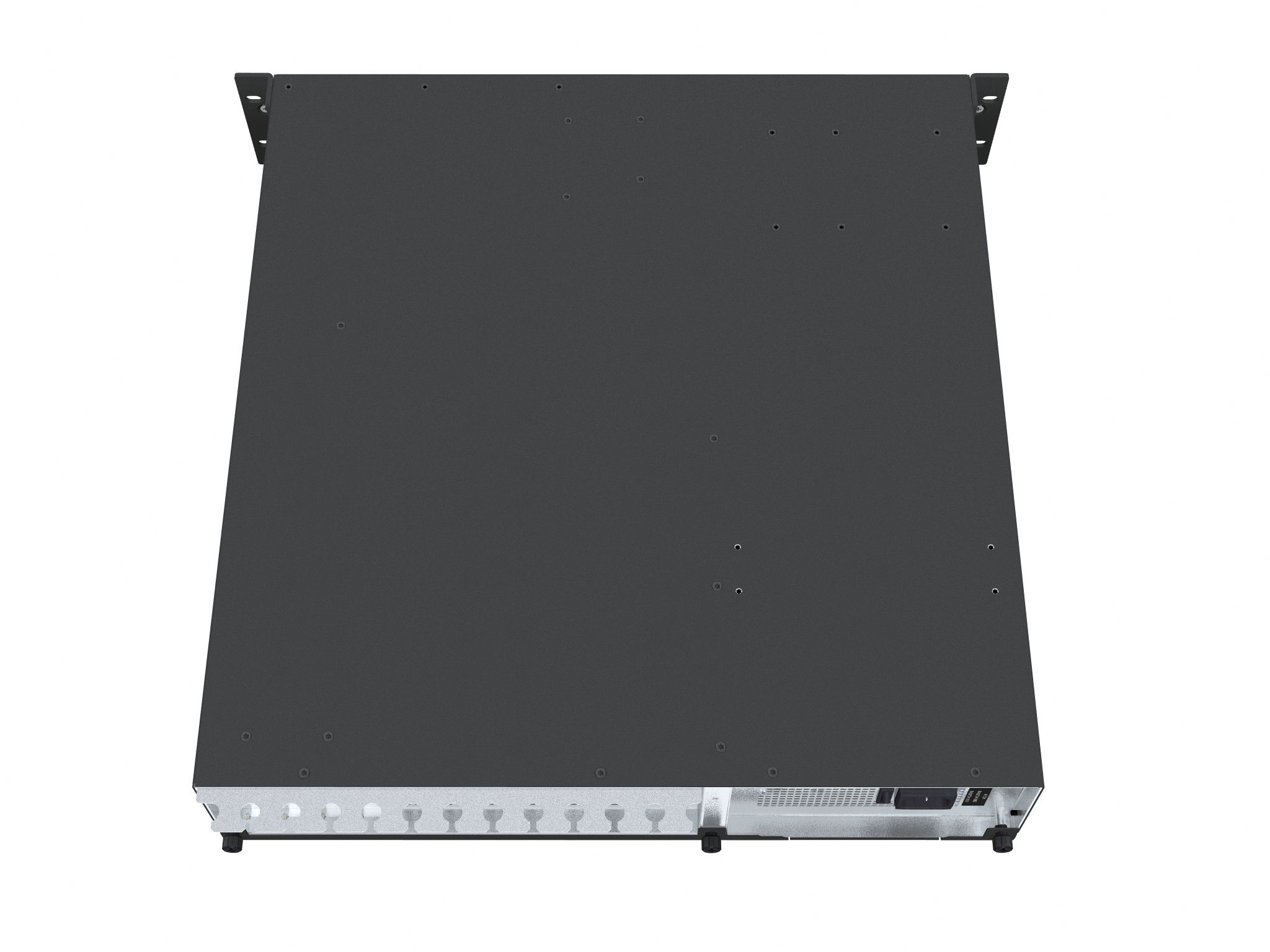

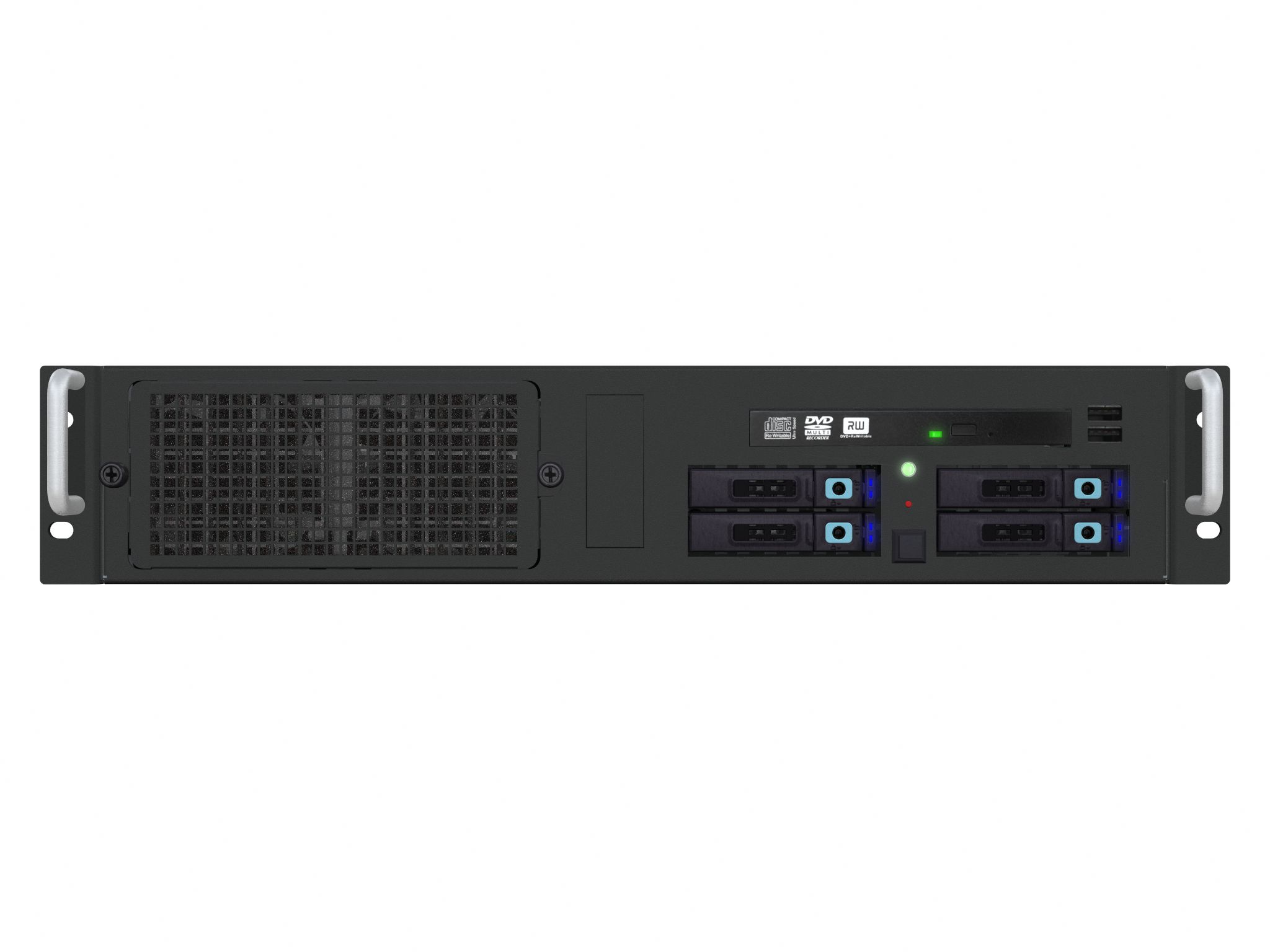

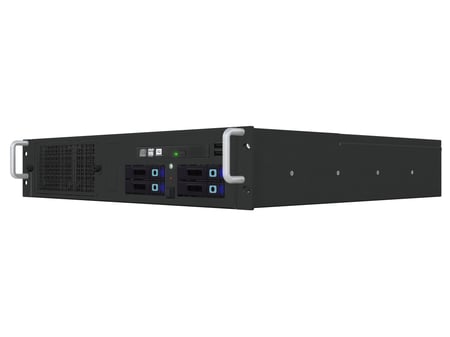

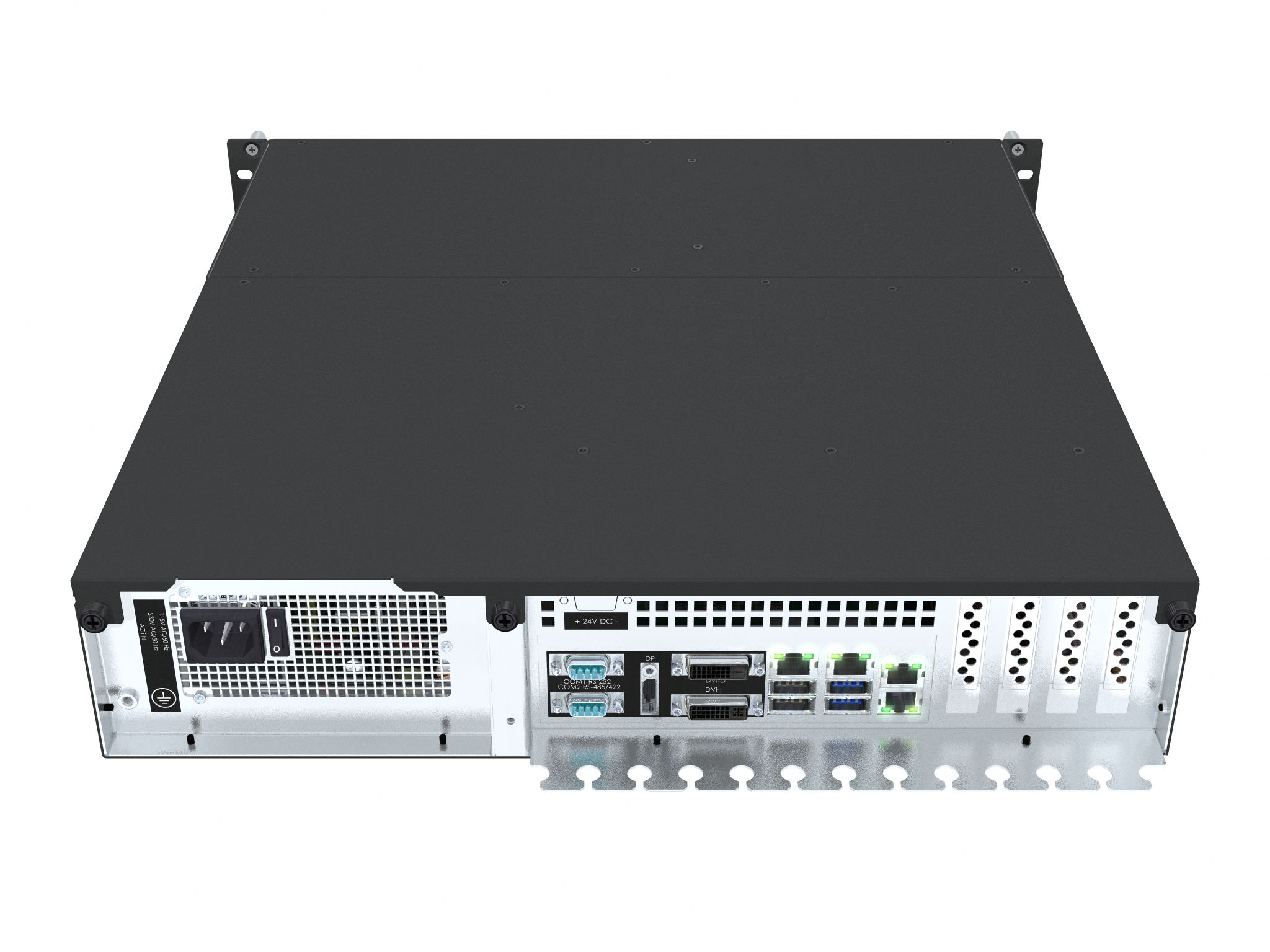

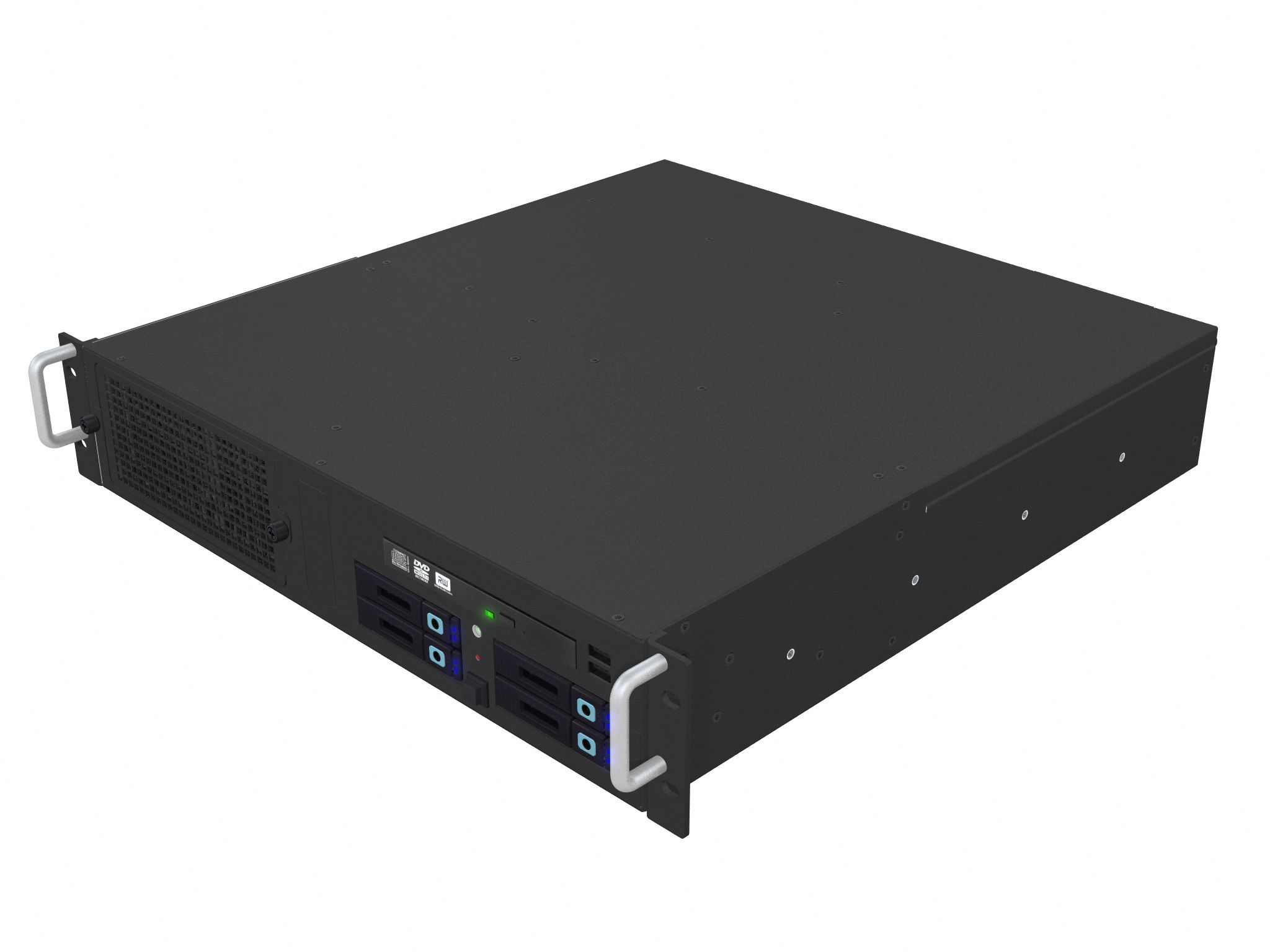

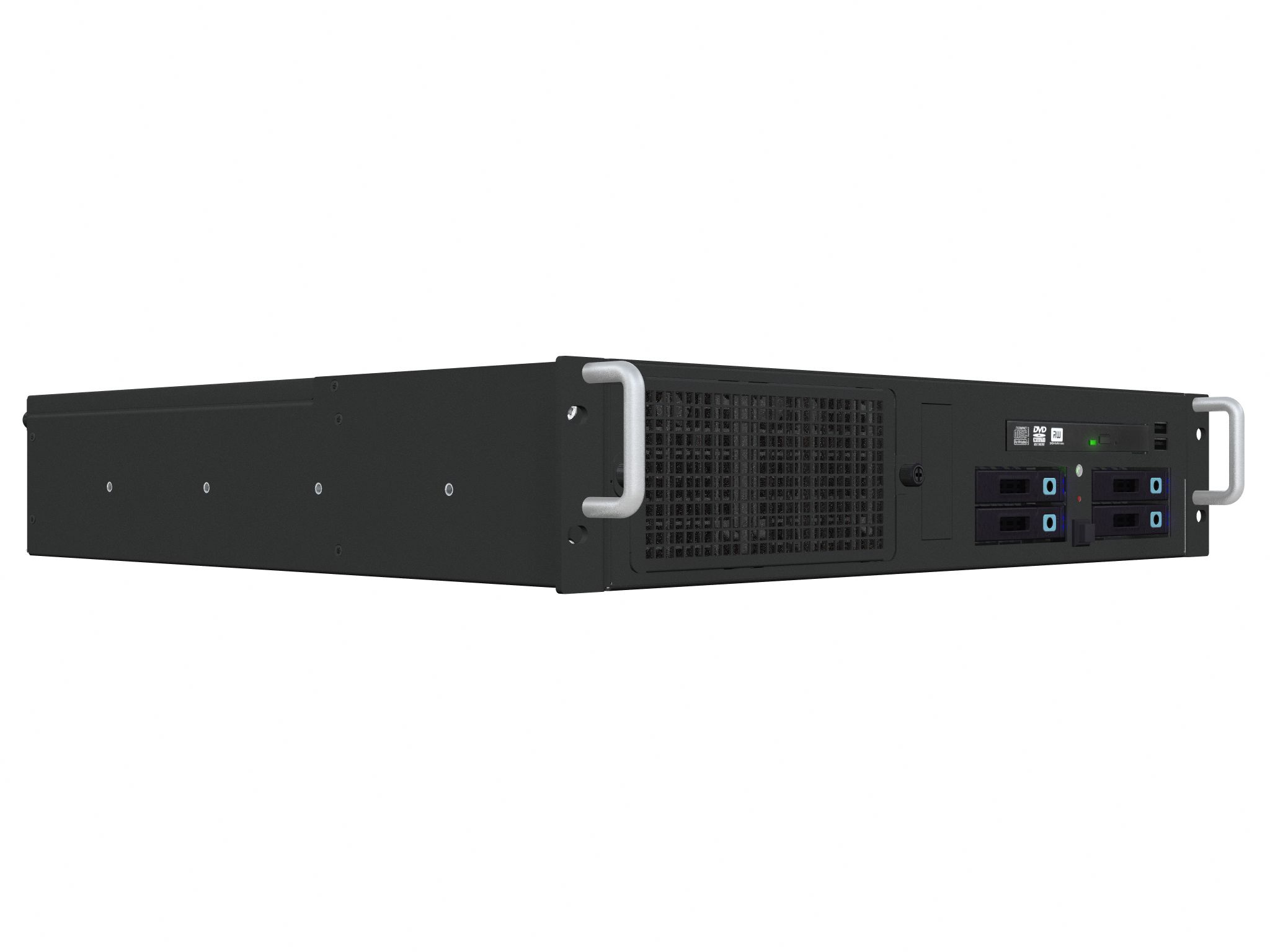

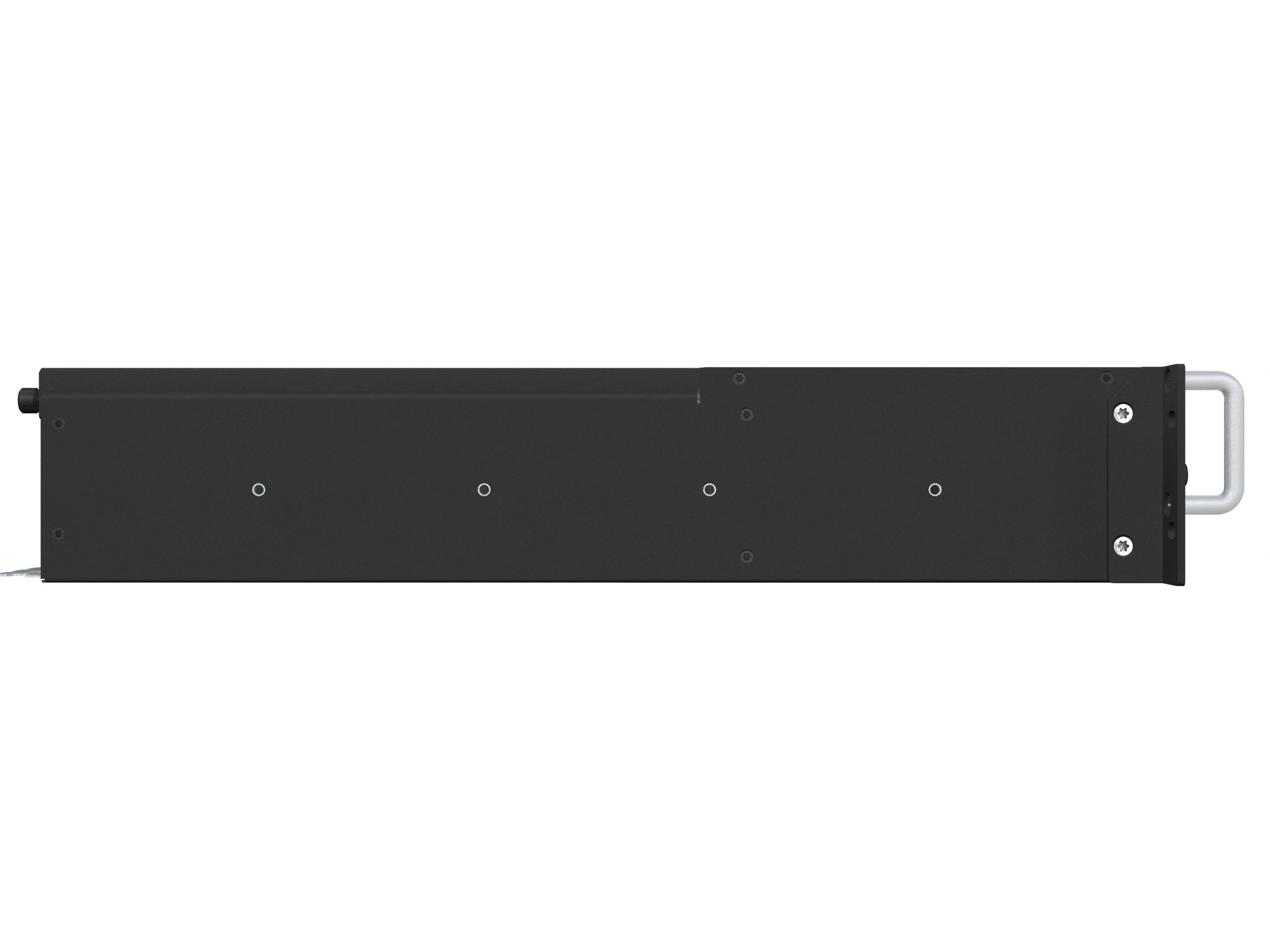

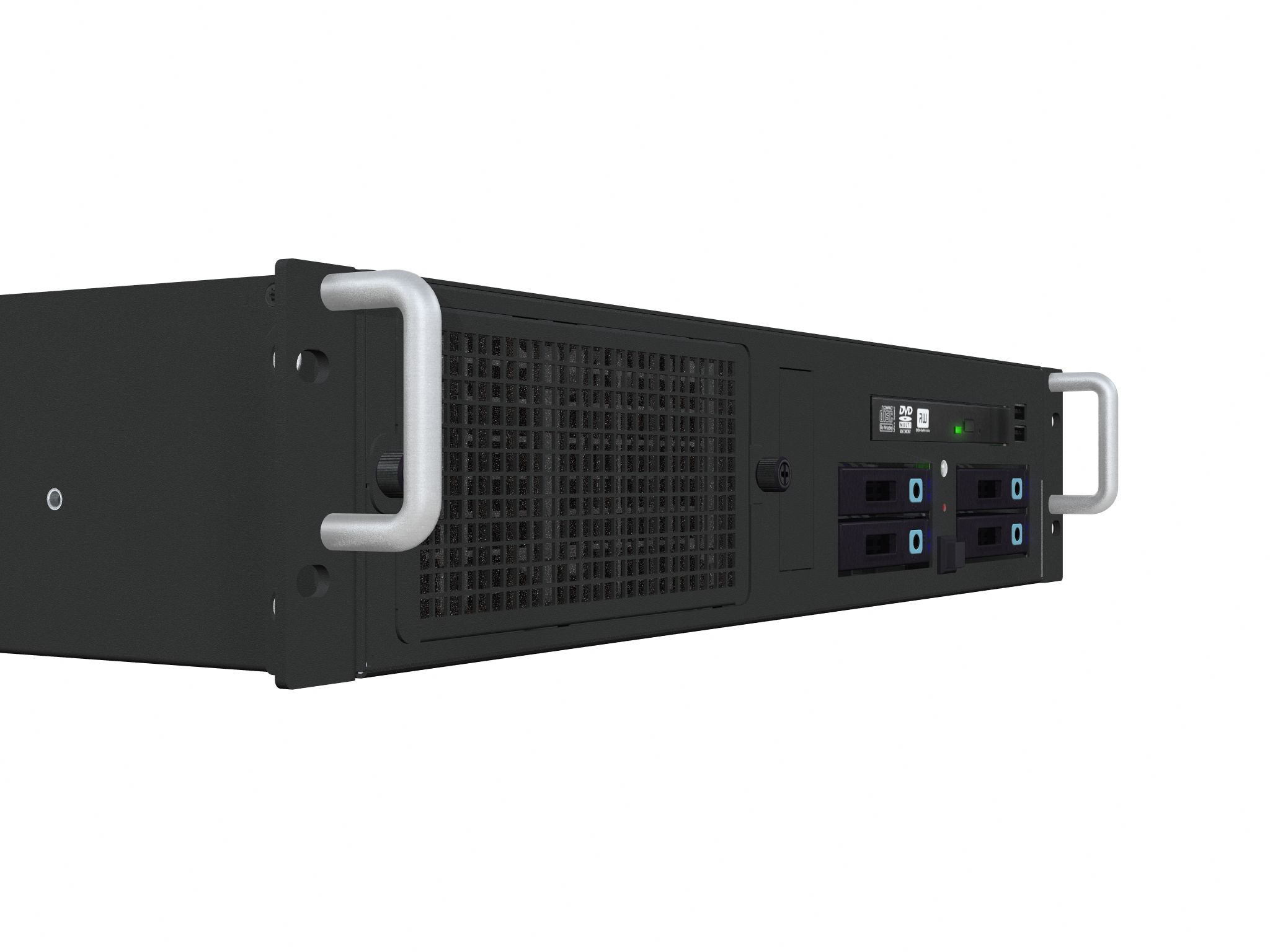

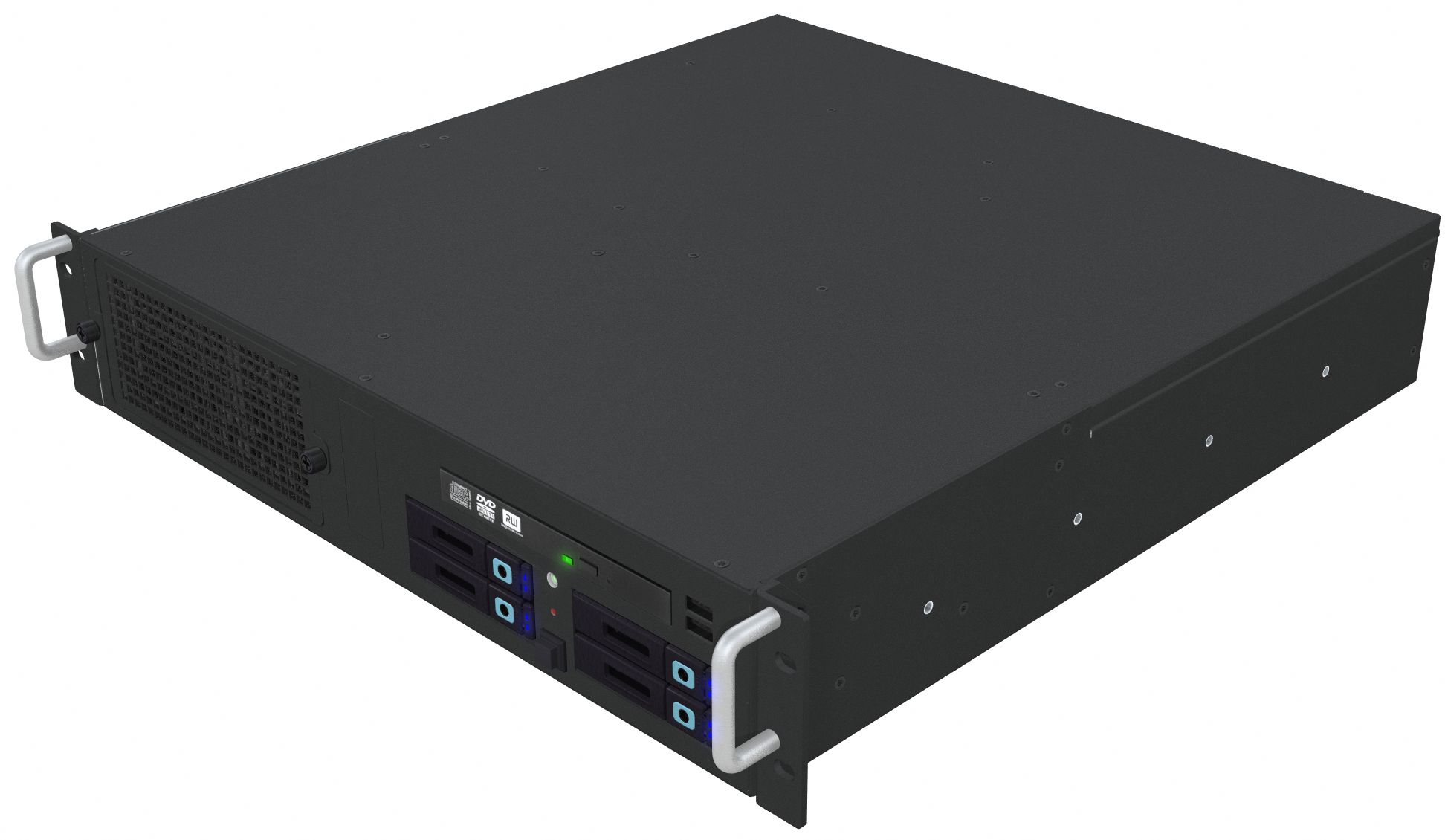

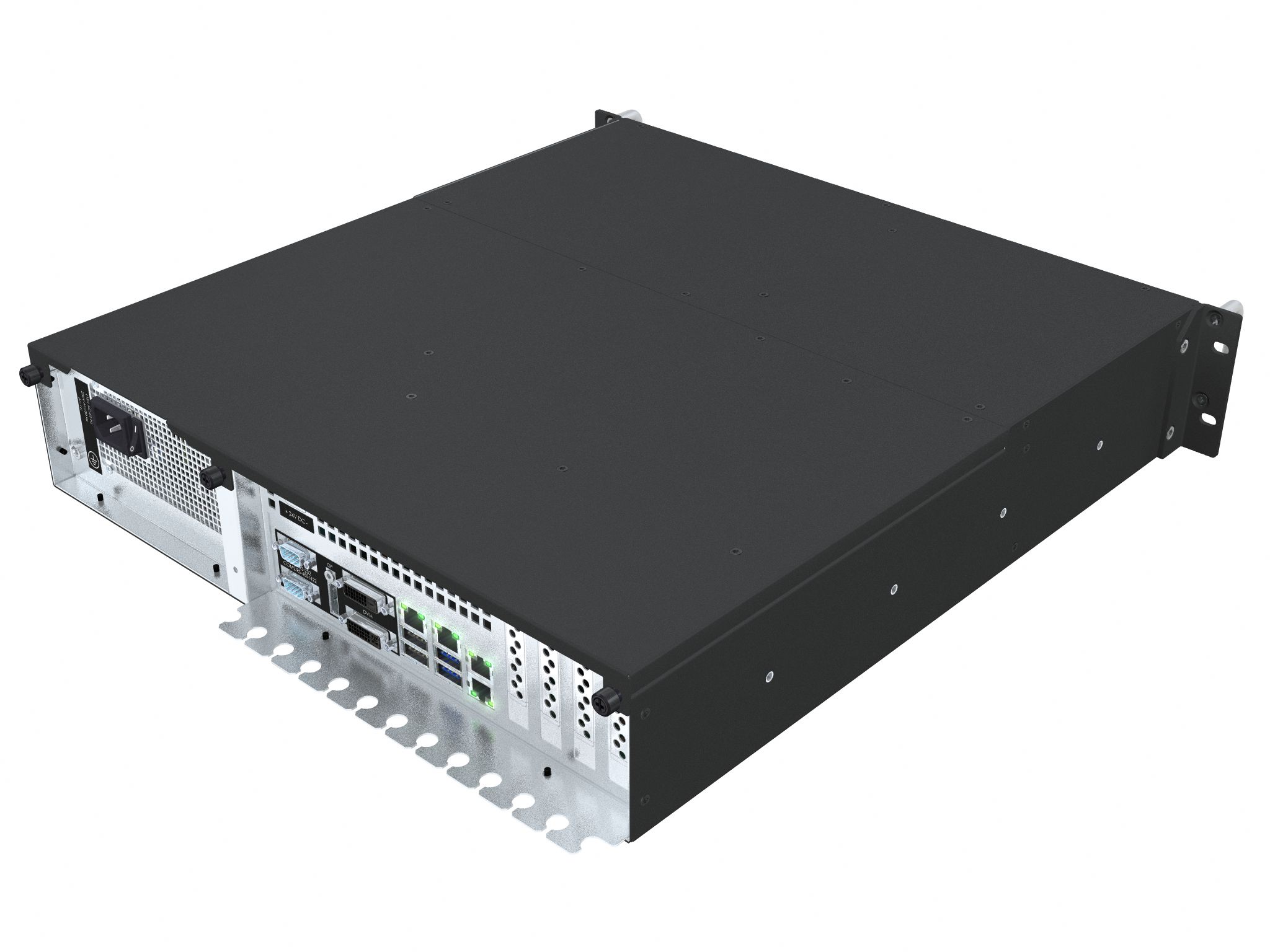

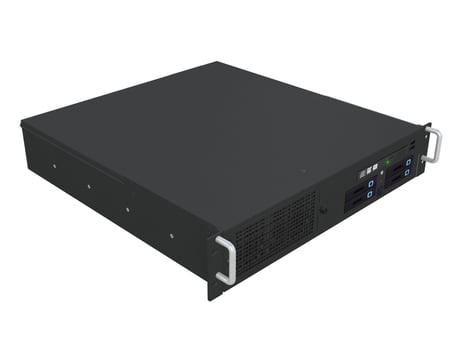

The HT 221 2U 19'' rack computer is a high performance type approved computer solution for demanding maritime environments. Available with a suite of latest generation processors, from an entry-level i3 as well as i5 and i7 variants, the computer's capability is scalable to suit the system integrator requirements and any cost considerations.
2U Size

Computer - Rackmount
The extensive feature sets of this platform include 4 removable front side disc bays, onboard raid, memory up to 16GB RAM, RS232, 422, 485 support, USB, multiple LAN ports, DVI-I and DisplayPort (DP1.2++) and more, making the HT 221 the ideal type approved slim line Rack PC solution.Typenumber (Long): |
HT 221Hx STC-xxx-Axxx |
Installed Operating System Options: |
None or Standard OS/Customized image, review datasheet for list. |
Storage Options: |
4 x 2.5" Removable Front Tray. Option: 1,2,3 or 4 can be installed of: 2.5" SSD SATA: (240GB (599TBW), 480GB (945TBW), 960GB (1750TBW)) 2.5" HDD SATA 1TB |
Processor / CPU and FSB Speed Options: |
1 x Intel® Core™ i5-4570S, Quad Core 2.9GHz, 6MB Cache or 1 x Intel® Core™ i7-4770S, Quad Core 3.1/3.9GHz, 8MB Cache or 1 x Intel® Core™ i3-4330, Dual Core 3.5GHz, 4MB Cache All CPU's has 1600Mhz Front Side Bus (FSB) |
Memory Options: |
2 x 2GB, 4GB, 8GB (Dual Ch. 204-pin DDR3 1600 SODIMM) Max 16GB RAM possible |
System+Graphics Chipset / Connectors: |
Intel® Q87 / Intel® HD 4600 Graphics integrated, OpenCL 1.2, Direct3D 11.1 w/Shader Model 5.0, OpenGL 4.2/3.3 (Linux). 1 x 29P (female) DVI-I + 1 x 24P (female) DVI-D and 1 x DP1.2++ (DisplayPort) |
Max Resolution / Max Hz: |
Max 1920 x 1200 @ 60Hz for DVI-I/VGA/DVI-D Max 3840 x 2160 (4K UHD) @ 60Hz for DP (DisplayPort) |
BIOS: |
AMI BIOS. On-board BIOS Speaker. |
PCI Slots / PCIe Slots: |
1 x PCI2.3, 3V/5V Interface, 1 x PCIe x16 + 1 x PCIe x4 + 1 x PCIe x1 All slots are Half/Low Profile&Half Length |
Media Drive(s): |
1 x DVD-RW/CD-RW Dual Recorder/Player |
LPT / Parallel Port: |
None |
Serial Port(s): |
1 x DB9M RS-232 + 1 x DB9M RS-422/RS-485 |
Ethernet Port(s): |
2 x RJ45 10/100/1000Mbps - Intel® I217/I210 w/ Intel® Teaming 2 x RJ45 10/100/1000Mbps - Realtek 8111E |
USB Port(s): |
2 x USB2.0 (<5m) ports in front + 2 x USB3.0 (<3m) ports in rear 1 x USB2.0 (<5m) + 1 x USB1.1 (<10m) / USB2.0 (<5m) ports in rear |
Keyboard and Mouse Ports: |
None or option: 1 x VSD100920-1 (2 x PS/2 5pin mini (Keyboard + Mouse inputs) |
Audio Ports: |
None or option: 1 x VSD100944-1 (Realtek ALC892-CG HD Audio, 5.1 channel) |
Buzzer: |
None |
Power Manager and Monitoring: |
ACPI - Temperature, voltage, cooling fans with auto throttle. Watchdog Timer, reset: 1 sec~255 min&1 sec. or 1 min/step |
Power Specifications and Consumption: |
1 x Std IEC inlet: 100-240V AC 50/60Hz (MAX 412W) Operating 70W (typ) |
Digital I/O Connectors: |
None or option PCA100297-1 (DIO module) |
Key Features: |
Black (EP0301-4040627) Heavy-duty steel 2U Rackmount chassis with handles, Easy Removable Front Air Filter, Supports rear cable strain relief bracket kit (included) with grounding thread, Supports rear PCI card support holder fixed to chassis, 2 x Internal Cooling fans in front (80x80mm) |
Product Dimensions and Weight: |
W:430.00 [16.93"] x H:80.00 [3.46"] x D:460.80 [18.14"] mm [inch] 2U Rack size in height. Approx 10kg / 22lbs |
Product Carton Size and Weight: |
L:630.00 [24.80"] x W:580.00 [22.83"] x H:200.00 [7.87"] mm [inch] 30.0kg / 66.0lbs |
User Controls / Activity: |
Front: Power On/Off Push Button,Reset Button,Power/HDD/SSD LED |
Factory Options: |
• M9140-E512LAF: Matrox®9140 LP, PCIe x16, 4xDVI-I, 512MB • CP114EL-I: COMCard,PCIe,1xDB44F/4xDB9M isolat.,RS232/422/485 • i350F2BLK: Intel® Server Adp. I350-F2,FiberLAN (2xLC Fiber Optic) • HTA2020002-AD1033: CAN isolated, 2 channel • PCA100297-1: Digital IO Isolated, 4 IN + 4 OUT • PCA200828-1: COM RS-422/485 isolated NMEA 4 channel • PCA100293-2: COM RS-422/485 isolated NMEA 4 channel External • PCA100298-1: LAN 10/100Mbps, 2 ports (RJ45) • VSD100944-1: 2W Amplified Audio Mono/Stereo (1xDB9F+2x3.5mm) • VSD100920-1: 2 x PS/2 5pin mini (Keyboard + Mouse inputs) • VSD100922-1: Additional USB ports: 2 x USB2.0 • 82976: Additional USB ports: 2 x USB3.0 • SX-118A: 1 x Parallel Port LPT,DB25F,Bi-Dir. ECP/EPP,PCIe x1 card • Variations of Storage, RAM Memory and Operating System For all Factory Mounted Options Combinations, review User Manual. |
Accessories: |
• 1282219-KD: 2x20" ball bearing rail&mount kit,19" Rack • 1282220-KD: 2x26" ball bearing rail&mount kit,19" Rack • JH C01MF A-A: 1 x USB Cable 1m, Type A-Chassis mount receptacle • HT 00300 MSOS: OS options -> www.hatteland-display.com/os • HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module • HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module • HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module • HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module • HD 000TR SX1-A1: 1 x Removable Front Tray 2.5" Empty • HD xxxyy SX1-z1: 1 x Removable Front Tray 2.5" w/Storage Device • H732S10Q20-0005100 = 1 x Replacement Front Air Filter |
Capabilities / Prepared for: |
None |
Operating Temperature: |
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% |
Storage Temperature: |
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95% |
Compass Safe Distance: |
Standard: 200.00 [78.74"] - Steering: 130.00 [51.18"] cm [inch] |
Type Approval, Testing and Certificates: |
IEC 60945 4th (EN 60945:2002), IACS E10, EN61162, EU RO MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m |
Specifications last updated: July 4, 2025 @ 08:44 |
