HT 416
Computer - 4U Size - Server - Rackmount - 4U
HT 416

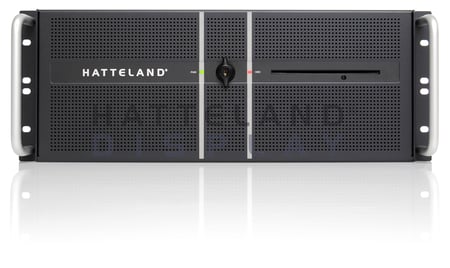

HT 416 Maritime Rackmount Computer Models. Next generation computer that features the latest Intel® processor technology. The standard model is aimed/designed to be used in marine applications. Normal installation is indoors and mounted into a standard 19'' rack.
4U Size
Server

Computer - Rackmount
The 4U computer is designed to handle a large number of hardware configurations, both with respect to Hatteland Display defined options such as; HDD, customer additional hardware and customer designed PCI card. The unit is RoHS Compliant.Typenumber (Long): |
HT 416 STx-Axxx |
Installed Operating System Options: |
None or Microsoft® Windows® Embedded Enterprise (32bit: XP Pro / Win Server 2003 / Win 7 Pro / Win Server 2008) |
Storage Options: |
1 to 4 x 500GB HDD 3.5" SATA, 7200 RPM, 8MB Cache (Front-mounted removable disks) |
Processor / CPU and FSB Speed Options: |
1 x Intel® Core™2 Duo E6400, 2.13GHz, 1066MHz FSB, 2MB L2 Cache |
Memory Options: |
2 x 1GB Dual Channel DDR2 800/667MHz, SDRAM DIMM |
System+Graphics Chipset / Connectors: |
Intel® Q965,ICH8DO / Integrated VGA, supports CRT with 1 x HD DB15F (female) GA OUT |
Max Resolution / Max Hz: |
2048 x 1536 @ 85Hz |
BIOS: |
AMIBIOS 8MB Flash. On-board BIOS Speaker. |
PCI Slots / PCIe Slots: |
5xPCI 32bit, 3V/5V Interface + 1xPCIe x4 1xPCIe x16 (add2/Graphic Mode) ll slots are Full Height and Full Length |
Media Drive(s): |
1 x Slim DVD/CD-RW Recorder/Player Drive |
LPT / Parallel Port: |
1 x DB25F Bi-Directional Centronics with SPP/EPP/ECP mode |
Serial Port(s): |
1 x DB9M RS-232 + 1 x DB9F RS-232/422/485 (electrical isolated) |
Ethernet Port(s): |
2 x RJ45 10/100/1000Mbps - Realtek RTL8111B |
USB Port(s): |
8 x USB2.0 Type A (rear) + 2 x USB2.0 (Internal Pin Header) |
Keyboard and Mouse Ports: |
1 x PS/2 Keyboard + 1 x PS/2 Mouse |
Audio Ports: |
6 x 3.5mm Jacks (LINE IN/LINE OUT/MIC IN) AC97 Codec, 7.1 channel, HD Audio |
Buzzer: |
None |
Power Manager and Monitoring: |
ACPI |
Power Specifications and Consumption: |
115/230VAC - 50/60Hz (400W Autorange) - Operating 100W (typ) AC Power IN: 1 x Std IEC inlet |
Digital I/O Connectors: |
None |
Key Features: |

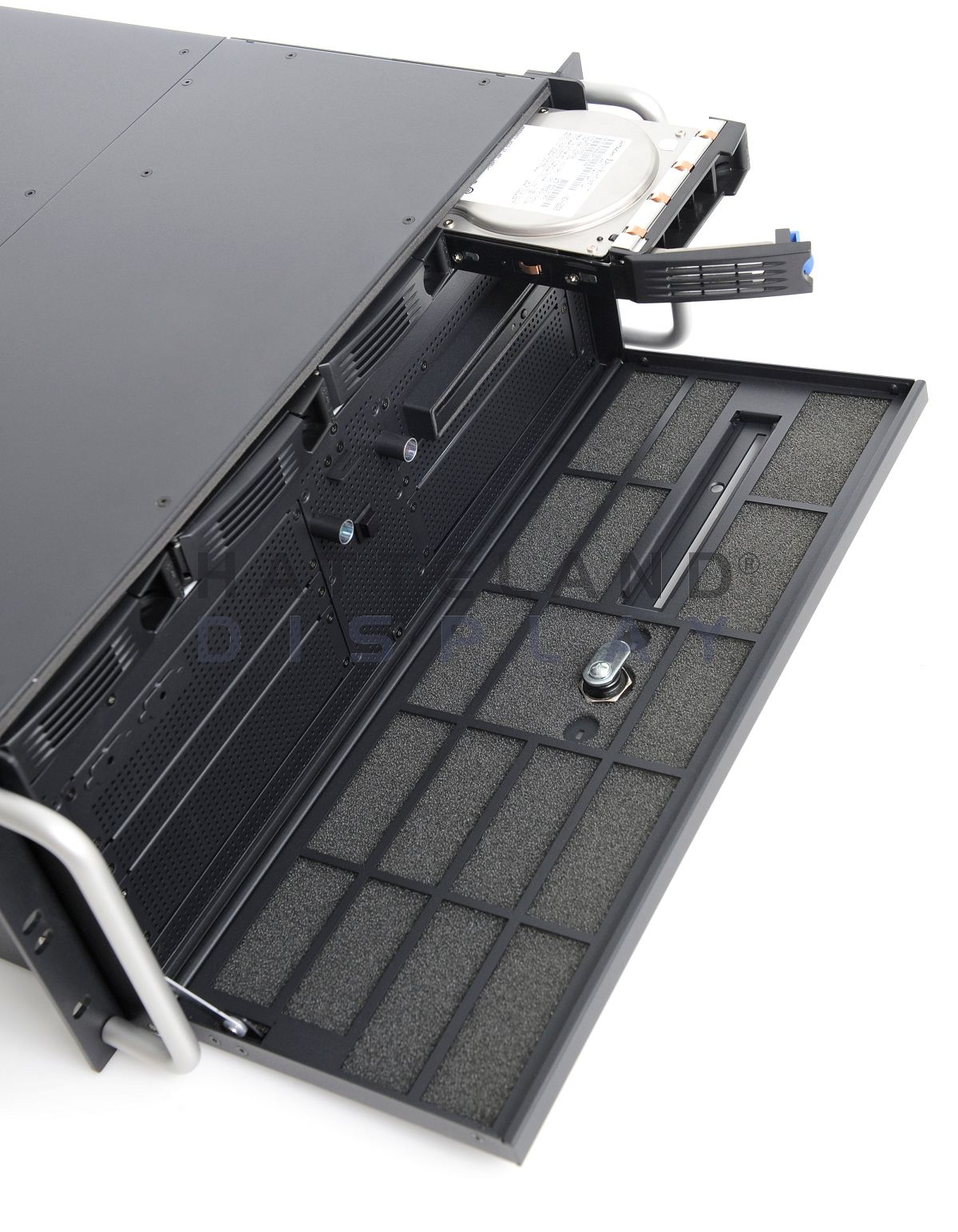

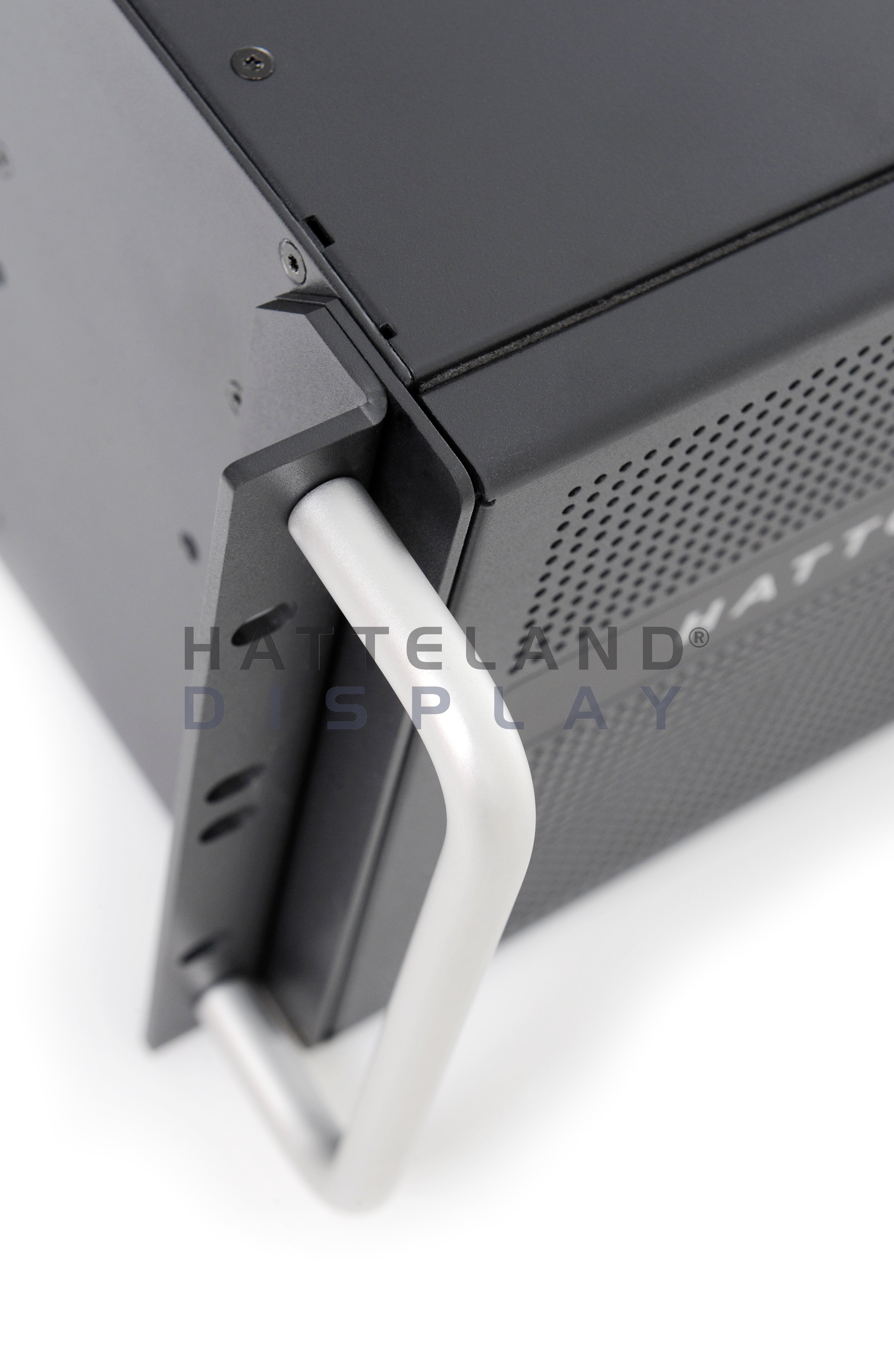

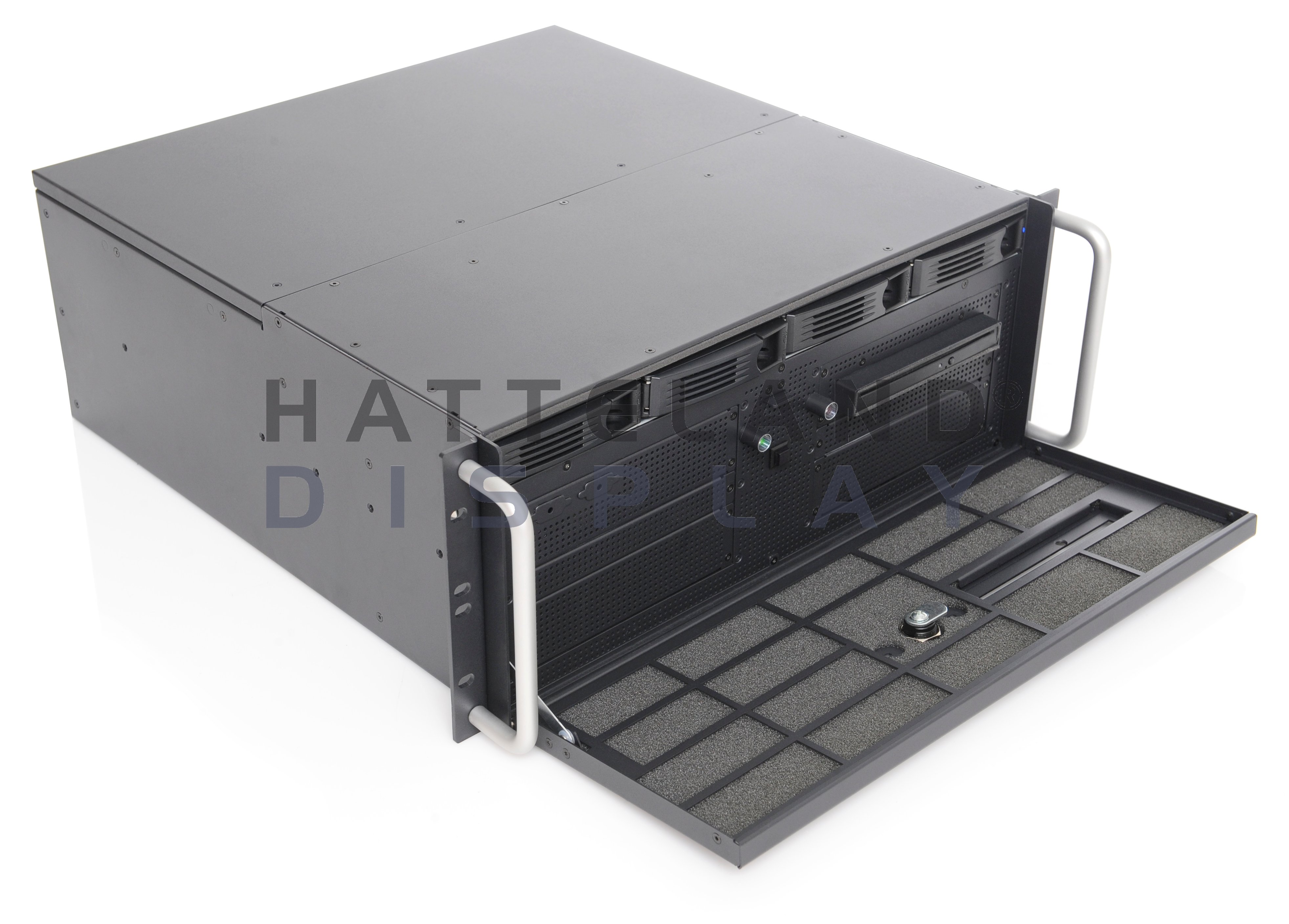

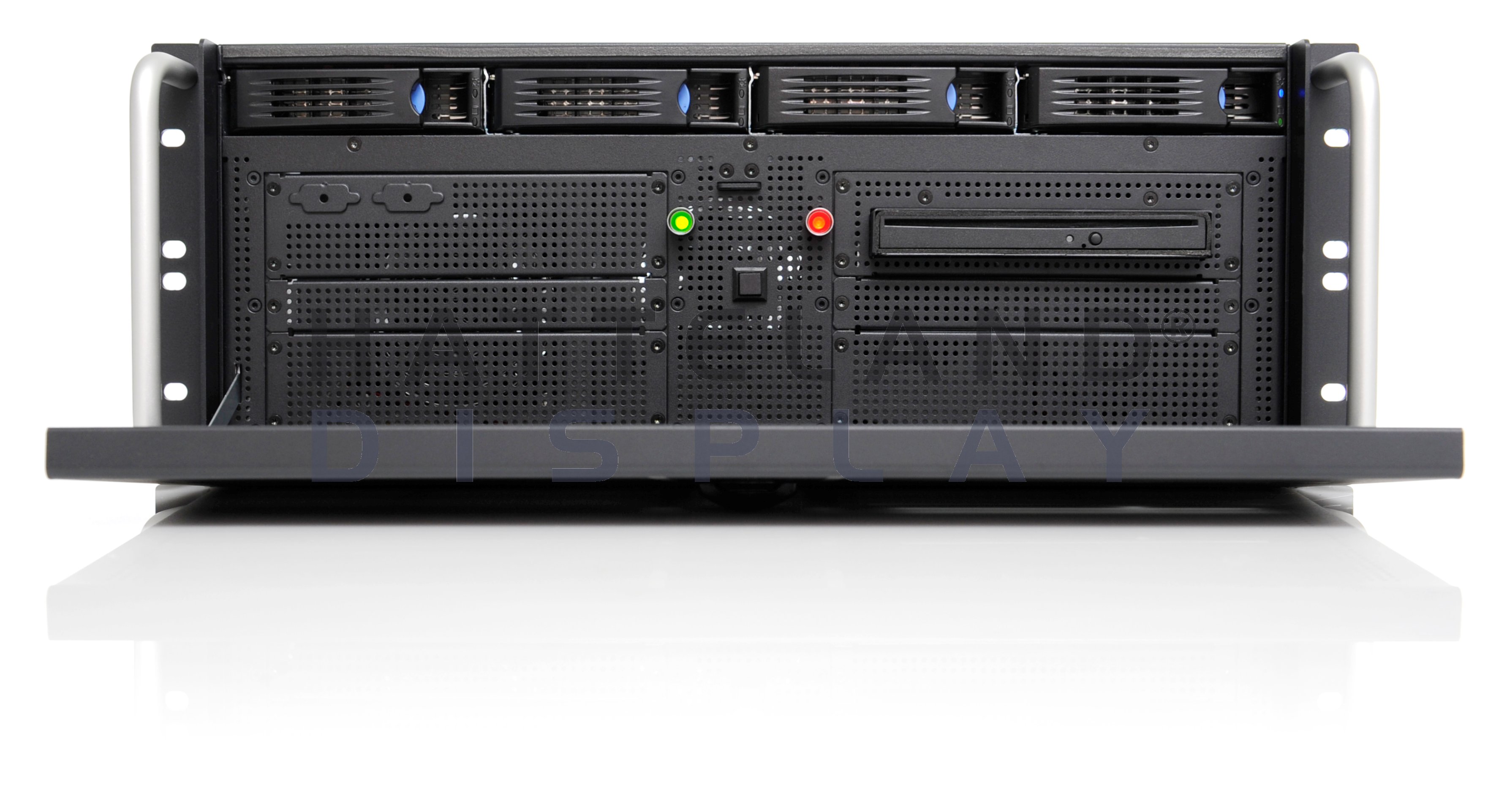

Heavy-duty steel 2U Rackmount chassis with handles, Removable air filter and lockable front hatch door, Supports 6 x 5¼" disk bays (4 x 5¼", 2 x slim, one used for air flow), Supports 4 x 3½" disk bays, Rear cable strain reliefs with grounding thread, Rear PCI card support holder, fixed to chassis, 5 x Cooling fans (High/Low Pressure, PSU, CPU & PCI) |
Product Dimensions and Weight: |
W:431.00 [16.97"] x H:176.50 [6.95"] x D:443.00 [17.44"] mm [inch] 4U Rack size in height. Approx 25kg / 55lbs |
Product Carton Size and Weight: |
L:610.00 [24.02"] x W:58.00 [2.28"] x H:300.00 [11.81"] mm [inch] 22.0kg / 48.4lbs |
User Controls / Activity: |

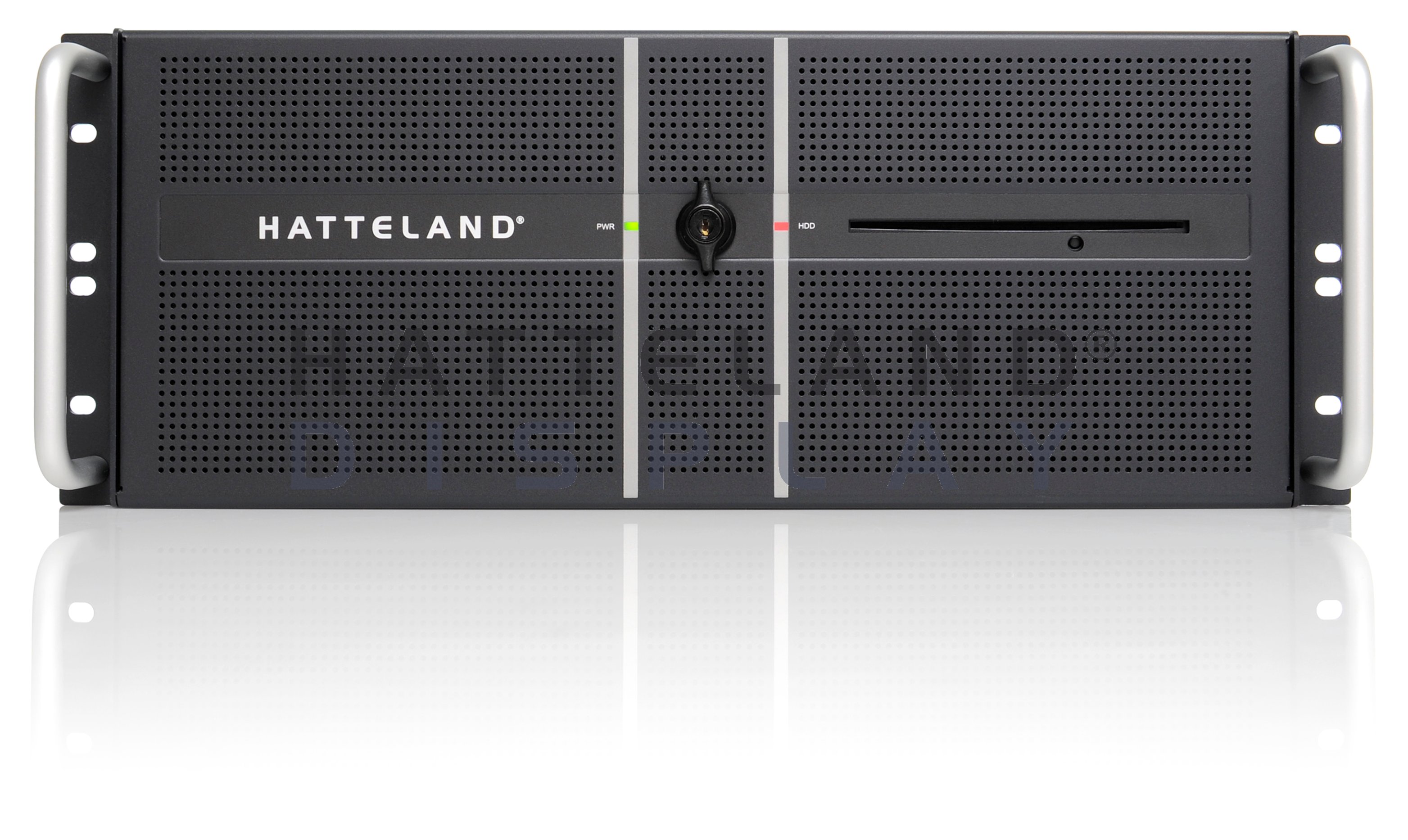

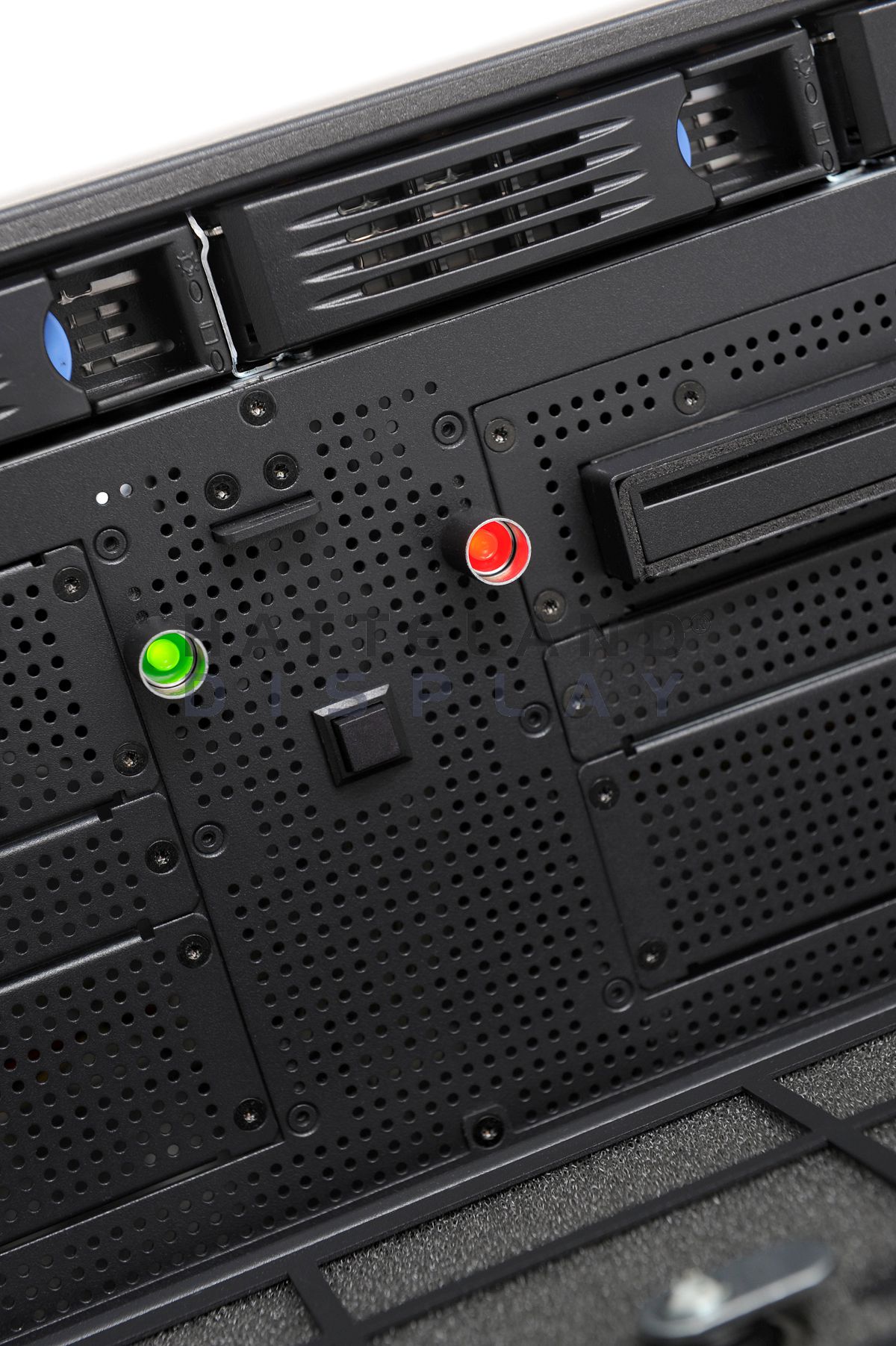

Power On/Off Push Button, Power LED, HDD LED |
Factory Options: |
• 1 x Matrox DualHead® P690, PCIe x16 / PCIe x1 / PCI Low Profile • 2 x Intel® 10/100/1000Mbps (Teaming, Low Profile) • Future support for larger HDD sizes possible |
Accessories: |
• HT 00250 OPT-A1: 2x20" ball bearing sliding rail/mount kit for 19" Rack • JH C01MF A-A: 1 x USB Cable 1m, Type A to Chassis mount receptacle • HT 00300 MSOS: OS options -> http://www.hatteland-display.com/os |
Capabilities / Prepared for: |
N/A |
Operating Temperature: |
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% |
Storage Temperature: |
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95% |
Compass Safe Distance: |
Standard: 135.00 [53.15"] - Steering: 90.00 [35.43"] cm [inch] |
Type Approval, Testing and Certificates: |
IEC 60945 4th (EN 60945:2002), EN61162, IACS E10, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition |
Specifications last updated: July 9, 2025 @ 12:38 |
