Computer - Silent - Compact

HT B04CM

Powerful compact industrial computer with most computer functions built in. Can be equipped with different processor (CPU) types and speeds. Ideal and robust choice for mobile, marine and automation systems. Useable for TFT, CRT and Plasma. Either AC or DC power input.

Silent

Send Request

Description

Specifications

Typenumber (Long):	HT B04CM STD-xx
Installed Operating System Options:	None, please specify when ordering
Storage Options:	1 x Automotive Removable 40GB 2.5" IDE HDD, 4200 RPM, 2MB Buffer Enhanced IDE supports UDMA 33/66/100
Processor / CPU and FSB Speed Options:	Intel® Celeron® M 600MHz, ULV, 512KB L2 Cache, Front Side Bus: 400MHz
Memory Options:	1 x SODIMM slot, 256MB->1GB, DDR200/266/333 MHz
System+Graphics Chipset / Connectors:	Intel® 852GM / Intel® Extreme Graphics2 with 2D/3D Graphics 1 x HD-15F
Max Resolution / Max Hz:	N/A
BIOS:	Phoenix 2Mbit Flash BIOS

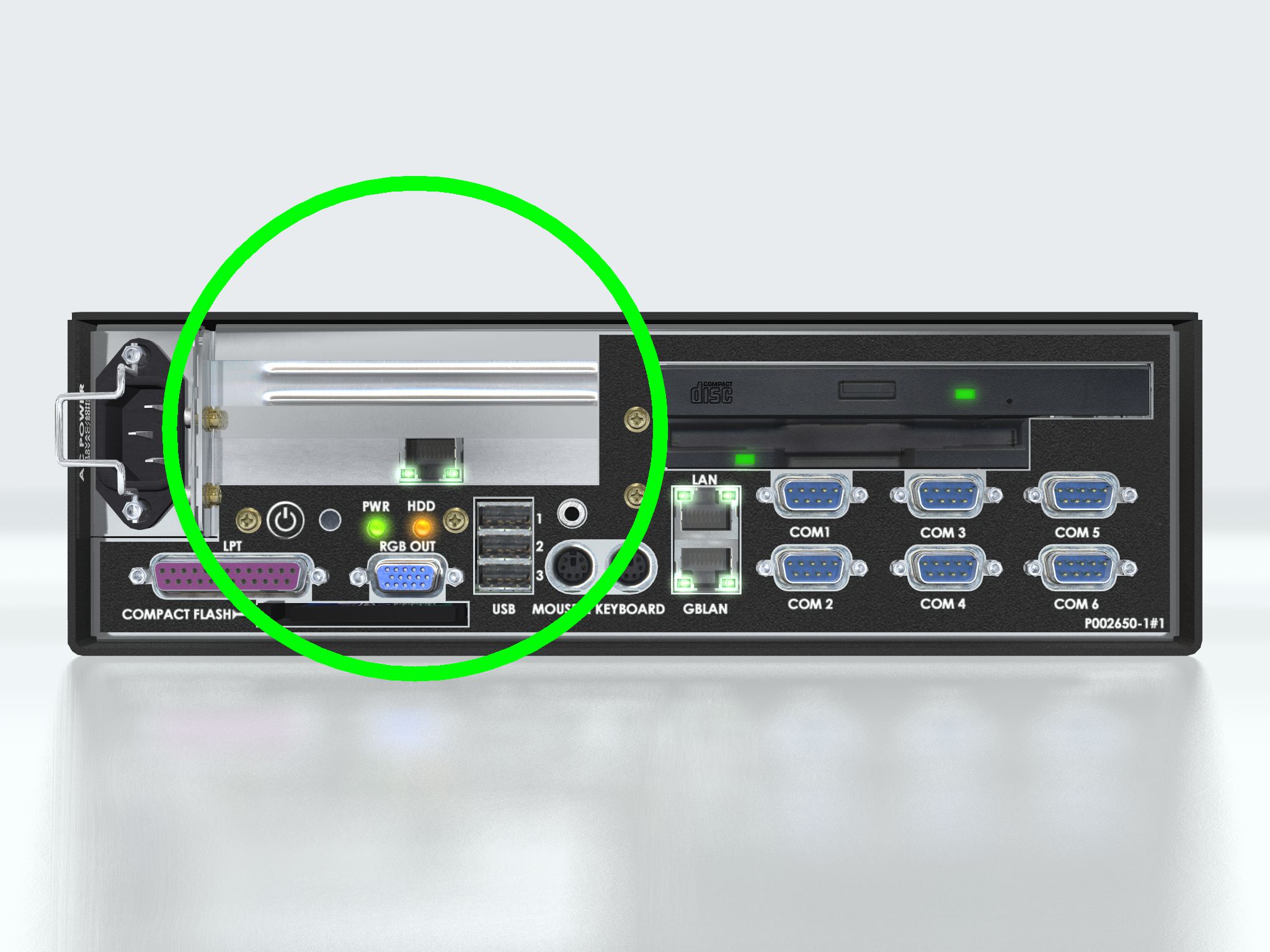

PCI Slots / PCIe Slots:	2 x PCI Slots or 1 x PC104 & 1 x PCI Slots or 2 x PC104 Slots - (PCI slots fully support half length cards)
Media Drive(s):	• CD-ROM / RW: 1 x 24x Slim CD-R • Floppy FDD: 1 x 1.44 MB 3.5" SLIM • Compact Flash: 1 x CompactFlash Reader Type I/II with eject button
LPT / Parallel Port:	1 x Bi-Directional Centronics with SPP/EPP/ECP mode, DB25F
Serial Port(s):	6 x RS-232/422/485 (fully isolated in RS422/485 mode), DB9M
Ethernet Port(s):	1 x 10/100 Mbps, 1 x RJ-45 1 x 10/100/1000 Mbps Intel® 82541GI Giga Lan, 1 x RJ-45
USB Port(s):	3 x USB2.0 - 480Mbps
Keyboard and Mouse Ports:	1 x PS/2 Keyboard 1 x PS/2 Mouse
Audio Ports:	Via option
Buzzer:	None
Power Manager and Monitoring:	APM Ver 1.2 and ACPI 1.0a Power supply, fan and temperature supervision

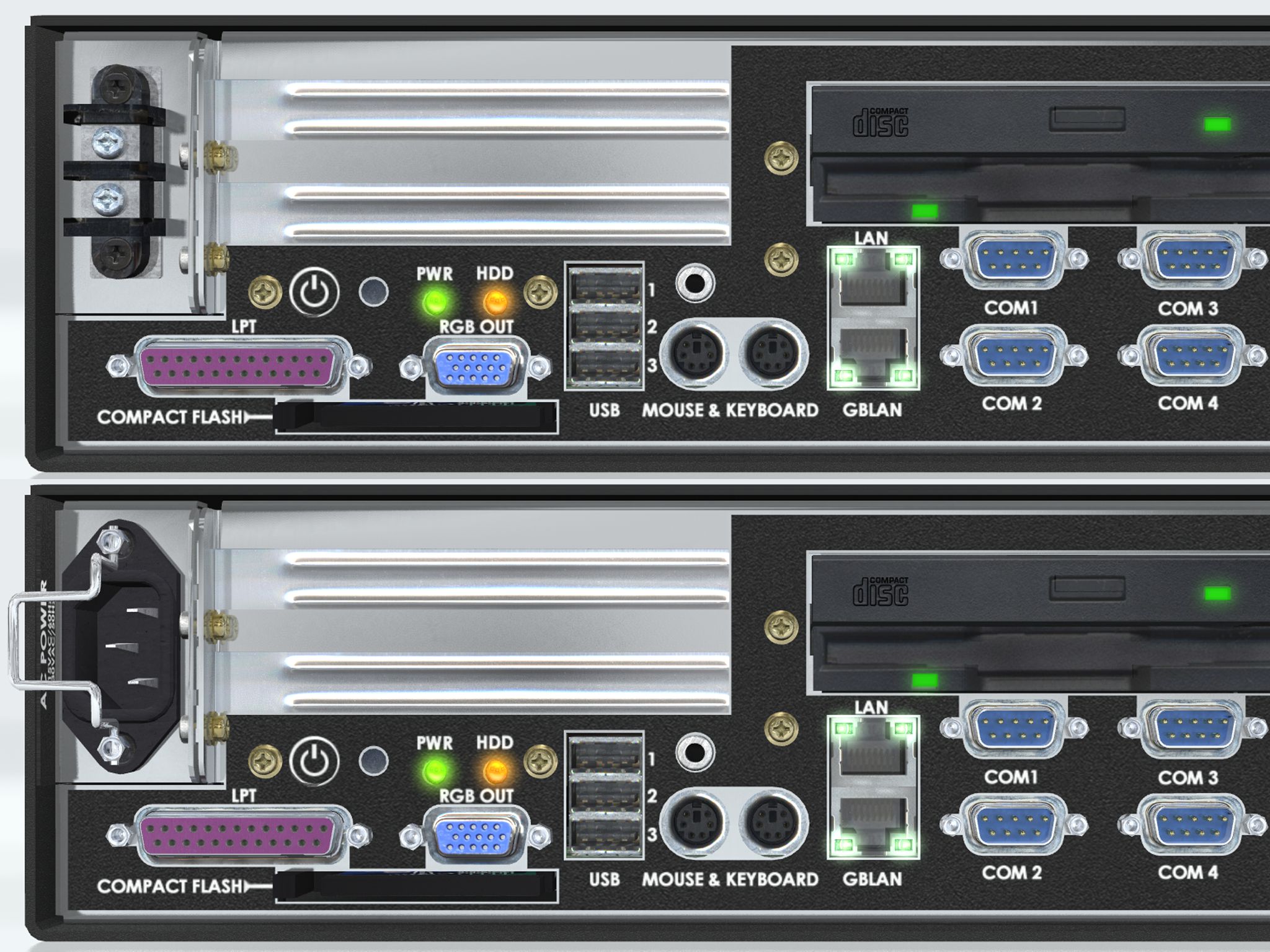

Power Specifications and Consumption:	Power Supply Options: • 115VAC/60Hz or 230VAC/50Hz, 100W Autorange, 1 x Std IEC inlet (Model HT B04xM STD x1) • 24 VDC, 100W, Screw Terminal (Model HT B04xM STD x2) Power Consumption - Operating: TBD (MAX)
Digital I/O Connectors:	None

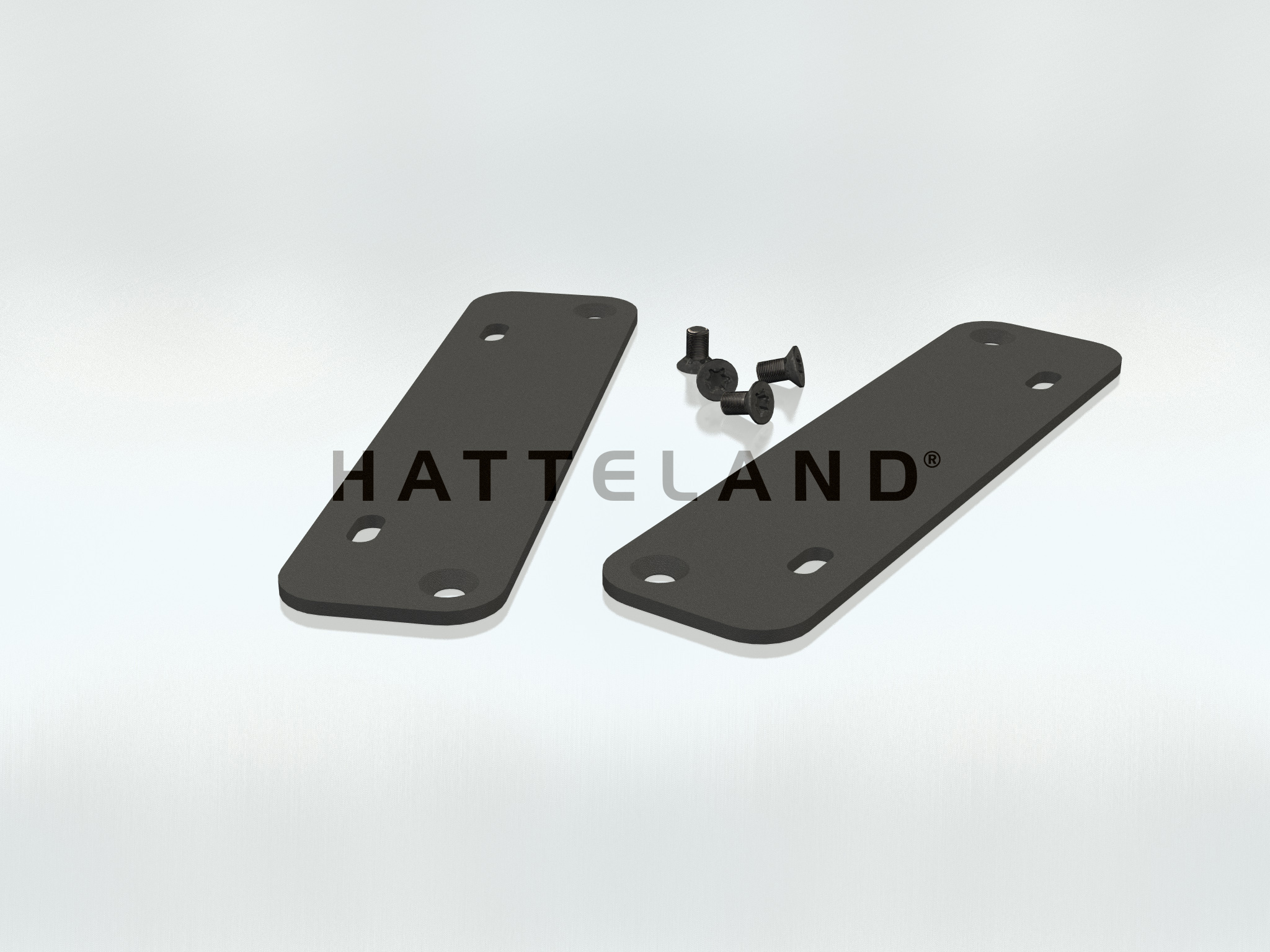

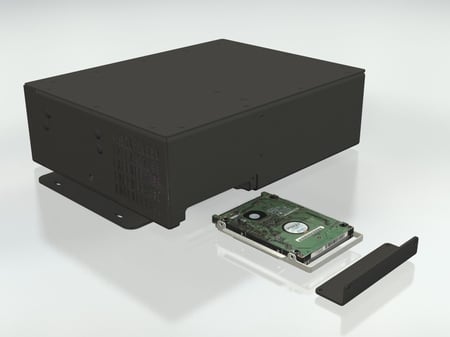

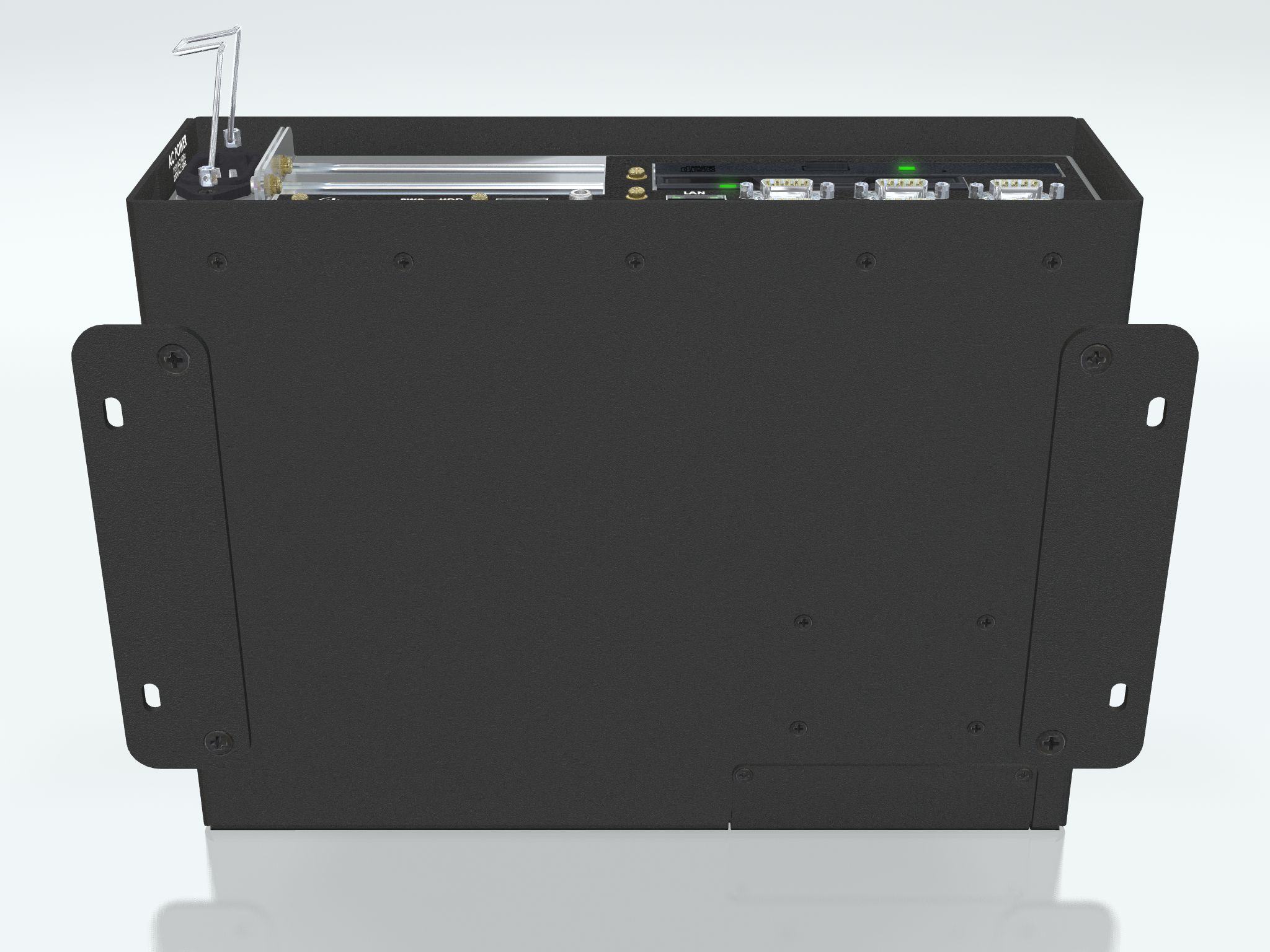

Key Features:	Fanless, no moving parts, Aluminium Cooling Chassis w/no apertures, AC or DC model, Compact Form Factor, Removeable hatch for accessing replaceable HDD, Removeable hatch for accessing serial config, Includes mounting brackets
Product Dimensions and Weight:	W:290.00 [11.42"] x H:87.90 [3.46"] x D:221.00 [8.70"] mm [inch] 3.0kg / 6.6lbs (approx)
Product Carton Size and Weight:	N/A
User Controls / Activity:	Power Button, Reset Button, Power LED, Activity LED HDD trays
Factory Options:	• Graphics Card: Dualhead, PCI, 32MB with 1 x DVI-I + 1 x HD-15F D-SUB (By installing this card, 1 USB port needs to be disabled/closed) • IDE HDD: Upgradable to max 80GB, 2.5", 5400RPM, 2MB Buffer (This HDD is not type approved) • CD-ROM: Upgradeable to DVD-RW 8xDVD+R 8xDVD-R, 4xDVD+/-RW, DVD-RAM, 24xCD-R, Black, Rohs Compliant • I/O Slots: 2 x PCI Slots or 1 x PC104&1 x PCI Slots or 2 x PC104 Slots - (PCI slots fully support half length cards) • Audio: AC-97 2.2 compliant, 6 channel, 5.1 speaker with LINE IN, LINE OUT, MIC IN 3.5mm jacks
Accessories:	None
Capabilities / Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-30.0°C / -22.0°F to +60.0°C / +140.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 75.00 [29.53"] - Steering: 55.00 [21.65"] cm [inch]* *Not tested, but expected to be the same as corresponding model.
Type Approval, Testing and Certificates:	EN60945 4th (IEC945 4th), IACS E10, DNV - Det Norske Veritas, LRS - Lloyd's Register of Shipping, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd

Specifications last updated: July 1, 2025 @ 09:54
