HT B04PM

Overview

Computer - Silent - Shock Tested - MIL Qualified

HT B04PM

The HT B04PM MIL is a powerful ultra compact military computer with most computer functions built into a form factor that can be placed virtually anywhere. It supports any TFT, CRT and Plasma products.

icon
Silent
icon
Shock Tested
Send Request
Description

Computer - MIL Qualified

Global Computer Specification:
• Microsoft® Windows® XP Professional Eng w/SP2
• 1 x Dual Head Graphics Card, DVI-I, PCI, 32MB, Max 2048 x 1536 @ 65Hz
• 1 x Automotive 40GB 2,5” HDD (Removable)
• 1 x Compact Flash Reader
• 1 x 10/100Mbps and 1 x 10/100/1000Mbps Gigabit Lan
• 6 x RS-232/422/485 Serial Ports (fully isolated RS422/485)
• 1 x Parallel port
• 2 x USB ports
• Amount of RAM from 256MB to 1GB
• Standard PS/2 for keyboard and mouse.
• 115/230VAC or 24VDC - 100W Power supply
Specifications
Typenumber (Long): HT B04PM MIL-xx
Installed Operating System Options: Microsoft® Windows® XP Professional Eng w/SP2
Storage Options: 1 x Automotive Removable 40GB 2.5" IDE HDD, 4200 RPM, 2MB Buffer
Enhanced IDE supports UDMA 33/66/100
Processor / CPU and FSB Speed Options: HT B04PM MIL-A1 / A2:
Intel® Pentium® M 1.1GHz Low Voltage, 1MB L2 Cache, Front Side Bus: 400Mhz

HT B04PM MIL-D1 / D2:
Intel® Pentium® M 725 "Dothan" - 1.8GHz, 2MB L2 Cache, Front Side Bus: 400Mhz
Memory Options: 1 x SODIMM slot, 256MB->1GB, DDR200/266/333 MHz

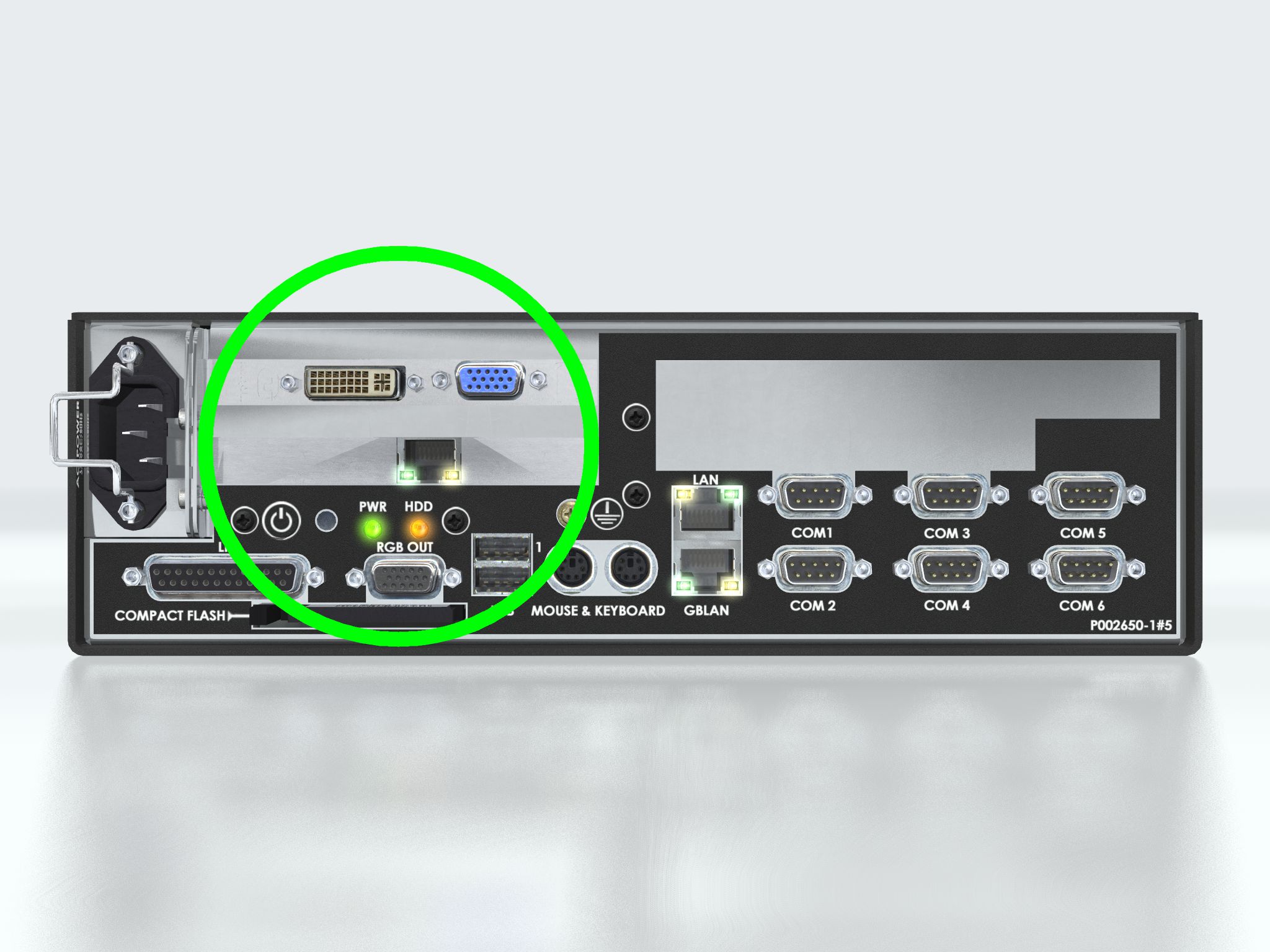

System+Graphics Chipset / Connectors: Intel® 855GME / Dual Head Graphics Card, Intel® 82855GME, DVI-I, PCI, 32MB, Max 2048 x 1536 @ 65Hz in single display configuration.
1 x 24P DVI-I&1 x HDDB15F
Max Resolution / Max Hz: 2048 x 1536 / 65Hz
BIOS: Phoenix 2Mbit Flash BIOS
PCI Slots / PCIe Slots: 2 x PCI Slots
or 1 x PC104 & 1 x PCI Slots
or 2 x PC104 Slots - (PCI slots fully support half length cards)
Media Drive(s): • Compact Flash: 1 x CompactFlash Reader Type I/II with eject button
LPT / Parallel Port: 1 x Bi-Directional Centronics with SPP/EPP/ECP mode, DB25F
Serial Port(s): 6 x RS-232/422/485 (fully isolated in RS422/485 mode), DB9M
Ethernet Port(s): 1 x 10/100 Mbps, 1 x RJ-45
1 x 10/100/1000 Mbps Intel® 82541GI Giga Lan, 1 x RJ-45
USB Port(s): 3 x USB2.0 - 480Mbps
Keyboard and Mouse Ports: 1 x PS/2 Keyboard
1 x PS/2 Mouse
Audio Ports: Via option
Buzzer: None
Power Manager and Monitoring: APM Ver 1.2 and ACPI 1.0a
Power supply, fan and temperature supervision
Power Specifications and Consumption: Power Supply Options:
• 115&230VAC - 50/60Hz, 100W Autorange, 1 x Std IEC inlet (Model HT B04PM MIL-x1)
• 24 VDC, 100W, Screw Terminal (Model HT B04PM MIL-x2)

Power Consumption - Operating: TBD (MAX)
Digital I/O Connectors: None

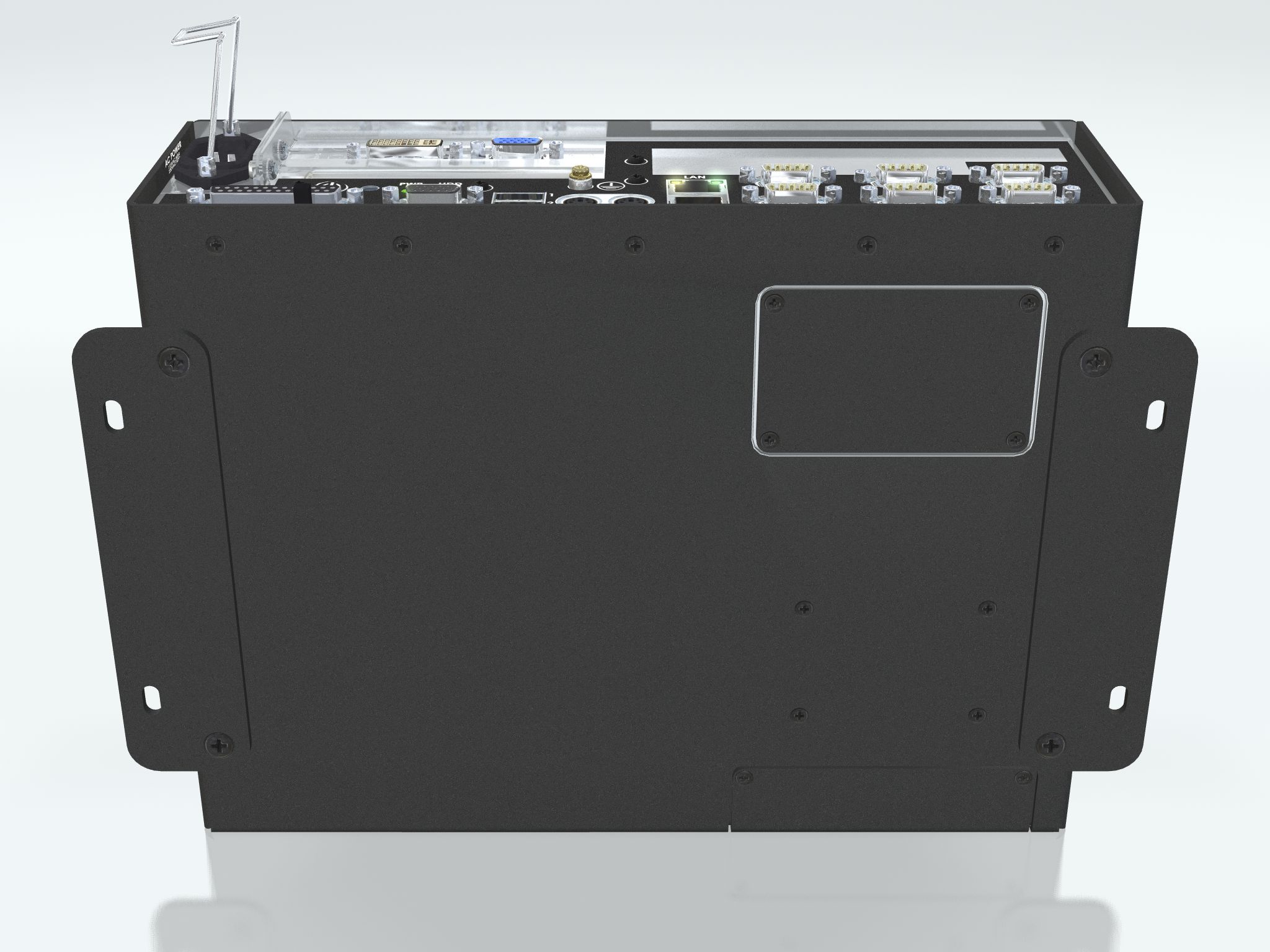

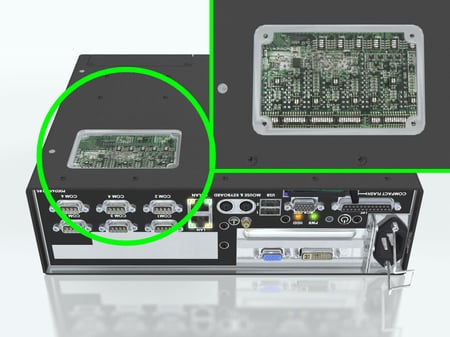

Key Features: Fanless, no moving parts, Aluminium Cooling Chassis w/no apertures, AC or DC model, Compact Form Factor, Removeable hatch for accessing replaceable HDD, Removeable hatch for accessing serial config, Includes mounting brackets
Product Dimensions and Weight: W:290.00 [11.42"] x H:87.90 [3.46"] x D:221.00 [8.70"] mm [inch]
3.0kg / 6.6lbs (approx)
Product Carton Size and Weight: N/A
User Controls / Activity: Power Button, Reset Button, Power LED, Activity LED HDD trays
Factory Options: N/A
Accessories: None
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -30.0°C / -22.0°F to +60.0°C / +140.0°F, Humidity up to 95%
Compass Safe Distance: Standard: 75.00 [29.53"] - Steering: 55.00 [21.65"] cm [inch]
Type Approval, Testing and Certificates: EN60945 4th (IEC945 4th) (2), MIL-STD 461E, 1999 (2), EN55024 (2), EN55022 (2), IACS E10 (2)
Shock Testing: 50g/35ms (2)
(1 = AC Version, 2 = DC Version)
Specifications last updated: August 15, 2025 @ 13:51
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

10 Dec 2010
Printed User Manual and Driver CD/DVD

8 Jan 2010
CF update

11 Dec 2006
Minor change of components regarding the fan control an...

Service Memo Notifications (SM):
24 Feb 2021
COM Port Driver Issue

End of Life Notifications (EOL):
9 Jul 2010
HT B04xx-xxx-xx

14 Nov 2008
Matrox® P650 Graphics

2 Oct 2008
Intel Pentium M 2.0GHz

2 Oct 2008
Intel® Pentium®M 1.6GHz processor Last Time Buy

17 Oct 2005
Windows® 2000 retirement

News Stories:
9 Mar 2007
New Product Released: HT B04PM MIL
