Computer - Silent - Compact

HT B06PM

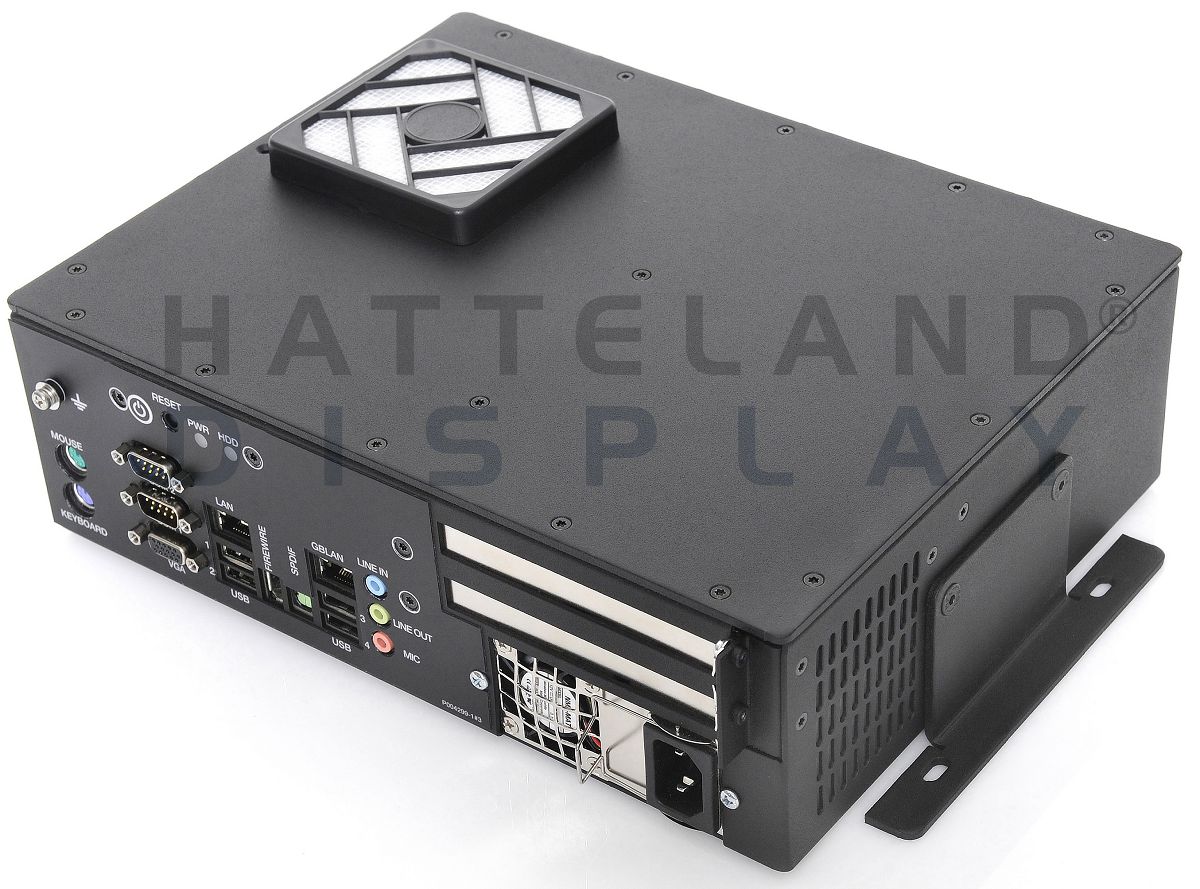

The HT B06xM STD is a powerful ultra compact industrial computer with most computer functions built into a form factor that can be placed virtually anywhere. Supports any TFT, CRT and Plasma products. It has filtered air inlet and excess pressure within the casing to minimize dust and dirt to accumulate inside the casing.

Silent

Send Request

Description

Specifications

Typenumber (Long):	HT B06PM STD-xx
Installed Operating System Options:	None, please specify when ordering
Storage Options:	• 1 x uDOC Int. Module: uDOC (USB 2.0 Flash Disc) up to 4GB and future support for larger sizes possible. • 1 x SATA HDD: 2.5" SATA HDD up to 120GB, 5400RPM, 8MB Cache
Processor / CPU and FSB Speed Options:	1 x Intel® Celeron® M 1.5GHz, 400MHz FSB, 1MB L2 Cache 90nm, Socket 479 (Upgradeable to 1.70GHz)
Memory Options:	From 256 to 1GB option (DDR2, 533Mhz, Non-ECC, 1 slot on-board)
System+Graphics Chipset / Connectors:	Intel® 915GM, ICH6M / Intel® Graphics Media Accelerator (GMA) 900 - Up to 2048 x 1536, 32-Bit @ 85Hz 1 x HDDB15F
Max Resolution / Max Hz:	2048 x 1536 @ 86Hz
BIOS:	Award Flash BIOS
PCI Slots / PCIe Slots:	2 x PCI2.2 Slots 32-bit, 3V and 5V Interface, Half Length Profile
Media Drive(s):	None
LPT / Parallel Port:	None
Serial Port(s):	2 x RS-232, DB9M
Ethernet Port(s):	1 x 10/100 Mbps, Intel 82562ET ICH6M Integrated, RJ-45 1 x 10/100/1000 Mbps Marvell 88E8053 PCI Express Gigabit Lan , RJ-45
USB Port(s):	4 x USB2.0 - 480Mbps
Keyboard and Mouse Ports:	1 x PS/2 Keyboard 1 x PS/2 Mouse
Audio Ports:	AC-97 ALC655, 6 channel with LINE IN, LINE OUT, MIC IN + SPDIF* 3 x 3.5mm jacks + 1 x TOSLINK* *Note: SPDIF was not included in the EN60945 4th (IEC945 4th) testing.
Buzzer:	None
Power Manager and Monitoring:	APM V1.2 and ACPI On-board W83627HF, monitors system temperature and voltage status
Power Specifications and Consumption:	• 115VAC/60Hz or 230VAC/50Hz, 200W, 1 x Std IEC inlet Power Consumption - Operating: TBD (MAX)
Digital I/O Connectors:	1 x IEEE1394 Firewire 400Mbps port - TI TSB43LV22* *Note: IEEE1394 Firewire was not included in the EN60945 4th (IEC945 4th) testing.

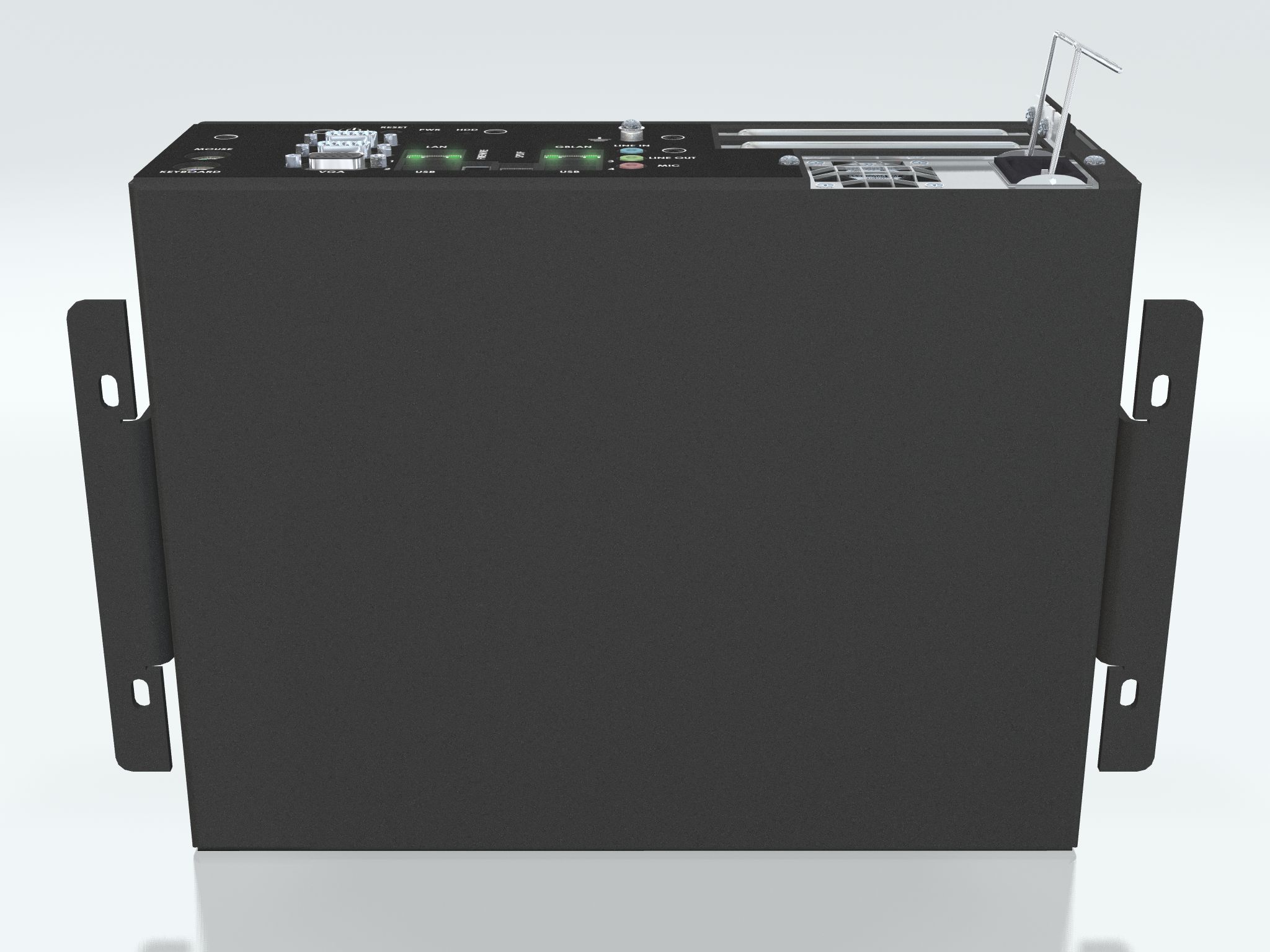

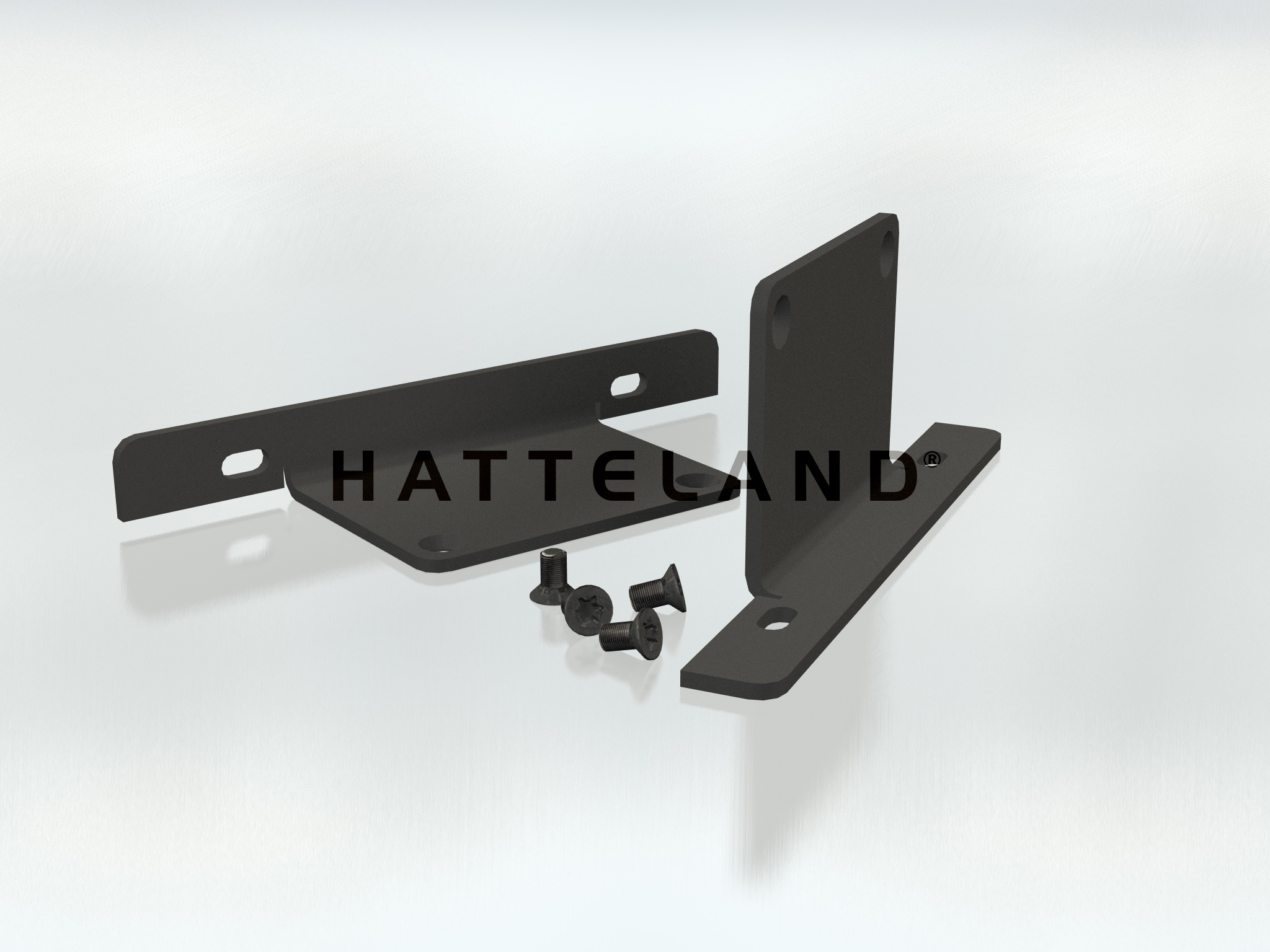

Key Features:	Aluminium Cooling Chassis w/no apertures, AC, Compact Form Factor, Filtered air inlet and excess pressure, Includes mounting brackets
Product Dimensions and Weight:	W:290.00 [11.42"] x H:88.90 [3.50"] x D:223.00 [8.78"] mm [inch] 4.0kg / 8.8lbs (approx)
Product Carton Size and Weight:	N/A
User Controls / Activity:	Power Button, Reset Button, Power LED, Activity LED HDD trays
Factory Options:	• 1 x uDOC Int. Module: uDOC (USB 2.0 Flash Disc) up to 4GB and future support for larger sizes possible. • 1 x SATA HDD: 2.5" SATA HDD up to 120GB, 5400RPM, 8MB Cache • Memory: From 256MB to 1GB • Single or Dual DVI-D Outputs (2 x DVI-D24F). (Not type approved)
Accessories:	None
Capabilities / Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-30.0°C / -22.0°F to +60.0°C / +140.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 125.00 [49.21"] - Steering: 90.00 [35.43"] cm [inch]
Type Approval, Testing and Certificates:	EN60945 4th (IEC945 4th), IACS E10, DNV - Det Norske Veritas, BV - Bureau Veritas, ABS - American Bureau of Shipping, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, LRS - Lloyd's Register of Shipping

Specifications last updated: July 1, 2025 @ 09:54
