Computer - Silent - Ultra Compact

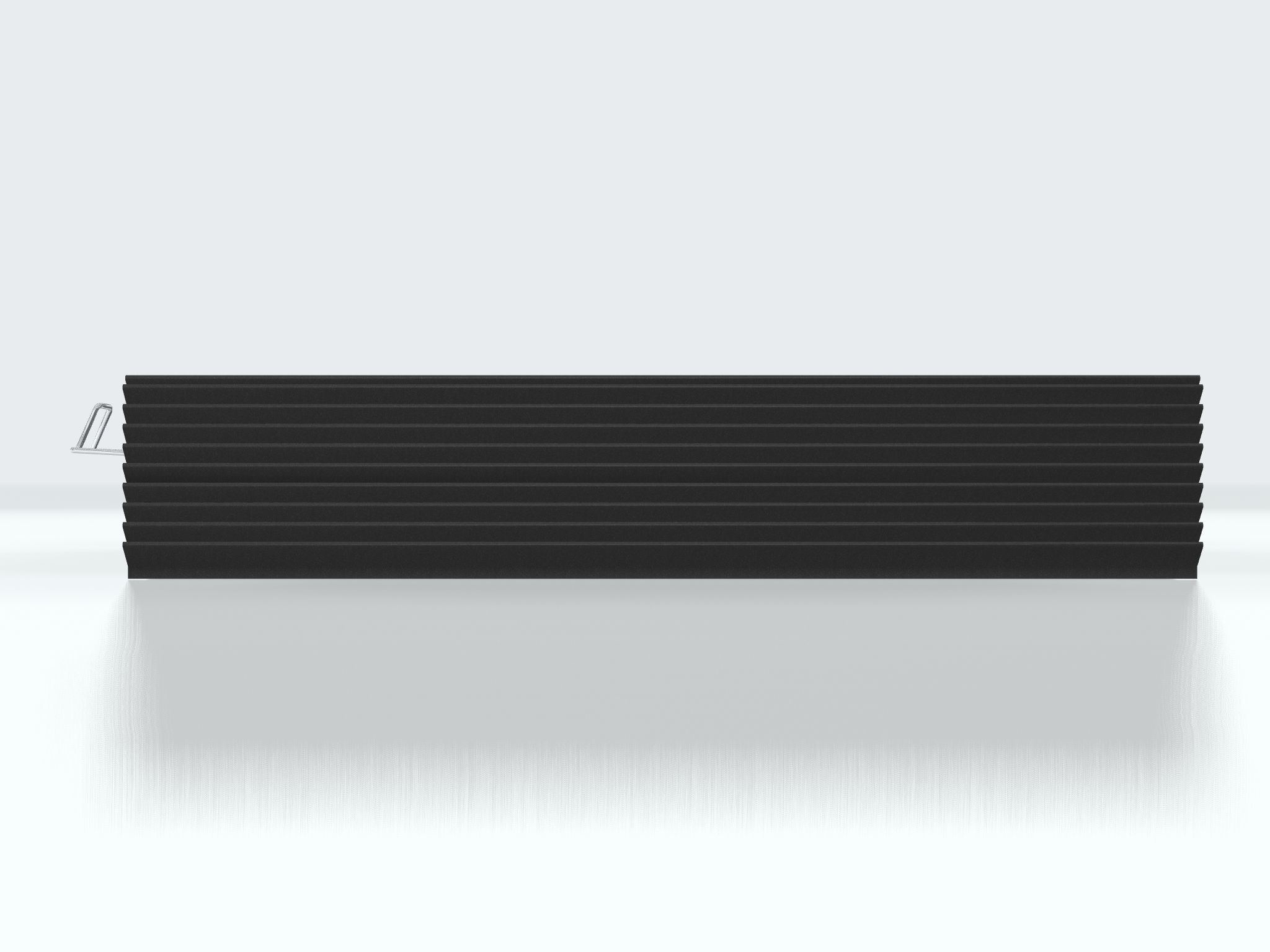

HT B07CD

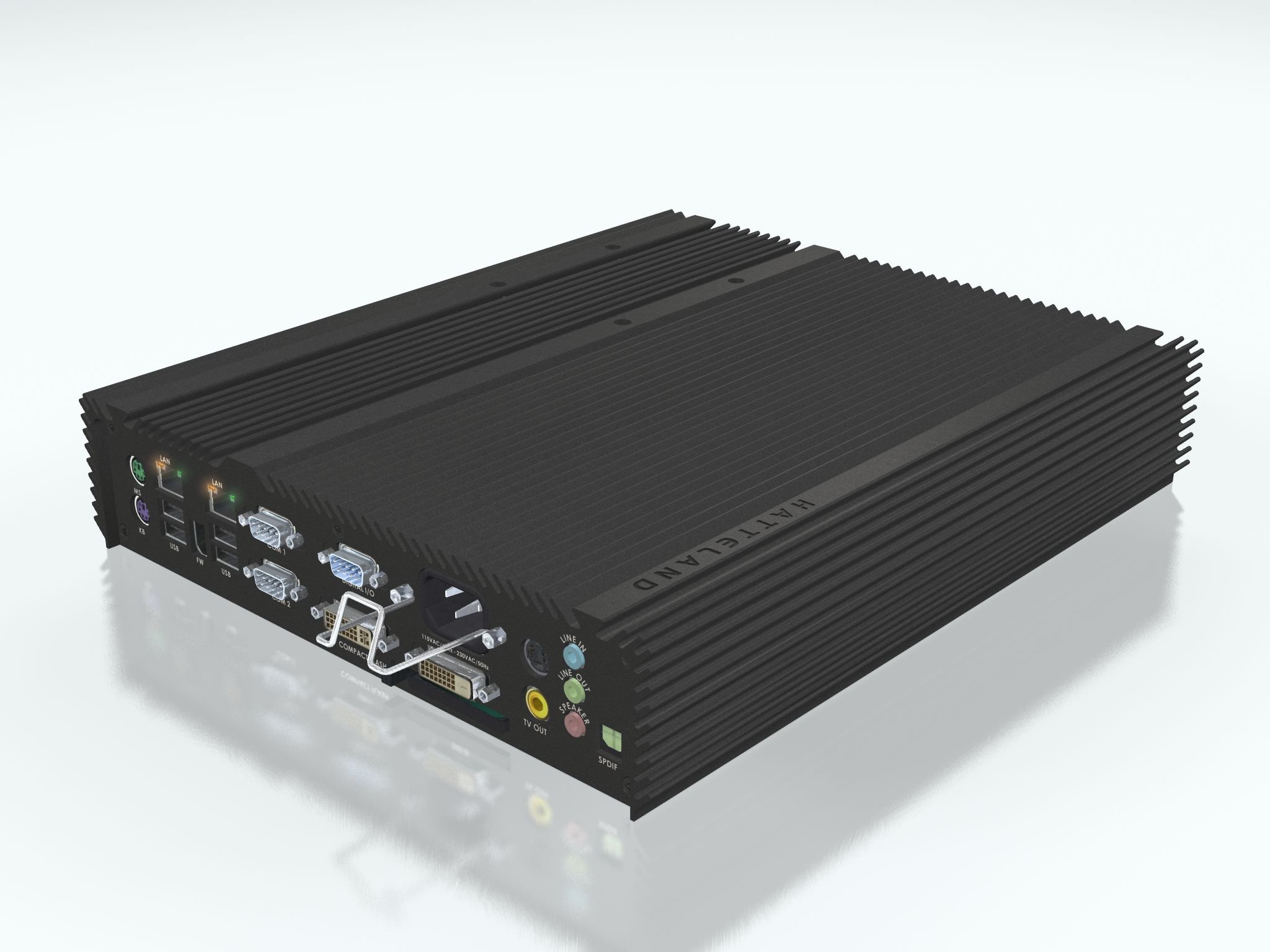

The HT B07CD STD is a ultra compact industrial computer with extreme performance and most computer functions built into a form factor that can be placed virtually anywhere. The unit is fanless and have no moving parts which will prolong lifetime and reduce service costs.

Silent

Send Request

Description

Specifications

Typenumber (Long):	HT B07CD STD-x1
Installed Operating System Options:	None, please specify when ordering
Storage Options:	2 x uDOC Flash Disk Option (internal). Up to 4GB available and future support for larger sizes possible. 1 x 2.5" Hard Disk (Flash SSD) Option (32GB each). RAID 0 & 1 - When available.
Processor / CPU and FSB Speed Options:	1 x Intel® Core™ Duo processor (Dual Core 1.66GHz, 667MHz FSB, 2MB L2 Cache)
Memory Options:	Upgradeable to 4GB RAM DDR2 667MHz option - (2 DIMM sockets on-board)

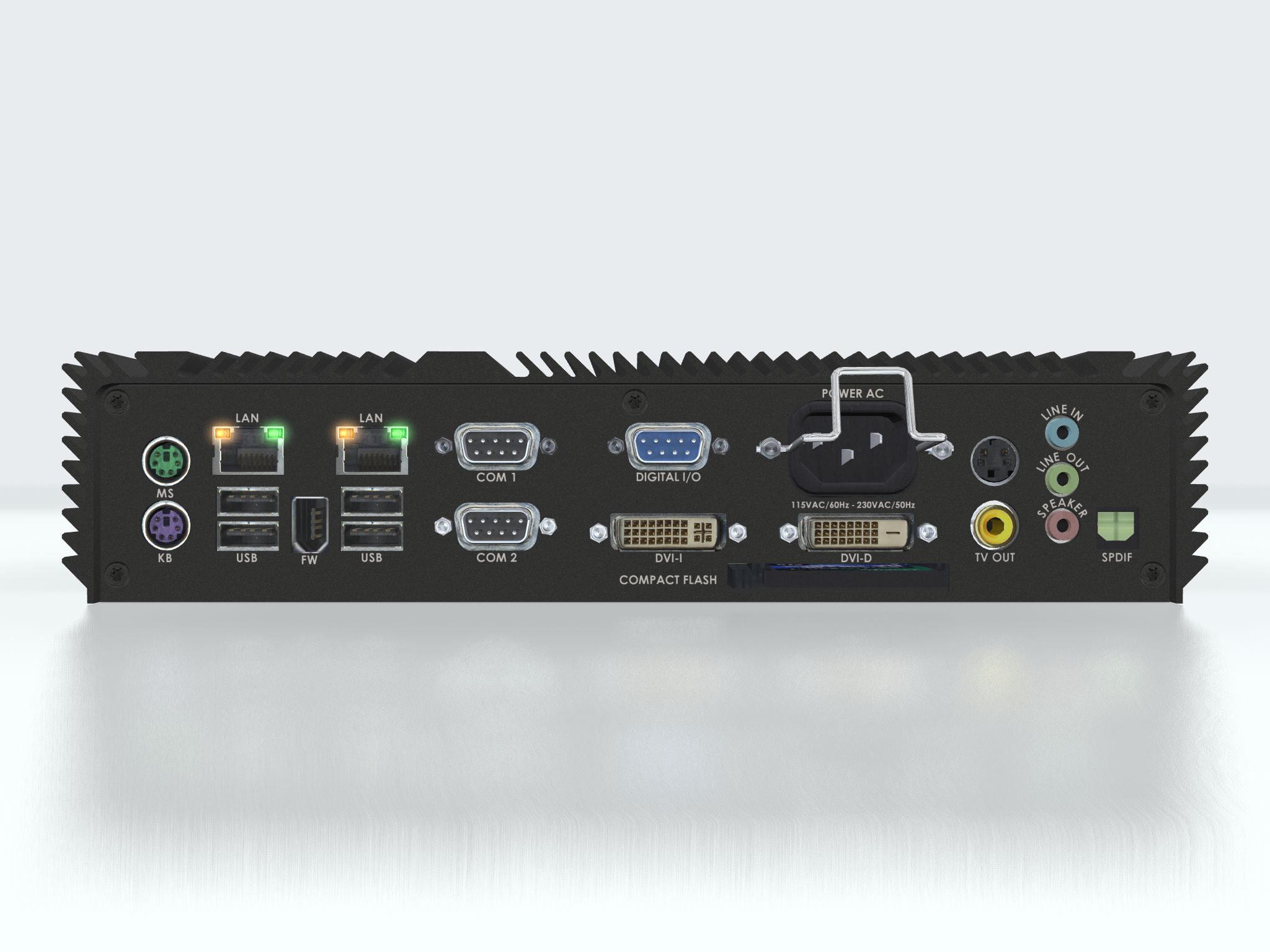

System+Graphics Chipset / Connectors:	Intel® 945GME with ICH7M / On-board Intel® GMA950 Graphics Chipset 1 x DVI-I & 1 x DVI-D 1 x Composite (RCA) + 1 x S-VIDEO (SVHS)
Max Resolution / Max Hz:	N/A
BIOS:	Award BIOS
PCI Slots / PCIe Slots:	1 x MiniPCI-Express socket
Media Drive(s):	1 x CompactFlash Reader Type I/II with eject button
LPT / Parallel Port:	None
Serial Port(s):	1 x RS-232 (Opto isolated) + 1 x RS-232/422/485 - 2 x DB9M
Ethernet Port(s):	2 x 10/100Mbps Realtek RTL8100C-LF with Wake-On-Lan - RJ-45
USB Port(s):	4 x USB Type A ports - Supports 2.0&1.1
Keyboard and Mouse Ports:	1 x PS/2 Keyboard 1 x PS/2 Mouse
Audio Ports:	AC-97, 6-channel, LINE IN, LINE OUT, AMPLIFIED LINE OUT (8-ohm 2W) 3.5mm - 3 x JACKS & 1 x SPDIF
Buzzer:	None
Power Manager and Monitoring:	ACPI/APM, WatchDog Timer 256 segments, Temperature Monitoring
Power Specifications and Consumption:	115VAC/60Hz or 230VAC/50Hz - STD IEC Operating: 35W (approx)
Digital I/O Connectors:	3 x Digital IO Channels 1 x IEEE1394 Firewire 400Mbps - TI TSB43LV22
Key Features:	HDD-Free Solution possible with SSD, Fanless and no moving parts inside, Aluminium Chassis w/no apertures, Compact Form Factor, Includes Mounting Plate (HT 00244 OPT-A1) kit
Product Dimensions and Weight:	W:268.00 [10.55"] x H:59.00 [2.32"] x D:310.00 [12.20"] mm [inch] Approx 4kg
Product Carton Size and Weight:	L:550.00 [21.65"] x W:230.00 [9.06"] x H:480.00 [18.90"] mm [inch] 13.0kg / 28.6lbs
User Controls / Activity:	Power On/Off Push Button, Reset Button, Power LED, SSD LED
Factory Options:	Memory (RAM) Storage Options and Operating System (OS)
Accessories:	• HT 00244 OPT-A1 = Mounting Bracket, RAL 9011 • HT 00228 OPT-A1 = Mounting Bracket with cable relief, RAL 9011 • HT 00215 OPT-A1 = USB memory stick with recovery image
Capabilities / Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 60.00 [23.62"] - Steering: 30.00 [11.81"] cm [inch]
Type Approval, Testing and Certificates:	EN60945 4th (IEC945 4th), ClassNK - Nippon Kaiji Kyokai, DNV - Det Norske Veritas, GL - Germanischer Lloyd, IACS E10, BV - Bureau Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping

Specifications last updated: June 30, 2025 @ 12:45
