HT B08CD
Computer - Silent - Compact
HT B08CD

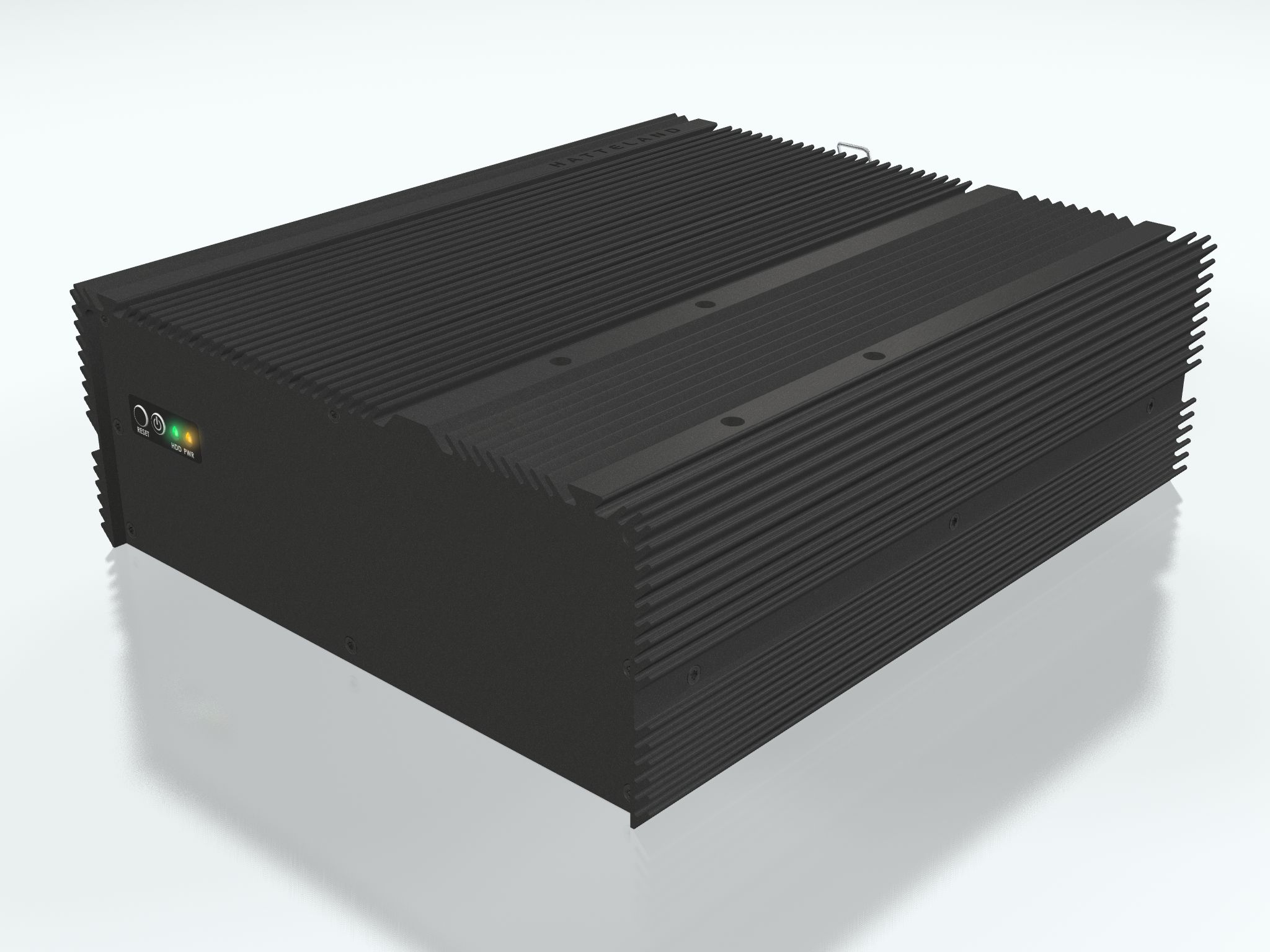

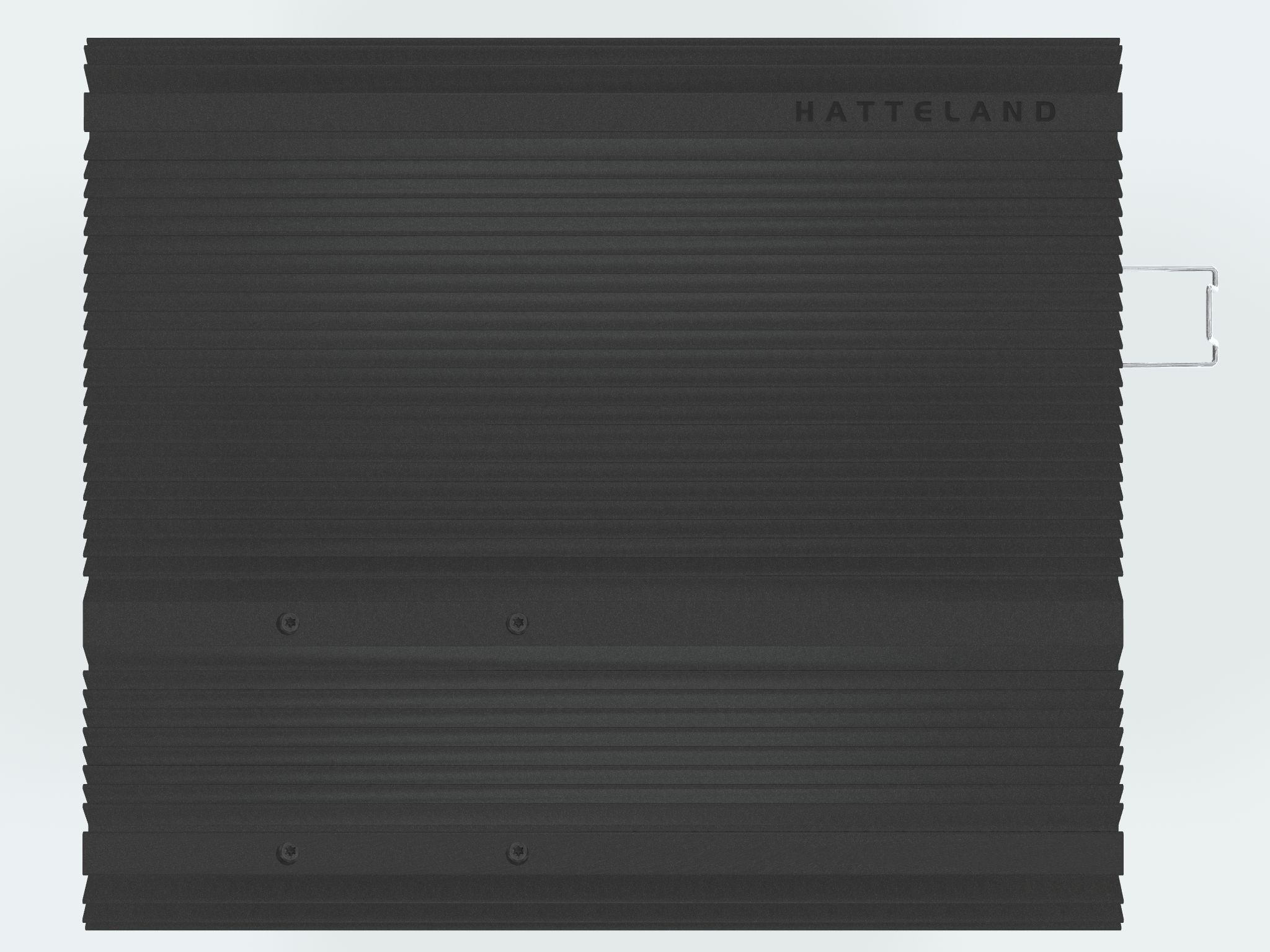

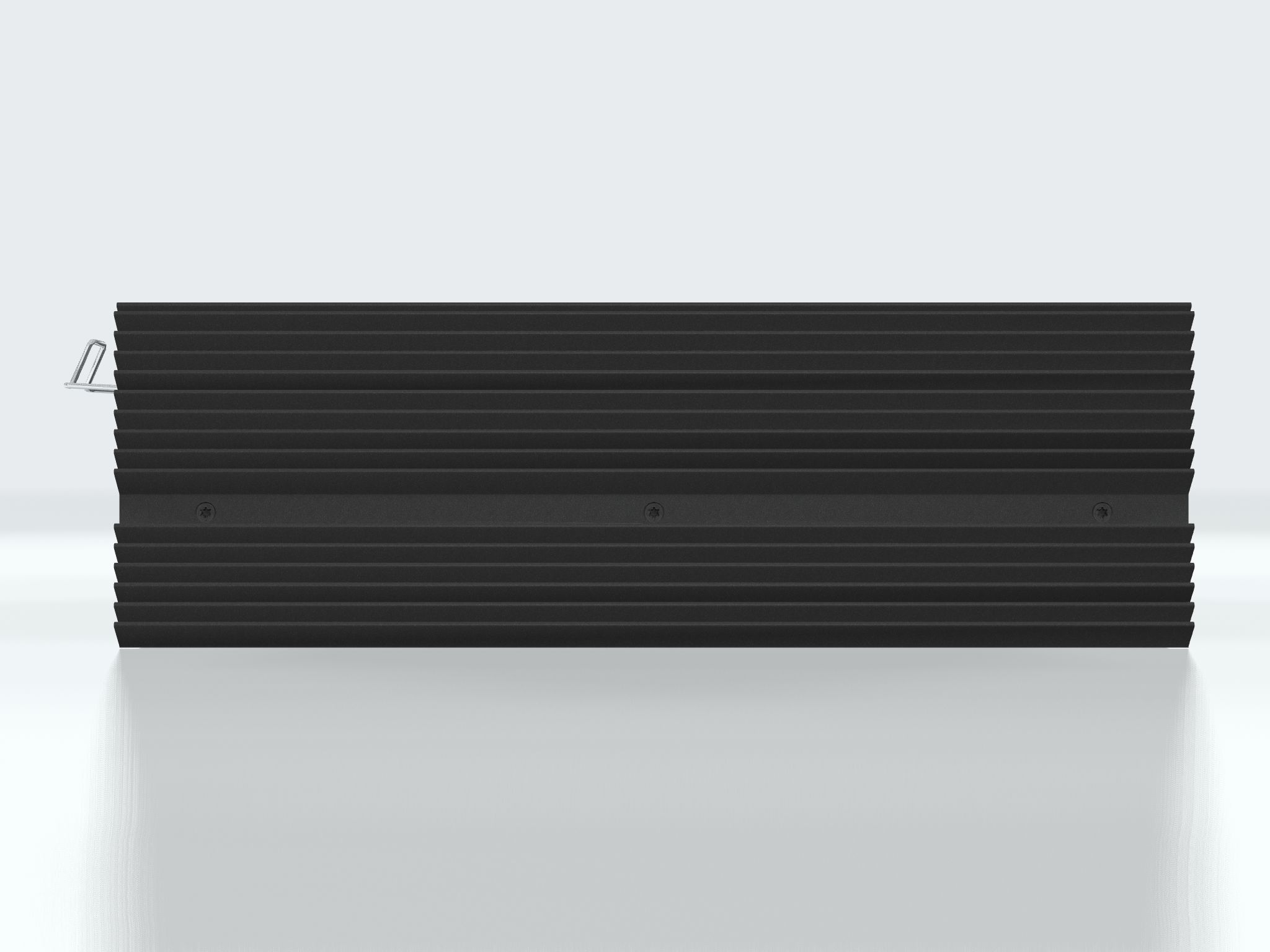

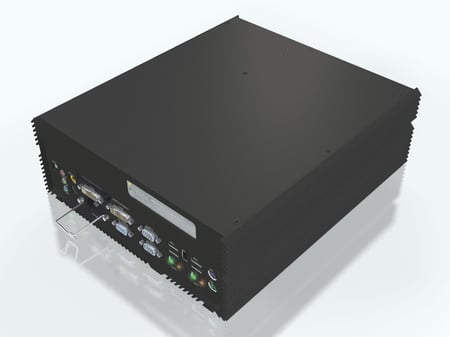

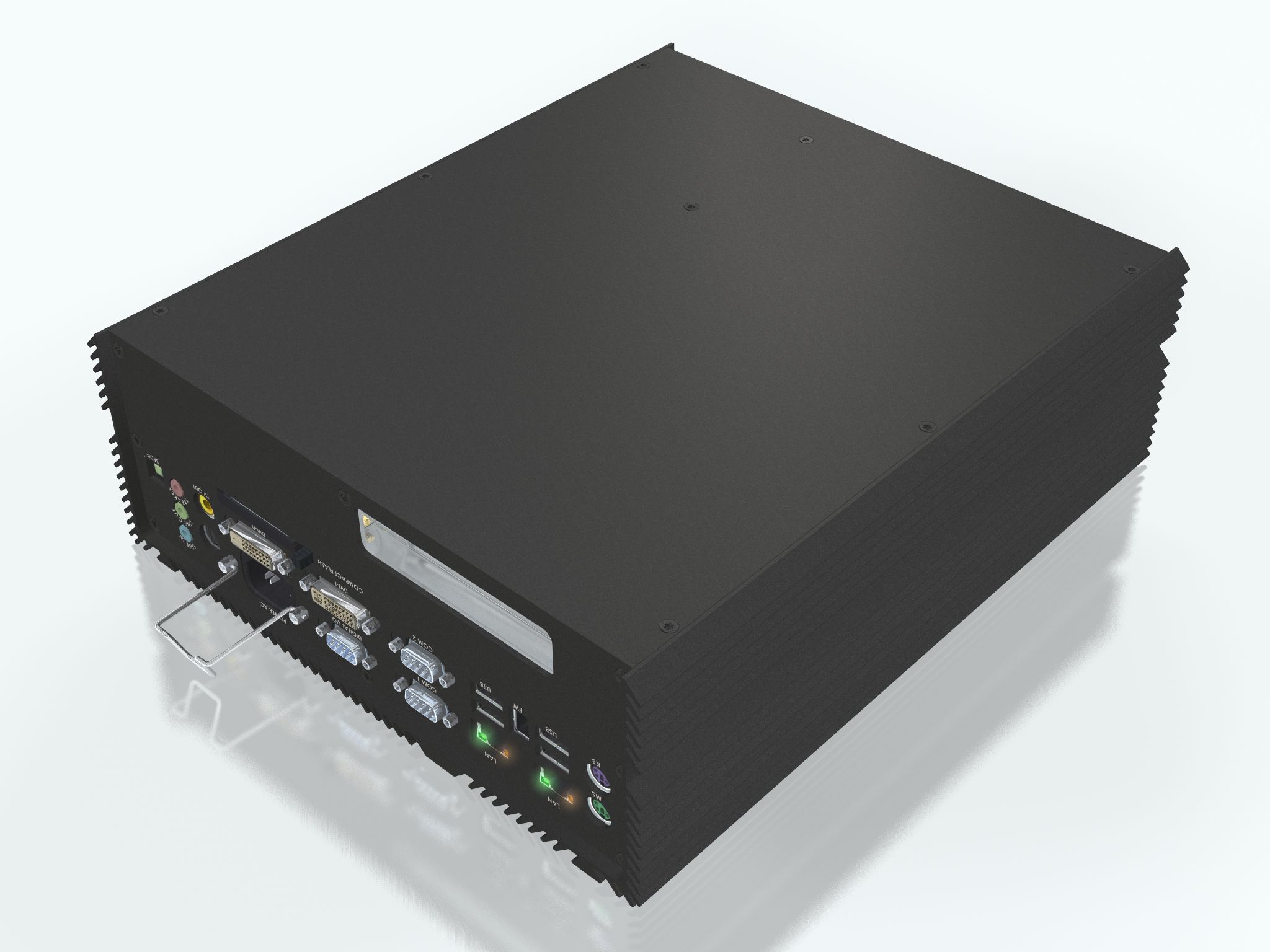

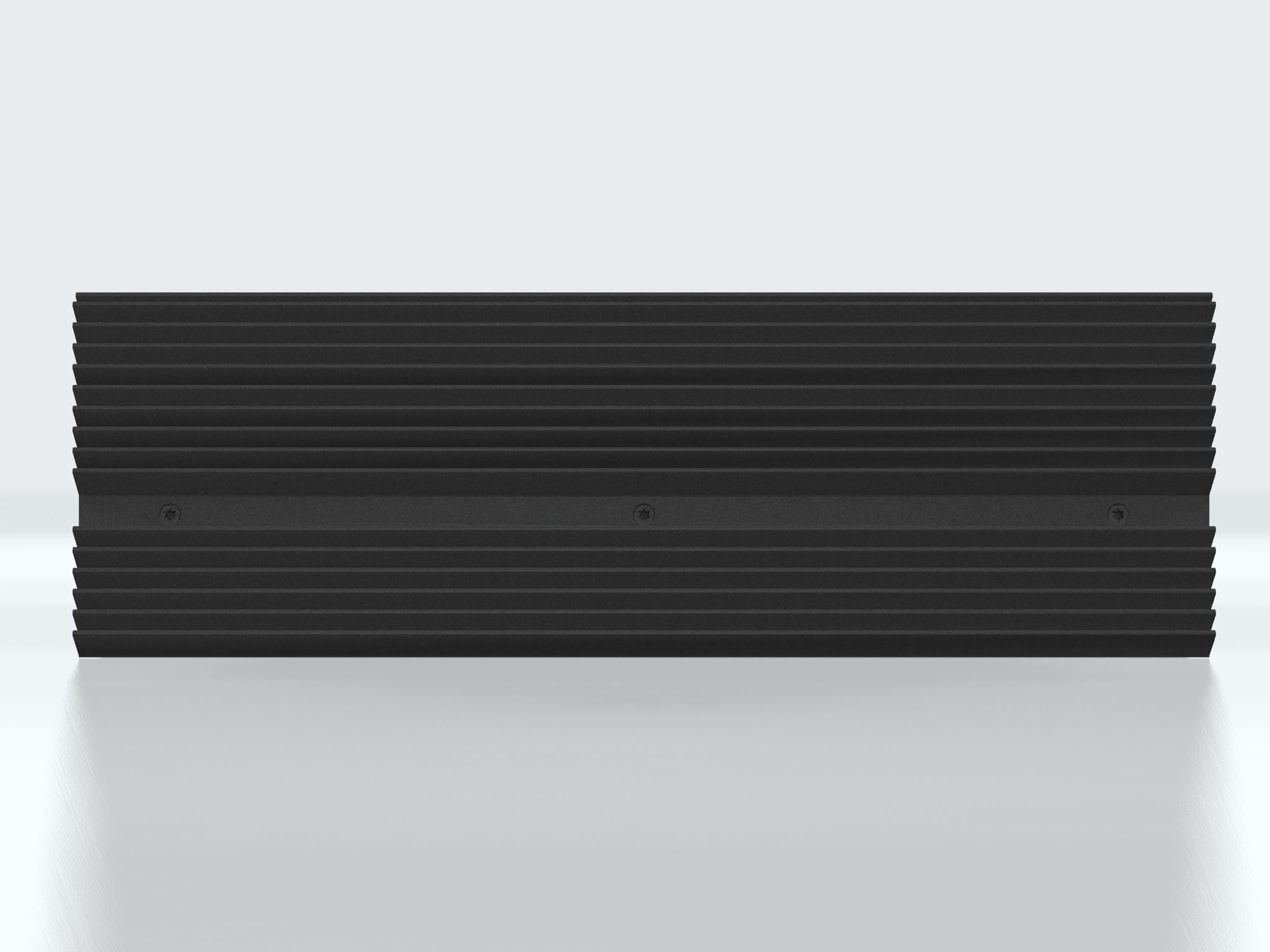

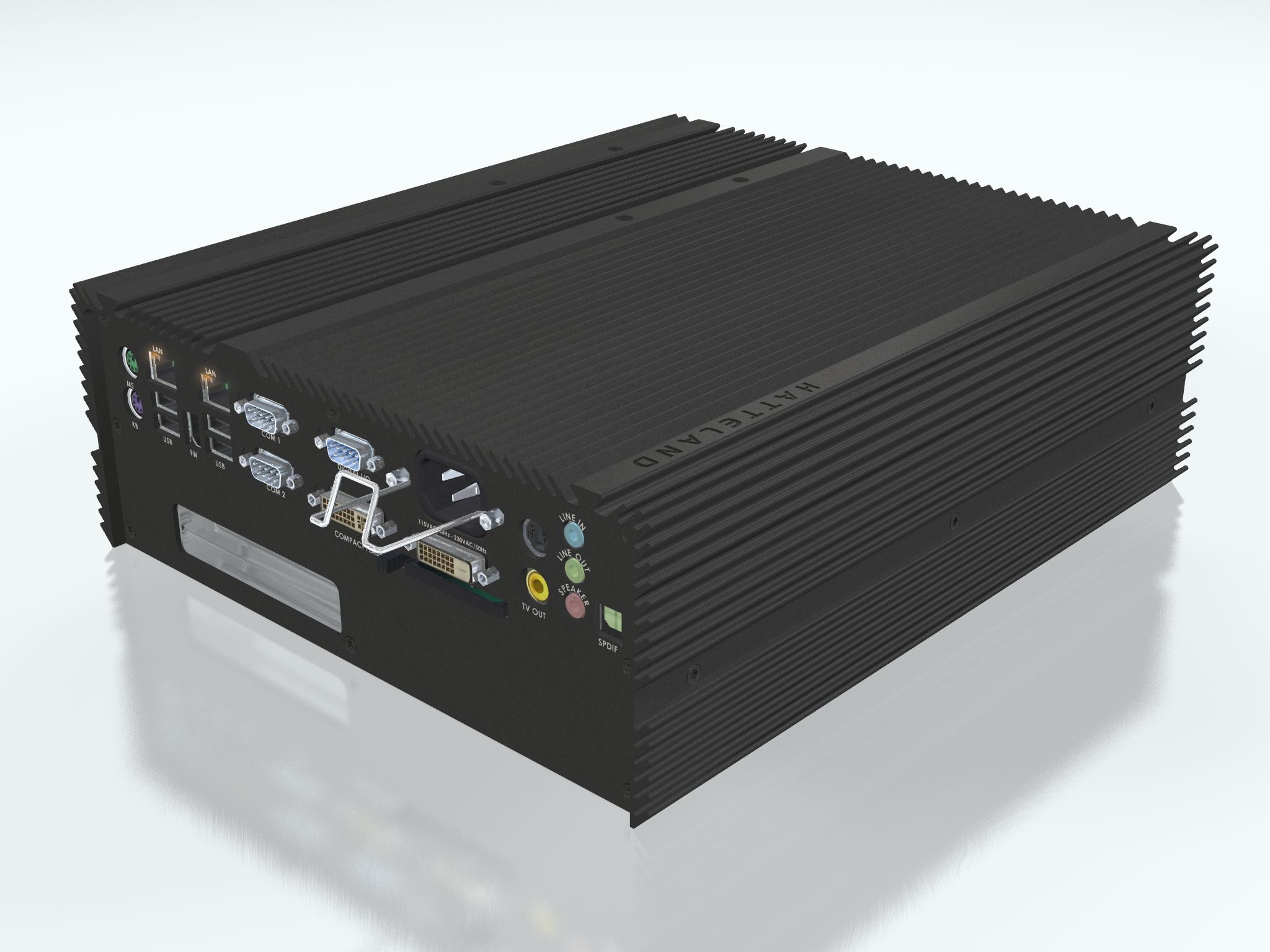

The HT B08CD STD is a compact industrial computer with extreme performance and most computer functions built into a form factor that can be placed virtually anywhere. The unit is fanless and have no moving parts which will prolong lifetime and reduce service costs.
Silent

Computer - Compact
The casing is without ventilation apertures and it function as a cooler for the processor and mainboard. The unit supports S-ATA HDD, SSD and uDOC storage devices to ensure fast data transfers to minimize boot time. The unit also offers a PCI slot.Typenumber (Long): |
HT B08CD STD-x1 |
Installed Operating System Options: |
None, please specify when ordering |
Storage Options: |
2 x uDOC Flash Disk Option (internal). Up to 4GB available and future support for larger sizes possible. 2 x 2.5" Hard Disk (Flash SSD) Option (32GB each). RAID 0 & 1 - When available. 2 x 2.5" Hard Disk HDD option, 5400 RPM, S-ATA, 80GB or 120GB. |
Processor / CPU and FSB Speed Options: |
1 x Intel® Core™ Duo processor (Dual Core 1.66GHz, 667MHz FSB, 2MB L2 Cache) |
Memory Options: |
Upgradeable to 4GB RAM DDR2 667MHz option - (2 DIMM sockets on-board) |

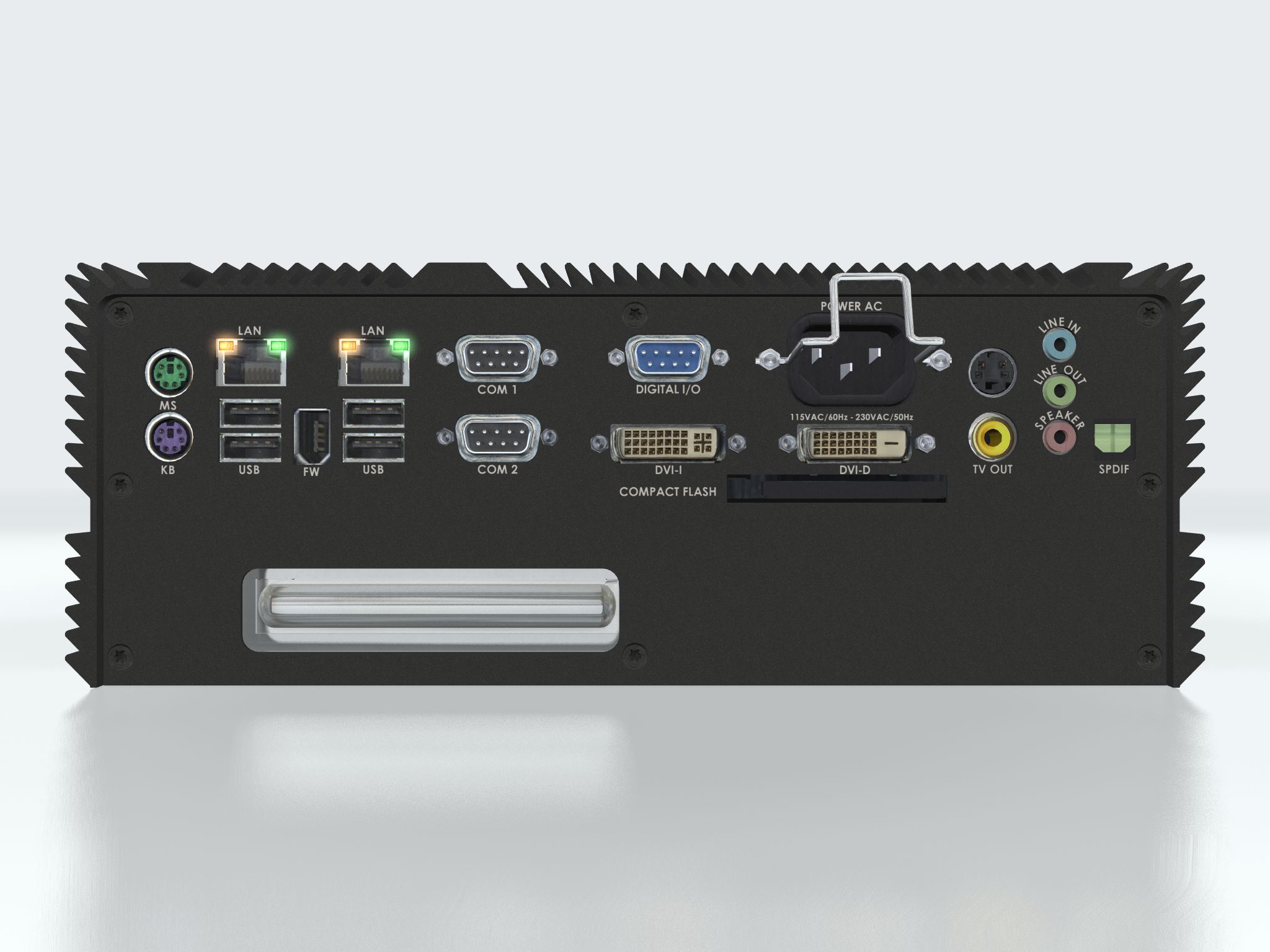

System+Graphics Chipset / Connectors: |
Intel® 945GME with ICH7M / On-board Intel® GMA950 Graphics Chipset 1 x DVI-I & 1 x DVI-D 1 x Composite (RCA) + 1 x S-VIDEO (SVHS) |
Max Resolution / Max Hz: |
N/A |
BIOS: |
Award BIOS |

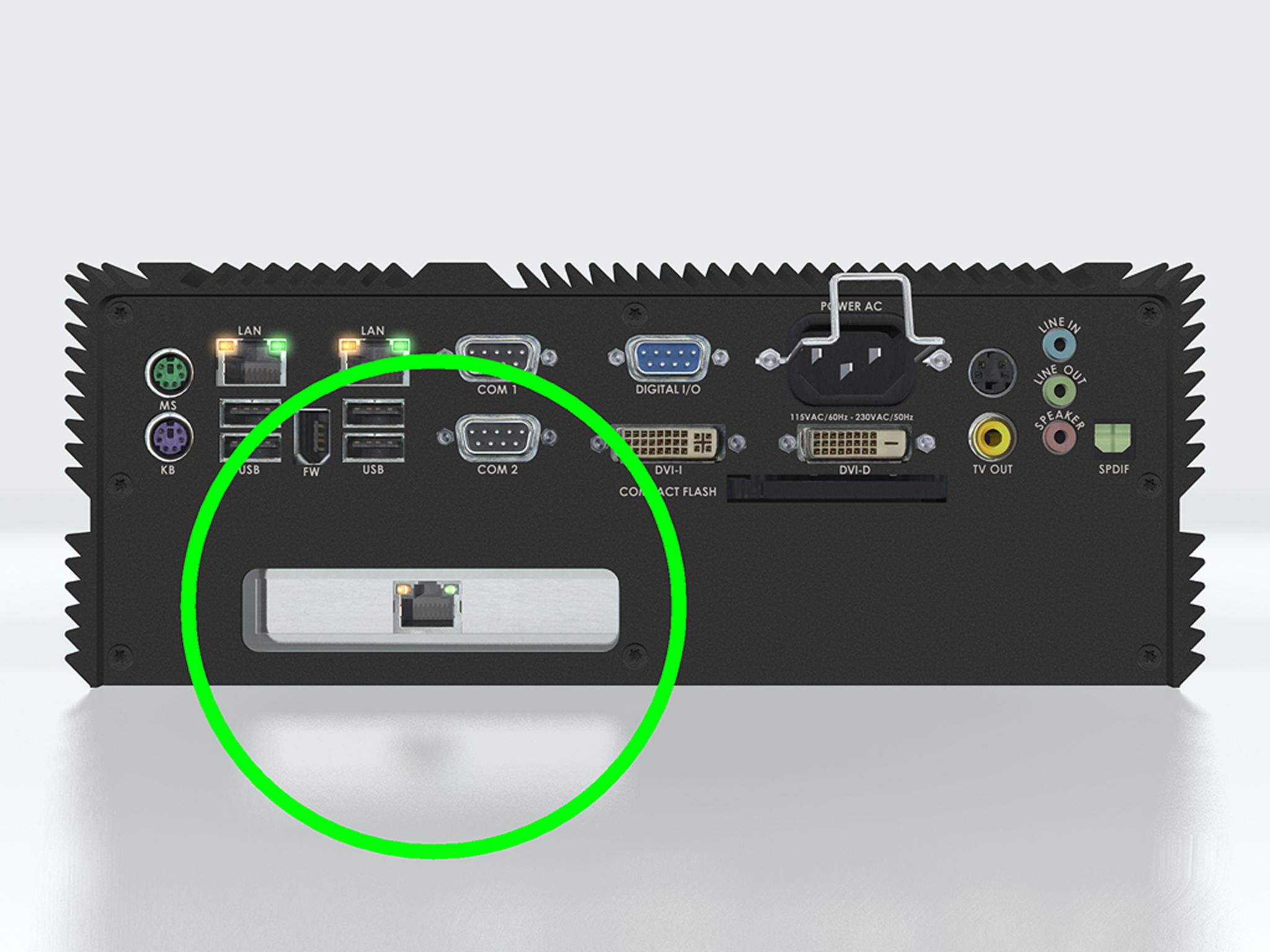

PCI Slots / PCIe Slots: |
1 x PCI3.0 Slot 32-bit, 3V and 5V Interface, Half Length Profile 1 x MiniPCI-Express socket |
Media Drive(s): |
1 x CompactFlash Reader Type I/II with eject button |
LPT / Parallel Port: |
None |
Serial Port(s): |
1 x RS-232 (Opto isolated) + 1 x RS-232/422/485 - 2 x DB9M |
Ethernet Port(s): |
2 x 10/100Mbps Realtek RTL8100C-LF with Wake-On-Lan - RJ-45 |
USB Port(s): |
4 x USB Type A ports - Supports 2.0&1.1 |
Keyboard and Mouse Ports: |
1 x PS/2 Keyboard 1 x PS/2 Mouse |
Audio Ports: |
AC-97, 6-channel, LINE IN, LINE OUT, AMPLIFIED LINE OUT (8-ohm 2W) 3.5mm - 3 x JACKS & 1 x SPDIF |
Buzzer: |
None |
Power Manager and Monitoring: |
ACPI/APM, WatchDog Timer 256 segments, Temperature Monitoring |
Power Specifications and Consumption: |
115VAC/60Hz or 230VAC/50Hz - STD IEC Operating: TBD |
Digital I/O Connectors: |
3 x Digital IO Channels 1 x IEEE1394 Firewire 400Mbps - TI TSB43LV22 |
Key Features: |
HDD-Free Solution possible with SSD, Fanless and no moving parts inside, Aluminium Chassis w/no apertures, Compact Form Factor, Includes Mounting Plate (HT 00244 OPT-A1) kit |
Product Dimensions and Weight: |
W:268.00 [10.55"] x H:100.00 [3.94"] x D:310.00 [12.20"] mm [inch] Approx 5kg / 11lbs |
Product Carton Size and Weight: |
L:670.00 [26.38"] x W:550.00 [21.65"] x H:200.00 [7.87"] mm [inch] 17.0kg / 37.4lbs |
User Controls / Activity: |
Power On/Off Push Button, Reset Button, Power LED, SSD LED |
Factory Options: |
Memory (RAM) Storage Options and Operating System (OS) |
Accessories: |
• HT 00244 OPT-A1 = Mounting Bracket, RAL 9011 • HT 00228 OPT-A1 = Mounting Bracket with cable relief, RAL 9011 • HT 00215 OPT-A1 = USB memory stick with recovery image |
Capabilities / Prepared for: |
N/A |
Operating Temperature: |
-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95% |
Storage Temperature: |
-20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95% |
Compass Safe Distance: |
Standard: TBD - Steering: TBD cm [inch] |
Type Approval, Testing and Certificates: |
EN60945 4th (IEC945 4th), ClassNK - Nippon Kaiji Kyokai, DNV - Det Norske Veritas, GL - Germanischer Lloyd, IACS E10, BV - Bureau Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping |
Specifications last updated: July 9, 2025 @ 12:38 |
