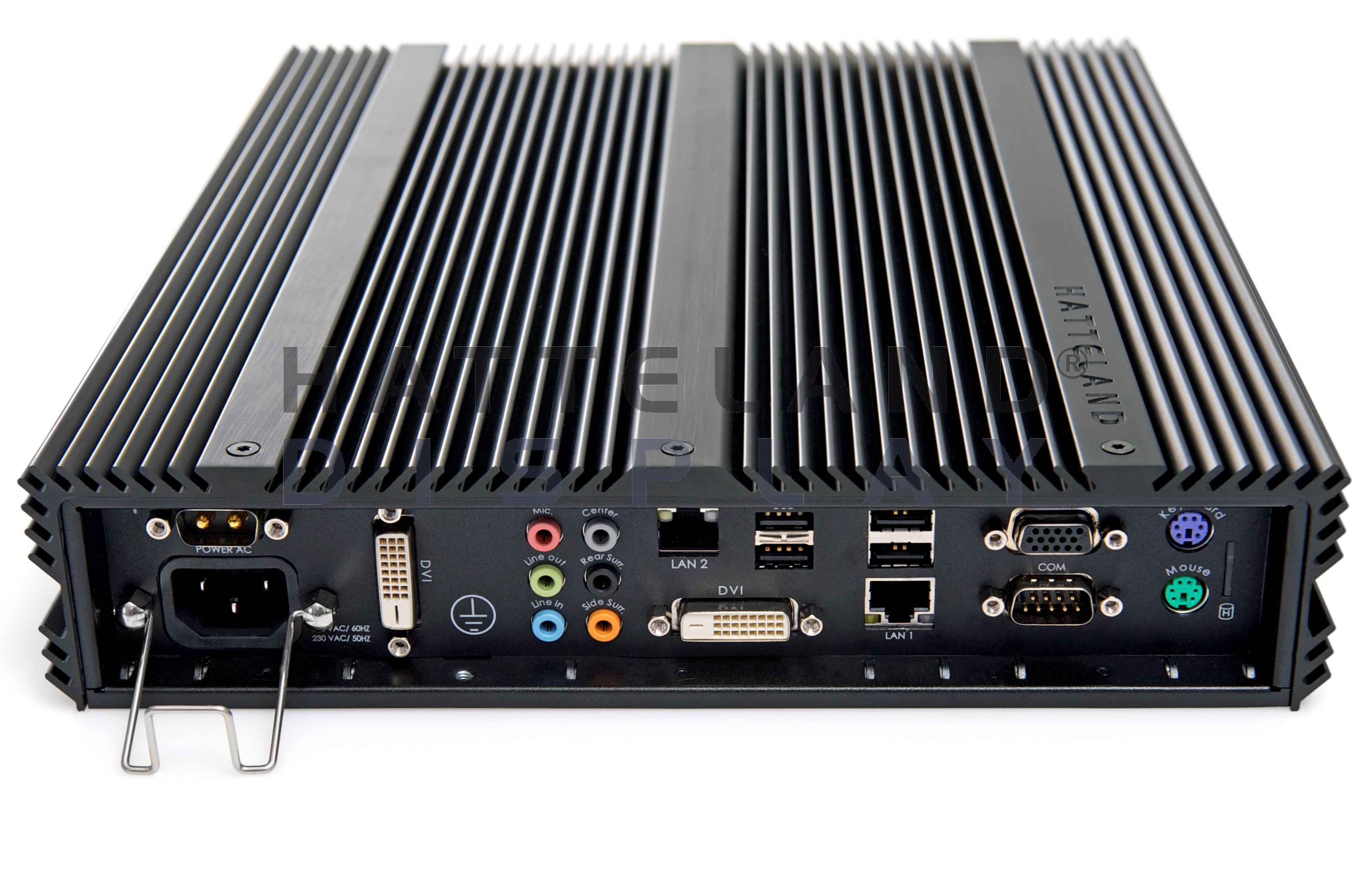

Computer - Fanless - Ultra Compact

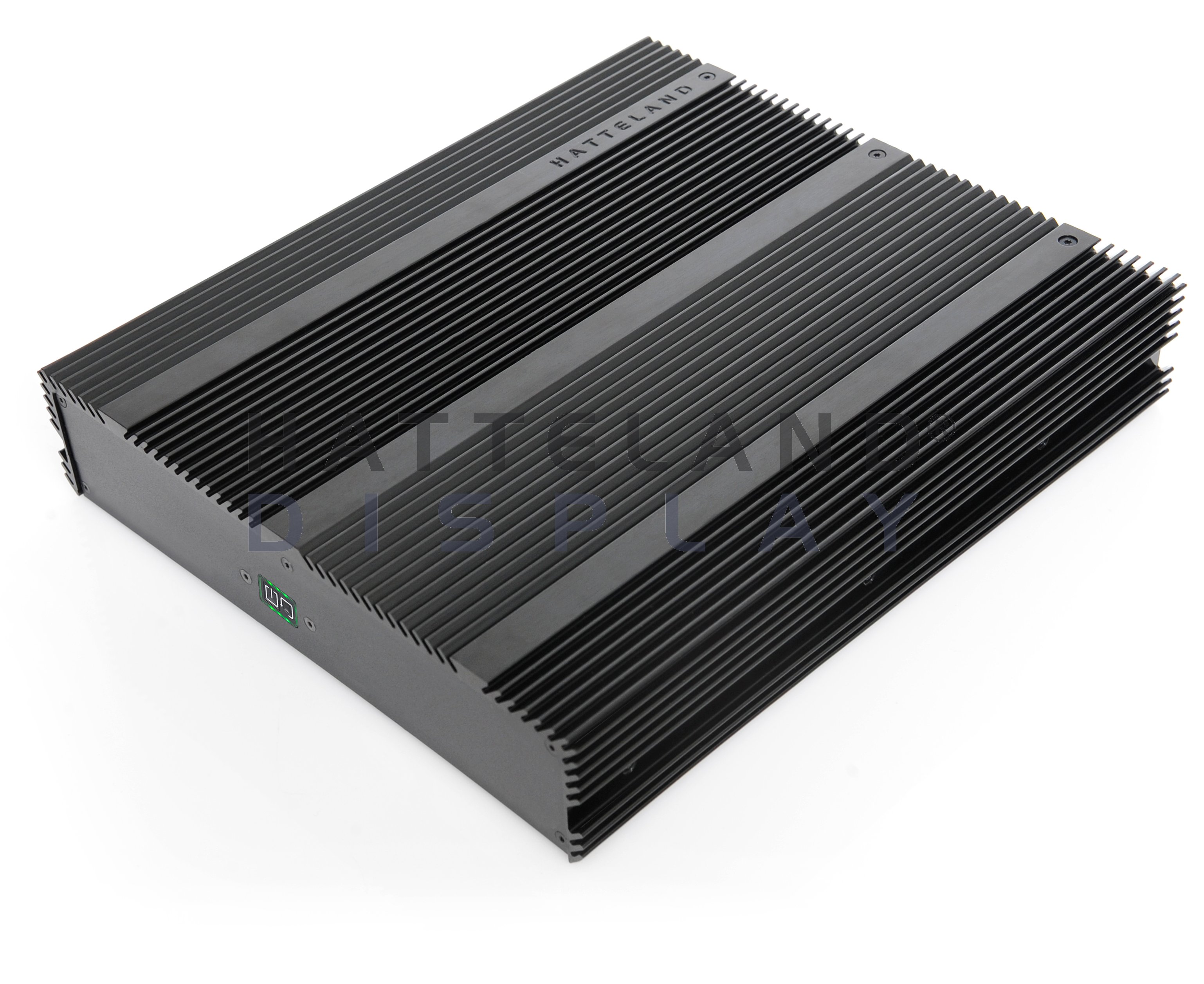

The HT B17 is fanless with no moving parts inside which will prolong lifetime and reduce service costs.
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...
7 Aug 2023
Changes product marking - all products
23 Jan 2014
Standard SSD Storage Devices (MLC type)
8 Nov 2011
New Solid State Disk (SSD) - qualified in our products
2 Sep 2011
SSD TS64GSSD25S-M - HW6070-H2
10 Dec 2010
Printed User Manual and Driver CD/DVD
23 Oct 2016
UPDATE EOL: Microsoft® Windows® XP Professional for Emb...
25 Apr 2016
HT B17 and HT B18 - Compact Fanless Computers
11 Feb 2016
Microsoft® Windows® XP Professional for Embedded System...
Computer - Fanless - Ultra Compact
In addition it features aluminium chassis w/no apertures and comes standard with Multi-power (AC and DC power input built in) ensuring that they are compatible with all power systems on all vessels. It will automatically switch to whatever power is connected, making it highly flexible for shipbuilders and system integrators alike.
The HT B17 is fanless with no moving parts inside which will prolong lifetime and reduce service costs.
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...
7 Aug 2023
Changes product marking - all products
23 Jan 2014
Standard SSD Storage Devices (MLC type)
8 Nov 2011
New Solid State Disk (SSD) - qualified in our products
2 Sep 2011
SSD TS64GSSD25S-M - HW6070-H2
10 Dec 2010
Printed User Manual and Driver CD/DVD
23 Oct 2016
UPDATE EOL: Microsoft® Windows® XP Professional for Emb...
25 Apr 2016
HT B17 and HT B18 - Compact Fanless Computers
11 Feb 2016
Microsoft® Windows® XP Professional for Embedded System...
HT B17
Computer - Fanless - Ultra Compact
HT B17

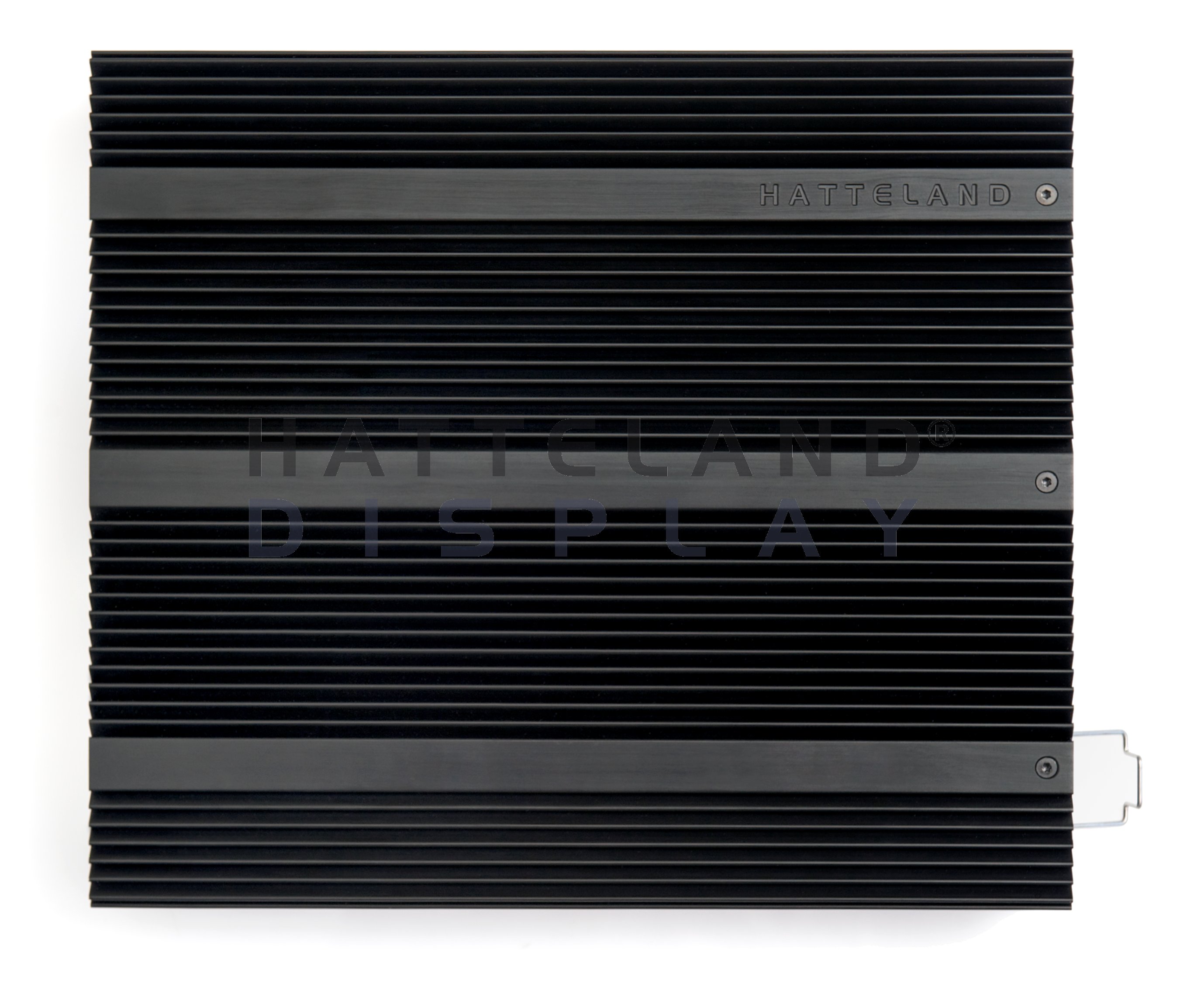

All HT B17 models features Heat Pipe Cooling Technology, Interchangeable CPU, HDD-Free Solution with Solid State Disk (SSD) which increases application performance and ensures fast data transfers to minimize boot time.
Fanless

Computer - Ultra Compact
In addition it features aluminium chassis w/no apertures and comes standard with Multi-power (AC and DC power input built in) ensuring that they are compatible with all power systems on all vessels. It will automatically switch to whatever power is connected, making it highly flexible for shipbuilders and system integrators alike.The HT B17 is fanless with no moving parts inside which will prolong lifetime and reduce service costs.
Typenumber (Long): |
HT B17 STx-Axxx |
Installed Operating System Options: |
None or Microsoft® Windows® Embedded Enterprise (32bit: XP Pro / Win Server 2003 / Win 7 Pro / Win Server 2008) |
Storage Options: |
1 x internal SSD SATA 2.5" 40GB, 80GB, 120GB or 300GB |
Processor / CPU and FSB Speed Options: |
1 x Intel® Core™2 Duo P8400, 2.26GHz, 1066MHz FSB, 3MB L2 |
Memory Options: |
2 x 1GB Dual Channel DDR2 800/667MHz, SO-DIMM 200-pin |

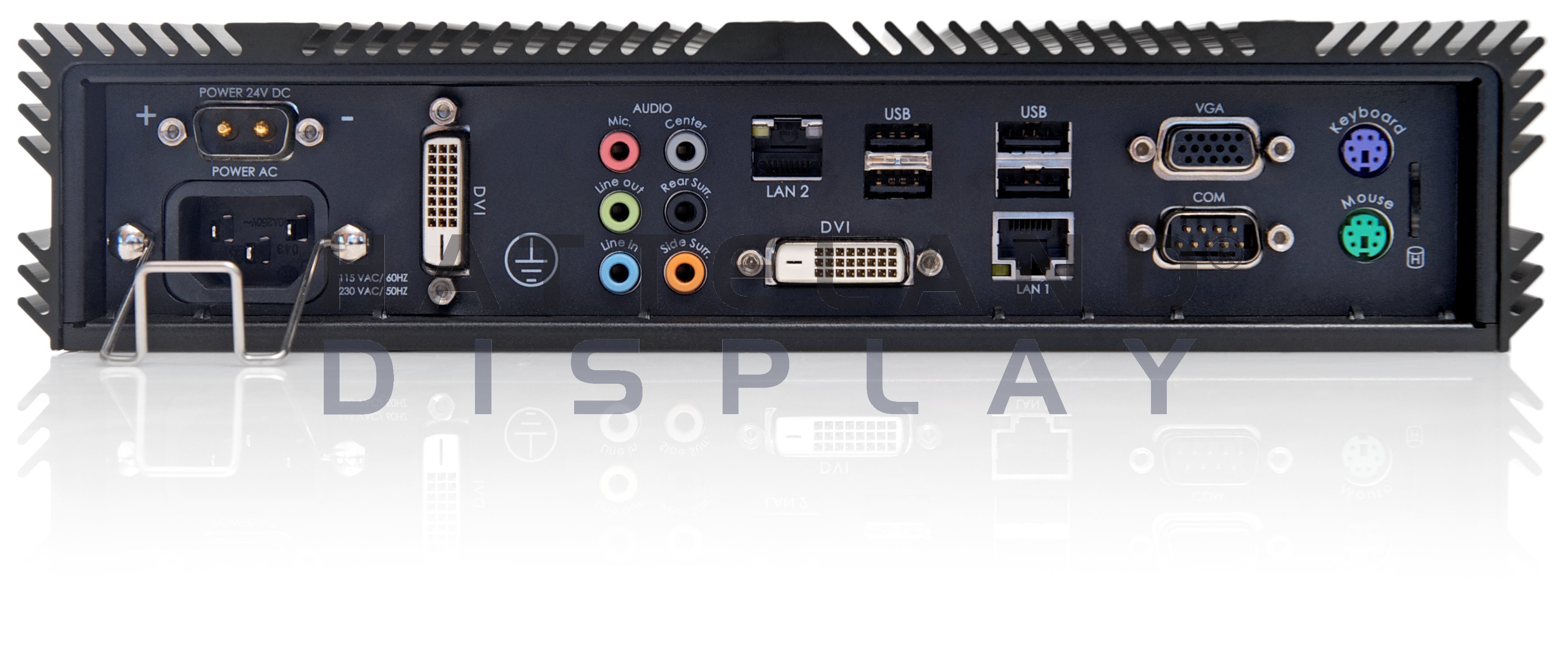

System+Graphics Chipset / Connectors: |
Intel® GM45, ICH9 / Intel® GMA 4500MHD with 2 x DVI-D 24P (female) or 1 x HD DB15F (female) + 1 x DVI-D 24P |
Max Resolution / Max Hz: |
Max 1920 x 1200 / 60Hz |
BIOS: |
AWARD BIOS |
PCI Slots / PCIe Slots: |
None |
Media Drive(s): |
None |
LPT / Parallel Port: |
None |
Serial Port(s): |
1 x DB9M RS-232 (COM1) |
Ethernet Port(s): |
2 x RJ45 10/100/1000Mbps, Intel® 82567L and Intel® 82574L PCI-E |
USB Port(s): |
4 x USB2.0/1.1 Type A |
Keyboard and Mouse Ports: |
1 x PS/2 Keyboard + 1 x PS/2 Mouse |
Audio Ports: |
ICH9M+AC97, Codec ALC888, 7.1 Channels, 6 x 3.5mm Jacks (Front Out, Line In, Mic, Center/LFE, Surround, Surround Back) |
Buzzer: |
None |
Power Manager and Monitoring: |
ACPI / Monitoring CPU temperature, voltage, cooling fan status. Auto throttling control. Watchdog timer: Reset 1 sec. ~255 min and 1 sec. or 1 min./step |
Power Specifications and Consumption: |
Multi-power 115/230VAC - 50/60Hz + 24VDC AC Power IN: 1 x Std IEC inlet DC Power IN: 1 x 2p DSUB (male) Amphenol FCC17 Operating: 30W (typ) - 60w (max) |
Digital I/O Connectors: |
None |
Key Features: |
Multi-power AC & DC, Heat Pipe Cooling Technology, HDD-Free Solution possible with SSD, Fanless and no moving parts inside, Aluminium Chassis w/no apertures, Compact Form Factor, Includes Mounting Bracket Kit |
Product Dimensions and Weight: |
W:270.00 [10.63"] x H:57.95 [2.28"] x D:310.00 [12.20"] mm [inch] Approx 5kg / 11lbs |
Product Carton Size and Weight: |
L:550.00 [21.65"] x W:230.00 [9.06"] x H:480.00 [18.90"] mm [inch] 13.0kg / 28.6lbs |

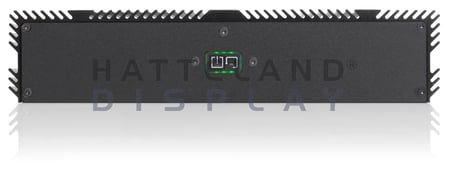

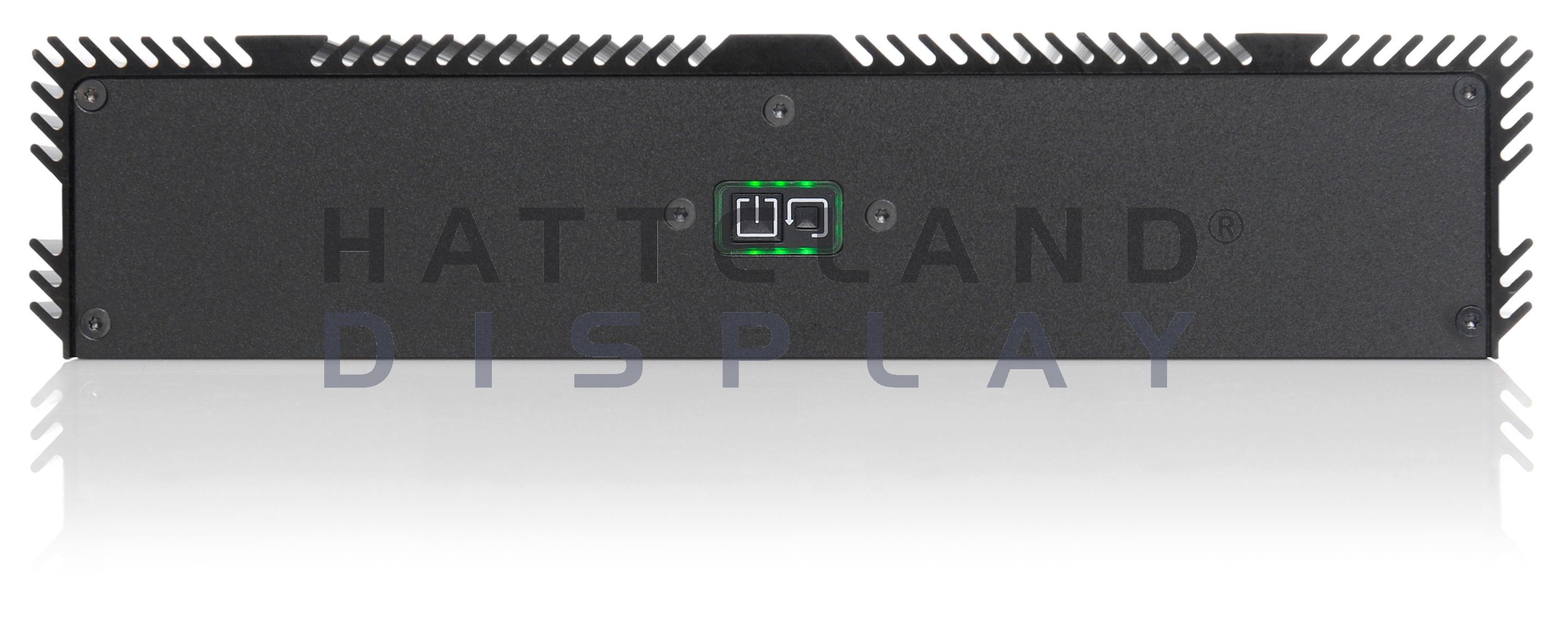

User Controls / Activity: |
Power On/Off Push Button, Reset Button, Power LED, SSD LED |
Factory Options: |
N/A |
Accessories: |
• HT 00244 OPT-A1: 1 x Mounting Plate, RAL 9011 • HT 00228 OPT-A1: 1 x Mounting Plate with cable relief, RAL 9011 • HT 00245 OPT-A1: 1 x Mounting Bracket Kit (included with delivery) • JH C01MF A-A: 1 x USB Cable 1m, Type A to Chassis mount receptacle • HT 00300 MSOS: OS options -> http://www.hatteland-display.com/os |
Capabilities / Prepared for: |
• Up to 4GB DDR2 800/667MHz SO-DIMM 200-pin |
Operating Temperature: |
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% |
Storage Temperature: |
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95% |
Compass Safe Distance: |
Standard: 75.00 [29.53"] - Steering: 45.00 [17.72"] cm [inch] |
Type Approval, Testing and Certificates: |
IEC 60945 4th (EN 60945:2002), IACS E10, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition |
Specifications last updated: July 9, 2025 @ 12:38 |
