Computer - Fanless - Compact

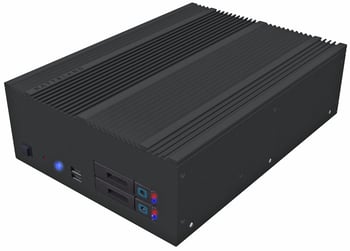

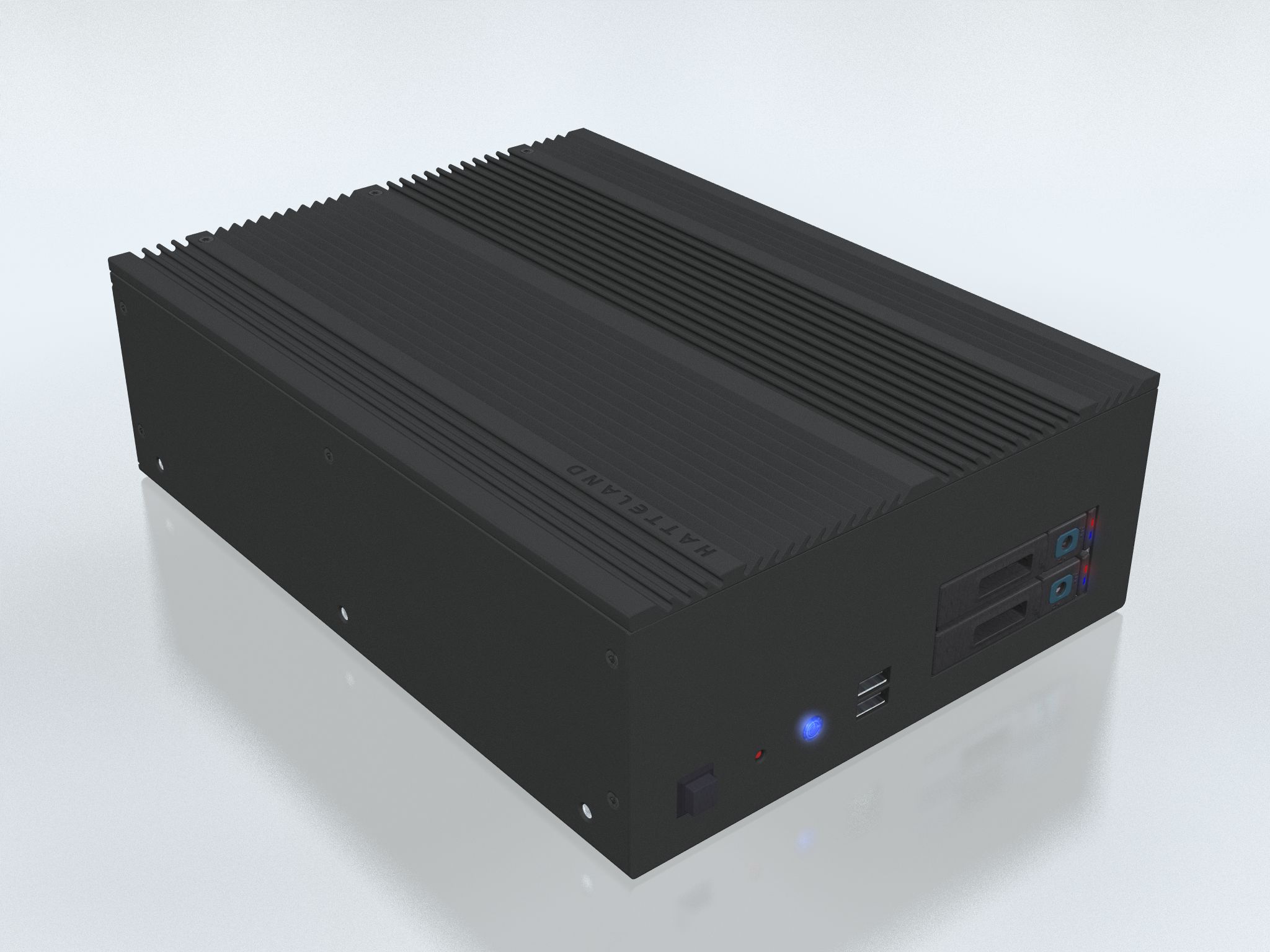

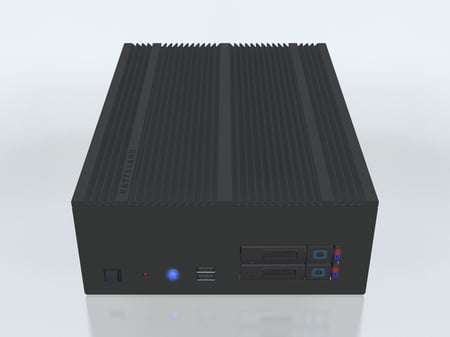

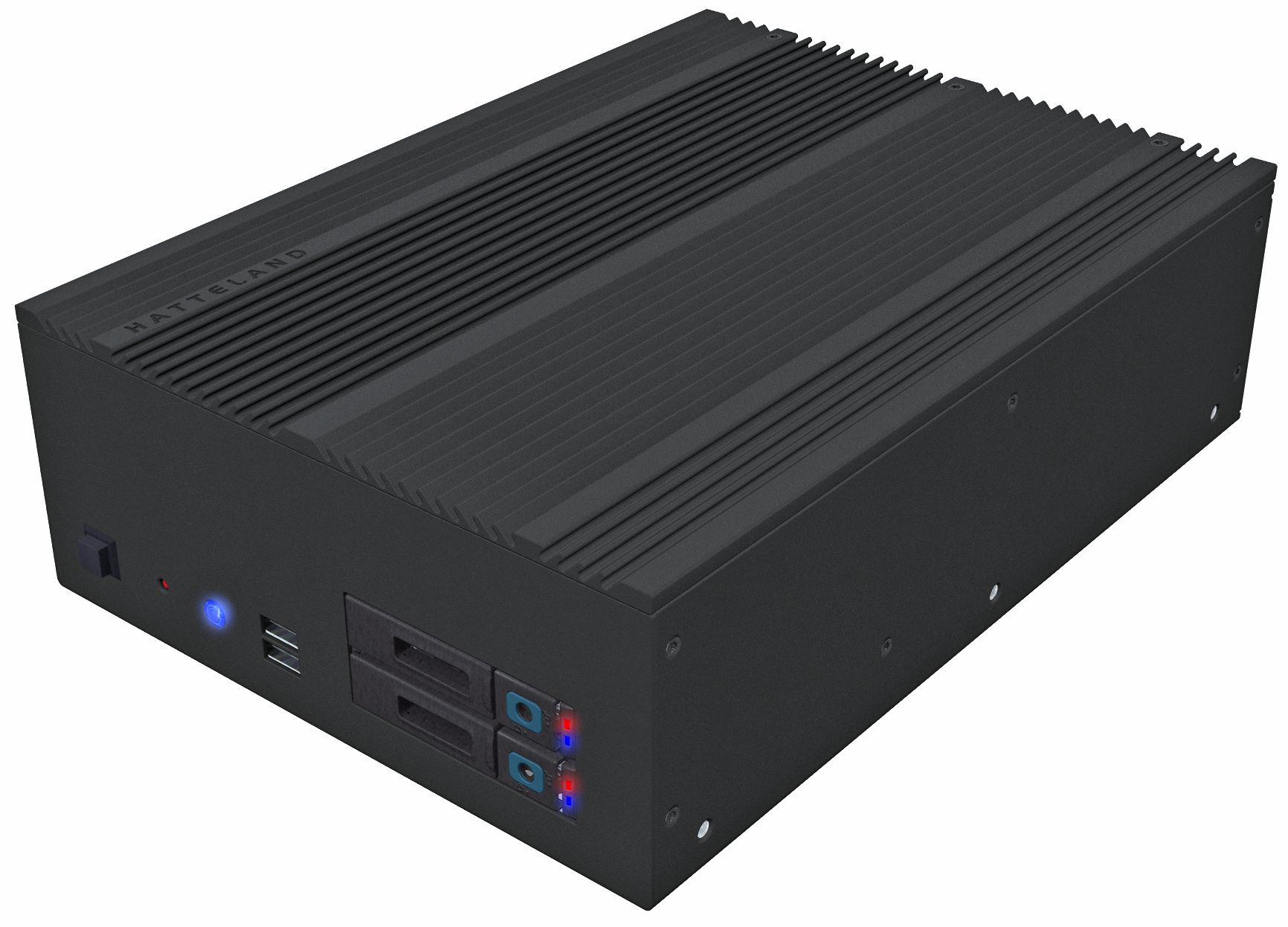

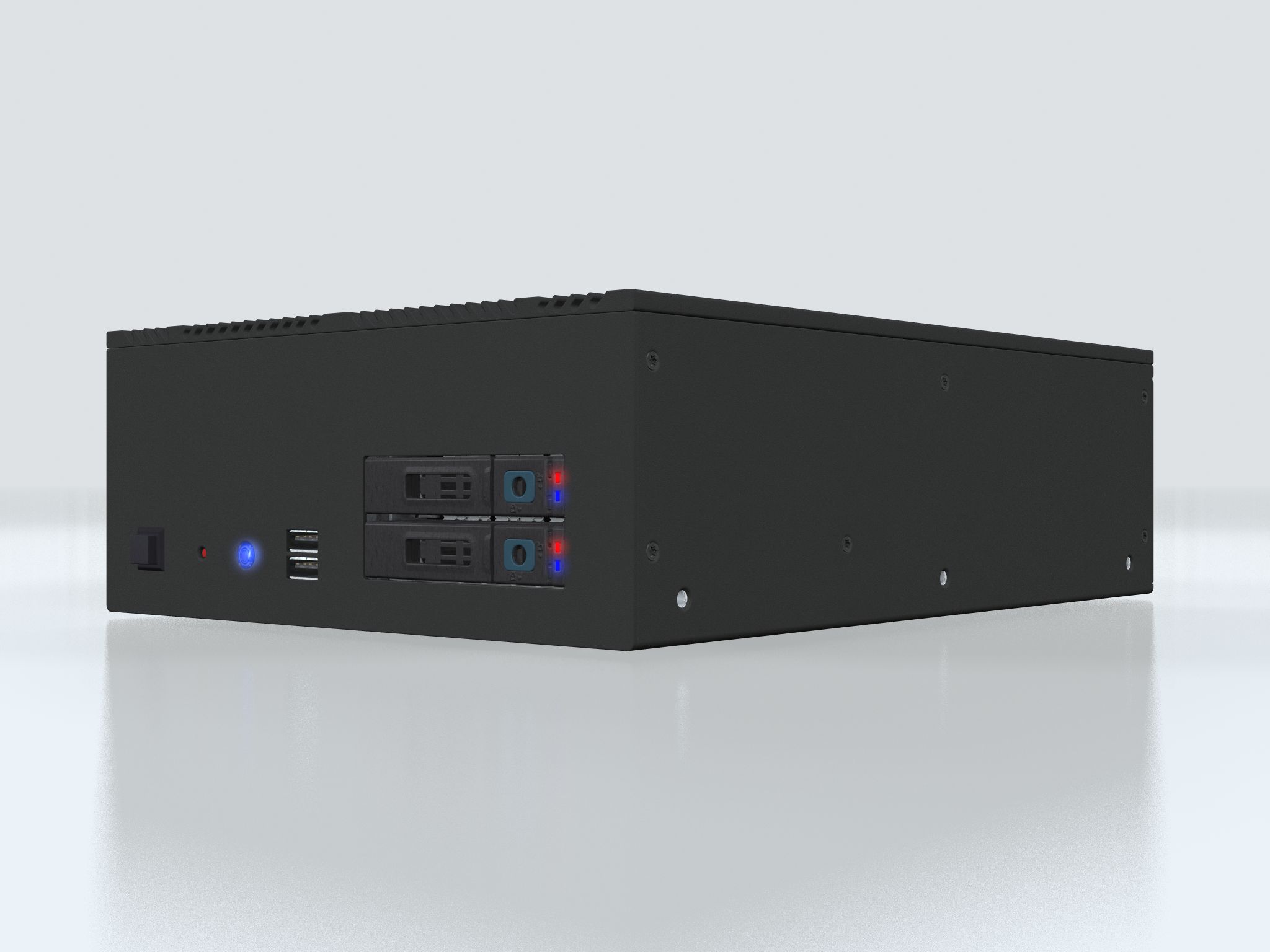

HT B22

The HT B22 model is a solid state fanless solution suitable for high end maritime system applications, the HT B22 will enhance further the array of processor options, flexibility of storage and will integrate interface modules such as the CAN / NMEA COM / COM and DIO.

Fanless

Send Request

Description

Specifications

Typenumber (Long):	HT B22Gx STC-xxx-Mxxx
Installed Operating System Options:	None or Standard OS/Customized image, review datasheet for list. Note: Microsoft® Windows® XP supported.
Storage Options:	2 x 2.5" Removable Front Tray. Option: 1 or 2 can be installed of: 2.5" SSD SATA: (240GB (599TBW), 480GB (945TBW), 960GB (1750TBW) 2.5" HDD SATA 1TB 2.5" HDD SATA Ruggedized/Automotive 320GB
Processor / CPU and FSB Speed Options:	Dual Core Technology: 1 x Intel® Core™ i5-520E, 2.40GHz, FSB: 800/1066MHz, 3MB Cache or 1 x Intel® Core™ i7-620LE, 2.0GHz, FSB: 1066MHz, 4MB Cache or 1 x Intel® Celeron® P4505, 1.86GHz, FSB: 800MHz, 2MB Cache
Memory Options:	1x 2GB, 4GB (max) Single 200pin ECC DDR3 800/1066MHz SO-DIMM
System+Graphics Chipset / Connectors:	Intel® BD82QM57 + Intel® Arrandale IGD, DVMT 5.0, OpenGL 2.1, DirectX 10.0, OpenCL (not supported), HW Decoder: Intel® CVT HD 1 x DVI-I 24P + 1 x HD DB15F
Max Resolution / Max Hz:	VGA: 2048 x 1536 @ 75 Hz. DVI: 1920 x 1200 @ 60 Hz
BIOS:	UEFI AMIBIOS
PCI Slots / PCIe Slots:	None
Media Drive(s):	None
LPT / Parallel Port:	None or option: 1 x HT 00272 OPT-A1 (Parallel Port LPT, DB25F, Bi-Dir. ECP/EPP)

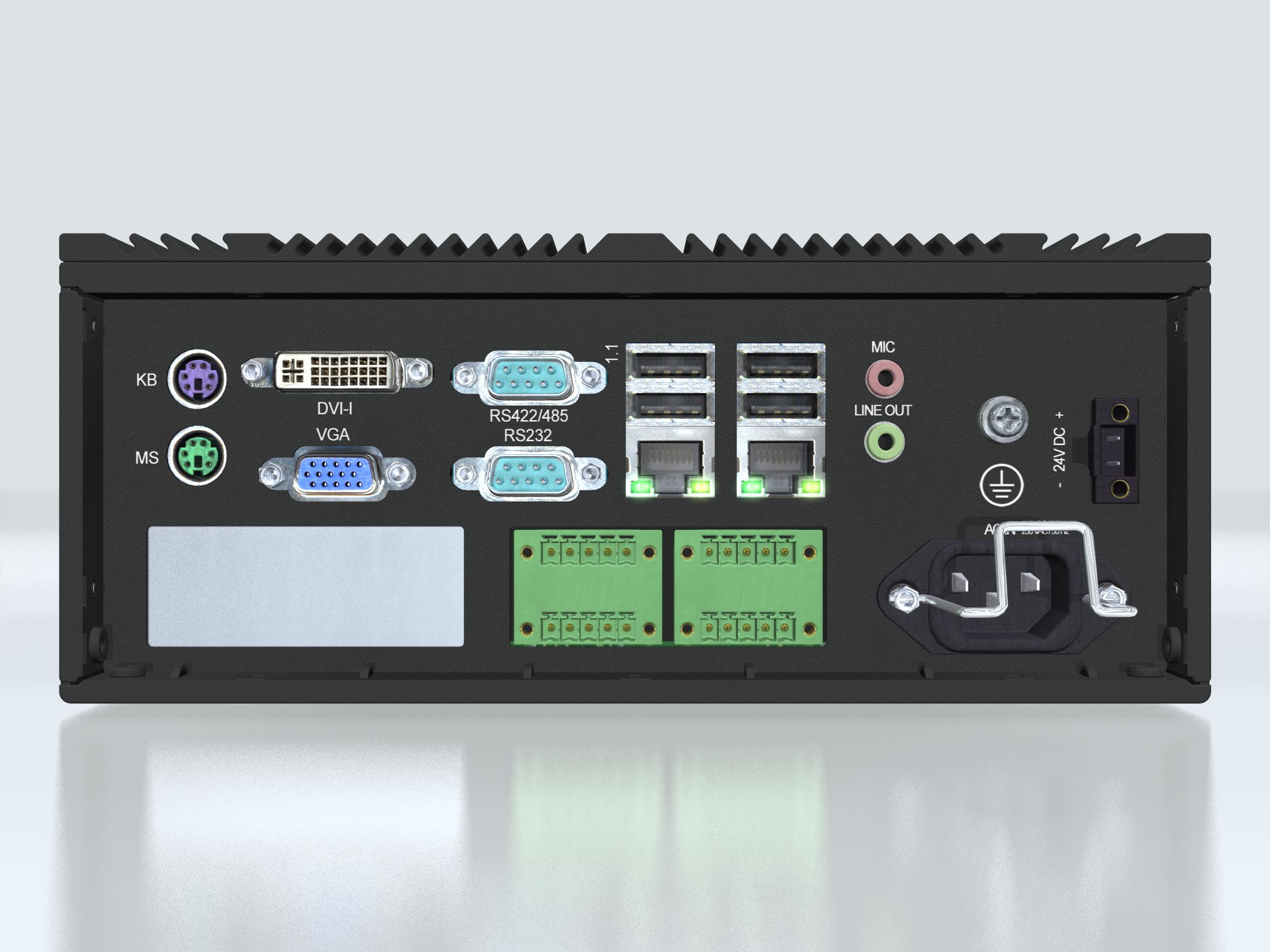

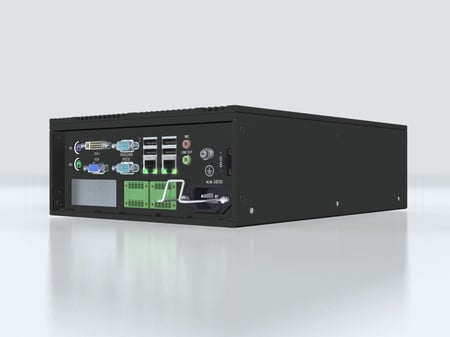

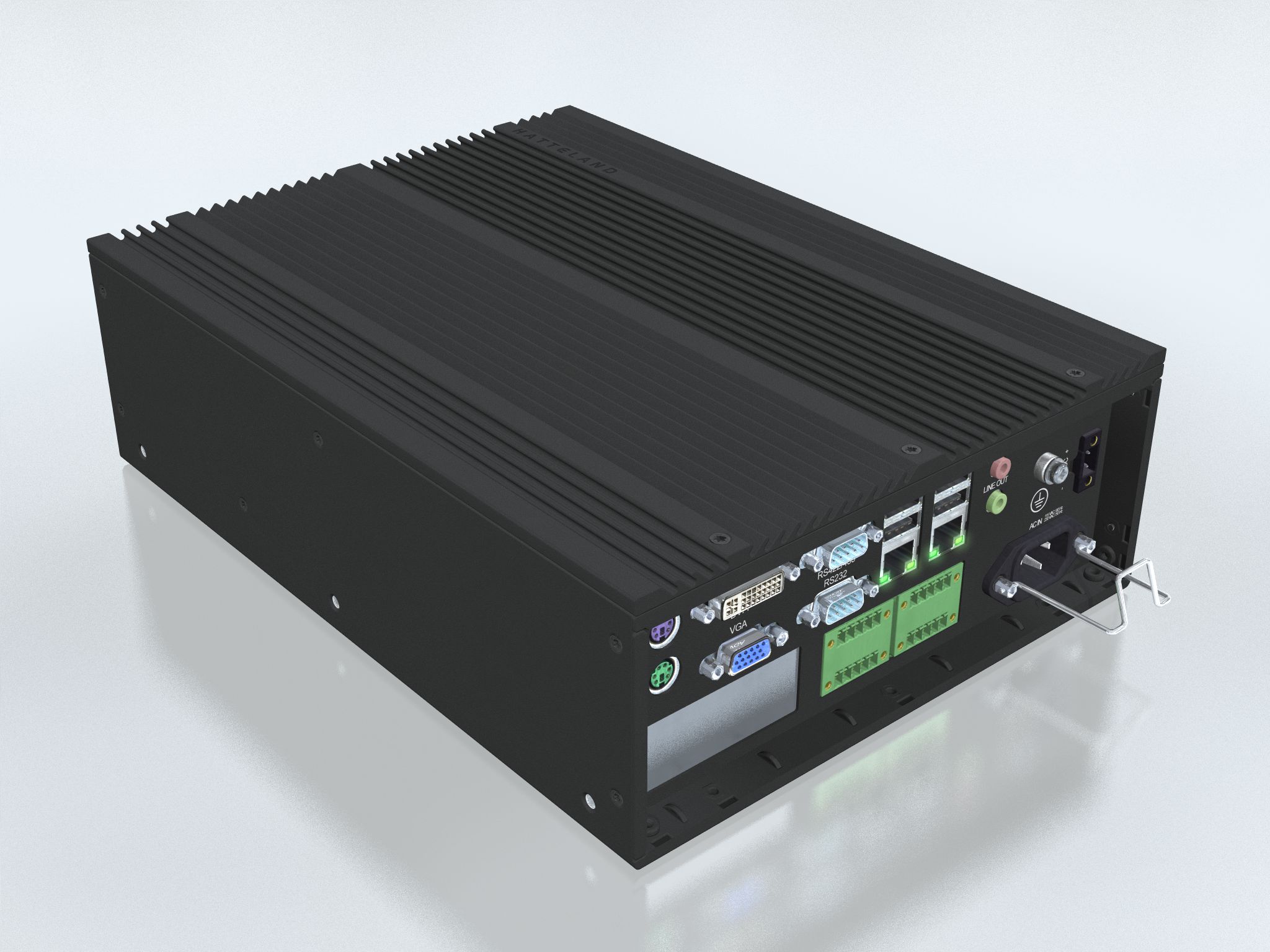

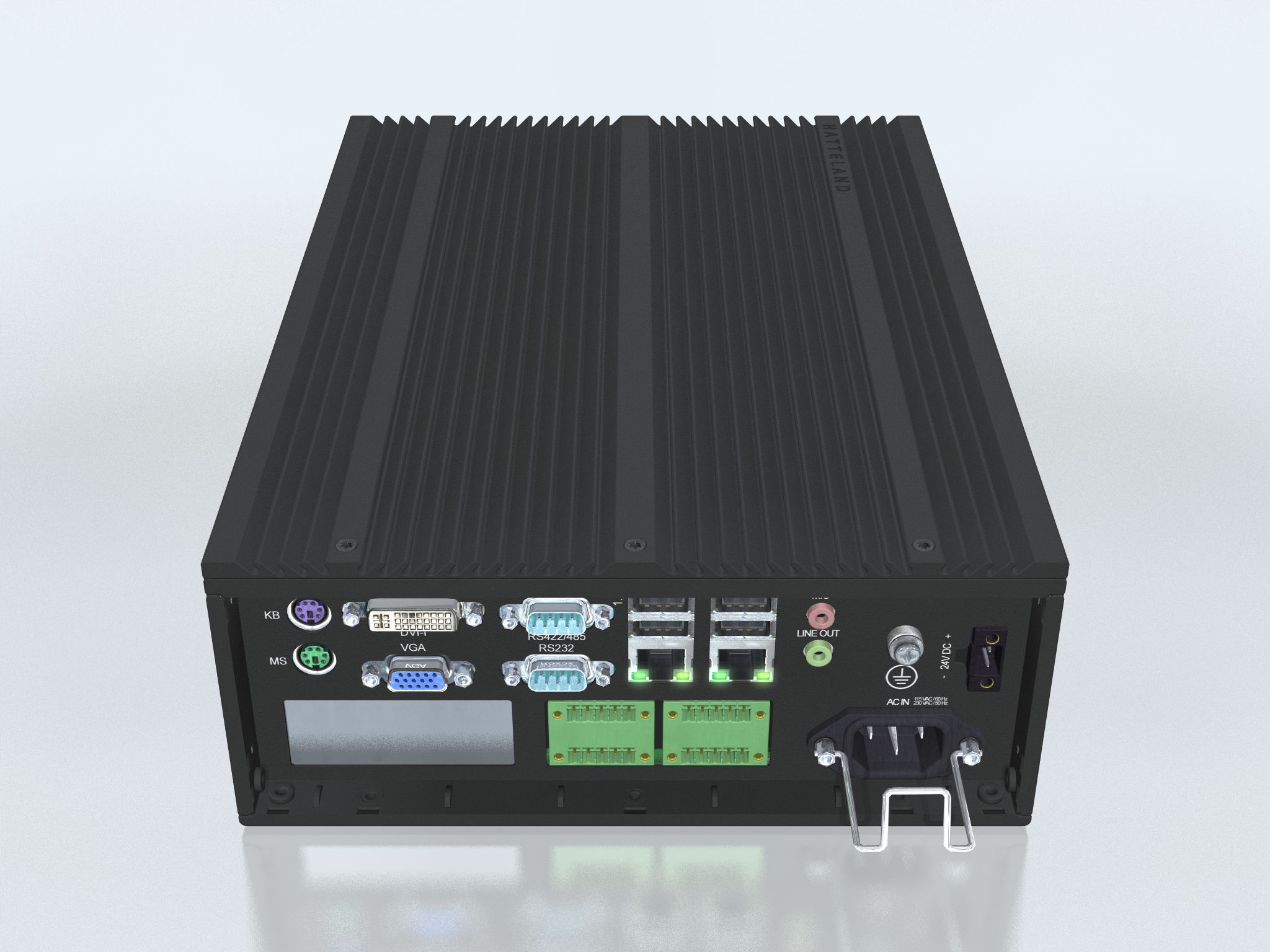

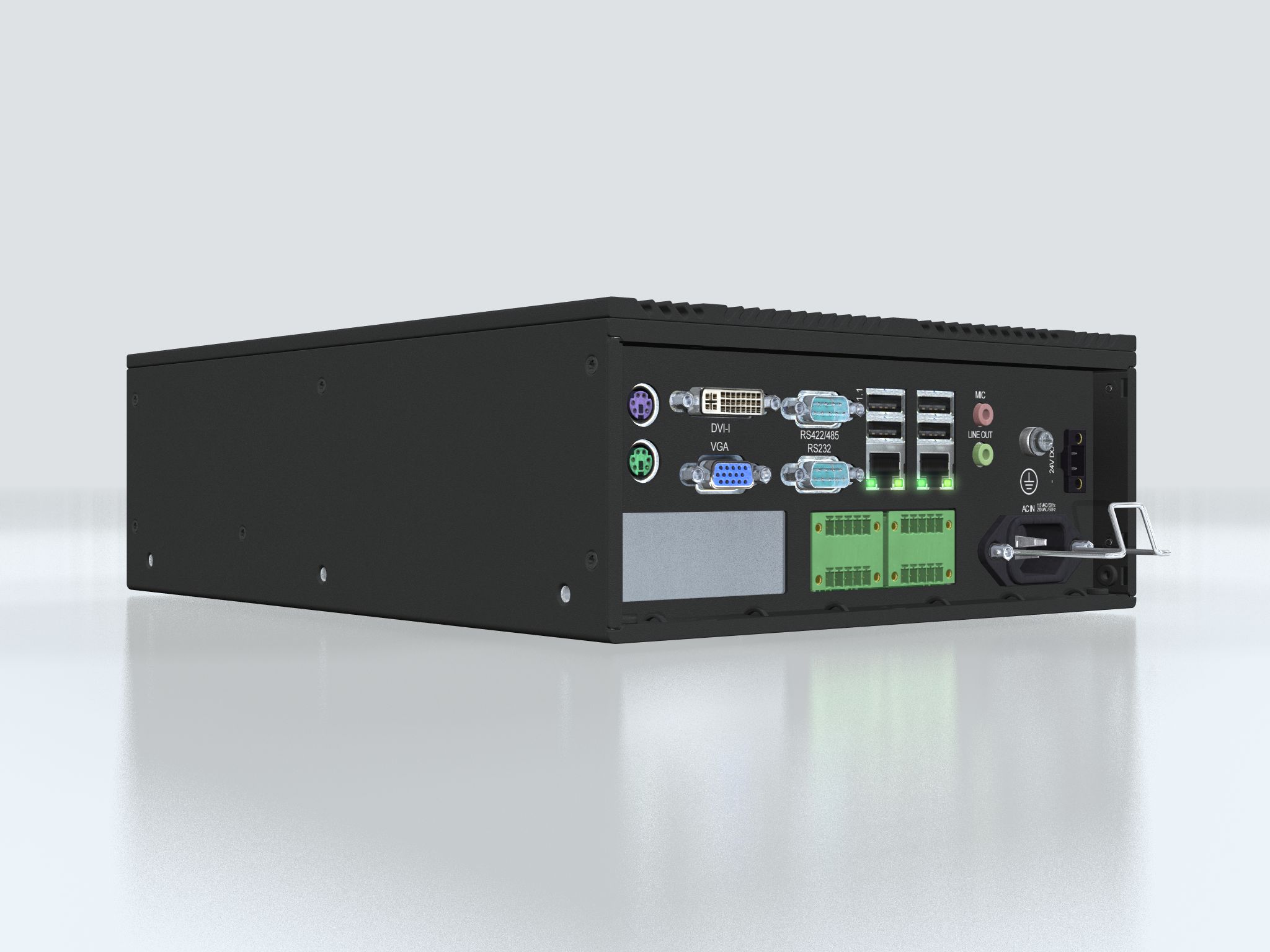

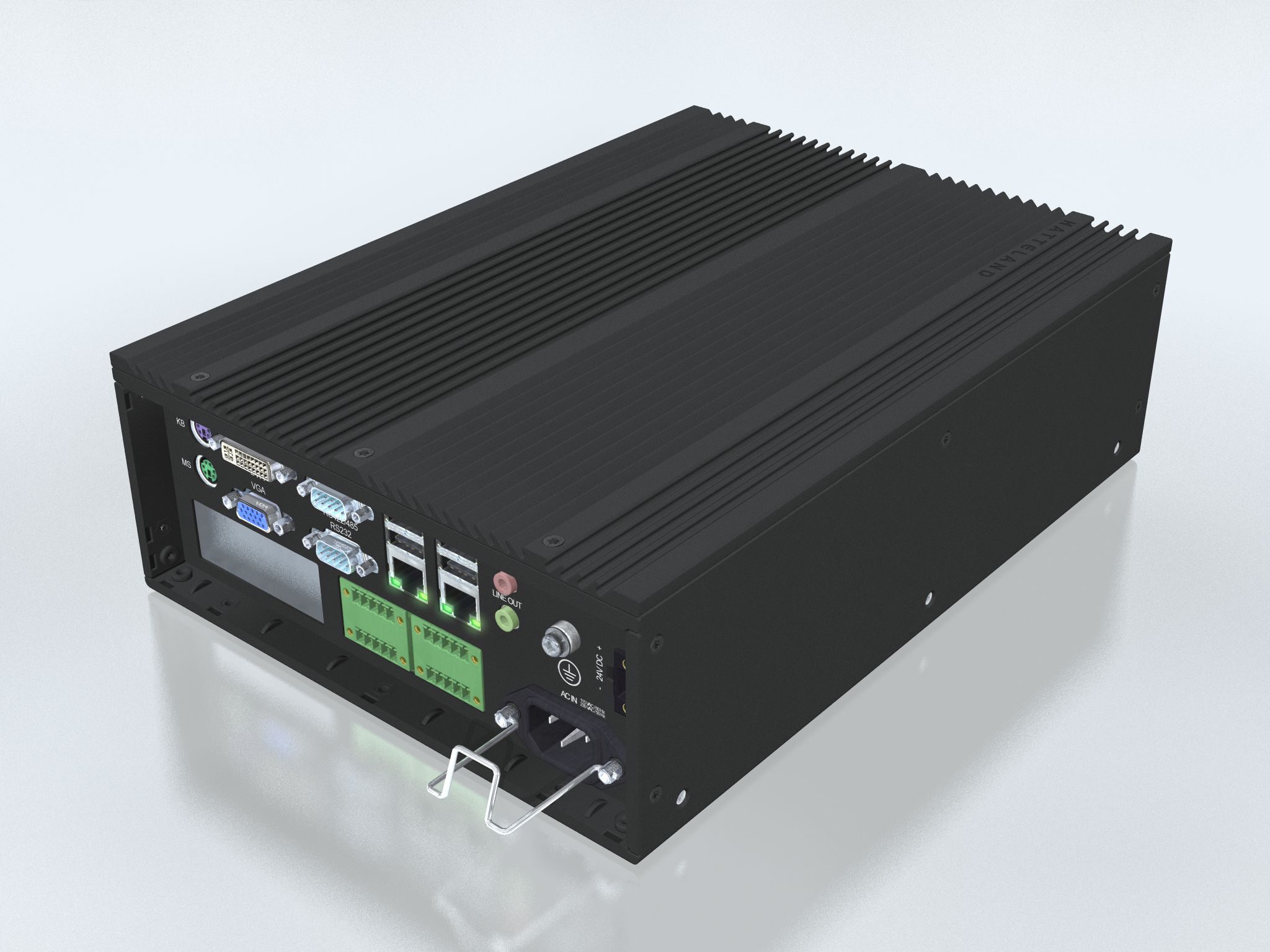

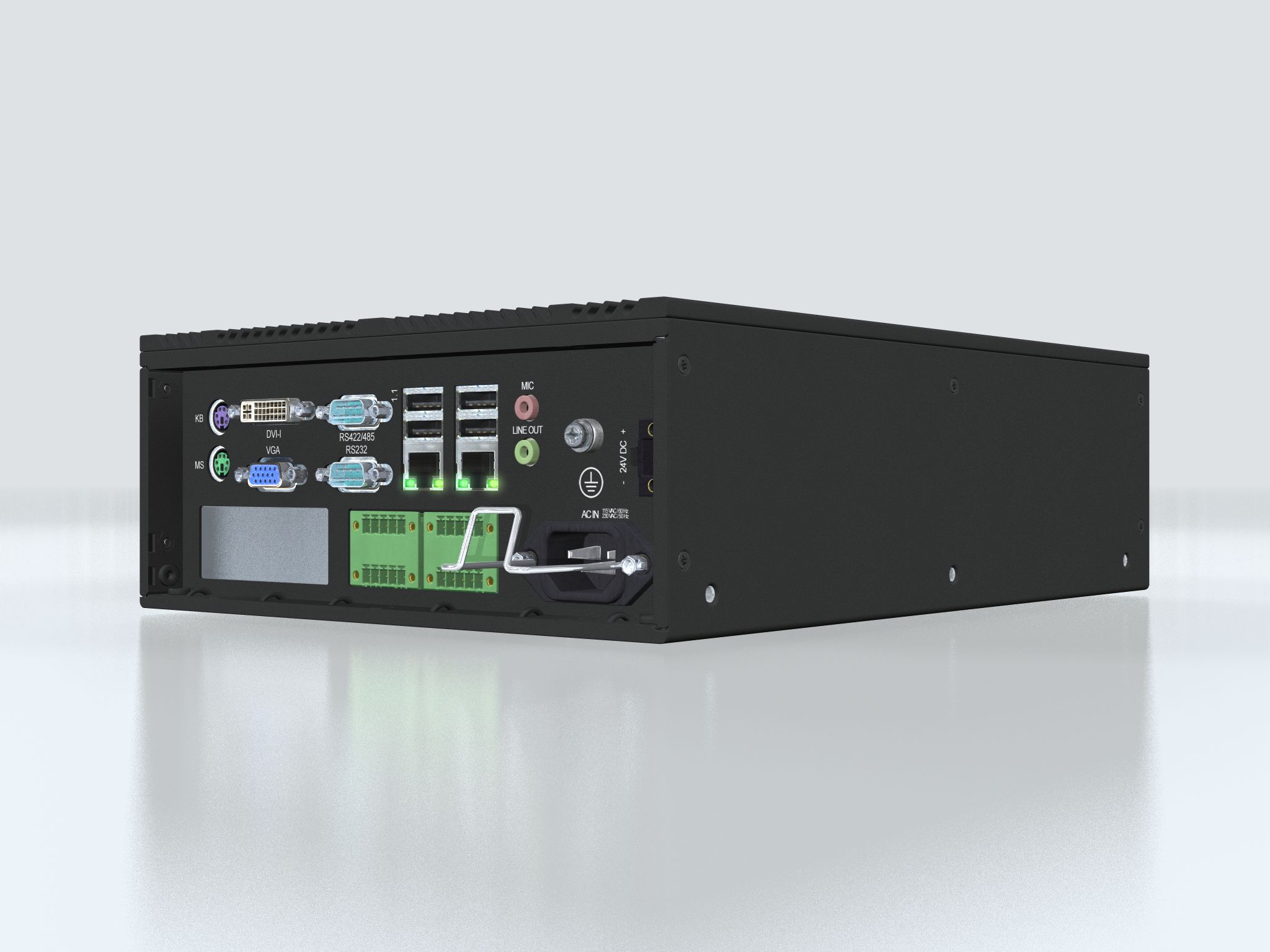

Serial Port(s):	1 x DB9M RS-232 + 1 x DB9M RS-422/RS-485 + 4 x RS-422/485 NMEA Isolated (PCA100293-1, 5-pin T. Block 3.81)
Ethernet Port(s):	1 x RJ-45 10/100/1000Mbps Gigabit LAN (Intel® 82577LM) 1 x RJ-45 10/100/1000Mbps Gigabit LAN (Realtek RTL8111C)
USB Port(s):	2 x USB2.0 Type A Front (<5m) + 3 x USB2.0 Type A Rear (<5m) 1 x USB1.1 Type A Rear (<10m)
Keyboard and Mouse Ports:	1 x PS/2 Keyboard + 1 x PS/2 Mouse
Audio Ports:	2 x 3.5mm mini jack (Realtek ALC892, 5.1 channel), Line Out+Mic-in or + Option: 1 x HT 00271 OPT-A1 (2W Amplified Audio out via DB9F)
Buzzer:	None
Power Manager and Monitoring:	ACPI S3/S4 - Temperatures, voltages&cooling fan status. Auto throttling control if CPU overheats Watchdog Timer: 256 Segments, 0, 1, 2...255 sec/min
Power Specifications and Consumption:	Multi-power 115/230VAC - 50/60Hz + 24VDC 1 x Std IEC inlet (AC) + 1 x 2-pin Terminal Block 5.08 (DC) Operating: 42W (typ)* - 60W (max) - *At 25% load
Digital I/O Connectors:	None or option: 1 x PCA100297-1 (4 x Digital Input/Output isolated)

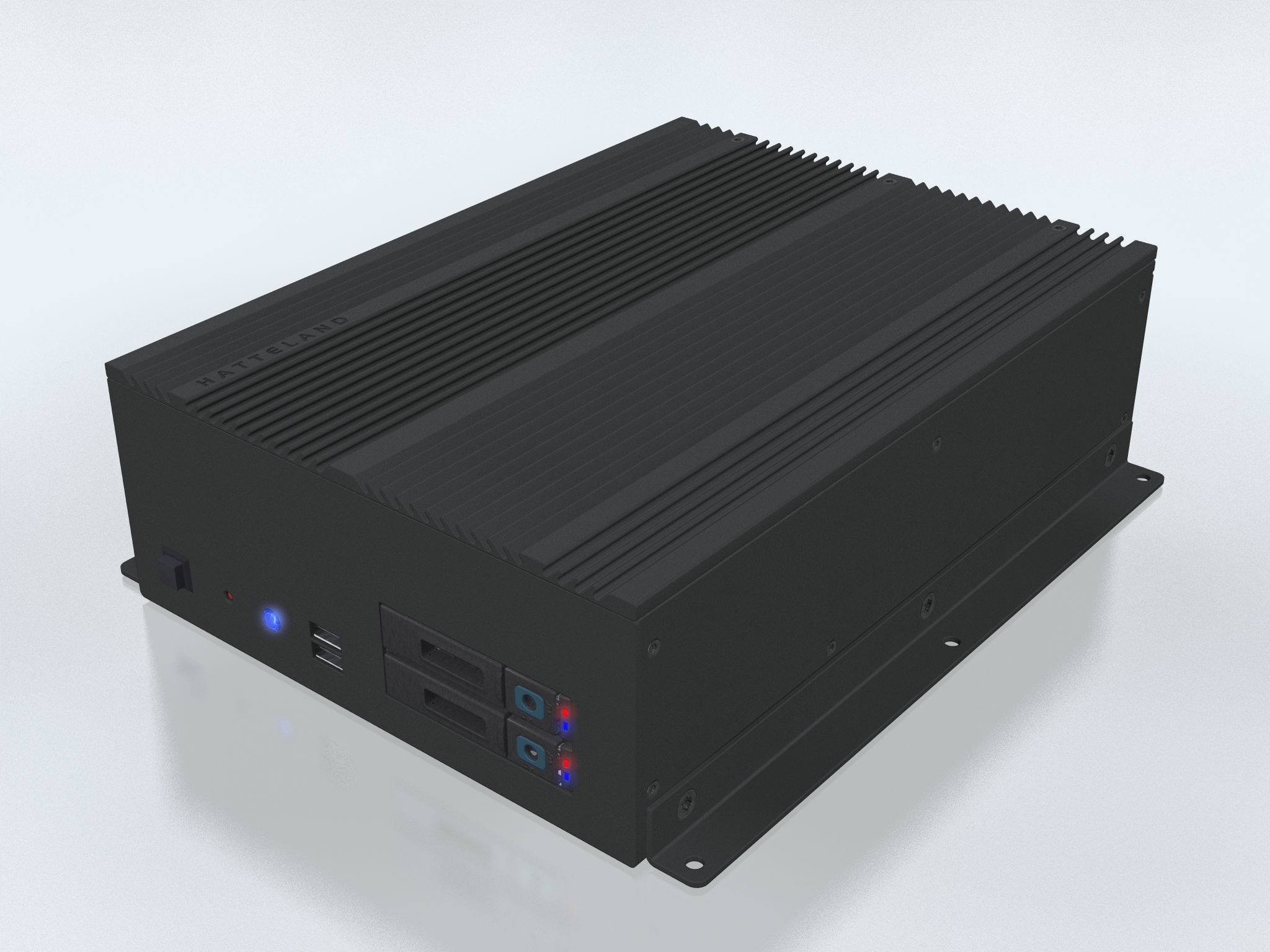

Key Features:	Heat Pipe Cooling Technology, Interchangeable CPU, HDD-Free Solution possible with SSD, Fanless, no moving parts, Aluminium Cooling Chassis w/no apertures, Multi-power AC & DC, Compact Form Factor, Includes Mounting Bracket
Product Dimensions and Weight:	W:220.00 [8.66"] x H:89.85 [3.54"] x D:300.00 [11.81"] mm [inch] 5.3kg / 11.7lbs
Product Carton Size and Weight:	L:560.00 [22.05"] x W:250.00 [9.84"] x H:480.00 [18.90"] mm [inch] 7.6kg / 16.7lbs

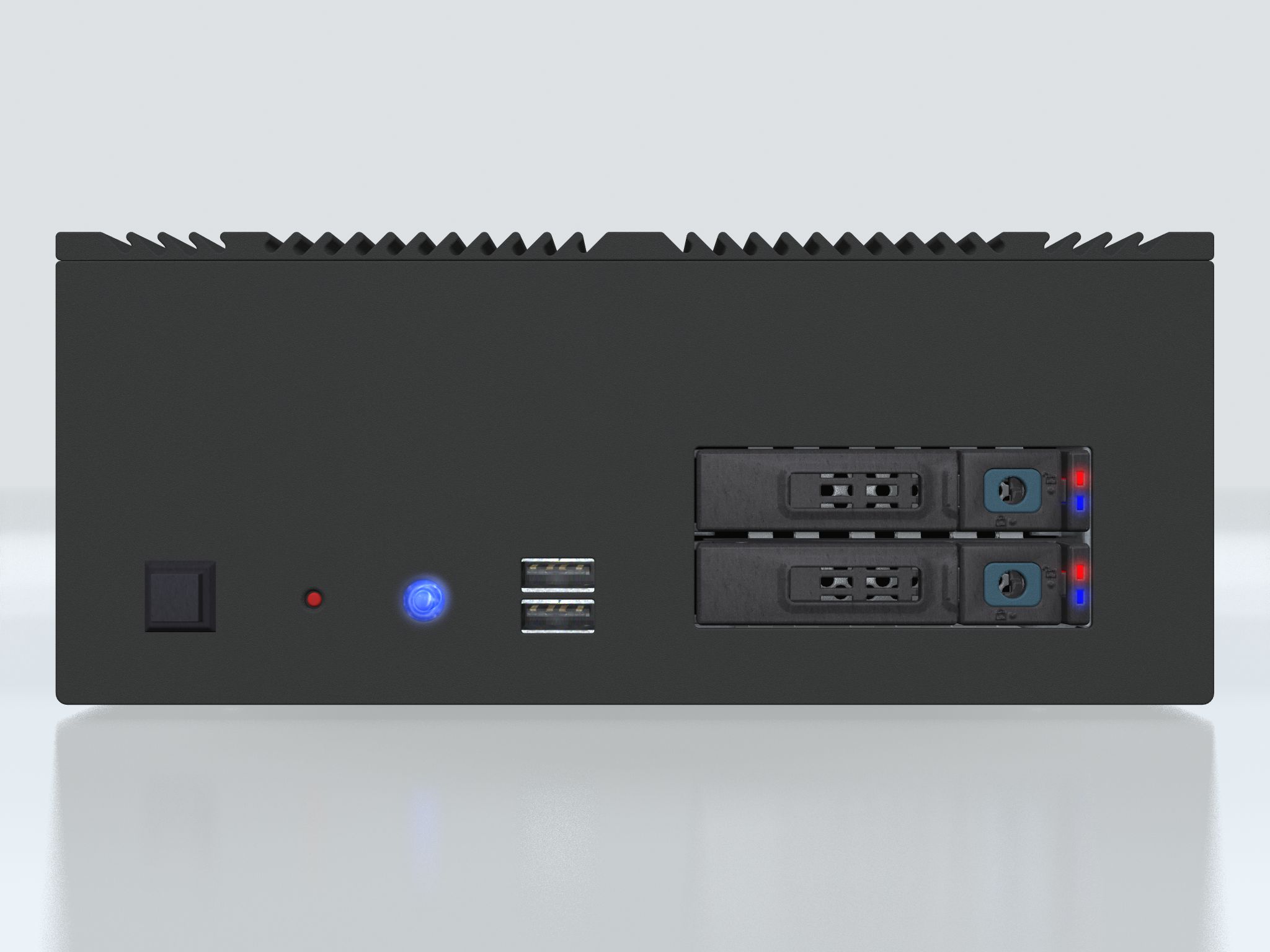

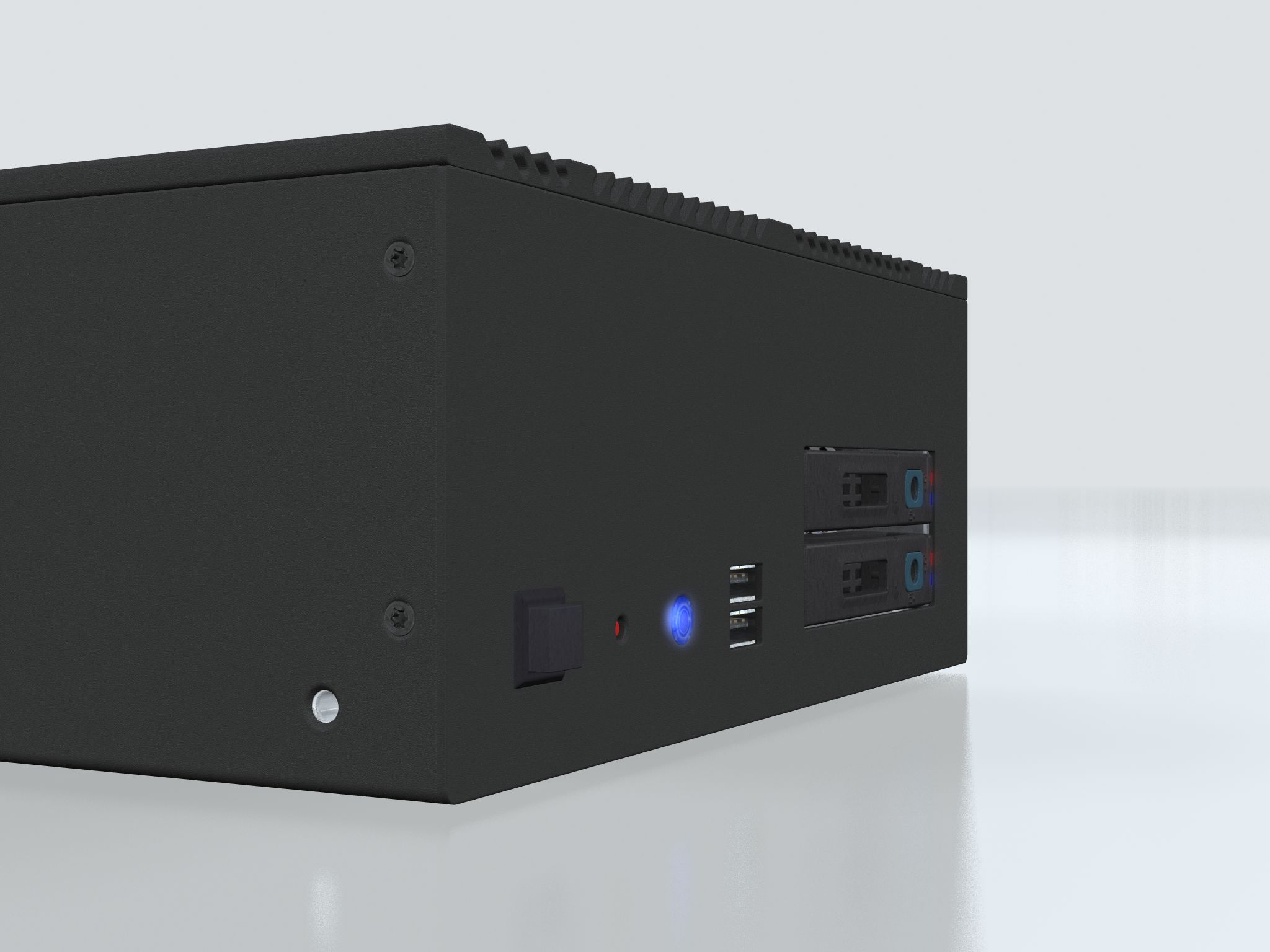

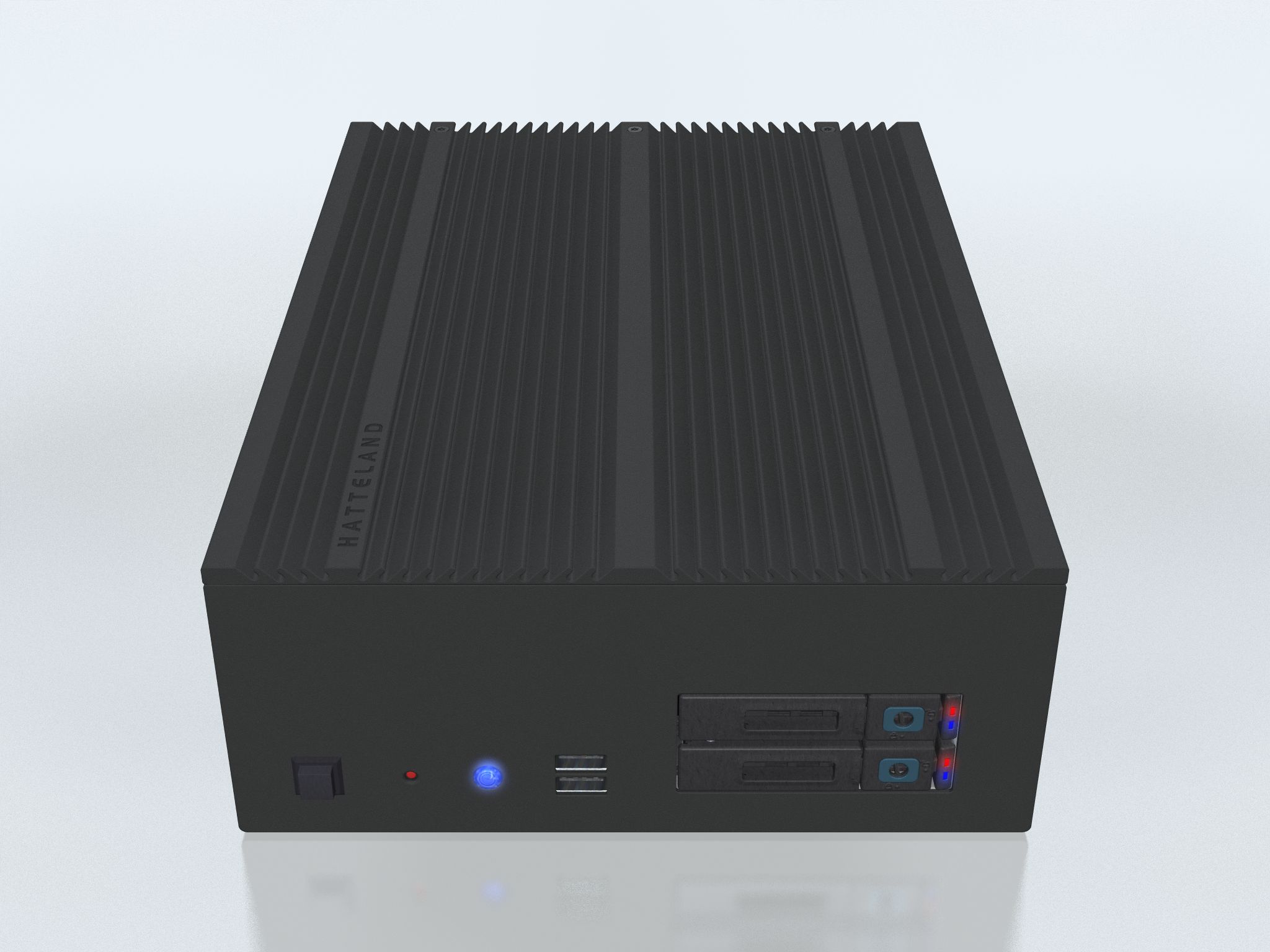

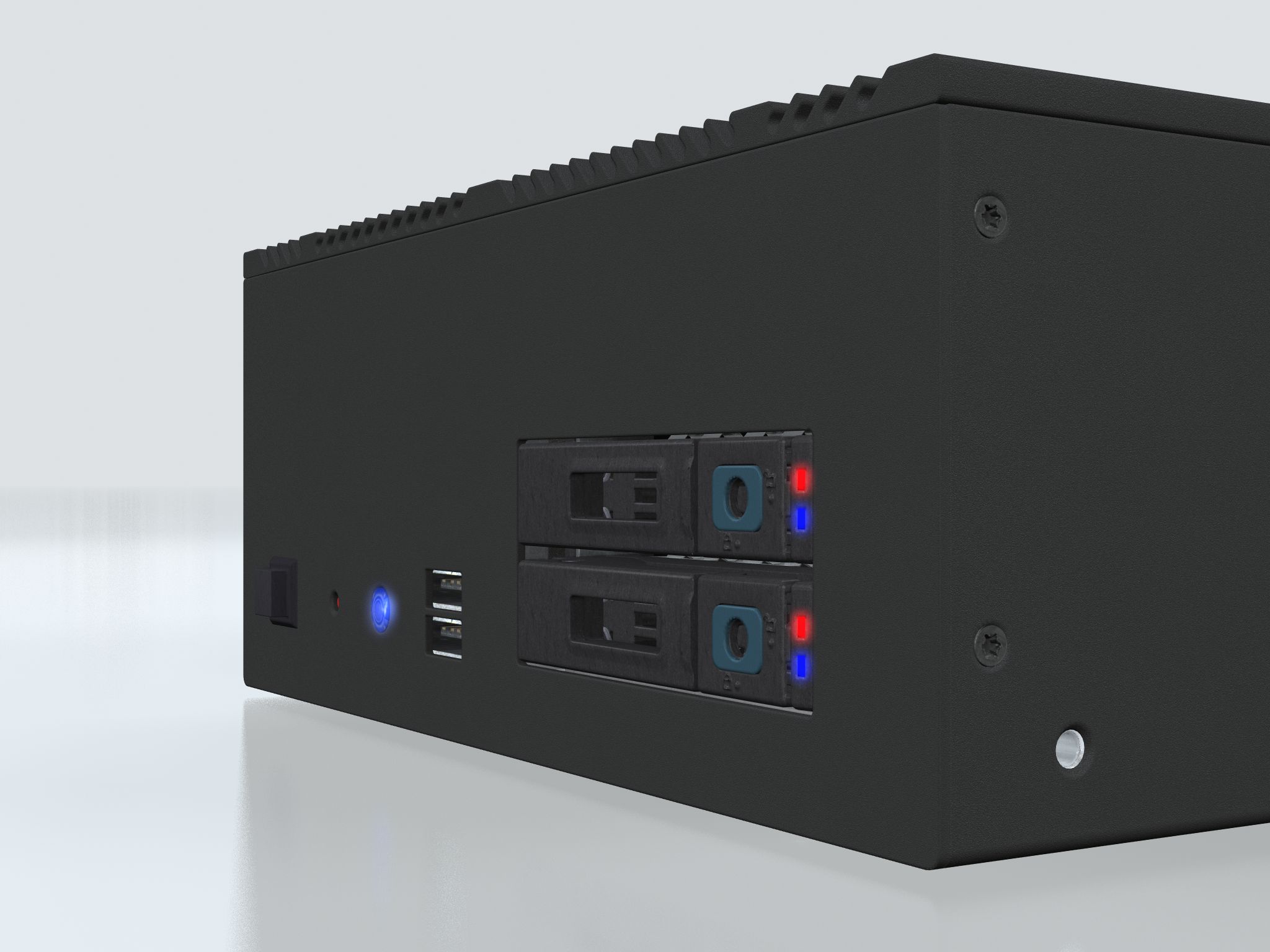

User Controls / Activity:	Power Button, Reset Button, Power LED, Activity LED HDD/SSD trays
Factory Options:	• 1 x PCA100293-1 (4 x COM RS-422/485 isolated NMEA 4 channel) • 1 x HTA2020002-AD1033 (1 x CAN isolated, 2 channel) • 1 x PCA100297-1 (Isolated Digital IO module, 4 x IN + 4 x OUT) 1 x HT 00271 OPT-A1 (2W Amplified Audio out via DB9F) 1 x HT 00272 OPT-A1 (Parallel Port LPT, DB25F, Bi-Dir. ECP/EPP) 1 x PCA100298-1 (LAN 10/100Mbps, 2 ports (RJ45) 1 or 2 x PCA100309-1: Dual Isolated RS-232, 2xDB9 module Variations of SSD/HDD Storage, RAM Memory, Operating System Contact us for possible combinations. Review separate datasheet.
Accessories:
Capabilities / Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-30.0°C / -22.0°F to +70.0°C / +158.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 135.00 [53.15"] - Steering: 85.00 [33.46"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002),IACS E10,EN55024,EN55022,Class A, MIL-STD-810F Shock 30G/11ms, 50G/30ms. EU-RO-MR - Mutual Recognition Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m

Specifications last updated: July 1, 2025 @ 09:54
