PRODUCT DETAILS

✕

✕
 Marine & Offshore  / Computer  / Compact  / HT B30G

HT B30G

Overview

Computer - Fanless - Long Depth Model - Compact

HT B30G

The HT B30 range is based on the latest Intel® chipset and Skylake processor platform, delivering even more power for maritime technology developers to design and build high-end vessel control and monitoring solutions that enable safer and more effecient maritime operations.

icon
Fanless
icon
Long Depth Model
icon
TPM 2.0
Send Request
Description

Computer - Compact

HT B30 computers are available in two new form factors, short depth and long depth, allowing for flexible installation options including 3U rack mounting in pairs. Using the same system architecture as our new, second generation Series X Panel Computers, the HT B30 range offers significant processing speed and graphical performance improvements, which when combined with multiple-drive solid state storage and silent, fanless operation, positioning it among the most advanced computing platforms for maritime applications.

HT B30 computers can be delivered with a choice of Intel® Core™ / Celeron® processors, up to i7. Graphical output is handled by 1 x DVI-I, 1 x DVI-D and 1 x Display Port (DP++ 1.2) while standard interfaces include 4 x Ethernet Ports, 4 x USB2.0 and 4 x USB3.0. The HT B30 platform also supports a wide range of interface modules such as CAN/NMEA COM/COM and DIO, ensuring it is ready off-the-shelf for all maritime applications. In addition, HT B30G range of computers features a lightweight, fully enclosed aluminium chassis and comes with Hatteland Technology's Multi-power system (both AC and DC power built in).
Specifications
Typenumber (Long): HT B30Gx STC-xxx-Mxxxxx
Installed Operating System Options: None or Standard OS/Customized image, review datasheet for list.
Storage Options: 2 x 2.5" Removable Front Tray and 1 x Internal Storage options:
1 or 2 x 2.5" SSD SATA:
(240GB (599TBW), 480GB (945TBW), 960GB (1750TBW))
1 x SSD Type m.2 SATA:
(240GB (599TBW), 480GB (945TBW), 960GB (1750TBW))
Processor / CPU and FSB Speed Options: 1 x Intel® Core™ i5-6300U, 2.4GHz / 3GHz 2/4 @15W, 403 GFLOPS
or 1 x Intel® Core™ i7-6600U, 2.6GHz / 3.4GHz 2/4 @15W, 403 GFLOPS
or 1 x Intel® Celeron® 3955U, 2.0GHz 2/2 @15W, 173 GFLOPS
Memory Options: Dual Channel, DDR4-2133 SO-DIMM, 2 slots available
2x4GB (Standard), 2x8GB, 2x16GB (Max)

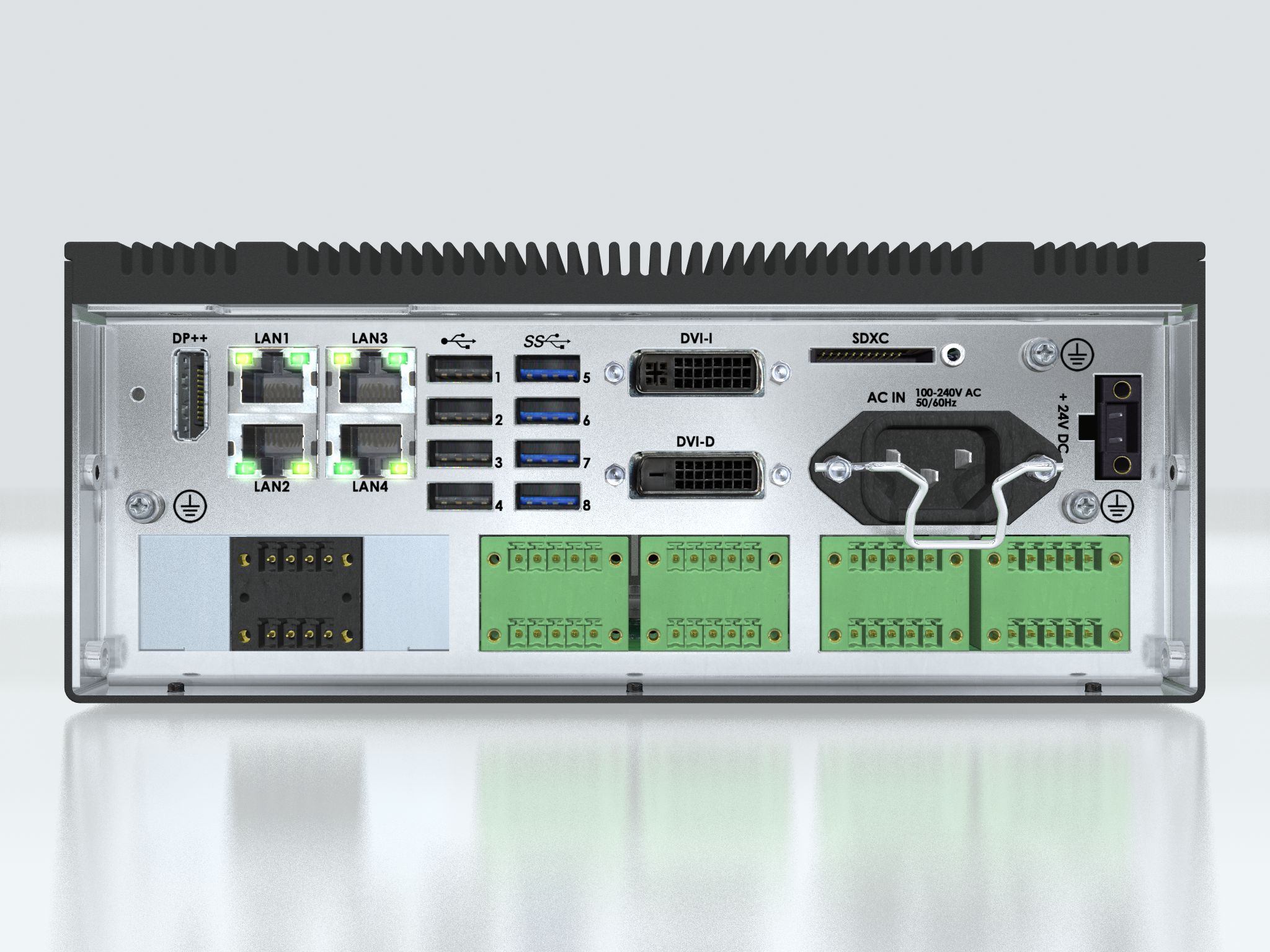

System+Graphics Chipset / Connectors: System: Integrated in 6th Generation Intel® Core™ U-series processor
Graphics: Intel® HD Graphics 520 (510 for G3955U CPU), Supports: OpenGL 4.4 (510), OpenGL 4.5 (520), DirectX 12.0, OpenCL 2.0. 3 independent displays possible
(1 x DVI-I + 1 DVI-D + 1 x DP++ 1.2)
Max Resolution / Max Hz: DP: 4096 x 2304@60Hz - DVI-I/D: 1920 x 1200@60Hz
BIOS: ACPI support
PCI Slots / PCIe Slots: None
Media Drive(s): 1 x SDXC (SDcard) slot
LPT / Parallel Port: None
Serial Port(s): None or Options:
1 or 2 x RS-232 COM Serial Ports DB9M, isolated
1 or 2 x RS-422/485 NMEA Isolated (PCA100293-1, 5-pin T. Block 3.81)
Ethernet Port(s): 2 x RJ-45 10/100/1000Mbps Gigabit LAN (Intel, Teaming Support)
2 x RJ-45 10/100/1000Mbps Gigabit LAN (Realtek, Teaming Support)
USB Port(s): 4 x USB2.0 Type A (<5m) + 4 x USB3.0 Type A (<3m)
Keyboard and Mouse Ports: None or Option: 1 x PS/2 Keyboard + 1 x PS/2 Mouse
Audio Ports: None or via Factory Option VSD203134-1
Buzzer: None
Power Manager and Monitoring: ACPI S3/S4 - TPM2.0, Temperatures, voltages, Battery load status Alarm&cooling fan status. Auto throttling control if CPU overheats
RTC: > 0.5s/day* (requires calibration)
Watchdog Timer: 256 Segments, 0, 1, 2...255 sec/min
Battery: Normal operational conditions: life time >5 year, worst case conditions(@70C, 24/7): life time >2 year
Power Specifications and Consumption: Multi-power 100-240VAC 50/60Hz + 24VDC
Multi-power: 1 x Std IEC inlet (AC) + 1 x 2-pin Terminal Block 5.08 (DC)
Operating AC & DC: 39W (typ)* - 75W (max) - *At 25% load
Max Allowed External USB load = 10W.
Digital I/O Connectors: None or option:
1 x HT 00268 OPT-A1 (4 x Digital Input/Output isolated) module
Key Features: Long Depth Model, HDD-Free Solution possible with SSD, Fanless, no moving parts, Aluminium Cooling Chassis w/no apertures, Multi-power AC & DC, Compact Form Factor, 2 x 2.5" sized removable storage devices in front. Includes Mounting Bracket, Flexibility of storage and support wide range of integrated interface modules, Firmware Raid
Product Dimensions and Weight: W:220.00 [8.66"] x H:89.00 [3.50"] x D:300.00 [11.81"] mm [inch]
3.7kg / 8.1lbs
Product Carton Size and Weight: L:405.00 [15.94"] x W:184.00 [7.24"] x H:373.00 [14.69"] mm [inch]
5.0 kg / 11.0lbs
User Controls / Activity: Power/Reset/Power LED Combined Function
Factory Options: • 1,2 or 3 x PCA200828-1 (4xCOM RS-422/485 isolated NMEA 4 channel)
• 1 x HTA2020002-AD1033 (1 x CAN isolated,2 channel) module
• 1 x HTA2020002-SLCAN (1 x CAN isolated,2 channel,socketCAN) module
• 1 x PCA100297-1 (4 x Digital Input/Output isolated) module
• 1 x PCA100298-1 (LAN 10/100Mbps, 2 ports (RJ45) module
• 1 x VSD203134-1 (2W Amplified Audio out via DB9F)
• 1, 2 or 3 x PCA100309-1: Dual Isolated RS-232, 2xDB9M module

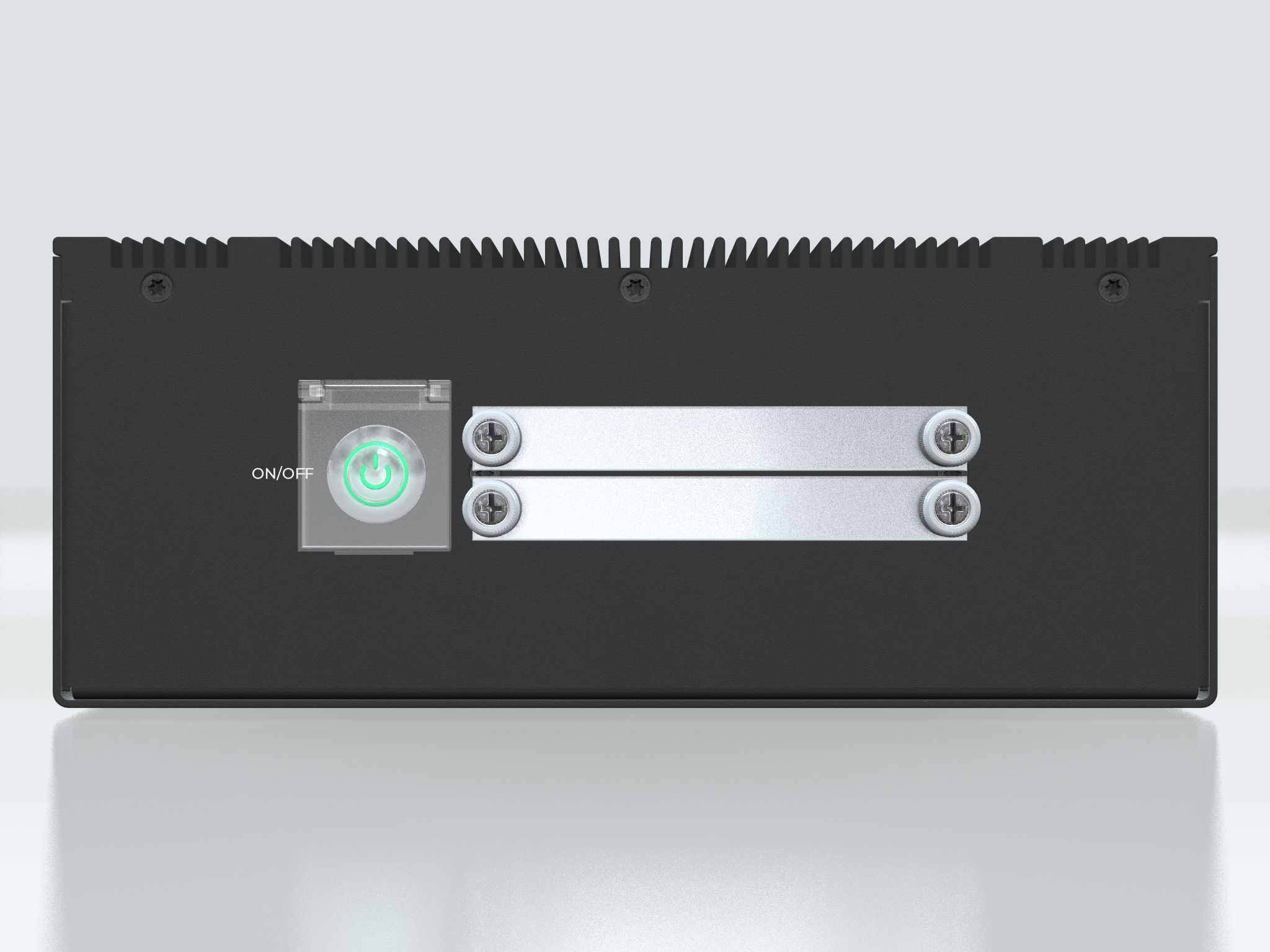

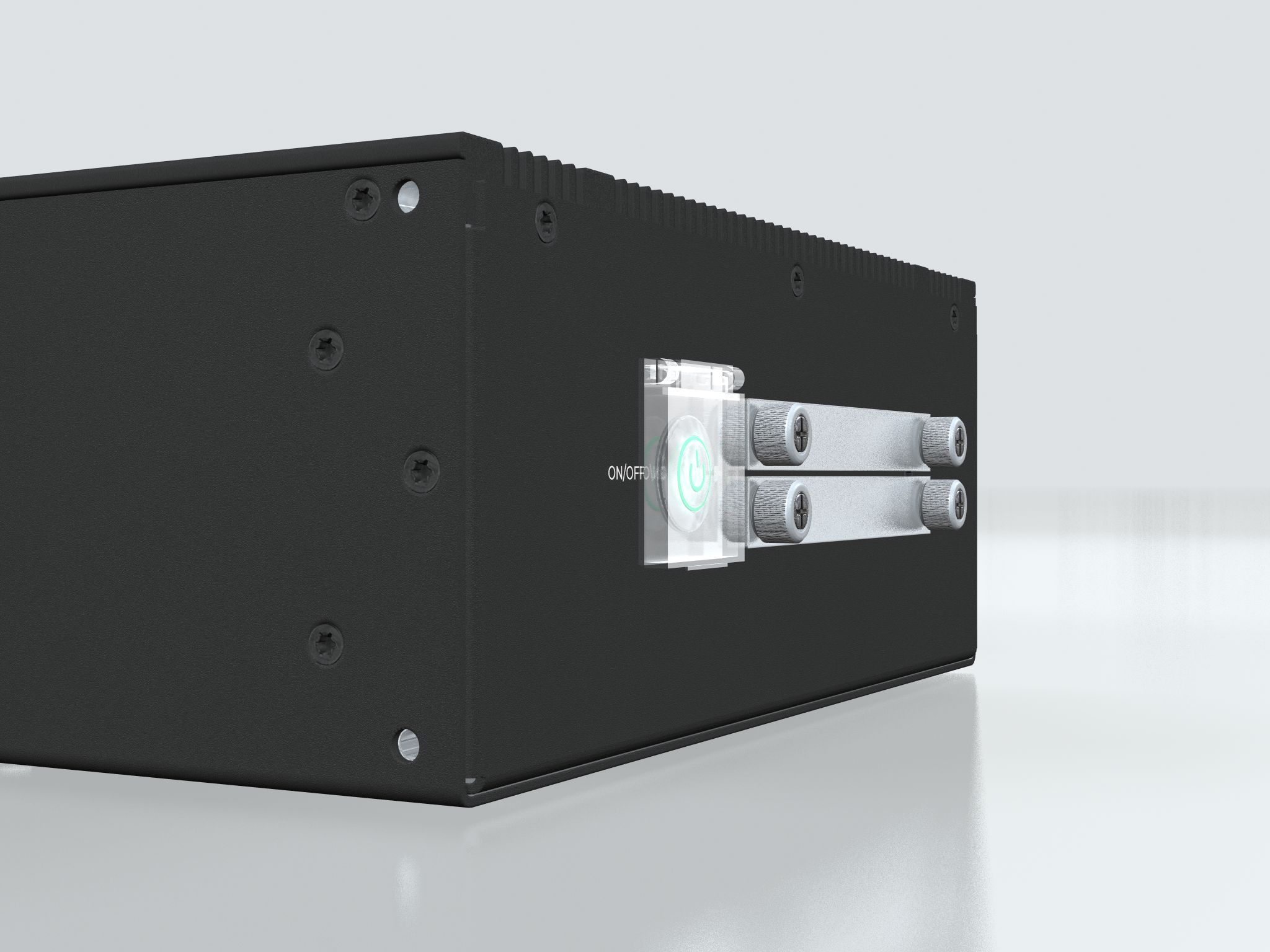

• Recessed Power Button Option
• Recessed Reset Button Option
• Reset Button Option
• Variations of Storage Devices, RAM Memory and Operating System
* Contact us for possible combinations. Review separate datasheet
Accessories: • HT 00262 OPT-A1: 4 x RS-422/RS-485 isolated, USB ext. module
• HT 00263 OPT-A1: 4 x RS-232 COM non-isolated, USB ext. module
• HT 00264 OPT-A1: 1 x CAN isolated, 2 channel, USB ext. module
• HT 00264 OPT-A2: 1 x CAN isolated, 2 channel, socketCAN USB ext. module
• HT 00273 OPT-A1: 4 x Digital IN/OUT isolated, USB ext. module
• HT 00274 OPT-A1: 2 x LAN 10/100Mbps, RJ45, USB ext. module
• HT 00228 OPT-A1: 1 x Mounting Plate with cable relief, RAL9011

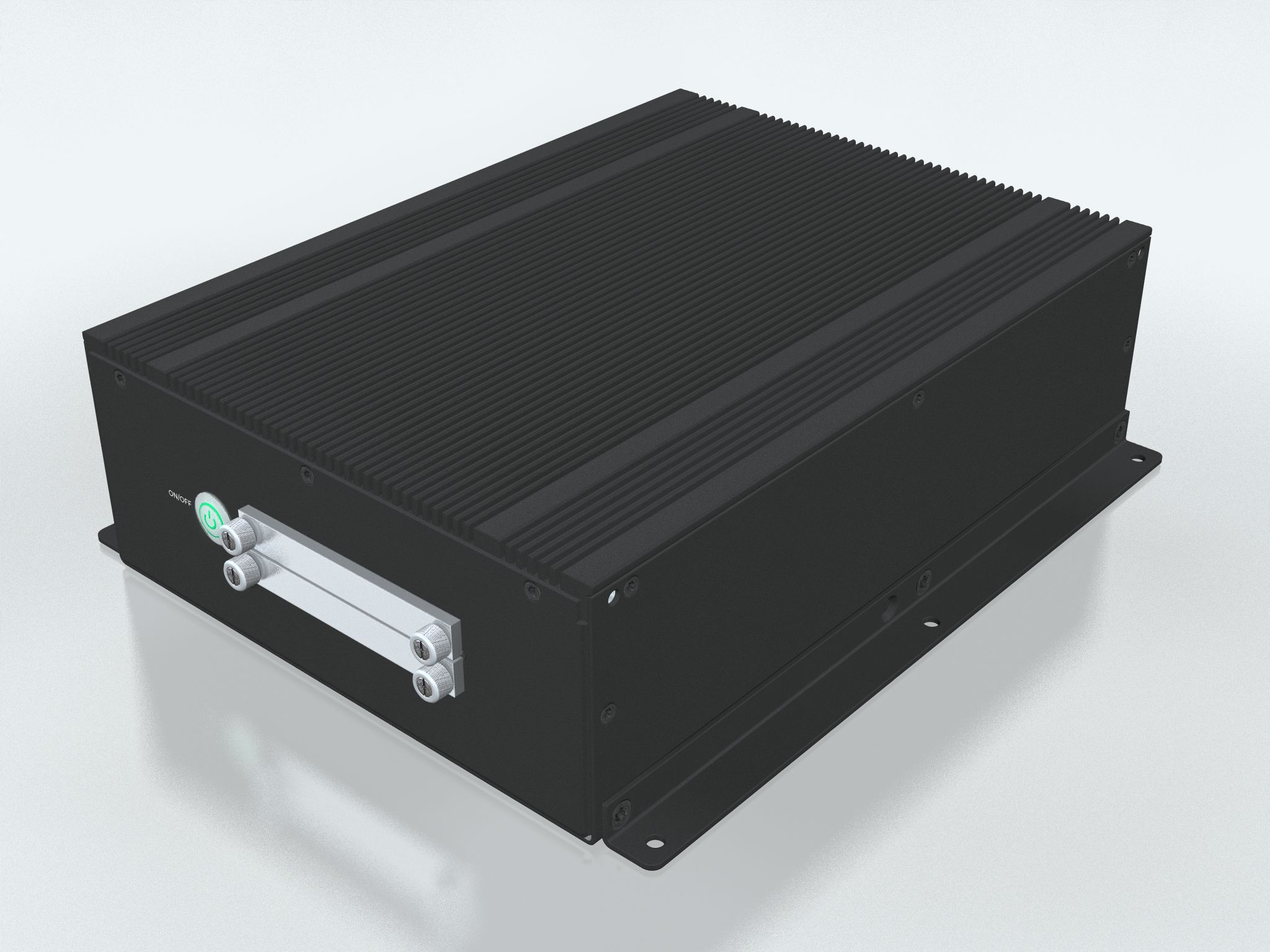

• HT MBK STD-A2: 1 x Mounting Bracket Kit***

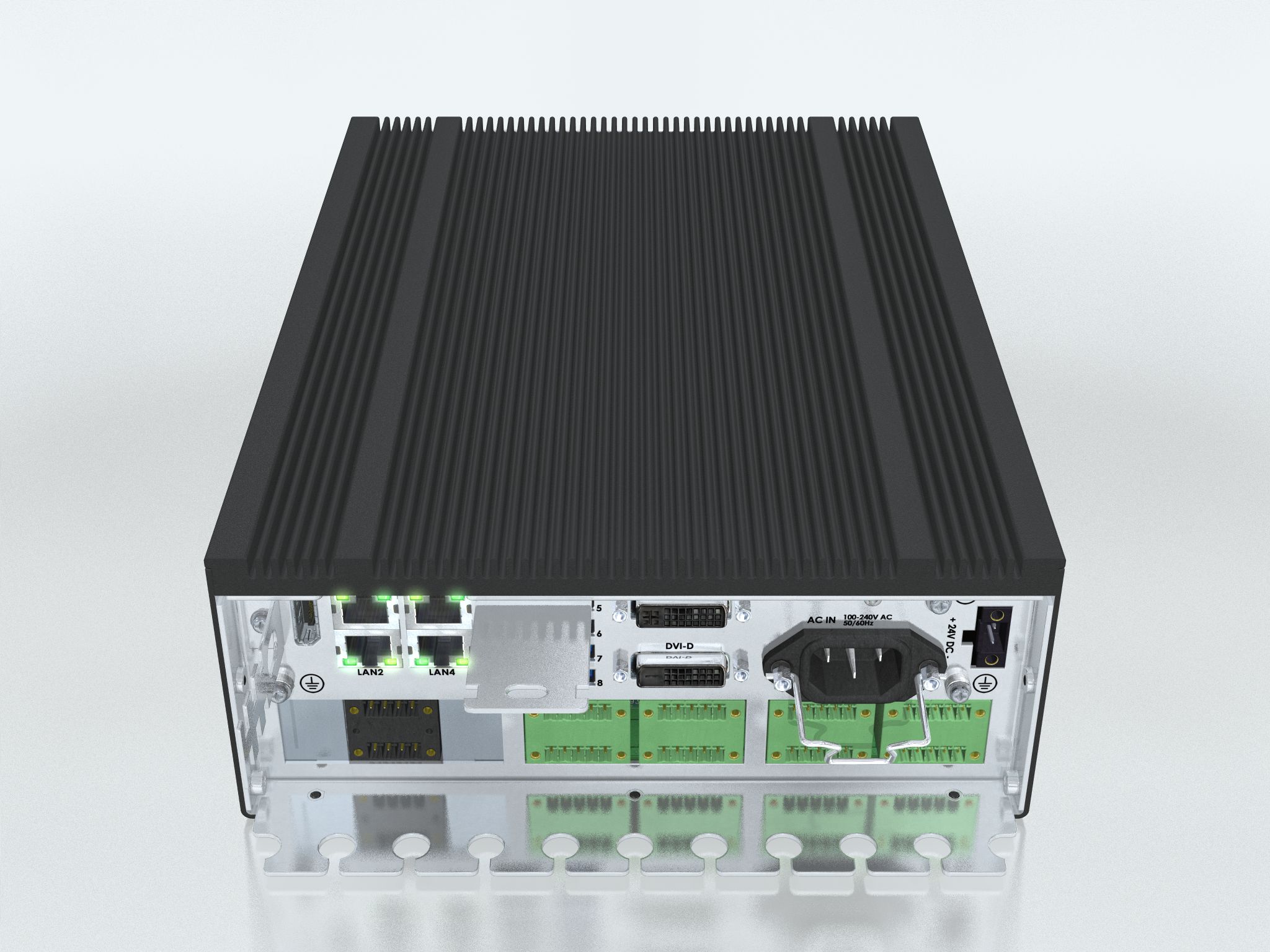

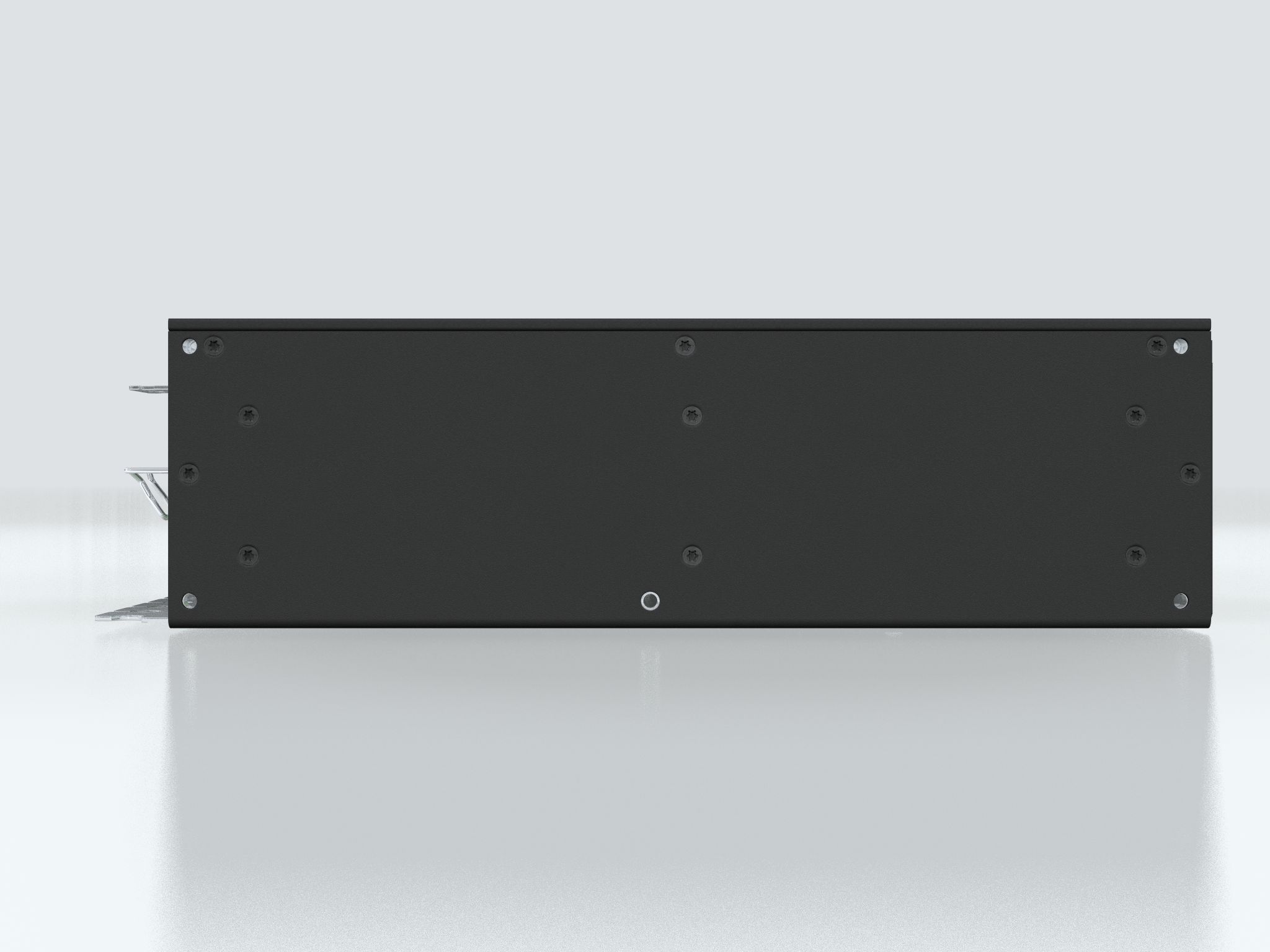

• HT RET STD-A1: 1 x Cable Retainer/Relief Kit***
• HT RMK STD-A1: 1 x 2U Rack Mount Kit, RAL9011
• HT RMK STD-H1: 1 x 2U Rack Mount Kit w/Handles, RAL9011
• HT SRK STD-A2: 1 x 3U 19" Slide Rack Mount Kit (For 1 or 2 x HTB30)
• SF-41-20: 2 x 20" ball bearing sliding rail kit for 19" Rack*
• SF-41-26: 2 x 26" ball bearing sliding rail kit for 19" Rack*
• JH C01MF A-A: 1 x USB Cable 1m, Type A/Chassis mount receptacle
• HD 000TR SX2-A2: 1 x Removable Front Tray 2.5" Empty
• HD xxxyy SX2-z2: 1 x Removable Front Tray 2.5" w/Storage Device
• HT 00300 MSOS: OS options -> https://www.hattelandtechnology.com/os
* Must be combined with HT SRK STD-A2
*** Included with delivery
Capabilities / Prepared for: None
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance: Standard: 30.00 [11.81"] - Steering: 25.00 [9.84"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, EN55024, EN55022 Class A, EU-RO-MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, ABS - American Bureau of Shipping, BV - Bureau Veritas, KR - Korean Register of Shipping, LRS - Lloyd's Register of Shipping

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Specifications last updated: June 3, 2025 @ 10:21
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
8 Jan 2025
HT B30 BIOS change

28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

10 Sep 2023
CAN FW Update

7 Aug 2023
Changes product marking - all products

23 Jun 2023
CAN FW Update

2 Feb 2023
HT B30 update due to component availability for motherb...

30 Jun 2022
SSD - Storage Devices, m.2 and 2.5''

10 Jun 2022
Addition of second source for strategic components - HT...

27 Oct 2021
HT B30 configuration update due to component shortage

7 Aug 2020
NMEA COM module (isolated 4 x RS-485/RS-422)

28 Apr 2020
Updated version of 19 inch Rack Mount Kit for HT B30 co...

3 Jan 2020
Microsoft® Windows® IoT update

1 Oct 2019
HT B30 - Compact Fanless Computer - Redesigned Front

10 May 2019
SSD - Storage Devices, m.2 and 2.5''

8 Feb 2019
BIOS update for HT B30

End of Life Notifications (EOL):
13 Aug 2024
End of License (EOL) for Microsoft® Windows® 7

2 Sep 2019
Global Documentation and Driver DVD

News Stories:
30 May 2017
Hatteland Display Boosts Power of Solid State Fanless C...

26 May 2017
HT B30 - New Compact Fanless Computers
