Computer - High End - Compact

HT C01

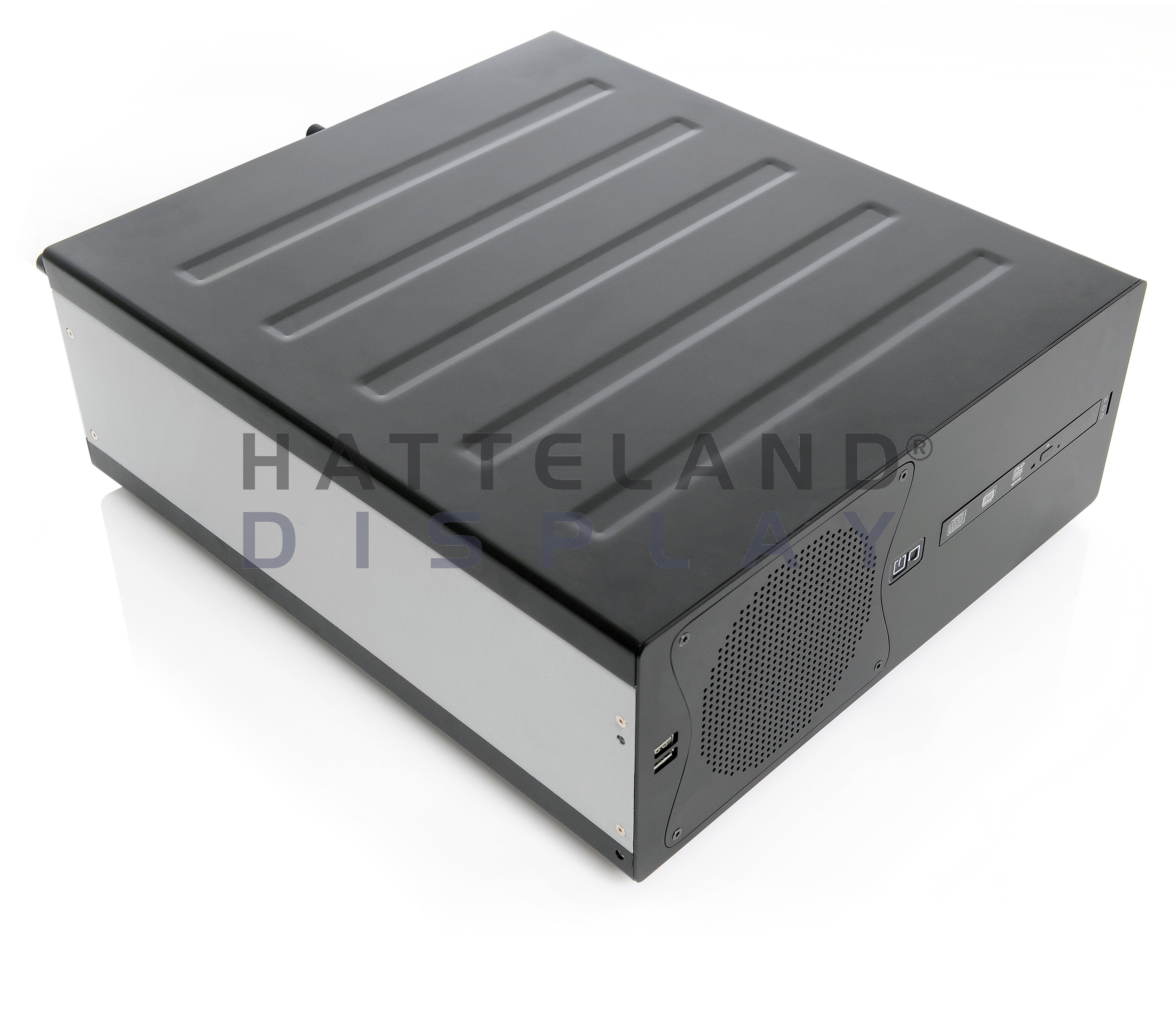

The HT C01 is a compact industrial computer with extreme performance and most computer functions built into a form factor that can be placed virtually anywhere. AC or DC models are available.

High End

Send Request

Description

Specifications

Installed Operating System Options:	None or Microsoft® Windows® Embedded Enterprise (32bit: XP Pro / Win Server 2003 / Win 7 Pro / Win Server 2008)
Storage Options:	1 x 1TB HDD 2.5" SATA, 5400 RPM, Automotive or 1 x internal SSD SATA 2.5" 40GB, 80GB, 120GB or 300GB
Processor / CPU and FSB Speed Options:	1 x Intel® Core™2 Duo E8400, 3.0GHz, 1333MHz FSB, 6MB L2
Memory Options:	2 x 1GB Dual Ch. DDR2 800/667MHz, SDRAM, 240-pin DIMM 4 slots available, max 8GB possible
System+Graphics Chipset / Connectors:	Intel® Q35, ICH9DO / Intel® GMA 3100 integrated with 1 x HD DB15F (female) VGA OUT and 1 x 29P (female) DVI-I
Max Resolution / Max Hz:	2048 x 1536 @ 75Hz
BIOS:	AWARD BIOS. On-board BIOS Speaker.
PCI Slots / PCIe Slots:	2xPCI2.3, 3V/5V Interface + 1xPCIe x16 (add2) + 1xPCIe x1 All slots are Full Height&Full Length profile
Media Drive(s):	1 x DVD-RW/CD-RW Dual Recorder/Player

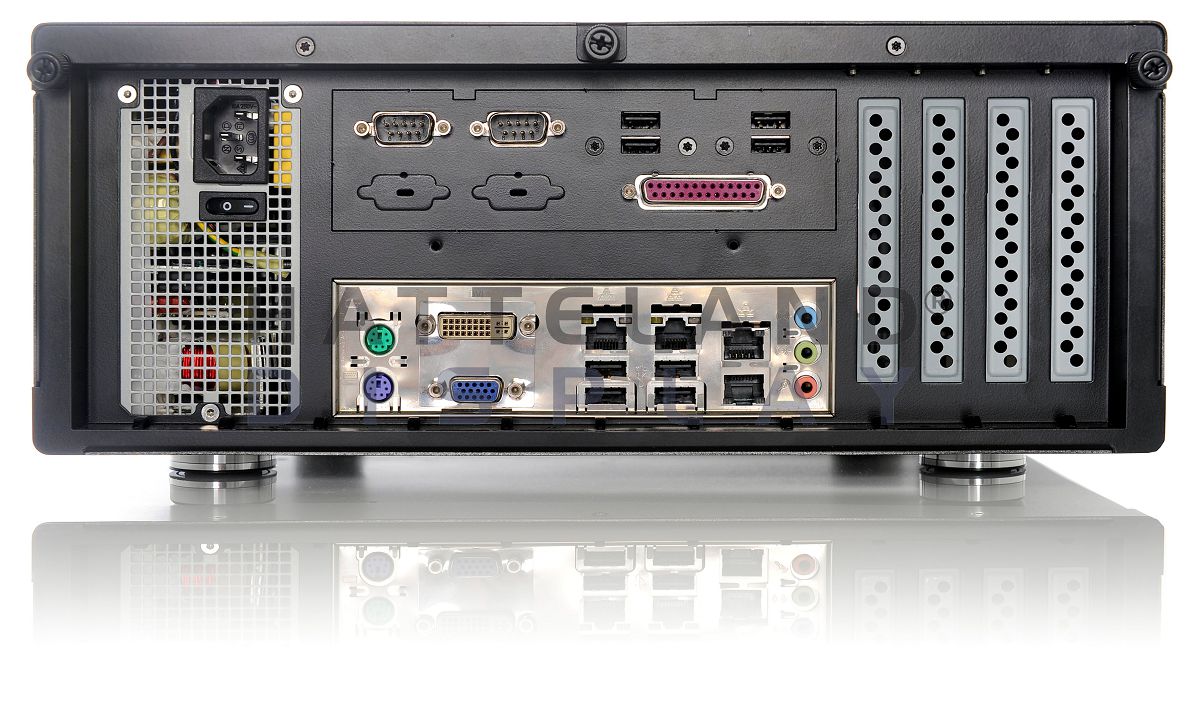

LPT / Parallel Port:	1 x DB25F Bi-Directional Centronics with ECP/EPP mode
Serial Port(s):	2 x DB9M RS-232
Ethernet Port(s):	2 x RJ45 10/100/1000Mbps - Intel® 82566DM, Intel® AMT 2 x RJ45 10/100/1000Mbps - Realtek RTL 8168C(P)8111C
USB Port(s):	8 x USB2.0/1.1 Type A (rear) + 2 x USB2.0/1.1 Type A (front)
Keyboard and Mouse Ports:	1 x PS/2 Keyboard + 1 x PS/2 Mouse
Audio Ports:	3 x 3.5mm Jacks (LINE IN/LINE OUT/MIC IN) or option (+1 x DB9F) Realtek ALC888 7.1 channel, HD Audio
Buzzer:	None
Power Manager and Monitoring:	ACPI - Temperature, voltage, cooling fans with auto throttle. Watchdog Timer, reset: 1 sec~255 min&1 sec. or 1 min/step
Power Specifications and Consumption:	115/230VAC - 50/60Hz (330W) or 24VDC (220W) f AC Power IN: 1 x Std IEC inlet If DC Power IN: 1 x 2p DSUB (male) Amphenol FCC17 Operating 70W (typ)
Digital I/O Connectors:	None
Key Features:	High Performance, Replaceable Air Filter in front, Service friendly, AC or DC power input, Includes mounting brackets, reddot design award honourable mention 2009
Product Dimensions and Weight:	W:345.00 [13.58"] x H:133.00 [5.24"] x D:390.00 [15.35"] mm [inch] 3U Rack size in height. Approx 10kg / 22lbs
Product Carton Size and Weight:	L:560.00 [22.05"] x W:240.00 [9.45"] x H:480.00 [18.90"] mm [inch] 2.0kg / 48.4lbs

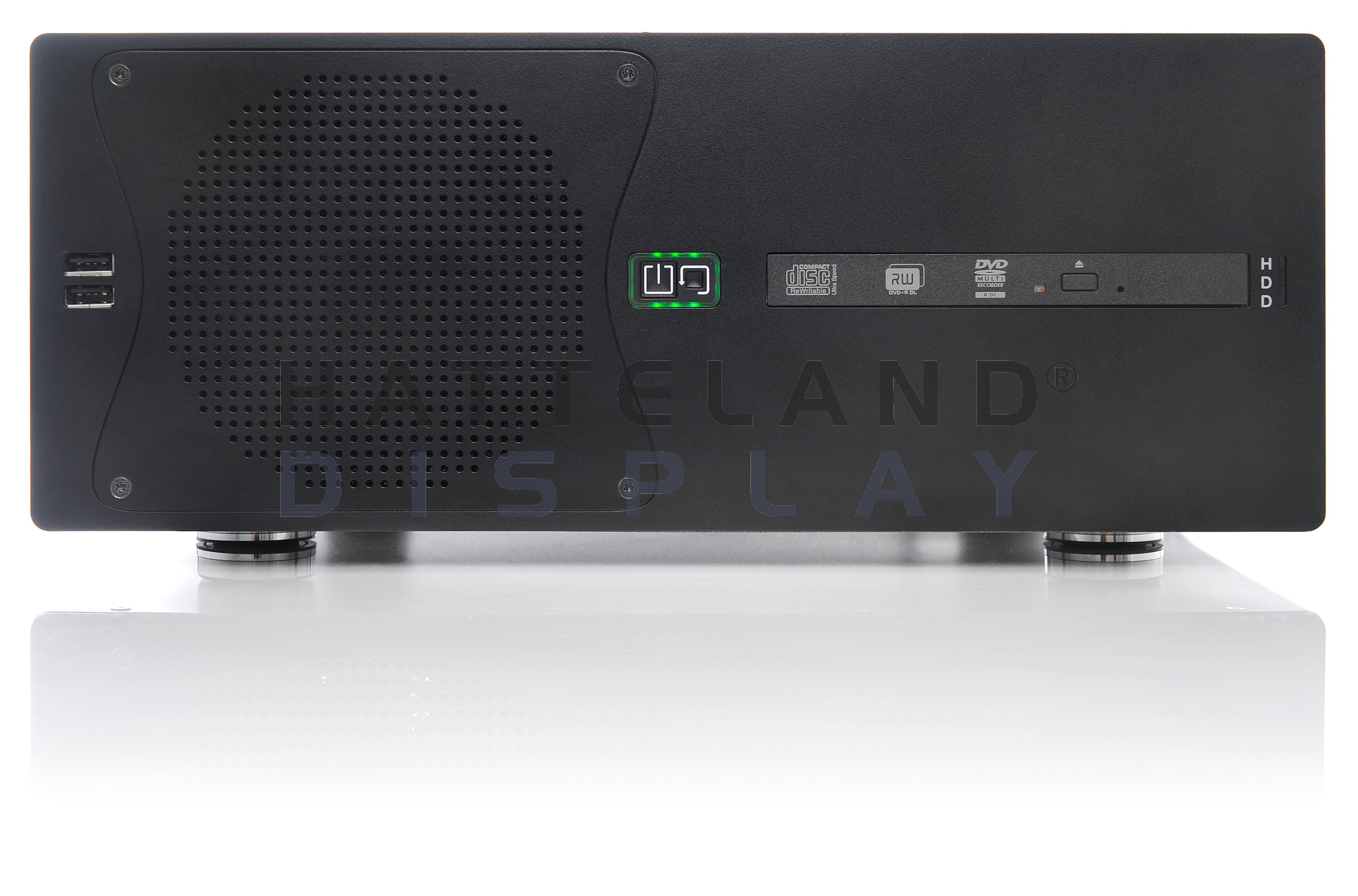

User Controls / Activity:	In front: Power On/Off Push Button, Reset Button, Power LED and HDD/SSD LED
Factory Options:	• 1 x Matrox DualHead® P690, PCIe x16 / x1 / PCI Low Profile • 1 x Bluestorm Serial I/O Card (4 x COM ports, RS-232/422/485) • Future support for larger HDD sizes possible
Accessories:	• HT 00225 OPT-A1: 2 x 26" ball bearing rail/mount kit for 19" Rack • HT 00224 OPT-A1: 2 x 20" ball bearing rail/mount kit for 19" Rack • HT 00229 OPT-A1: 1 x Mounting Bracket PCI Kit HT C01 • HT 00223 OPT-A1: 1 x 4U 19" Rack Case Kit (for HT 00224/00225 • JH C01MF A-A: 1 x USB Cable 1m, Type A/Chassis mount receptacle • HT 00226 OPT-A1: 2 x Bracket, 4mm SECC+Zinc Plating, RAL9011 • HT 00235 OPT-A1: 1 x 2W Amplified Audio out via 1 x DB9F • HT 00300 MSOS: OS options -> www.hatteland-display.com/os
Capabilities / Prepared for:	• 4 x COM Ports - Supports RS-232/422/485 • 8 x COM Ports - Supports RS-232/422/485 • Up to 8GB DDR2 800/667MHz SDRAM, 240-pin DIMM
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% DNV Temperature Class B 70.0°C / 158.0°F for 2 hours
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 150.00 [59.06"] - Steering: 95.00 [35.63"] cm inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), EN61162, IACS E10, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition

Specifications last updated: May 8, 2025 @ 12:59
