HT MMC

Overview

Description

Specifications

Type Approvals

Downloads

Accessories

Computer - Silent - Backpack - Ultra Compact

HT MMC

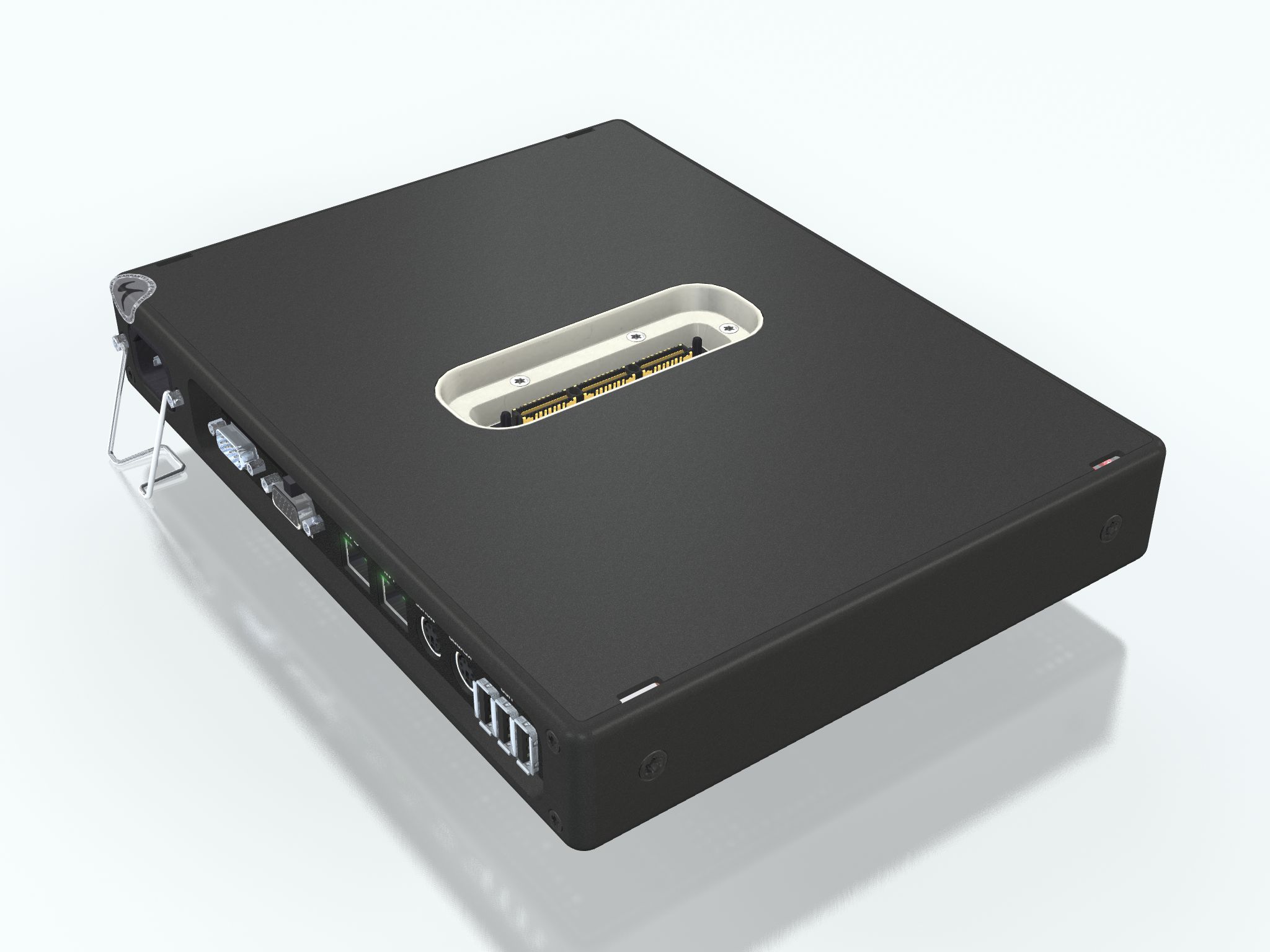

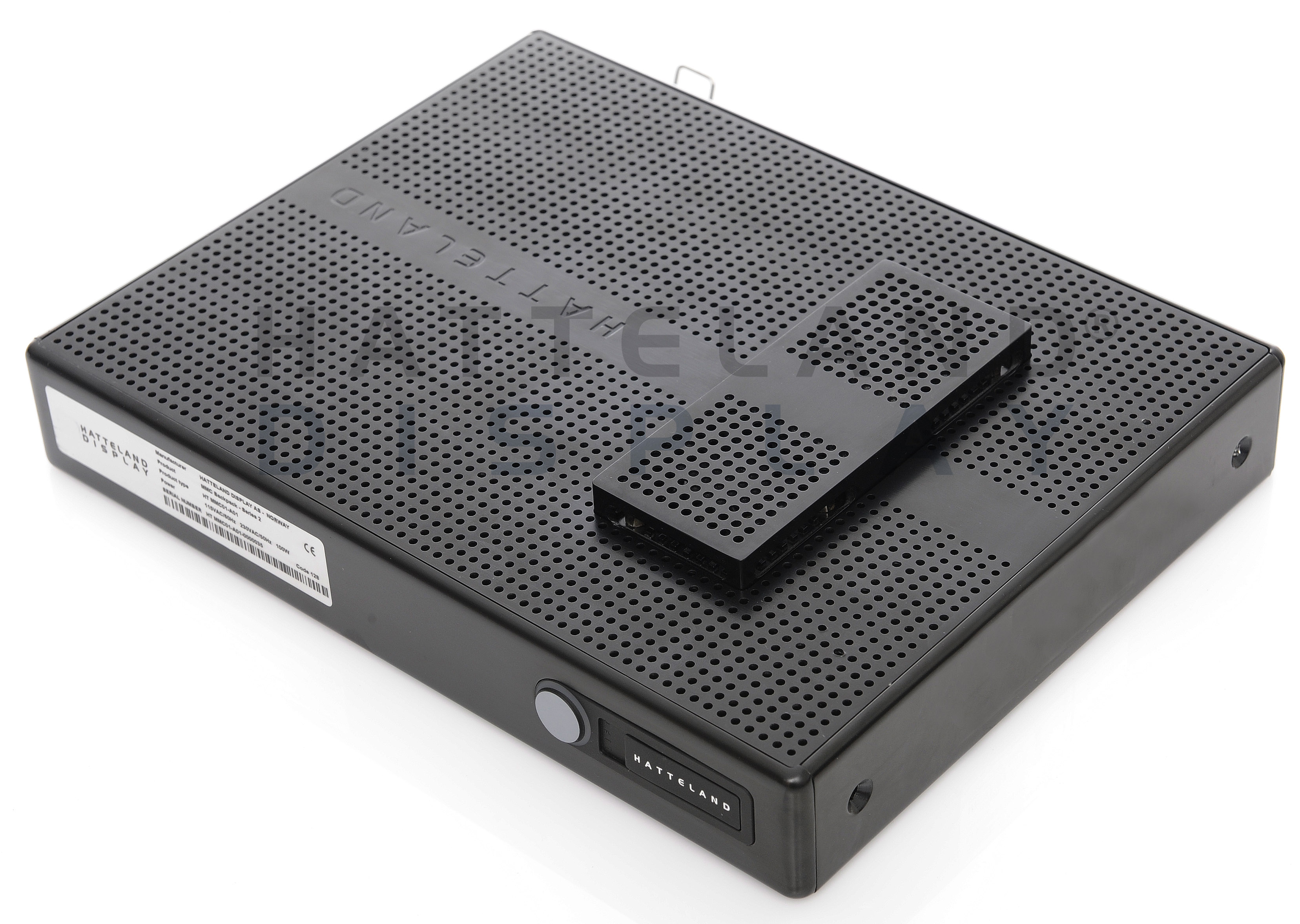

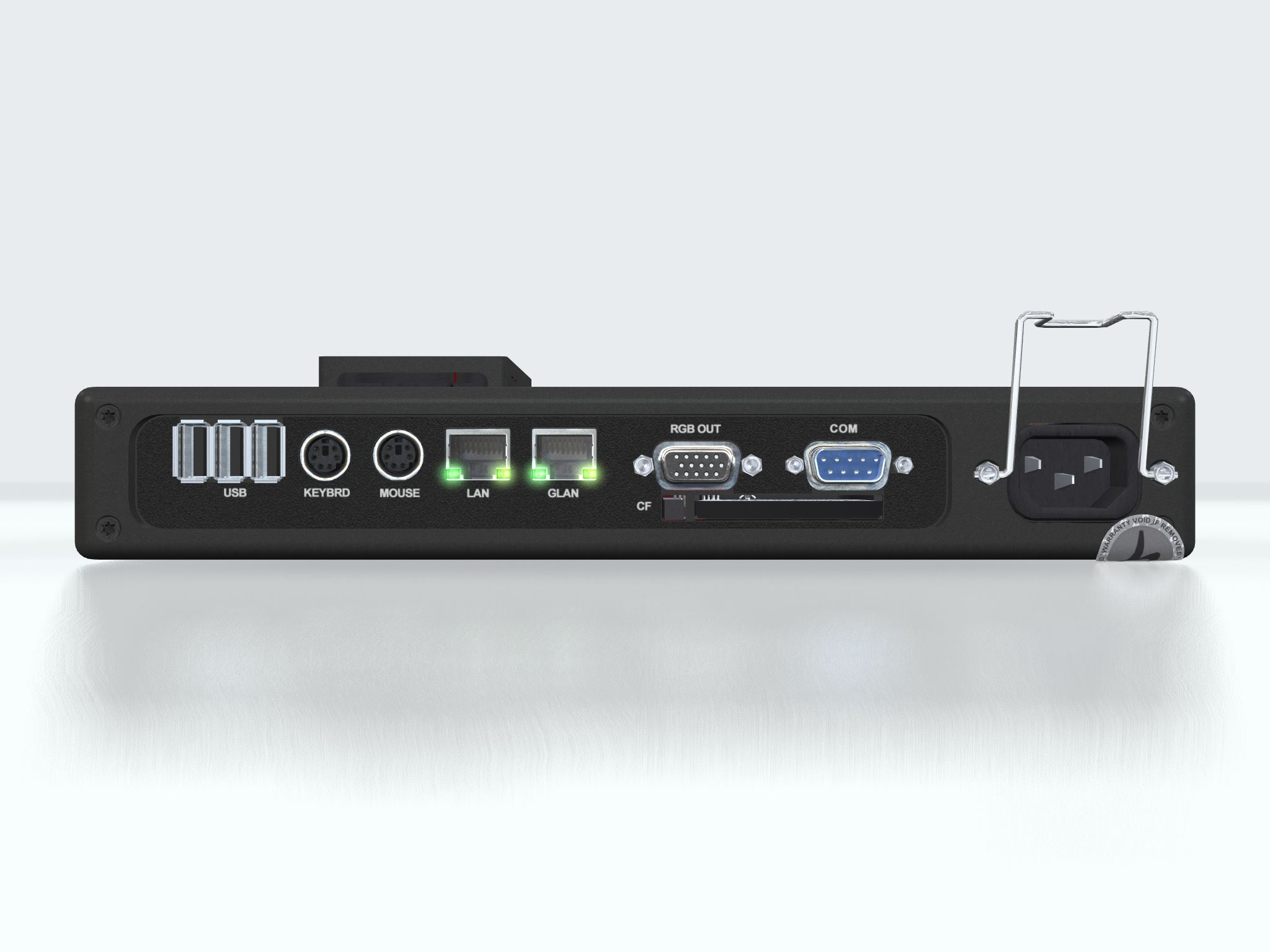

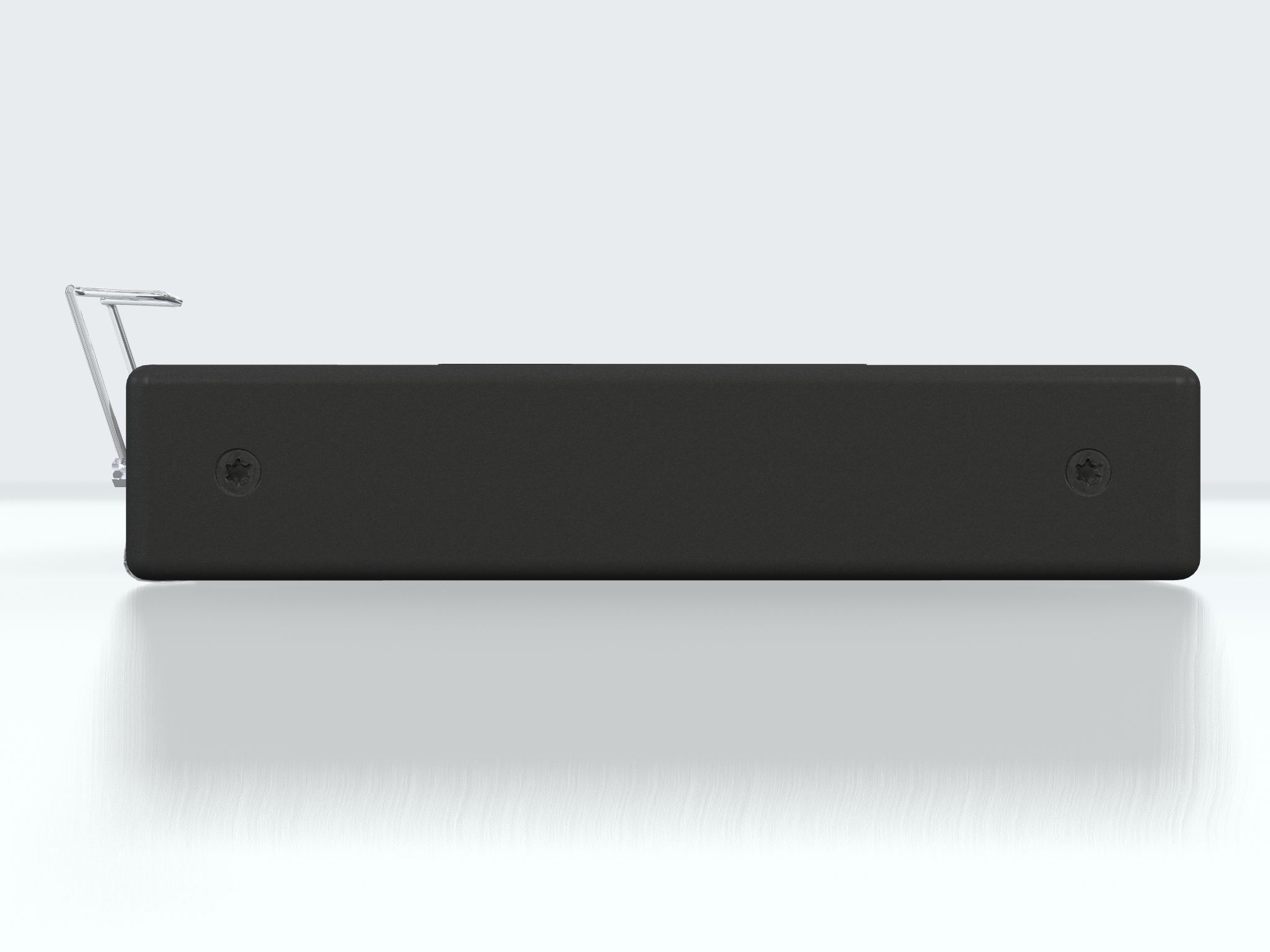

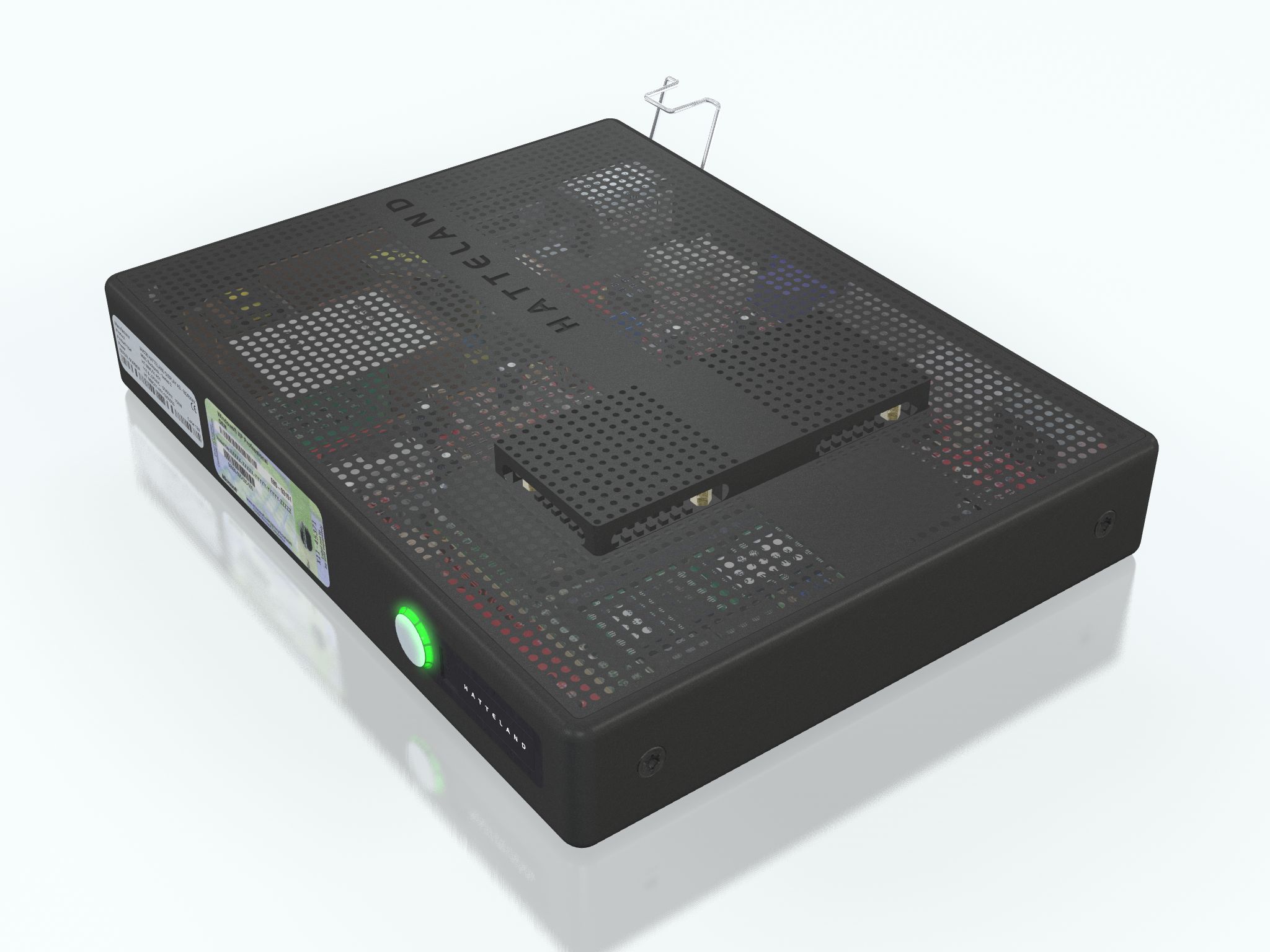

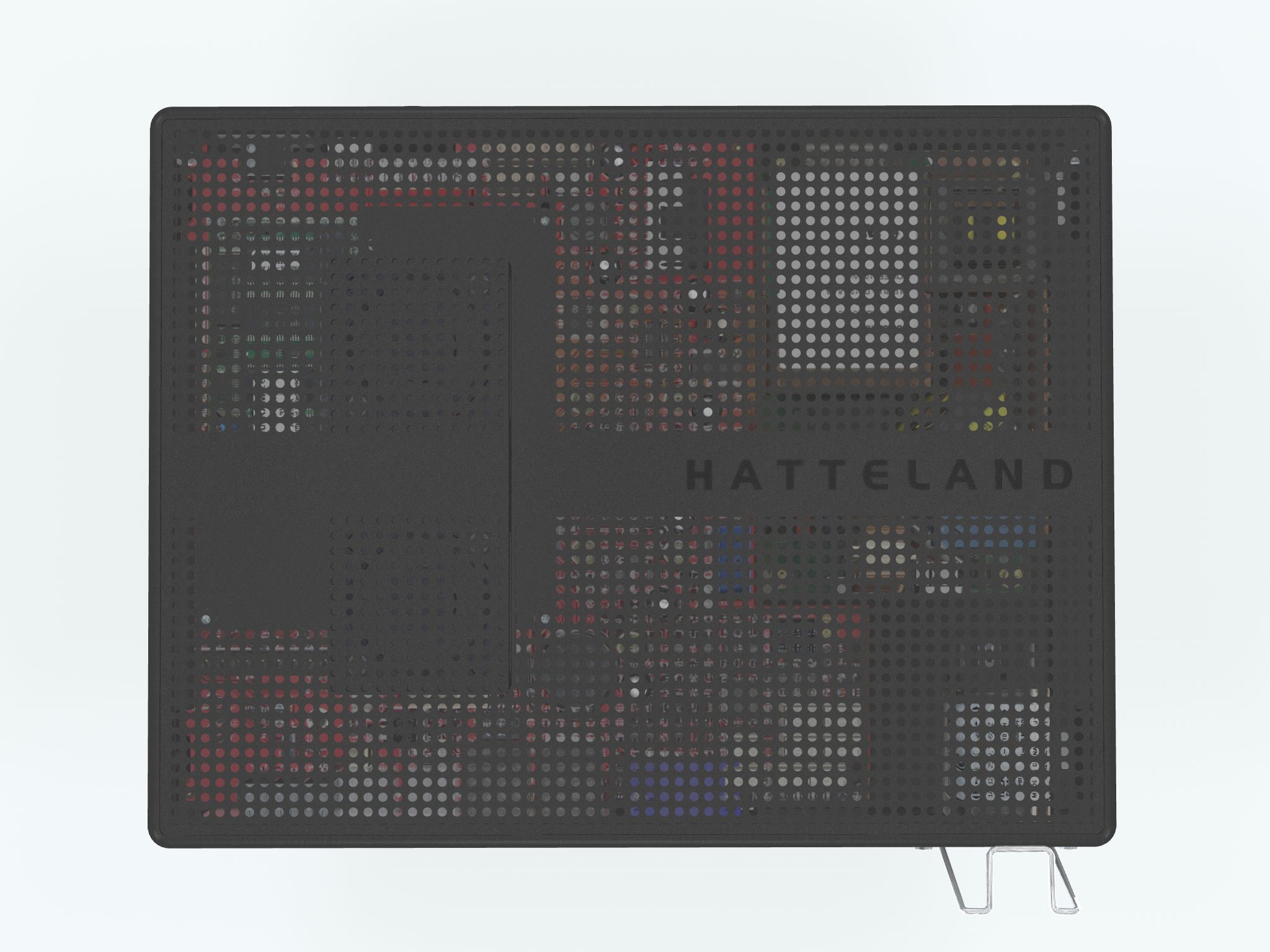

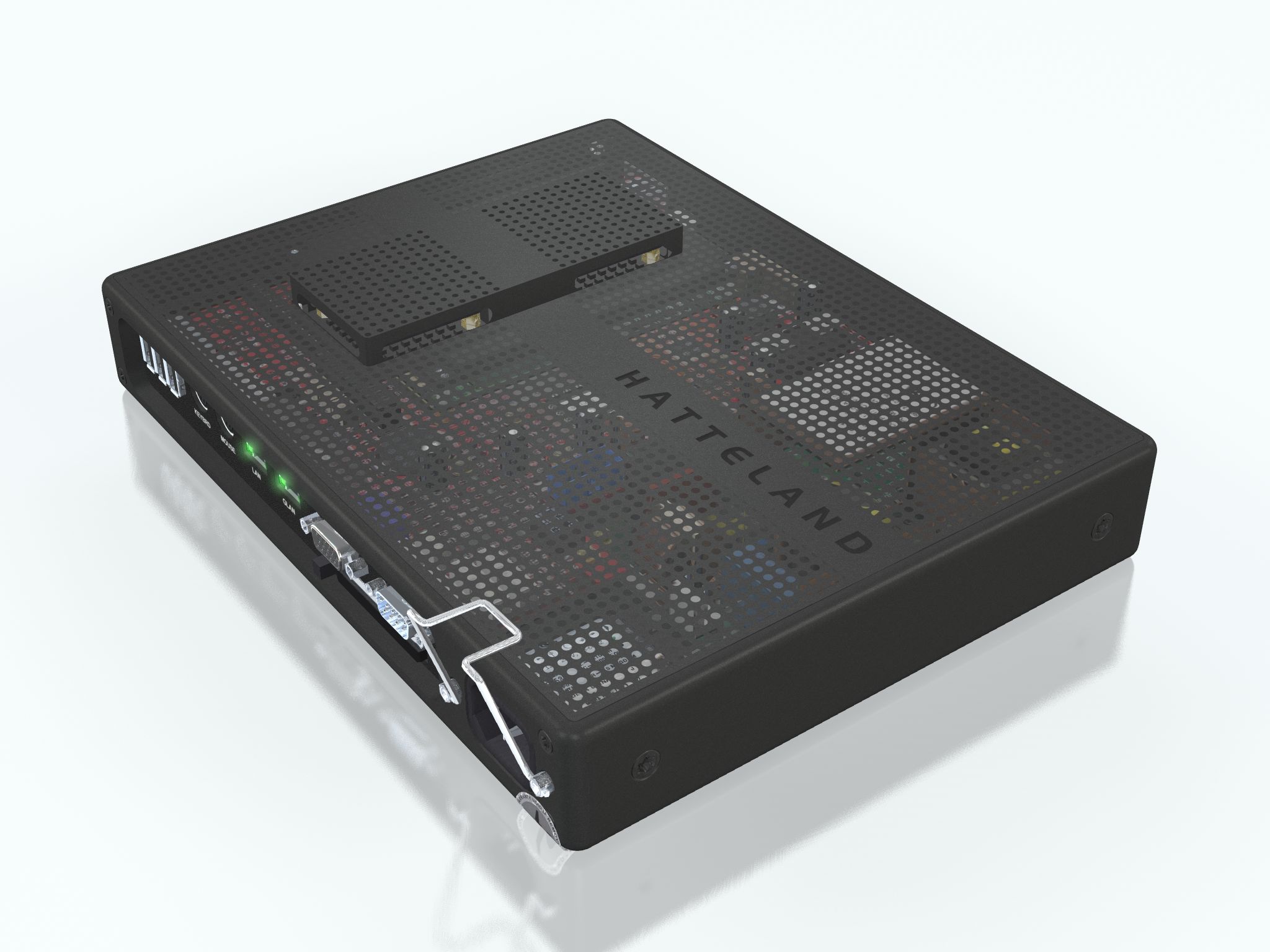

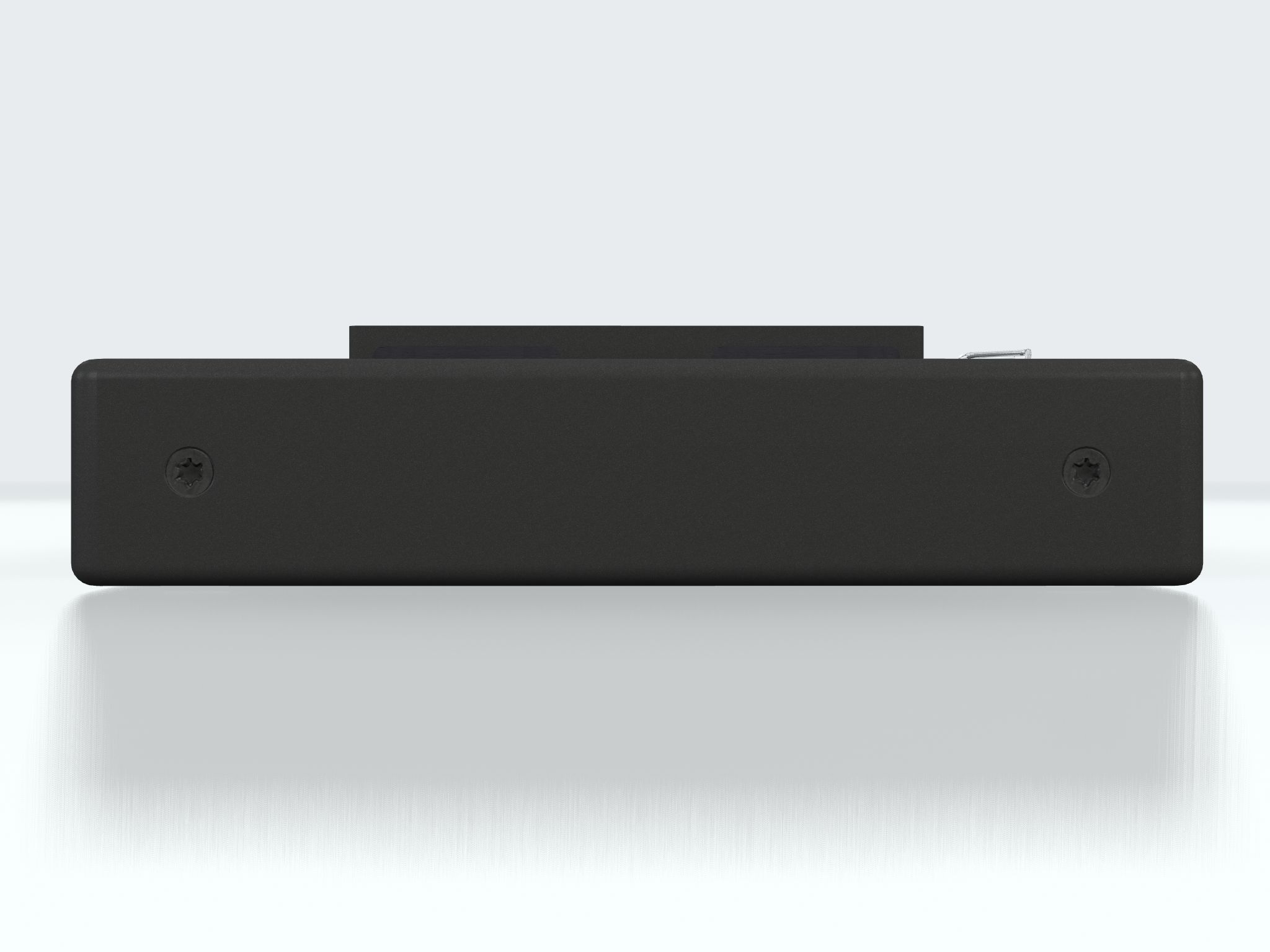

Ultra compact, lightweight and stand-alone computer with extreme performance and with most computer functions. The unit has two silent processor fans to provide cooling, thus no other moving parts inside.

Silent

Backpack

Send Request

Description

Specifications

Installed Operating System Options:	Microsoft® Windows® Embedded Enterprise (XP Professional ENG w/SP2c, 32bit)
Storage Options:	• 4GB 2.5" Flashdrive ATA-3 • Compact Flash Type I&II Compatible bay (with eject button)
Processor / CPU and FSB Speed Options:	Intel® Pentium®M 1.6GHz Low Voltage, 2MB L2 Cache, 400Mhz FSB or Intel® Pentium®M 745 "Dothan",1.8GHz,2MB L2 Cache,400MHz FSB or Intel®Celeron®M 600MHz, ULV, Zero-Cache, 400MHz FSB
Memory Options:	1 x DDR333Mhz SODIMM ECC 512MB r 1 x DDR333Mhz SODIMM ECC 1GB
System+Graphics Chipset / Connectors:	Intel® 855GME - Intel® Extreme Graphics2 integrated VGA or Intel® 852GM - Intel® Extreme Graphics2 integrated VGA 1 x HD DB15F (female) VGA
Max Resolution / Max Hz:	2048 x 1536 @ 85Hz
BIOS:	Award 2Mbit Flash BIOS
PCI Slots / PCIe Slots:	None
Media Drive(s):	None
LPT / Parallel Port:	None
Serial Port(s):	1 x D-SUB 9P (male) - RS232/RS422/RS485 1 x COM2 Internal (Serial Control Interface)
Ethernet Port(s):	1 x RJ45 Ethernet LAN 10/100Mbps 1 x RJ45 Ethernet GBLAN 10/100/1000Mbps
USB Port(s):	3 x USB2.0 Type A (rear) 1 x USB2.0 Type A (behind hatch)
Keyboard and Mouse Ports:	1 x PS/2 Keyboard 1 x PS/2 Mouse
Audio Ports:	None
Buzzer:	None
Power Manager and Monitoring:	ACPI - Temperature and voltages status Watchdog Timer: 256 levels
Power Specifications and Consumption:	115/230VAC - 50/60Hz or 24VDC TBD W (max) (CPU @ 100%)
Digital I/O Connectors:	None
Key Features:	Extreme Compact Form Factor, Silent Processor Fans, no other moving parts, Series 2 Backpack Concept (to act as a Panel Computer)
Product Dimensions and Weight:	W:260.00 [10.24"] x H:40.00 [1.57"] x D:200.00 [7.87"] mm [inch] Approx 1.8kg / 4.0lbs
Product Carton Size and Weight:	N/A
User Controls / Activity:	Power On/Off (Push Button), Mode Status LED-Ring Indicator, Power LED
Factory Options:	HD xxT0x xxxx - Stand-alone display unit. (When combined with backpack you wil have a complete functional Maritime Multi Computer (panel computer) unit.
Accessories:	Backpack mount bracket
Capabilities / Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Compass Safe Distance:	Standard: 25.00 [9.84"] - Steering: 15.00 [5.91"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register

Specifications last updated: May 8, 2025 @ 12:59
