 Marine & Offshore  / Monitor  / HATTELAND® Series X G1  / HD 08T21 STD

HD 08T21 STD

Overview

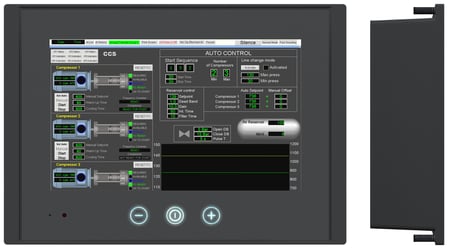

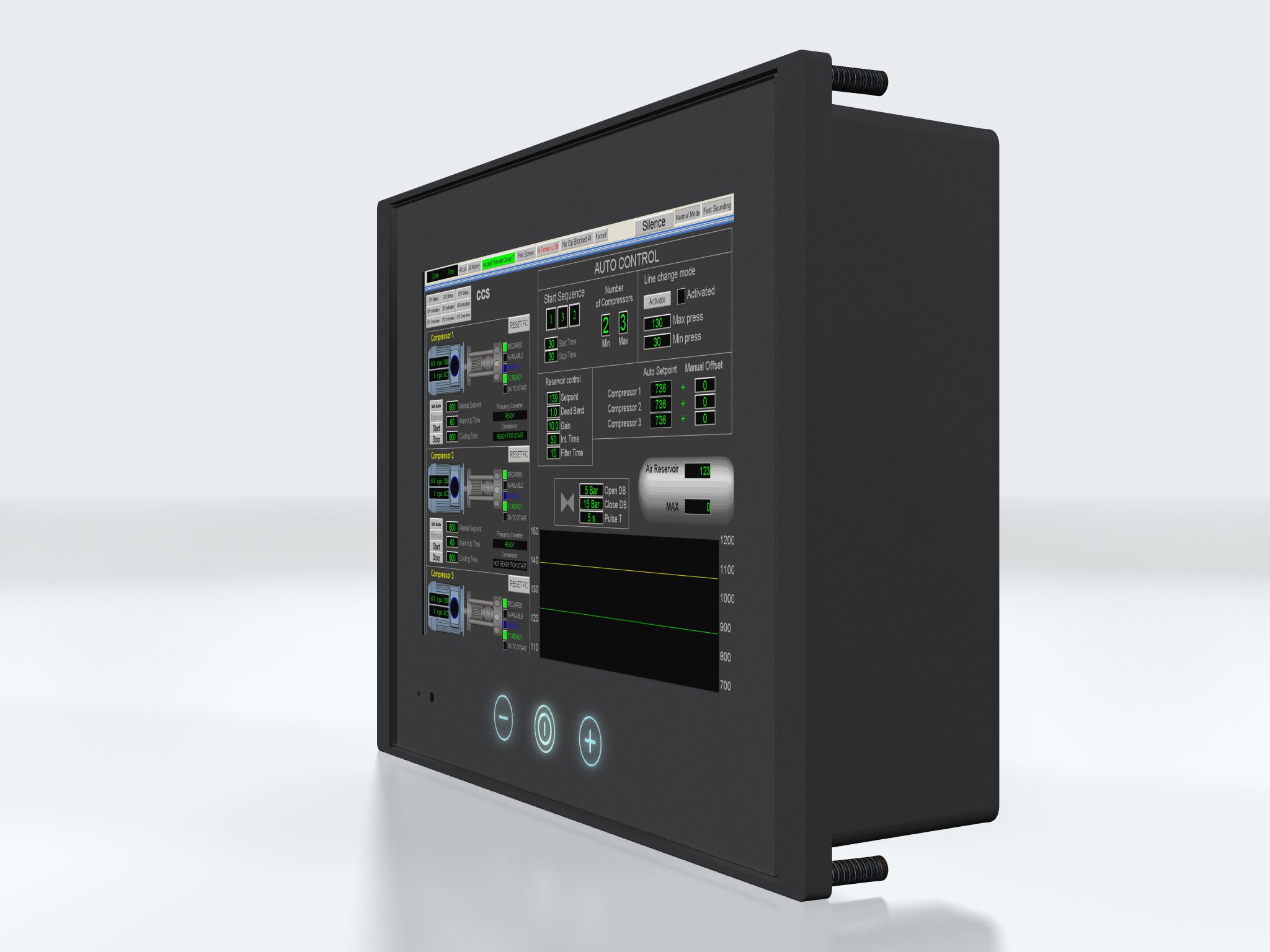

Monitor - Widescreen - LED - HATTELAND® Series X G1 - 8.0 inch

HD 08T21 STD

Series X Monitors offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications.

icon
Widescreen
icon
LED-backlit
Send Request
Description

Monitor - HATTELAND® Series X G1

The Series X monitor range is a flexible monitor solution designed and type approved for the professional maritime segment, where reliability and long life time are key prerequisites for the industry. The product range combines stunning design and technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.

The entry level STD models provide a wide choice of monitor size and format for shipboard applications where simple data input (DVI & VGA) is required. Be it for ship navigation or automation, this range with all it's possible options provides a robust and cost effective platform from which to monitor and manage data.

This model is delivered with a factory mounted Projected Capacitive Touch Screen (Multitouch, USB interface) as standard and feature LED Backlight Technology.
Specifications
TFT Technology: LED Backlight Technology, TTL Interface, a-si TFT Active Matrix, Widescreen
Viewable Size and Active Area: 8.0 inch - 173.40 [6.83"] (H) x 104.40 [4.11"] (V) mm [inch]
Native Resolution and Pixel Pitch: 800 x 480 (WVGA) - 0.2168 (H) x 0.2168 (V) mm
Aspect Ratio and Response Time: 5:3 - 5/11ms (typ) (Tr/Tf)
Light Intensity and Contrast Ratio: 600 cd/m² (typ) - 600:1 (typ)
View Angle and Max Colors: 70 deg. (up/down) / 60 deg. (left/right) - 16.7 million
Optimal Resolution and Hz: 800 x 480 @ 60 Hz
Detectable Resolutions: 800 x 480
Composite Video Input(s): None
Supported Video Signals: None
Product Features: Projected Capacitive Technology (PCTouch) MULTITOUCH, Dimmable 0-100%, Buzzer
Power Specifications and Consumption: 2 x 24VDC, Galvanic Isolated, Automatic Switch <> sources
20W (typ) - 75W (max)

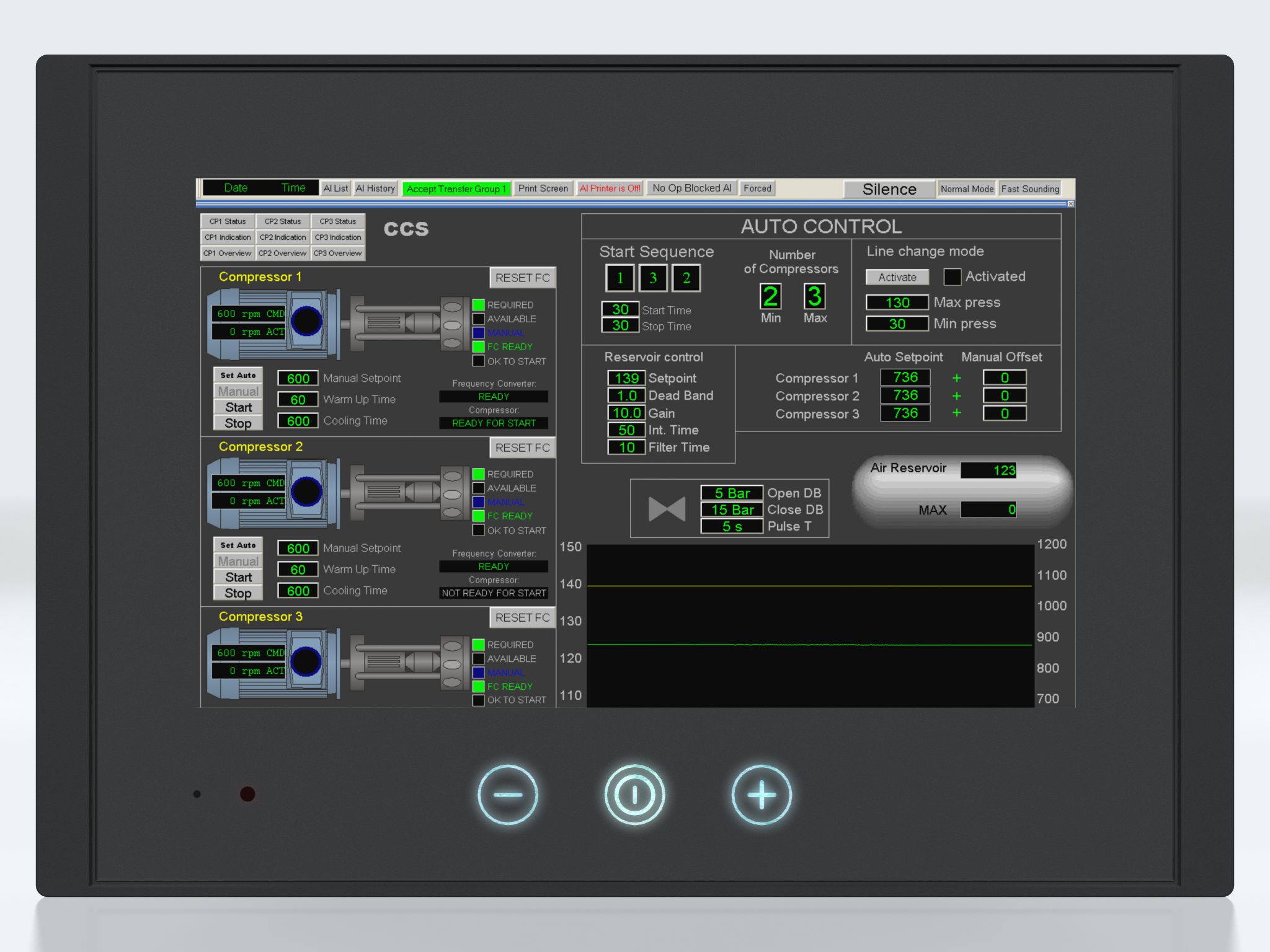

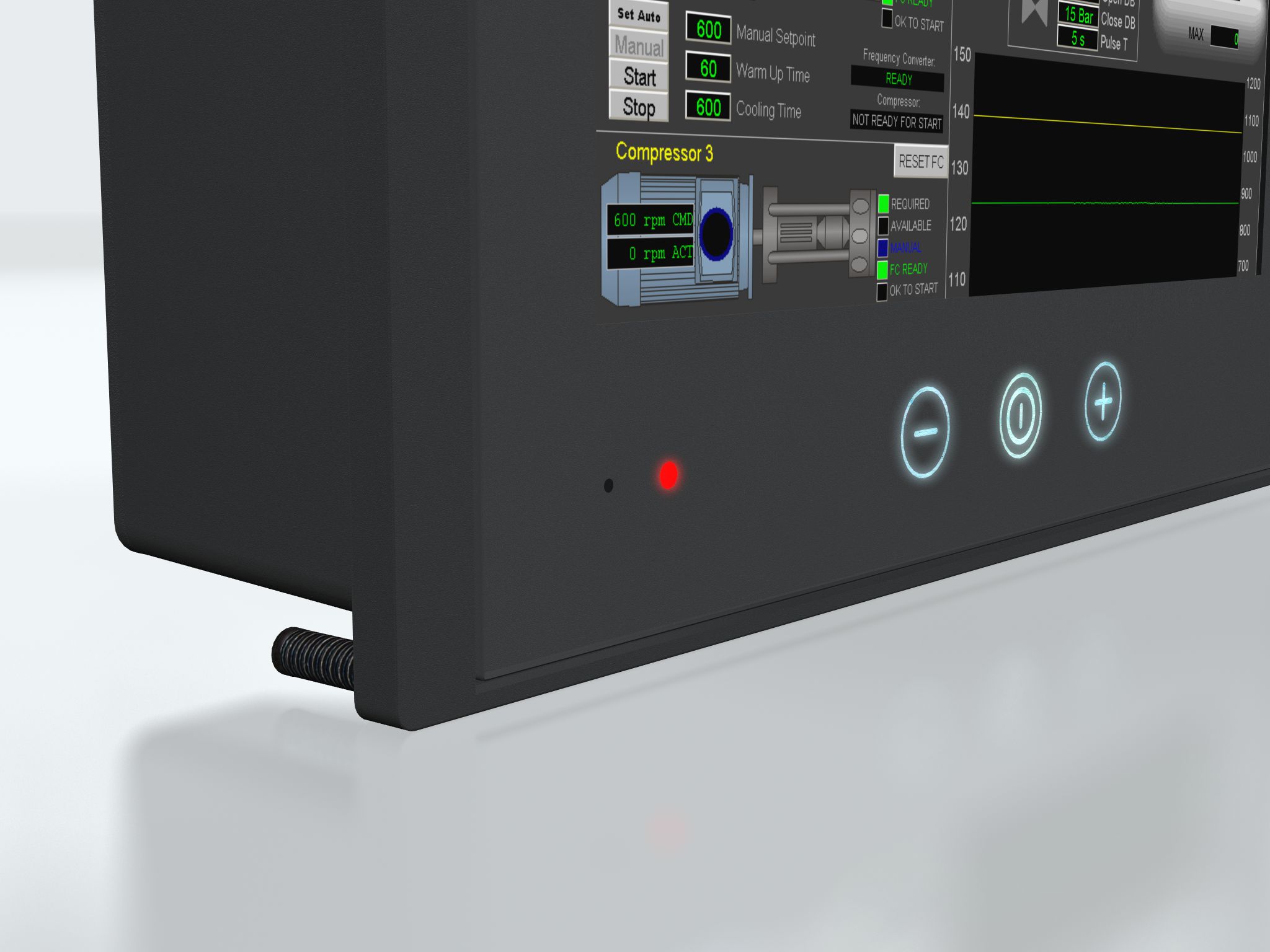

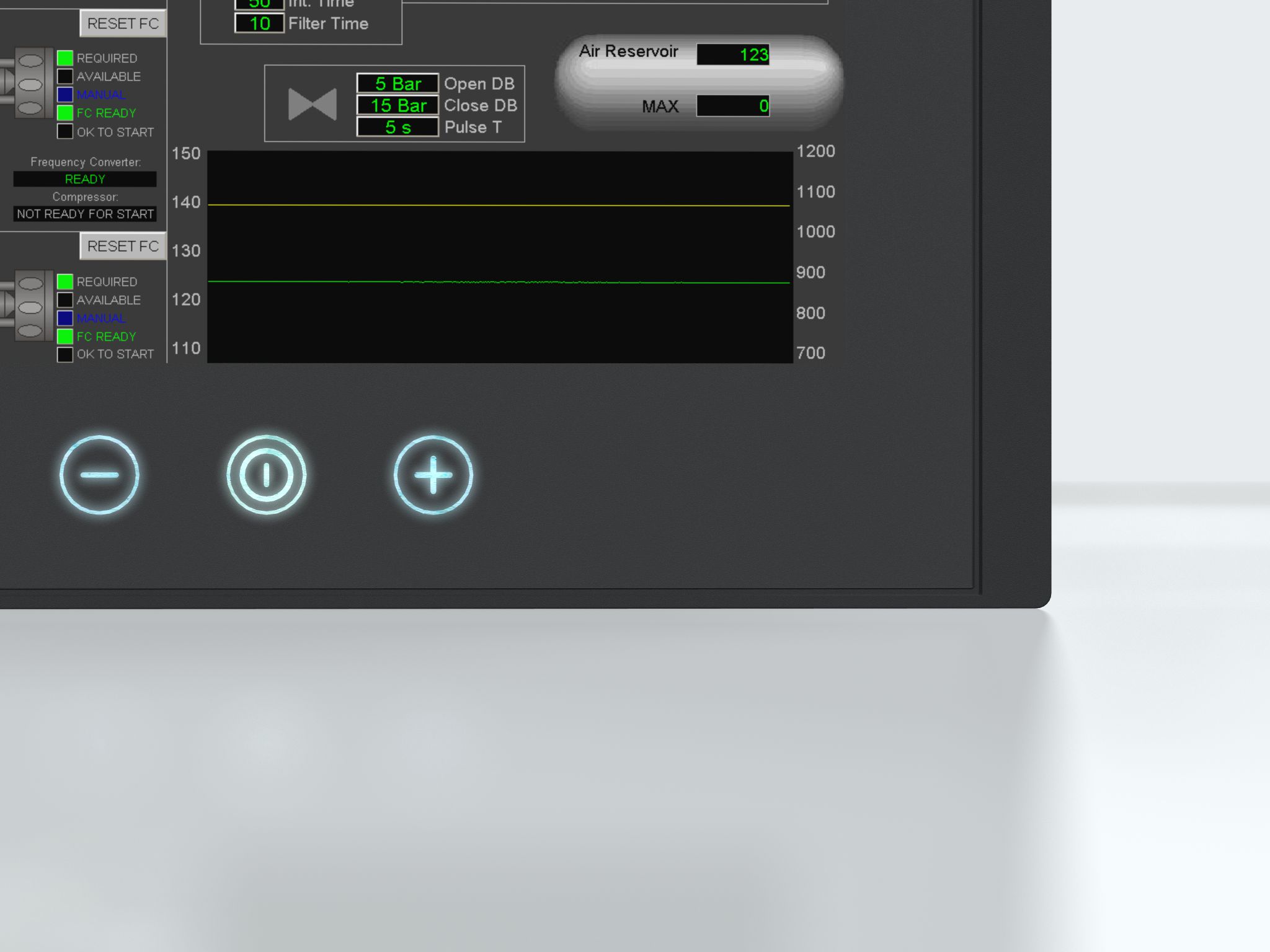

User Controls and Activity: Glass Display Control™ (GDC) IP66 with:
Power On/Off, Brightness Control (-/+), Light Sensor (not visible), Programmable Alarm LED, Buzzer (not visible)

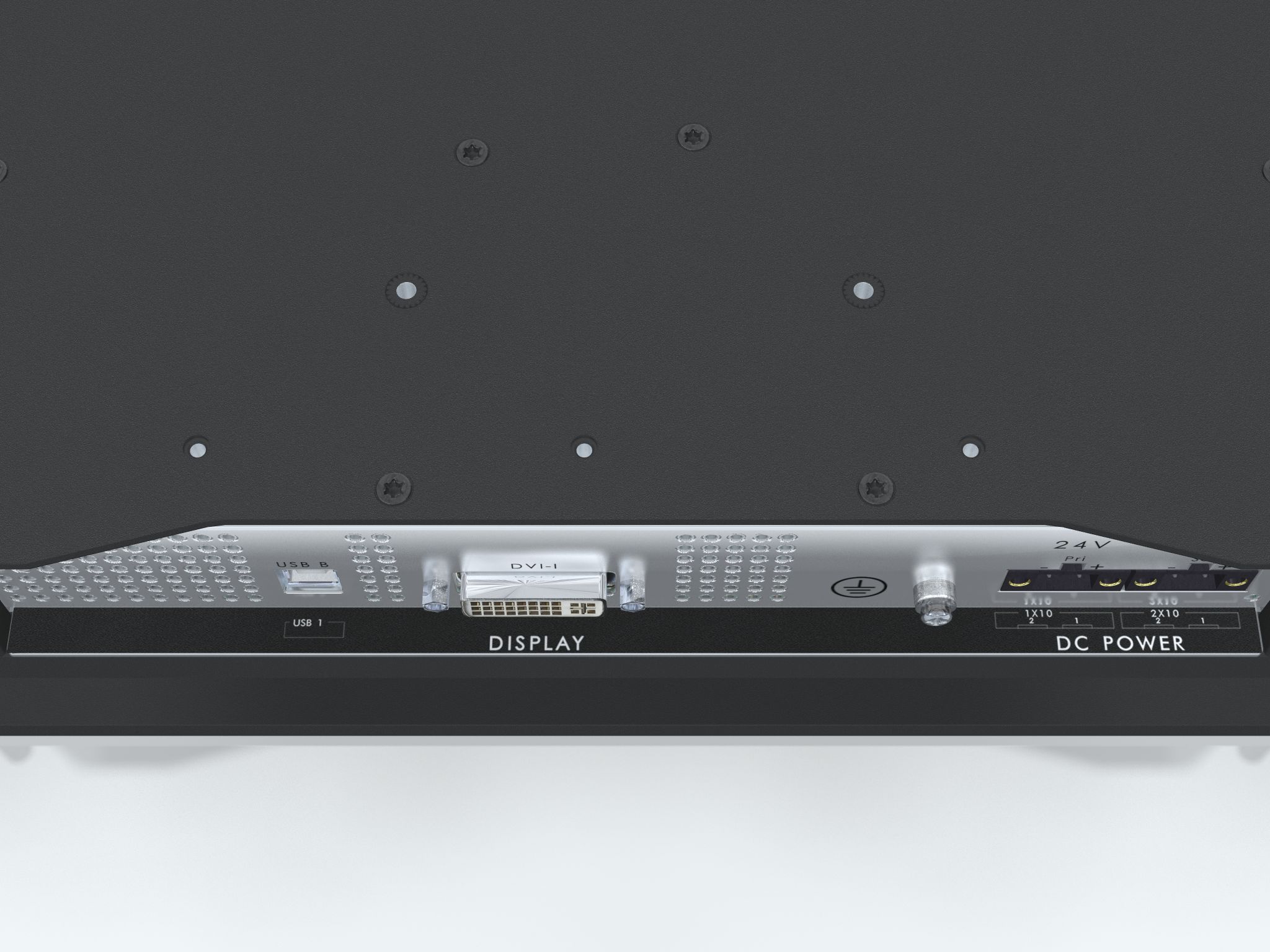

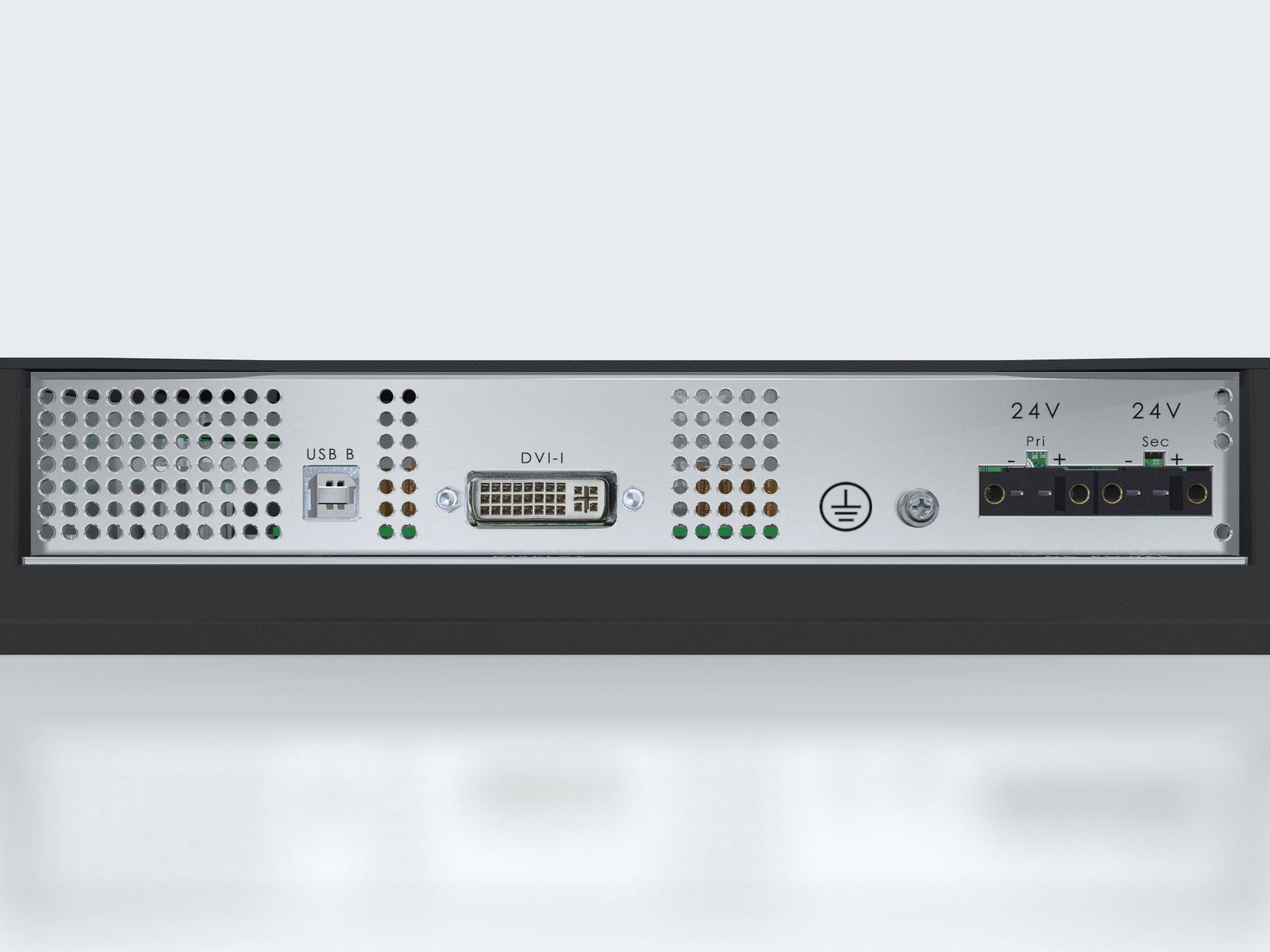

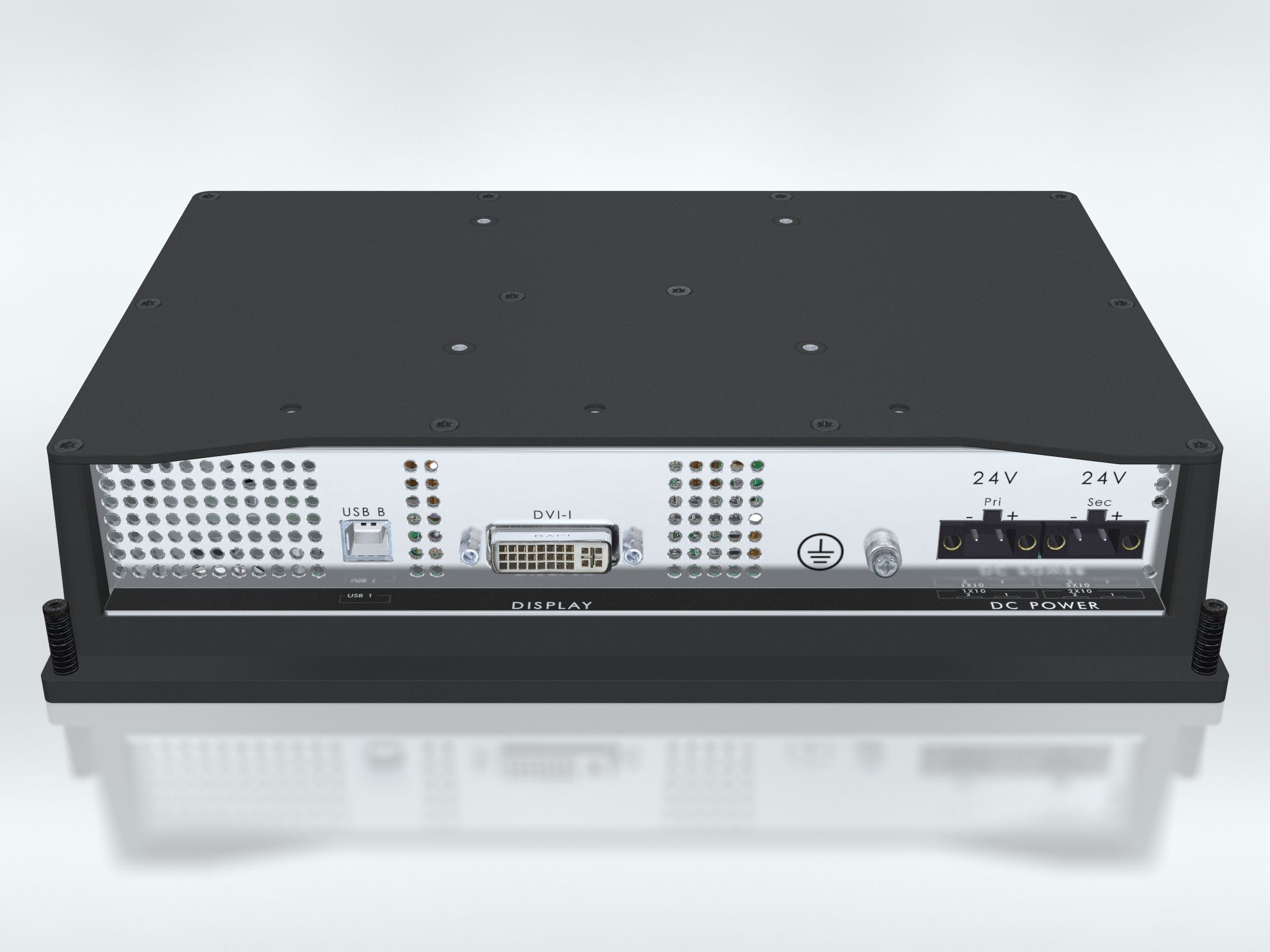

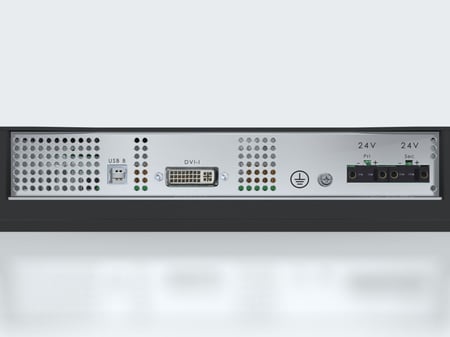

Connectors: • DVI IN: 1 x DVI-I 29P (female) or VGA IN via Adapter
• Touchscreen: 1 x USB Type B (female). Use USB2.0 (<5m) port.
• DC Power IN: 2 x 2-pin Terminal Block 5.08

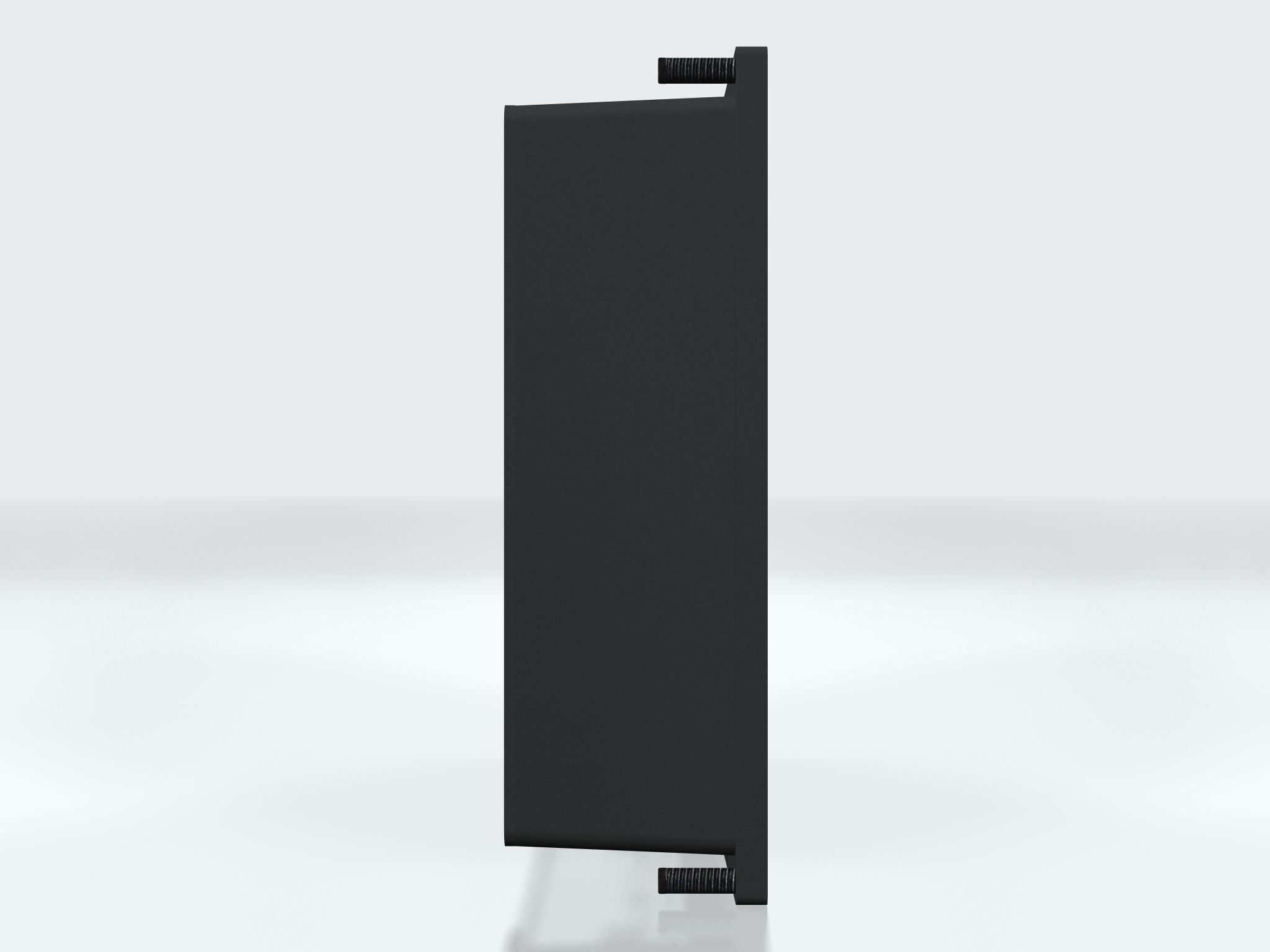

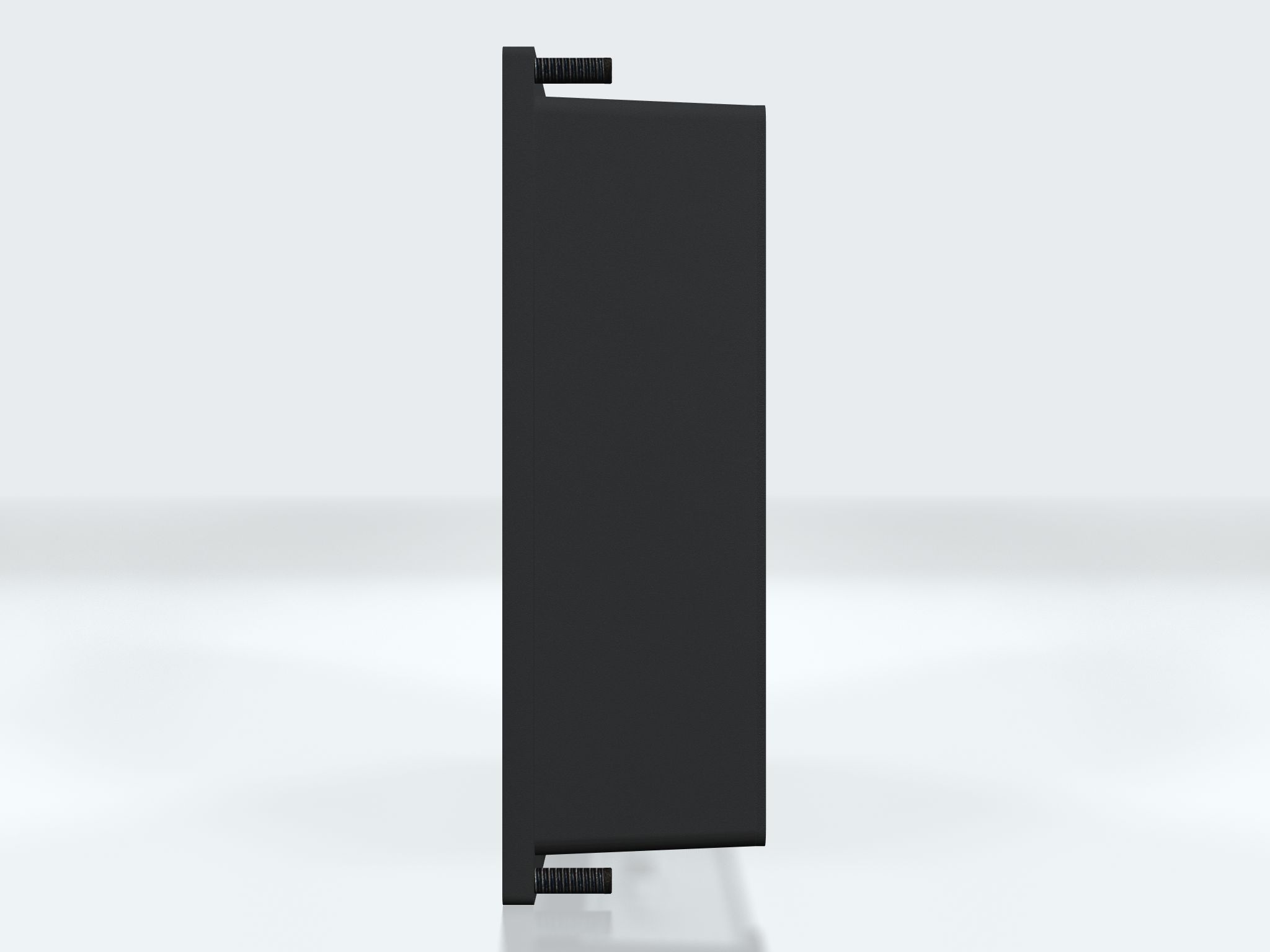

Product Dimensions and Weight: W:236.00 [9.29"] x H:166.00 [6.54"] x D:51.00 [2.01"] mm [inch]

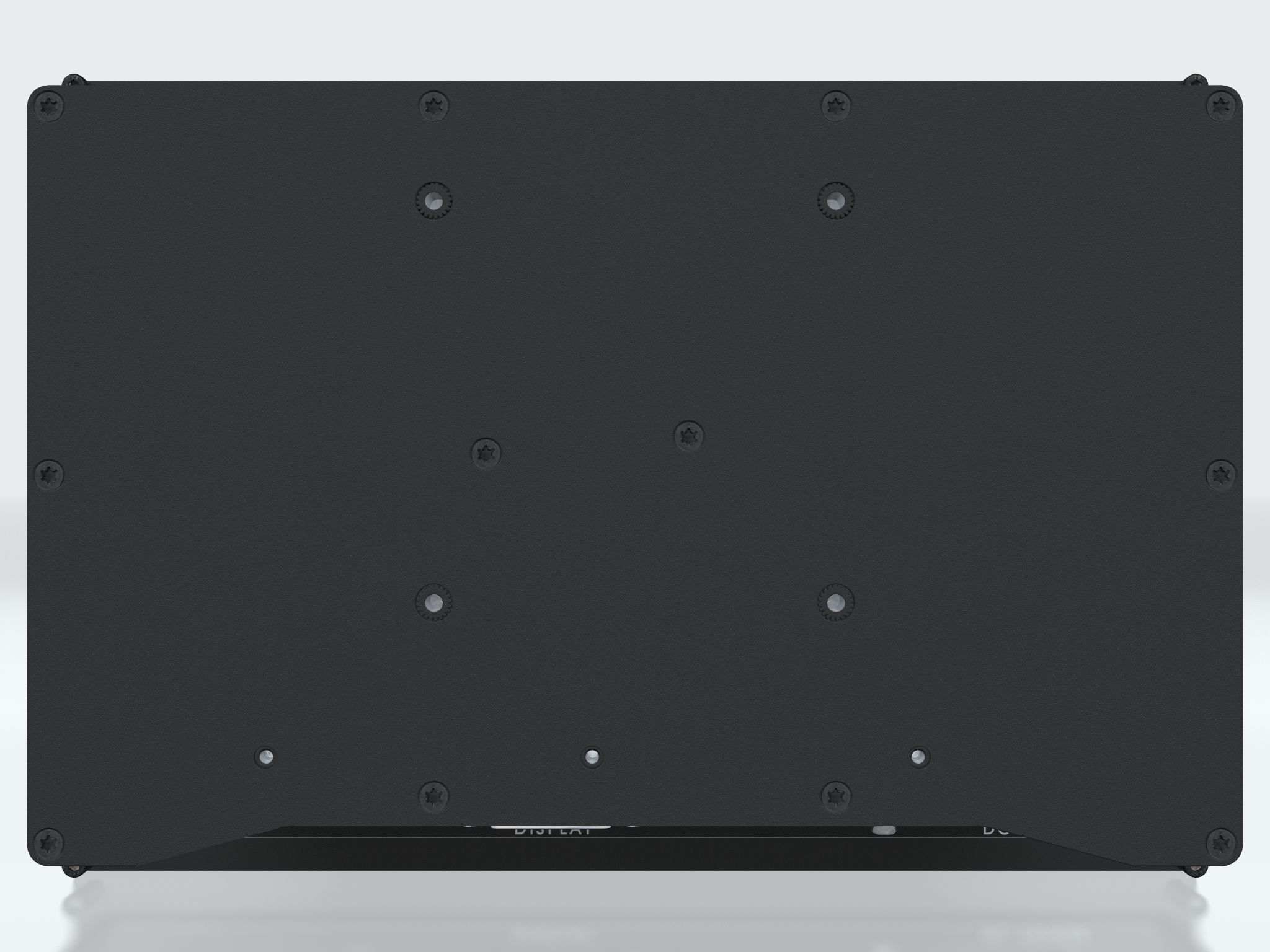

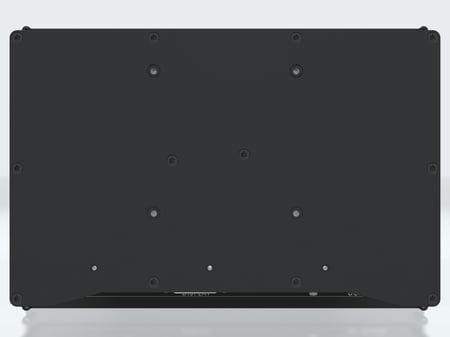

4 x M4 VESA mounting 75x75mm, Max 8mm deep

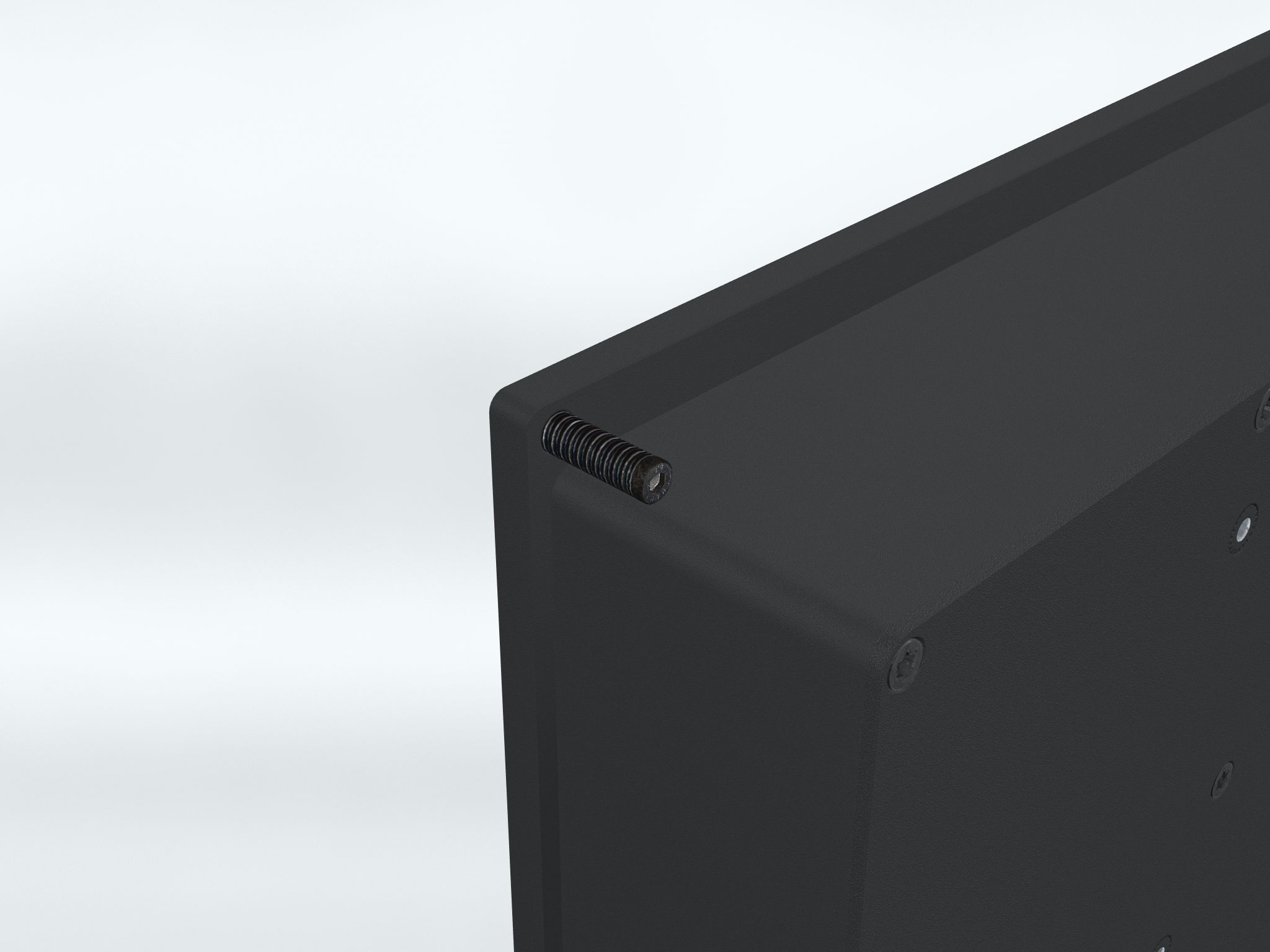

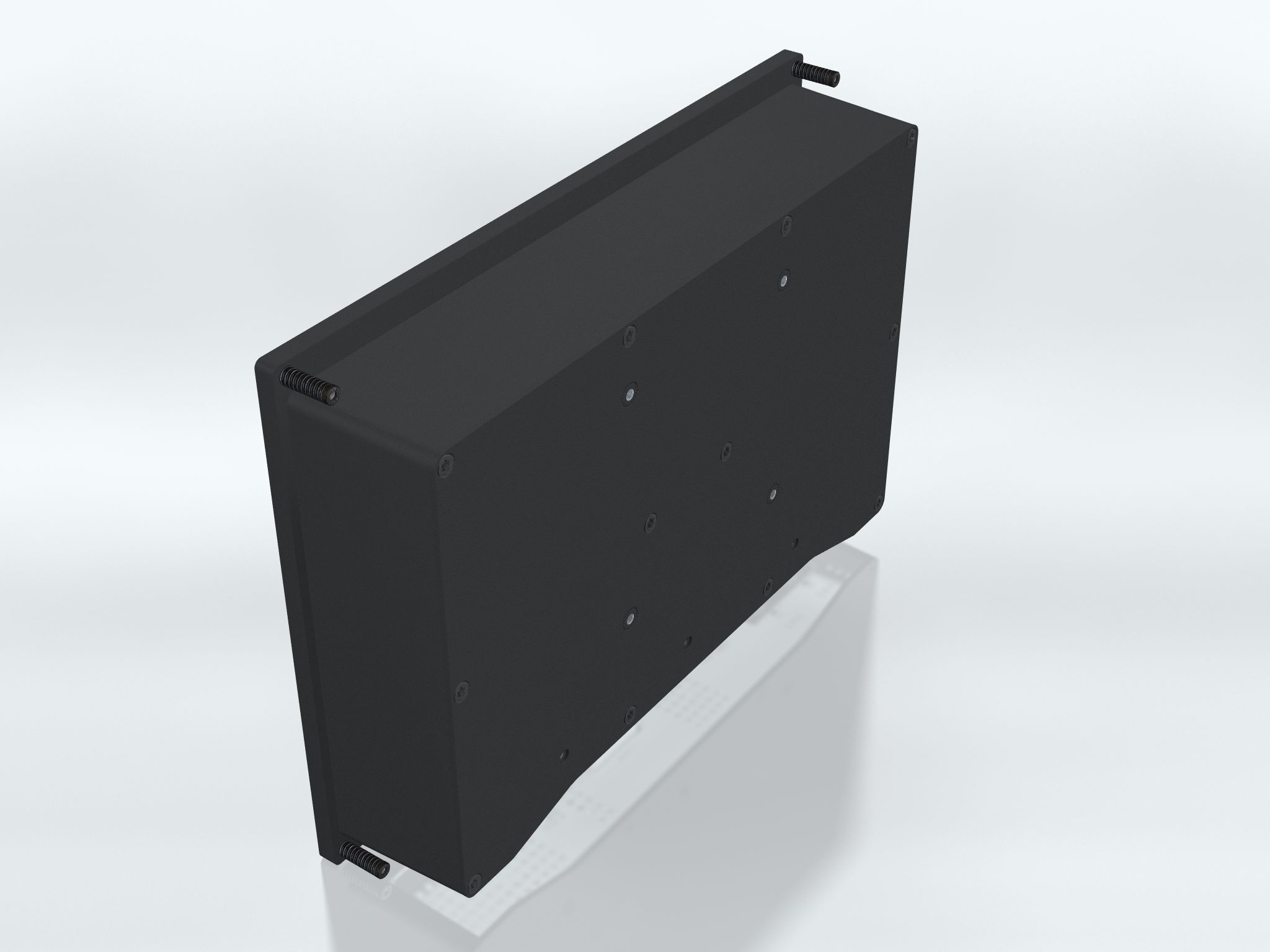

Built-in Console mounting 4 x M5x15mm screws
1.7kg / 3.7lbs
Product Carton Size and Weight: L:320.00 [12.60"] x W:180.00 [7.09"] x H:320.00 [12.60"] mm [inch]
2.5kg / 5.5lbs
Factory Options: • Optical Bonding Technology
Accessories: • HD WBK SX1-A1: 1 x Wallmount Box, not EN60945 Tested
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating: Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance: Standard: 45.00 [17.72"] - Steering: 30.00 [11.81"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition, KR - Korean Register of Shipping

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
Specifications last updated: May 5, 2025 @ 12:27
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

9 Apr 2018
Touch Screen USB Cable - Contents of Package

11 Apr 2017
New buzzer in 8 and 13.3 inch Series X Displays and Pan...

11 Feb 2016
Qualification of second source industrial connectors

20 Dec 2012
Access of User Controls and Input/Ouput via Hatteland D...

End of Life Notifications (EOL):
8 Nov 2022
EOL HD 08T21 and HD 13T21 STD - HATTELAND® Series X G1 ...

2 Sep 2019
Global Documentation and Driver DVD

News Stories:
21 May 2013
8 and 13.3 inch, Suitable for dynamic narrow

16 Mar 2012
Hatteland Display launches Series X product range

20 May 2011
Introducing Series X. Our next generation of displays

25 Jun 2010
Hatteland Display expands its range of products. Read
