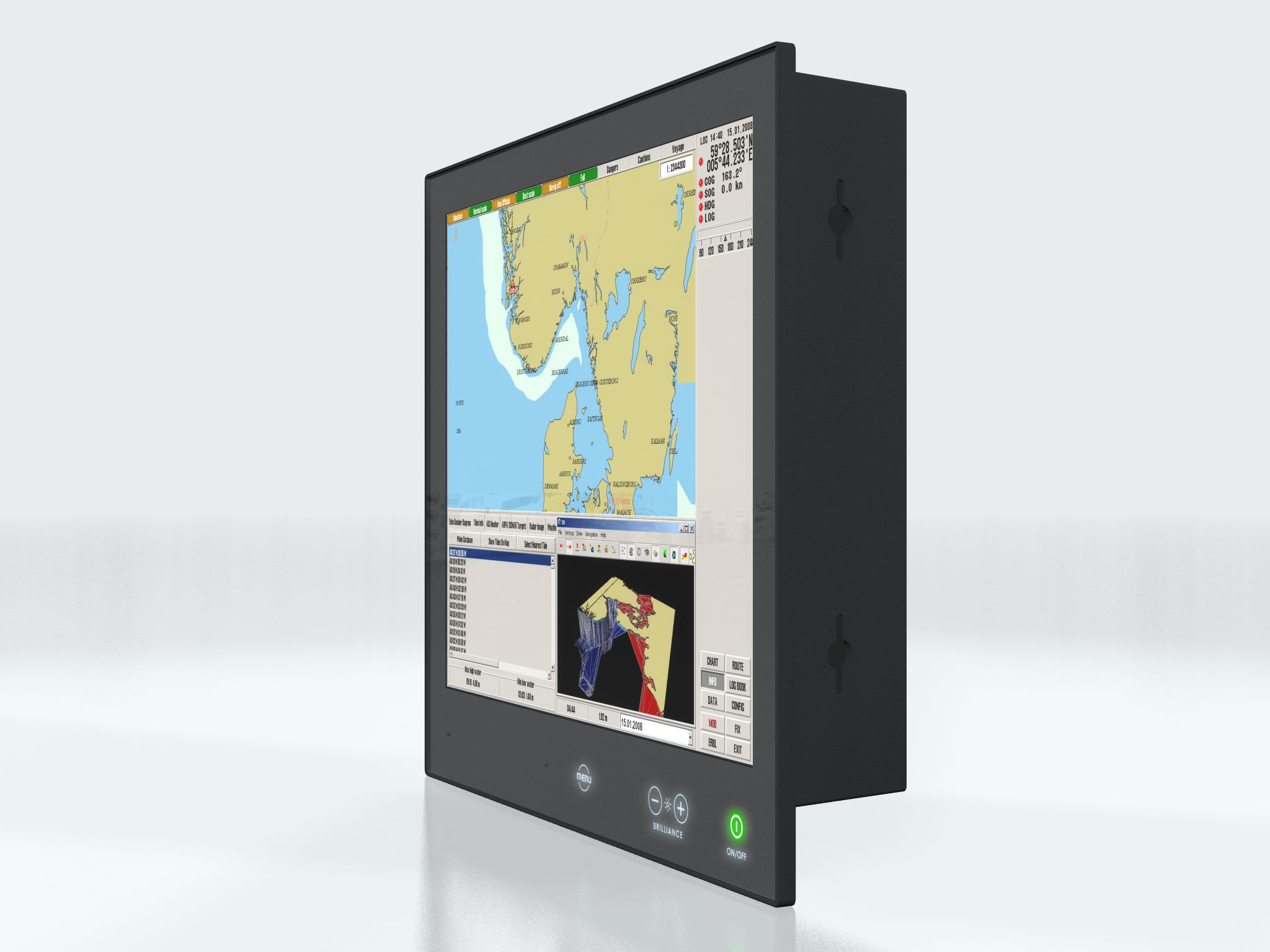

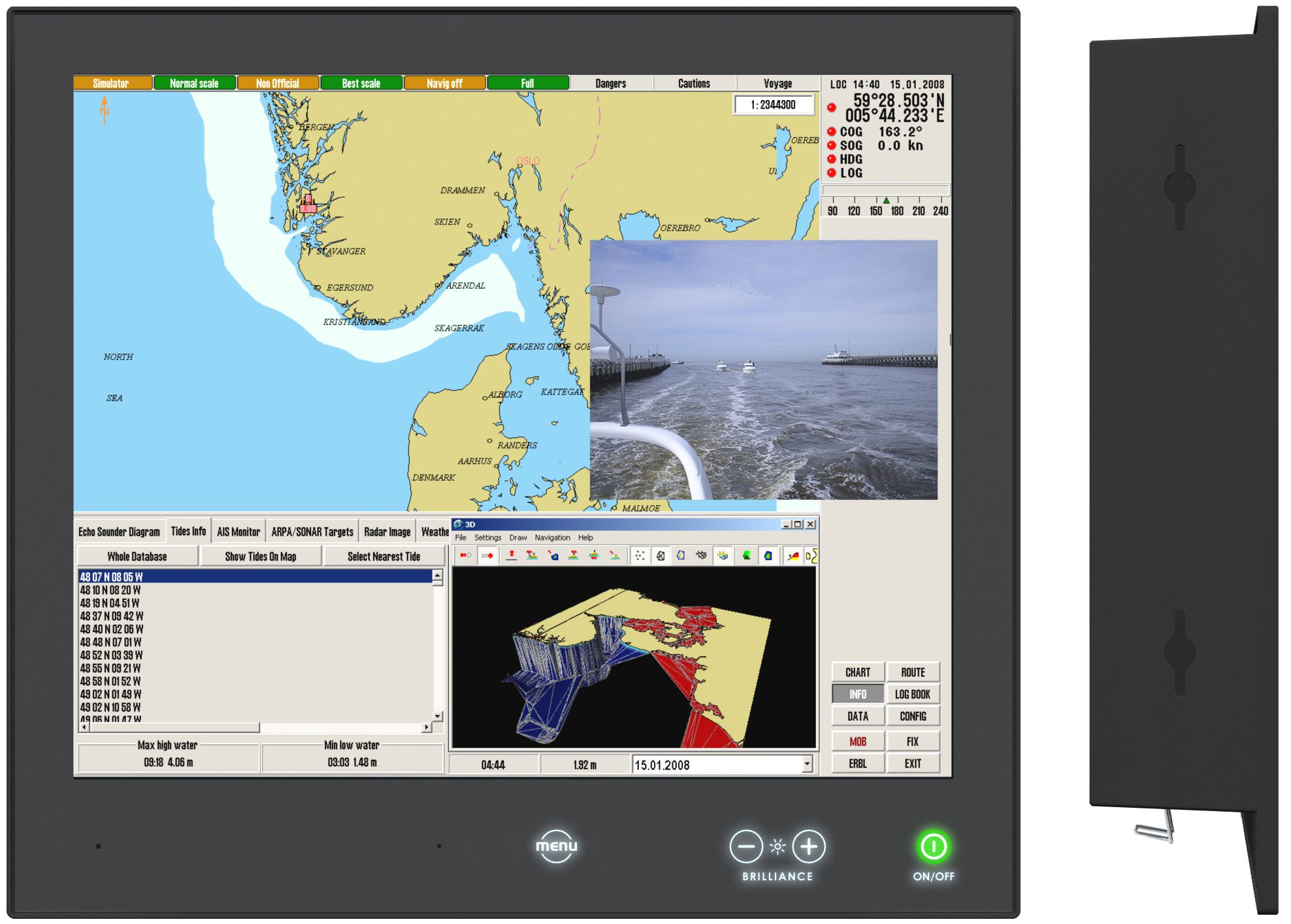

Monitor - LED - HATTELAND® Series X G1 - 17.0 inch

HD 17T21 MMD

Series X Monitors offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications.

LED-backlit

Send Request

Description

Specifications

Typenumber (Long):	HD 17T21 MMD-xxx-Fxxx
TFT Technology:	LED Backlight Technology, TFT Active-matrix
Viewable Size and Active Area:	17.0 inch - 337.92 [13.30"] (H) x 270.34 [10.64"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1280 x 1024 (SXGA) - 0.264 (H) x 0.264 (V) mm
Aspect Ratio and Response Time:	5:4 - 5ms (typ)
Light Intensity and Contrast Ratio:	Standard: 350 cd/m² (typ) - 1000:1 (typ) High Bright: 1000 cd/m² (typ) - 1000:1 (typ)
View Angle and Max Colors:	85° (down/left/right), 60° (up) @ CR>10 16.7 million
Optimal Resolution and Hz:	1280 x 1024 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
Composite Video Input(s):	Composite (BNC)
Supported Video Signals:	Interlaced HDTV, NTSC, PAL and SECAM video, Composite Video
Product Features:	Dimmable 0-100%, Multi-power AC&DC, PBP (Picture By Picture), PIP (Picture In Picture)
Power Specifications and Consumption:	Multi-power 115/230VAC - 50/60Hz + 24VDC Standard: 32W (typ) - 60W (max) High Bright: 59W (typ) - 120W (max)

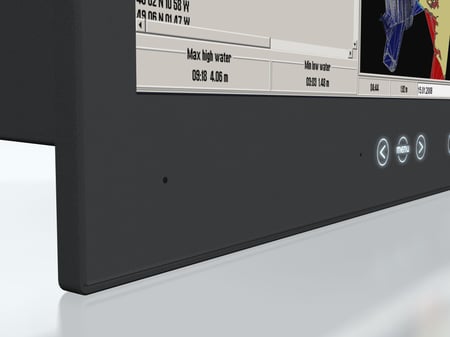

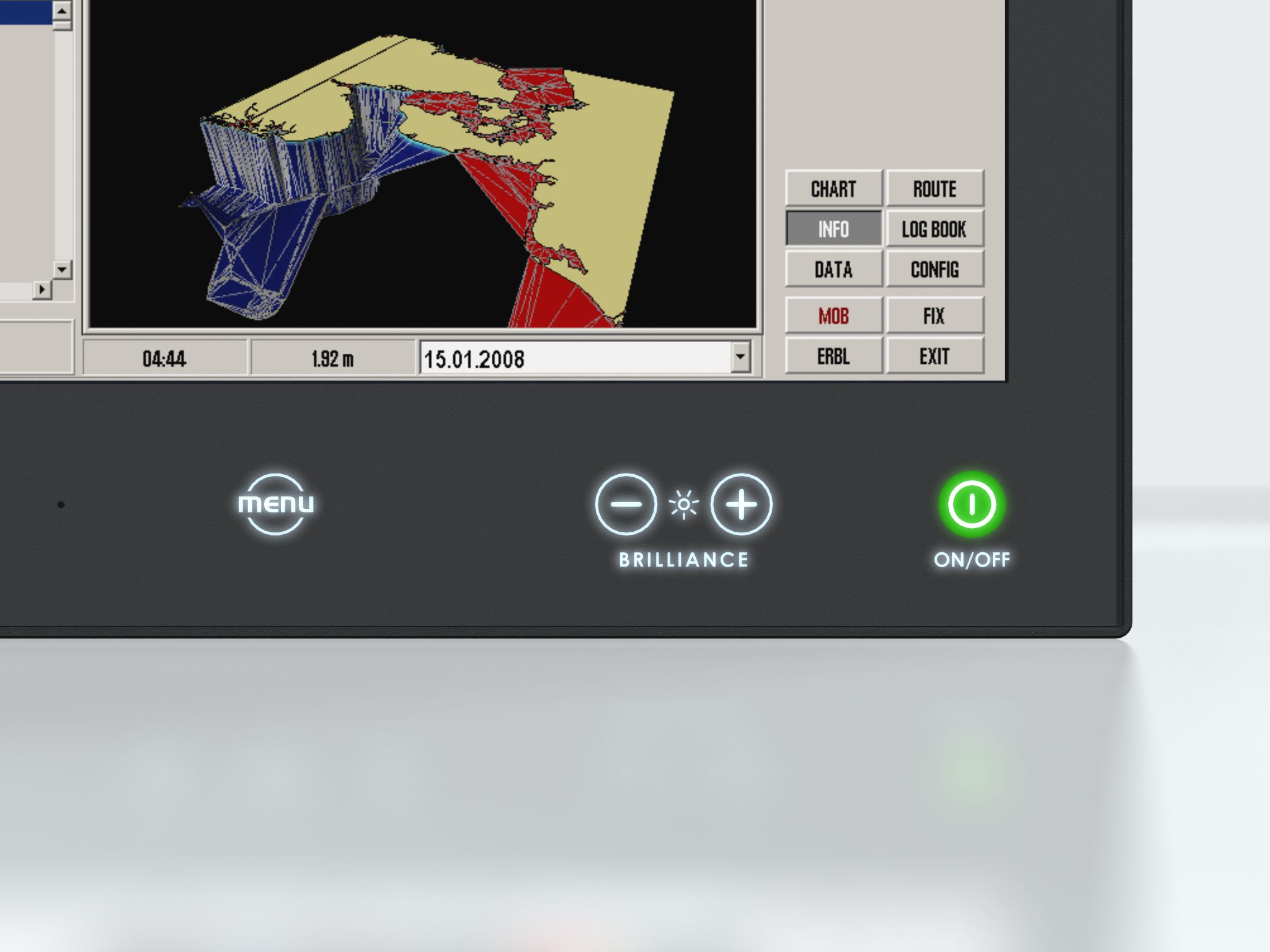

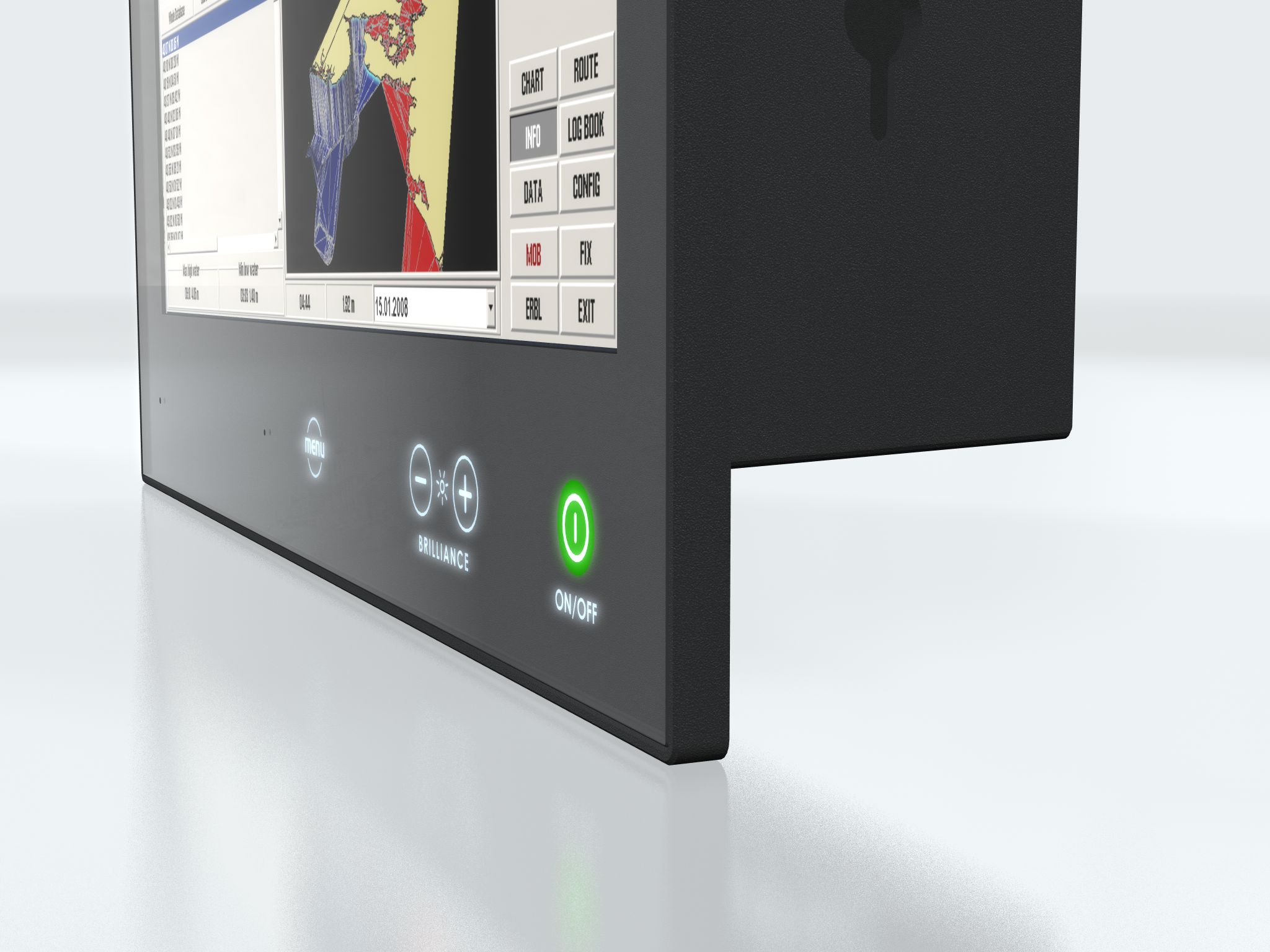

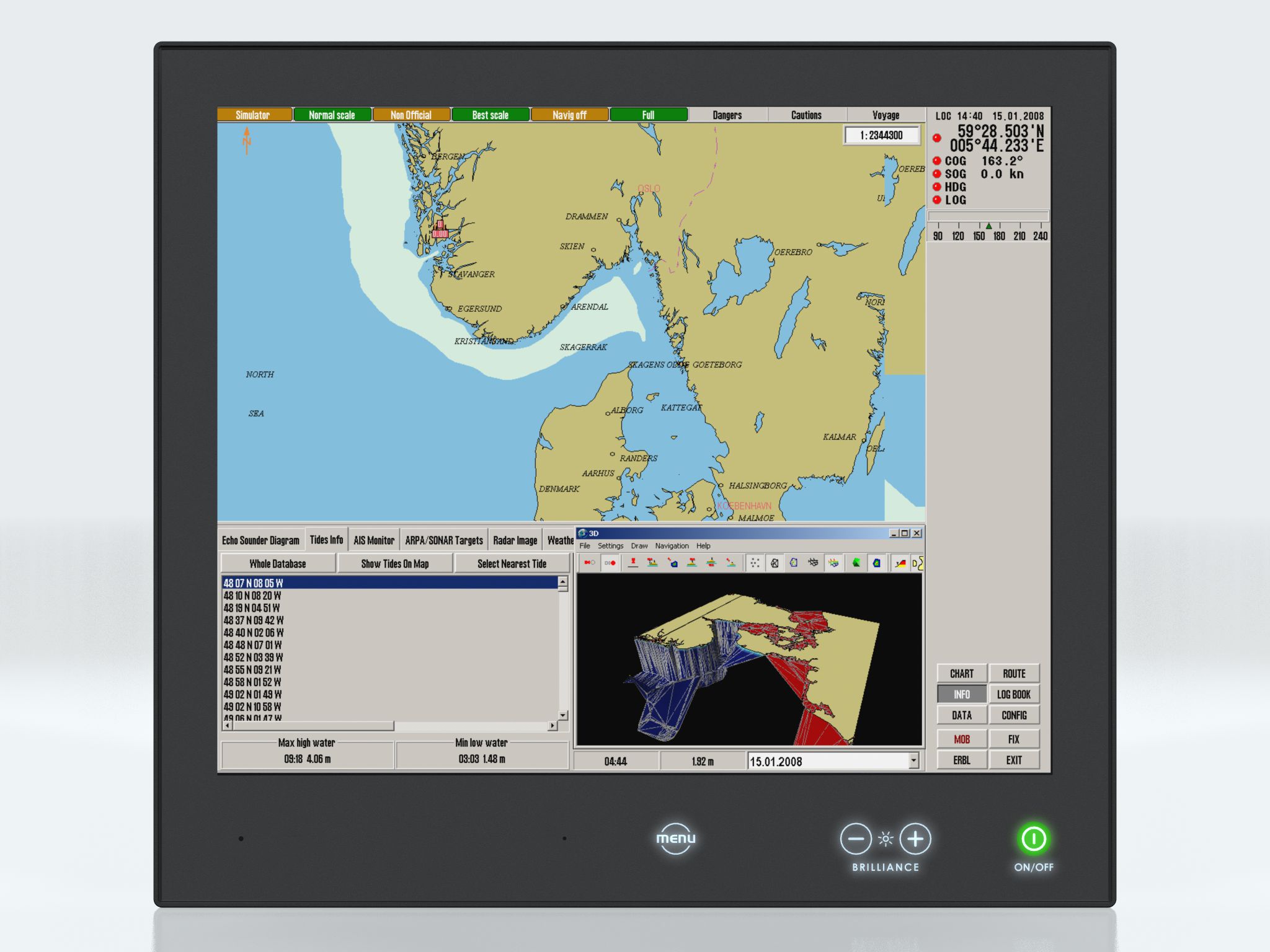

User Controls and Activity:	Glass Display Control™ (GDC) IP66 with: Power On/Off, On Screen Display Menu, Brightness Control (-/+), Hotkeys (left/right), Mode Status Indicator (ECDIS, Service), Buzzer (not visible), Light Sensor (not visible)

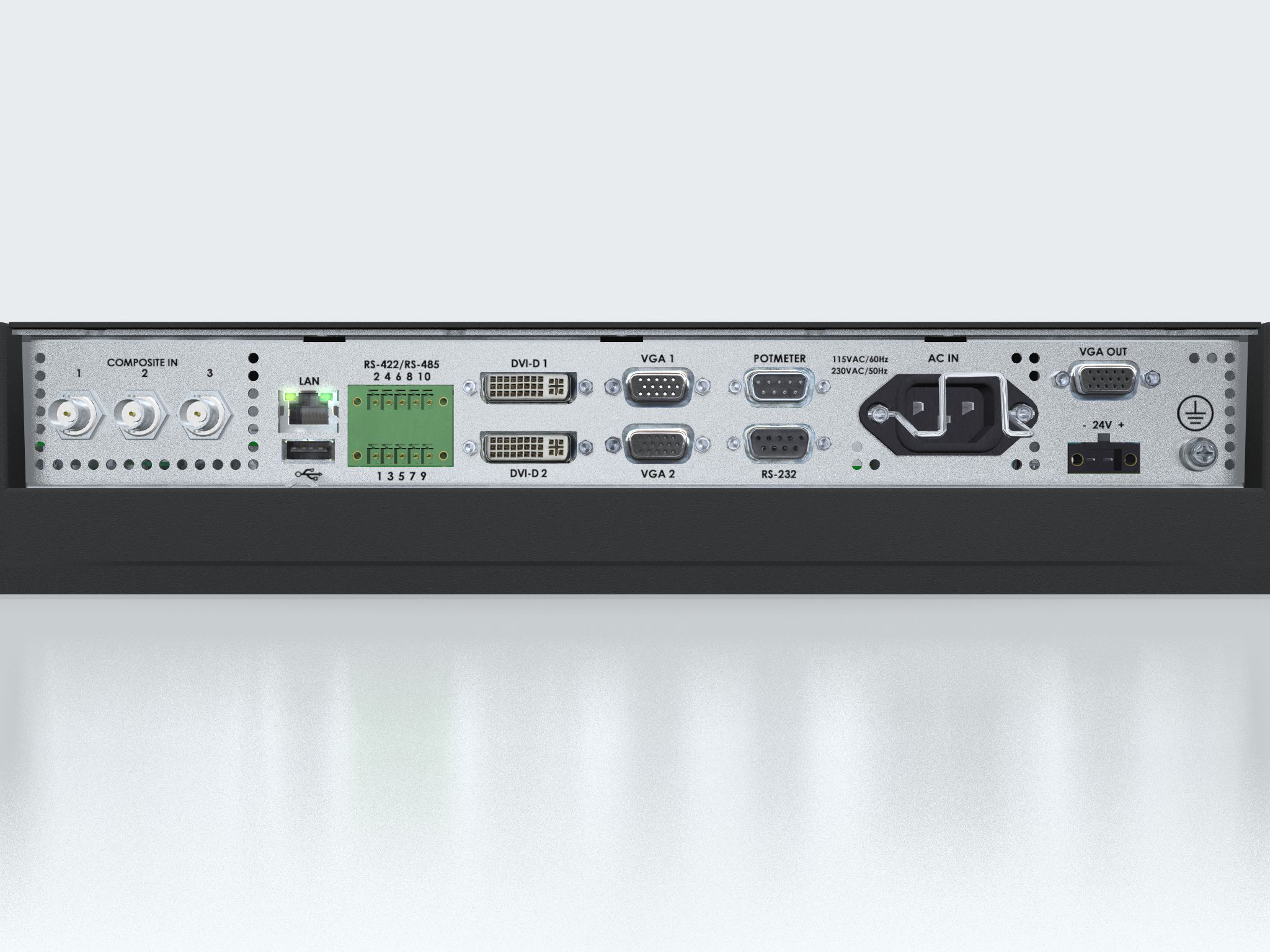

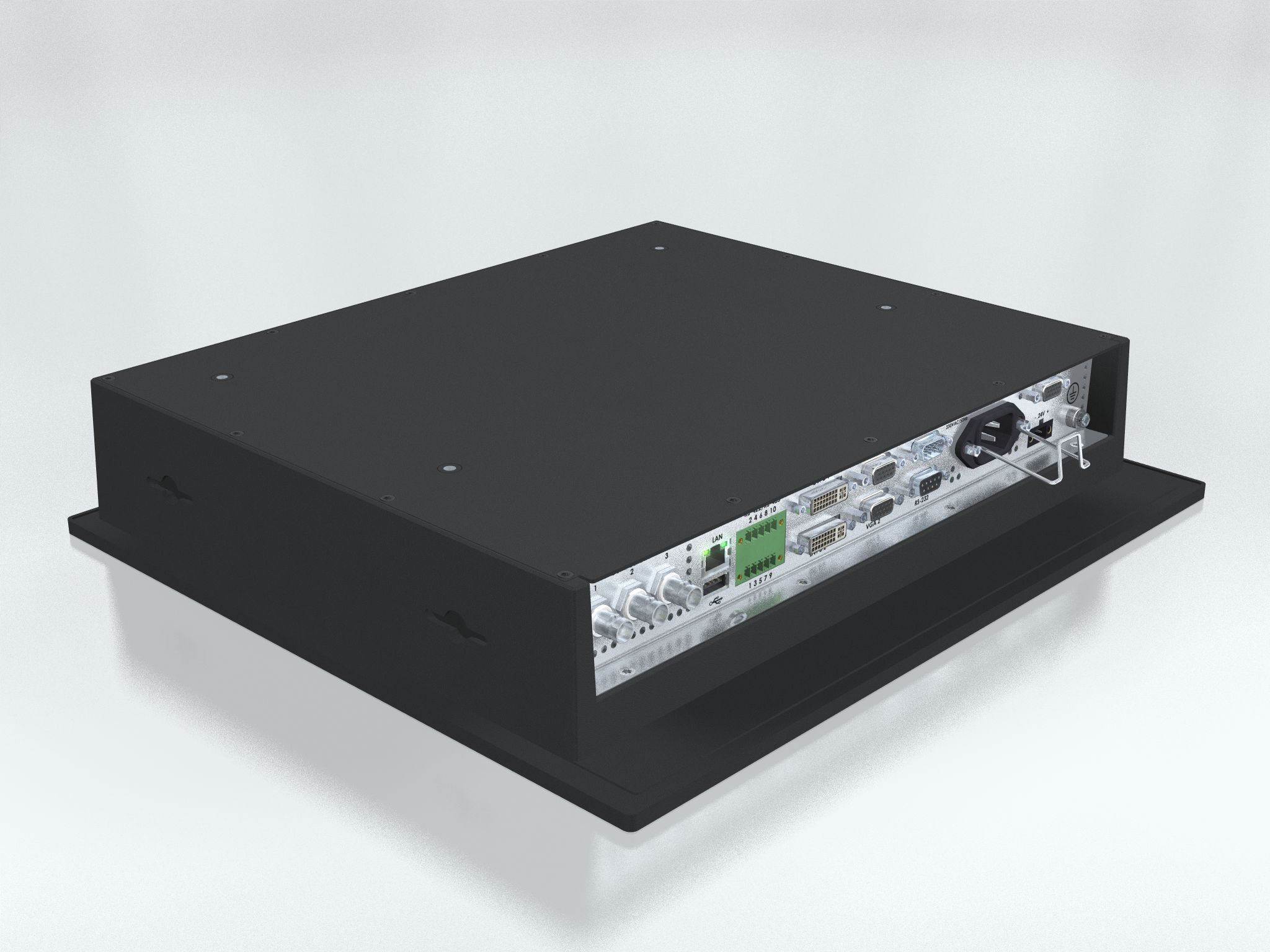

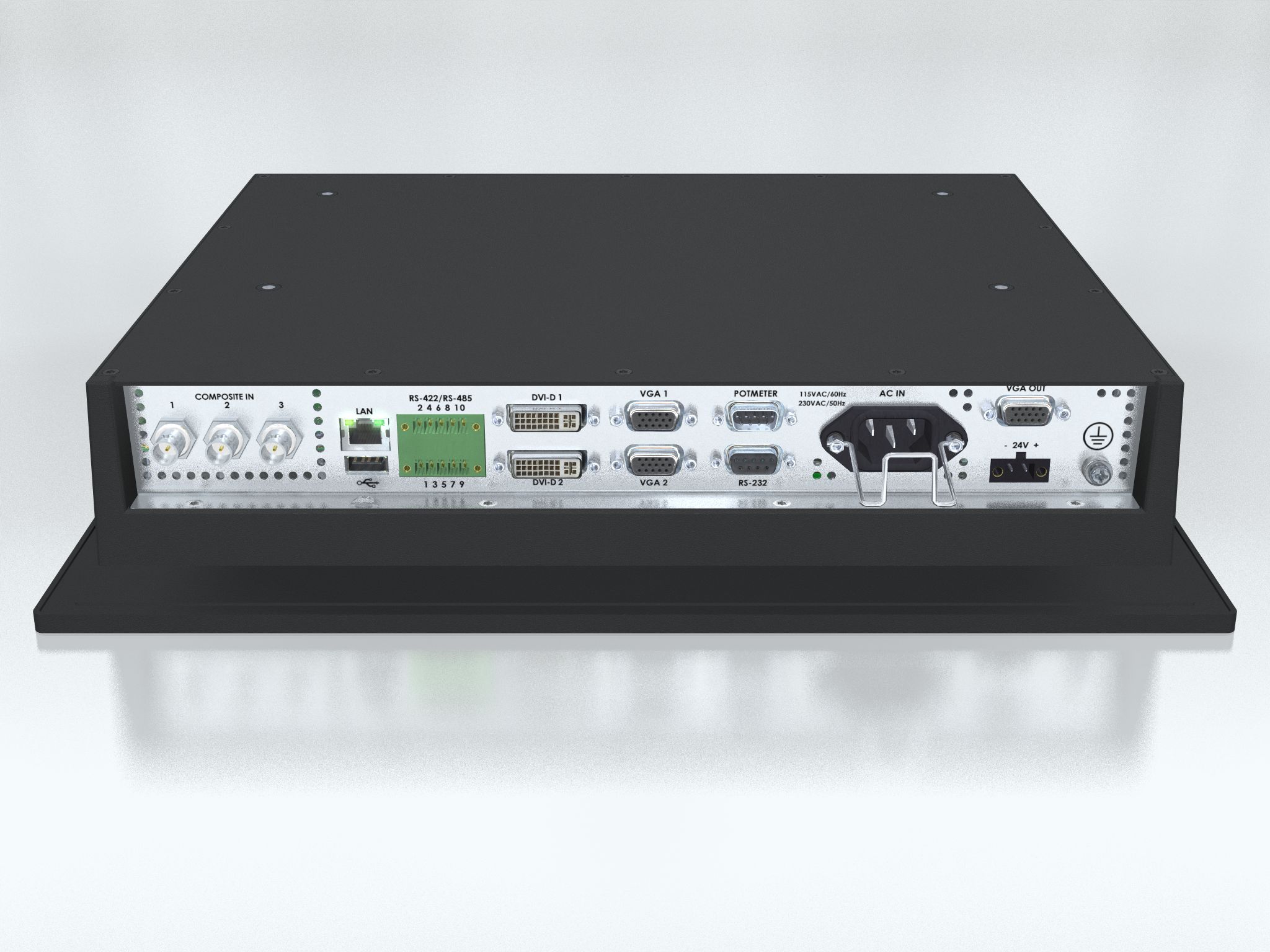

Connectors:	• DVI IN: 2 x DVI-D 24P (female) • VGA IN: 2 x HD D-SUB 15P (female) • Composite Video IN: 3 x BNC (female) • SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer • SCOM Ethernet: 1 x RJ45 (female) • SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer • VGA OUT: 1 x HD D-SUB 15P (female) • If Touchscreen: 1 x USB Type A (female). Use USB2.0 (<5m) port. • Potmeter: 1 x D-SUB 9P (male), - (Potentiometer IN, +5VDC OUT, BRT +/- IN) • AC Power IN: 1 x Std. IEC inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08

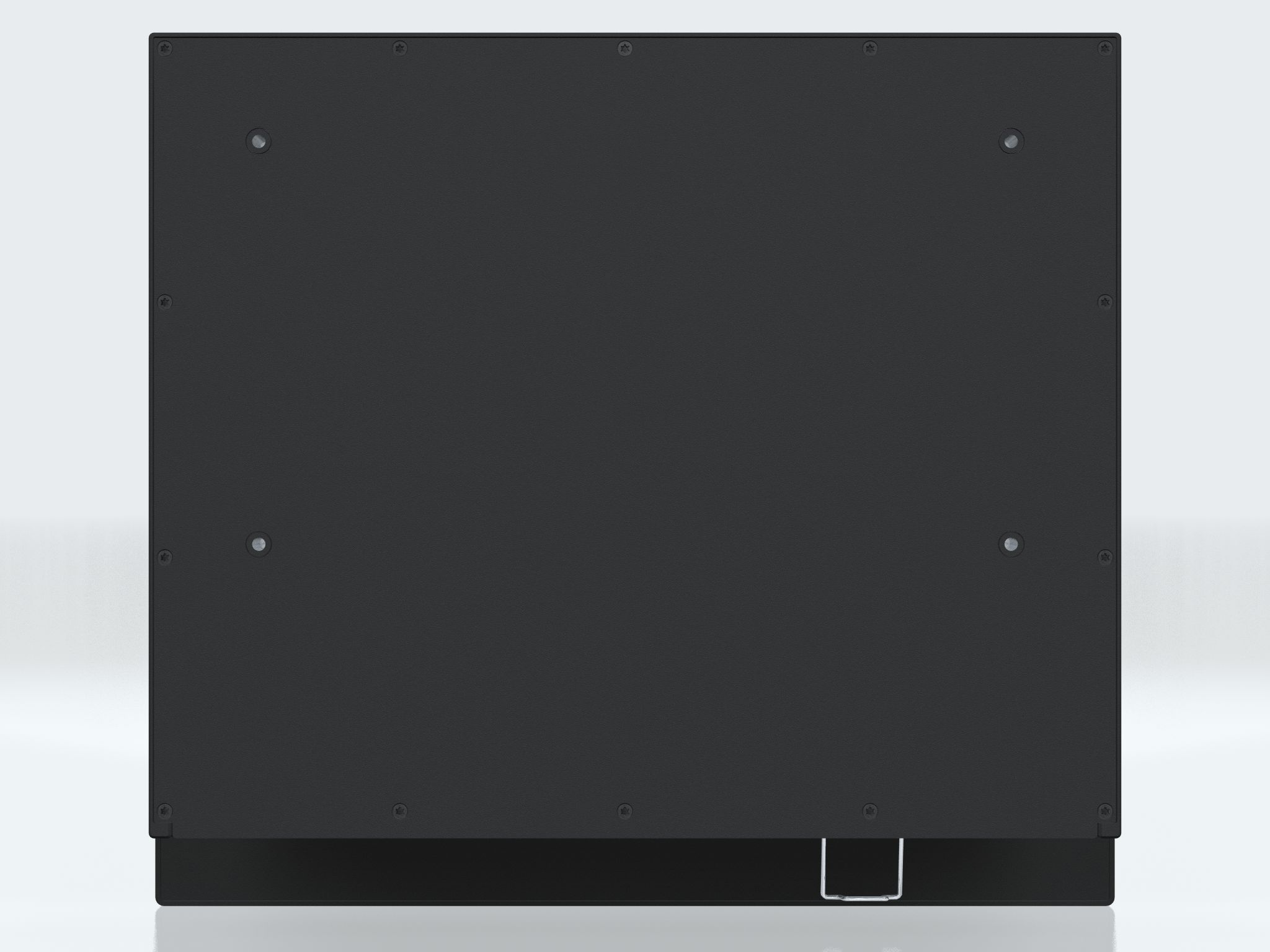

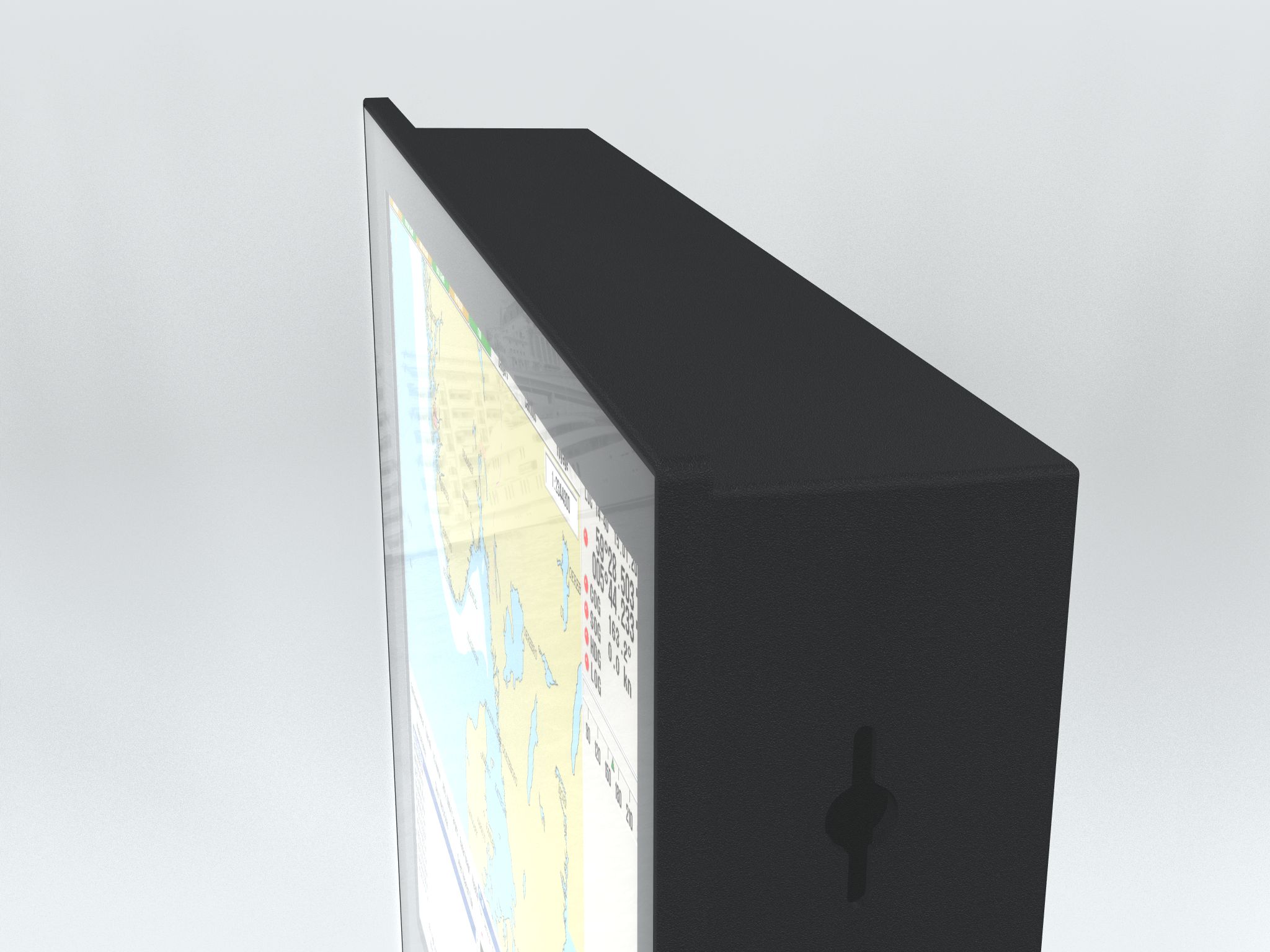

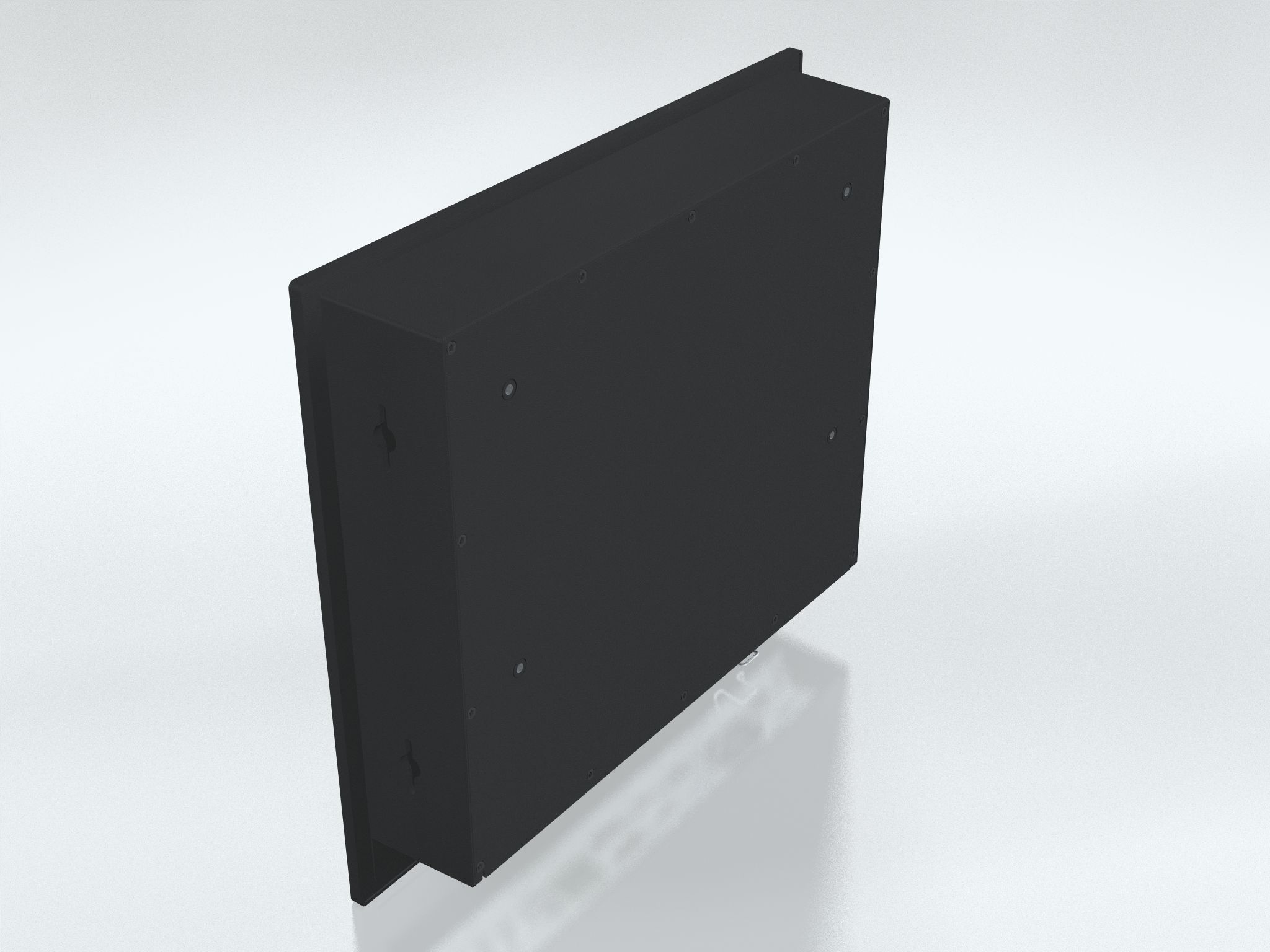

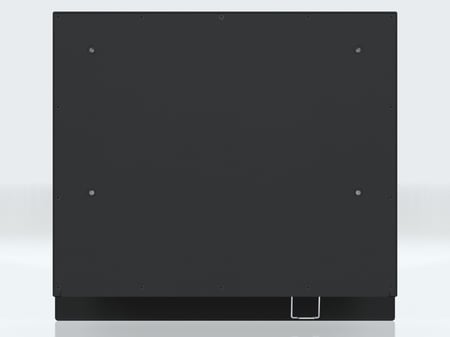

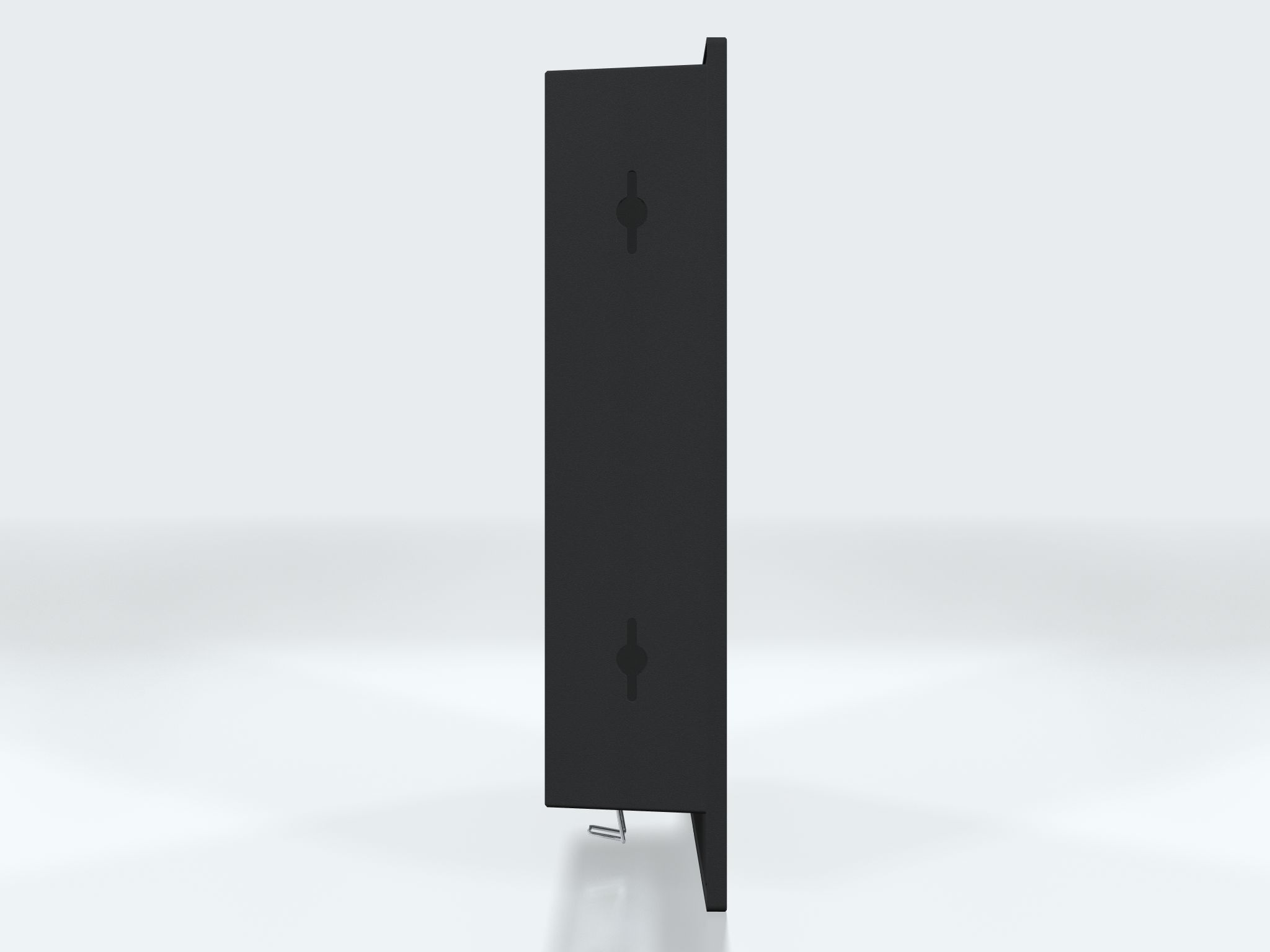

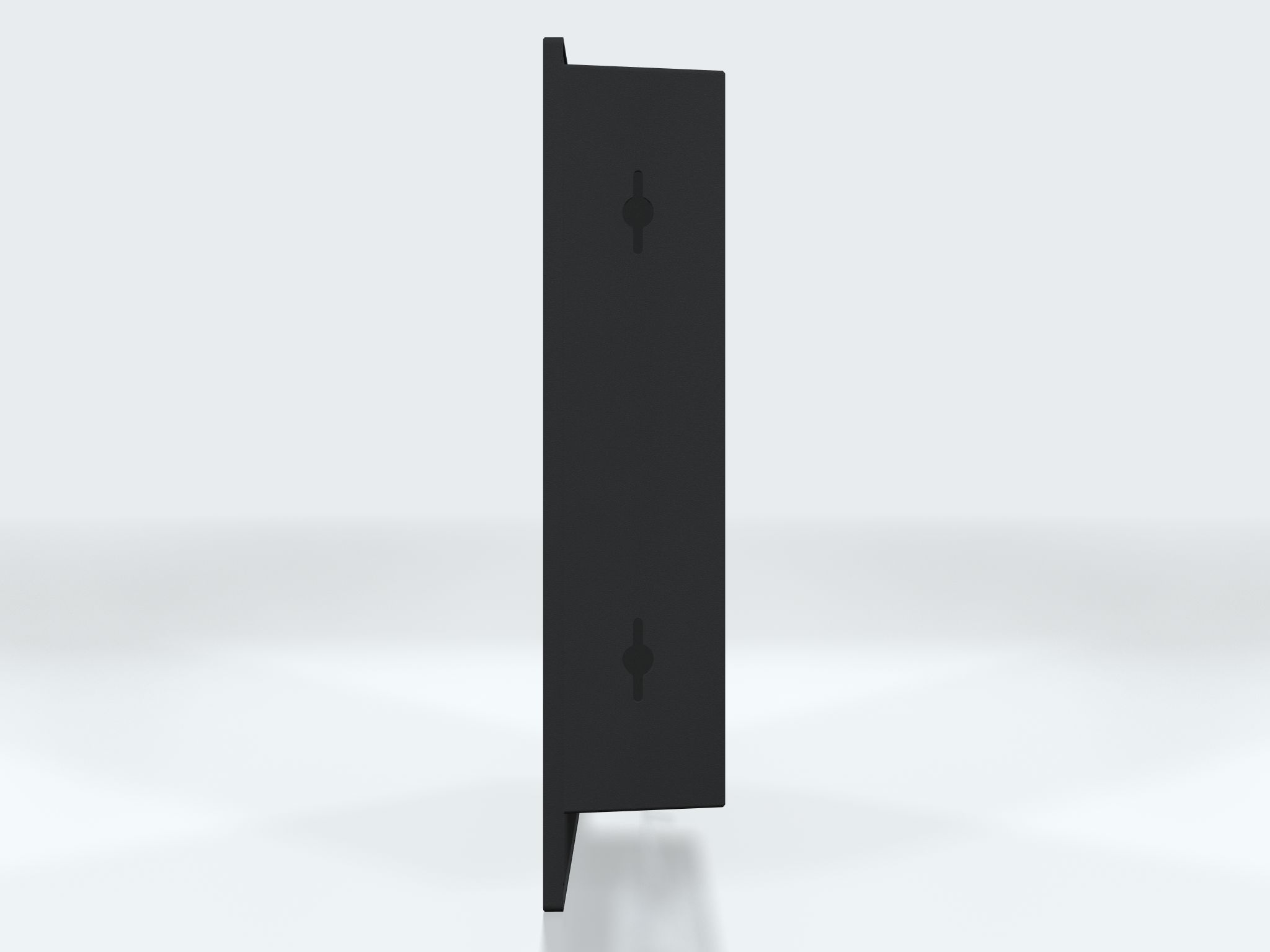

Product Dimensions and Weight:	Standard: W:390.00 [15.35"] x H:351.00 [13.82"] x D:73.50 [2.89"] mm [inch] High Bright: W:390.00 [15.35"] x H:351.00 [13.82"] x D:80.50 [3.17"] mm [inch] 4 x M6 VESA mounting 280x150mm, Max 12mm deep. 6.2kg / 13.6lbs
Product Carton Size and Weight:	L:530.00 [20.87"] x W:200.00 [7.87"] x H:540.00 [21.26"] mm [inch] 8.4kg / 18.5lbs
Factory Options:	• Optical Bonding Technology • Color Calibrated models (ECDIS) • Projected Capacitive Touch Screen (Multitouch, USB interface) • Sunlight Readable / High Bright (includes Optical Bonding)
Accessories:	• HD CMB SX1-A2: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested • HD CMB SX1-A3: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested • HD TMB SX1-B1: 1 x Table Mount Bracket. EN60945 Tested • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested • HD 17COV SX1-A1: 1 x UV Sun Cover
Capabilities - Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 125.00 [49.21"] - Steering: 75.00 [29.53"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, V - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition

Specifications last updated: August 18, 2025 @ 08:00
