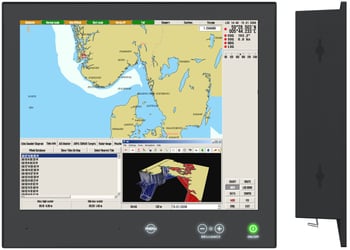

Monitor - LED - HATTELAND® Series X G1 - 17.0 inch

HD 17T21 STD

Series X Monitors offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications.

LED-backlit

Send Request

Description

Specifications

TFT Technology:	LED Backlight Technology, TFT Active-matrix
Viewable Size and Active Area:	17.0 inch - 337.92 [13.30"] (H) x 270.34 [10.64"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1280 x 1024 (SXGA) - 0.264 (H) x 0.264 (V) mm
Aspect Ratio and Response Time:	5:4 - 5ms (typ)
Light Intensity and Contrast Ratio:	350 cd/m² (typ) - 1000:1 (typ)
View Angle and Max Colors:	85° (down/left/right), 60° (up) @ CR>10 16.7 million
Optimal Resolution and Hz:	1280 x 1024 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024* *Recommended, native resolution Other resolutions will be scaled full screen, unit has no scaling support.
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Dimmable 0-100%, Multi-power AC&DC
Power Specifications and Consumption:	Multi-power 100-240V AC - 50/60Hz + 24VDC 22W (typ) - 75W (max)
User Controls and Activity:	Glass Display Control™ (GDC) IP66 with: Power On/Off, On Screen Display Menu, Brightness Control (-/+), Mode Status Indicator (ECDIS, Service), Buzzer (not visible), Light Sensor (not visible) OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode
Connectors:	• DVI IN: 1 x DVI-D 24P (female) • VGA IN: 1 x HD D-SUB 15P (female) • SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer • SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer • If Touchscreen: 1 x USB Type B (female). Use USB2.0 (<5m) port. • AC Power IN: 1 x Std. IEC inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight:	W:390.00 [15.35"] x H:351.00 [13.82"] x D:73.50 [2.89"] mm [inch] 4 x M6 VESA mounting 280x150mm, Max 12mm deep. 5.8kg / 12.8lbs
Product Carton Size and Weight:	L:530.00 [20.87"] x W:200.00 [7.87"] x H:540.00 [21.26"] mm [inch] 7.9kg / 17.4lbs
Factory Options:	• Color Calibrated models (ECDIS) • Projected Capacitive Touch Screen (Multitouch, USB interface)
Accessories:	• HD CMB SX1-A2: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested • HD CMB SX1-A3: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested • HD TMB SX1-B1: 1 x Table Mount Bracket. EN60945 Tested • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested • HD 17COV SX1-A1: 1 x UV Sun Cover
Capabilities - Prepared for:	None
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 80.00 [31.50"] - Steering: 50.00 [19.69"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition, KR - Korean Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: May 27, 2025 @ 12:18
