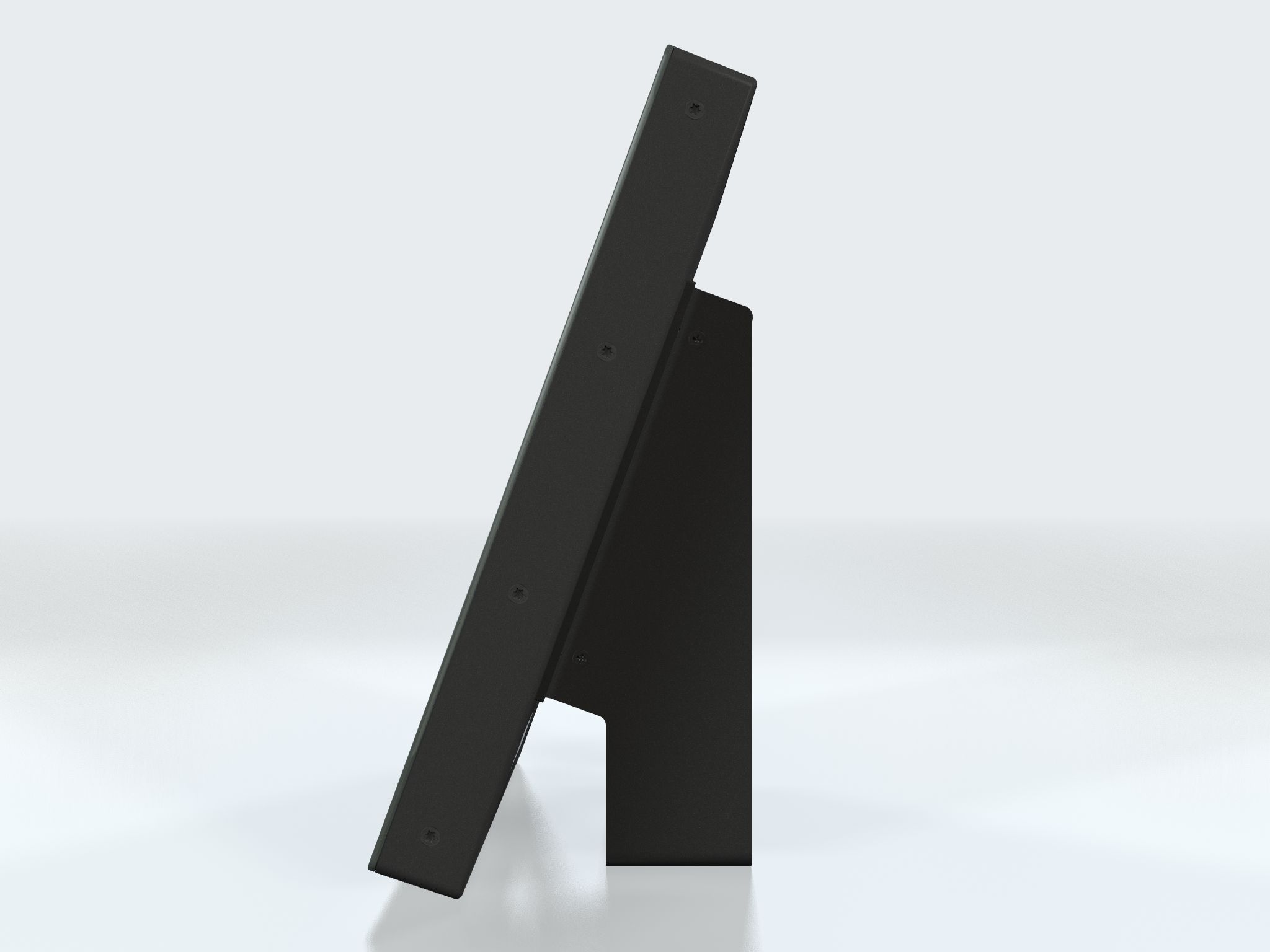

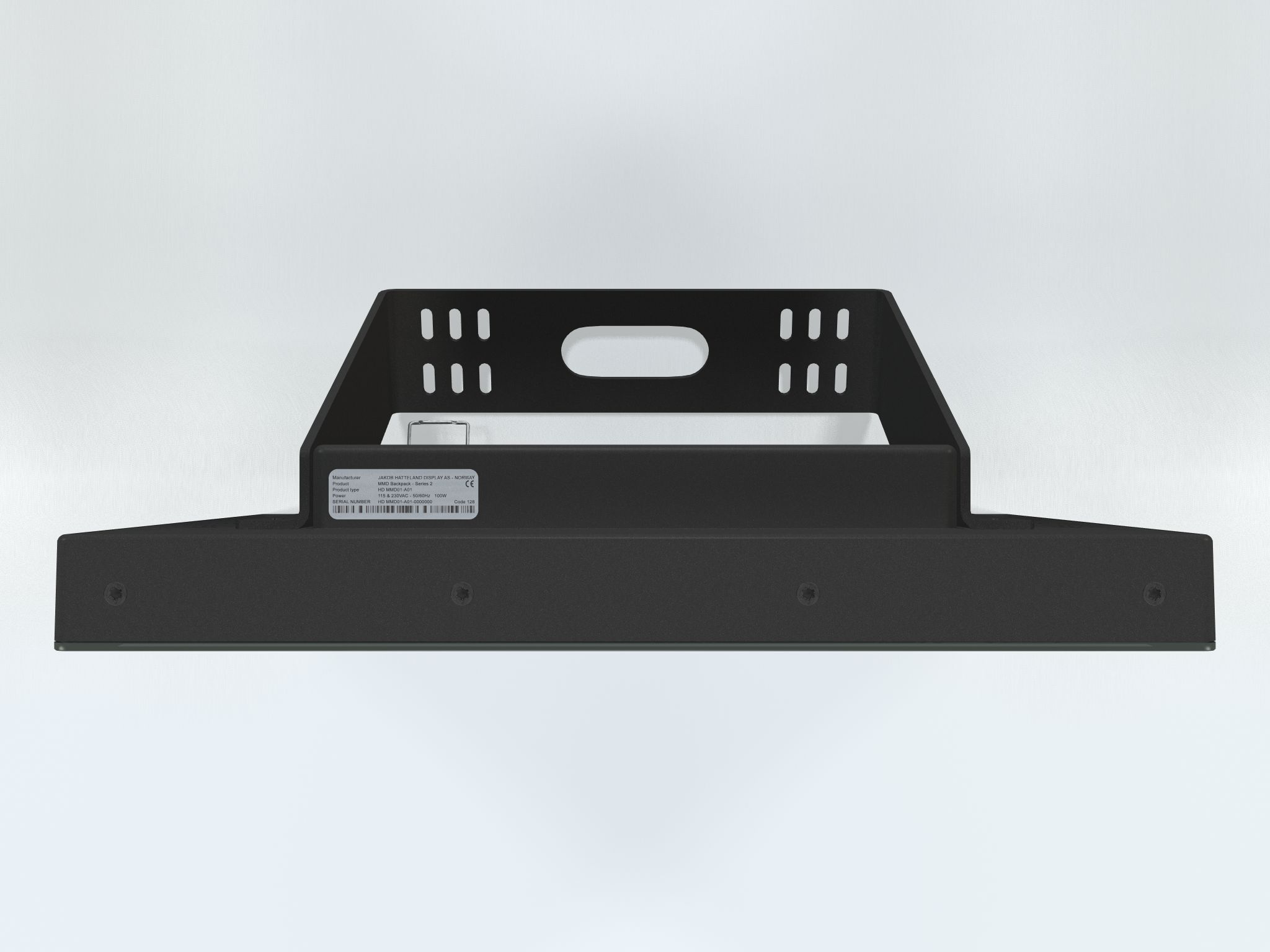

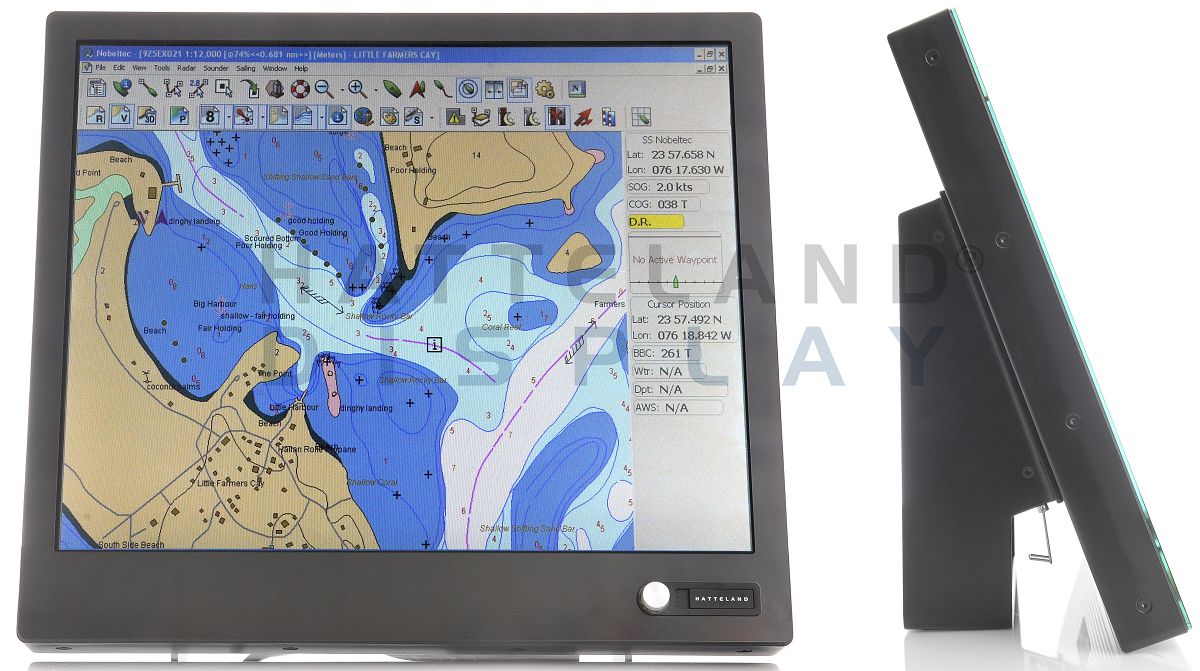

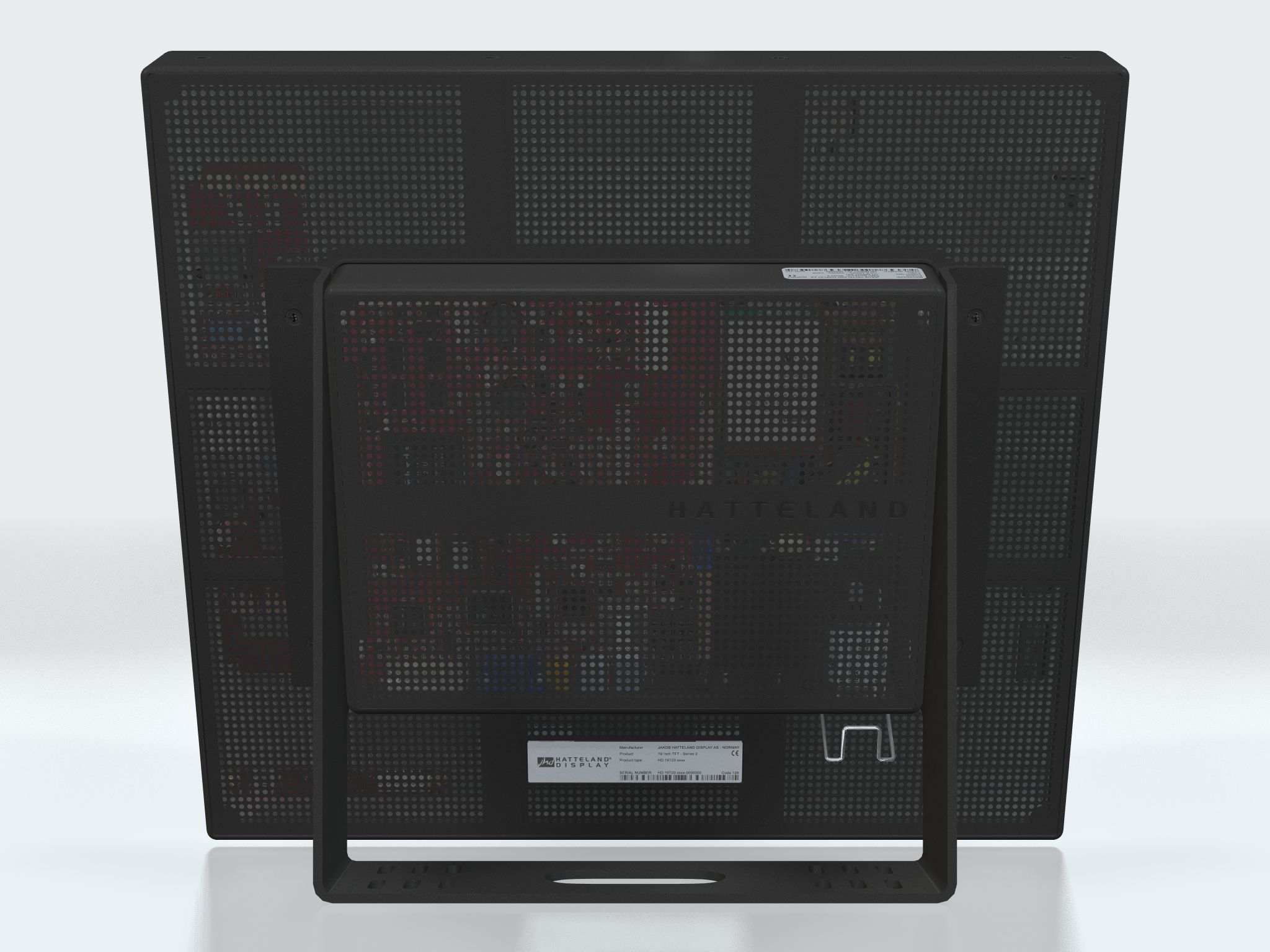

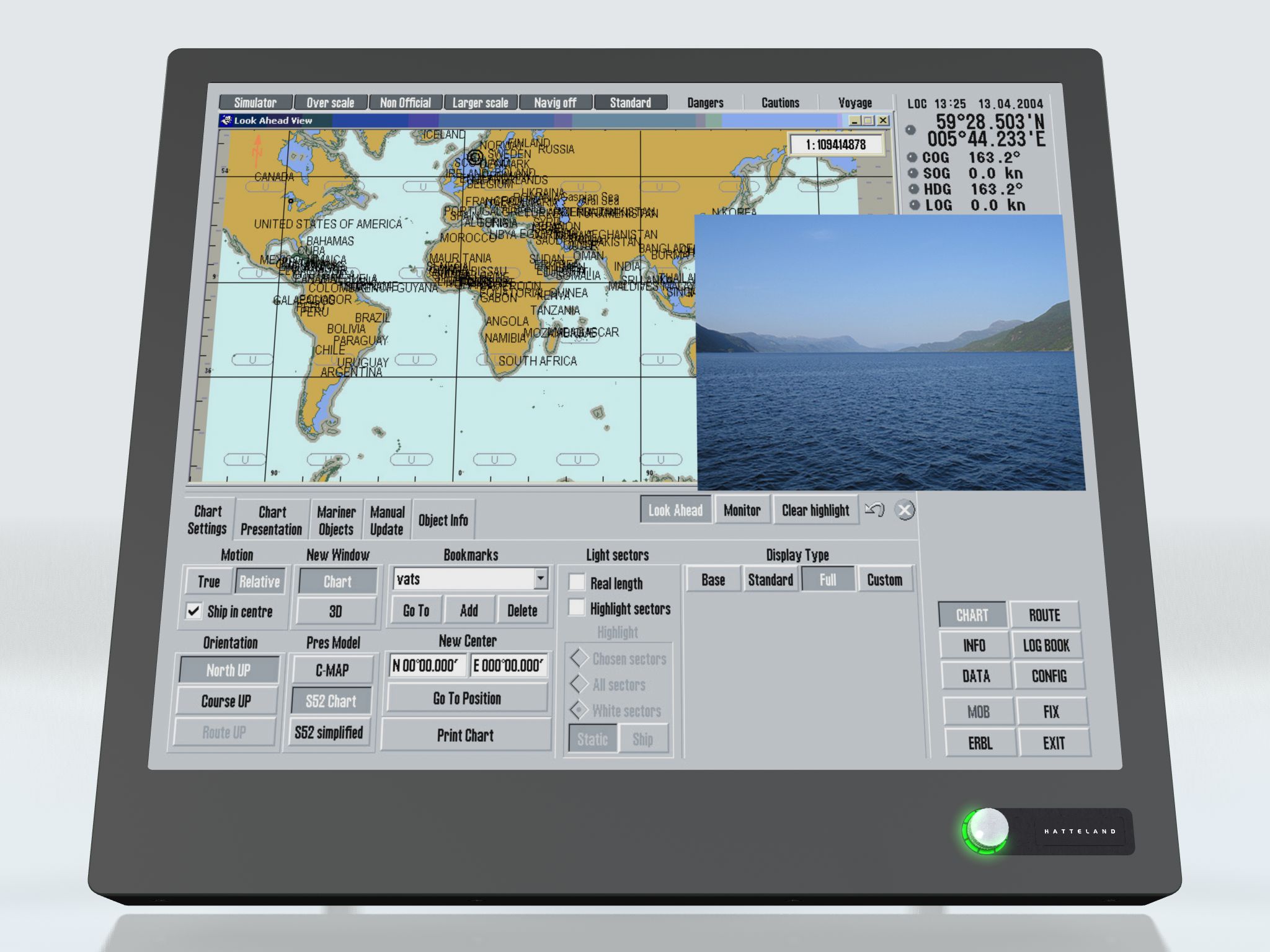

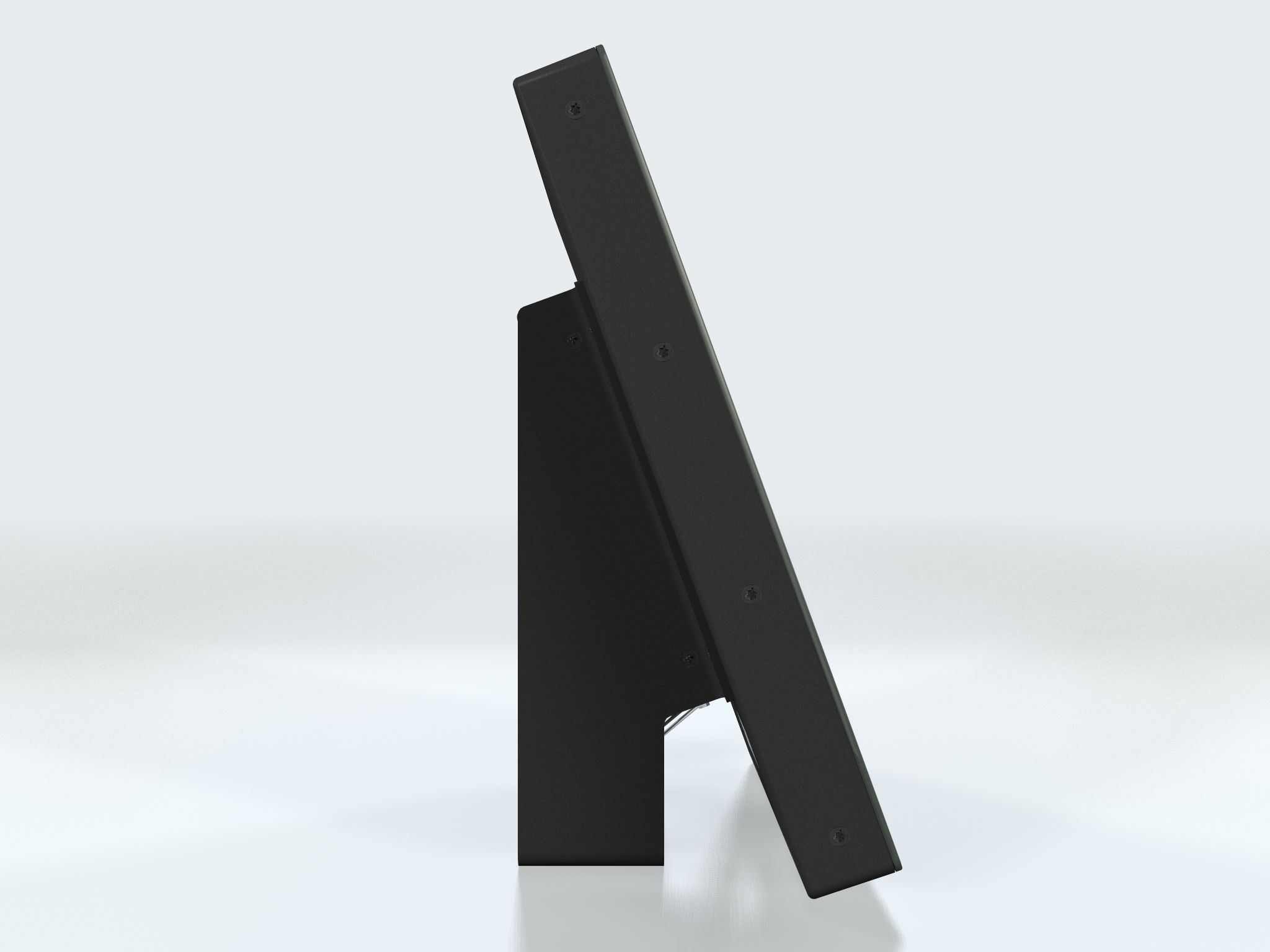

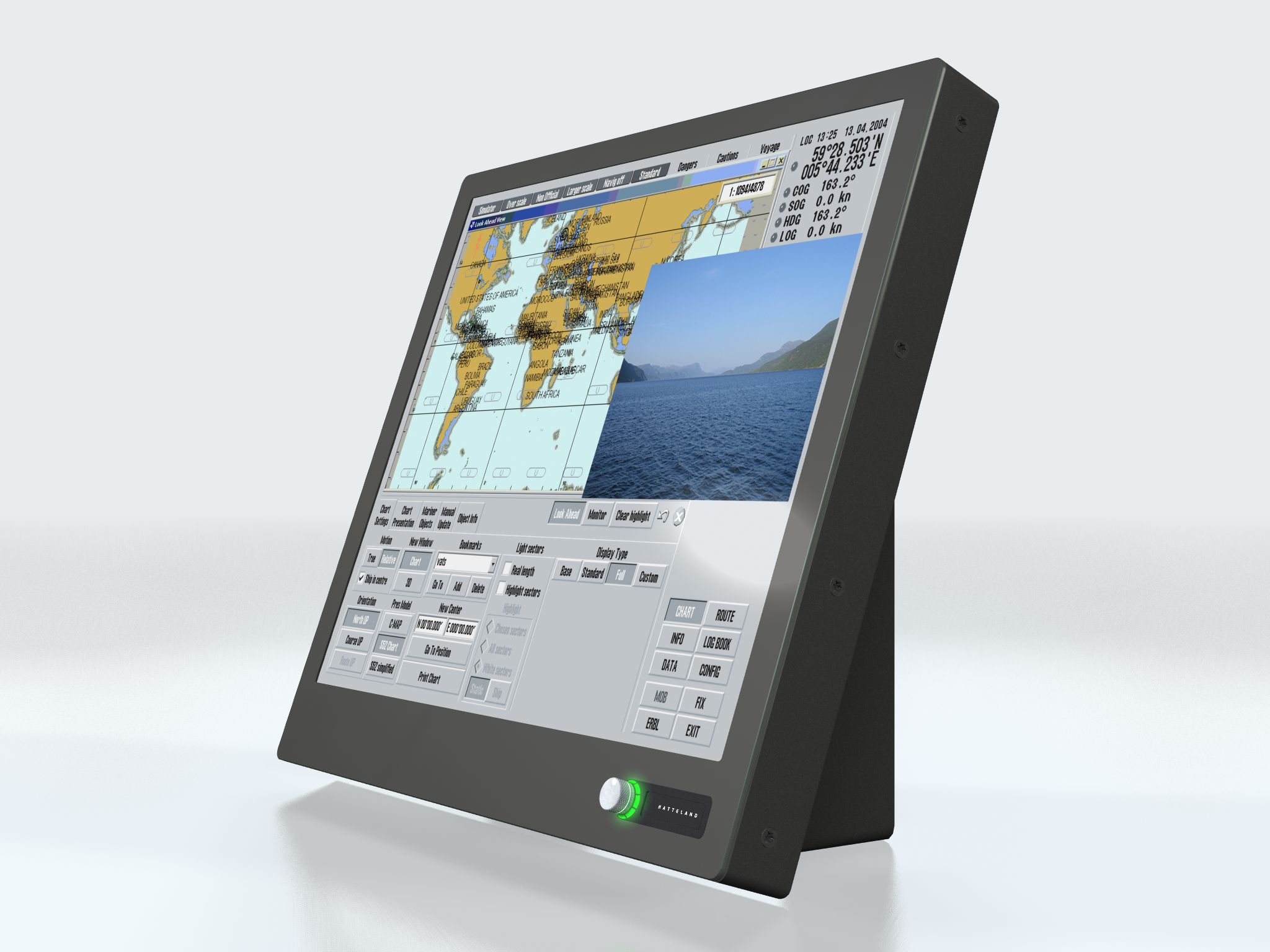

Monitor - CCFL - Bracket Model - HATTELAND® Series 2 - 19.0 inch

HD 19T03 MMD-B

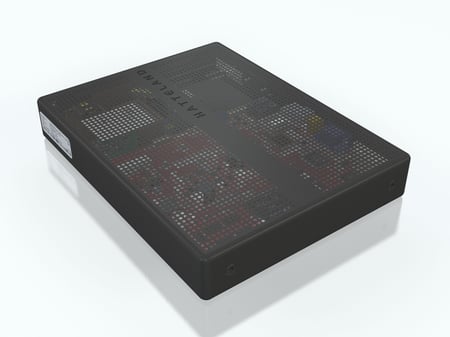

Modular backpack controller, slimmest design possible, PIP (Picture-In-Picture), easy operation with the tactile user controls. Touch screen optional.

CCFL-backlit

Bracket Model

Send Request

Description

Specifications

TFT Technology:	Color Active Matrix LCD Module, MVA Premium™ Technology (TFT)
Viewable Size and Active Area:	19.0 inch - 376.32 [14.82"] (H) x 301.05 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time:	5:4 - 12ms (typical)
Light Intensity and Contrast Ratio:	450 cd/m² (typ) - 600:1 (typ)
View Angle and Max Colors:	89° (up/down/left/right) (typ) - 16.7 million
Optimal Resolution and Hz:	1280 x 1024 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
Composite Video Input(s):	Composite Video, S-VHS Video
Supported Video Signals:	Interlaced NTSC, PAL and SECAM video, Composite Video, S-VHS
Product Features:	Optical Bonding Technology, Modular Backpack technology, Tactile Navigation, Dimmable 0-100%, PIP (Picture In Picture), Hotkey Functionality, USB Loopthrough in front, Serial Control Interface, Slimmest Design Possible, Detachable mounting bracket, IP22 or IP66 user controls
Power Specifications and Consumption:	115/230VAC - 50/60Hz or 24VDC 66W (max) (Brightness @ 100%)

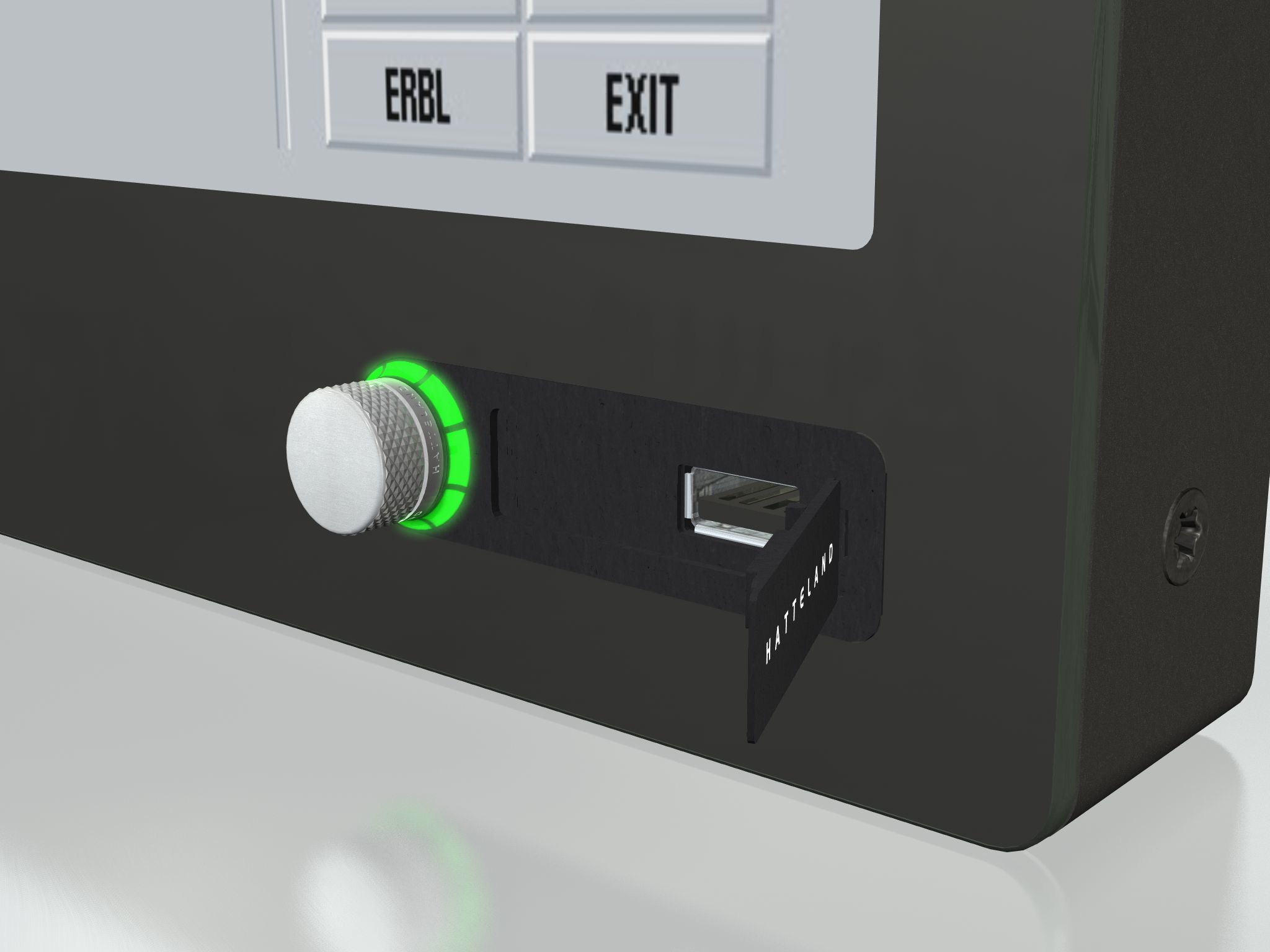

User Controls and Activity:	Power On/Off+Hotkey (Push button), On Screen Display Menu, Brightness Control (rotary potmeter or 3 x buttons, model dependent), Mode Status LED-Ring Indicator

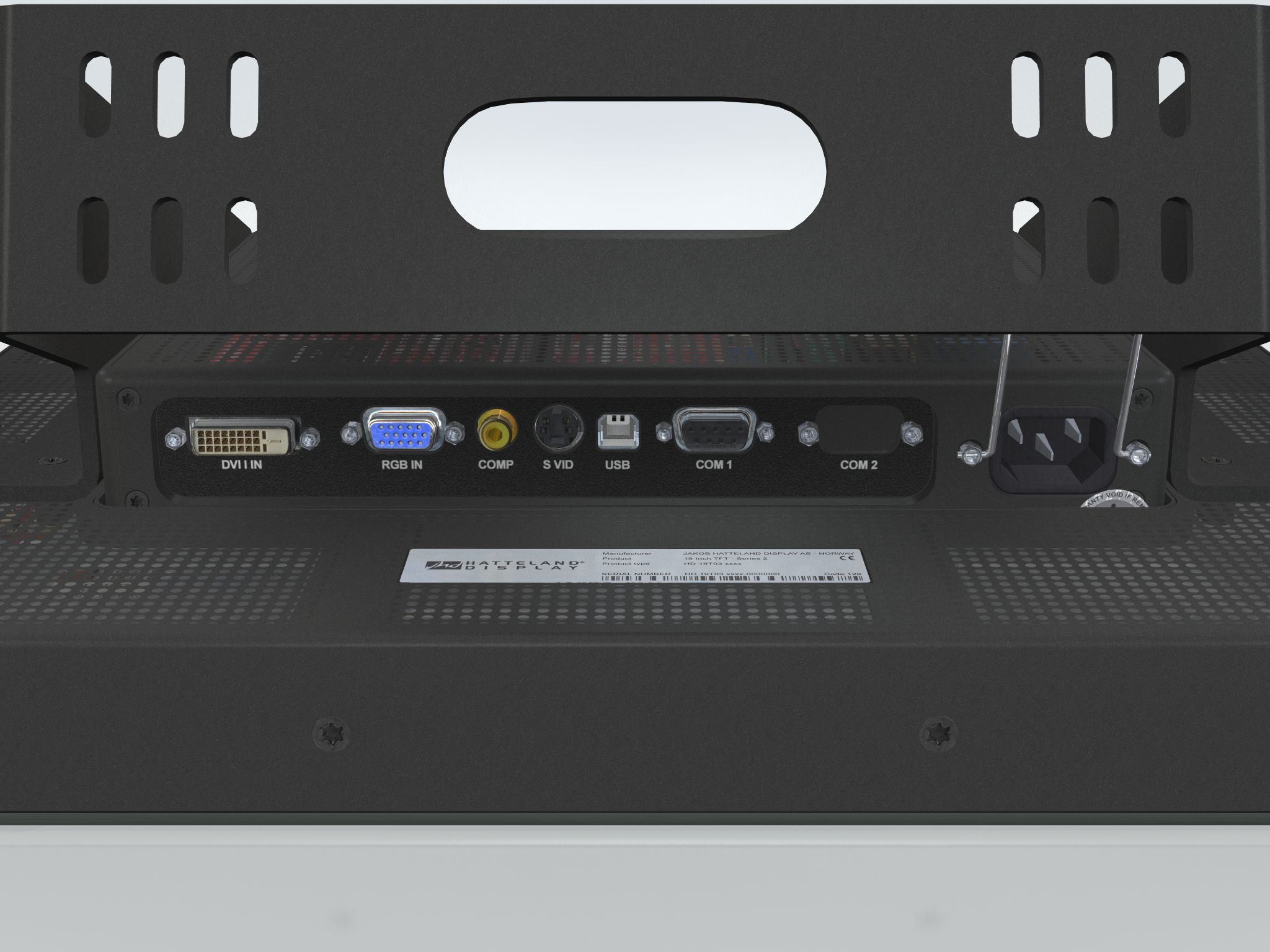

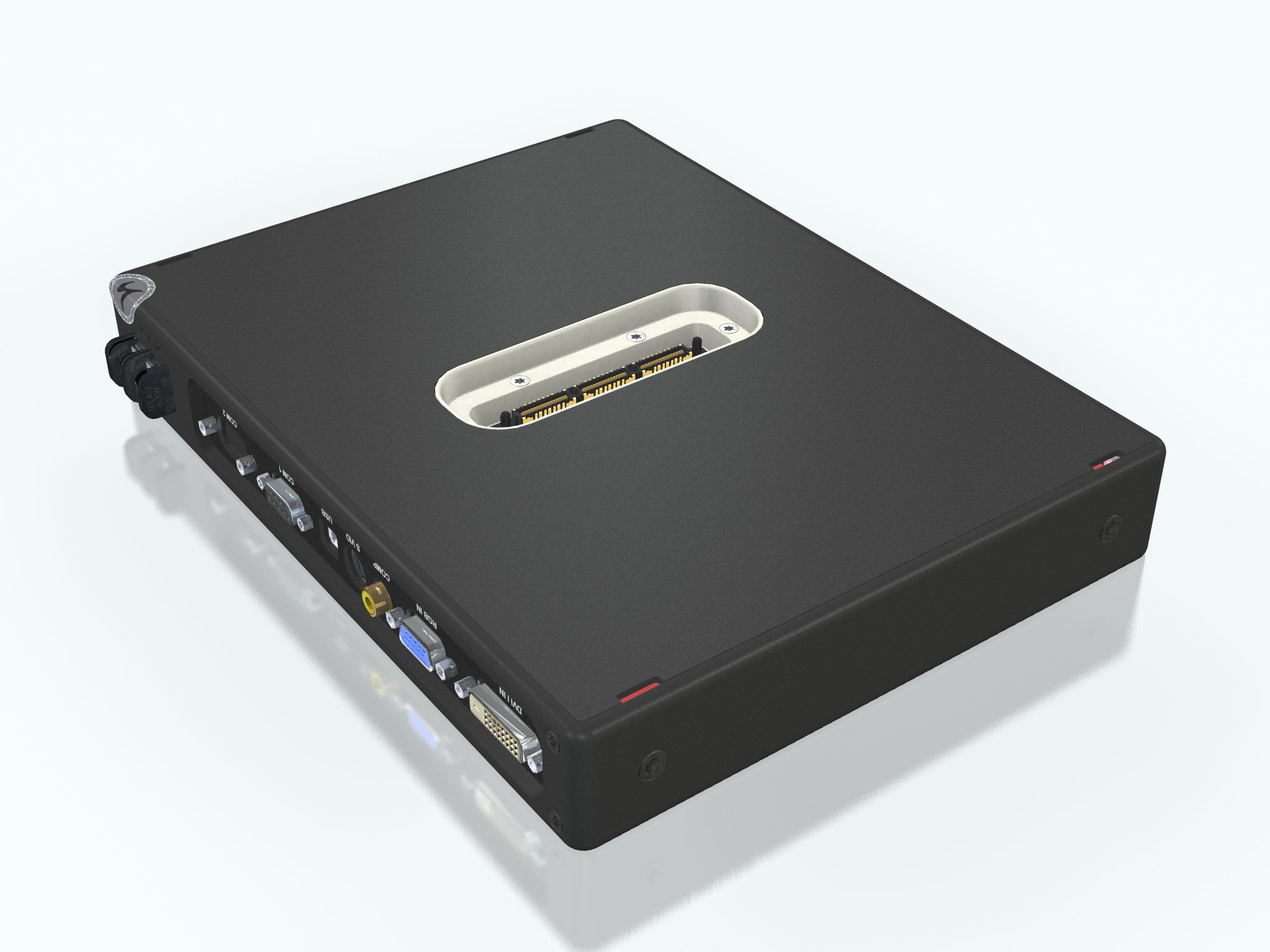

Connectors:	• DVI IN: 1 x DVI-I 24P (female or as VGA IN with adapter) • VGA IN: 1 x HD D-SUB 15P (female) • Composite Video IN: 1 x RCA phono (female) • S-Video IN: 1 x S-VHS 5pin (female) • USB1.1 (>10m): 1 x USB Type A (loopthrough, behind hatch on front) • USB1.1 (>10m): 1 x USB Type B (loopthrough) • SCOM RS-232: 1 x D-SUB 9P (female) • COM2: 1 x Feature Connector (Touch screen=USB Type B (female)) • If AC Power IN: 1 x Std. IEC Inlet (female) • If DC Power IN: 1 x Screw Terminal
Product Dimensions and Weight:	Without bracket: W:416.20 [16.39"] x H:372.20 [14.65"] x D:75.00 [2.95"] mm [inch] With Bracket: W:416.20 [16.39"] x H:363.73 [14.32"] x D:167.05 [6.58"] mm [inch] Approx. 9.0kg / 19.8lbs
Product Carton Size and Weight:	L:570.00 [22.44"] x W:290.00 [11.42"] x H:630.00 [24.80"] mm [inch] 14.0kg / 30.8lbs
Factory Options:	• Resistive Touchscreen, 4-wire • COM2: 1 x D-SUB 9P • IP22 or IP66 user controls
Accessories:	Desktop/Ceiling Mount Bracket (included in delivery), VESA bracket, Console Mounting Bracket, Split Cable RS422/485, Mounting Bracket (EN60945 Tested)
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 or IP22 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 80.00 [31.50"] - Steering: 50.00 [19.69"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register

Specifications last updated: May 8, 2025 @ 13:05
