HD 19T21 STD
Monitor - LED - HATTELAND® Series X G1 - 19.0 inch
HD 19T21 STD
Series X Monitors offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications.
LED-backlit

Monitor - HATTELAND® Series X G1
The Series X monitor range is a flexible monitor solution designed and type approved for the professional maritime segment, where reliability and long life time are key prerequisites for the industry. The product range combines stunning design and technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.The entry level STD models provide a wide choice of monitor size and format for shipboard applications where simple data input (DVI & VGA) is required. Be it for ship navigation or automation, this range with all it's possible options provides a robust and cost effective platform from which to display and manage data.
Series X Monitors feature Glass Display Control™, LED Backlight Technology, full dimming and multipower as standard, and can also accomodate and combine a number of options such as multi-touch screen and optical bonding.
Typenumber (Long): |
HD 19T21 STD-xxx-Fxxx |
TFT Technology: |
LED Backlight Technology, TFT Active-matrix, VA (Multi-domain Vertical Alignment) Technology |
Viewable Size and Active Area: |
19.0 inch - 376.32 [14.82"] (H) x 301.06 [11.85"] (V) mm [inch] |
Native Resolution and Pixel Pitch: |
1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm |
Aspect Ratio and Response Time: |
5:4 - 35ms (typ) |
Light Intensity and Contrast Ratio: |
350 cd/m² (typ) - 1500:1 (typ) |
View Angle and Max Colors: |
85 deg. (up/down/left/right) - 16.7 million |
Optimal Resolution and Hz: |
1280 x 1024 @ 60 Hz |
Detectable Resolutions: |
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024* *Recommended, native resolution Other resolutions will be scaled full screen, unit has no scaling support. |
Composite Video Input(s): |
None |
Supported Video Signals: |
None |
Product Features: |
Dimmable 0-100%, Multi-power AC&DC |
Power Specifications and Consumption: |
Multi-power 100-240V AC - 50/60Hz + 24VDC 33W (typ) - 156W (max) |

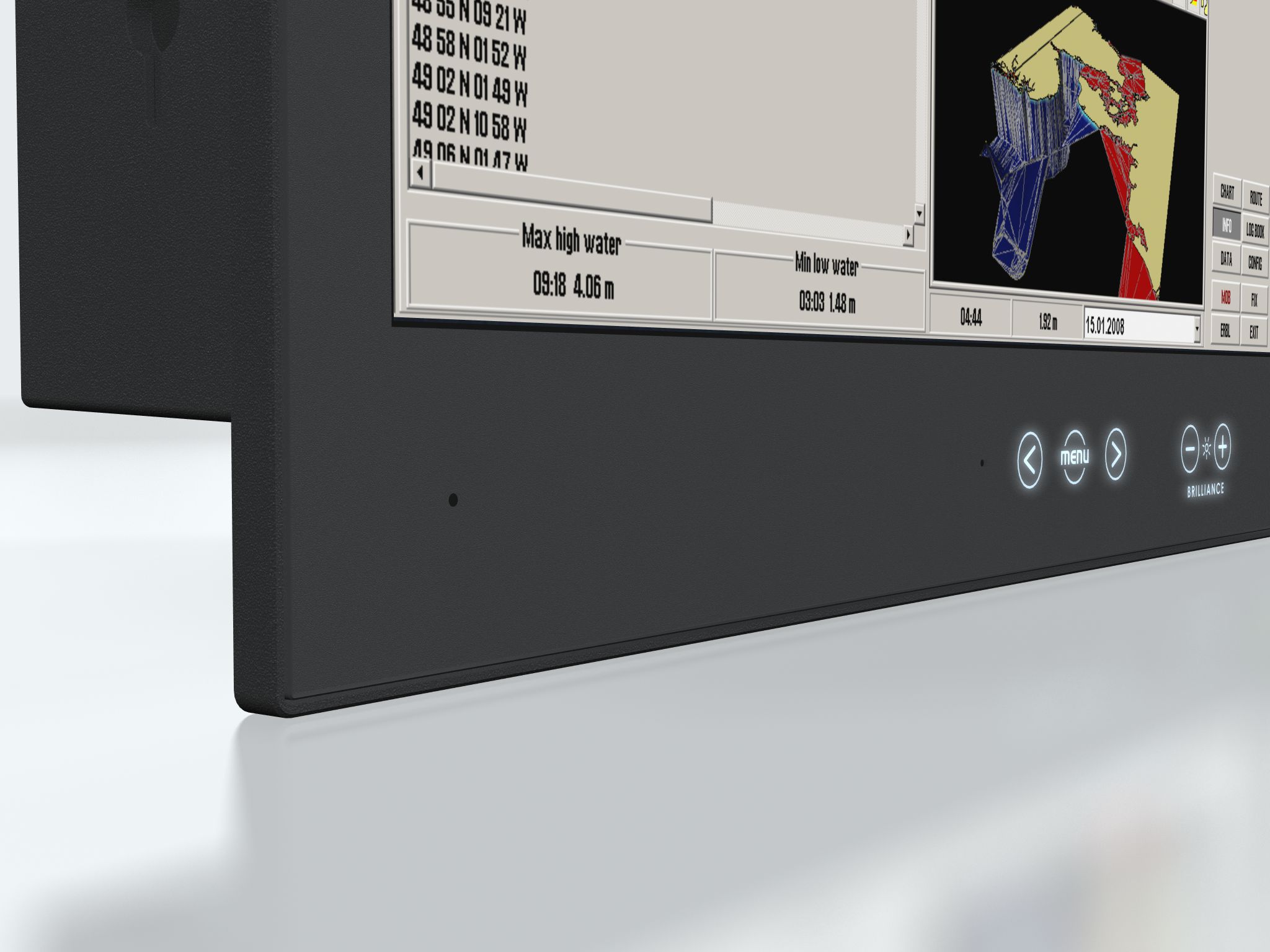

User Controls and Activity: |

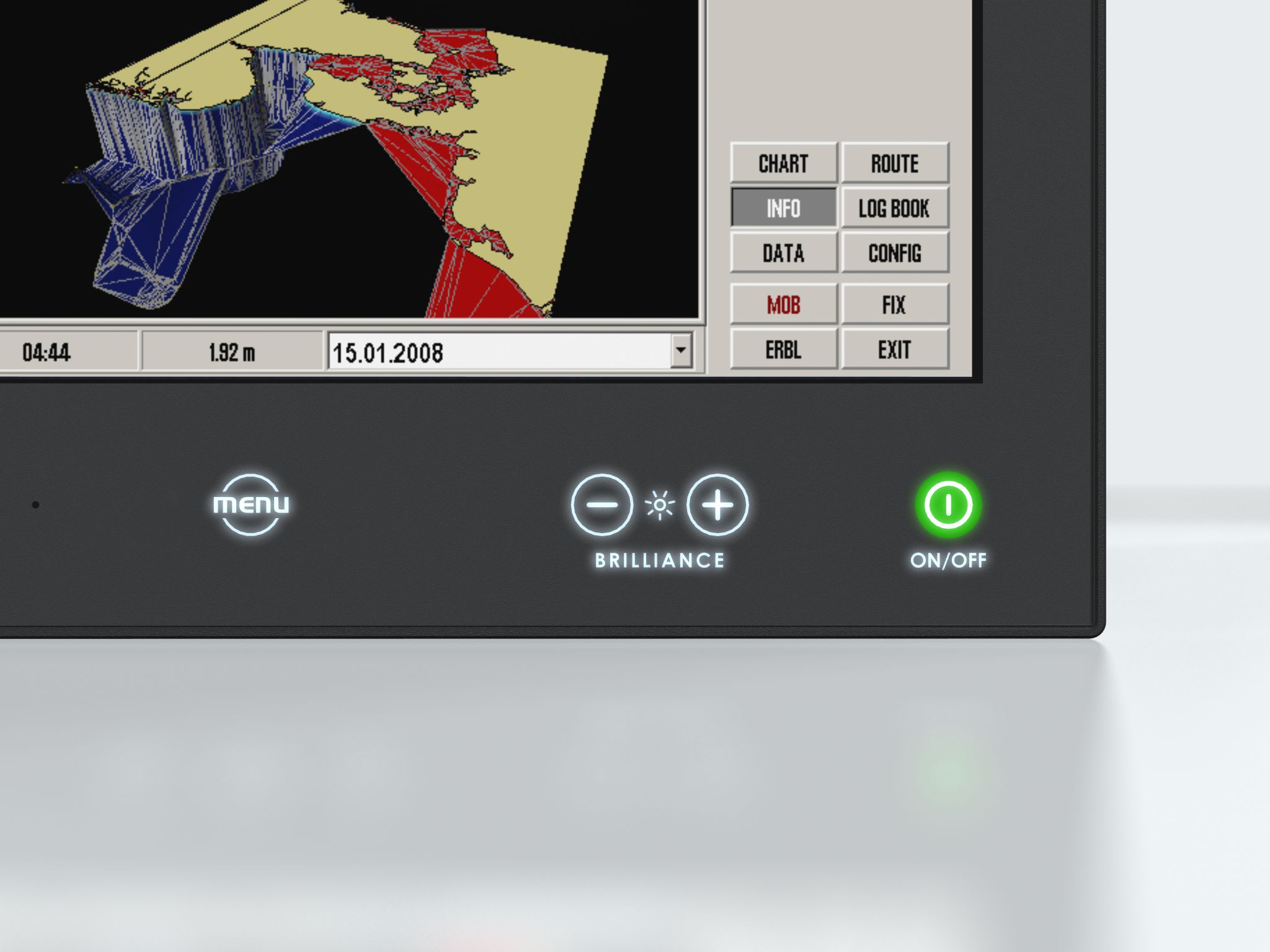

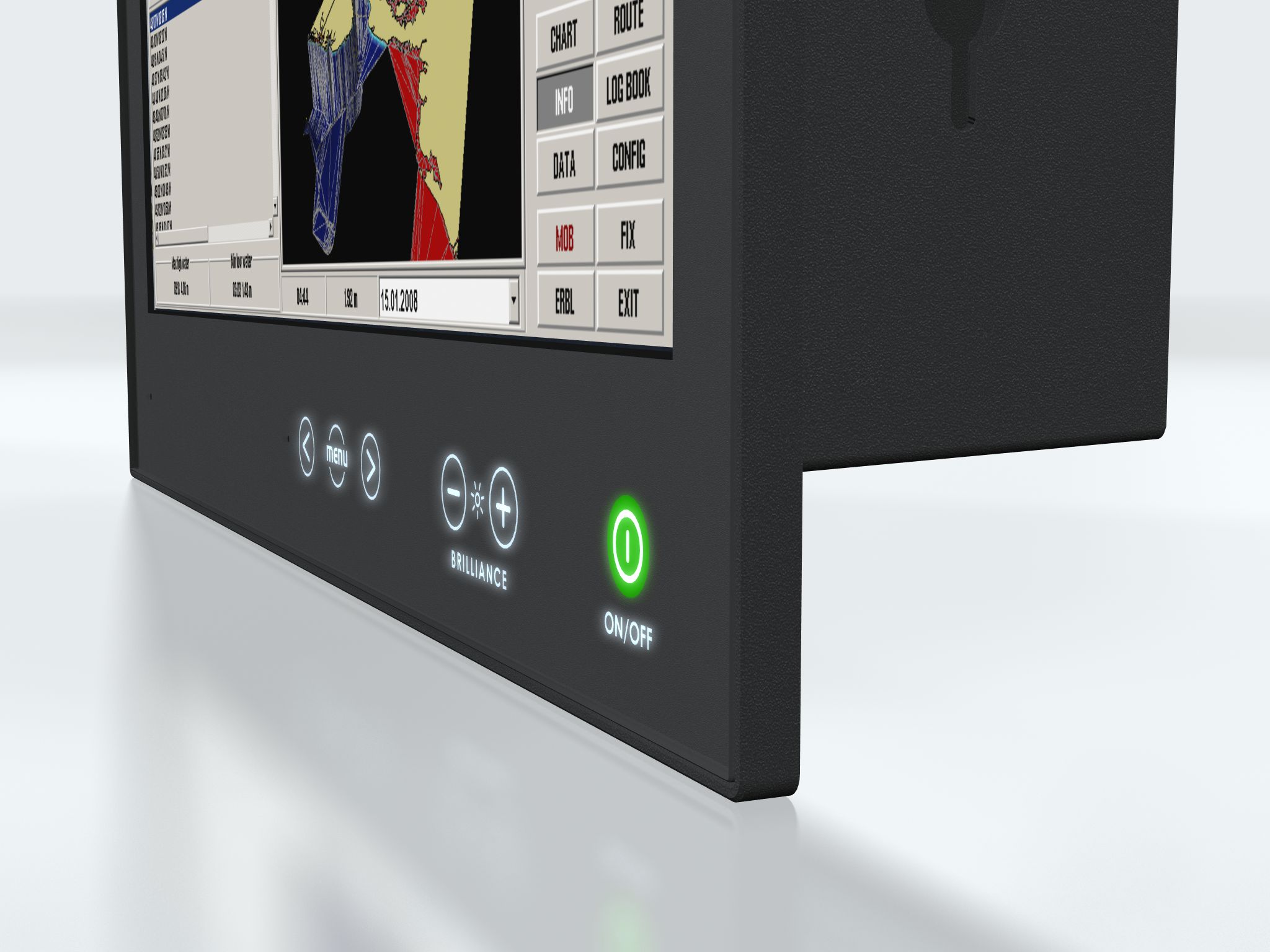

Glass Display Control™ (GDC) IP66 with: Power On/Off, On Screen Display Menu*, Brightness Control (-/+), Mode Status Indicator (ECDIS, Service), Buzzer (not visible), Light Sensor (not visible) *OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode |

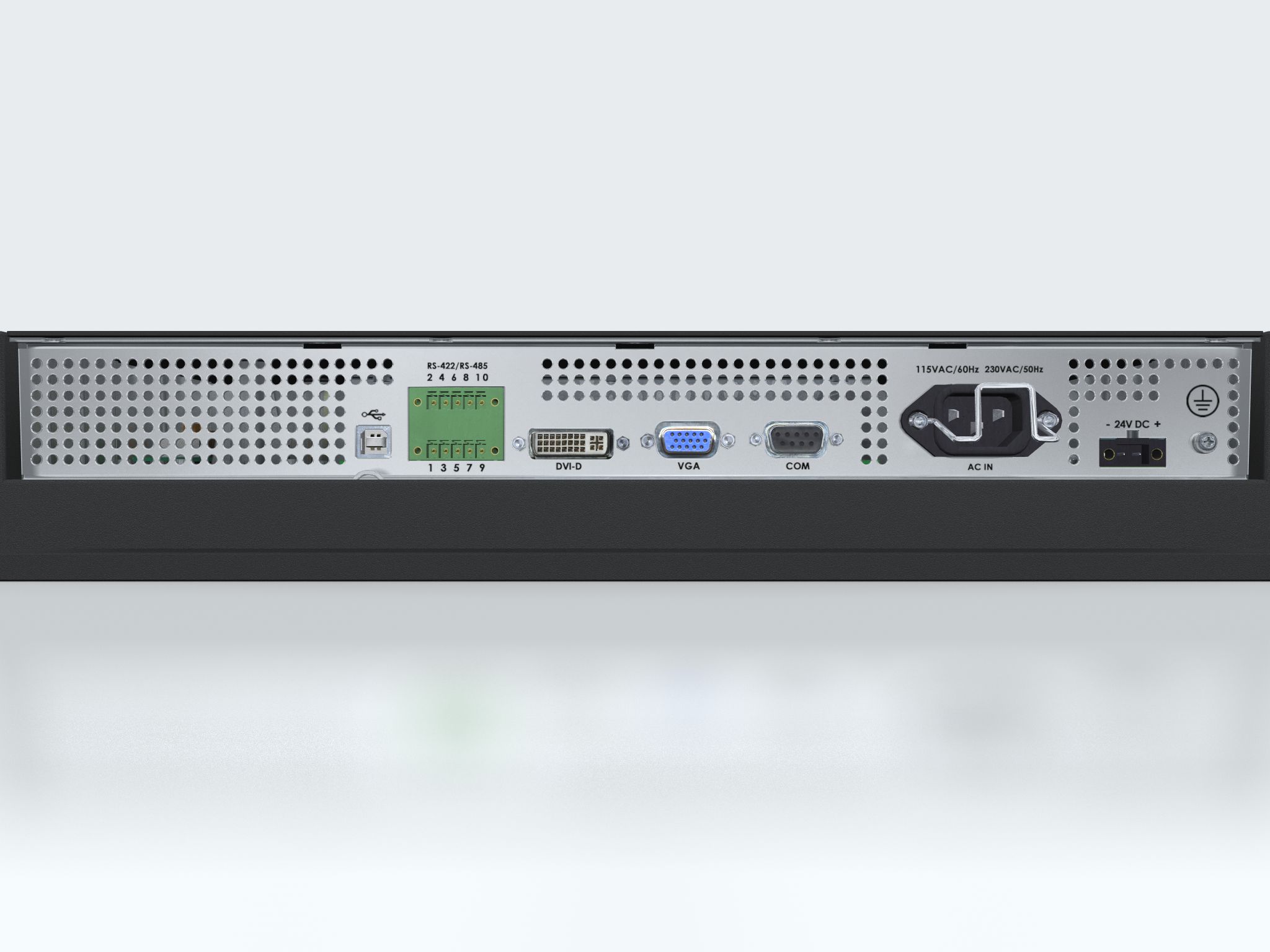

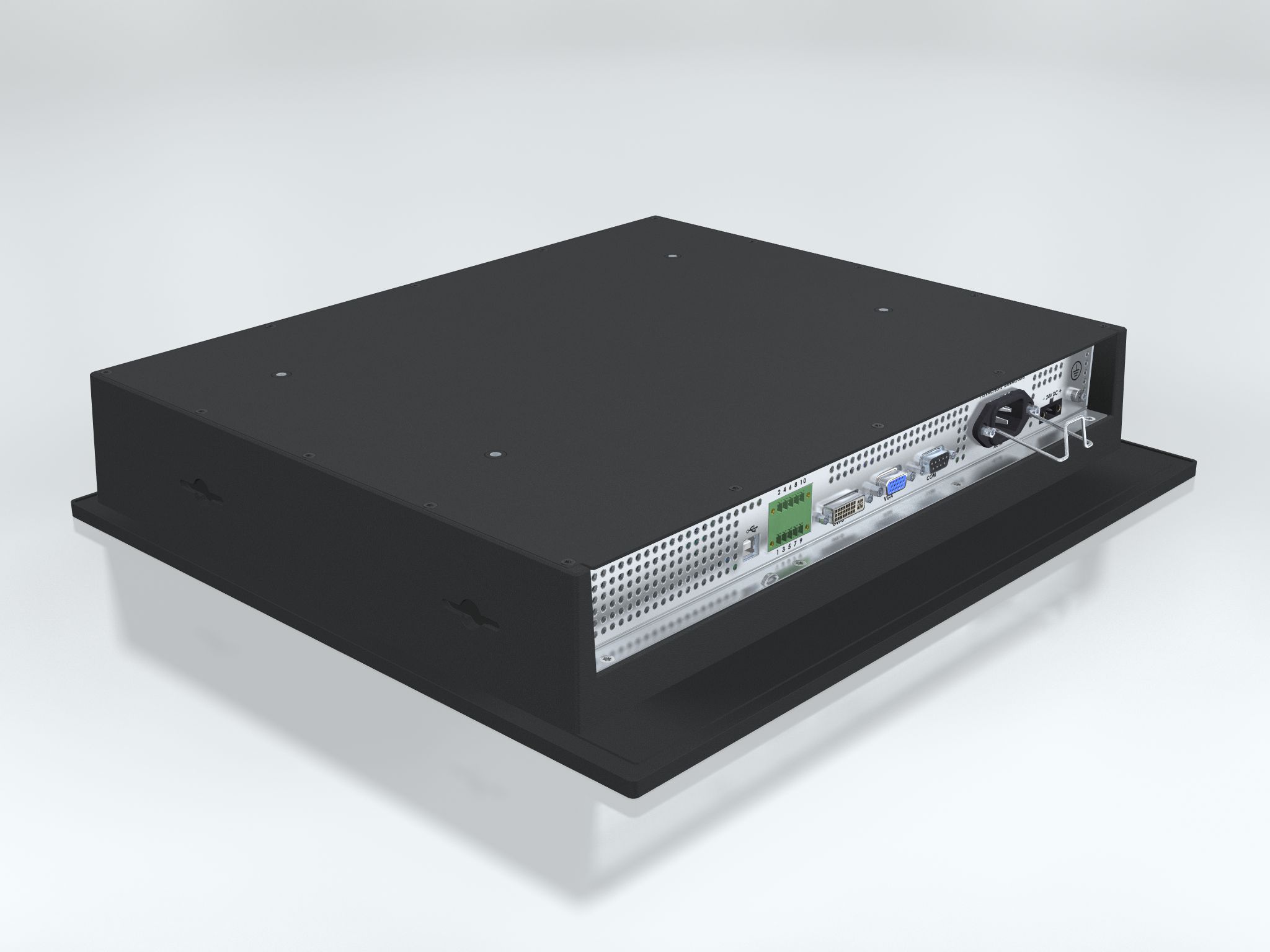

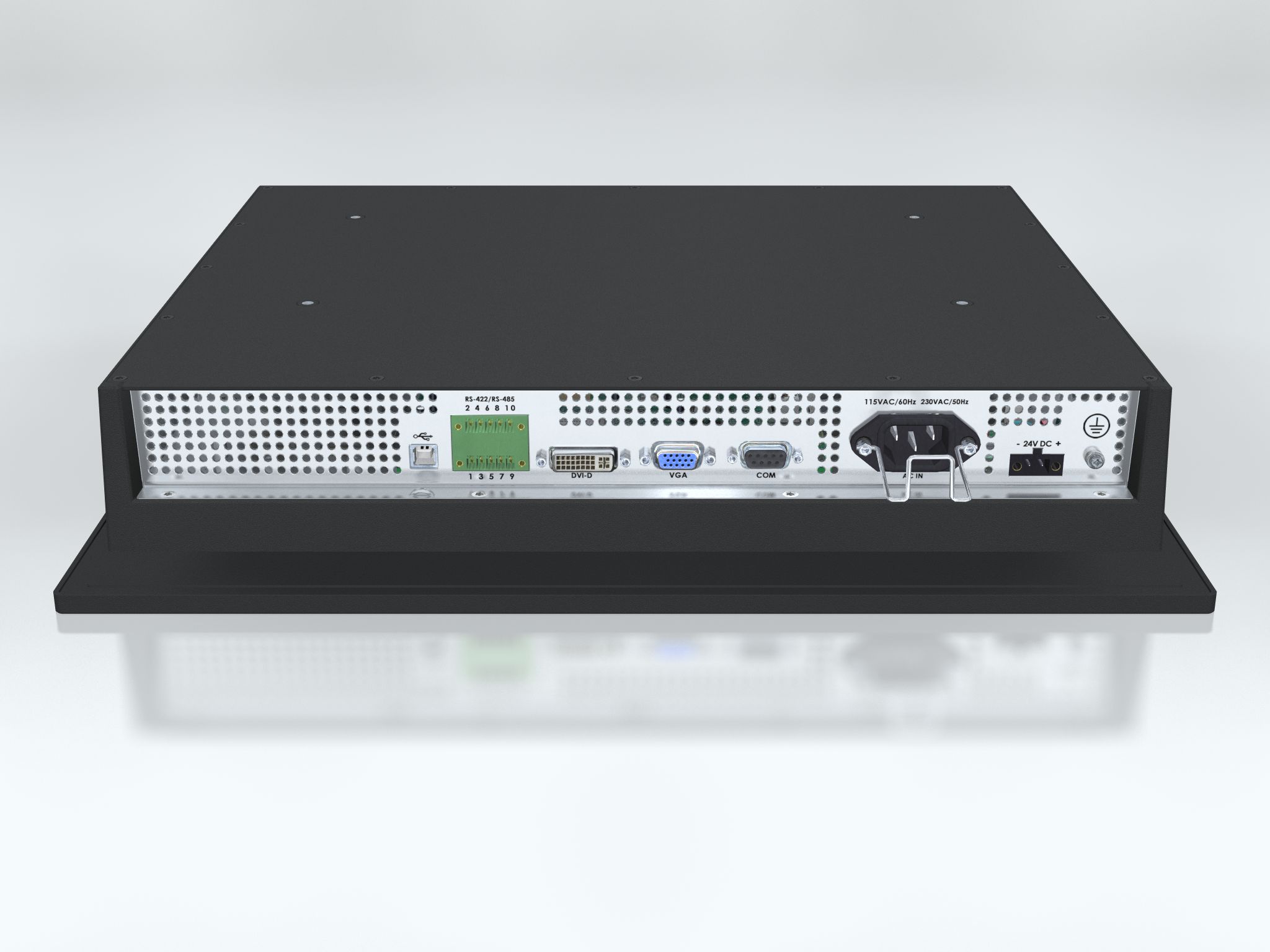

Connectors: |
• DVI IN: 1 x DVI-D 24P (female) • VGA IN: 1 x HD D-SUB 15P (female) • SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer • SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer • If Touchscreen:1 x USB Type B (female). Use USB2.0 (<5m) port. • AC Power IN: 1 x Std. IEC inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08 |
Product Dimensions and Weight: |
W:429.00 [16.89"] x H:382.00 [15.04"] x D:74.50 [2.93"] mm [inch] 4 x M6 VESA mounting 280x150mm, Max 12mm deep. .8kg / 17.2lbs |
Product Carton Size and Weight: |
L:530.00 [20.87"] x W:200.00 [7.87"] x H:540.00 [21.26"] mm [inch] 9.7kg / 21.3lbs |
Factory Options: |
• Optical Bonding Technology • Color Calibrated models (ECDIS) • Projected Capacitive Touch Screen (Multitouch, USB interface) |
Accessories: |
• HD CMB SX1-A2: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested • HD CMB SX1-A3: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested • HD TMB SX1-B1: 1 x Table Mount Bracket. EN60945 Tested • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested • JH 19TAP STD-C1: 1 x Frame Adp. (19" Series 1 to Series X) retrofit • HD 19TAP SX1-C2: 1 x Frame Adp. (19" Series X to Series 2) retrofit • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested • HD 19COV SX1-A1: 1 x UV Sun Cover • P007131-1: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount |
Capabilities - Prepared for: |
None |
Operating Temperature: |
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% |
Storage Temperature: |
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95% |
IP Rating: |
Protection: IP66 front - IP22 rear (EN60529) |
Compass Safe Distance: |
Standard: 125.00 [49.21"] - Steering: 75.00 [29.53"] cm [inch] |
Type Approval, Testing and Certificates: |
IEC 60945 4th (EN 60945:2002), IACS E10, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, V - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition, KR - Korean Register Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m |
Specifications last updated: July 1, 2025 @ 10:03 |
