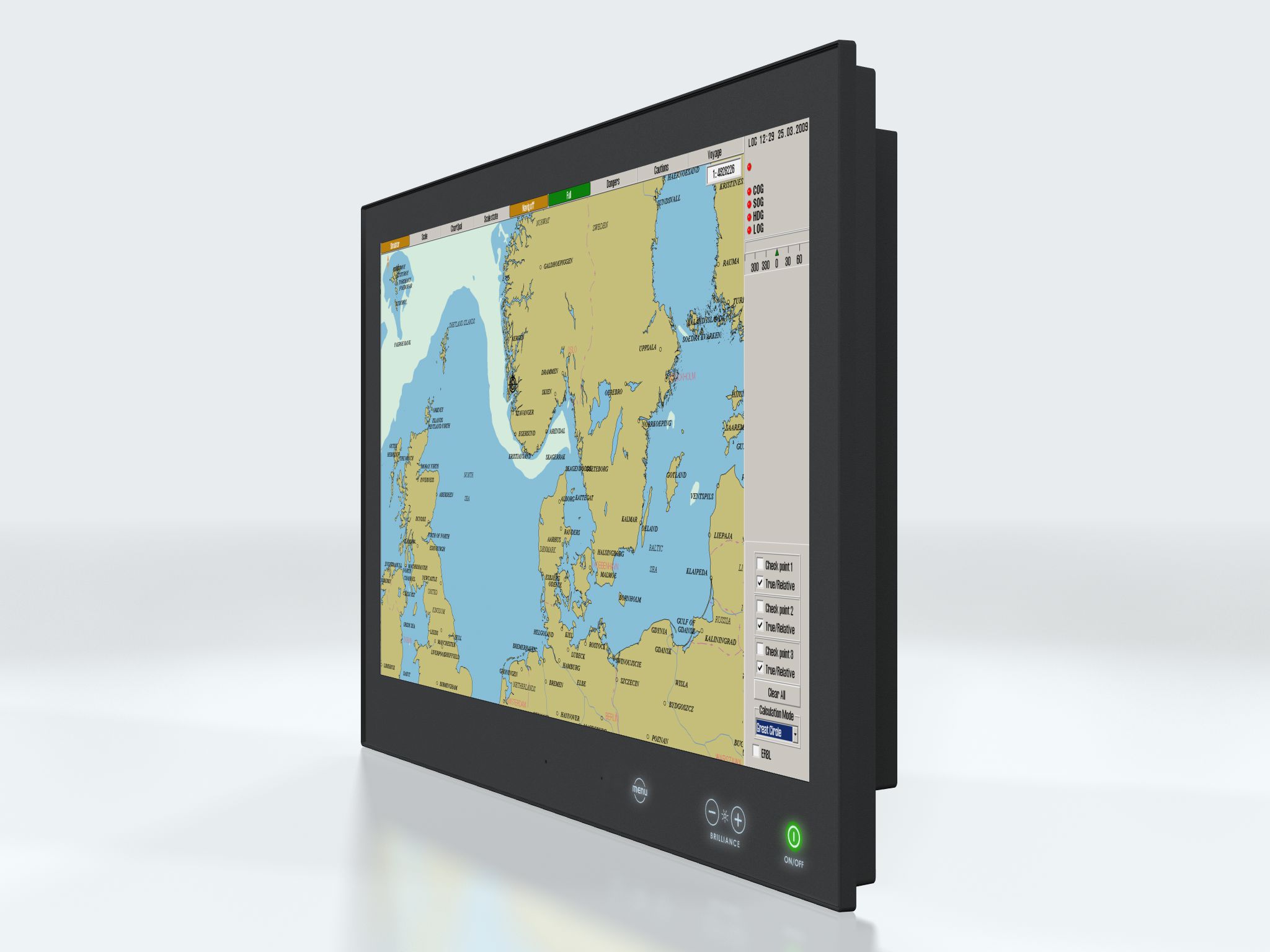

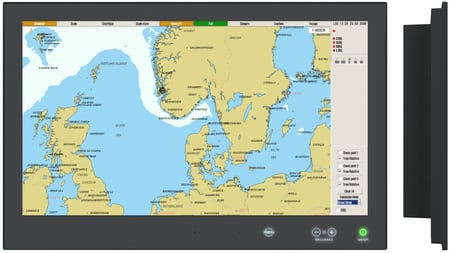

HD 24T21 STD
Monitor - Widescreen - LED - HATTELAND® Series X G1 - 24.0 inch
HD 24T21 STD
Series X Monitors offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications.
Widescreen
LED-backlit

Monitor - HATTELAND® Series X G1
The Series X monitor range is a flexible monitor solution designed and type approved for the professional maritime segment, where reliability and long life time are key prerequisites for the industry. The product range combines stunning design and technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.The entry level STD models provide a wide choice of monitor size and format for shipboard applications where simple data input (DVI & VGA) is required. Be it for ship navigation or automation, this range with all it's possible options provides a robust and cost effective platform from which to display and manage data.
Series X Monitors feature Glass Display Control™, LED Backlight Technology, full dimming and multipower as standard, and can also accomodate and combine a number of options such as multi-touch screen and optical bonding.
Typenumber (Long): |
HD 24T21 STD-xxx-Fxxx |
TFT Technology: |
LED Backlight Technology, Widescreen, RGB vertical stripe, MVA (Multi-domain Vertical Alignment) Technology, TFT Active-matrix |
Viewable Size and Active Area: |
24.0 inch - 531.36 [20.92"] (H) x 298.89 [11.77"] (V) mm [inch] |
Native Resolution and Pixel Pitch: |
1920 x 1080 (FHD) - 0.276 (H) x 0.276 (V) mm |
Aspect Ratio and Response Time: |
16:9 - 25ms (typ) |
Light Intensity and Contrast Ratio: |
300 cd/m² (typ) - 3000:1 (typ) |
View Angle and Max Colors: |
89 deg. (up/down/left/right) - 16.7 million |
Optimal Resolution and Hz: |
1920 x 1080 @ 60 Hz |
Detectable Resolutions: |
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080*, 1920 x 1200 *Recommended, native resolution Other resolutions will be scaled full screen, unit has no scaling support. |
Composite Video Input(s): |
None |
Supported Video Signals: |
None |
Product Features: |
Dimmable 0-100%, Multi-power AC&DC |
Power Specifications and Consumption: |
Multi-power 100-240V AC - 50/60Hz + 24VDC 40W (typ) - 156W (max) |
User Controls and Activity: |

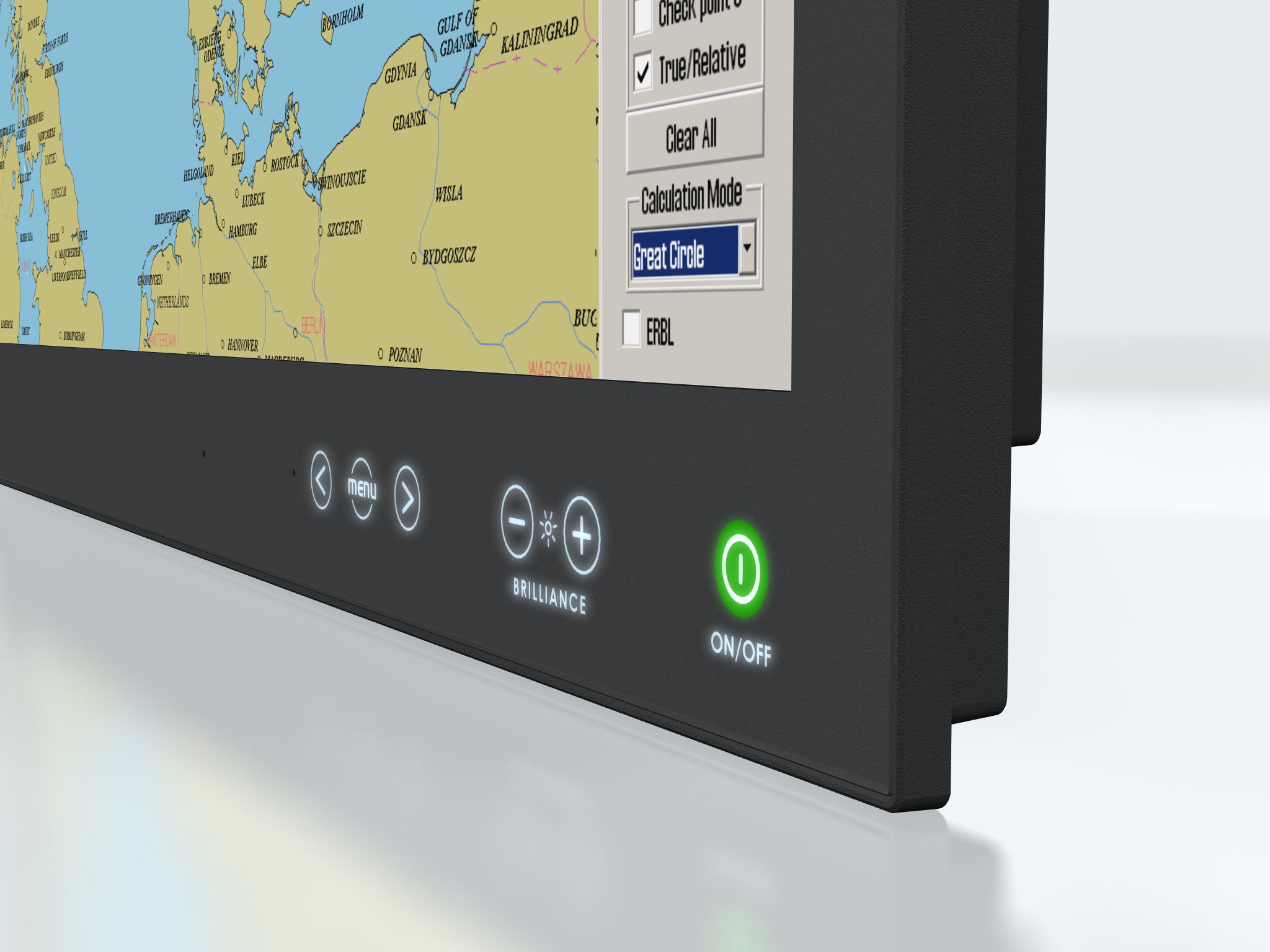

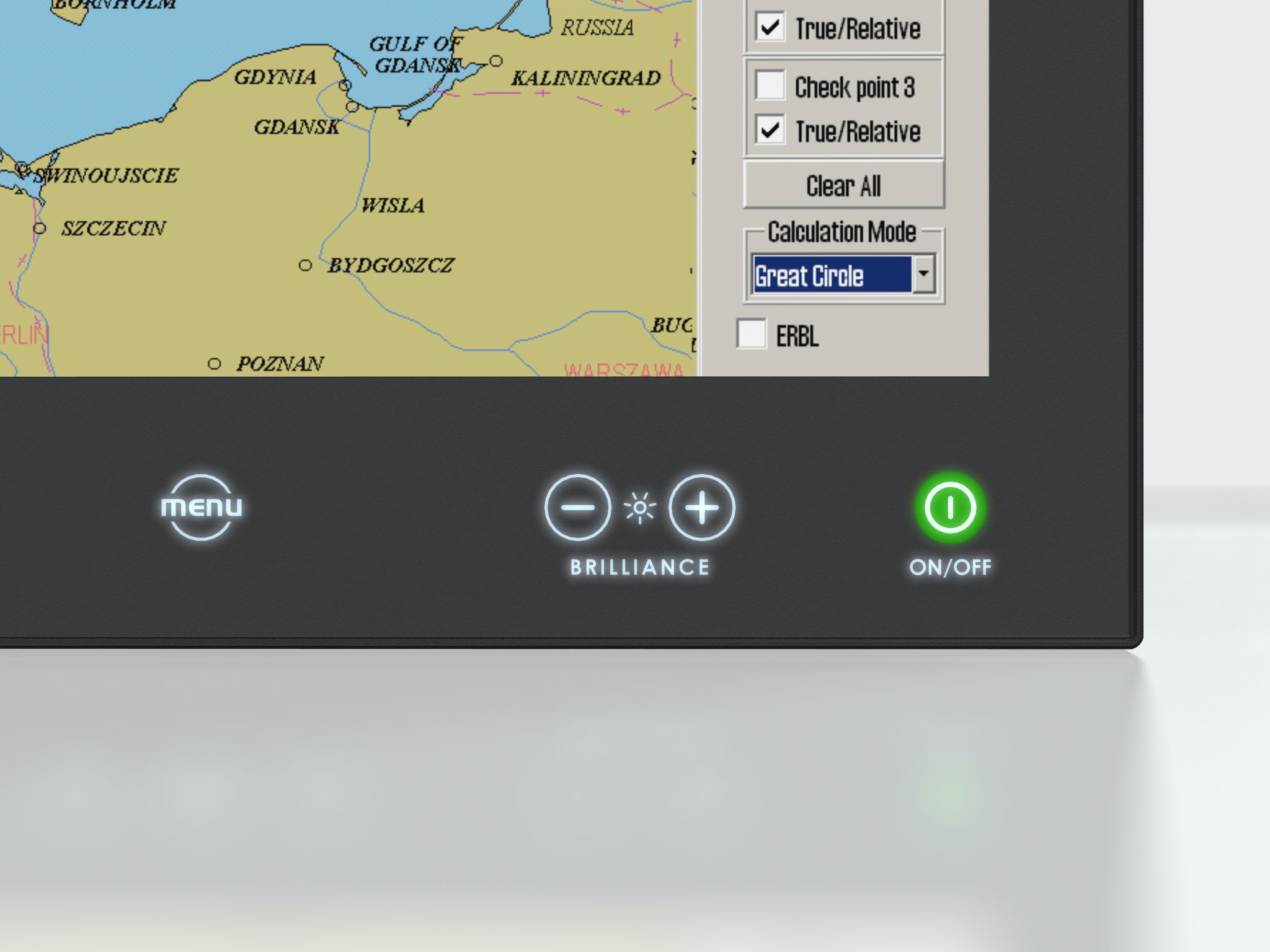

Glass Display Control™ (GDC) IP66 with: Power On/Off, On Screen Display Menu*, Brightness Control (-/+), Mode Status Indicator (ECDIS, Service), Buzzer (not visible), Light Sensor (not visible) *OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode |

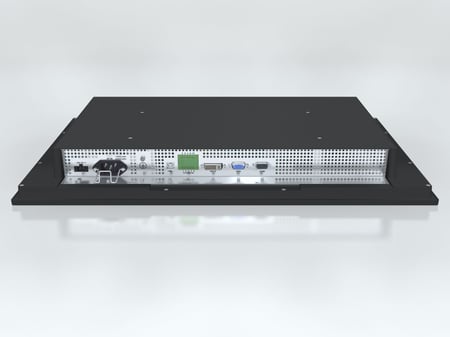

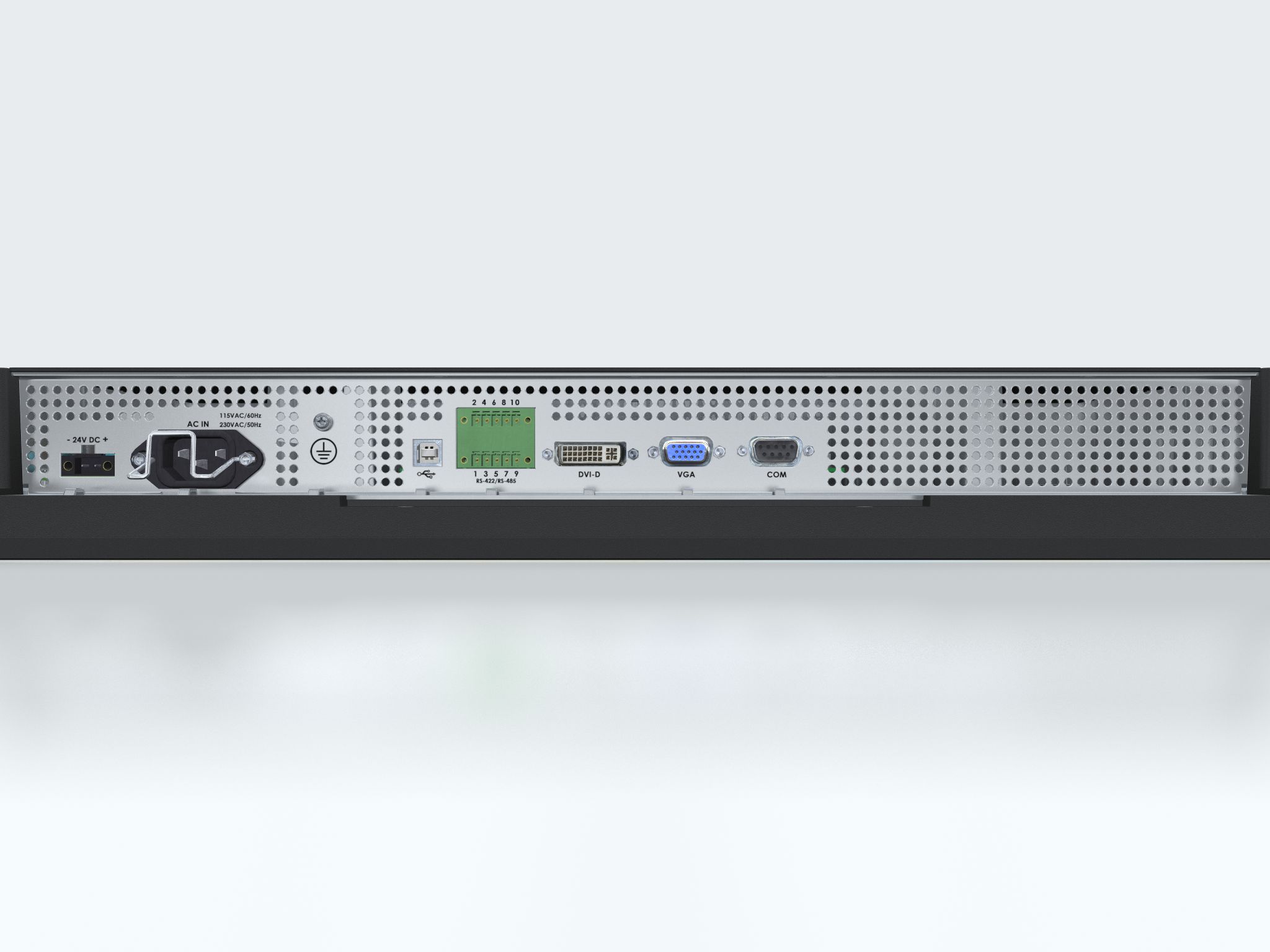

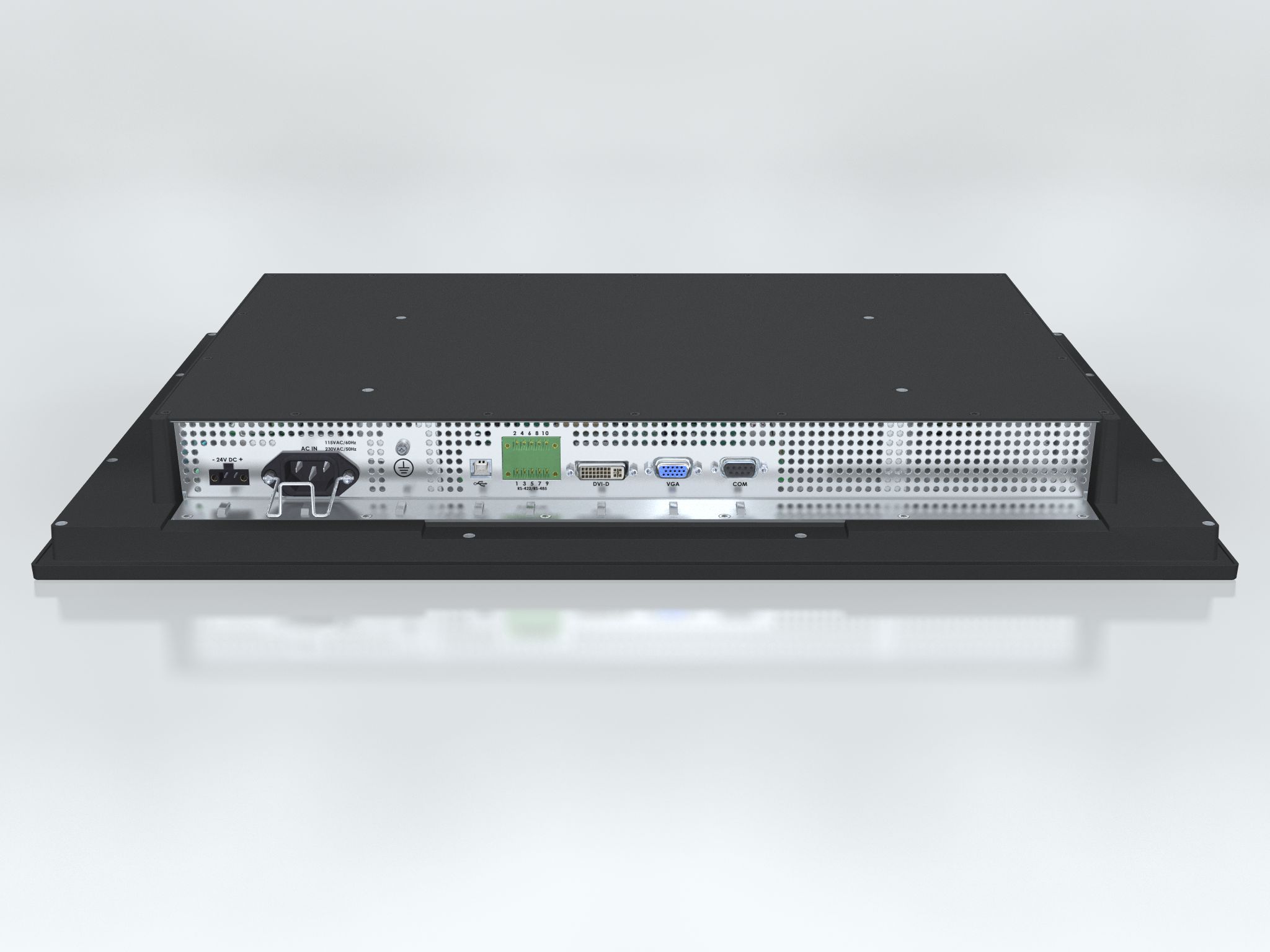

Connectors: |

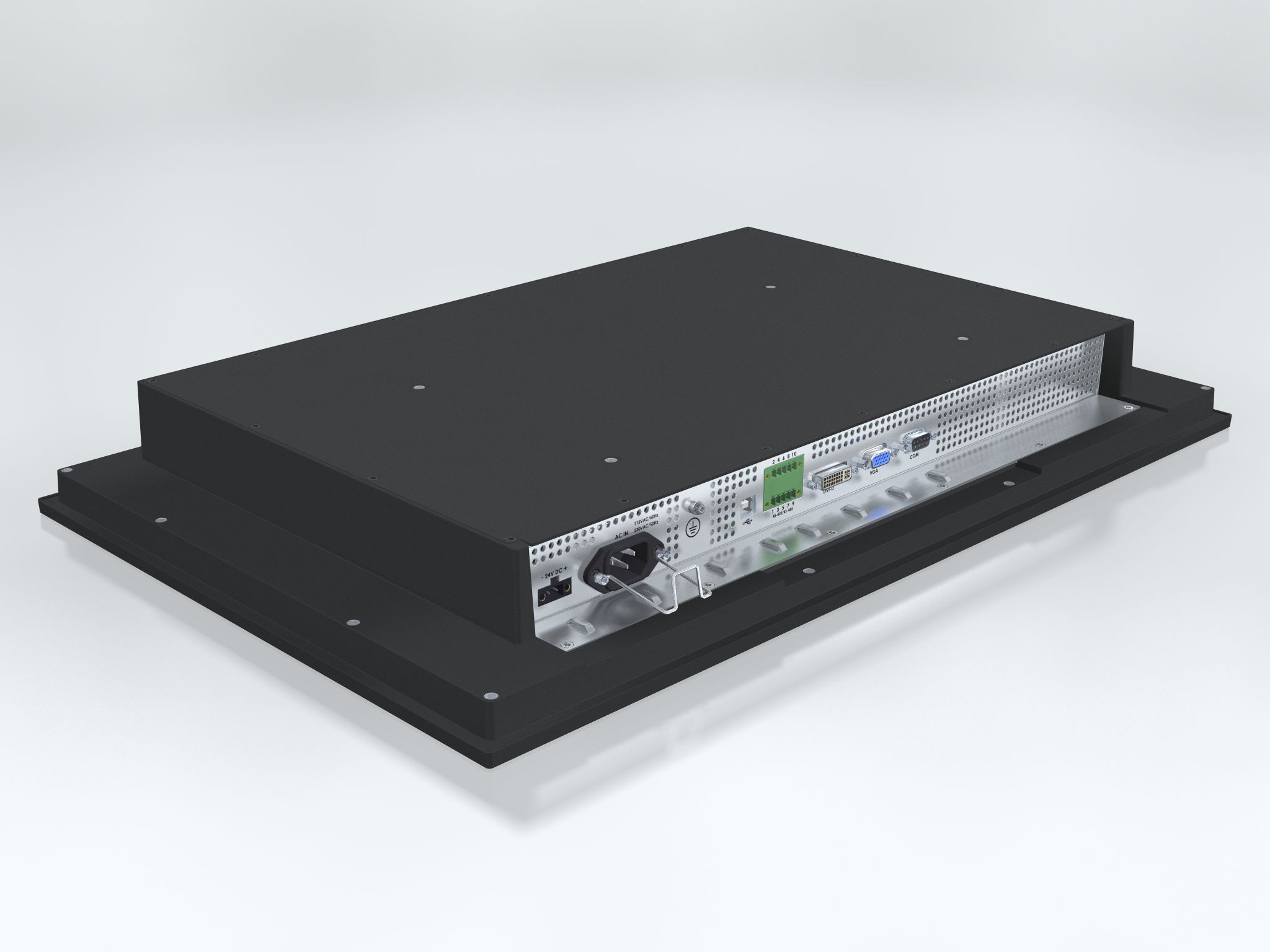

• DVI IN: 1 x DVI-D 24P (female) • VGA IN: 1 x HD D-SUB 15P (female) • SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer • SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer • If Touchscreen: 1 x USB Type B (female). Use USB2.0 (<5m) port. • AC Power IN: 1 x Std. IEC inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08 |
Product Dimensions and Weight: |
W:593.00 [23.35"] x H:384.00 [15.12"] x D:70.00 [2.76"] mm [inch] 4 x M6 VESA mounting 280x150mm, Max 12mm deep 10.1kg / 22.2lbs |
Product Carton Size and Weight: |
L:700.00 [27.56"] x W:185.00 [7.28"] x H:585.00 [23.03"] mm [inch] 12.9kg / 28.4lbs |
Factory Options: |
• Optical Bonding Technology • Color Calibrated models (ECDIS) • Projected Capacitive Touch Screen (Multitouch, USB interface) |
Accessories: |
• HD CMB SX1-B1: 1 x Console Mount Kit. EN60945 Tested • HD TMB SX1-C1: 1 x Table Mount Bracket. EN60945 Tested • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested • HD 24COV SX1-A1: 1 x UV Sun Cover • P022211: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount |
Capabilities - Prepared for: |
None |
Operating Temperature: |
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% |
Storage Temperature: |
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95% |
IP Rating: |
Protection: IP66 front - IP22 rear (EN60529) |
Compass Safe Distance: |
Standard: 125.00 [49.21"] - Steering: 75.00 [29.53"] cm [inch] |
Type Approval, Testing and Certificates: |
IEC 60945 4th (EN 60945:2002), IACS E10, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition, KR - Korean Register Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m |
Specifications last updated: July 7, 2025 @ 10:01 |
Latest Product Updates
Engineering Change Notifications (ECN):
Changes packaging marking with UKCA symbol - all produc...
7 Aug 2023
Changes product marking - all products
18 Jan 2023
Updated power components on video scalers for Series X ...
18 Jan 2023
Updated GDC (keypad) HW and supporting FW for Series X ...
28 Apr 2022
Updated LED driver solution for all 24 inch LCD variant...
9 Feb 2022
New 24 inch LCD variant for HD 24T21 / HD 24T22 Series ...
19 Oct 2021
Series X STD and MMC - Generation 1 - Chassis Update
15 Jul 2021
New power supply module - Multipower variants (125W)
29 Mar 2019
Firmware update affecting Series X MMD/STD Displays, 12...
30 May 2018
Qualification of new external production facility for 2...
9 Apr 2018
Touch Screen USB Cable - Contents of Package
26 Feb 2018
New internal Memory Chip (on video scaler) for Industri...
24 Apr 2017
24 inch Series X - Displays (MMD and STD) and Panel Com...
10 Feb 2017
DDC/CI support (new firmware) added for Series X G1 Dis...
11 Feb 2016
Qualification of second source industrial connectors
28 Aug 2015
Touch Screen updates (Firmware, Glass, Controller) for ...
15 Jul 2015
Series X - Industrial Display (STD), Firmware Update
18 Jun 2013
Series X - Touch Screen Firmware Update
End of Life Notifications (EOL):
Series X G1/G2, Series 1 G2 and HM 24T22 CMD - End of L...
2 Sep 2019
Global Documentation and Driver DVD
News Stories:
Hatteland Display launches Series X product range
20 May 2011
Introducing Series X. Our next generation of displays
22 Dec 2010
24 inch Wide screen FHD, the ultimate size for ECDIS!
Last Time Buy

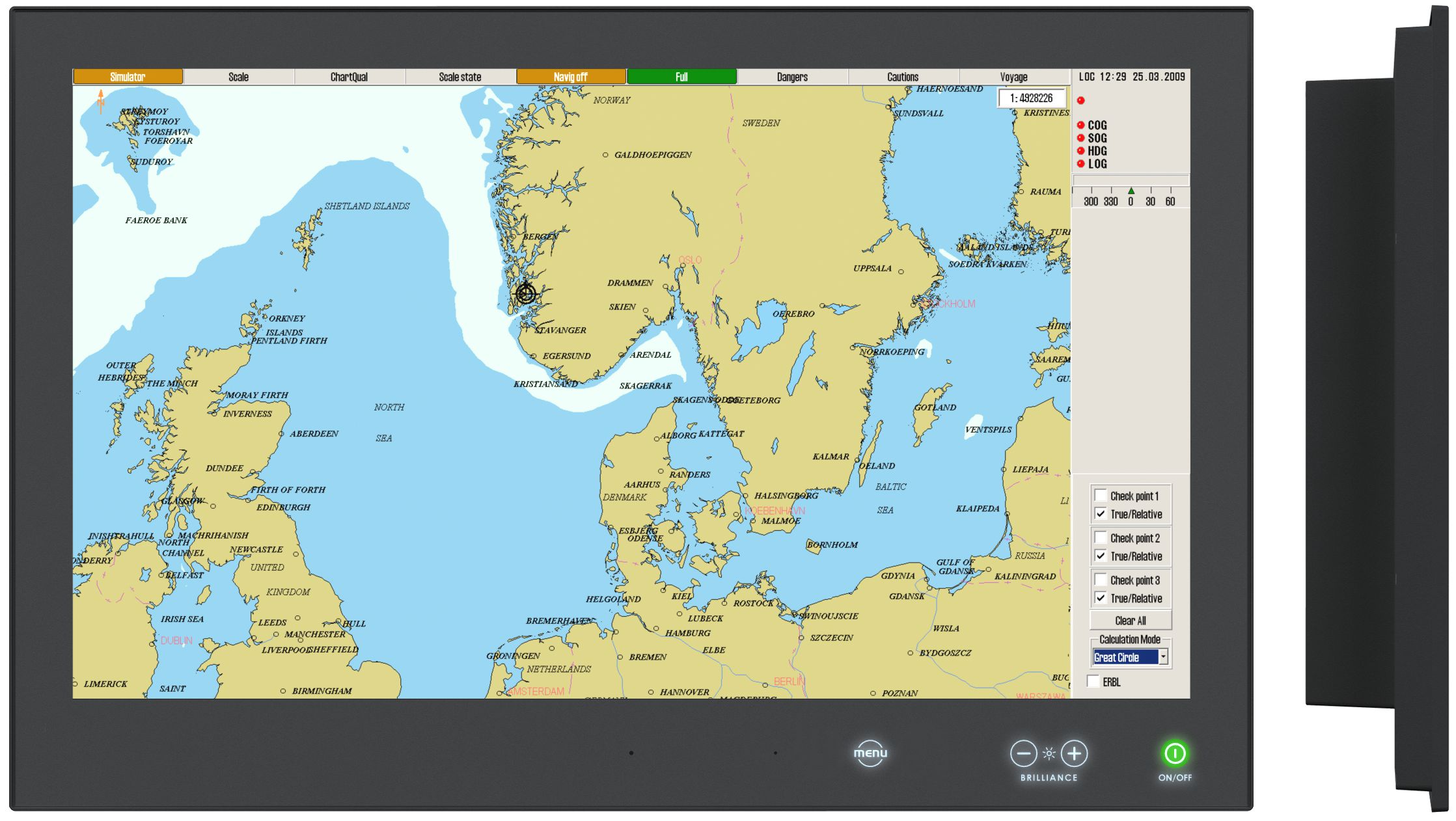

HD 24T21 STD
