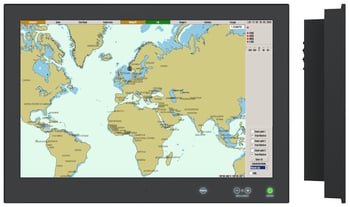

Monitor - Widescreen - LED - HATTELAND® Series X G1 - 25.54 inch

HD 26T21 STD

Series X Monitors offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications.

Widescreen

LED-backlit

Send Request

Description

Specifications

Typenumber (Long):	HD 26T21 STD-xxx-Fxxx
TFT Technology:	LED Backlight Technology, TFT Active-matrix, Widescreen, S-MVA (Multi-domain Vertical Alignment) Technology, RGB Vertical Stripe
Viewable Size and Active Area:	25.54 inch - 550.08 [21.66"] mm (H) x 343.80 [13.54"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1920 x 1200 (WUXGA) - 0.2865 (H) x 0.2865 (V) mm
Aspect Ratio and Response Time:	16:10 - 20ms (Tr+Tf)
Light Intensity and Contrast Ratio:	350 cd/m² (typ) - 1500:1 (typ)
View Angle and Max Colors:	88 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1920 x 1200 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200* *Recommended, native resolution Other resolutions will be scaled full screen, unit has no scaling support.
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Dimmable 0-100%, Multi-power AC&DC
Power Specifications and Consumption:	Multi-power 100-240V AC - 50/60Hz + 24VDC 231W (max) Inrush Current AC: 30.84A Max Inrush Current DC: 35.0A Max
User Controls and Activity:	Glass Display Control™ (GDC) IP66 with: Power On/Off, On Screen Display Menu, Brightness Control (-/+), Mode Status Indicator (ECDIS, Service), Buzzer (not visible), Light Sensor (not visible) OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode
Connectors:	• DVI IN: 1 x DVI-D 24P (female) • VGA IN: 1 x HD D-SUB 15P (female) • SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer • SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer • If Touchscreen: 1 x USB Type B (female). Use USB2.0 (<5m) port. • AC Power IN: 1 x Std. IEC inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight:	W:621.00 [24.45"] x H:435.00 [17.13"] x D:98.20 [3.86"] mm [inch] 4 x M6 VESA mounting 280x150mm, Max 12mm deep 15.9kg / 35.0lbs
Product Carton Size and Weight:	L:730.00 [28.74"] x W:220.00 [8.66"] x H:580.00 [22.83"] mm [inch] 18.5kg / 40.7lbs
Factory Options:	• Projected Capacitive Touch Screen (Multitouch, USB interface) • Optical Bonding Technology • Color Calibrated models (ECDIS) • Single AC Power 100-240V AC - 50/60Hz Input
Accessories:	• HD CMB SX1-C1: 1 x Console Mount Kit. EN60945 Tested • HD TMB SX1-C1: 1 x Table Mount Bracket. EN60945 Tested • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested • JH 26TAP STD-A1: 1 x Frame Adapter for Series 1 Cutout (retrofit) • HD 26TAP SX1-A1: 1 x Frame Adp. for JH 27T11 MMD Cutout (Retrofit)
Capabilities - Prepared for:	See Factory Options
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 125.00 [49.21"] - Steering: 80.00 [31.50"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition, KR - Korean Register Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: July 7, 2025 @ 10:01
