Monitor - HATTELAND® Series X MVD

The 43 inch Series X MVD features 4K screen resolution and high-end panel technology, it provides unmatched viewing clarity in all light conditions. Its ultramodern approach represents the pinnacle of maritime monitor technology, making it the most advanced platform for the development of a new generation of sophisticated, function rich and user-friendly bridge technologies that demand only the best monitor solutions to ensure increased navigational safety and efficiency on the bridge.

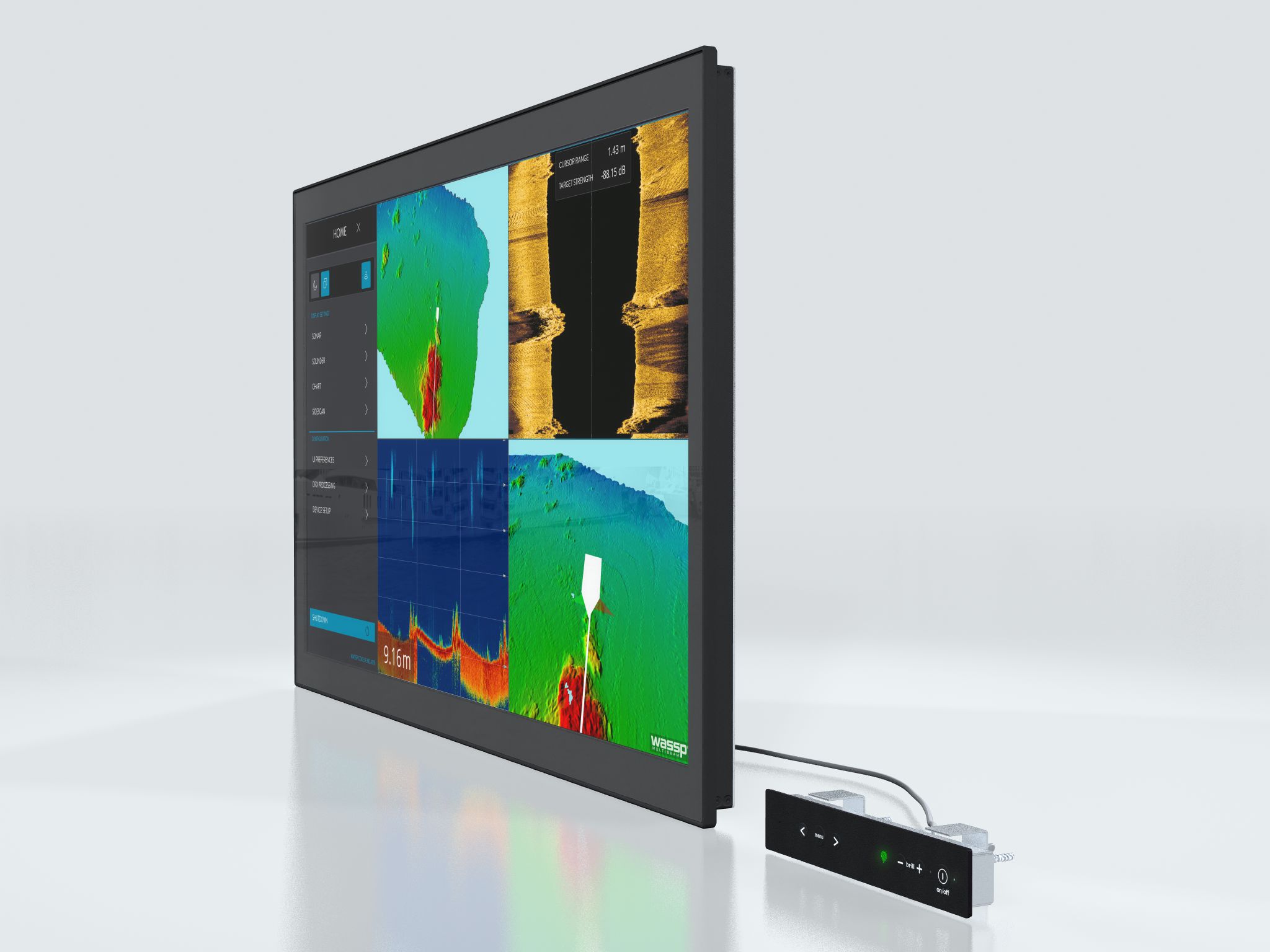

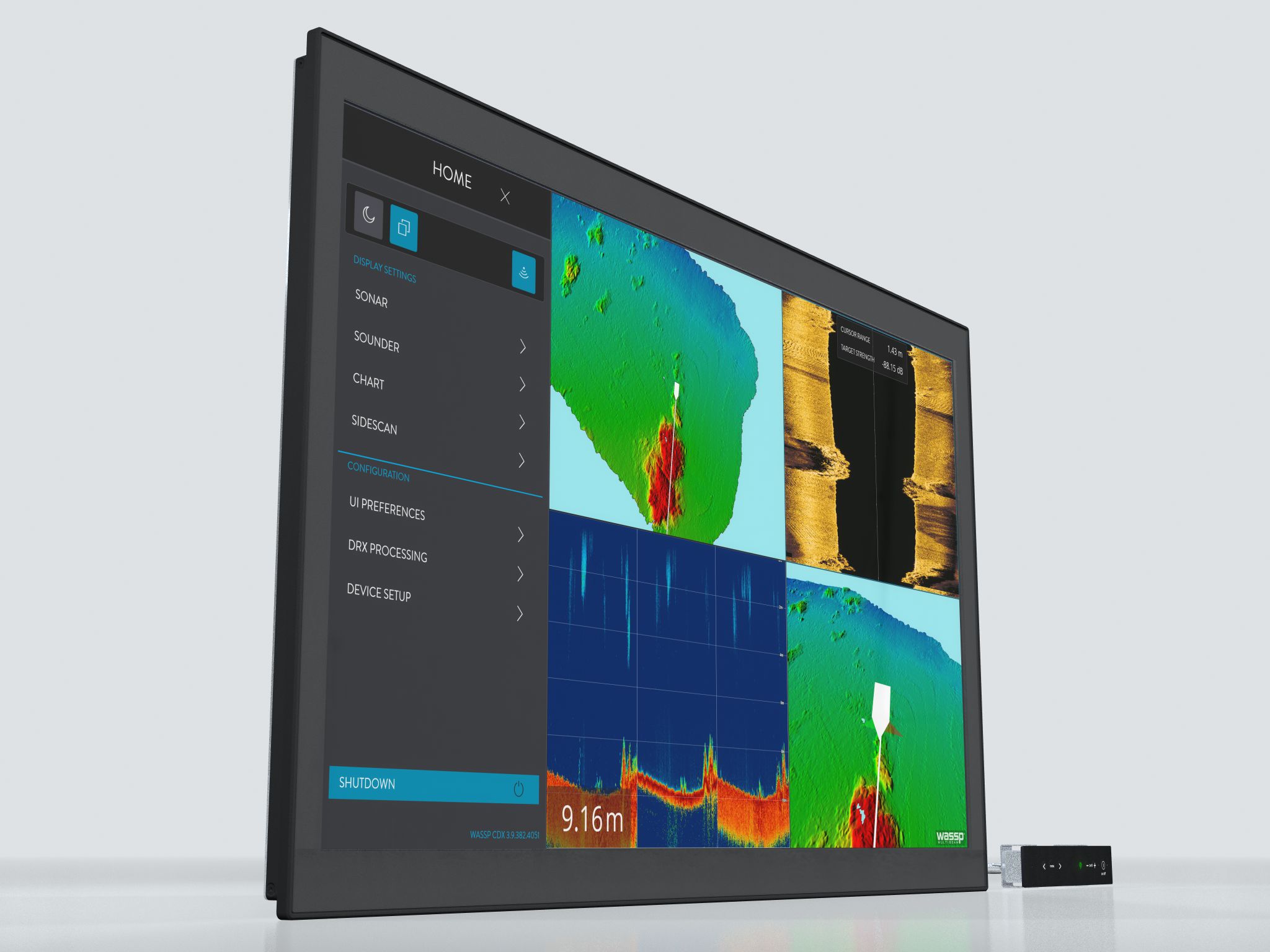

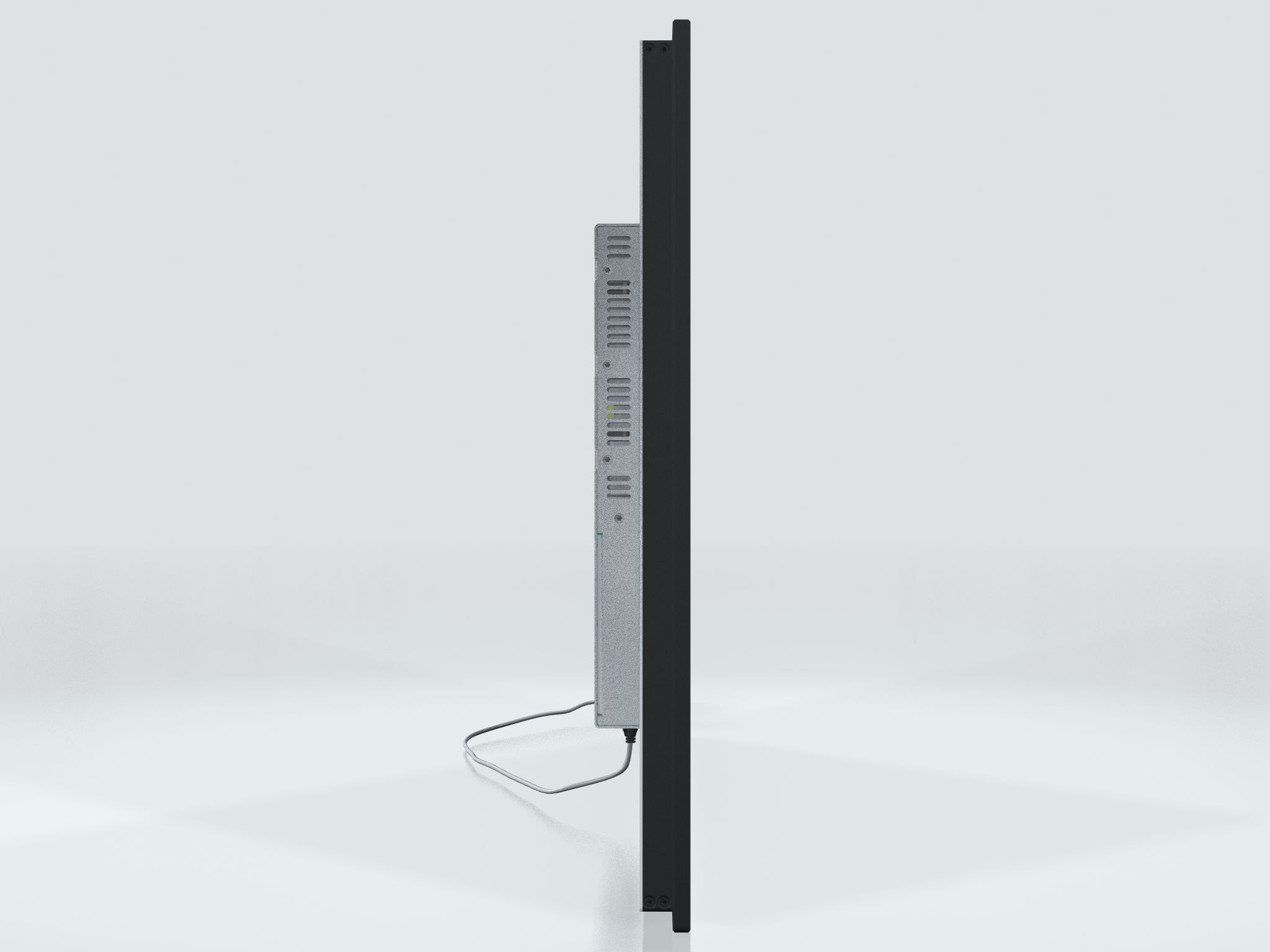

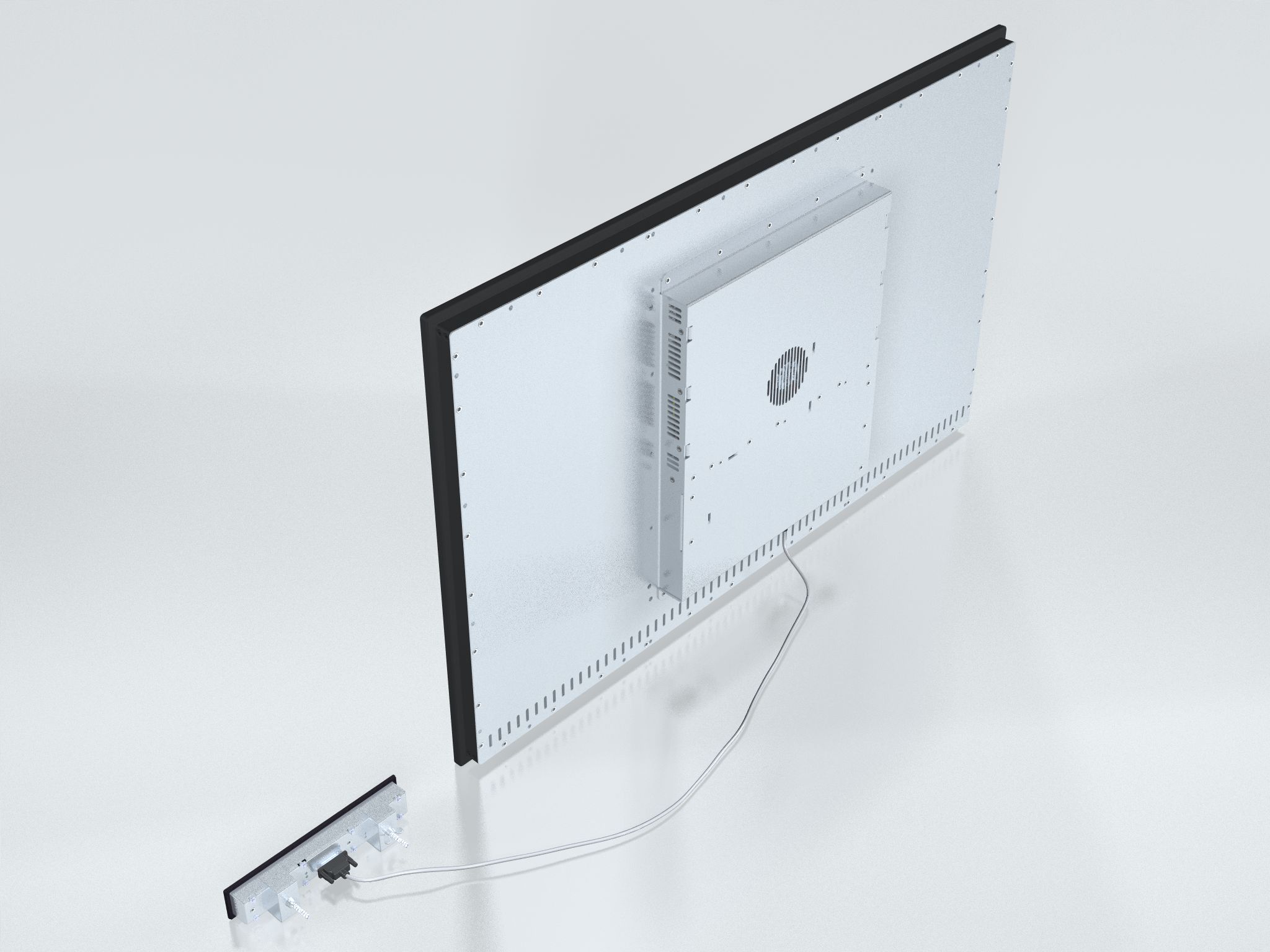

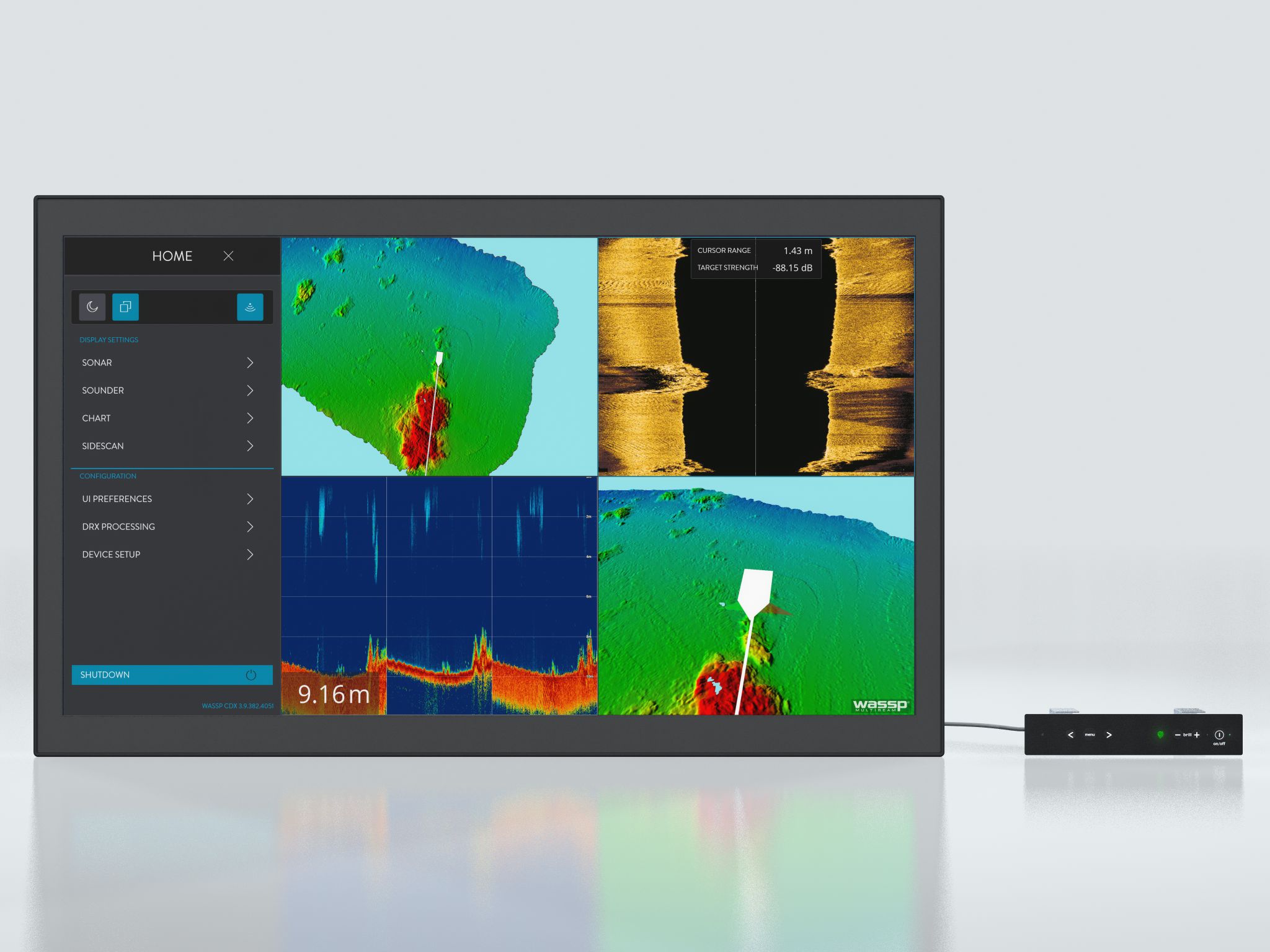

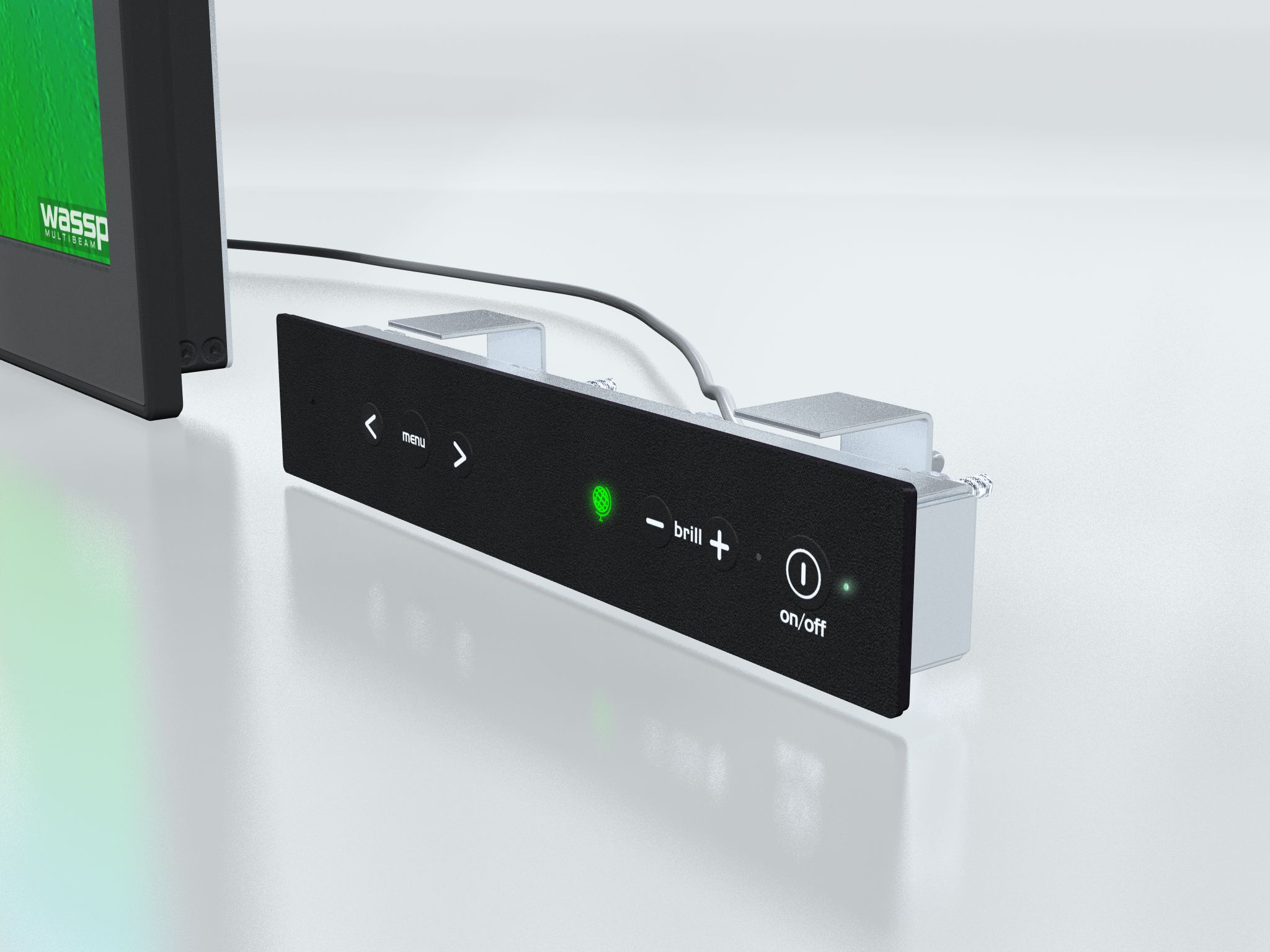

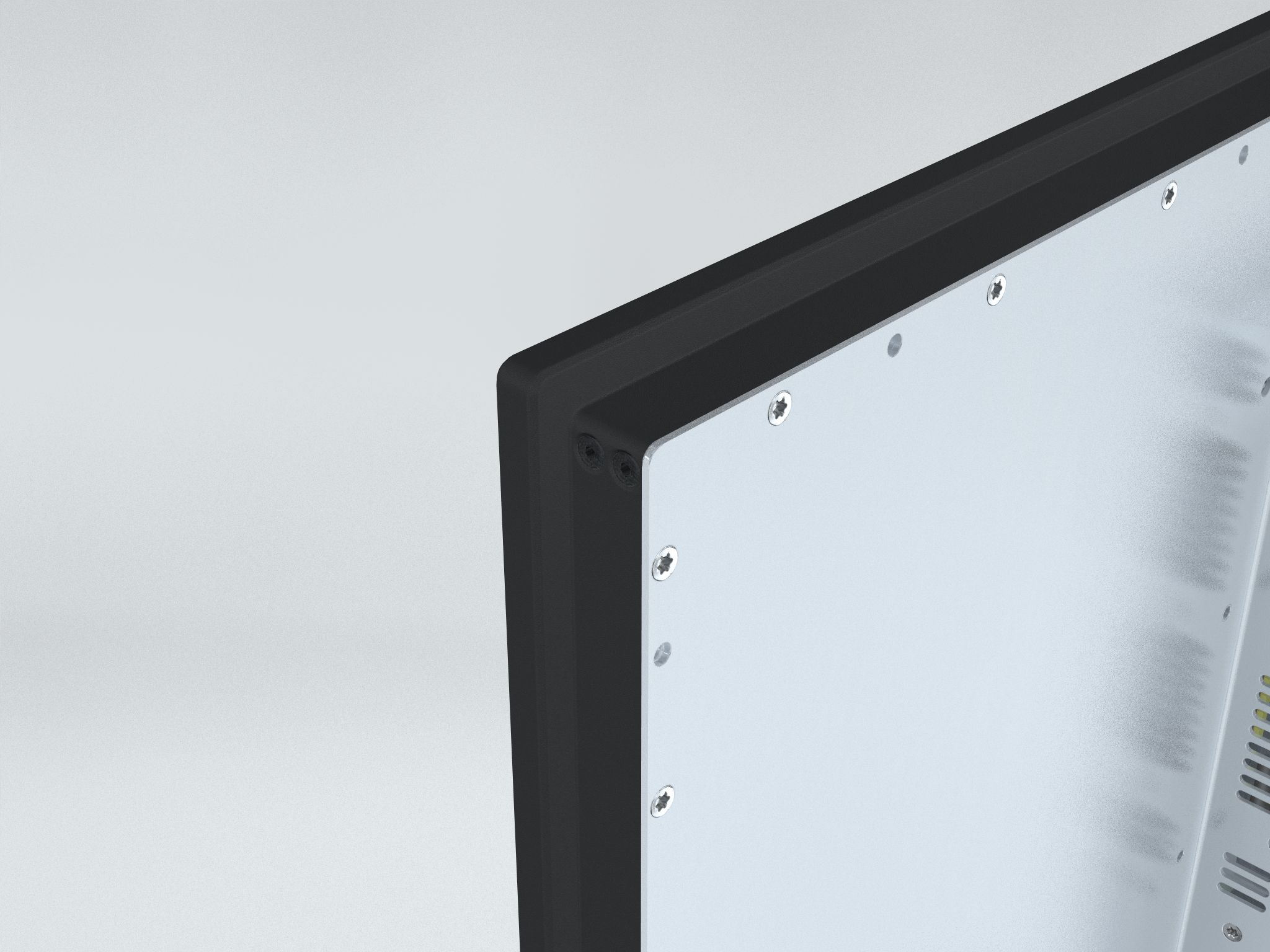

Approved for harsh maritime environments where reliability and long life time are key factors, the new 43 inch Series X MVD monitor is a robust, flexible and ergonomic solution, suitable for a wide range of bridge applications including ECDIS, radar, voyage planning, safety systems and tactical command & control platforms. Standard features include console, multi-data input, full dimming, built in On-Screen Display (OSD) and uniquely for a console mounted solution, an external Tactile button-control panel which can be mounted for operation of the OSD and other parameters. Factory options include Optical Bonding Technology, Multi-touch touch interface and ECDIS Calibrated models.

TFT Technology:	LED Backlight Technology, a-Si TFT Active-matrix, Widescreen, RGB Vertical Stripe
Viewable Size and Active Area:	42.5 inch - 941.184 [37.05"] (H) x 529.416 [20.84"] (V) mm [inch]
Native Resolution and Pixel Pitch:	3840 x 2160 (UHD, 4K) - 0.2451 (H) x 0.2451 (V) mm
Aspect Ratio and Response Time:	16:9 - 8ms (typical) (G to G)
Light Intensity and Contrast Ratio:	500 cd/m² (typ) - 3000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	3840 x 2160 @ 60 Hz
Detectable Resolutions:	VGA (640 x 350) to UHD (3840 x 2160)
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Full Dimming 0-100%, PIP (Picture In Picture), upports Tactor and Active Stylus Pen
Power Specifications and Consumption:	Multi-power 100-240VAC - 50/60Hz + 24VDC Operating: 312W (max)
User Controls and Activity:	Tactile Display Controls (TDC) on front bezel: Power On/Off Button, Power LED, On Screen Display Menu Button*, Brightness Control (-/+) buttons, Hotkeys (left/right) buttons, ECDIS Indicator, Buzzer, Light Sensor *OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode

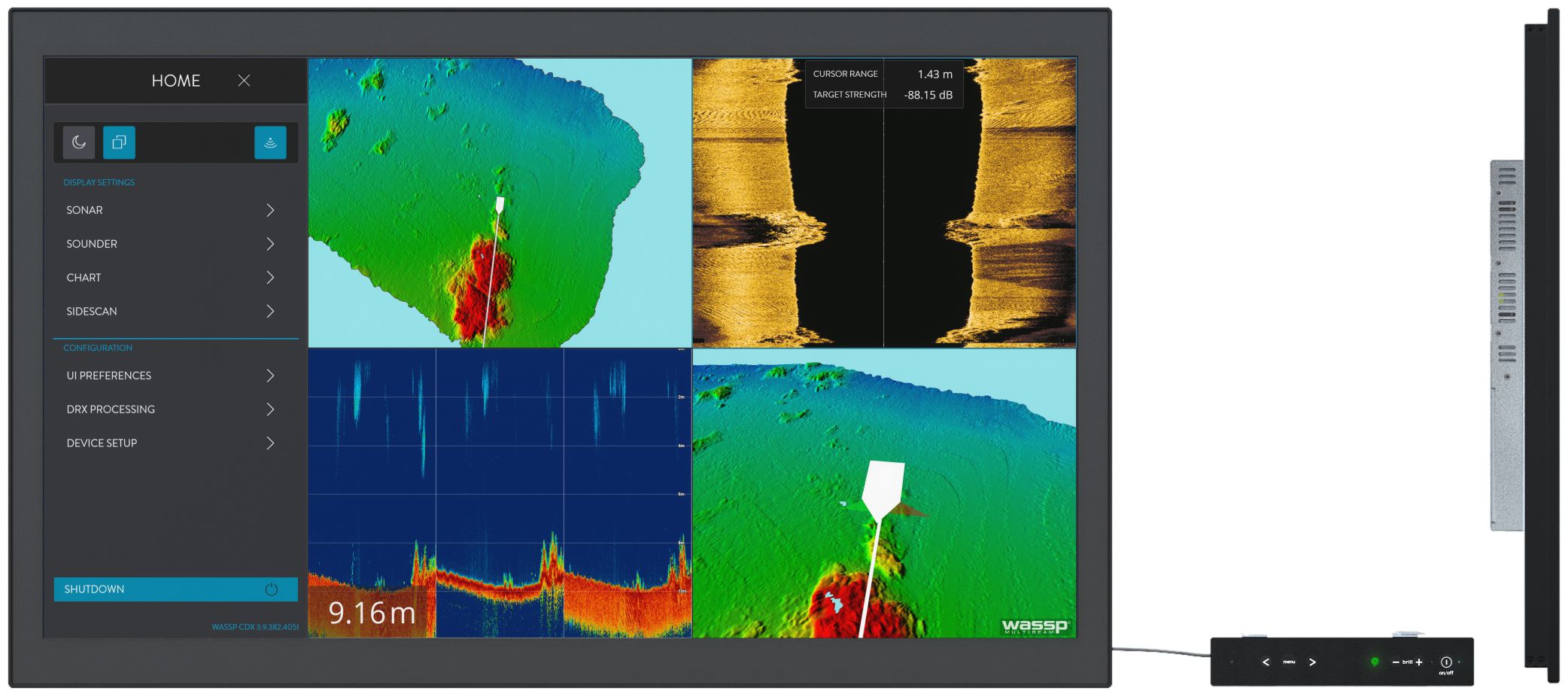

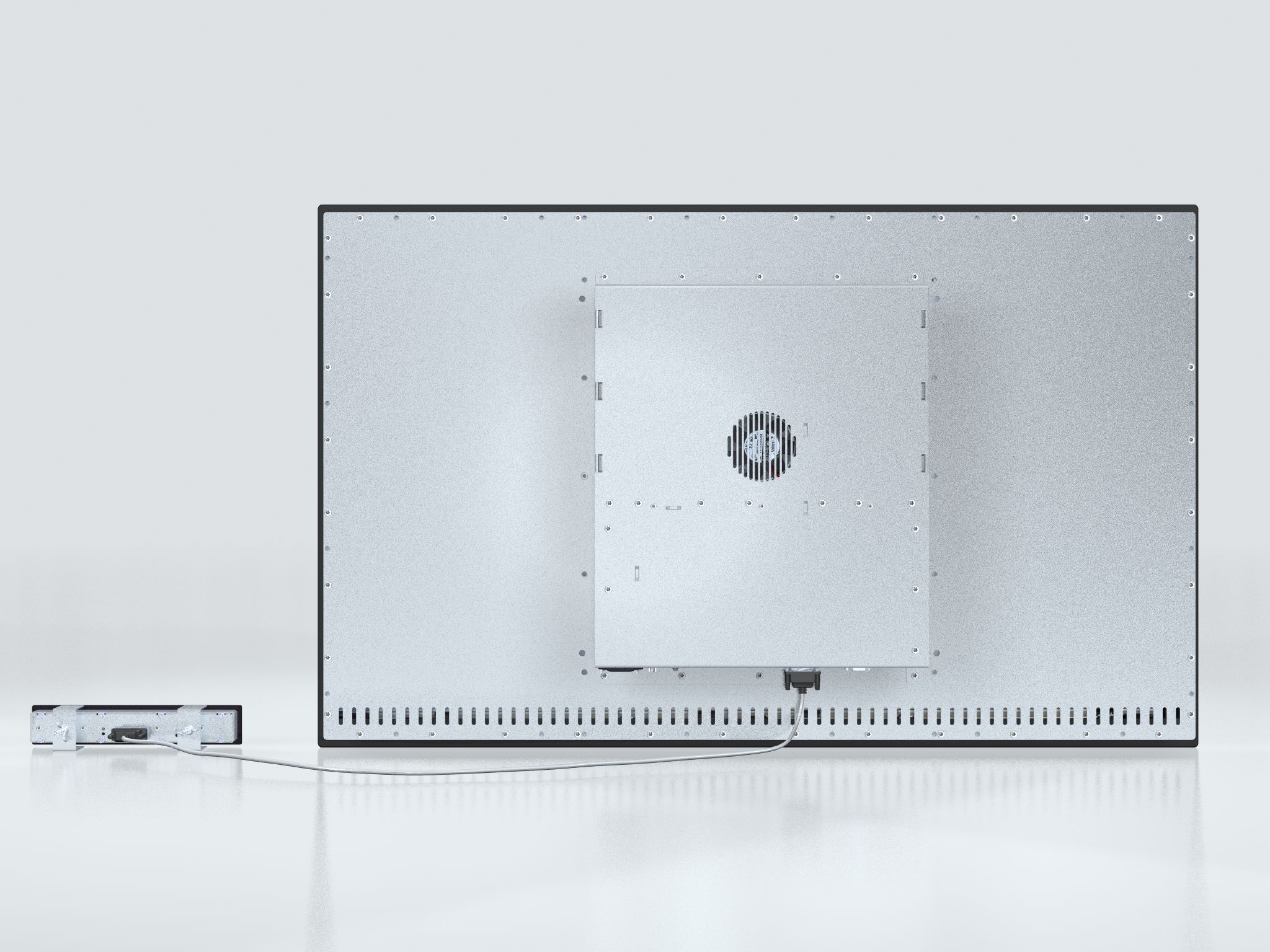

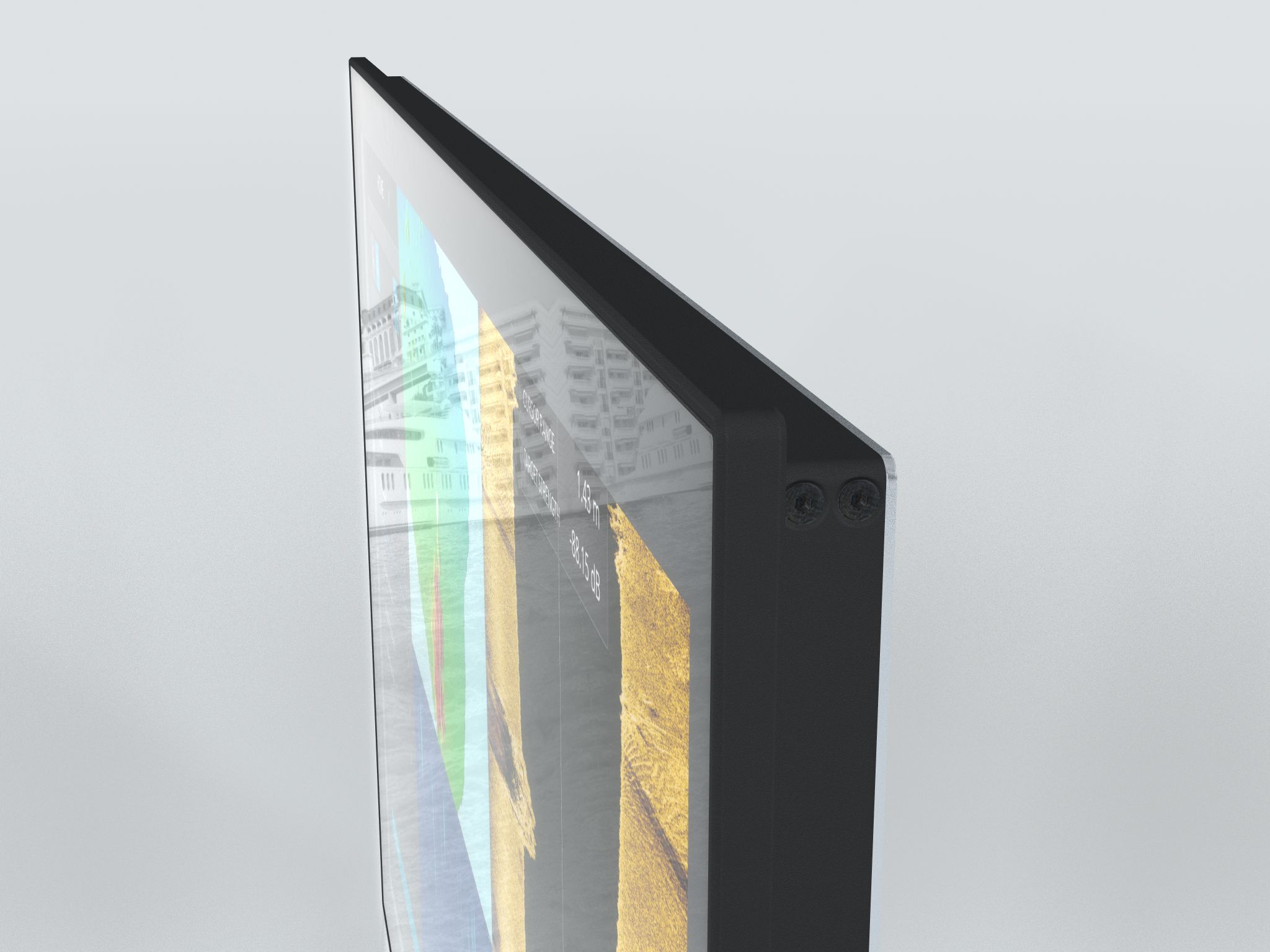

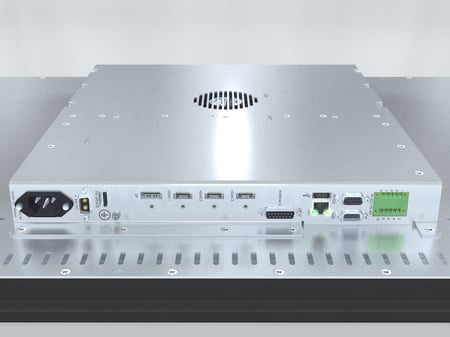

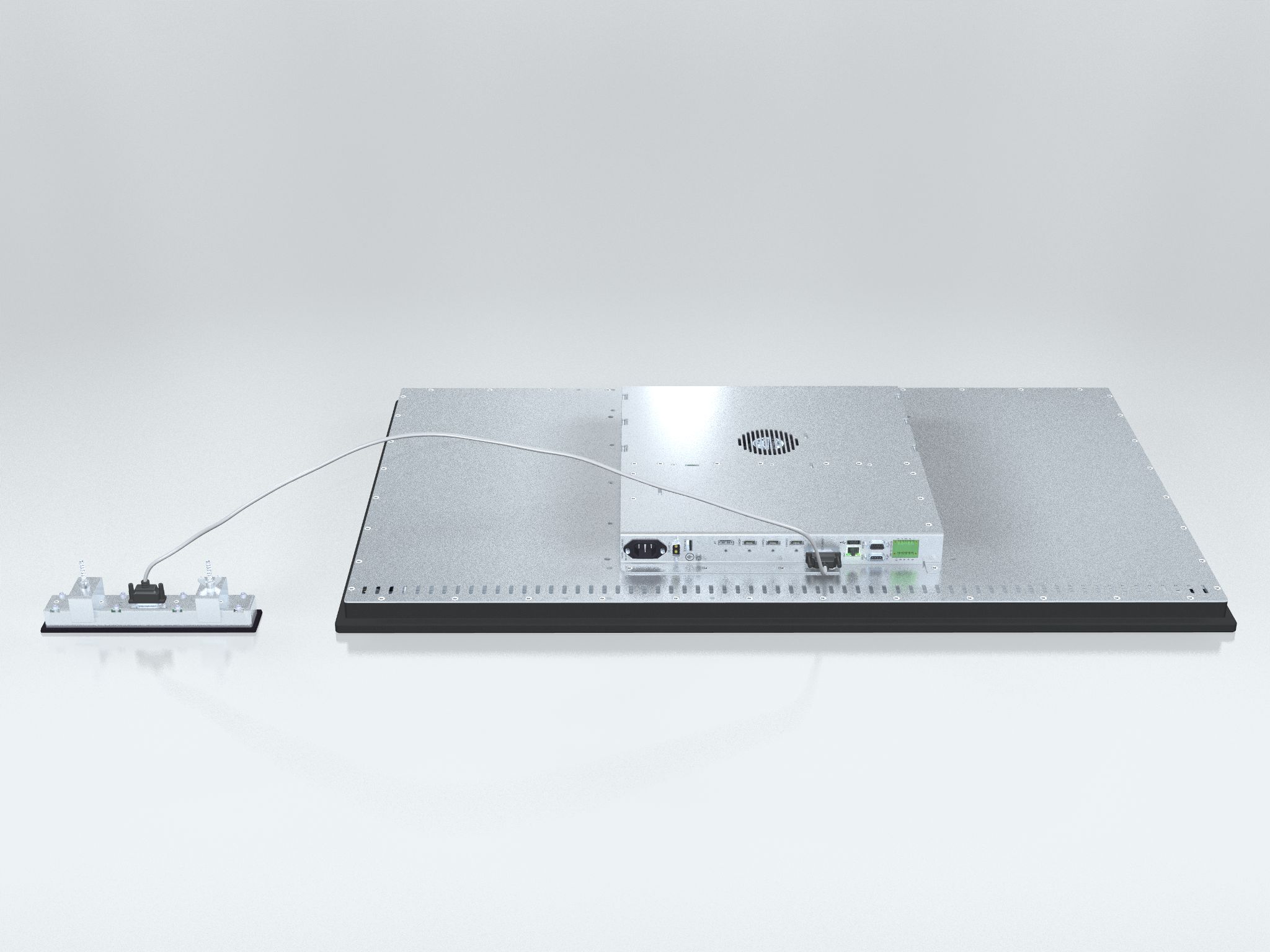

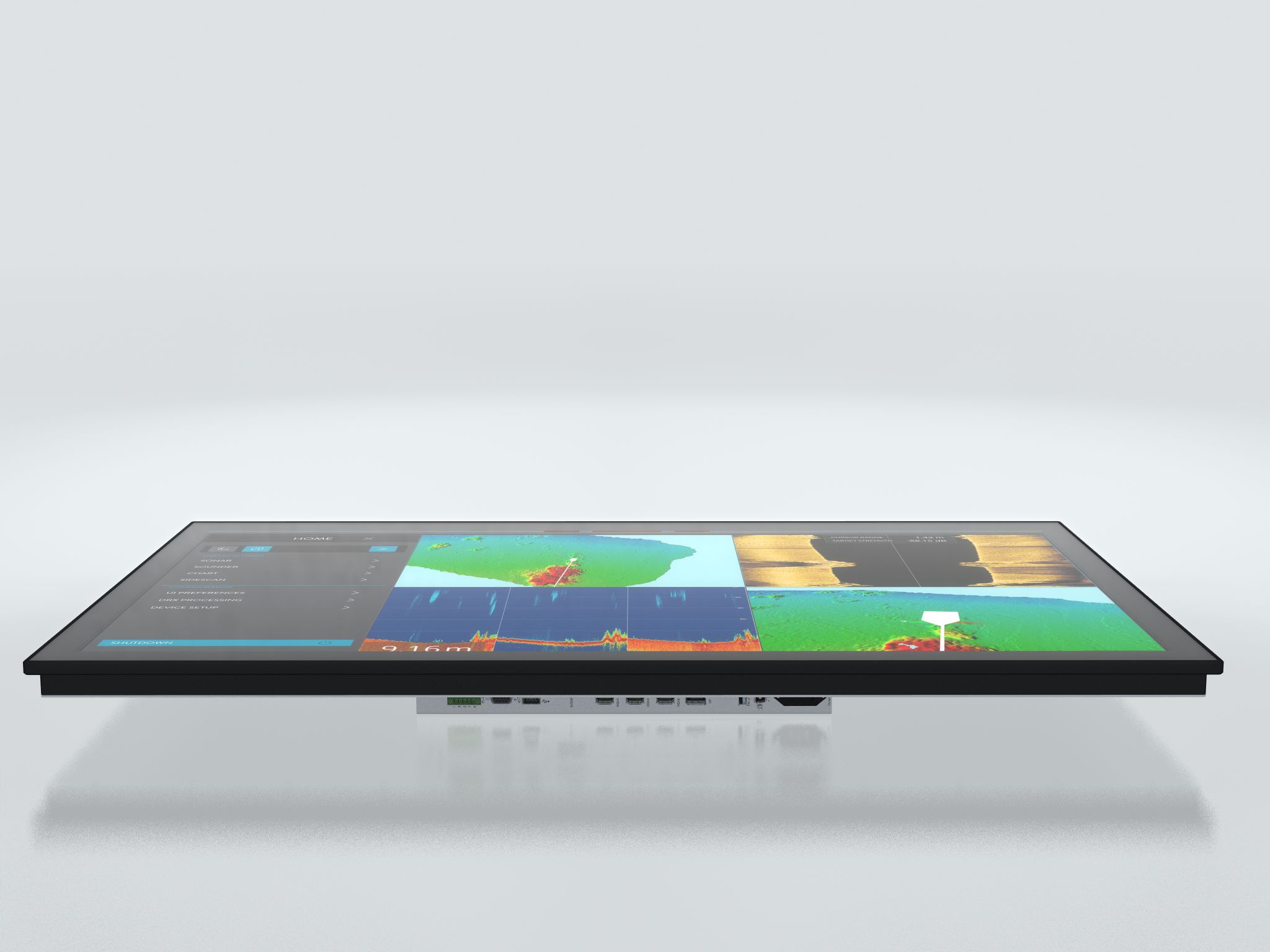

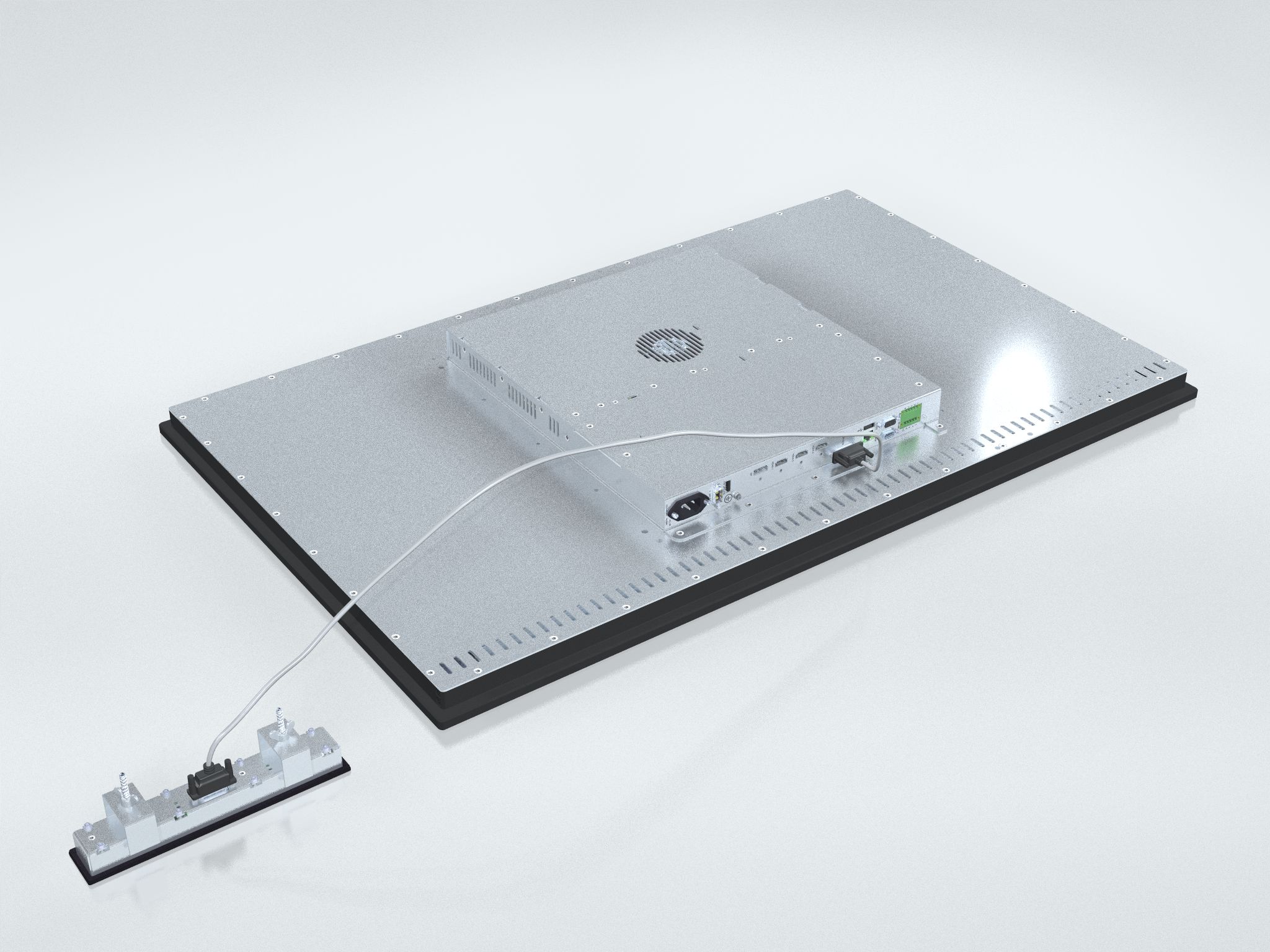

Connectors:	• HDMI 1.4 Input: 2 x 19p HDMI (female) - Max 3840x2160@30Hz • HDMI 2.0 Input: 1 x 19p HDMI (female) - Max 3840x2160@60Hz • DP 1.2 Input: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz Note: Max Cable length: <3m • SCOM RS-422/485: 1 x 5-pin Terminal Block 3.81 non-isolated + Buzzer • SCOM+Touch: 1 x USB TYPE A Connector (female) • SCOM Ethernet: 1 x RJ45 Connector • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated • User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT • FW Update: 1 x USB TYPE A (female) for Firmware Update GDCx Interface: 1 x 15p D-SUB (male) for GDC Hardware Comm. • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2p D-SUB Connector (male) - Amphenol FCC17

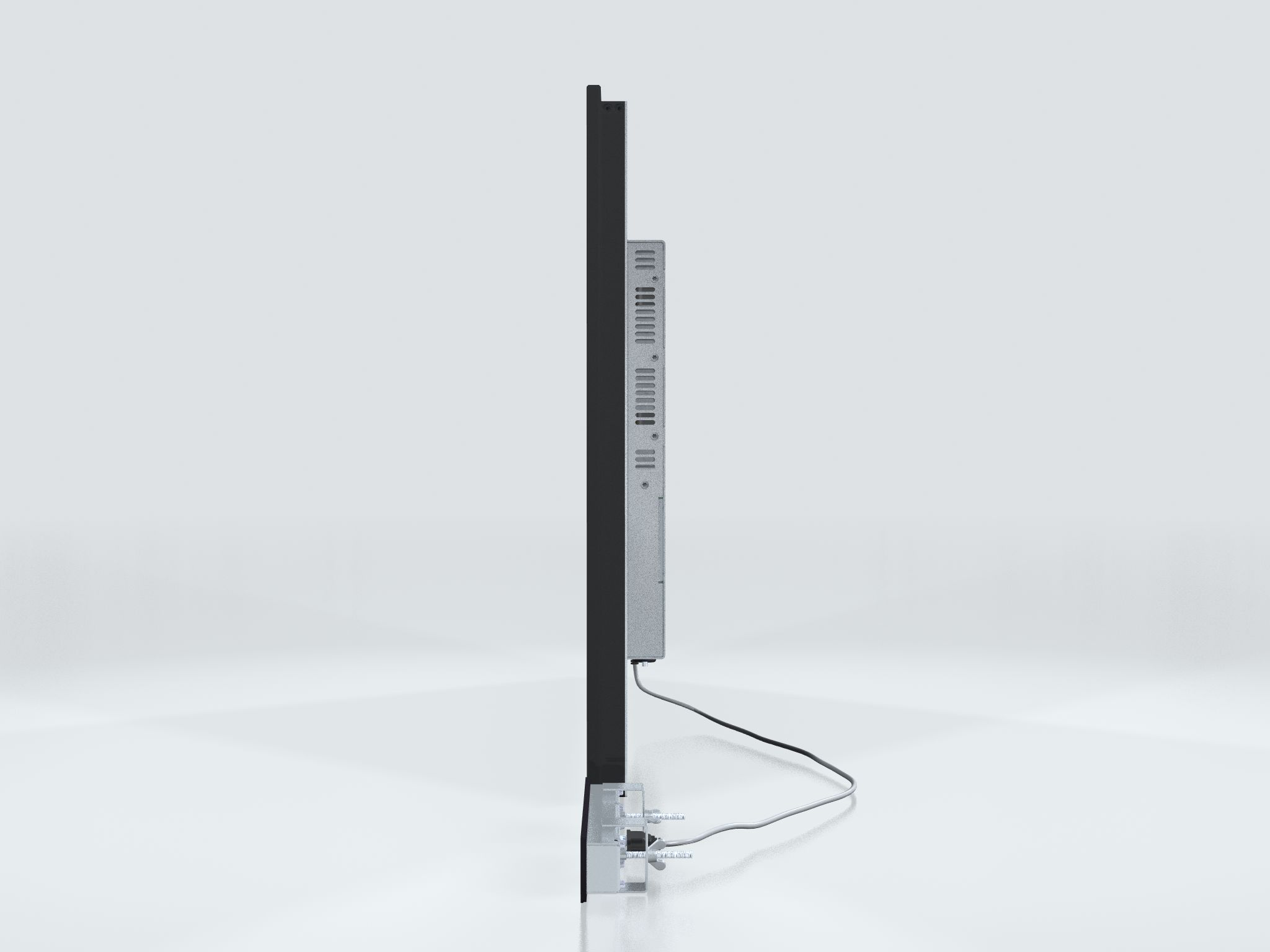

Product Dimensions and Weight:	W:1005.00 [39.57"] x H:620.00 [24.41"] x D:75.50 [2.97"] mm [inch] Weight: 27.0 kg / 59.4lbs
Product Carton Size and Weight:	L:1175.00 [46.26"] x W:795.00 [31.30"] x H:33.00 [12.99"] mm [inch] Weight: 55.2kg / 121.4lbs
Factory Options:	• Optical Bonding Technology • Projected Capacitive Touch Screen (Multitouch, USB, Pen/Glove support) • Color Calibrated models (ECDIS)
Accessories:	• HD TDCMVD KIT-A1: 1 x External Tactile Display Controls (TDC)* • HD CMB SX2-G1: 1 x Console Mount Kit. EN60945 Tested* • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested • P023259: 1 x HM 43T22 EMI Shield Gasket Elastofoam • P022999: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount *Included with delivery
Capabilities - Prepared for:	• Tactor (Rotation Angle Value, X/Y Position, 1 x Button) supported Model • Active Stylus Pen Supported Model
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-30.0°C / -22.0°F to 70.0°C / 158.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance:	Standard: 155.00 [61.02"] - Steering: 120.00 [47.24"] mm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, BV - Bureau Veritas, KR - Korean Register of Shipping, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: May 8, 2025 @ 13:05
