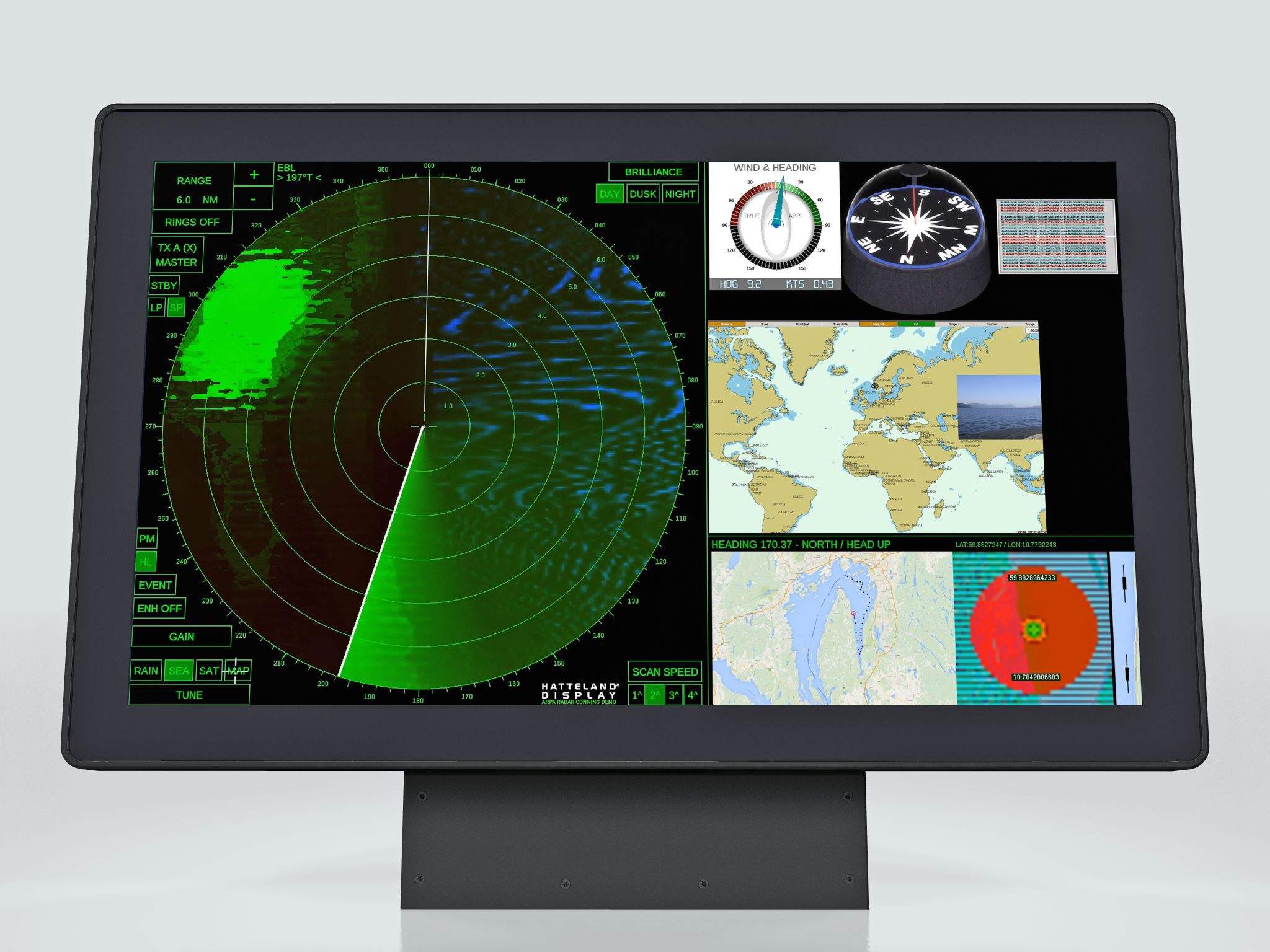

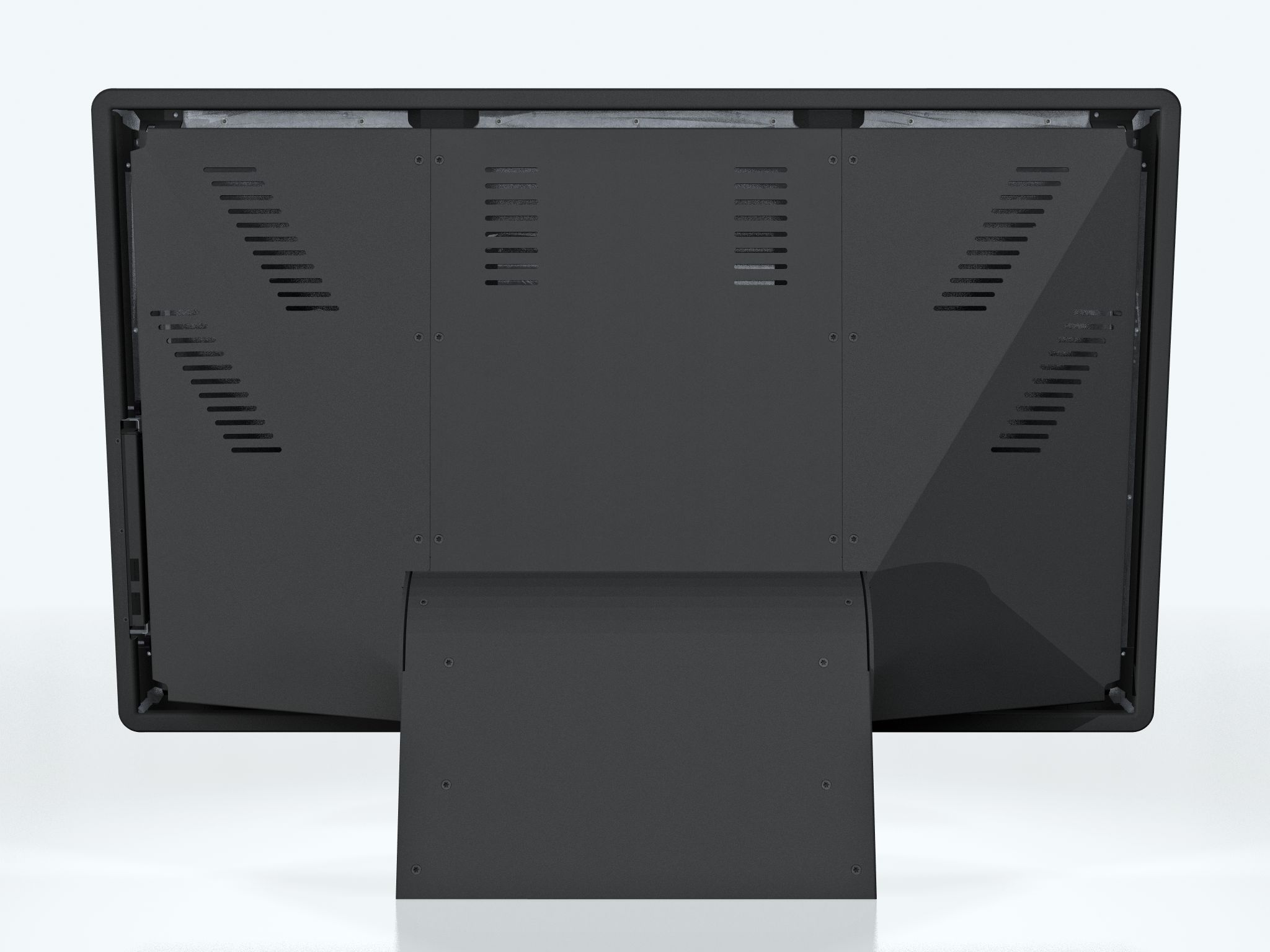

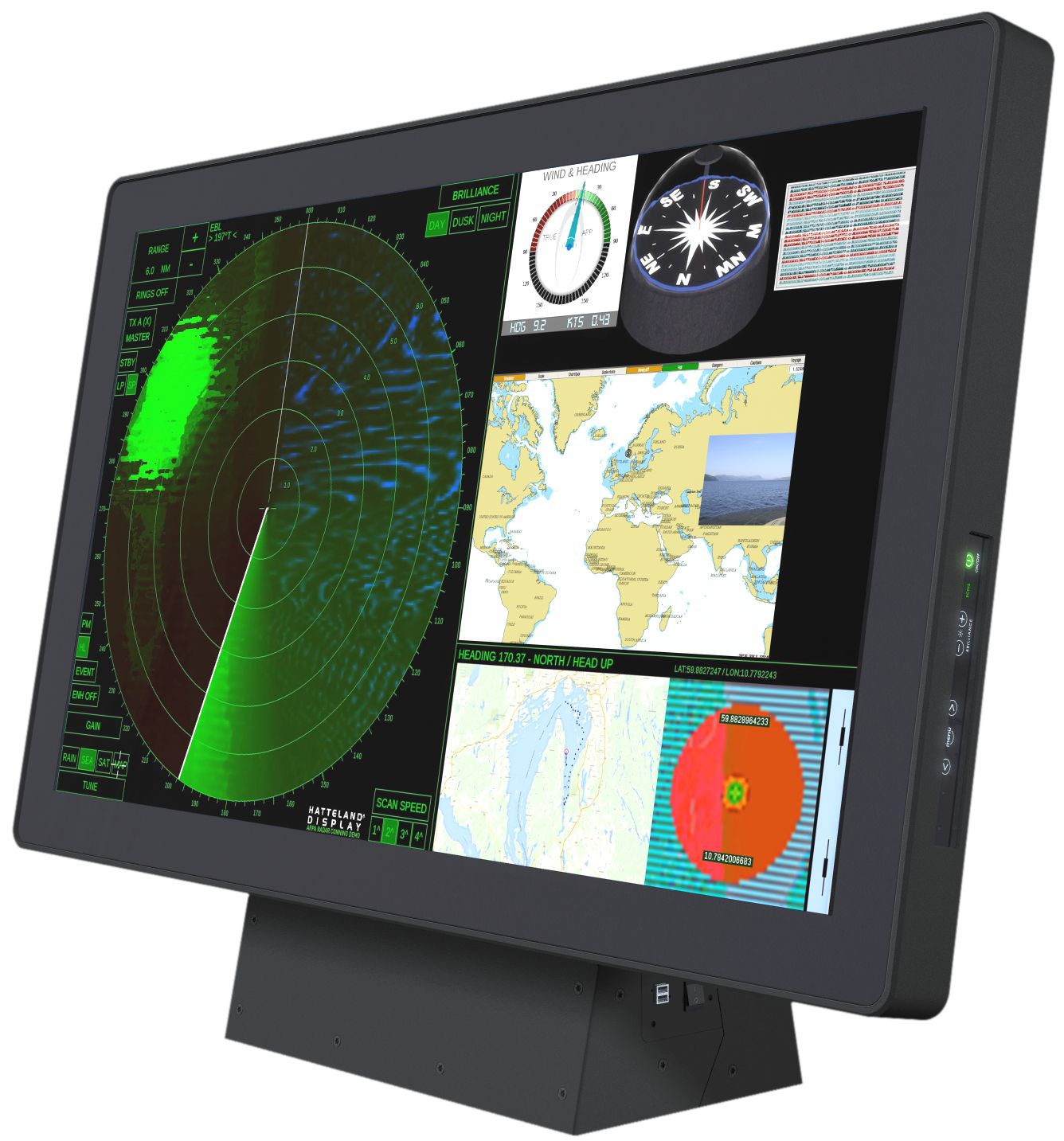

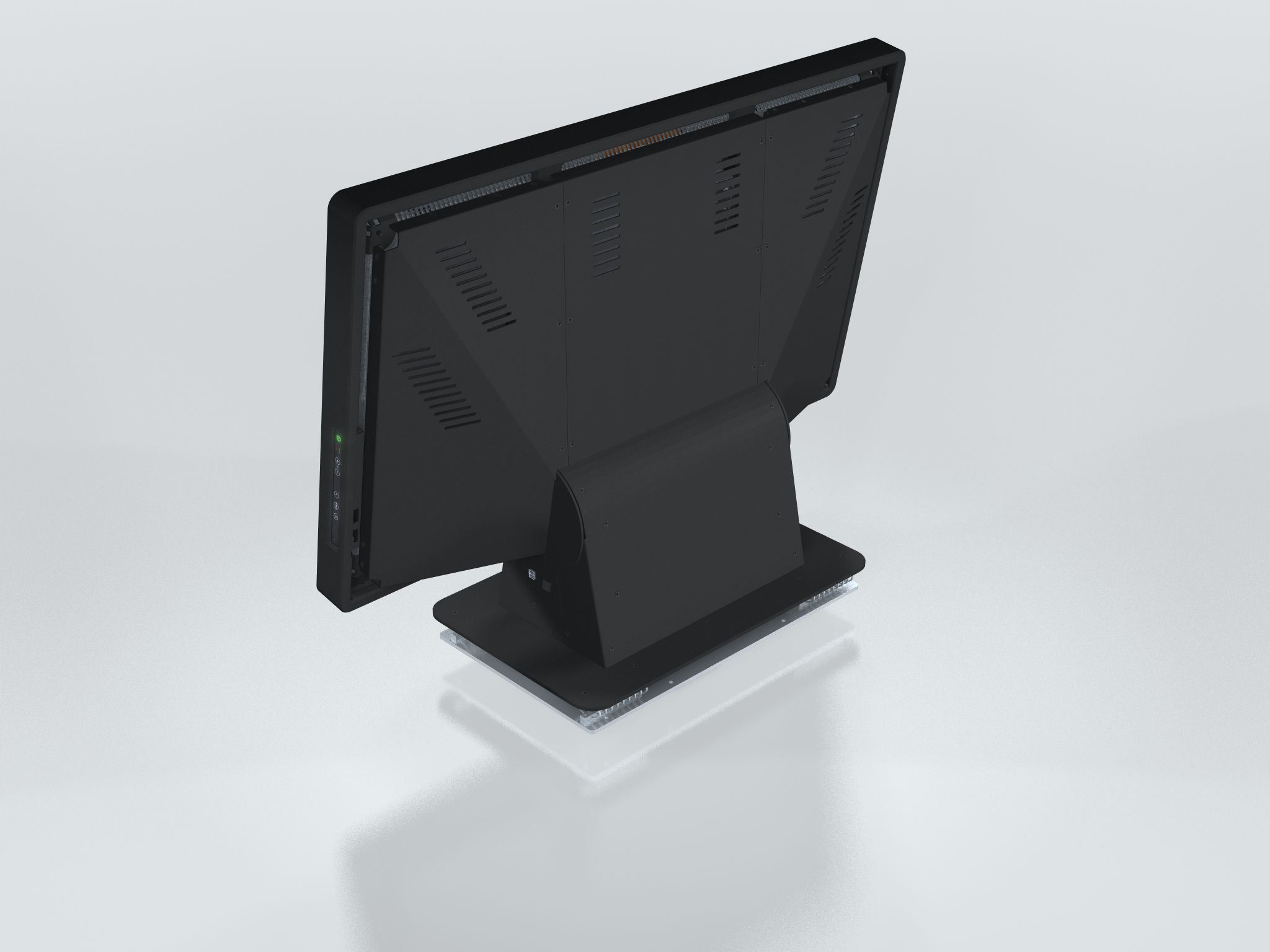

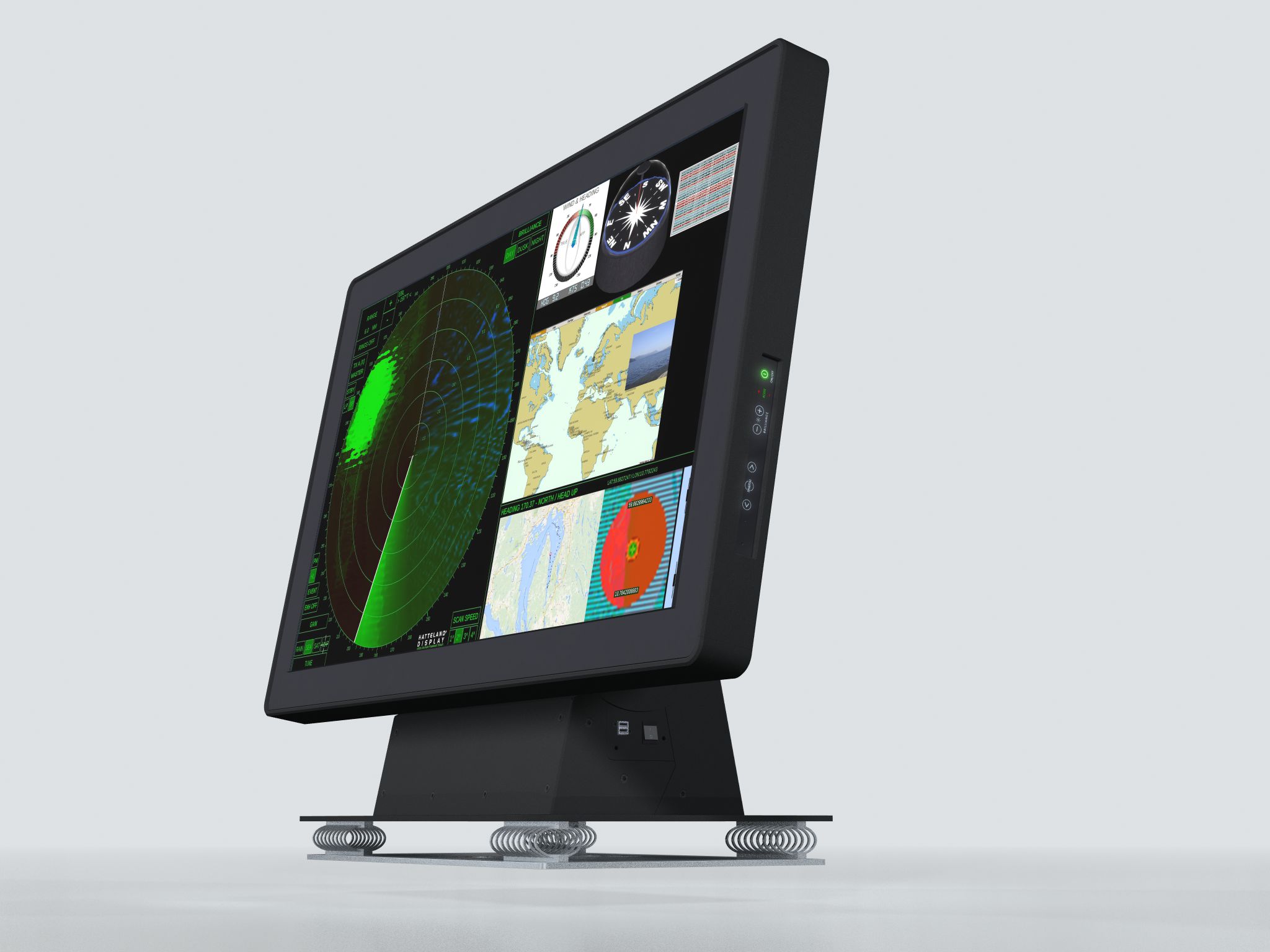

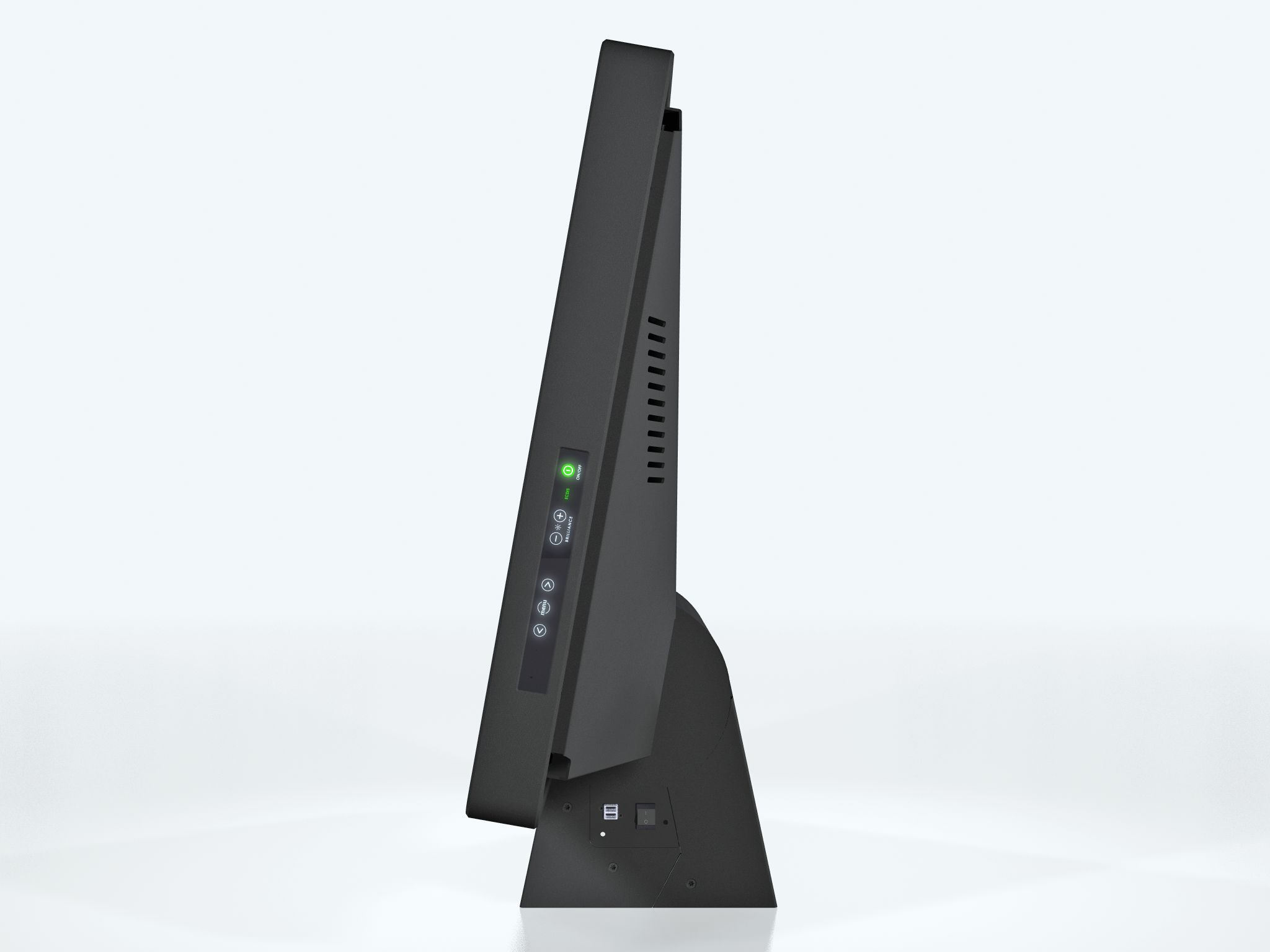

Monitor - Widescreen - 4K UHD - LED - Floor Tilt Model - Optical Bonding - HATTELAND® Series X MVD - 55.0 inch

HD 55T22 MVD-L

The Series X Multi Vision Display (MVD) range of products provides large 4K resolution monitor solutions to maritime IBS, Automation and Command Control system integrators. The cutting edge high definition LED monitor technology used, with its high quality brightness and contrast, enables the presentation of large amounts of data onto one screen instead of multiple monitors.

Widescreen

High-res

LED-backlit

Floor Tilt Model

Optical Bonding

Send Request

Description

Specifications

TFT Technology:	LED Backlight Technology, TFT Active-matrix, Widescreen, RGB Vertical Stripe, MVA (Multi-domain Vertical Alignment) LCD Technology
Viewable Size and Active Area:	55.0 inch - 1209.60 [47.62"] (H) x 680.40 [26.79"] (V) mm [inch]
Native Resolution and Pixel Pitch:	3840 x 2160 (UHD) - 0.315 (H) x 0.315 (V) mm
Aspect Ratio and Response Time:	16:9 - 6.5ms (typical) (G to G)
Light Intensity and Contrast Ratio:	450 cd/m² (typ) - 4000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	3840 x 2160 @ 60 Hz
Detectable Resolutions:	VGA (640 x 350) to UHD (3840 x 2160)
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Full Dimming 0-100%, Multitouch, Optical Bonding Technology, PIP (Picture In Picture), Tilt Adjustable Floor Model, 2 x USB2.0 External
Power Specifications and Consumption:	100-240V AC 50/60Hz Operating with HT C02 computer: 300W (typ) - 1037W (max) perating with HT C03 computer: 300W (typ) - 865W (max) perating without HT C03/C02 computer: 250W (typ) - 625W (max)
User Controls and Activity:	Glass Display Control™ (GDC) IP66 with: Power On/Off (display), On Screen Display Menu, Brightness Control (-/+), Hotkeys (left/right), Mode Status Indicators (ECDIS, Service), Buzzer (not visible), Light Sensor (not visible) OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode Additional Controls: Tilt buttons, Main Power ON/OFF switch
Connectors:	• HDMI 1.4 Input: 2 x 19p HDMI (female) - Max 3840x2160@30Hz • HDMI 2.0 Input: 1 x 19p HDMI (female) - Max 3840x2160@60Hz • DP 1.2 Input: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz • SCOM+Touch: 1 x USB TYPE A Connector (female) • SCOM RS-422/485: 2 x 5-pin T. Block 3.81 non-isolated+Buzzer • SCOM Ethernet: 1 x RJ45 Connector • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated • User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT • SW Interface: 1 x USB TYPE A (female) for Firmware Update GDCx Interface: 1 x 15p D-SUB (male) for GDC Hardware Comm. • AC Power IN: 1 x Junction Box enclosure w/Terminal Block * By factory default connected to internal HT C03/C02 Compact Computer
Product Dimensions and Weight:	• W:1360.68 [53.57"] x H:See below x D:See below mm [inch] • Height from Max: 1000.16 [39.38"] to Min: 917.00 [36.10"] mm [inch] • Depth from Max: 633.37 [24.94"] to Min: 500.00 [19.69"] mm [inch] • Approx. 115.5kg / 254.1lbs (including optional HT C03/C02 computer) • Approx. 102.5kg / 225.5lbs (without optional HT C03/C02 computer)
Product Carton Size and Weight:	L:1530 [60.24"] x W:670 [26.38"] x H:1100 [43.31"] mm [inch] 202.0kg / 444.4lbs
Factory Options:	• Projected Capacitive Touch Screen (Multitouch, USB, Pen/Glove support) • Color Calibrated models (ECDIS) • Factory Integrated HT C02 computer - contact Sales for details.
Accessories:	• HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested • 5240-15: 1 x Fabric Protection Top Cover, Stretch/Washable, Cotton
Capabilities - Prepared for:	• Tactor (Rotation Angle Value, X/Y Position, 1 x Button) supported Model • Active Stylus Pen Supported Model
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 410.00 [161.42"] - Steering: 240.00 [94.49"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, EU-RO-MR - Mutual Recognition, CCS - China Classification Society, ClassNK - Nippon Kaiji Kyokai, BV - Bureau Veritas, KR - Korean Register of Shipping, ABS - American Bureau of Shipping, LRS - Lloyd's Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: April 22, 2025 @ 13:59
