PRODUCT DETAILS

✕

✕
Naval & Defense  /  Monitor /  TEMPEST Certified  /  HM 19T14 MMD

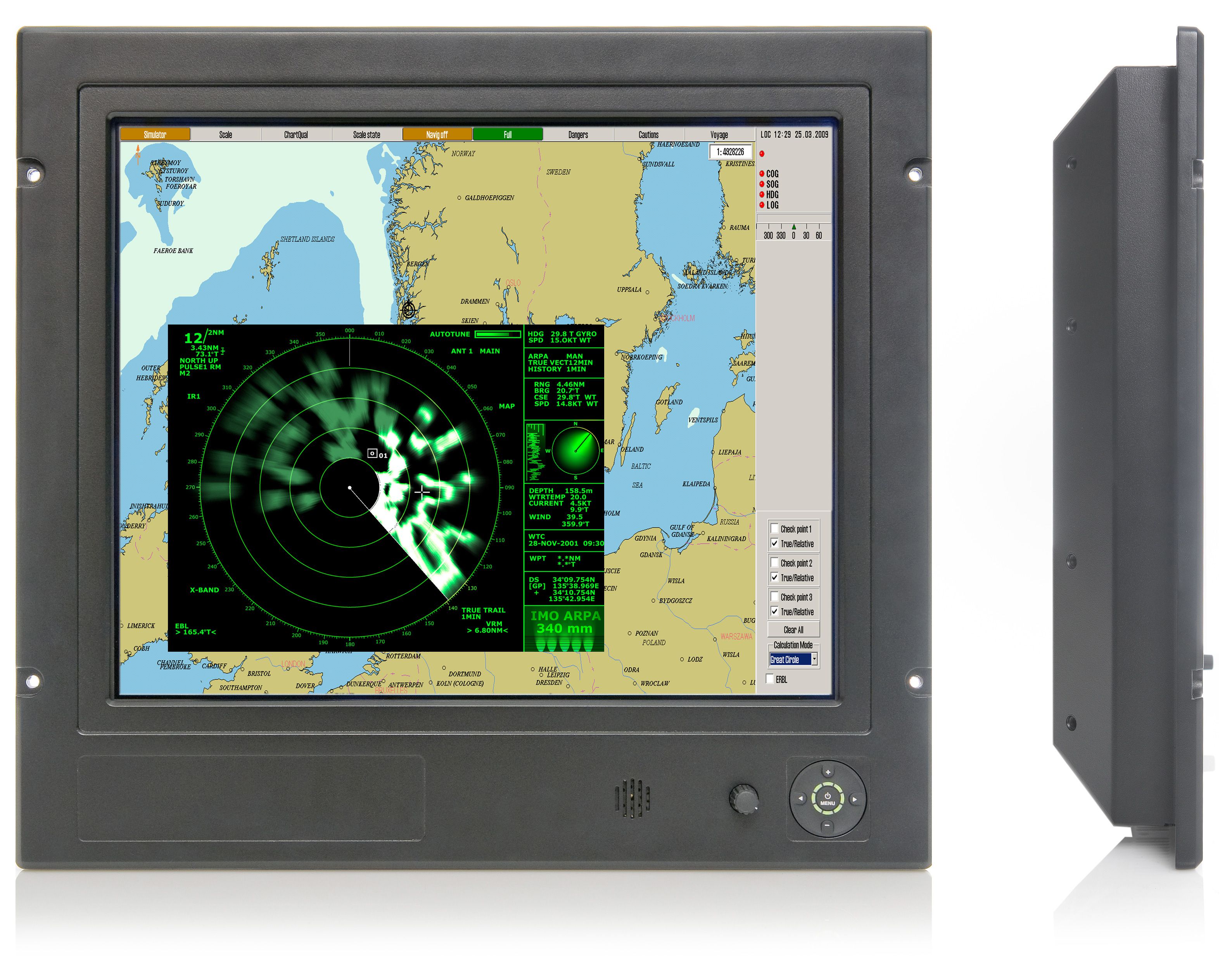

HM 19T14 MMD

Overview

Monitor - CCFL - TEMPEST Certified - 19.0 inch

HM 19T14 MMD-AAT-AOBA  (HW00)

The 19 inch TEMPEST monitor is engineered to provide naval installations with the latest in a combinations of technologies. By merging the COTS maritime standards and military requirements for TEMPEST the unit fulfill severe conditions encountered in naval installations.

icon
EN60945
icon
TEMPEST Certified
icon
CCFL
Send Request
Description

Monitor - TEMPEST Certified (HW00)

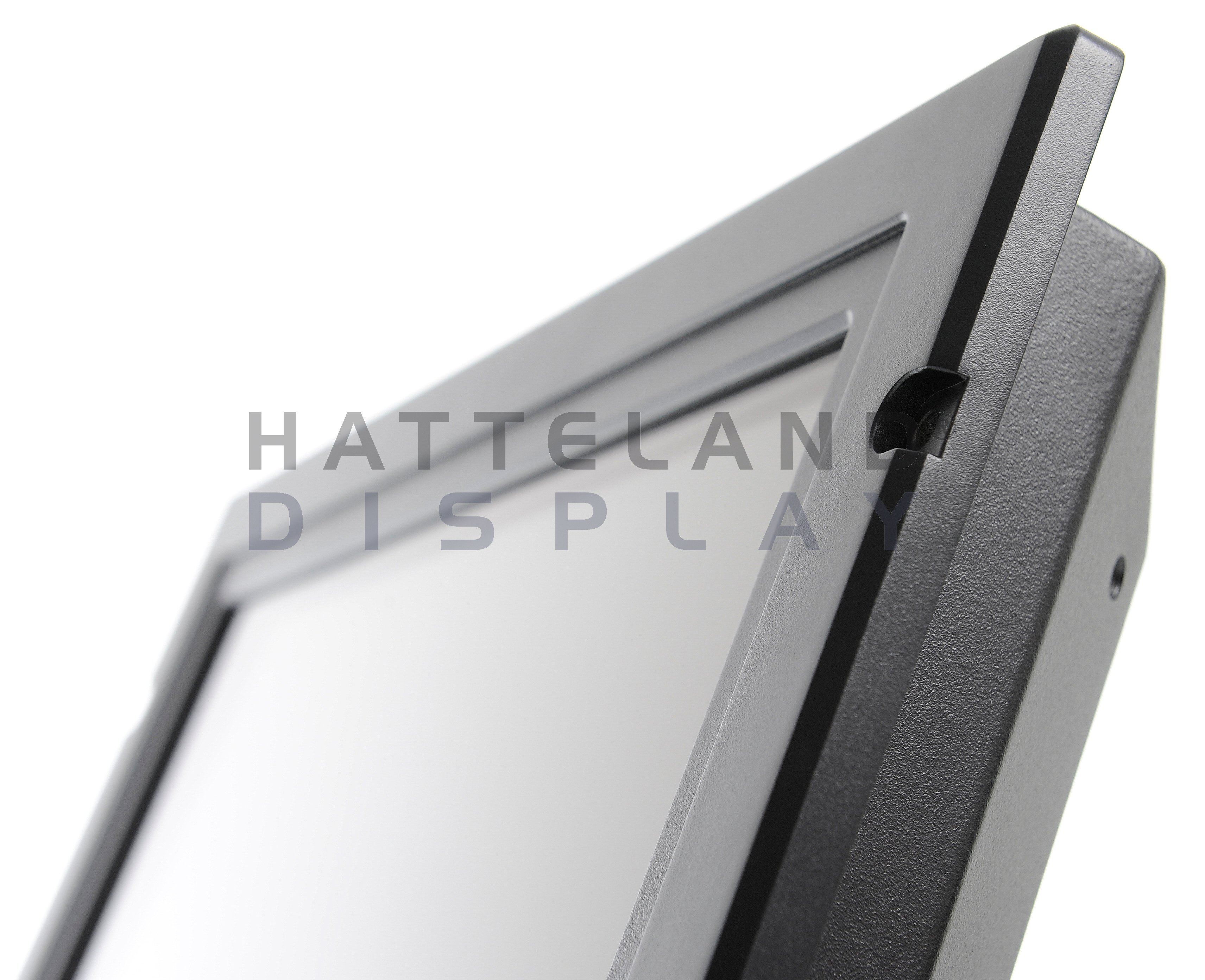

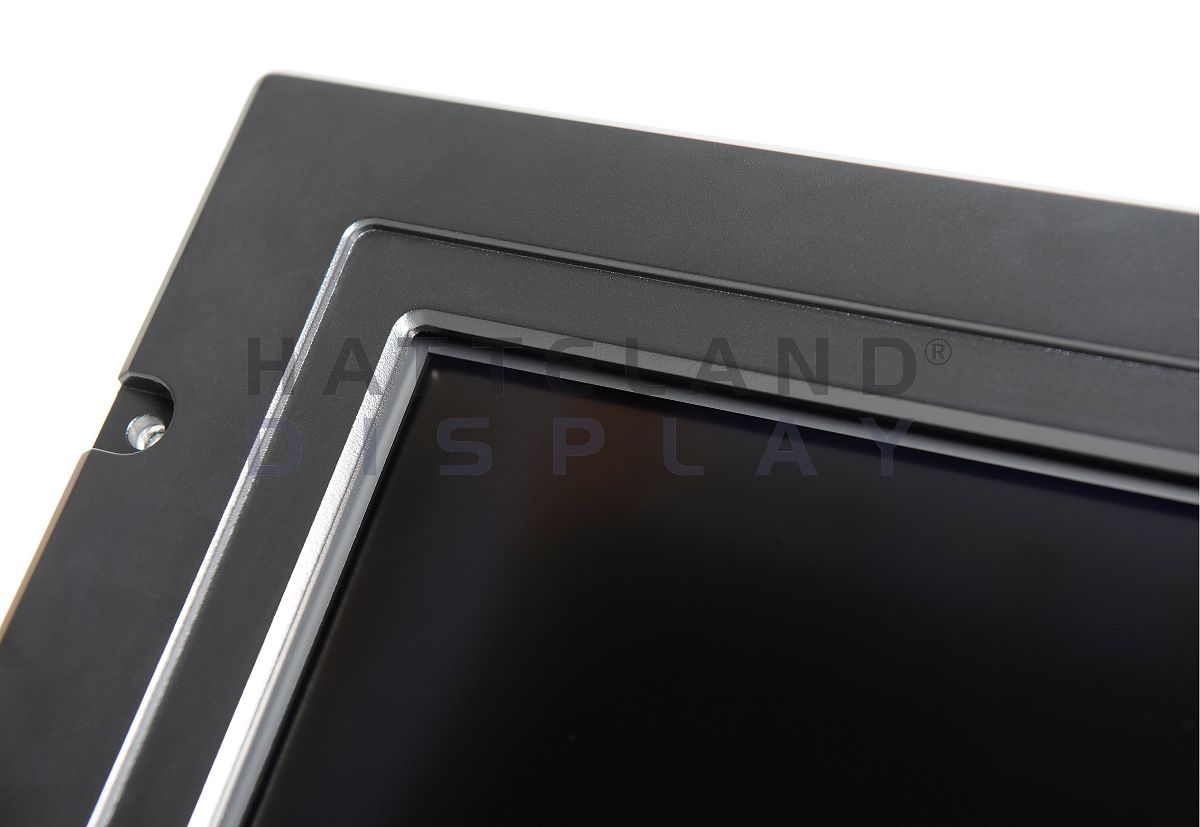

Standard features include a high contrast optically bonded SXGA LCD, a fully dimmable backlight from 0-100% brightness level, DVI, VGA and Composite Video inputs, picture-in-picture and automatic image scaling. The clarity and enhanced color and image quality provided by our proprietary optical bonding technology makes the unit ideal for information-intense applications.
Specifications
Typenumber (Long): HM 19T14 MMD-AAT-AOBA
TFT Technology: Active Matrix, Thin Film Transistor (TFT), MVA Premium™ Technology, Optical Bonding Technology
Viewable Size and Active Area: 19.0 inch - 376.32 [14.82"] (H) x 301.05 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time: 5:4 - 35ms (typ)
Light Intensity and Contrast Ratio: 300 cd/m² (typ) - 900:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1200
Composite Video Input(s): With Multifunction Cable
Supported Video Signals: SVHS & COMPOSITE Compatible
Product Features: TEMPEST Certified, Front Bonded, PBP (Picture By Picture), PIP (Picture In Picture), HATTELAND® Multifunction Connector, Hotkey Functionality, Dimmable 0-100%, Buzzer
Power Specifications and Consumption: 115/230VAC - 50/60Hz
2W (max)*
*Specified as delivered from factory. All additional loads for installed / connected equipment have to be added to power consumption and multiplied by 1.6 to compensate for efficiency in power converters.

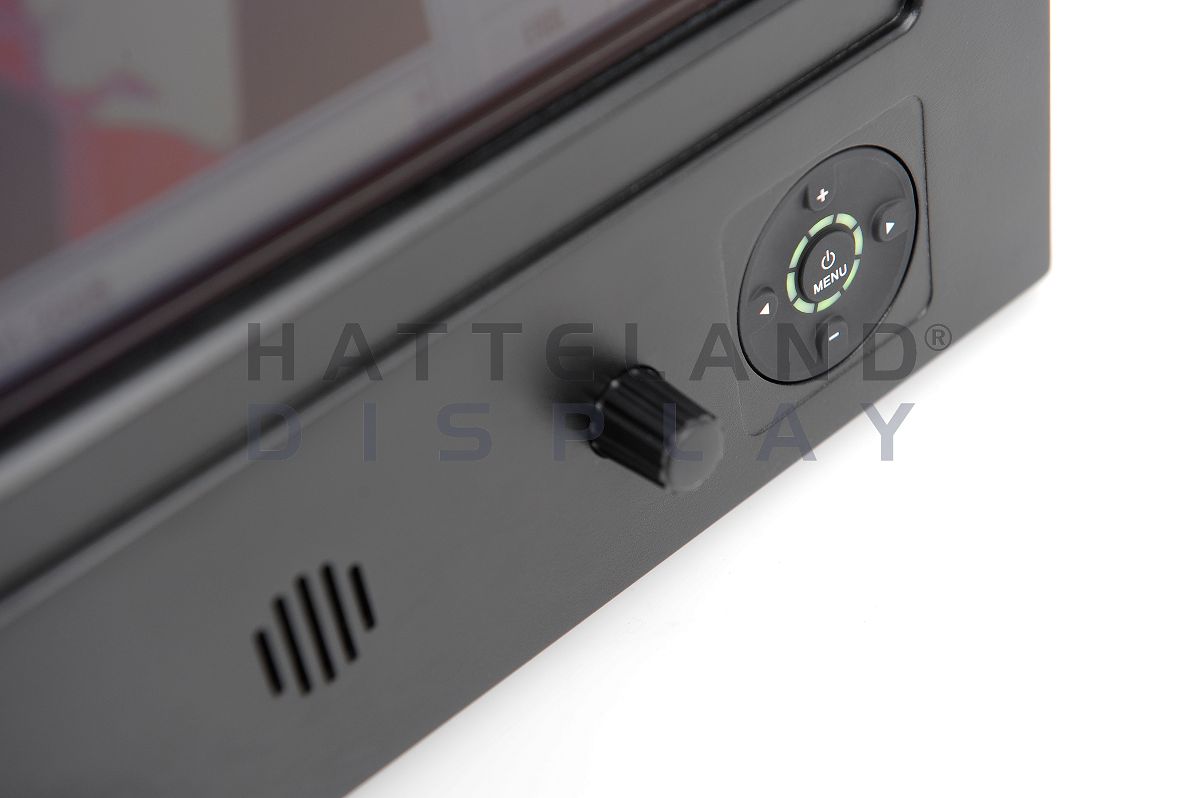

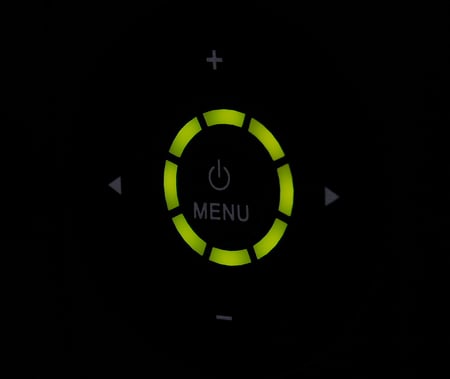

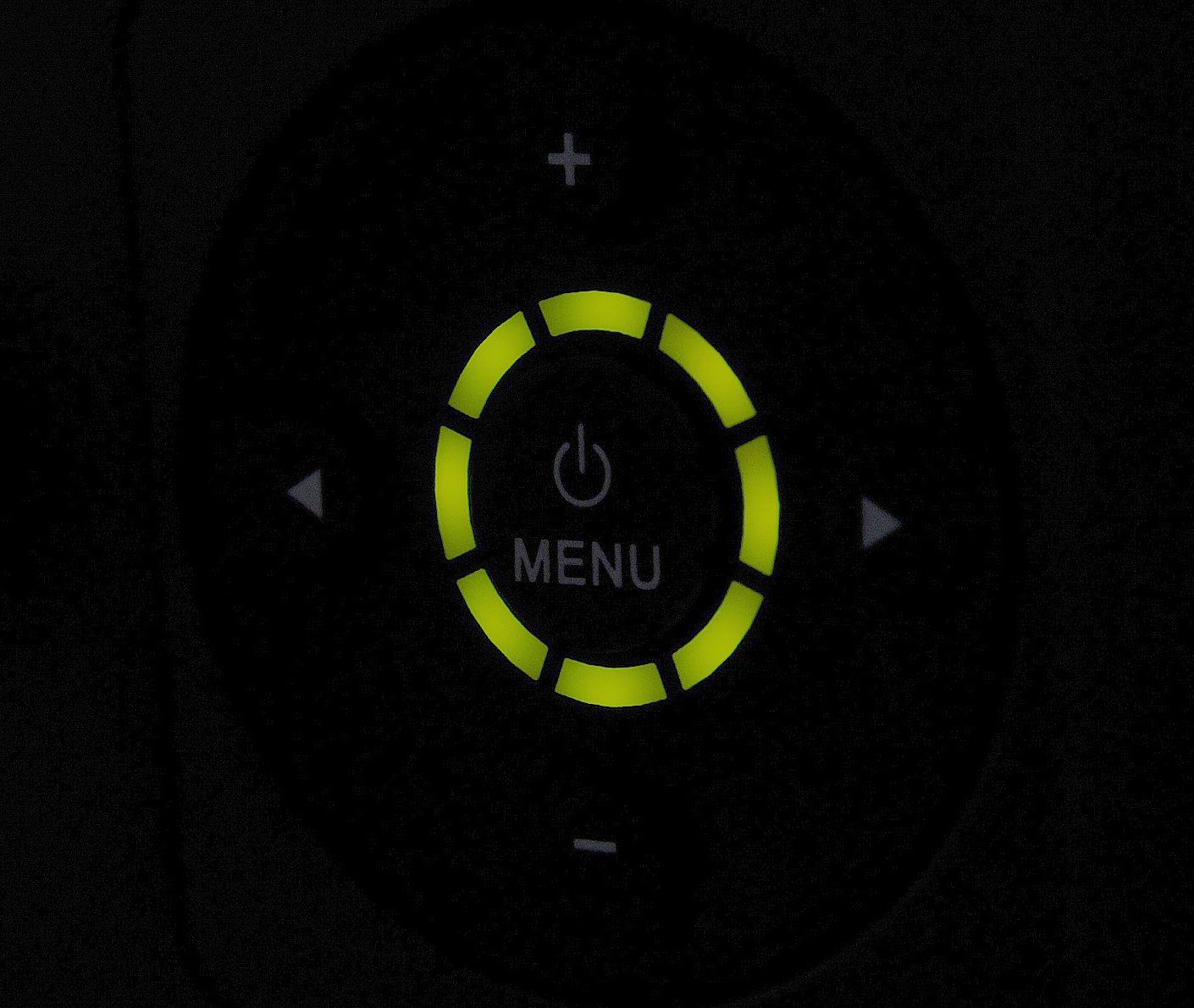

User Controls and Activity: Power On/Off + On Screen Display Menu (push button)*, Brightness Control (rotary), Hotkeys (left/right - push buttons), Mode Status Illuminated LED-Ring Indicator, Buzzer
*OSD Key Codes: 321=Get access to OSD, 158=Advanced Mode

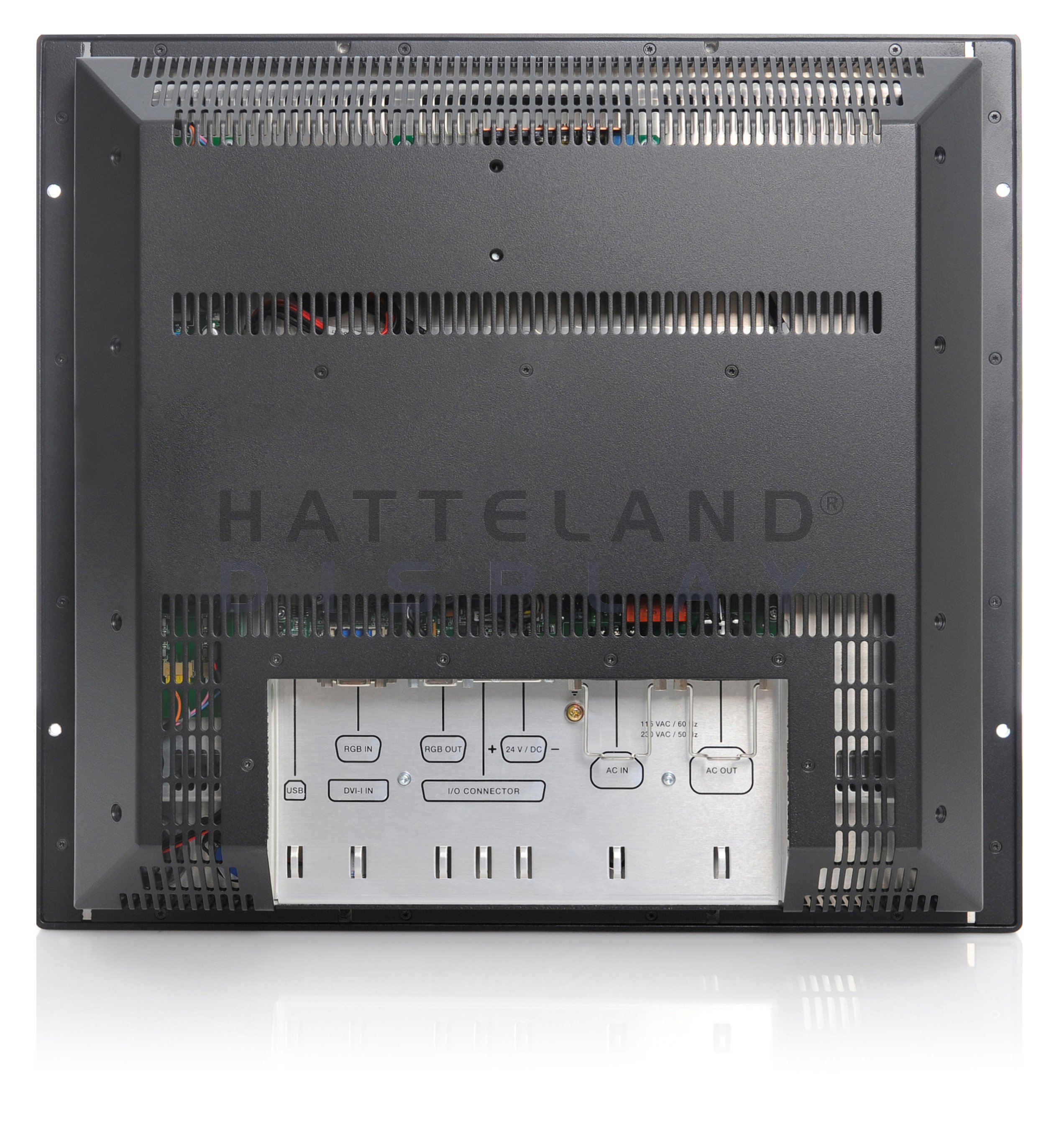

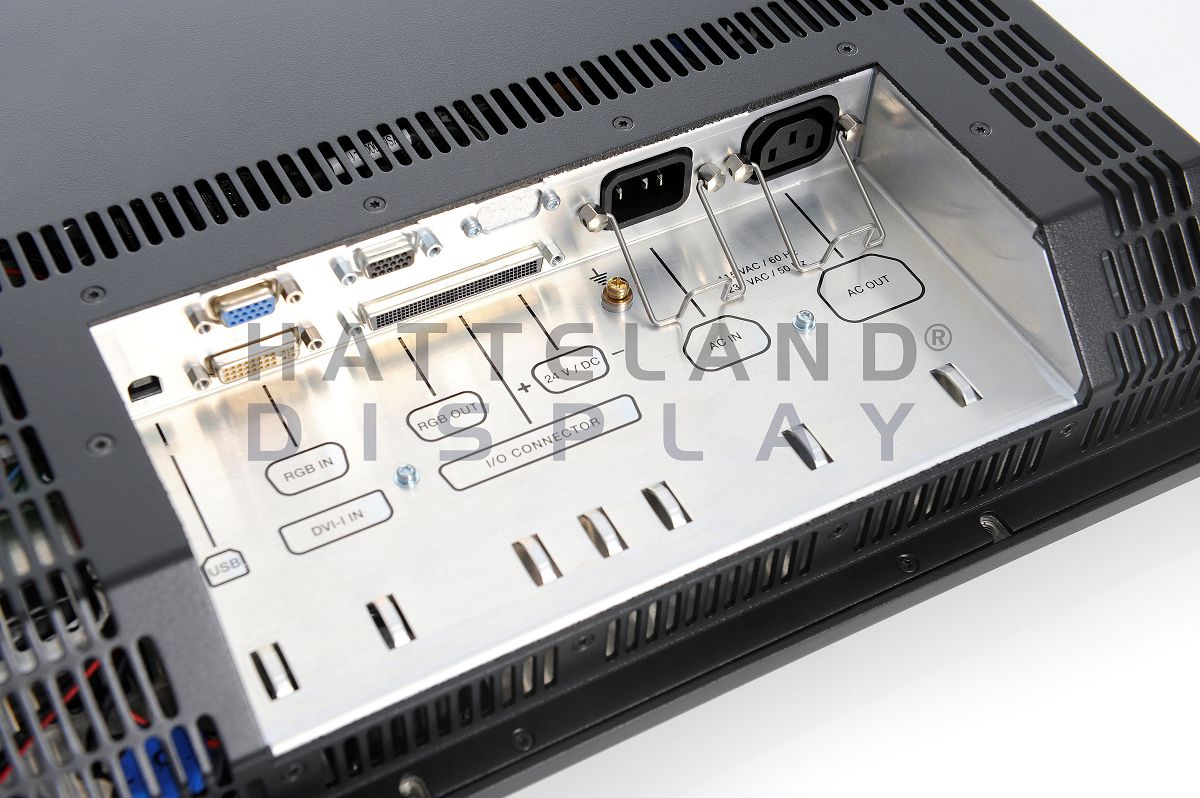

Connectors: • DVI IN: 1 x DVI-I 29P (female)
• VGA IN: 1 x HD D-SUB 15P (female)
• VGA OUT: 1 x HD D-SUB 15P (female)

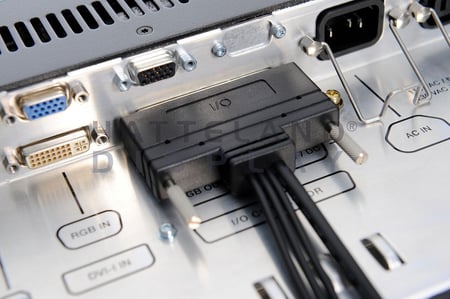

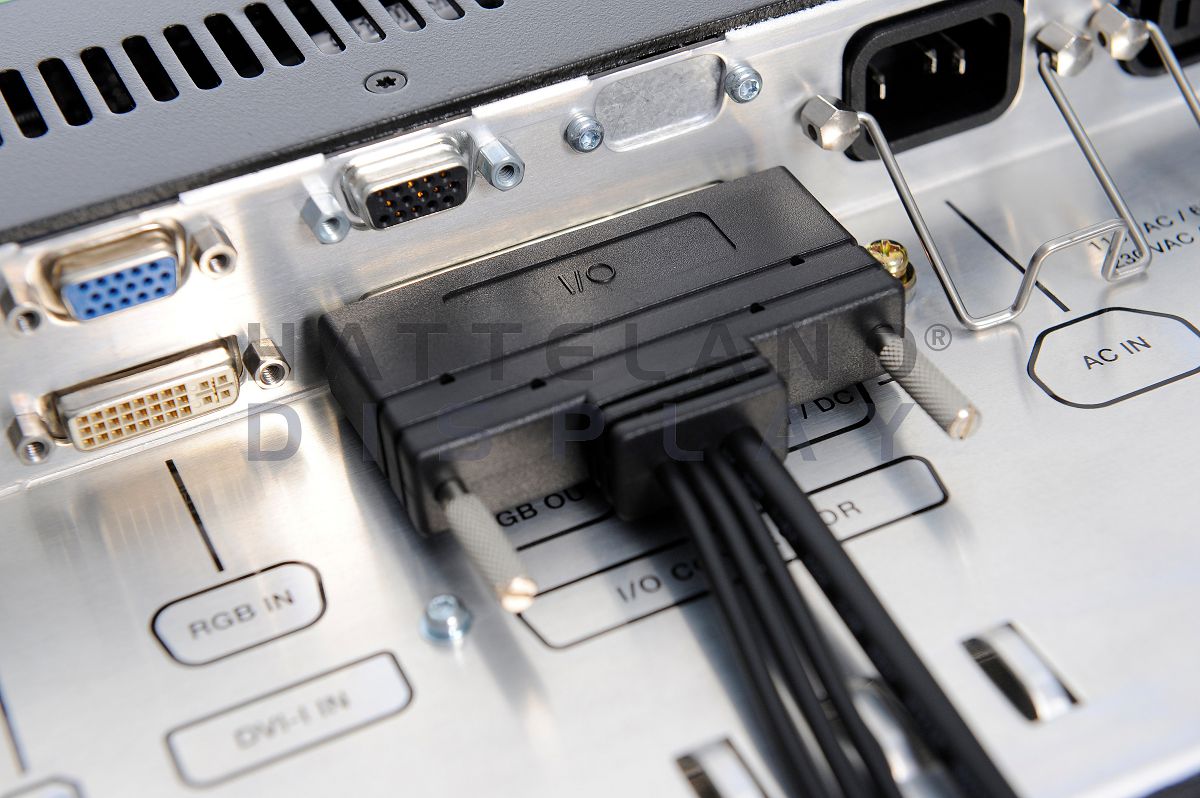

• Multifunction: 1 x D-SUB 160P (female)
• USB: 1 x Type B (female) - (Not is use/ Not connected)
• AC Power IN: 1 x Std. IEC inlet
• AC Power OUT: 1 x Std. IEC outlet
• SCOM RS-232: 1 x DB9F
• Composite Video IN: 3 x BNC
Product Dimensions and Weight: W:483.00 [19.02"] x H:444.00 [17.48"] x D:82.00 [3.23"] mm [inch]
Approx 9.0kg / 19.8lbs
Product Carton Size and Weight: L:600.00 [23.62"] x W:560.00 [22.05"] x H:220.00 [8.66"] mm [inch]
10.0kg / 22.0lbs
Factory Options: • Color Calibrated models (ECDIS)
Accessories: • VSD100692-x: Custom Multifunction Cable to support input signals; RS-232, RS-485, RS-422/485, Buzzer, ON/OFF, 1 x S-Video IN, 3 x Composite Video IN, Remote External User Controls.
• JH MMDBR STD-A1: Bracket
• HD TMB STD-A1: Mounting Bracket EN60945 Tested
• JH MMDRO STD-A1: Rotary Bracket
• JH 19TSV STD-A1: Sun Visor
• JH 19VED STD-A1: VESA Adapter 75/100mm. Not EN60945 Tested.
• JH 19TAP STD-A1: 21" CRT Adapter frame
• JH 19TAP STD-B1: 21" CRT Custom Adapter frame
• JH 19TAP STD-A2: 20" TFT Adapter frame
• JH 19TWC STD-B1: Water Cover
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: Dry Heat: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating: Protection (EN60529): IP66 front - IP20 rear
Compass Safe Distance: Standard: 160.00 [62.99"] - Steering: 105.00 [41.34"] cm [inch]
Type Approval, Testing and Certificates: TEMPEST SDIP-27 Level B, IEC 60945 4th (EN 60945:2002), ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, KR - Korean Register

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
Specifications last updated: November 11, 2025 @ 09:15
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

10 Dec 2010
Printed User Manual and Driver CD/DVD

End of Life Notifications (EOL):
2 Sep 2019
Global Documentation and Driver DVD

27 Mar 2017
19inch Tempest Display

News Stories:
26 Mar 2010
Successful conclusion of TEMPEST testing
