Overview

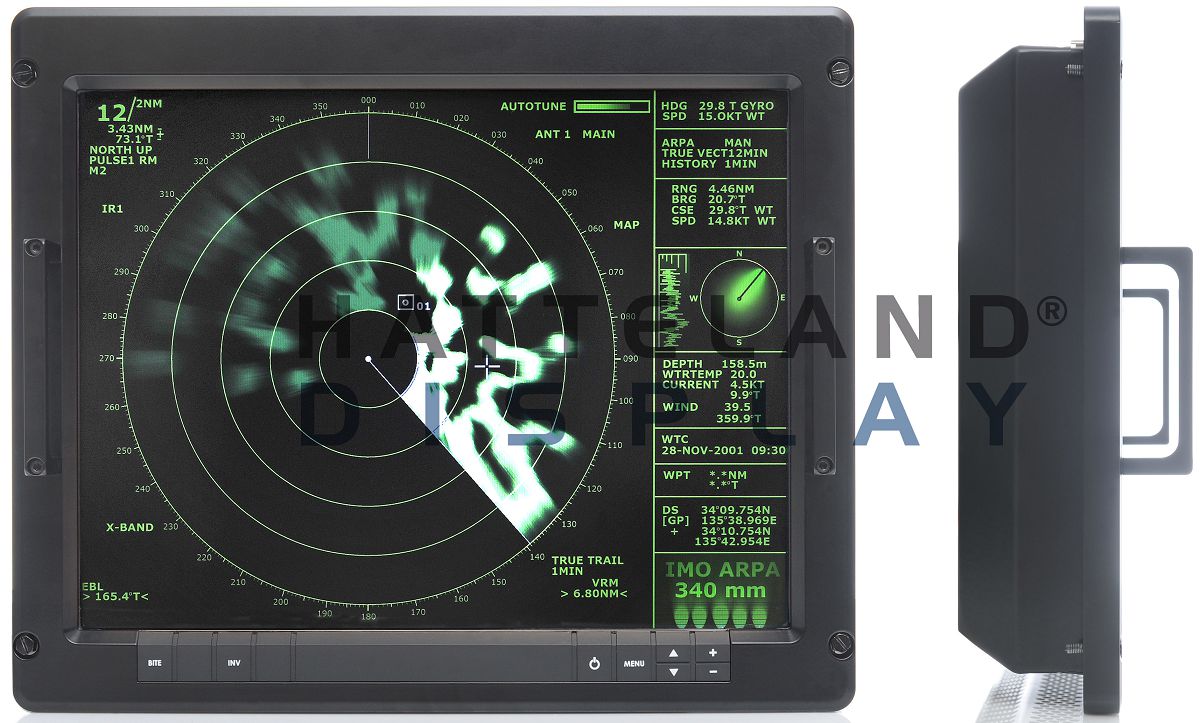

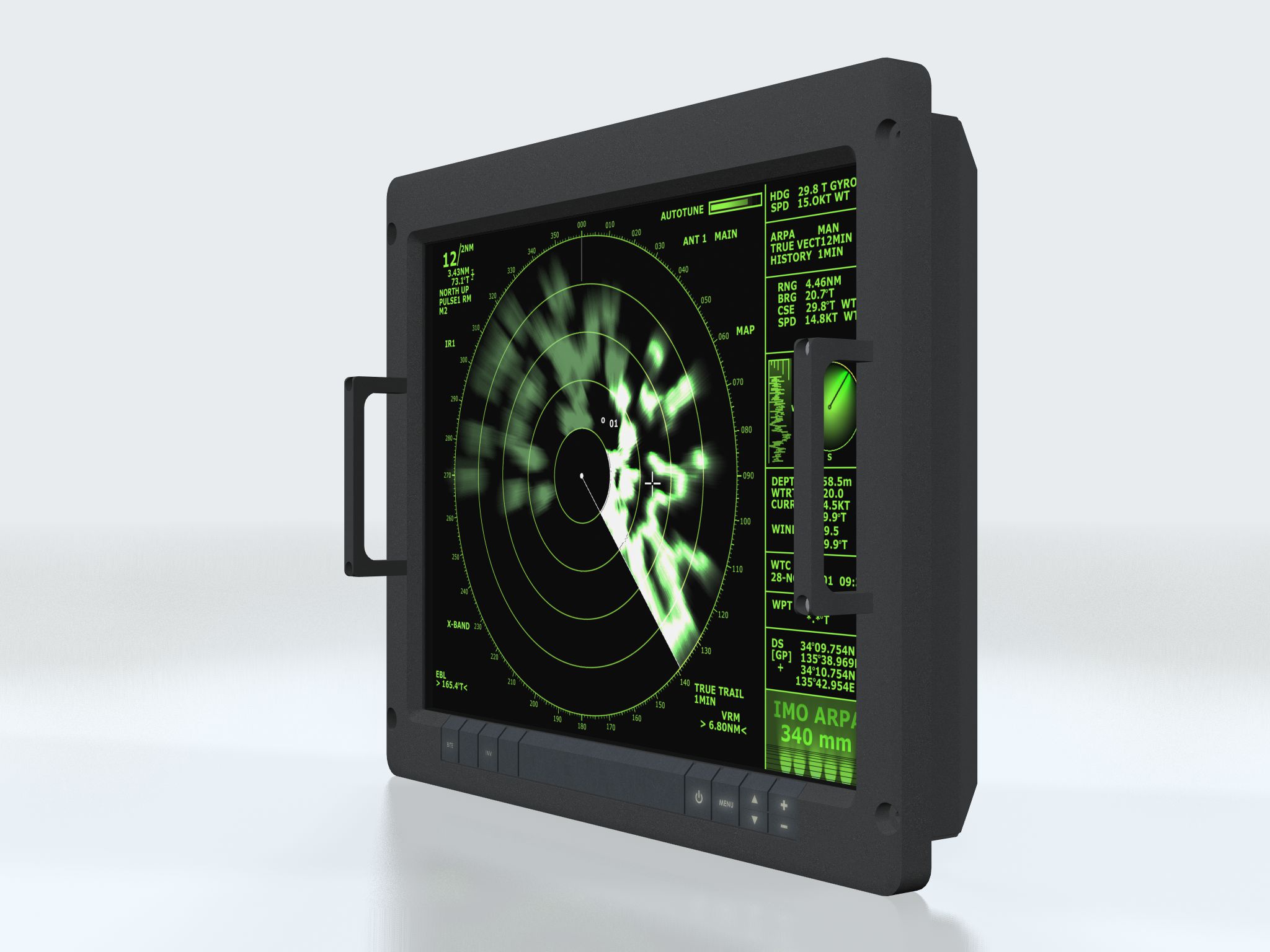

Monitor - CCFL - MCOTS Marine - 20.1 inch

HM 20T07 CMD

The combination of high quality TFT panels and bonding technology to improve strength and eliminate screen condensation allows you to display all professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - MCOTS Marine

This is improved even further by high light intensity and contrast with a fully adjustable backlight (0 - 100%).

Flexible input and the combination of remote control and slave output alongside optional features that include touchscreens and a choice of AC or DC input power provide added value.

Hatteland Display's naval products are subjected to the most severe tests to ensure that they meet the strict standards of use in the naval environment. This, in combination with the fully adaptive 19'' rack mounting allows the product to be used in any environment and configuration.
Specifications
Typenumber (Long): HM 20T07 CMD-xx
TFT Technology: a-Si TFT (Thin Film Transistor) Active Matrix, Optical Bonding
Viewable Size and Active Area: 20.1 inch - 408.00 [16.06"] (H) x 306.00 [12.05"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1600 x 1200 (UXGA) - 0.255 (H) x 0.255 (V) mm
Aspect Ratio and Response Time: 4:3 - 20ms (typ)
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 500:1 (typ)
View Angle and Max Colors: 88 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 1600 x 1200 @ 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
Composite Video Input(s): None
Supported Video Signals: None

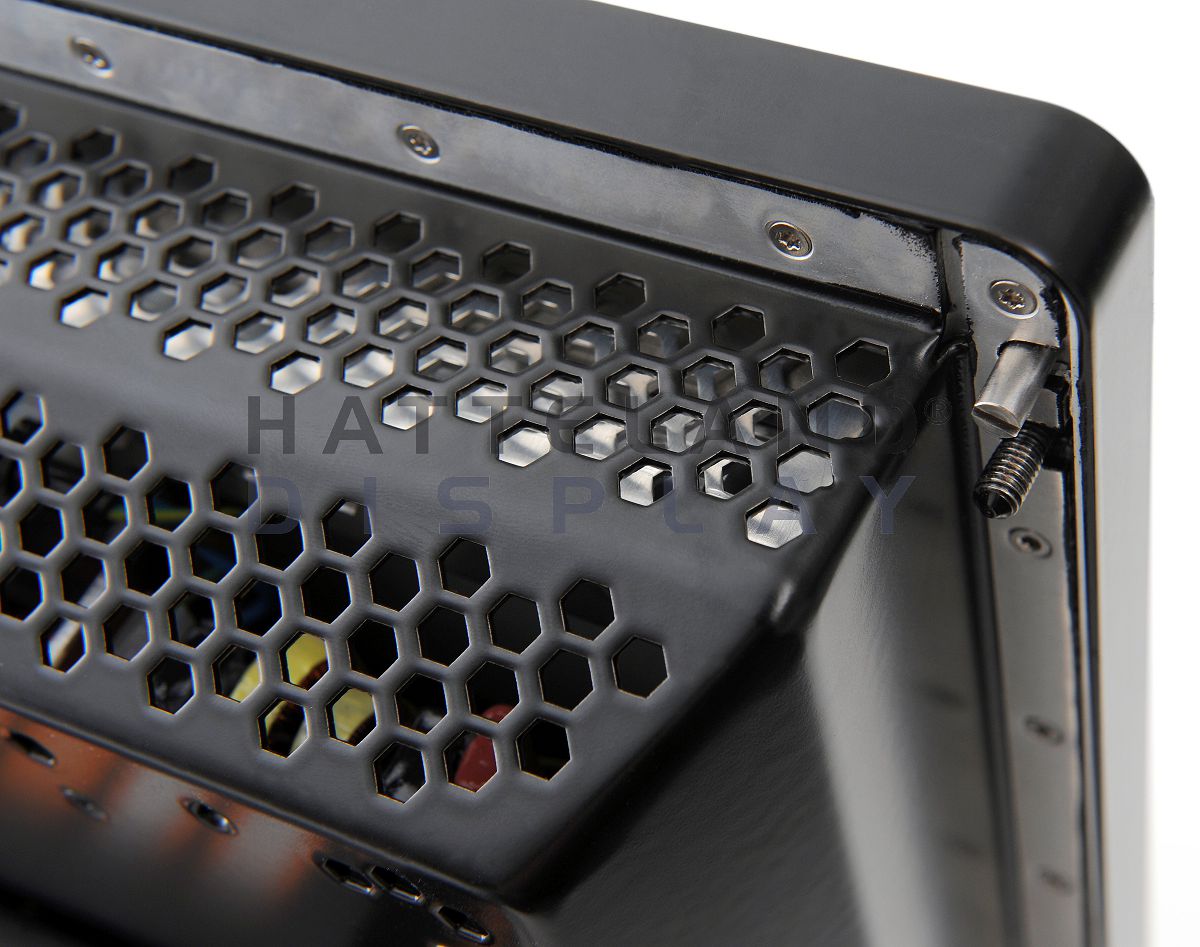

Product Features: Front Bonded, Qualified for shock, vibration & EMI, Adaptable to

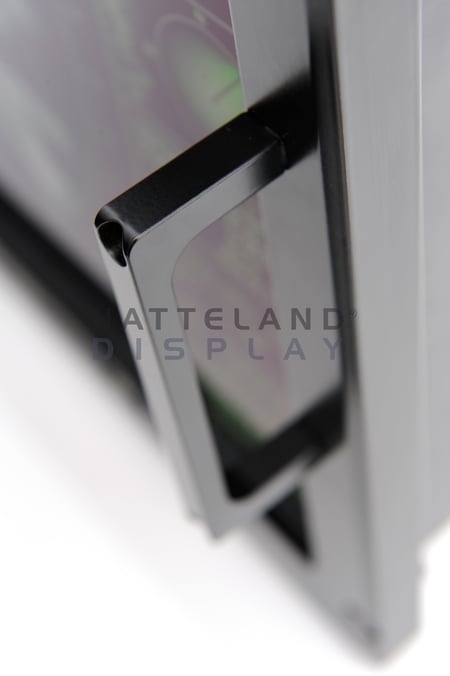

19 inch racks or consoles, Fully adjustable backlight (0-100%), Serial Communication (SCOM) Interface, Front mounted handles, Suitable for bridge or below decks
Power Specifications and Consumption: 115/230VAC - 50/60/400Hz or 24/28VDC - 75W (typ) - 100W (max)
Inrush Current:
10A for 115VAC, Max. @ 25.0°C / 77.0°F
10A for 24/28VDC, Max. @ 25.0°C / 77.0°F
User Controls and Activity: BIT Function Button, INV Alarm Indicator LED, Power On/Off Button, On Screen Display control (OSD/OSM) button, Up/Down OSD Navigation / Hotkey Set #1 Buttons, +/- Brightness Backlight Control, Backlight Illuminated Buttons

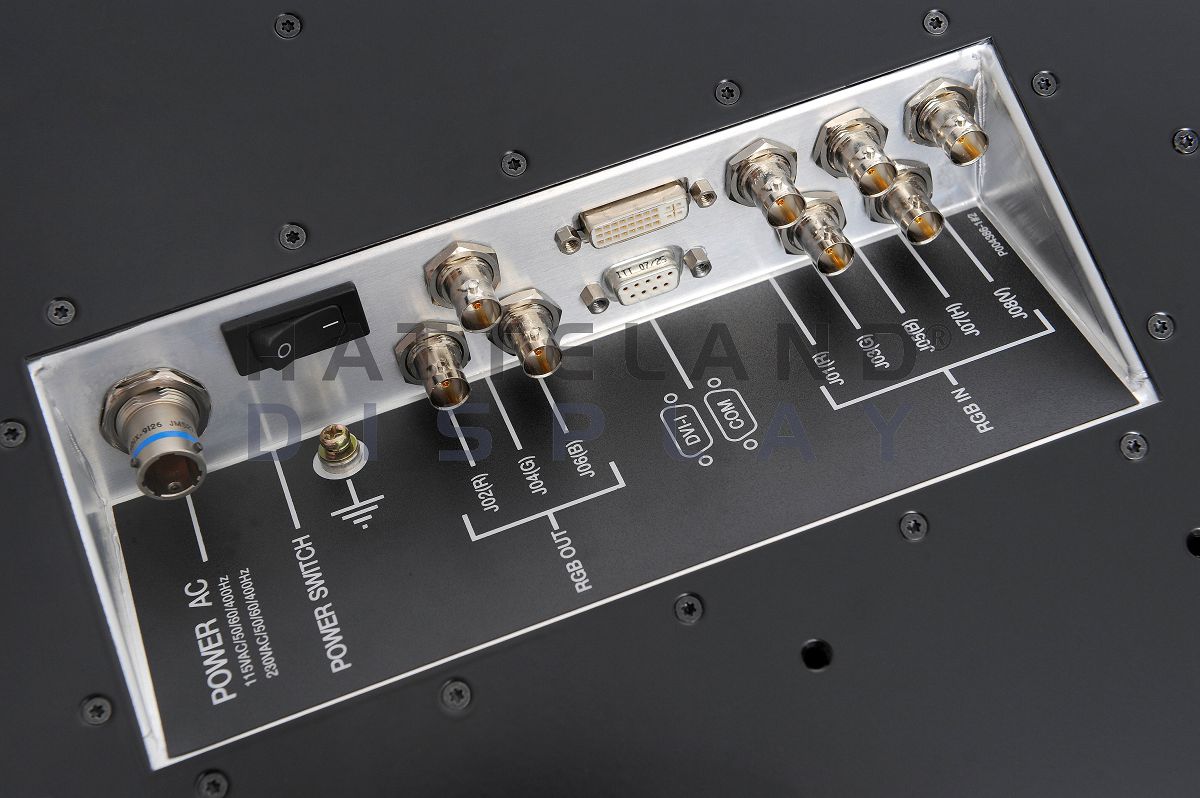

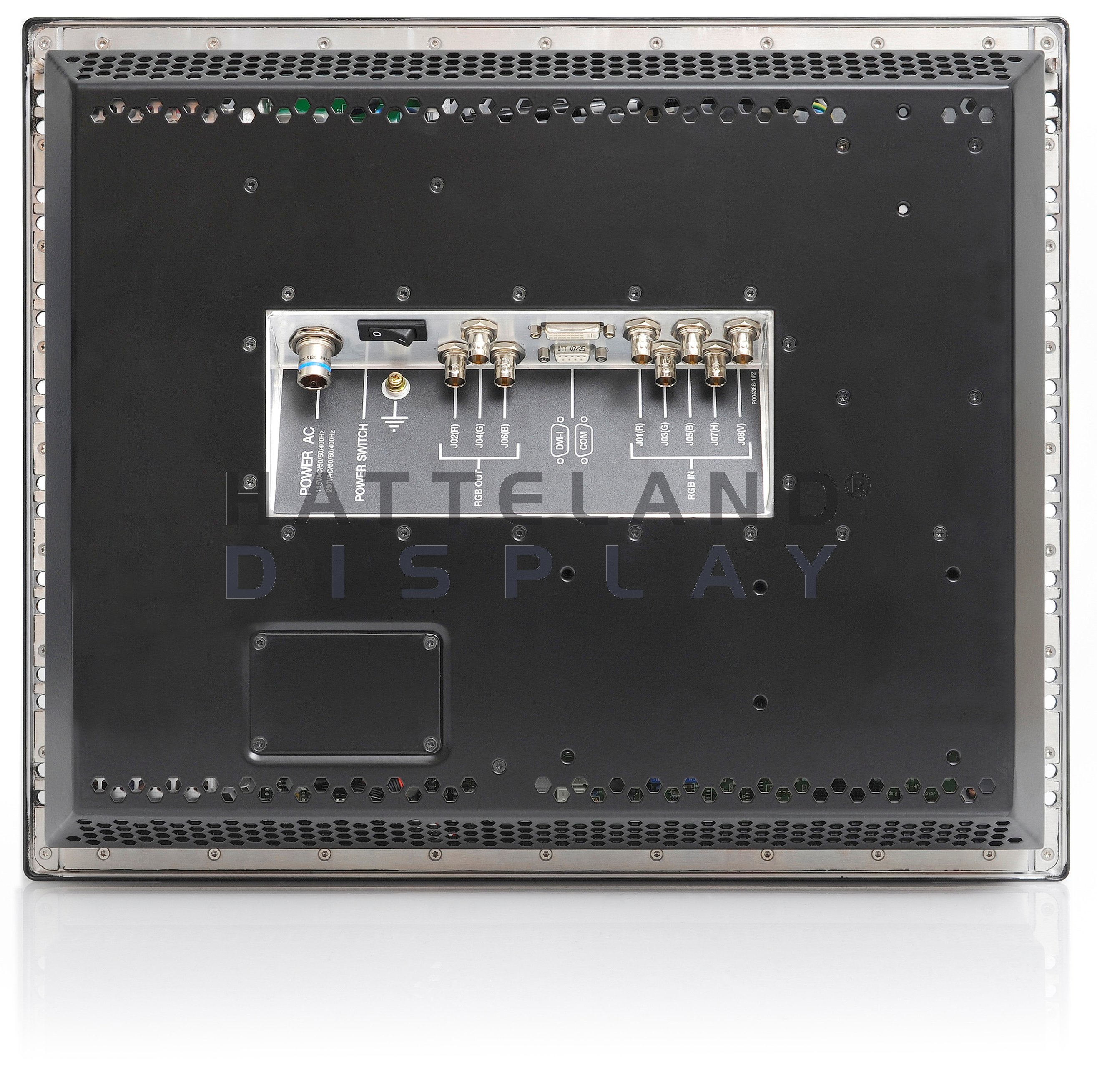

Connectors: • DVI IN: 1 x DVI-I 29P (female) or configurable
as VGA IN: 1 x HD D-SUB 15P (female) via Adapter
• RGB IN: 5 x BNC J01(R)+J03(G)+J05(B)+J07(H)+J08(V)
• RGB OUT: 3 x BNC J02(R)+J04(G)+J06(B)
• If AC Power IN: 1 x Circular MIL P/N: AMP - MS27468T9F98P
• If DC Power IN: 1 x Circular MIL P/N: AMP - MS27468T15F5P
• Grounding: 1 x M4 Internal Screw Thread
• Combined Touch / SCOM+BIT Interface: 1 x D-SUB 9P (female)
Product Dimensions and Weight: W:482.00 [18.98"] x H:399.00 [15.71"] x D:135.00 [5.31"] mm [inch]
9U Rack size in height. Approx 12kg / 26lbs
Product Carton Size and Weight: L:650.00 [25.59"] x W:280.00 [11.02"] x H:600.00 [23.62"] mm [inch]
15.0kg / 33.0lbs
Factory Options: • 24/28VDC Power Input Model
• Resistive Touchscreen 8 wire
• Color Calibrated models (ECDIS)
Accessories: External 10 foot (3.0m) AC power cable NEMA (Halogen Free), External 10 foot (3.0m) AC power cable Europe (Halogen Free), External 10 foot (3.0m) DC power cable (Halogen Free)
Capabilities - Prepared for: N/A
Operating Temperature: AC: -15.0°C / 5.0°F to 55.0°C / 131.0°F

C: -15.0°C / 5.0°F to 55.0°C / 131.0°F (MIL-STD-810F)
Storage Temperature: Dry Heat: 70.0°C / 158.0°F (MIL-STD-810F)
Cold: -40.0°C / -40.0°F (MIL-STD-810F)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002)
MIL Testing Summary:
Humidity: 95% at 40.0°C / 104.0°F (Mil-Std 810F)
Shock: 60g / 11ms (IEC 60068-2-27 (1987), Test Ea)
Grade A Shock: Class 1 (hard-mounted) (MIL-S-901D)
Transient Shock: 2-280 Hz, Designed to envelope a half sine shock
pulse of 50g / 35ms (IEC 60068-2-57 (1999-11), Test Ff)
Rain (drip proof): MIL-STD-810F - Console mounted
Salt Fog: MIL-STD-810F
Vibration Testing: MIL-STD-167-1
EMI Testing: MIL-STD 461E 1999, CE 101, CE 102, CS 101, CS 114, CS 116, RE 101, RE 102, RS 101,RS 103
Specifications last updated: August 18, 2025 @ 08:00
