HM 20T07 MIL

Overview

Monitor - CCFL - MIL Qualified - 20.1 inch

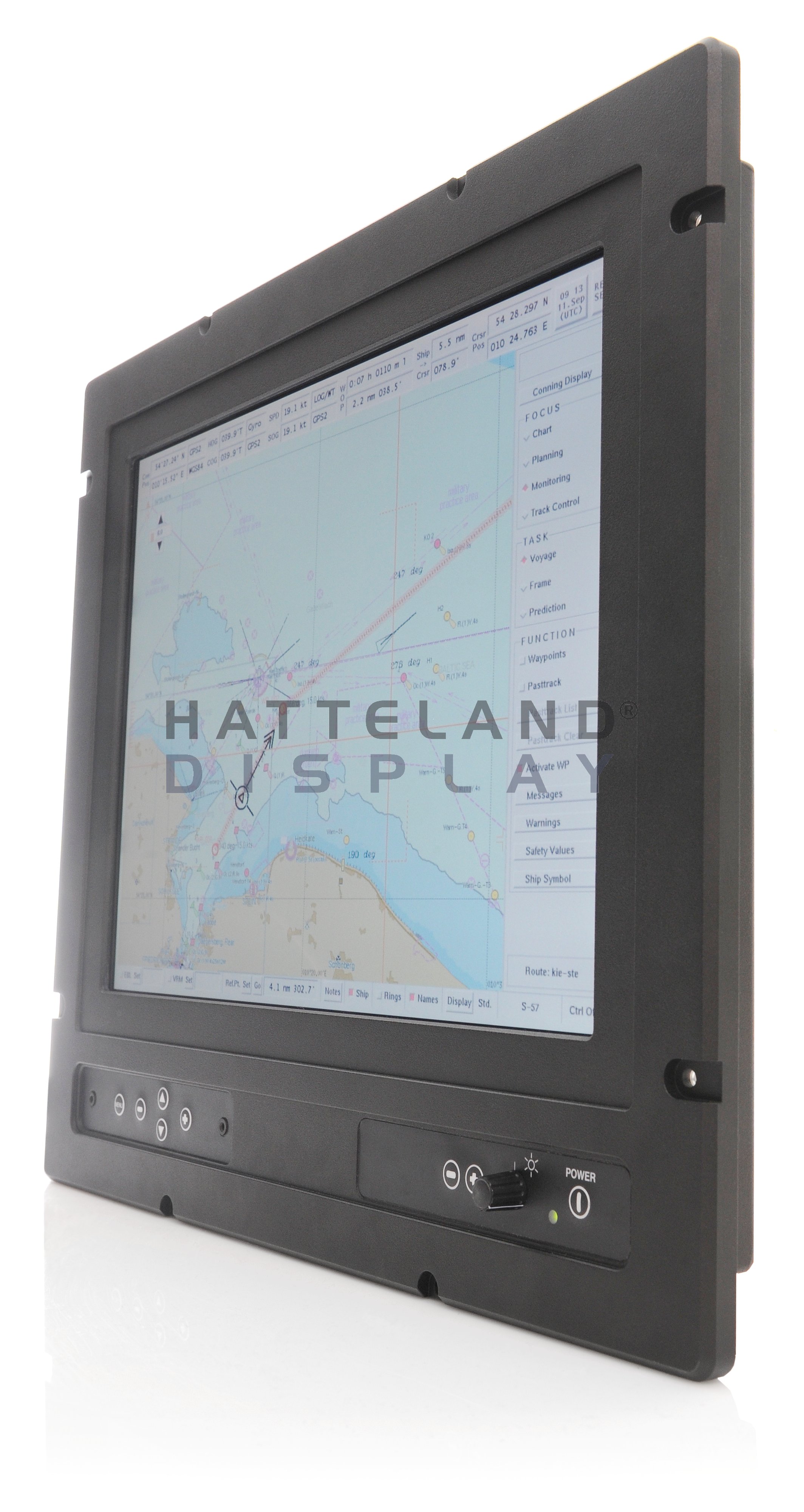

HM 20T07 MIL

Designed for new console-mount installations as well as retrofit of aging CRT monitors, the HM 20T07 MIL product provides an affordable upgrade path for integrators and platform managers who want increased safety and situational awareness, or improved shipboard systems monitoring and control.

icon
CCFL-backlit
Send Request
Description

Monitor - MIL Qualified

The HM 20T07 MIL monitor is derived from Hatteland Display's de facto industry standard Series 1 product line. Originally introduced in 2001 and totally re-engineered in 2008, the Series 1 product line has become the standard for quality and reliability in the marine industry. The HM 20T07 MIL provides a cost effective solution for Naval monitor applications that require ECDIS-compliance, commercial shipping standards type-approval and military environmental qualification.

Standard features include a high contrast, optically bonded LCD display, a fully dimmable backlight from 0-100% brightness level, RGB and composite video inputs, picture-in-picture and automatic image scaling, making the HM 20T07 MIL ideal for navigation and automation system installations. ECDIS color calibration are optional features of the HM 20T07 MIL.
Specifications
Typenumber (Long): HM 20T07 MIL-A1
TFT Technology: a-Si TFT (Thin Film Transistor) Active Matrix, Optical Bonding Technology
Viewable Size and Active Area: 20.1 inch - 408.00 [16.06"] (H) x 306.00 [12.05"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1600 x 1200 (UXGA) - 0.255 (H) x 0.255 (V) mm
Aspect Ratio and Response Time: 4:3 - 20ms (typ)
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 500:1 (typ)
View Angle and Max Colors: 88 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 1600 x 1200 @ 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
Composite Video Input(s): Composite (BNC)
Supported Video Signals: COMPOSITE Compatible (NTSC/PAL/SECAM Interlaced)
Product Features: Front Bonded, Qualified for shock, vibration & EMI, Fully adjustable backlight (0-100%), PIP (Picture-In-Picture), Serial Communication (SCOM)
Power Specifications and Consumption: 115/230VAC - 50/60Hz - 75W (typ) - 100W (max)

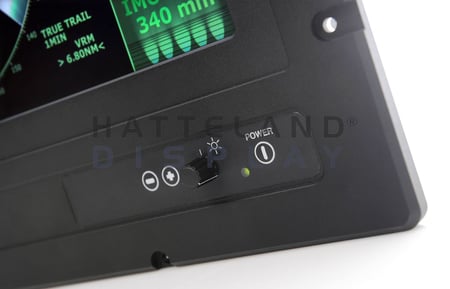

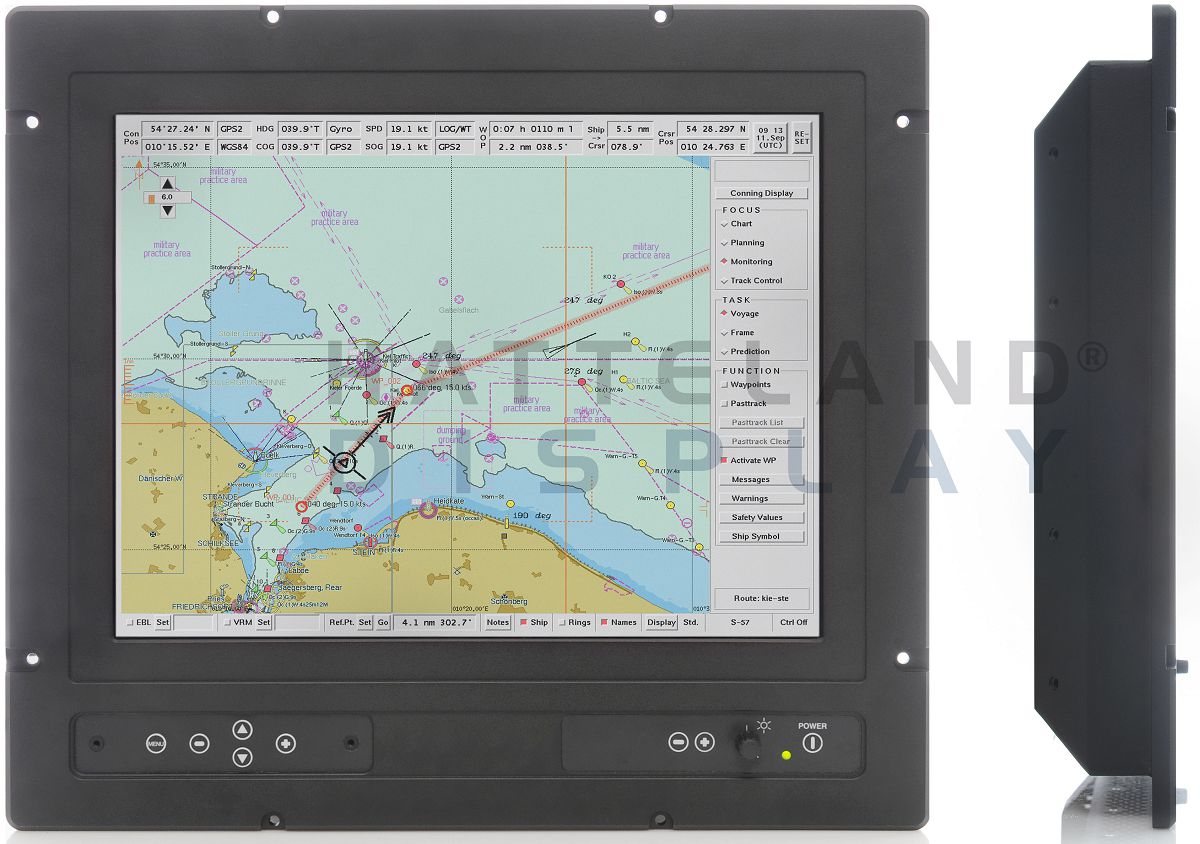

User Controls and Activity: Power On/Off (push button), Brightness Control Rotary Knob, 2 x hotkeys, Mode Status LED, On Screen Display control (OSD/OSM)

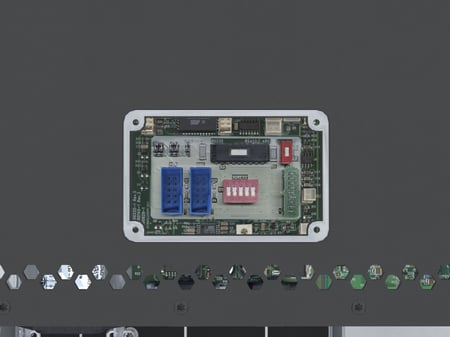

(behind hatch), Serial Remote Control DIP-Switch Settings (rear)

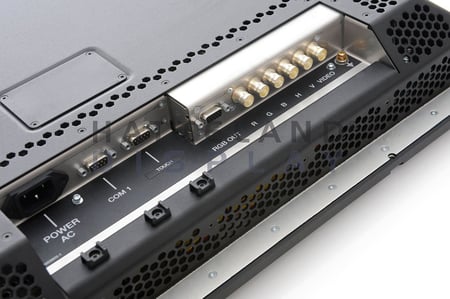

Connectors: • RGB IN: 5 x BNC Connectors (RGBHV)
• VGA OUT: 1 x HD D-SUB 15P (female)
• Composite Video IN: 1 x BNC Connector
• Serial Remote Control: 2 x D-SUB 9P (female)
• AC Power IN: 1 x Std. IEC inlet
• If Touch Screen: 1 x DB9F RS-232 communication

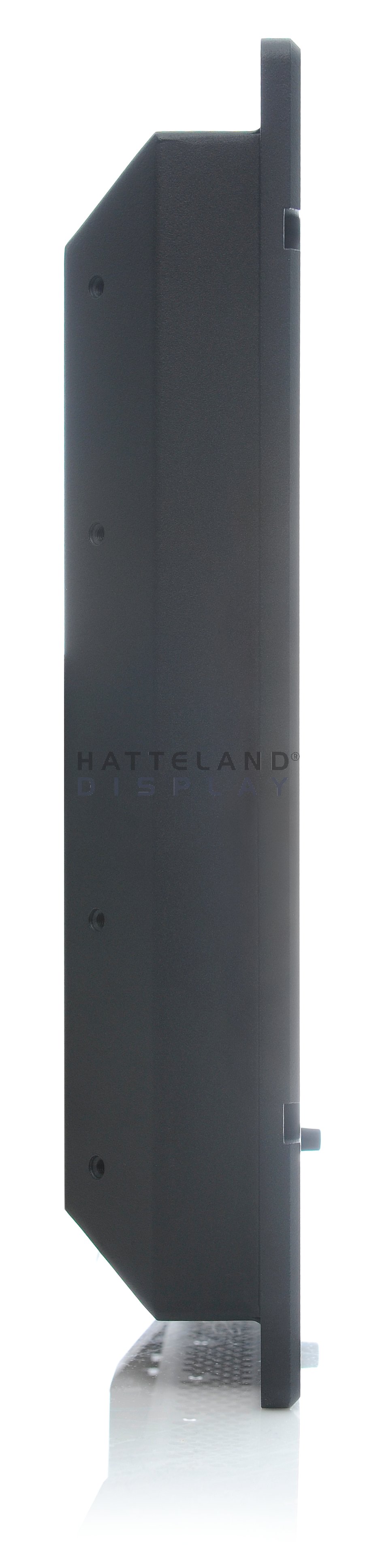

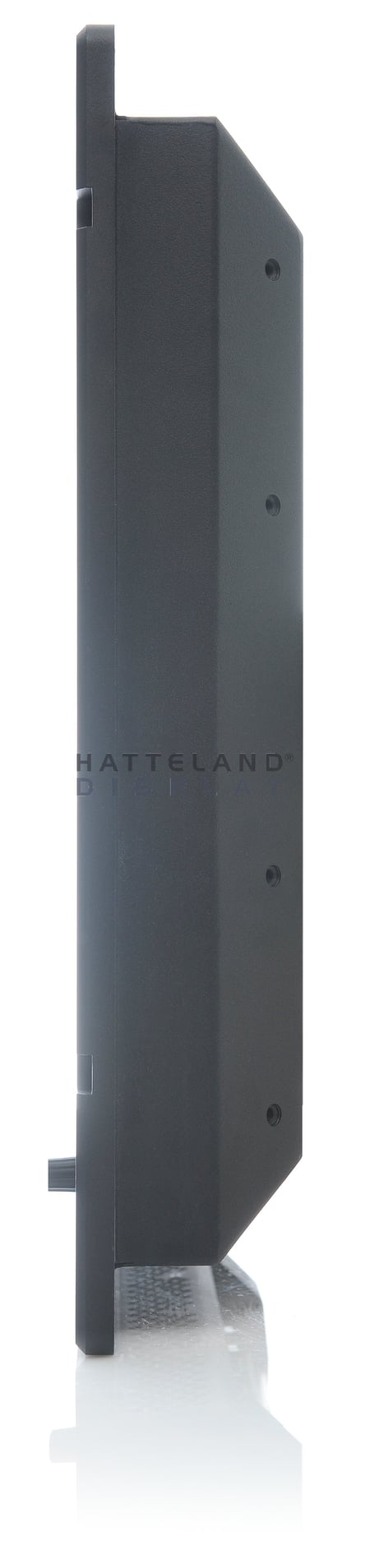

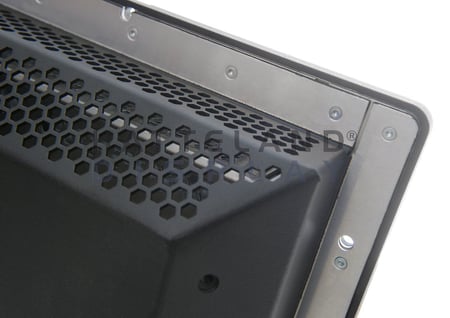

Product Dimensions and Weight: W:534.00 [21.02"] x H:481.00 [18.94"] x D:87.00 [3.43"] mm [inch]
Approx 14kg / 31lbs
Product Carton Size and Weight: L:700.00 [27.56"] x W:220.00 [8.66"] x H:660.00 [25.98"] mm [inch]
15.5kg / 34.1lbs
Factory Options: • Resistive Touchscreen 8 wire
• Color Calibrated models (ECDIS)
Accessories: Bracket (tilt up/down), Rotary Bracket (left/right), VESA Bracket, Sun Visor, Water Cover
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: Dry Heat: 70.0°C / 158.0°F (IEC 60068-2-2 (1974), Test Bd)
Cold: -40.0°C / -40.0°F (IEC 60068-2-1 (1990), Test Ad)
Humidity up to 95%
IP Rating: Protection (EN60529): IP66 front - IP20 rear
Compass Safe Distance: Standard: 115.00 [45.28"] - Steering: 70.00 [27.56"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), NK - Nippon Kaiji Kyokai, DNV - Det Norske Veritas, GL - Germanischer Lloyd, BV - Bureau Veritas, LRS - Lloyd's Register, ABS - American Bureau of Shipping, EU-RO-MR - Mutual Recognition, CCS - China Classification Society

MIL Testing Summary:
Shock: 50g / 30ms (IEC 60068-2-27 (1987), Test Ea)
Grade A Shock: Class 1 (hard-mounted) (MIL-S-901D)
Vibration Testing: 4-33Hz, MIL-STD-167-1 - Console Mounted
EMI Testing: MIL-STD 461E 1999, CE 101, CE 102, CS 101, CS 114, CS 116, RE 101, RE 102, RS 101, RS 103
Specifications last updated: August 18, 2025 @ 08:00
