HM 20T07 NMD

Overview

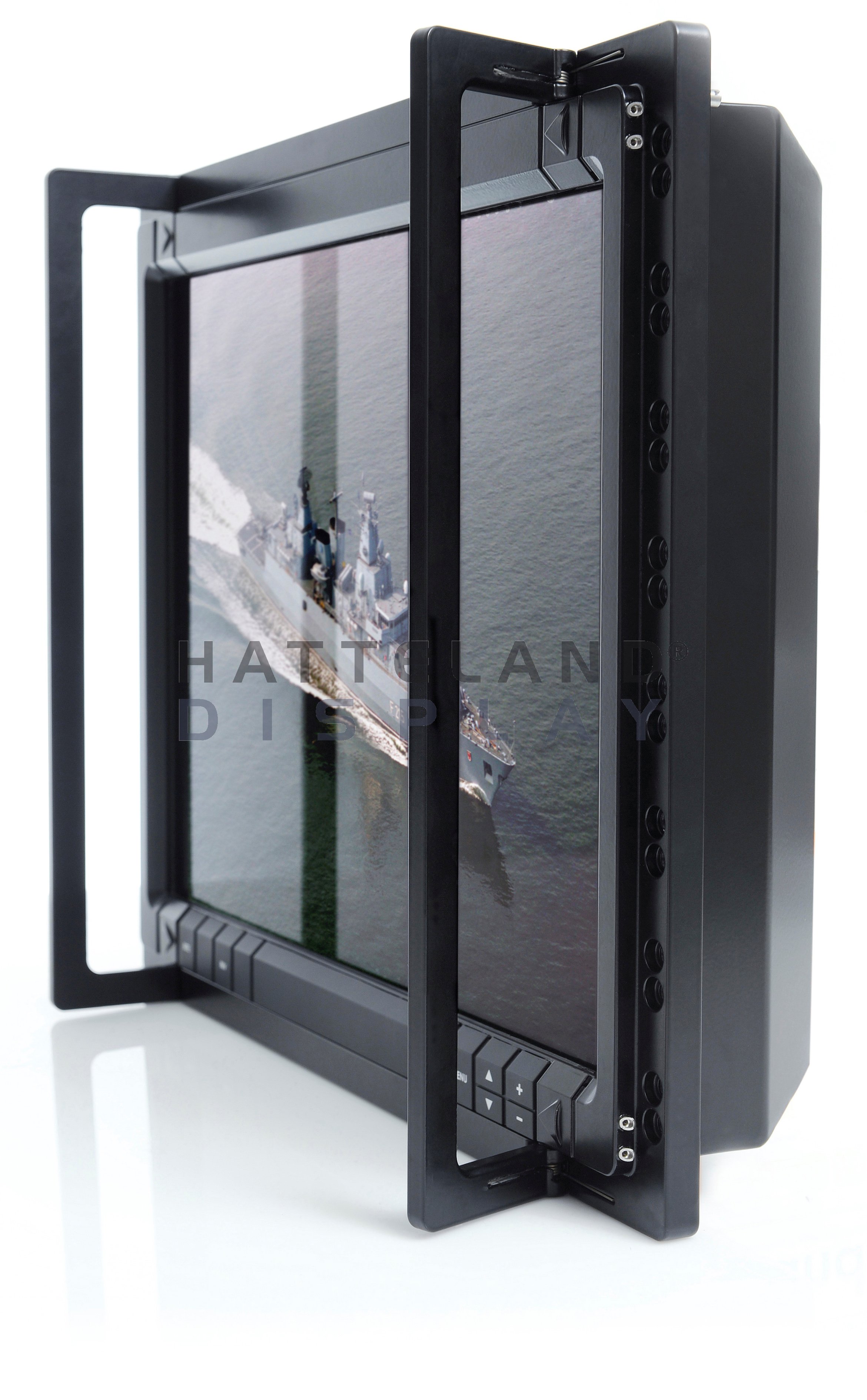

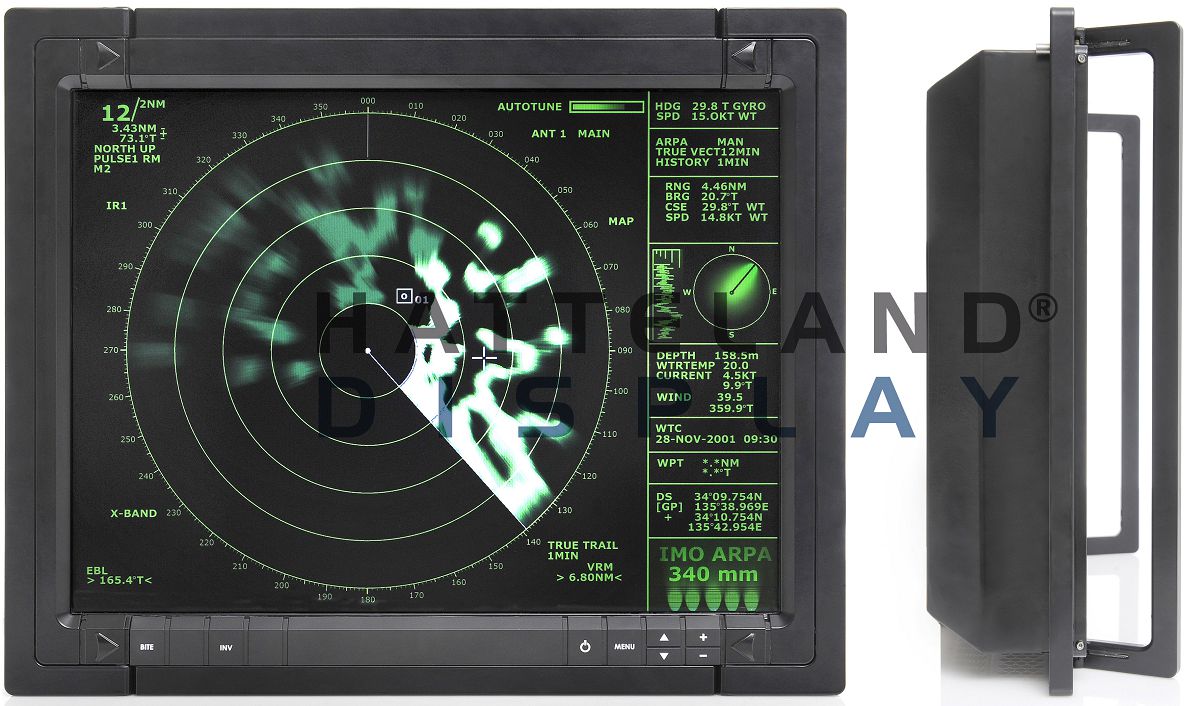

Monitor - CCFL - MIL Qualified - 20.1 inch

HM 20T07 NMD

The Naval Multi Display (NMD) is engineered to provide high-quality video and graphics monitor performance even when subjected to the most severe environmental conditions encountered in Naval installations.

icon
CCFL-backlit
Send Request
Description

Monitor - MIL Qualified

The NMD meets the requirements of MIL-S-901D, Grade A, Class I shock, eliminating the need for shock isolation in the rack or console, as well as Mil-Std-167-1, Mil-Std-461E, and Mil-Std-810F.

By combining the superior optical quality of a front-optical bonded UXGA LCD with its new, shock-resistant, 19-inch rack-mountable package, Hatteland Display has raised the standard for affordable, rugged COTS monitors.

The clarity and enhanced color and image quality produced by our proprietary optical bonding technology makes the NMD ideal for information-intensive applications. And with our fully-adjustable backlight system (0-100%), the NMD is suitable for round-the-clock use, day or night, on the bridge or below deck.

Flexible I/O options supporting both analog and digital inputs, AC or DC power configurations, and a touchscreen option makes the NMD a perfect choice for the retrofit of older monitors or for new system designs.
Specifications
Typenumber (Long): HM 20T07 NMD-xx
TFT Technology: a-Si TFT (Thin Film Transistor) Active Matrix, Optical Bonding Technology
Viewable Size and Active Area: 20.1 inch - 408.00 [16.06"] (H) x 306.00 [12.05"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1600 x 1200 (UXGA) - 0.255 (H) x 0.255 (V) mm
Aspect Ratio and Response Time: 4:3 - 20ms (typ)
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 500:1 (typ)
View Angle and Max Colors: 88 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 1600 x 1200 @ 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
Composite Video Input(s): None
Supported Video Signals: None
Product Features: Front Bonded, Qualified for shock, vibration & EMI, Adaptable to

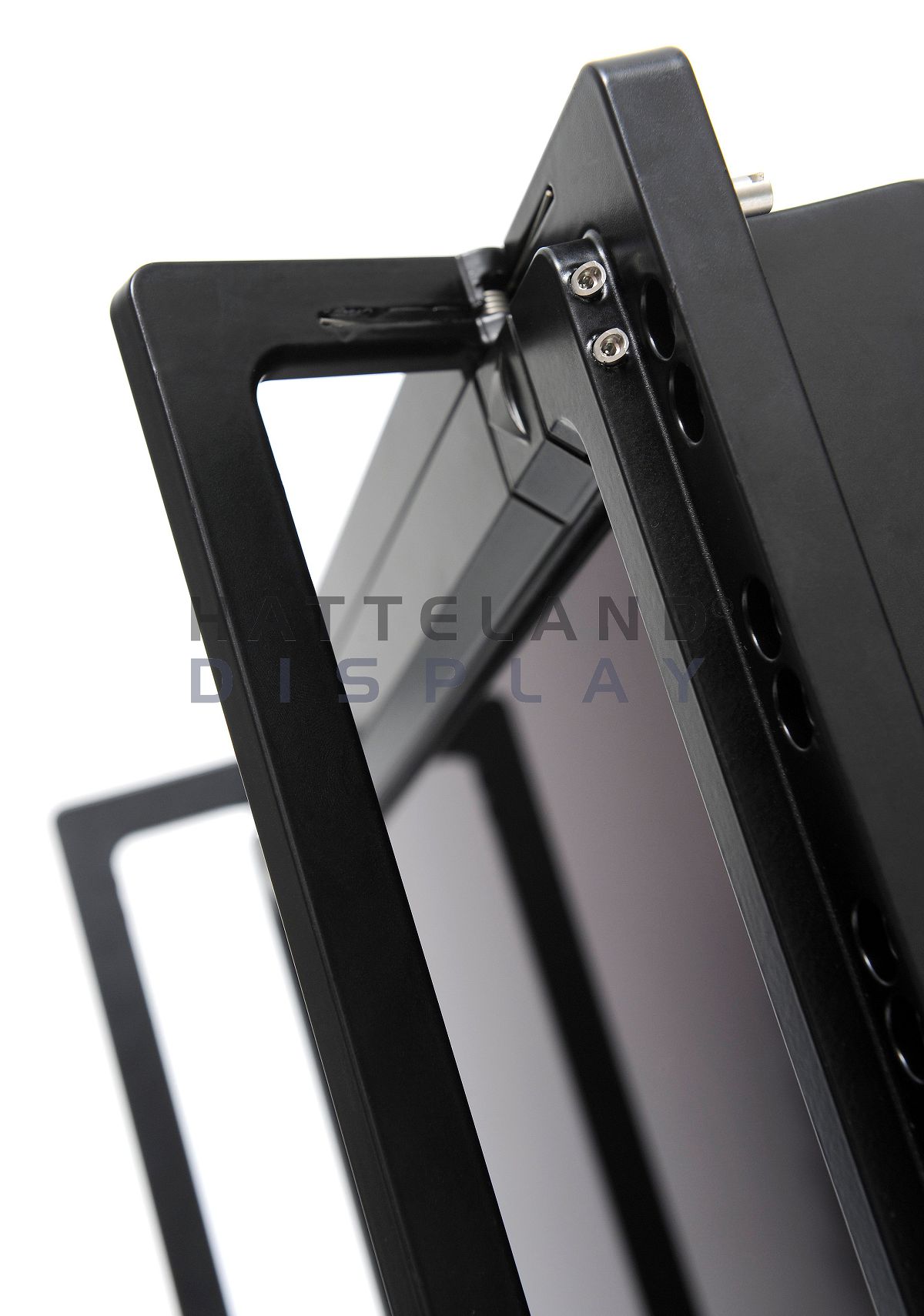

19 inch racks or consoles, Fully adjustable backlight (0-100%), Serial Communication (SCOM) Interface, Lockable handles, Suitable for bridge or below decks
Power Specifications and Consumption: 115/230VAC - 50/60/400Hz or 24/28VDC - 75W (typ) - 100W (max)
Inrush Current:
10A for 115VAC, Max. @ 25.0°C / 77.0°F
10A for 24/28VDC, Max. @ 25.0°C / 77.0°F

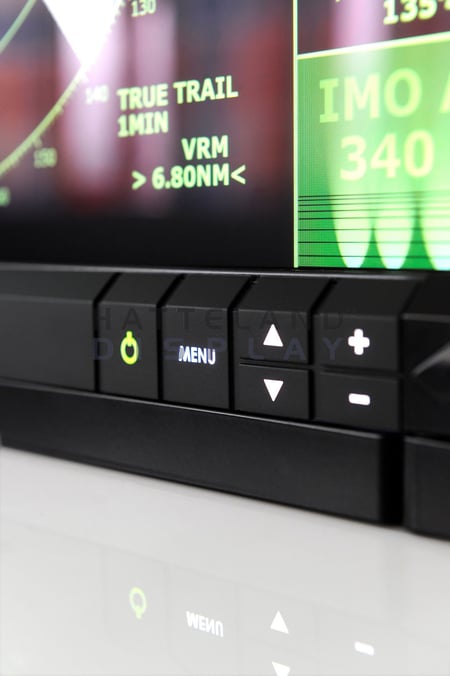

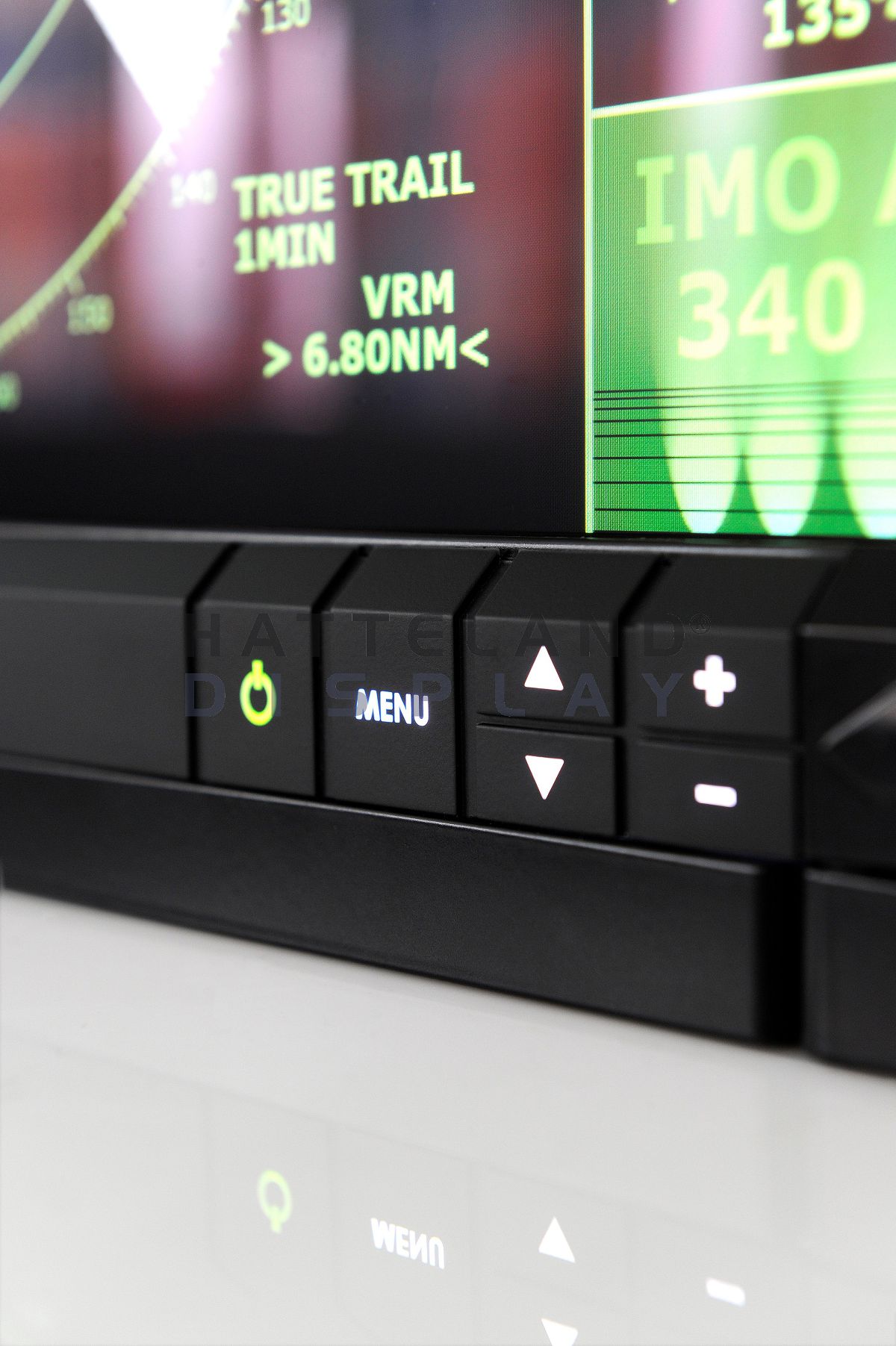

User Controls and Activity: BIT Function Button, INV Alarm Indicator LED, Power On/Off Button, On Screen Display control (OSD/OSM) button, Up/Down OSD Navigation / Hotkey Set #1 Buttons, +/- Brightness Backlight Control, Backlight Illuminated Buttons

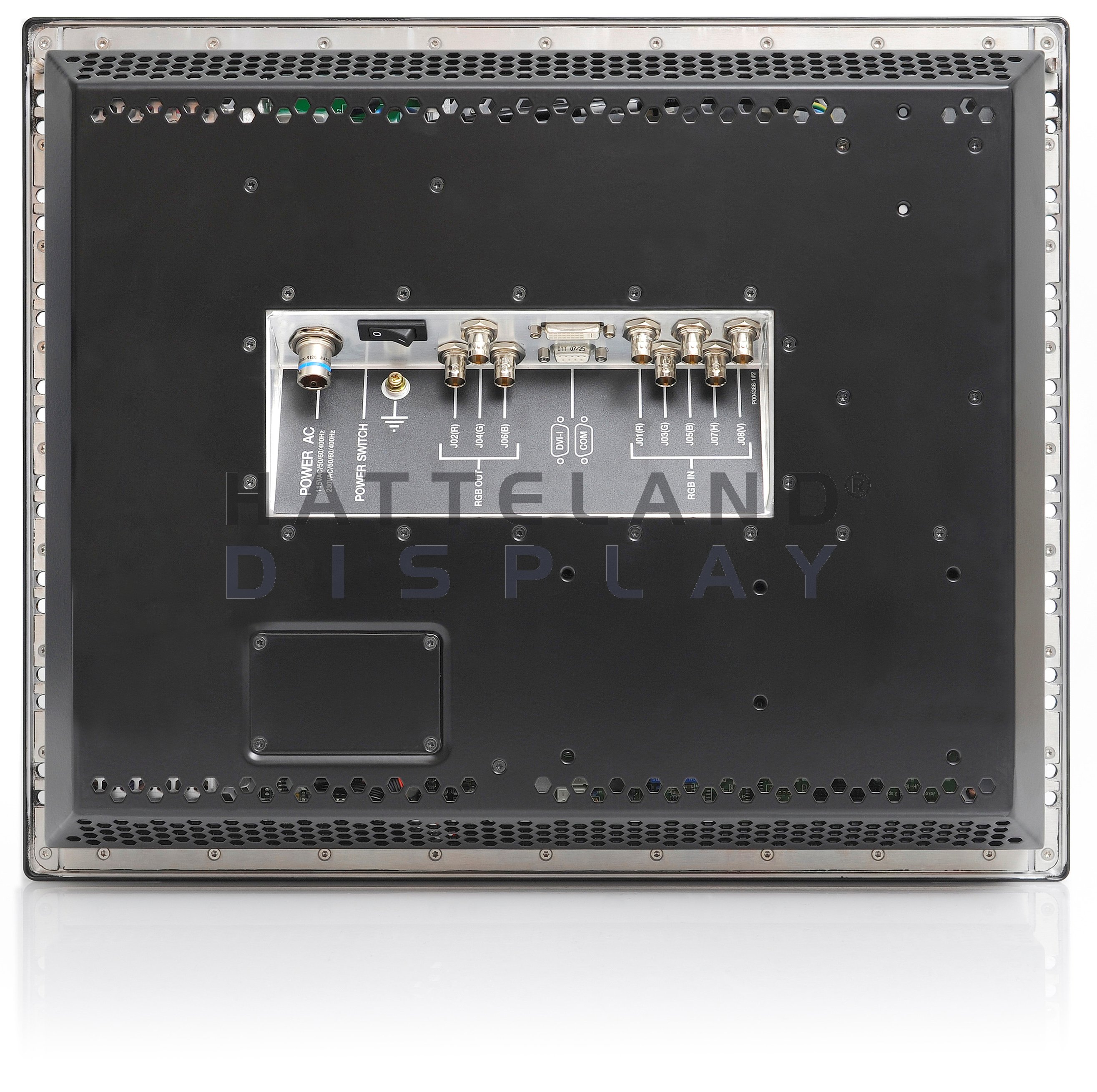

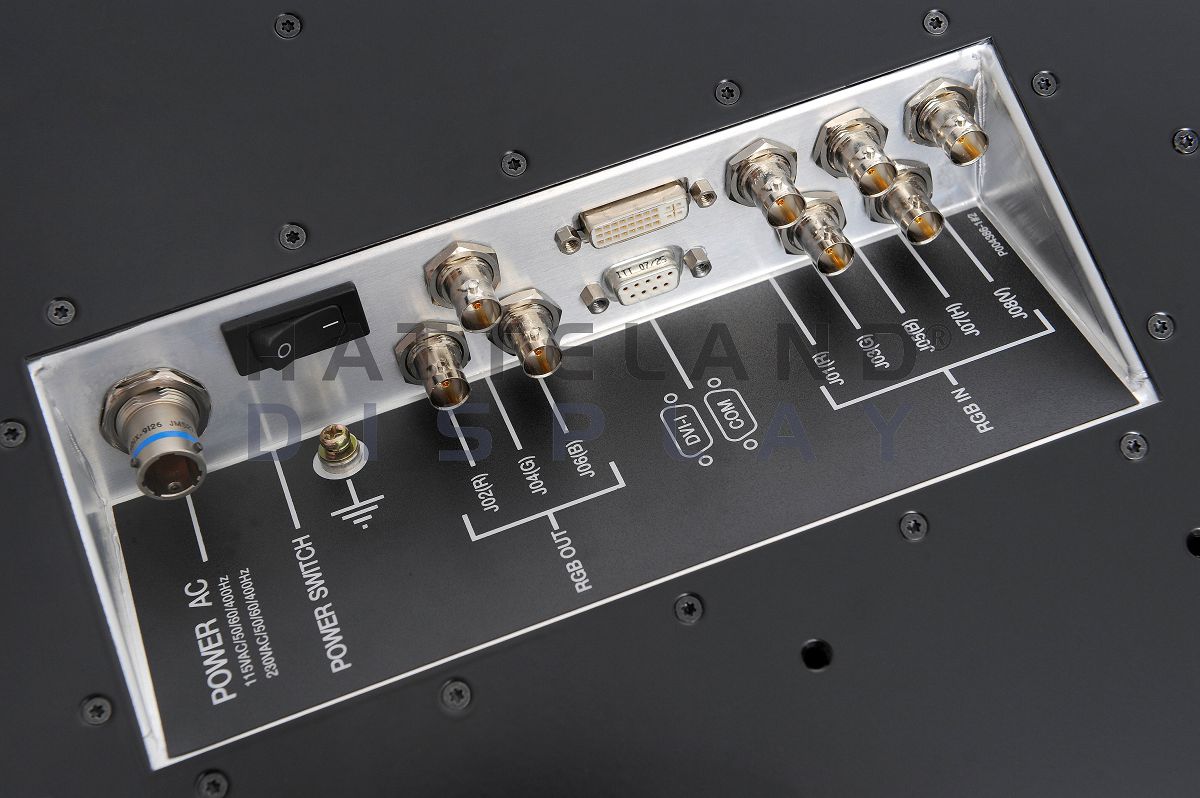

Connectors: • DVI IN: 1 x DVI-I 29P (female) or configurable as
VGA IN: 1 x HD D-SUB 15P (female) via Adapter
• VGA IN: 5 x BNC J01(R)+J03(G)+J05(B)+J07(H)+J08(V)
• RGB OUT: 3 x BNC J02(R)+J04(G)+J06(B)
• If AC Power IN: 1 x Circular MIL P/N: AMP - MS27468T9F98P
• If DC Power IN: 1 x Circular MIL P/N: AMP - MS27468T15F5P
• Grounding: 1 x M4 Internal Screw Thread
• Combined Touch / SCOM+BIT Interface: 1 x D-SUB 9P (female)

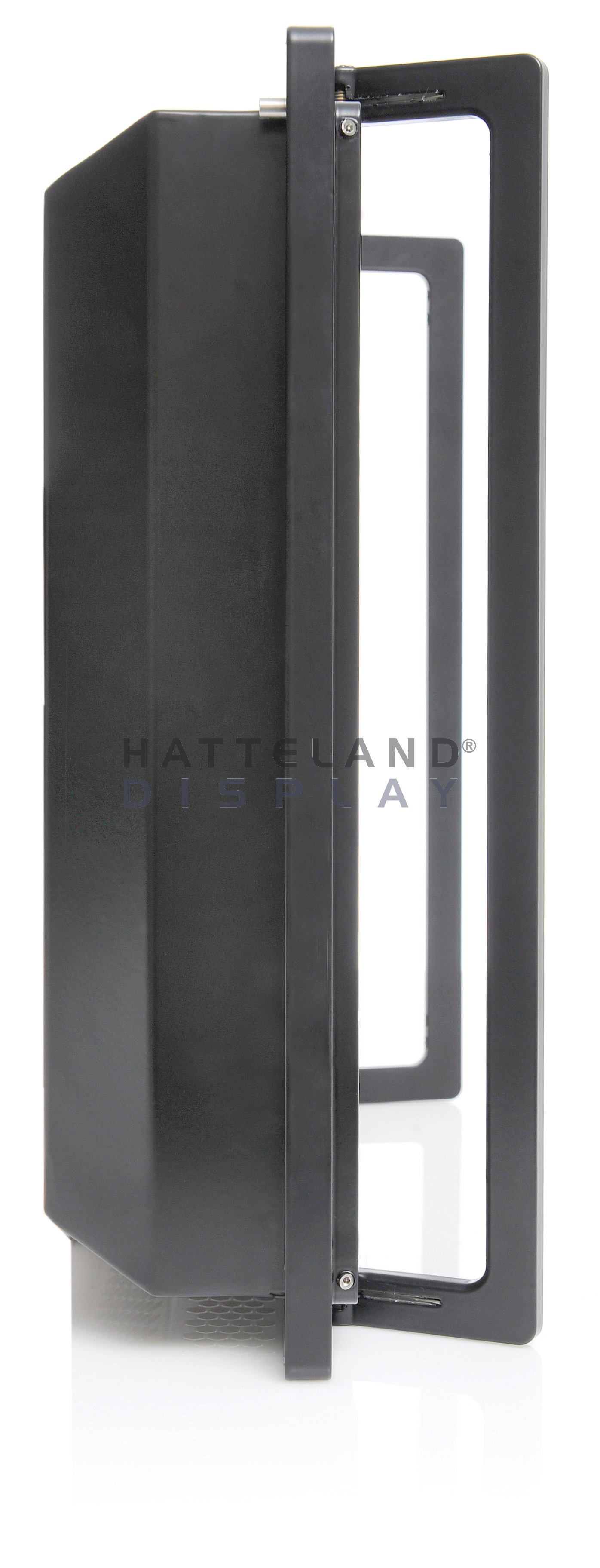

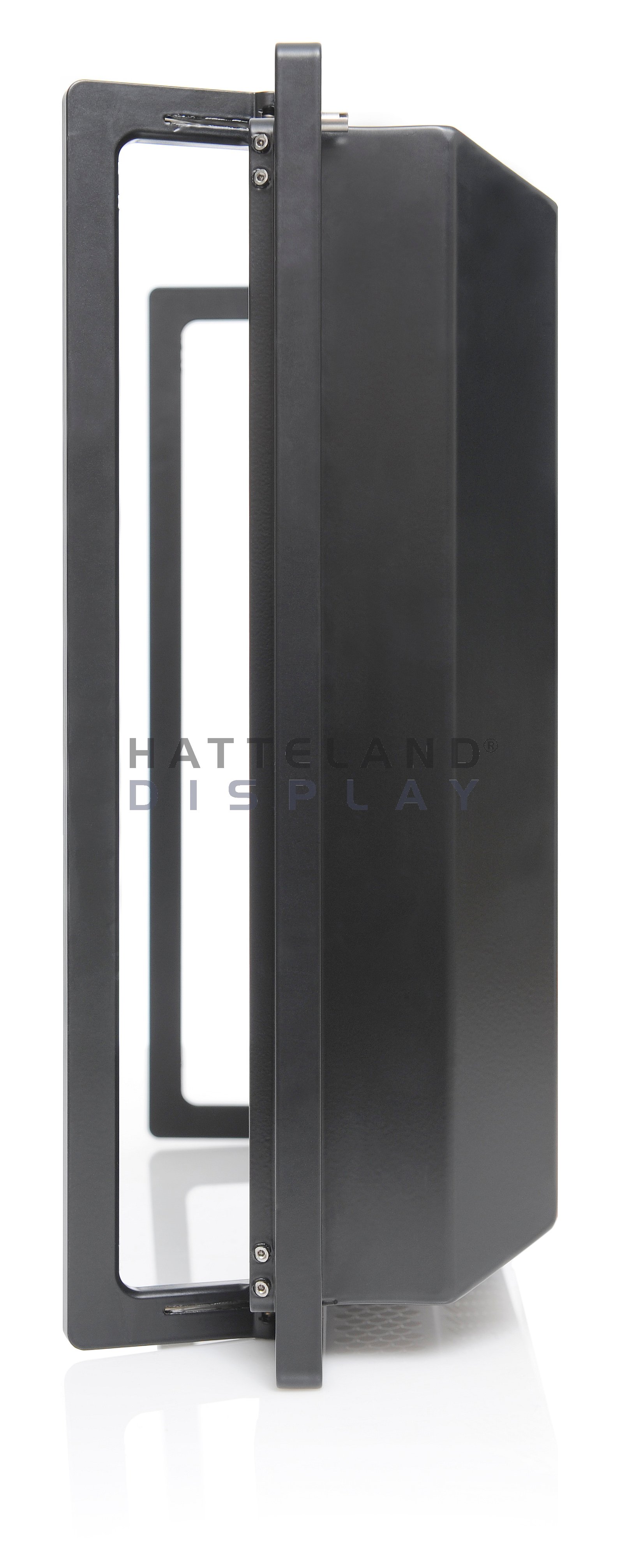

Product Dimensions and Weight: W:482.00 [18.98"] x H:399.00 [15.71"] x D:95.00 [3.74"] mm [inch]
9U Rack size in height. Approx 12kg / 26lbs
Product Carton Size and Weight: L:650.00 [25.59"] x W:280.00 [11.02"] x H:600.00 [23.62"] mm [inch]
15.0kg / 33.0lbs
Factory Options: • 24/28VDC Power Input Model
• Resistive Touchscreen 8 wire
• Color Calibrated models (ECDIS)
Accessories: External 10 foot (3.0m) AC power cable NEMA (Halogen Free), External 10 foot (3.0m) AC power cable Europe (Halogen Free), External 10 foot (3.0m) DC power cable (Halogen Free)
Capabilities - Prepared for: N/A
Operating Temperature: AC: -15.0°C / 5.0°F to 55.0°C / 131.0°F
DC: -15.0°C / 5.0°F to 55.0°C / 131.0°F (Mil-Std 810F)
Storage Temperature: Dry Heat: 70.0°C / 158.0°F (MIL-STD-810F)
Cold: -40.0°C / -40.0°F (MIL-STD-810F)
IP Rating: N/A
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IACS E10
MIL Testing Summary:
Humidity: 95% at 40.0°C / 104.0°F (MIL-STD-810F)
Shock: 60g / 11ms (IEC 60068-2-27 (1987), Test Ea)
Grade A Shock: Class 1 (hard-mounted) (MIL-S-901D)
Transient Shock: 2-280 Hz, Designed to envelope a half sine shock
pulse of 50g / 35ms (IEC 60068-2-57 (1999-11), Test Ff)
Rain (drip proof): MIL-STD-810F - Console mounted
Salt Fog: MIL-STD-810F
Vibration Testing: MIL-STD-167-1
EMI Testing: MIL-STD 461E 1999, CE 101, CE 102, CS 101, CS 114, CS 116, RE 101, RE 102, RS 101,RS 103
Specifications last updated: August 18, 2025 @ 08:00
