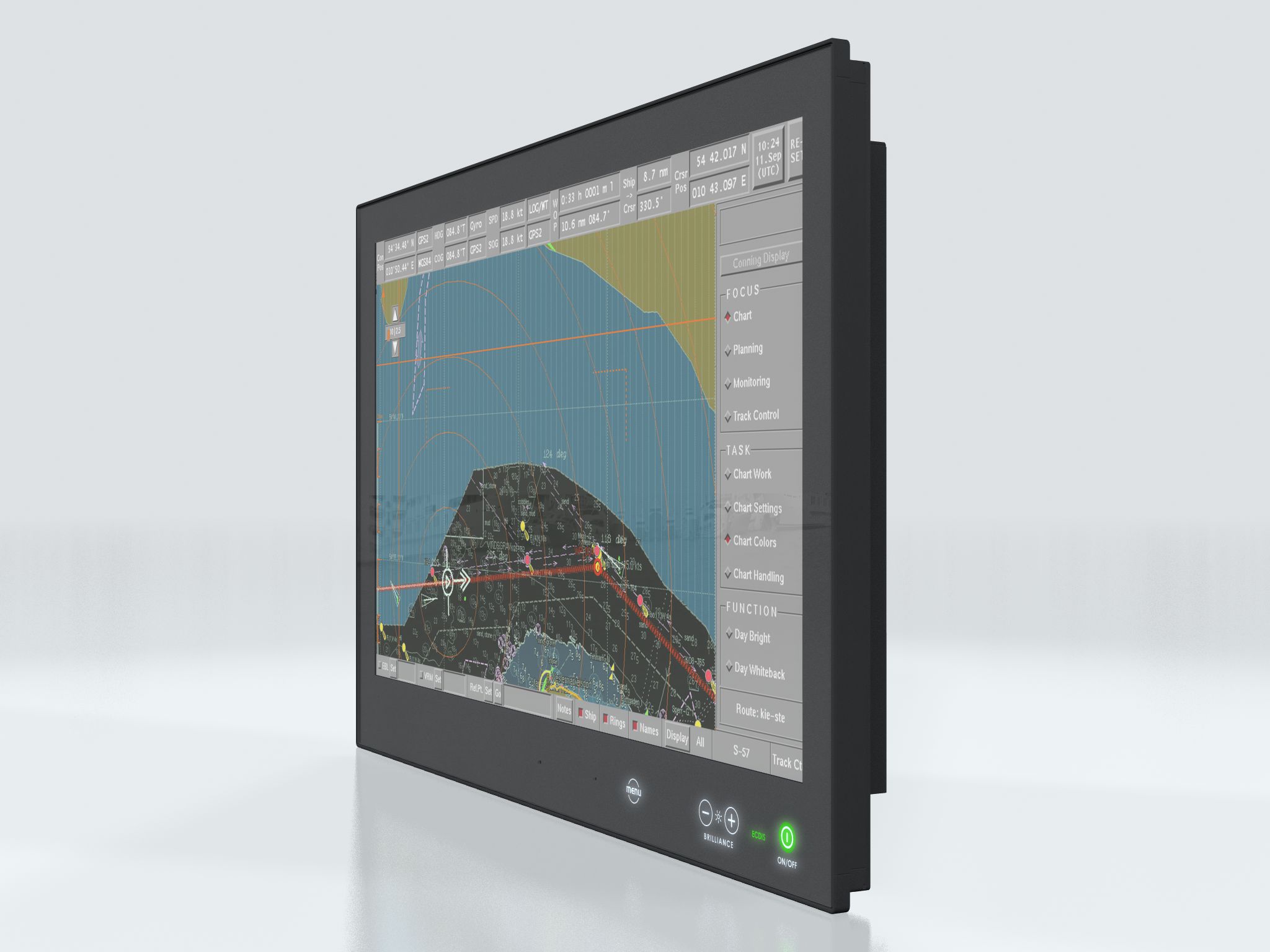

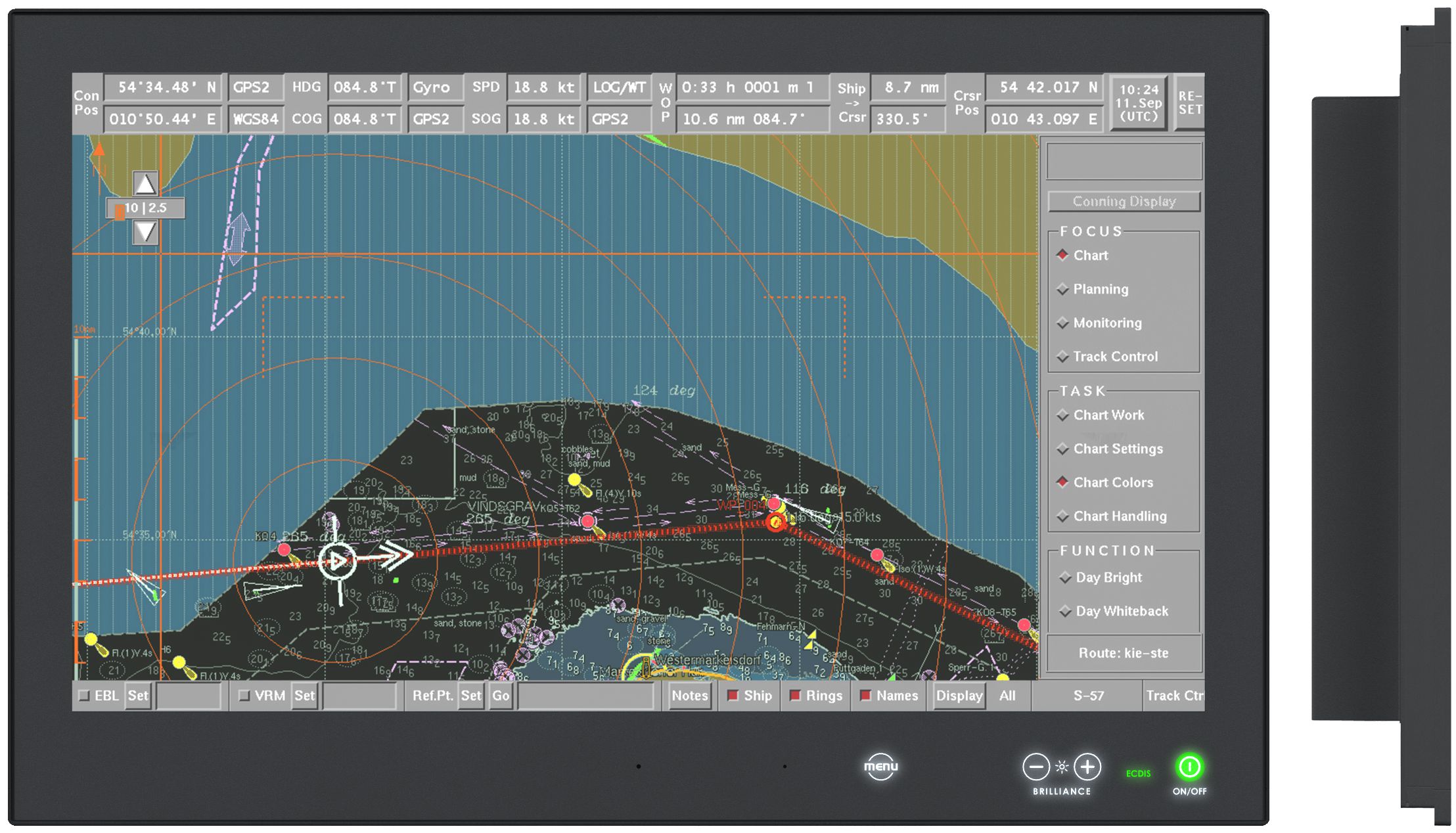

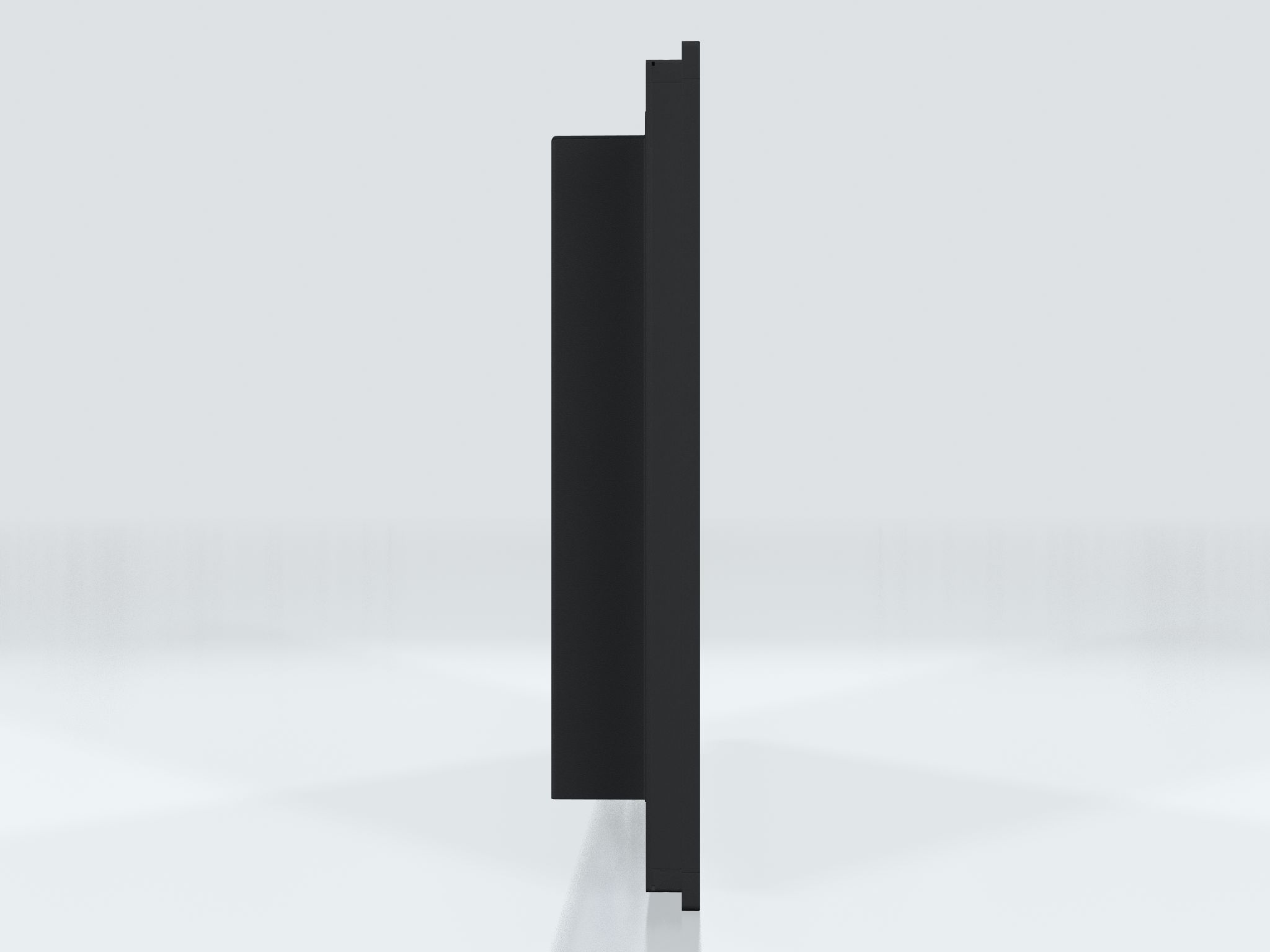

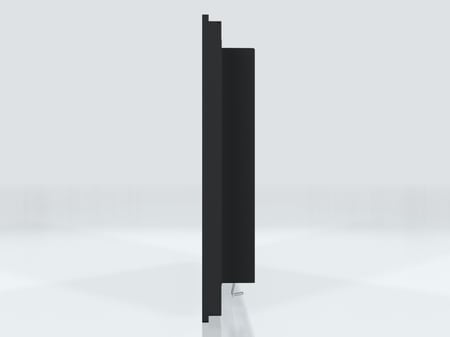

Monitor - Widescreen - LED - MIL Qualified - 24.0 inch - MCOTS Marine

HM 24T22 CMD

Hatteland Display's Military range of monitors (HM) are designed to provide high-quality video and graphics performance into modern military platforms.

The CMD product meets both industrial as well as select military requirements, providing system integrators with a versatile MCOTS Marine option that is both effective and affordable.

Widescreen

LED-backlit

EN60945

Send Request

Description

Specifications

Typenumber (Long):	HM 24T22 CMD-MA1-FOGA
TFT Technology:	LED Backlight Technology, Widescreen, RGB vertical stripe, MVA (Multi-domain Vertical Alignment) Technology, TFT Active-matrix
Viewable Size and Active Area:	24.0 inch - 531.36 [20.92"] (H) x 298.89 [11.77"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1920 x 1080 (FHD) - 0.276 (H) x 0.276 (V) mm
Aspect Ratio and Response Time:	16:9 - 25ms (typ)
Light Intensity and Contrast Ratio:	Standard: 300 cd/m² (typ) - 3000:1 (typ) High Bright: 1000 cd/m² (typ) - 3000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1920 x 1080 @ 60 Hz Synchronization Signal Auto-detect: Digital Separate Sync., Composite Sync., Sync. On Green Synchronization Range: 31.5 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V)
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200
Composite Video Input(s):	Composite (BNC)
Supported Video Signals:	Interlaced HDTV, NTSC, PAL and SECAM video, Composite Video
Product Features:	Dimmable 0-100%, Multi-power AC&DC, PBP (Picture By Picture), PIP (Picture In Picture)
Power Specifications and Consumption:	Multi-power 115/230VAC - 50/60Hz + 24VDC Standard: 51W (max) High Bright: TBD W (max)
User Controls and Activity:	Glass Display Control™ (GDC) IP66 with: Power On/Off, On Screen Display Menu, Brightness Control (-/+), Hotkeys (left/right), Mode Status Indicators (ECDIS, Service), Buzzer (through glass), Light Sensor (behind glass)
Connectors:	• DVI-I IN: 2 x 29p DVI Female (or as VGA IN with adapter) • DP1.2 IN: 1 x 20p DisplayPort (female) • VGA OUT: 1 x 15p HD D-SUB (female) - Clone of VGA IN • Comp. Video IN: 2 x BNC Connector (female) • SCOM RS-422/485: 2 x 5-pin Terminal Block 3.81, non-isolated+Buzzer • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated+Buzzer • SCOM+Touch: 1 x USB TYPE A Connector (female) • SCOM Ethernet: 1 x RJ45 Connector • Potmeter/User: 1 x 9p D-SUB (male) (Potentiometer IN, +5VDC OUT, BRT +/- IN) • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight:	W:593.00 [23.35"] x H:384.00 [15.12"] x D:70.00 [2.76"] mm [inch] Weight: 8.6kg / 18.9lbs
Product Carton Size and Weight:	L:700.00 [27.56"] x W:180.00 [7.09"] x H:565.00 [22.24"] mm [inch] 13.6kg / 29.9lbs
Factory Options:	• Projected Capacitive Touch Screen (Multitouch,USB, Pen/Glove support) • Optical Bonding Technology • Color Calibrated models (ECDIS) • Sunlight Readable / High Bright (includes Optical Bonding)
Accessories:	• HD CMB SX2-L1: 1 x Console Mount Kit. (MIL Testing Pending) • HD TMB SX1-C1: 1 x Table Mount Bracket. EN60945 Tested • HD VED SX2-I1: 1 x VESA Adapter (100/100&200/100mm). Not EN60945 Tested. • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested • HD 24COV SX1-A1: 1 x UV Sun Cover • P007032-1: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount
Capabilities - Prepared for:	See factory options
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / +131.0°F, Humidity up to 95%
Storage Temperature:	-30.0°C / -22.0°F to +70.0°C / +158.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 140.00 [55.12"] - Steering: 85.00 [33.46"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IACS E10, BV - Bureau Veritas, EU-RO-MR - Mutual Recognition, ClassNK - Nippon Kaiji Kyokai Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: August 18, 2025 @ 08:00
