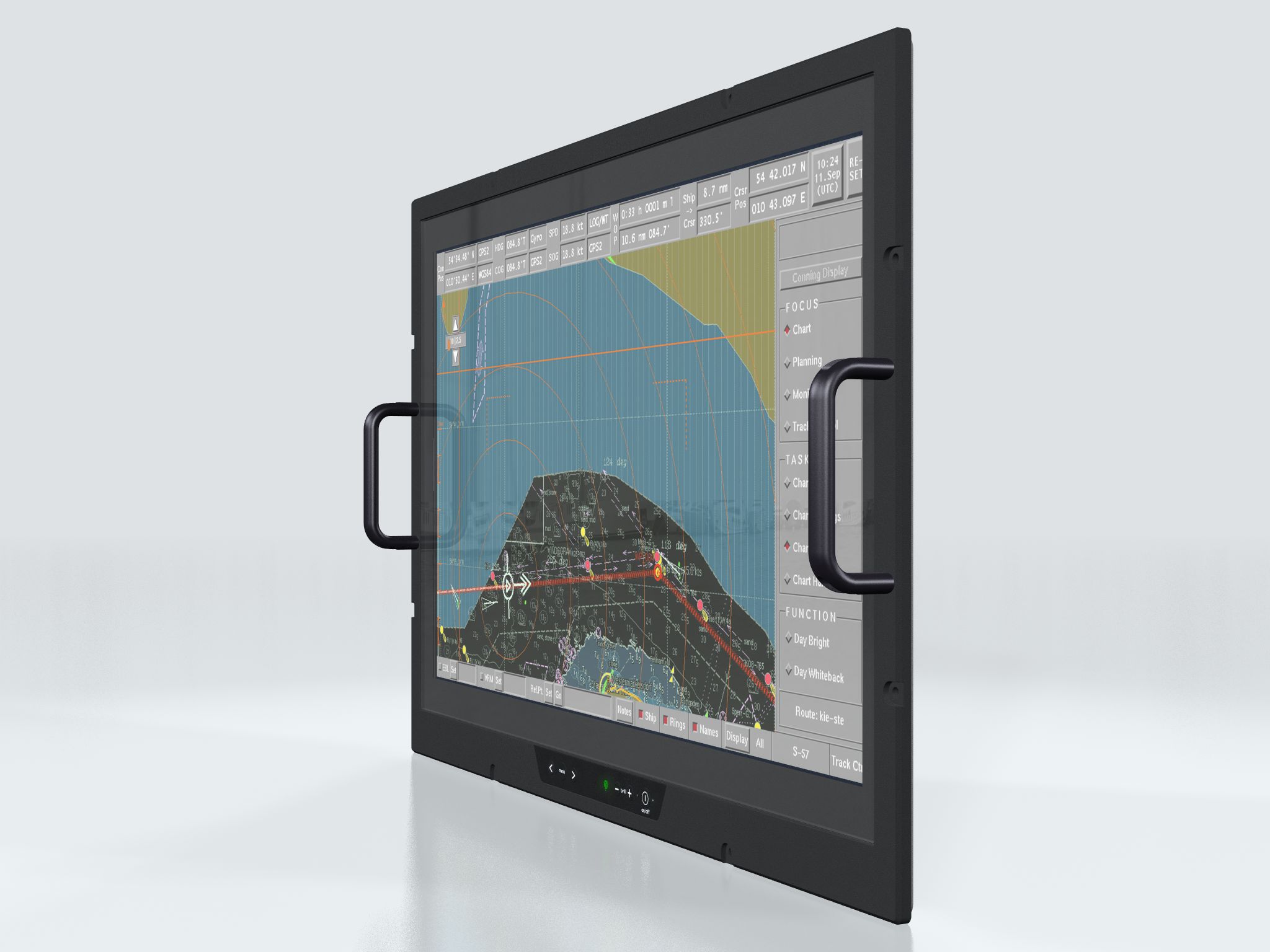

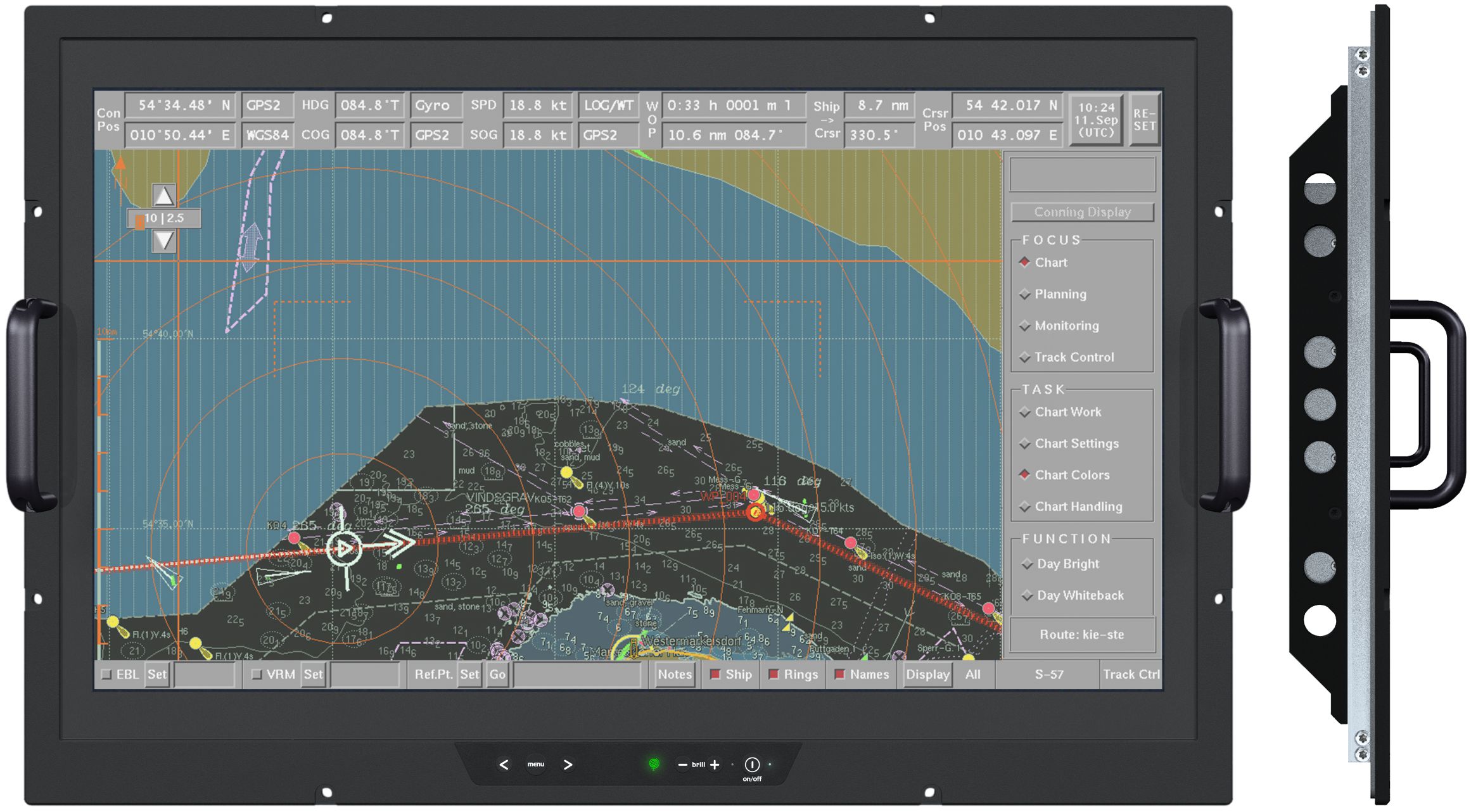

Monitor - Widescreen - 4K UHD - LED - MIL Qualified - 32.0 inch - Rugged Marine

HM 32T22 RMD-MAx-6OVx

Hatteland Technology's rugged Military range of monitors (HM) are designed to provide high-quality provides large 4K resolution video and graphics performance into modern military platforms.

Widescreen

High-res

LED-backlit

EN60945

MIL-STD 167

MIL-STD 810

MIL-STD 461

Send Request

Description

Specifications

Typenumber (Long):	HM 32T22 RMD-MAx-6OVx
TFT Technology:	LED Backlight Technology,Widescreen, TFT active-matrix liquid crystal panel, RGB vertical stripe, MVA (Multi-domain Vertical Alignment) LCD Technology
Viewable Size and Active Area:	32.0 inch - 708.48 [27.89"] (H) x 398.52 [15.69"] (V) mm [inch]
Native Resolution and Pixel Pitch:	3840 x 2160 (UHD, 4K) - 0.1845 (H) x 0.1845 (V) mm
Aspect Ratio and Response Time:	16:9 - 12ms (typical) (G to G)
Light Intensity and Contrast Ratio:	350 cd/m² (typ) - 1000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	3840 x 2160 @ 60 Hz Synchronization: • Digital separate synchronization • Composite synchronization • Synchronization on green • Auto detects VGA -> UHD (Supports VESA Standards) Synchronization Range: • Horizontal: 31.44 kHz to 133.31 kHz • Vertical: 30 Hz to 70 Hz
Detectable Resolutions:	Auto detects VGA -> UHD (Supports VESA Standards)
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Front Mounted Handles (removable), Optical Bonding Technology, Toughened Glass, EMI gasket for console mount, Full Dimming 0-100%, PIP (Picture In Picture)
Power Specifications and Consumption:	Multi-power 100-240V AC - 50/60Hz + 24 VDC • Operating: 65W (typ) - 156W (max) • Inrush Current: 50A for VAC/VDC, Max. (@ 25.0°C / 77.0°F)
User Controls and Activity:	Tactile Display Controls (TDC) on front bezel: • Power LED, Mode Status Indicators LED (ECDIS, Service, Alarm) • Power On/Off button, On Screen Display control (OSD)* button • Up/Down OSD Navigation / Hotkey buttons • +/- Brightness Control Buttons, ECDIS Button *OSD Key Codes: 321=Get access to OSD, 362=Advanced Mode
Connectors:	• DVI-D Input: 1 x 24p DVI (female) • VGA Input: 1 x 15p HD D-SUB (female) • HDMI 2.0 Input: 1 x 19p HDMI (female) • DP 1.2 Input: 1 x 20p DisplayPort (female) • SCOM RS-422/485: 1 x 5-pin Terminal Block 3.81 non-isolated • Touchscreen: 1 x USB TYPE A Connector (female) • Ethernet: 1 x RJ45 Connector • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated • User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input, User Brightness (BRT), I2C and +5VDC & 12VDC OUT • FW Update: 1 x USB TYPE A (female) for Firmware Update • AC Power IN: 1 x Std IEC Inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08
Product Dimensions and Weight:	W:800.00 [31.50"] x H:530.00 [20.87"] x D:75.00 [2.95"] mm [inch] Weight: Approx. 20.4 kg / 44.9lbs
Product Carton Size and Weight:	L:885.00 [33.46"] x W:185.00 [7.28"] x H:700.00 [27.56"] mm [inch] - 0.11 cbm Weight: 25.0kg / 55.0lbs TBD
Factory Options:	• Projected Capacitive Touch Screen (Multitouch, USB, Pen/Glove supported) • Color Calibrated models (ECDIS) on request
Accessories:	• P020518: 1 x EMI Shield Gasket
Capabilities - Prepared for:	N/A
Operating Temperature:	AC Model: -15.0°C / 5.0°F to +55.0°C / 131.0°F (MIL-STD 810F&G) DC Model: -15.0°C / 5.0°F to +55.0°C / 131.0°F (MIL-STD 810F&G) Humidity up to 95% at +40.0°C / 104.0°F (MIL-STD 810F&G)
Storage Temperature:	Dry Heat: +70.0°C / 158.0°F (MIL-STD 810F&G) Cold: -40.0°C / -40.0°F (MIL-STD 810F&G) Humidity up to 95% at +40.0°C / 104.0°F (MIL-STD 810F&G)
IP Rating:	Protection: IP66 front - IP22 rear (EN60529)
Compass Safe Distance:	Standard: 195.00 [76.77"] - Steering: 125.00 [49.21"] cm [inch]
Type Approval, Testing and Certificates:	MIL-STD 461F&G, MIL-STD 810F&G, MIL-STD-167-1A, IEC 60945 4th (EN 60945:2002), IACS E10, EU RO MR - Mutual Recognition by DNV, ClassNK - Nippon Kaiji Kyokai, CCS - China Classification Society, BV - Bureau Veritas, ABS - American Bureau of Shipping, KR - Korean Register, LRS - Lloyd's Register of Shipping Environmental Performance: Shock: 20g&50g/11ms, 50g/30ms (MIL-STD 810F&G) Rain (drip proof): MIL-STD-810F&G - Console mounted Salt Fog: MIL-STD-810F&G Vibration Testing: MIL-STD-167-1A EMI Testing: MIL-STD 461F&G, CE 101, CE 102, CS 101, CS 114, CS 116, RE101, RE102, RS101, RS103 Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: July 1, 2025 @ 10:03
