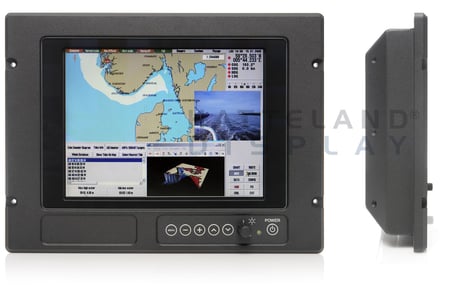

Monitor - CCFL - HATTELAND® Series 0 - 10.4 inch

JH 10T06 MMD

Flush mounted glass. Connections include DVI-D IN, RGB IN, Video IN (Composite/SVHS) and PiP (Picture in Picture) functionality.

CCFL-backlit

Send Request

Description

Specifications

Typenumber (Long):	JH 10T06 MMD
TFT Technology:	Active Matrix, Thin Film Transistor (TFT), RGB vertical stripe
Viewable Size and Active Area:	10.4 inch - 211.2 [8.31"] (H) x 158.4 [6.24"] (V) mm [inch]
Native Resolution and Pixel Pitch:	640 x 480 (VGA) - 0.33 (H) x 0.33 (V) mm
Aspect Ratio and Response Time:	4:3 - 20 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio:	350 cd/m² (typ) - 300:1 (typ)
View Angle and Max Colors:	70 deg. (left/right) - 40 deg. (up/down) - 262,144 colors (6-bit max)
Optimal Resolution and Hz:	640 x 480 @ 60 Hz Sync Signal: • Digital separate synchronisation • Composite synchronisation • Synchronisation on green. • Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm Synchronisation Range: • Horizontal: 31,5 kHz to 91,1 kHz • Vertical: 60 Hz to 85 Hz
Detectable Resolutions:	640 x 350, 640 x 480
Composite Video Input(s):	1 x RCA Phono plug 1 x S-Video (SVHS) plug
Supported Video Signals:	Video Signals: • Interlaced NTSC and PAL/SECAM video • Composite video • S-Video
Product Features:	PIP (Picture In Picture), Video Input (Composite/SVHS) inputs, Hotkey Functionality, Dimmable 0-100%
Power Specifications and Consumption:	Power Supply Options: • 115&230VAC - 50 / 60Hz: Model JH 10T06 MMD-A1 • 12-24 VDC: Model JH 10T06 MMD-A2 Power Consumption: • Operating: 18,7 W (typ) - Measured at 230Vrms • Operating: 19,0 W (typ) - Measured at 24VDC • Operating: 60 W (max)

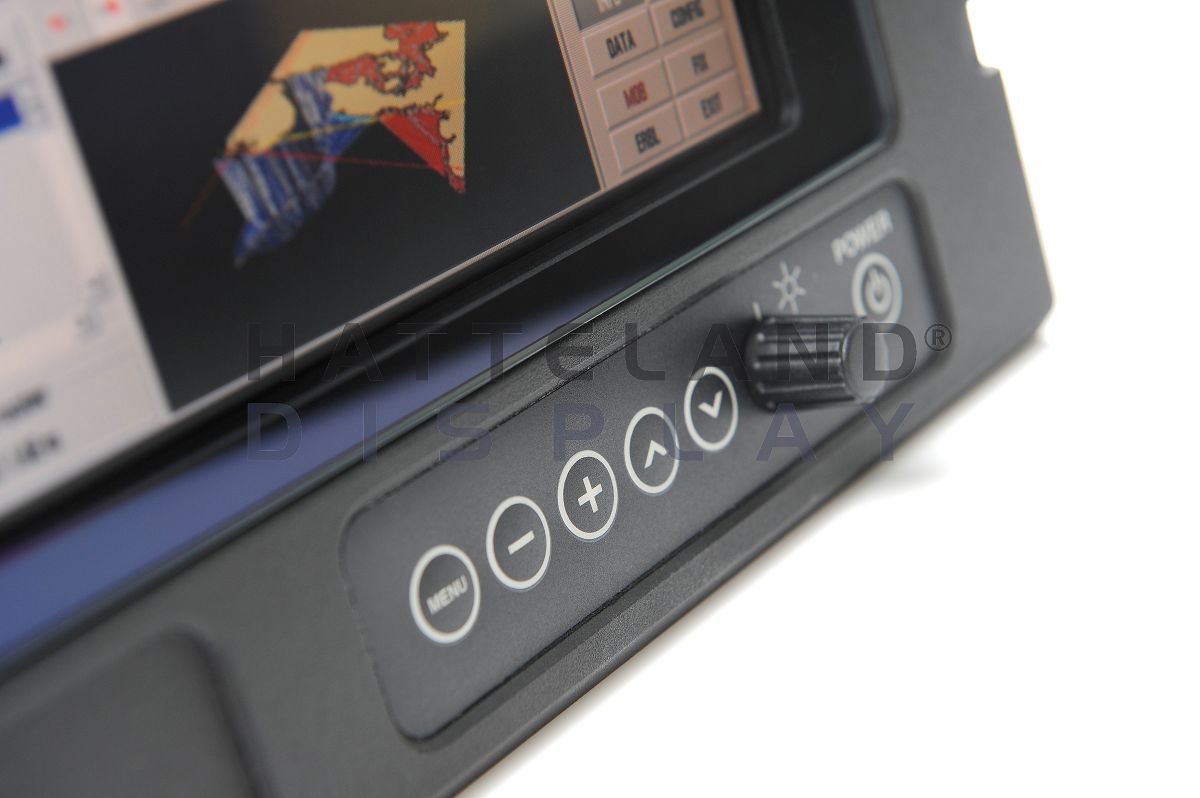

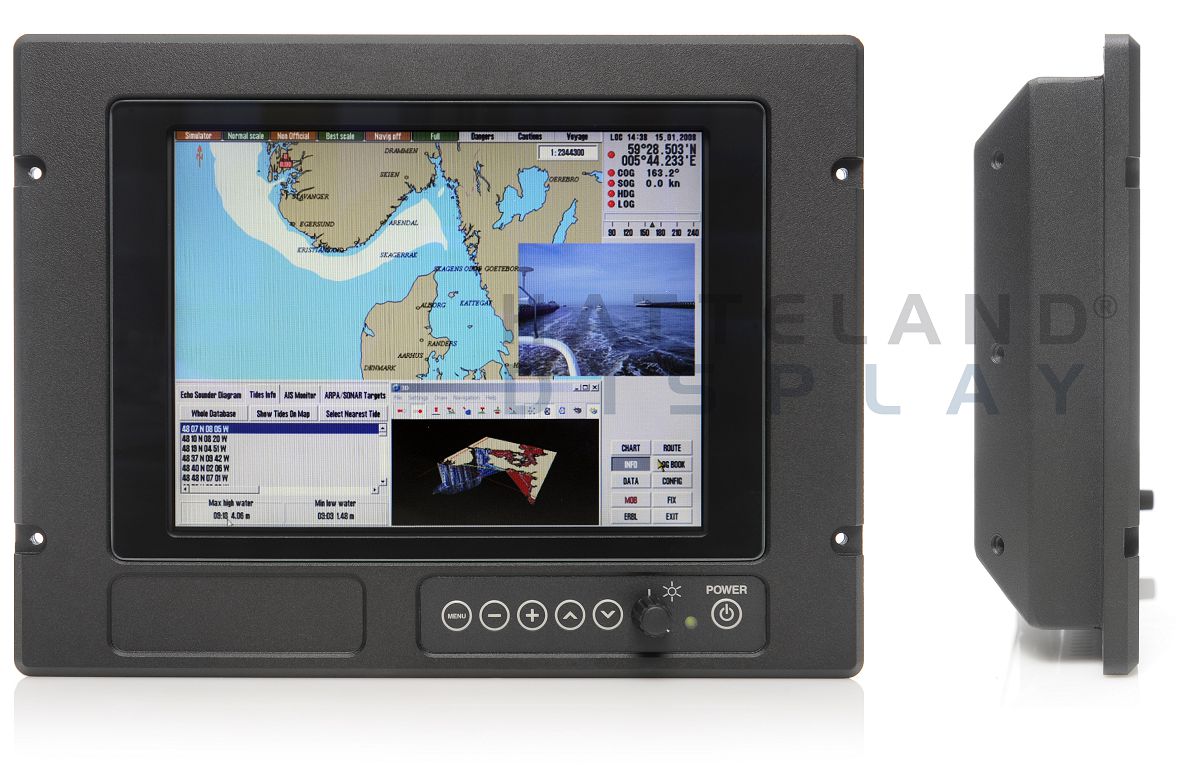

User Controls and Activity:	On front bezel: • Power On/Off (push button) • Brightness Control • Mode Status LED • On Screen Display control (OSD/OSM)

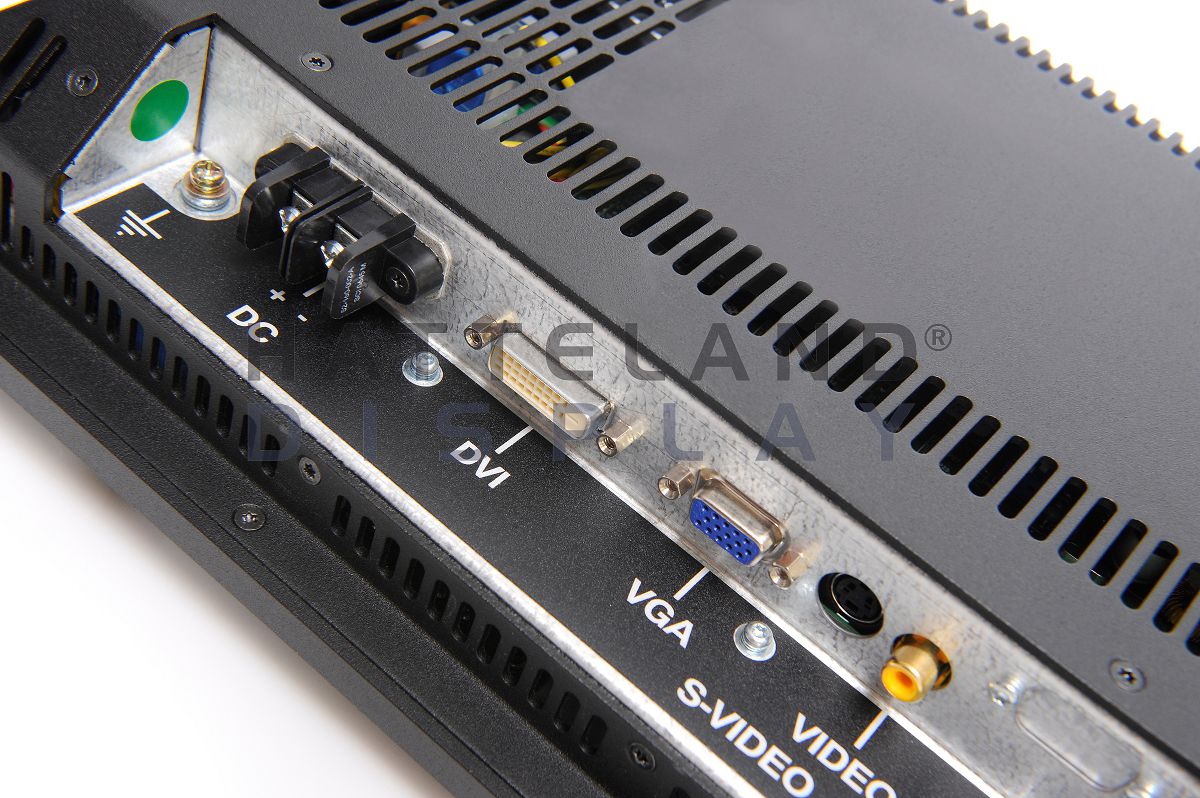

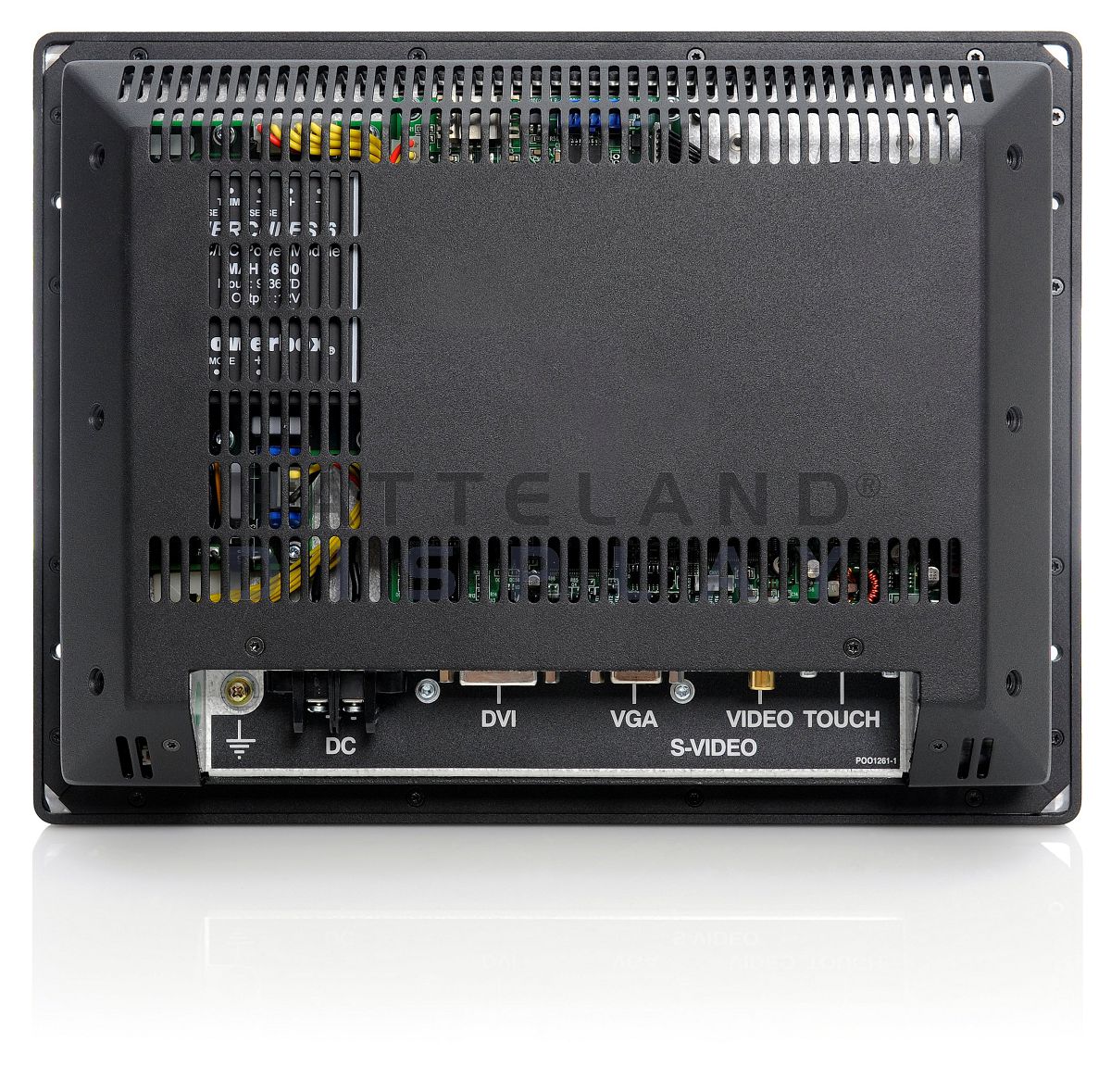

Connectors:	• DVI-D (PC) signal: DVI-D Input 24pin Connector • RGB (PC) signal: 15pin mini D-SUB (female - Input) • Composite Video: RCA Phono plug • S-Video signal: S-Video (SVHS) plug • AC Power signal: Std IEC Inlet Model JH 10T06 MMD-A1 • DC Power signal: Screw terminal Model JH 10T06 MMD-A2 • If Touchscreen: 1 x D-SUB 9P Connector (female)
Product Dimensions and Weight:	339 (W) x 256 (H) x 68 (D) mm - 13.35" (W) x 10.08" (H) x 2.68" (D) Weight: 3,5 kg (approx)
Product Carton Size and Weight:	N/A
Factory Options:	• AC or DC model • Resistive Touch Screen
Accessories:	• JH 10TBR STD-B1 = Mounting Bracket (See user manual&Datasheet) • JH 15TRO STD-A1 = Rotary Bracket (See user manual) • JH 10TSV STD-A1 = Sun Visor (See user manual) • JH VESA 10T06-A1= VESA Bracket (See user manual)
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	EN60529 (IP66) (Applies for flush mounting)
Compass Safe Distance:	Standard: 100.00 [39.37"] - Steering: 70.00 [27.56"] cm [inch]
Type Approval, Testing and Certificates:	EN60945 3rd (IEC945 3rd), GL - Germanischer Lloyd, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register of Shipping, DNV - Det Norske Veritas, ClassNK - Nippon Kaiji Kyokai, RS - Russian Maritime Register of Shipping

Specifications last updated: August 18, 2025 @ 08:00
