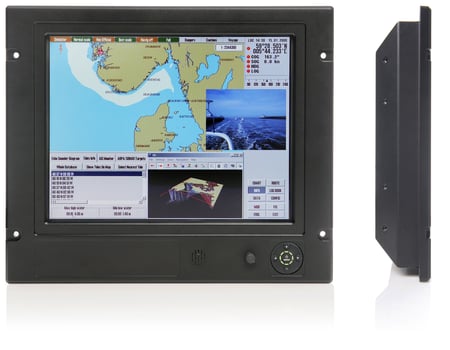

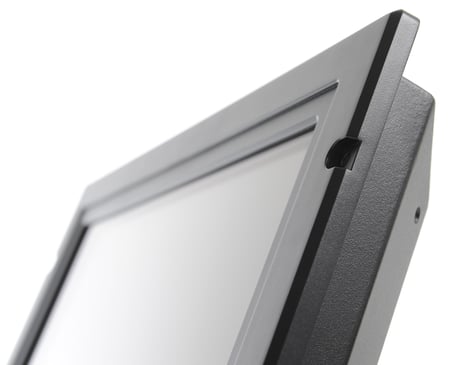

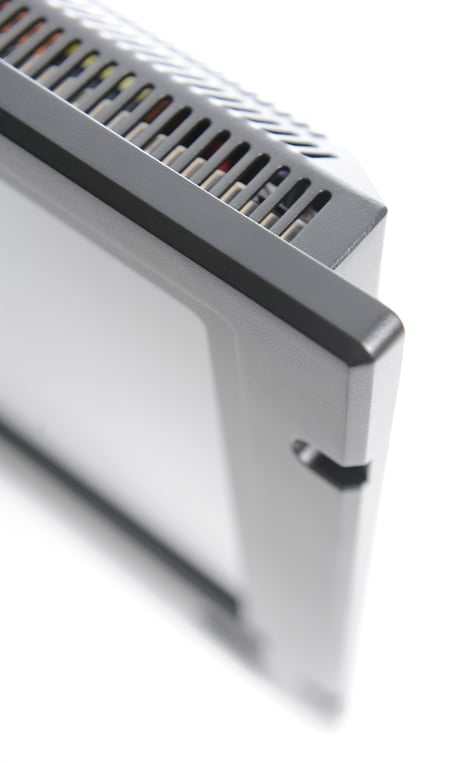

Monitor - CCFL - HATTELAND® Series 1 G1 - 15.0 inch

JH 15T17 MMD (HW00)

The Series 1 Maritime Multi Display (MMD) uses fewer cable connections than the previous generation, which increases reliability whilst reducing component costs. All models can be delivered with either AC or DC input as standard and connections include DVI-I in, VGA out, VGA in, IEC inlet, IEC outlet and USB I/O.

CCFL-backlit

Send Request

Description

Specifications

TFT Technology:	Color Active Matrix TFT/LCD, a-Si TFT Active Matrix
Viewable Size and Active Area:	15.0 inch - 304.10 [11.97"] (H) x 228.10 [8.98"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1024 x 768 (XGA) - 0.297 (H) x 0.297 (V) mm
Aspect Ratio and Response Time:	4:3 - 25ms (typ)
Light Intensity and Contrast Ratio:	250 cd/m² (typ) - 400:1 (typ)
View Angle and Max Colors:	85 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1024 x 768 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1200
Composite Video Input(s):	With Multifunction Cable
Supported Video Signals:	SVHS&COMPOSITE Compatible
Product Features:	PBP (Picture By Picture), PIP (Picture In Picture), Multifunction Connector, Hotkey Functionality, Dimmable 0-100%
Power Specifications and Consumption:	115/230VAC - 50/60Hz or 24 VDC - 100W (max)

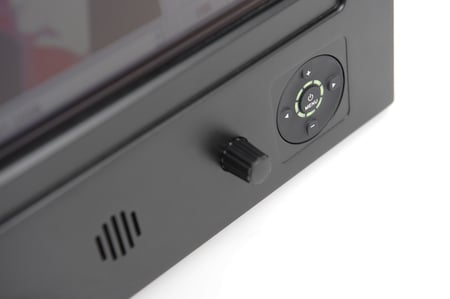

User Controls and Activity:	Power On/Off + On Screen Display Menu (push button) Brightness Control Hotkeys (left/right - push buttons) Mode Status Illuminated LED-Ring Indicator

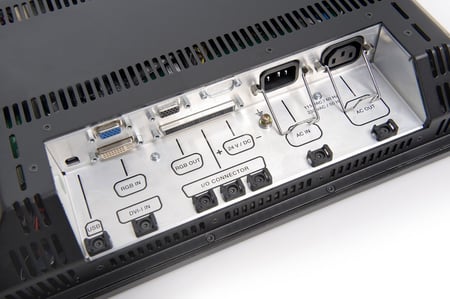

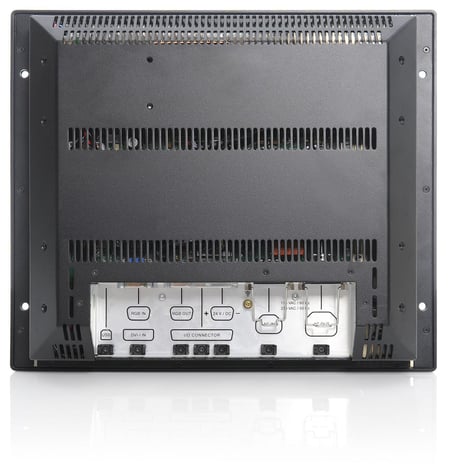

Connectors:	• DVI IN: 1 x DVI-I 29P (female) • VGA IN: 1 x HD D-SUB 15P (female) • VGA OUT: 1 x HD D-SUB 15P (female) • Multifunction: 1 x D-SUB 160P (female) • USB: 1 x Type B (female) • AC Power IN: 1 x Std. IEC inlet • AC Power OUT: 1 x Std. IEC outlet (5A max) • If DC Power IN: 1 x 2P D-SUB (male) Amphenol FCC17

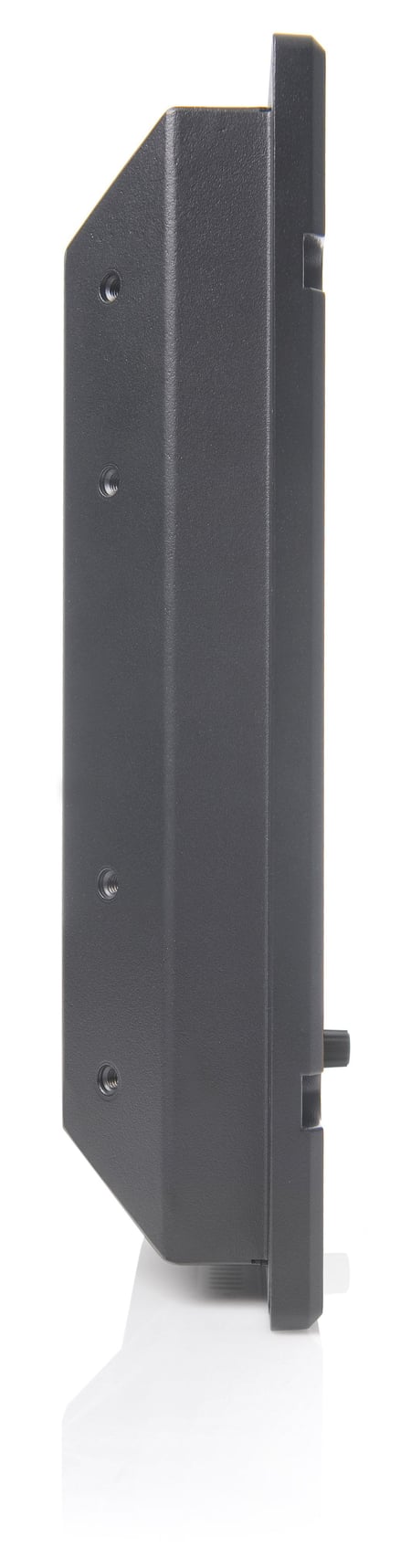

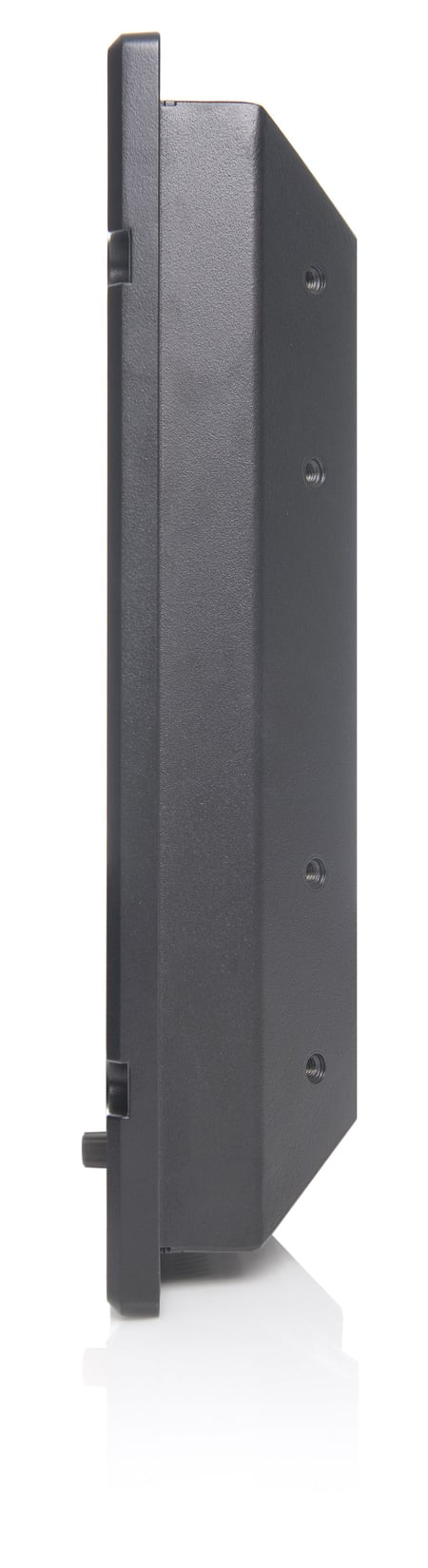

Product Dimensions and Weight:	W:412.00 [16.22"] x H:345.00 [13.58"] x D:73.28 [2.89"] mm [inch] Approx 7kg / 15lbs
Product Carton Size and Weight:	L:545.00 [21.46"] x W:205.00 [8.07"] x H:505.00 [19.88"] mm [inch] 8.0kg / 17.6lbs
Factory Options:	• 24 VDC Power Solution • Resistive or Capacitive Touchscreen • Keypad only or Keypad+Potmeter+Buzzer controls • Optical Bonding Technology • Speaker / Buzzer
Accessories:	Bracket (tilt up/down), Rotary Bracket (left/right), VESA Bracket, Sun Visor, Water Cover, 19" Rack Adapter Frame, 17" CRT Adapter Frame. Multifunction Cable Options: 1 x RS-232 COM or 1 x RS-232 COM + 3 x BNC Video In or 1 x RS-232 COM + 3 x BNC Video In + 1 x COM Touch
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance:	Standard: 130.00 [51.18"] - Steering: 100.00 [39.37"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IP66, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register, CCS - China Classification Society, EU-RO-MR - Mutual Recognition, KR - Korean Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: May 27, 2025 @ 12:18
