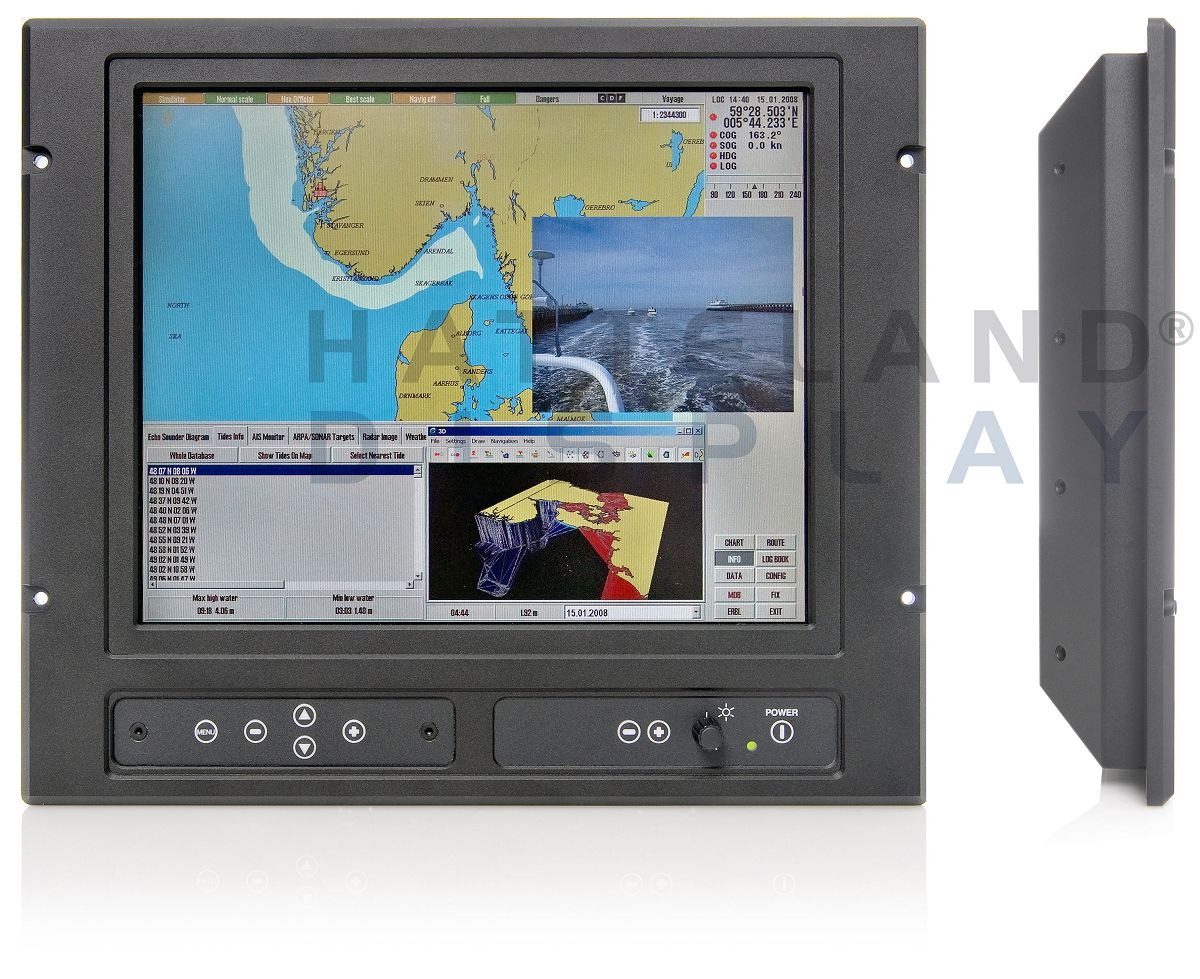

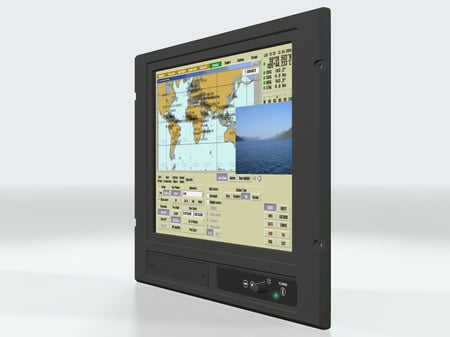

Monitor - CCFL - HATTELAND® Series 0 - 17.0 inch

JH 17T02 MMD

Connections include DVI-D IN, RGB IN, Video IN (Composite/SVHS) and PiP (Picture in Picture) functionality.

CCFL-backlit

Send Request

Description

Specifications

Typenumber (Long):	JH 17T02 MMD
TFT Technology:	a-Si TFT (Thin Film Transistor) Active Matrix, PVA (Plus Viewing Angle)
Viewable Size and Active Area:	17.0 inch - 337.92 [13.30"] (H) x 270.336 [10.64"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1280 x 1024 (SXGA) - 0.264 (H) x 0.264 (V) mm
Aspect Ratio and Response Time:	5:4 - 10 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio:	280 cd/m² (typ) - 1500:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 millions
Optimal Resolution and Hz:	1280 x 1024 @ 60 Hz Sync Signal: • Digital separate synchronisation • Composite synchronisation • Synchronisation on green. • Auto detects VGA -> SXGA, interlaced and non interlaced • Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm Synchronisation Range: • Horizontal: 31,5 kHz to 91,1 kHz • Vertical: 60 Hz to 85 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
Composite Video Input(s):	1 x RCA Phono plug 1 x S-Video (SVHS) plug
Supported Video Signals:	Video Signals: • Interlaced NTSC and PAL/SECAM video • Composite video • S-Video
Product Features:	PIP (Picture In Picture), Video Input (Composite/SVHS) inputs, Hotkey Functionality, Dimmable 0-100%, ECDIS Compliant
Power Specifications and Consumption:	Power Supply Options: • 115&230VAC - 50 / 60Hz: Model JH 17T02 MMD-A1 • 24 VDC: Model JH 17T02 MMD-A2 Power Consumption: • Operating: 38 W (typ) - Measured at 230Vrms • Operating: 37,2 W (typ) - Measured at 24VDC • Operating: 60W (max)

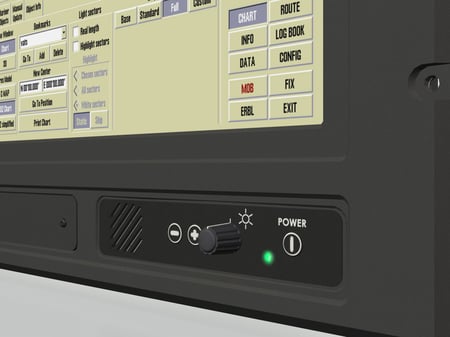

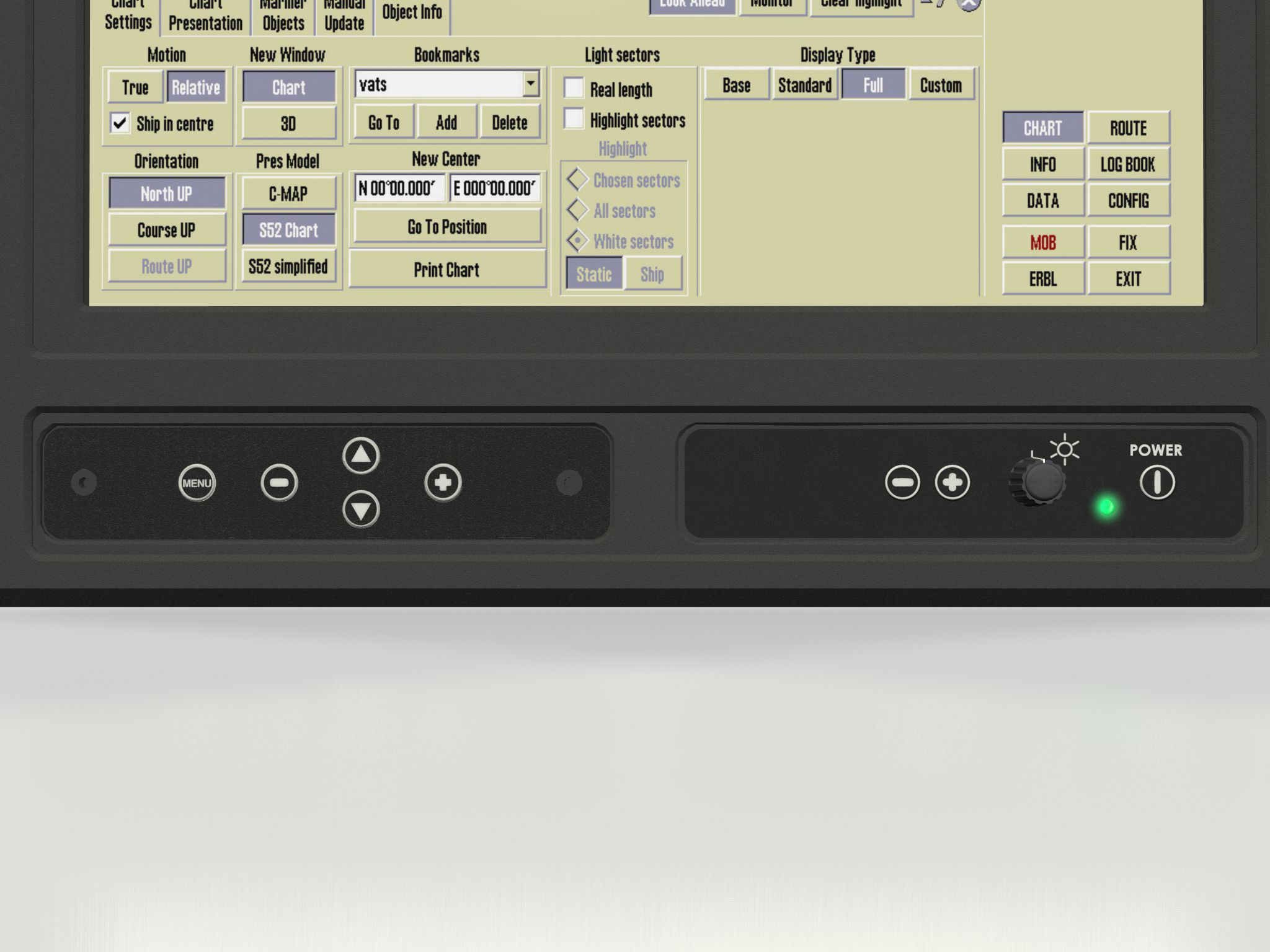

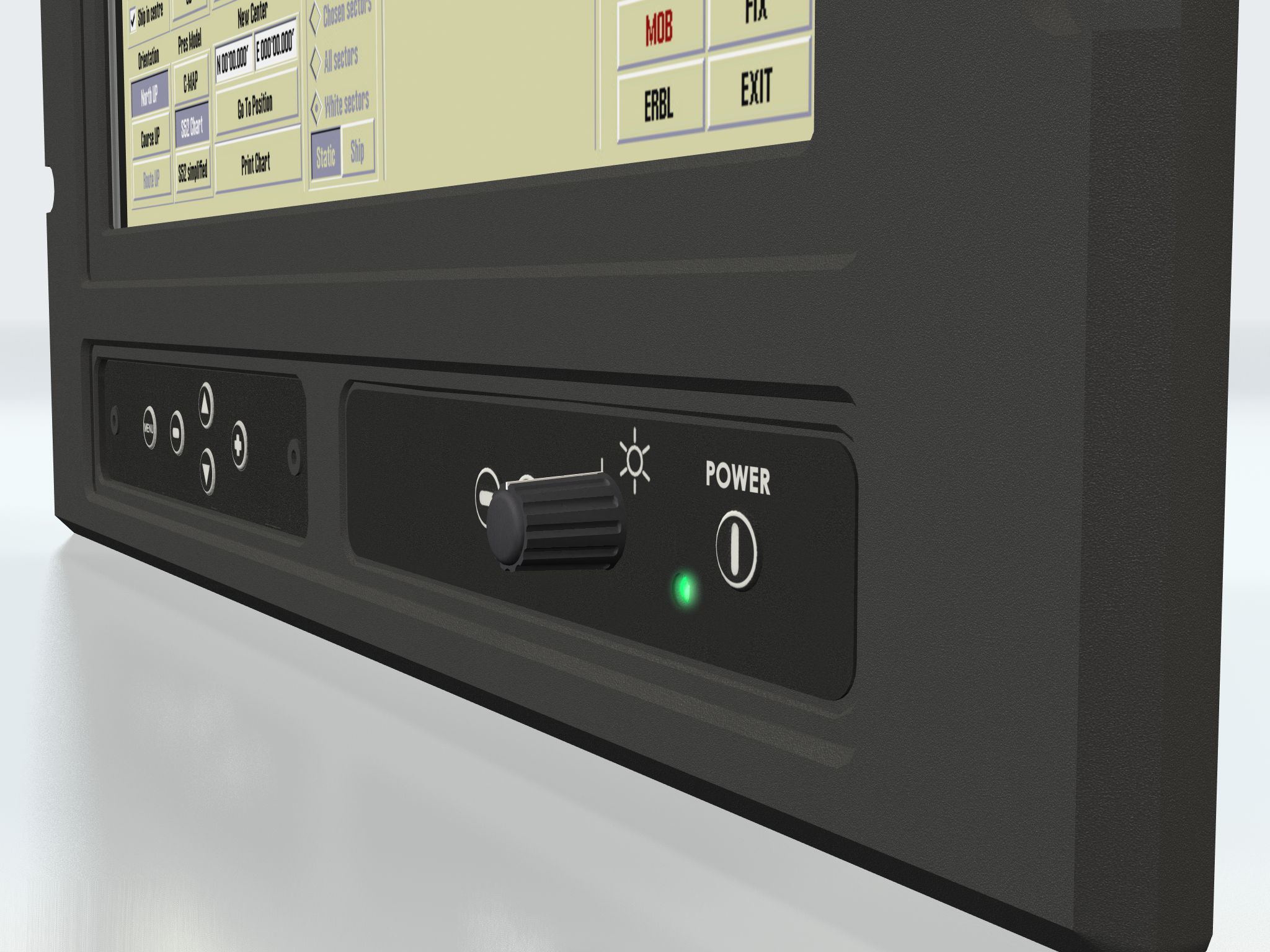

User Controls and Activity:	On front bezel: • Power On/Off (push button) • Brightness Control • 2 x hotkeys • Mode Status LED Behind hatch: • On Screen Display control (OSD/OSM)

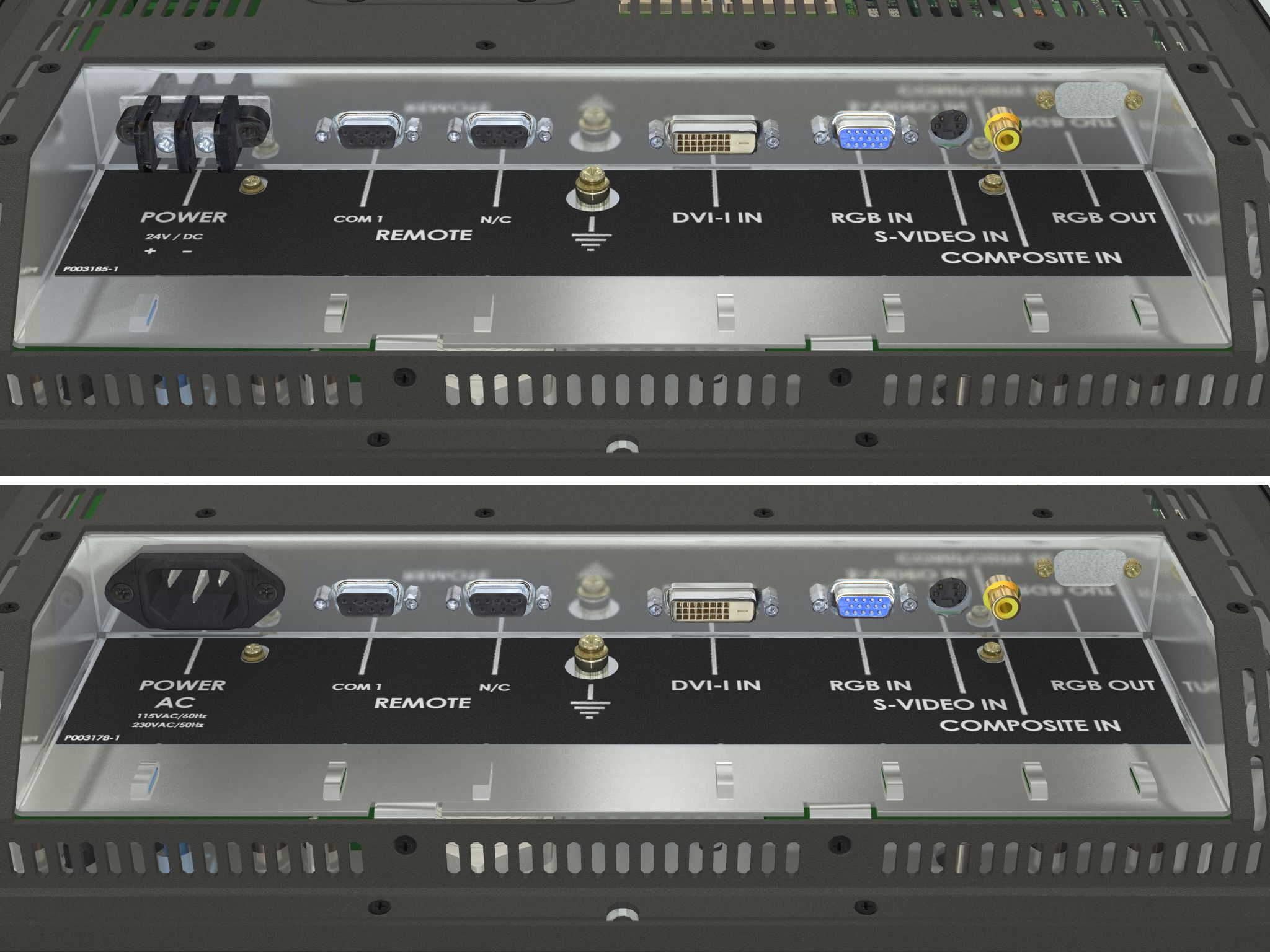

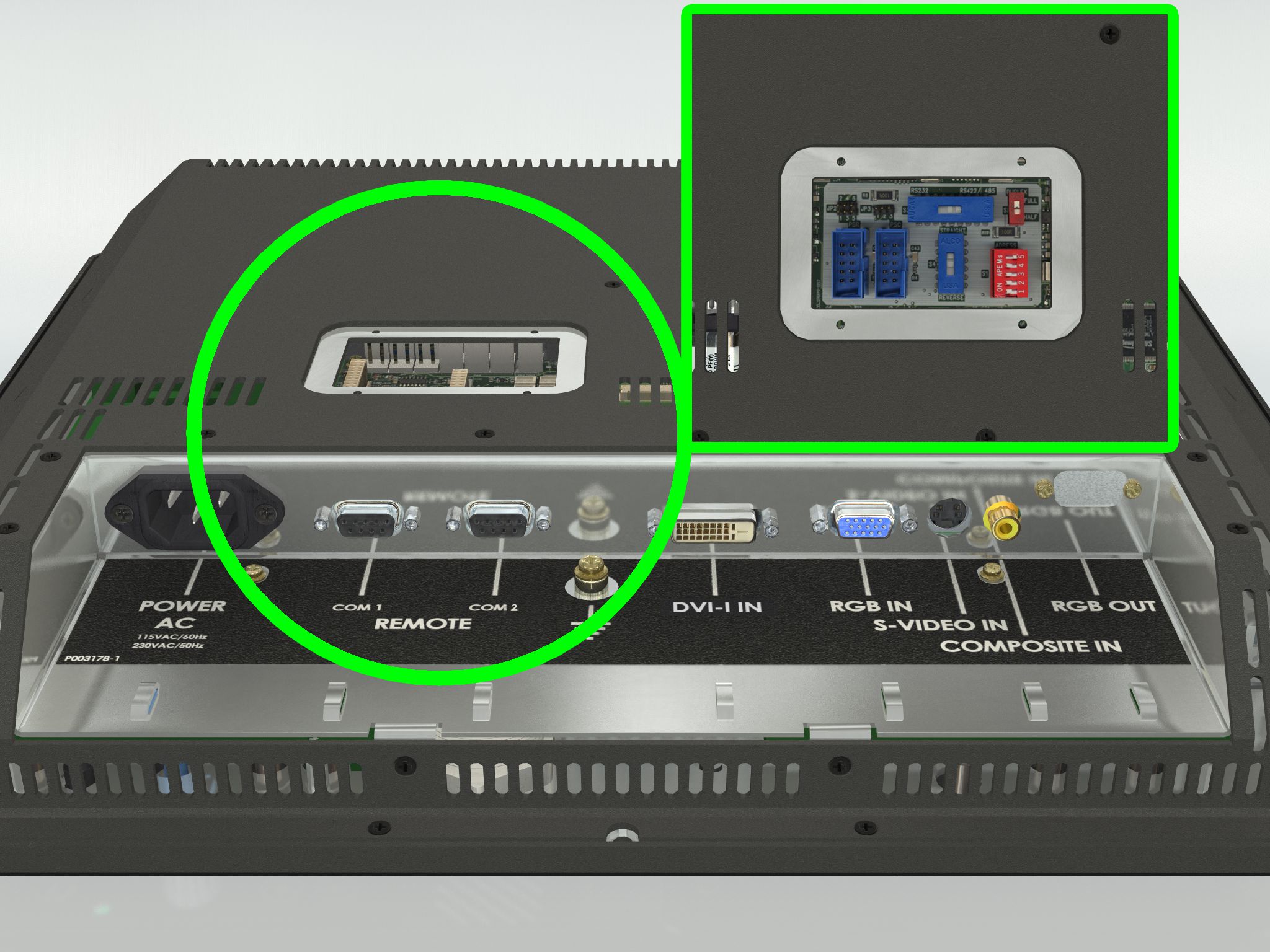

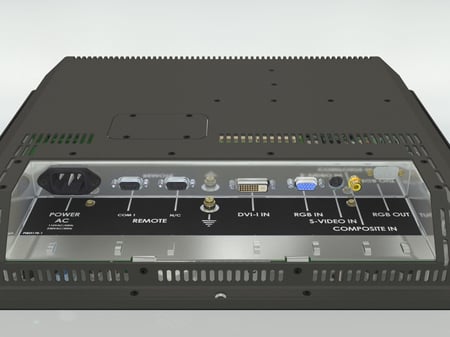

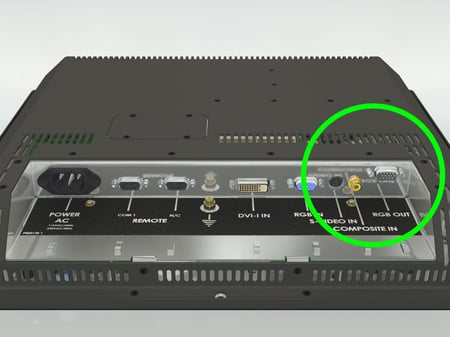

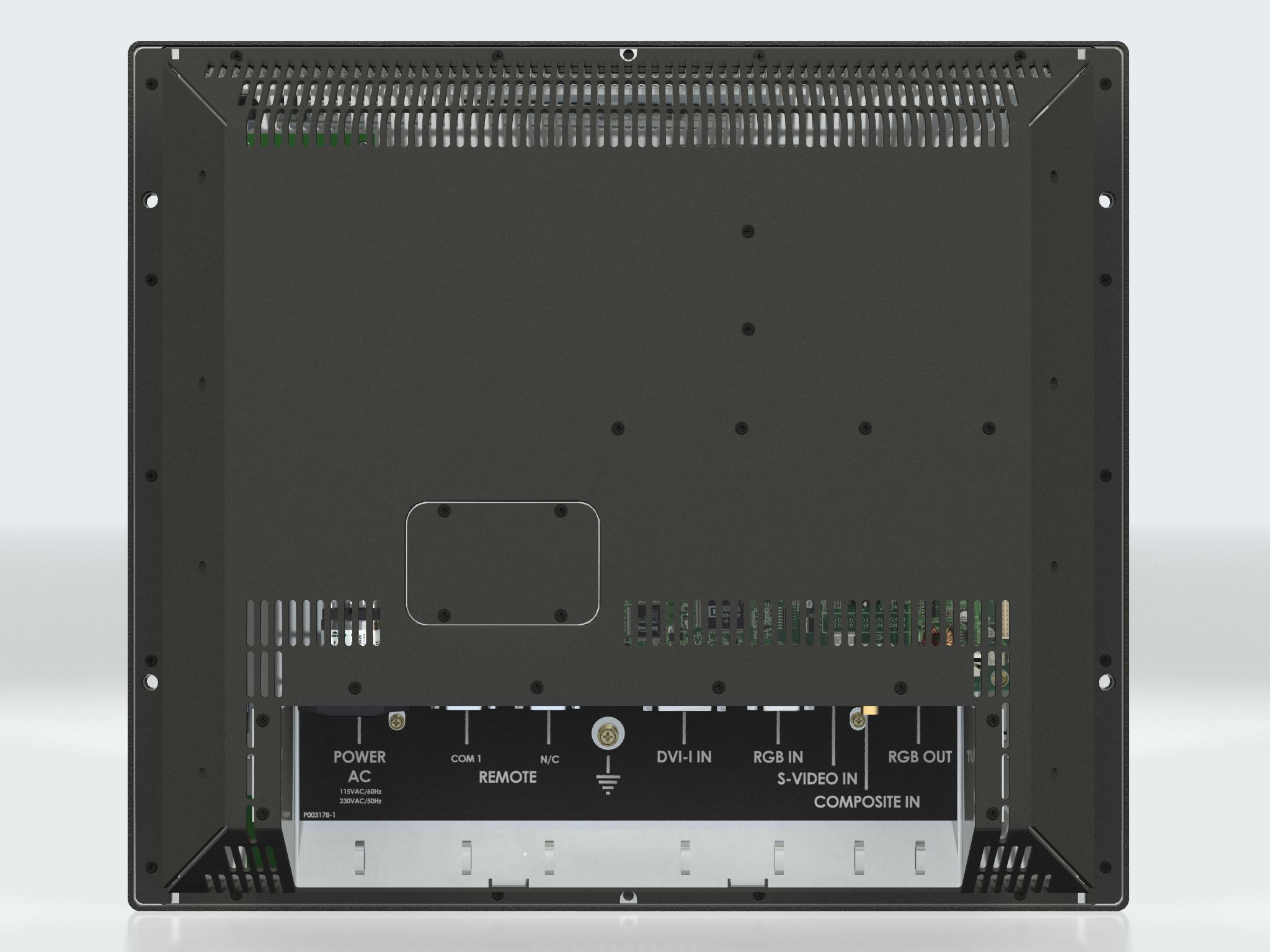

Connectors:	• DVI-I (PC) signal: DVI-I Input 29pin Connector • RGB (PC) signal: 15pin mini D-SUB (female - Input) • Composite Video: RCA Phono plug • S-Video signal: S-Video (SVHS) plug • AC Power signal: Std IEC Inlet Model JH 17T02 MMD-A1 • DC Power signal: Screw terminal Model JH 17T02 MMD-A2 • If Touchscreen: 1 x D-SUB 9P Connector (female) • If Remote Control: 2 x D-SUB 9P Connectors (female)
Product Dimensions and Weight:	460 (W) x 400 (H) x 72 (D) mm - 18.11" (W) x 15.75" (H) x 2.83" (D) Weight: 9.2 kg (approx w/bracket)
Product Carton Size and Weight:	N/A
Factory Options:	• Color Calibrated models (ECDIS) • AC or DC model • Resistive or Capacitive Touch Screen • Video Buffer (JH VBUF)
Accessories:	• JH MMD BR = Bracket • JH MMDRO = Rotary Bracket • JH 17TSV = Sun Visor • JH VESA 17T01 = Vesa Bracket • JH 17TAP STD-A1 = 17" TFT to 19" RACK Adapter Frame/Plate • JH SCOM = Remote Control • JH XPR-A1 = External Power Relay
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	EN60529 (IP66) (Applies for flush mounting)
Compass Safe Distance:	JH 17T02 MMD-A1: Standard: 80.00 [31.50"] - Steering: 50.00 [19.69"] cm [inch] JH 17T02 MMD-A2: Standard: 90.00 [35.43"] - Steering: 70.00 [27.56"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), ABS - American Bureau of Shipping, GL - Germanischer Lloyd, BV - Bureau Veritas, LRS - Lloyd's Register of Shipping , RS - Russian Maritime Register of Shipping, ClassNK - Nippon Kaiji Kyokai, DNV - Det Norske Veritas
