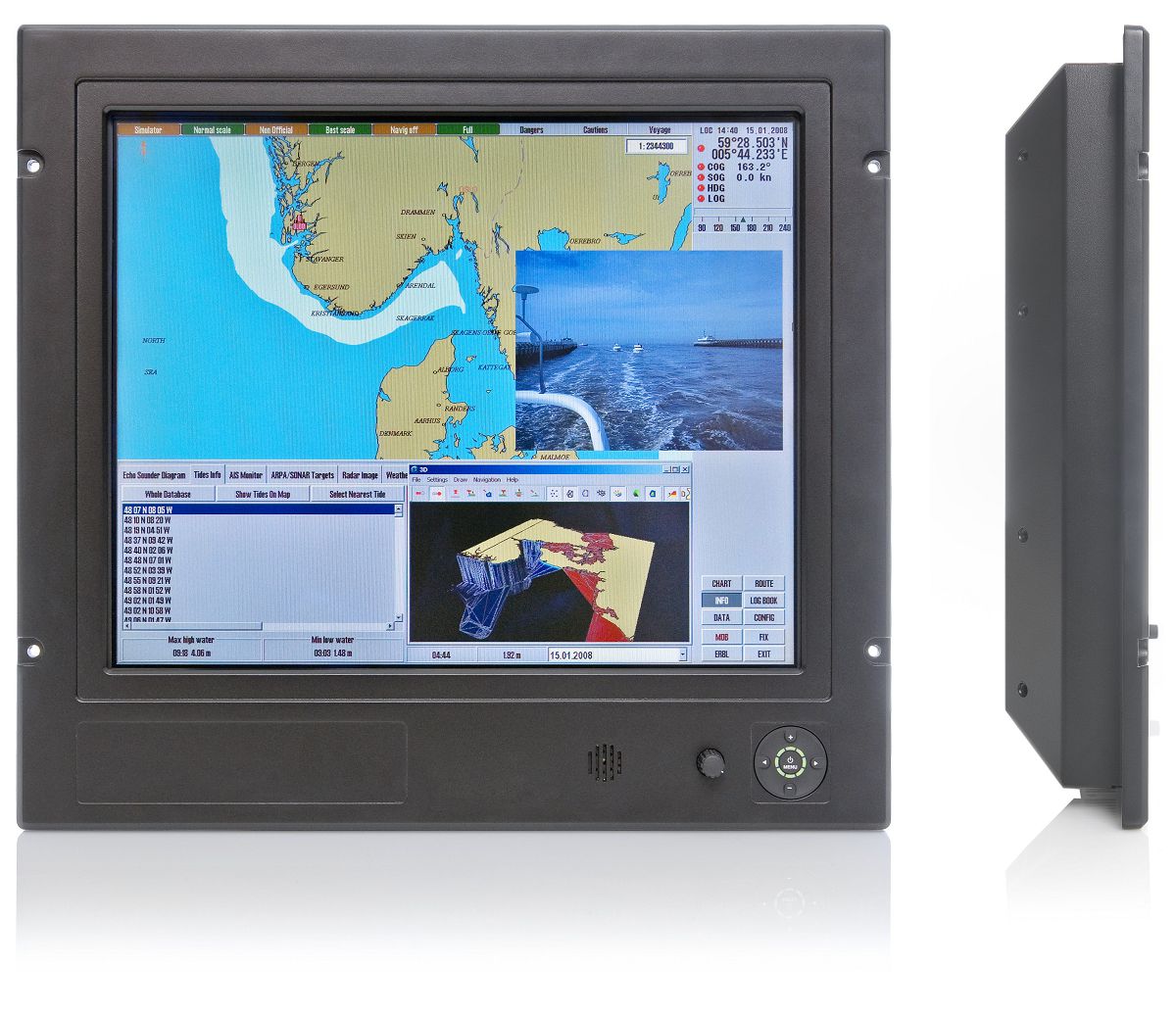

Monitor - CCFL - HATTELAND® Series 1 G1 - 19.0 inch

JH 19T14 MMD (HW00)

The Series 1 Maritime Multi Display (MMD) models are delivered with Multi-power (AC and DC power input built in) ensuring that they are compatible with all power systems on all vessels. It will automatically switch to whatever power is connected, making it highly flexible for shipbuilders and system integrators alike.

CCFL-backlit

Send Request

Description

Specifications

Typenumber (Long):	JH 19T14 MMD-xxx-Axxx
TFT Technology:	Active Matrix, Thin Film Transistor (TFT), MVA Premium™ Technology
Viewable Size and Active Area:	19.0 inch - 376.32 [14.82"] (H) x 301.05 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time:	5:4 - 12ms (typ)
Light Intensity and Contrast Ratio:	300 cd/m² (typ) - 900:1 or 600:1 (typ)* (*model dependent)
View Angle and Max Colors:	85 or 89 deg. (up/down/left/right)* - 16.7 million (*model dependent)
Optimal Resolution and Hz:	1280 x 1024 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x1200
Composite Video Input(s):	With Multifunction Cable
Supported Video Signals:	SVHS&COMPOSITE Compatible
Product Features:	PBP (Picture By Picture), PIP (Picture In Picture), Multifunction Connector, Multi-power AC&DC, Hotkey Functionality, Dimmable 0-100%
Power Specifications and Consumption:	Multi-power 115/230VAC - 50/60Hz + 24 VDC - 50W (typ) - 60W (max)

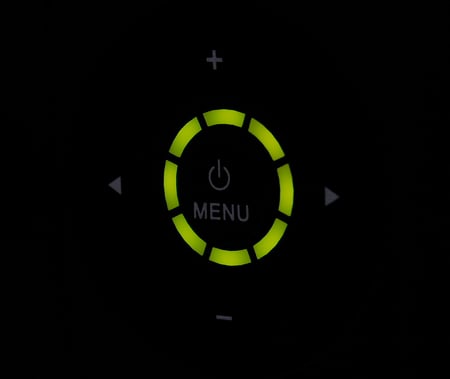

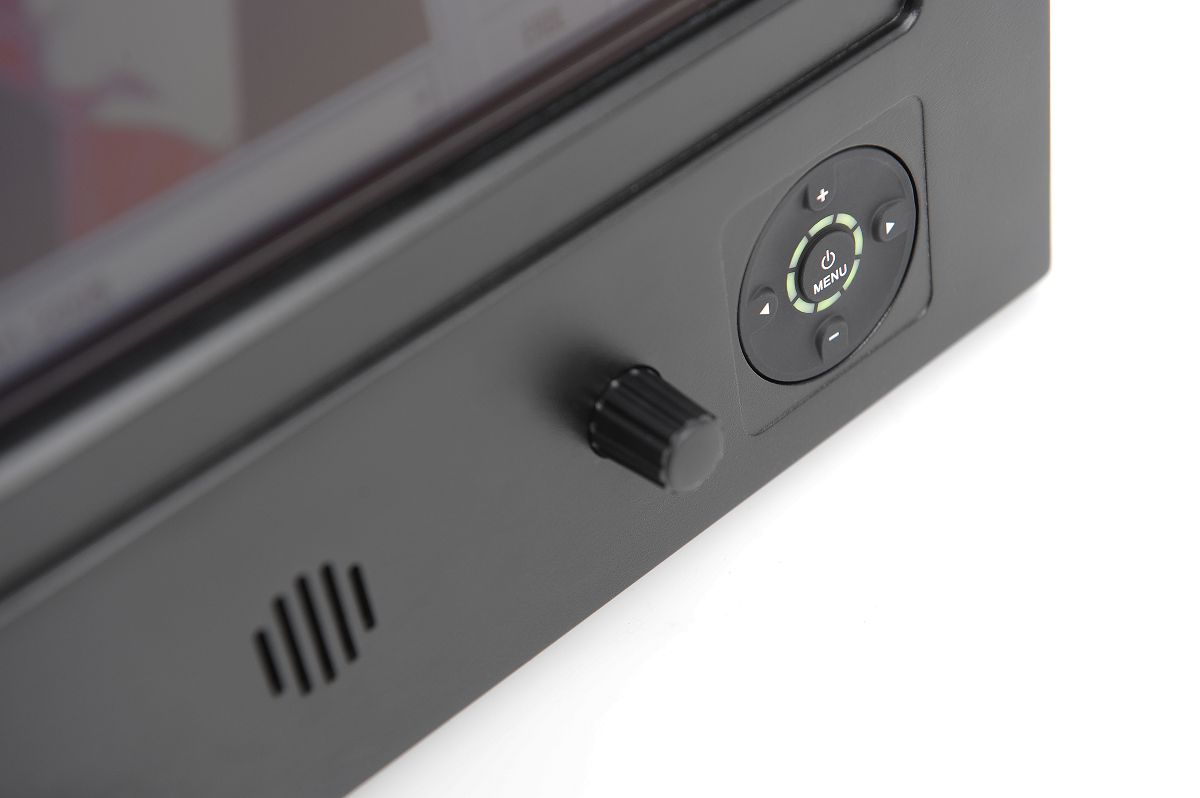

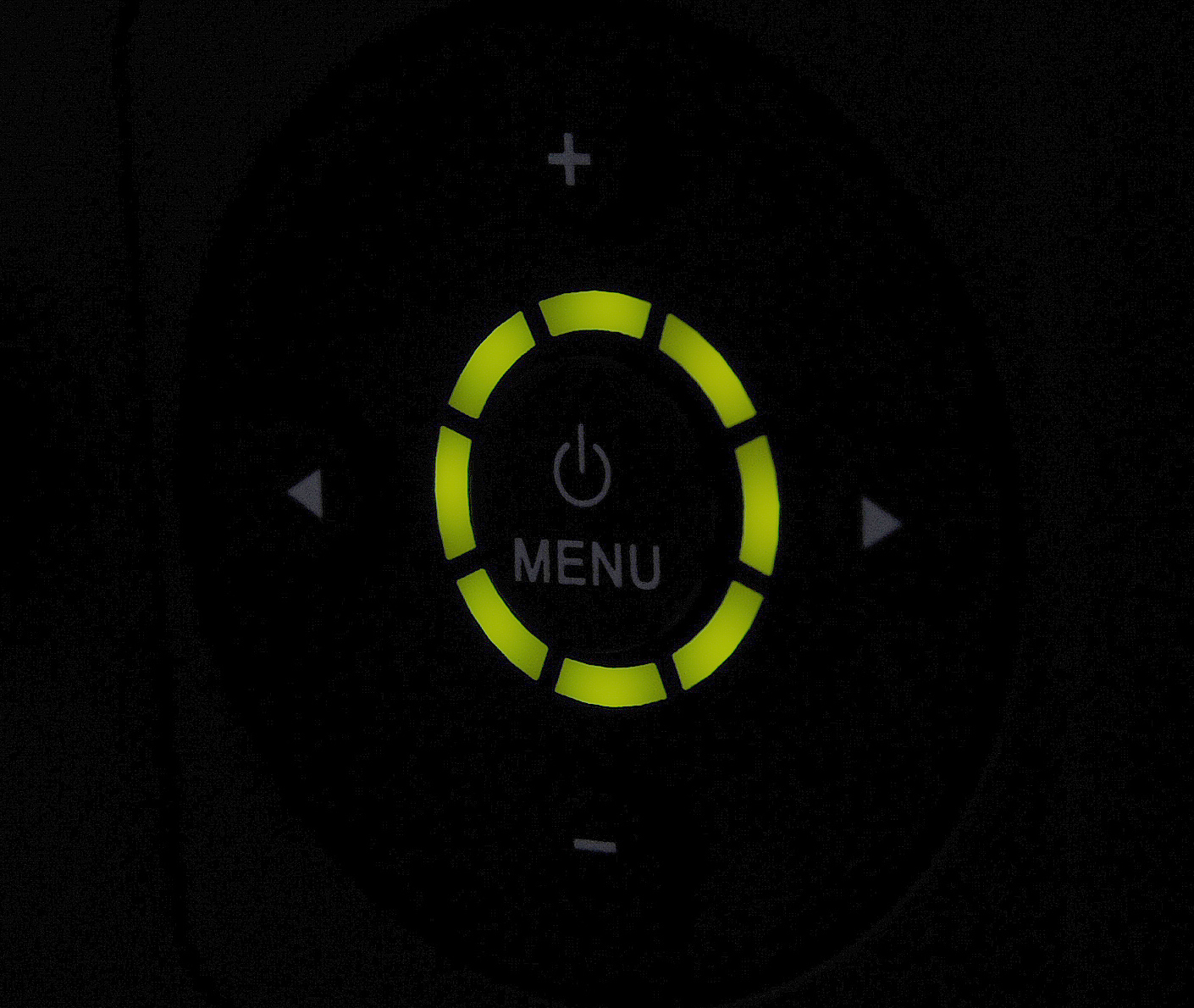

User Controls and Activity:	Power On/Off + On Screen Display Menu (push button) rightness Control Hotkeys (left/right - push buttons) ode Status Illuminated LED-Ring Indicator

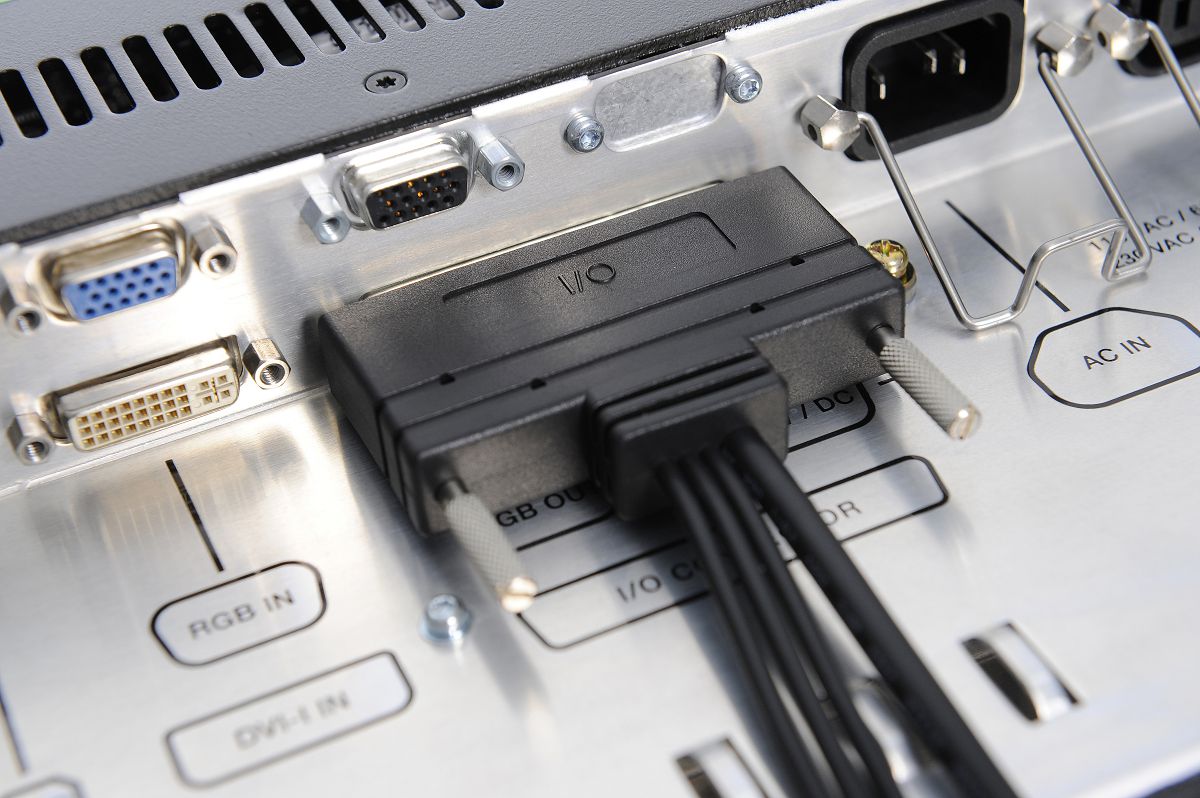

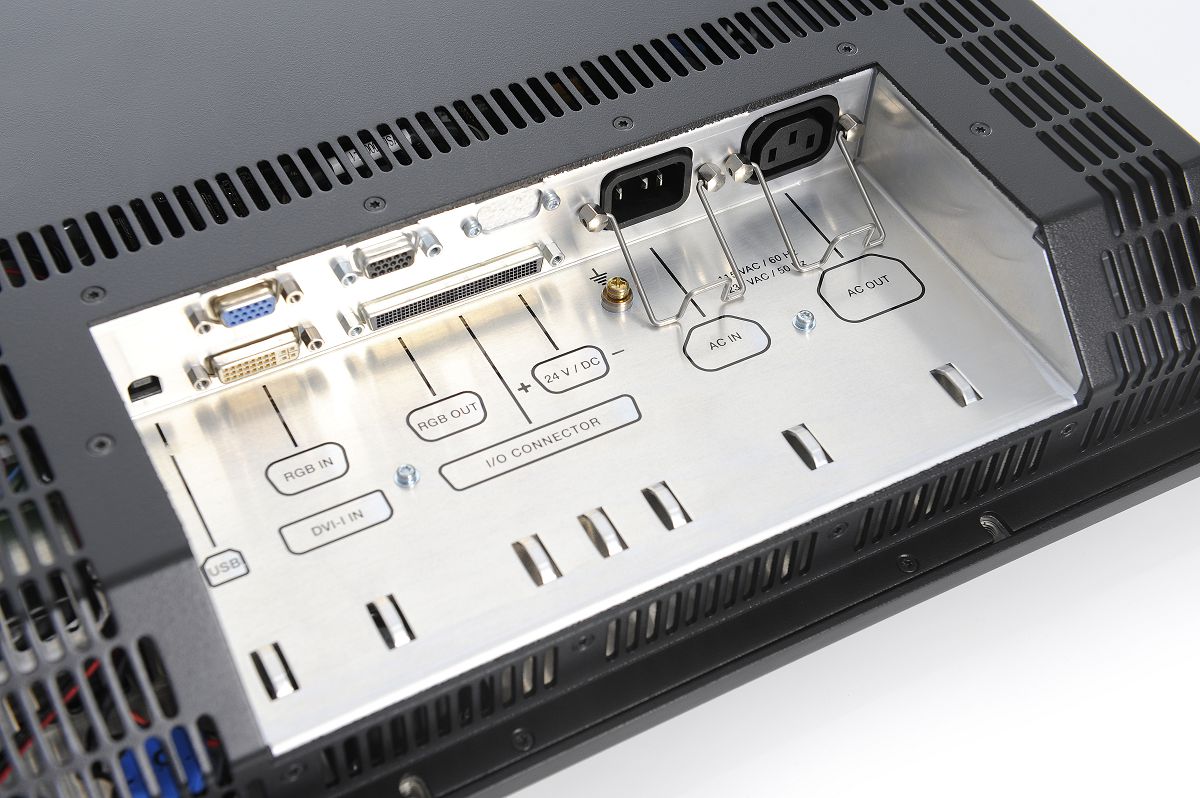

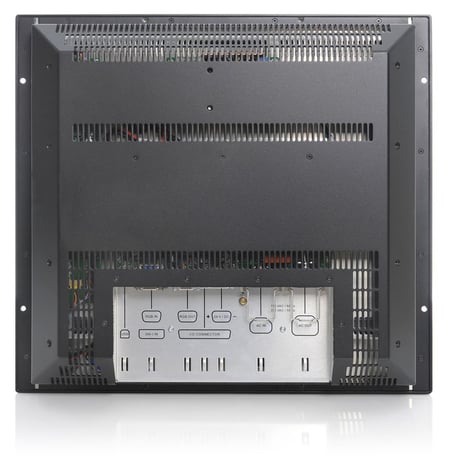

Connectors:	• DVI IN: 1 x DVI-I 29P (female) • VGA IN: 1 x HD D-SUB 15P (female) • VGA OUT: 1 x HD D-SUB 15P (female) • Multifunction: 1 x D-SUB 160P (female) • USB: 1 x Type B (female) • AC Power IN: 1 x Std. IEC inlet • AC Power OUT: 1 x Std. IEC outlet (5A max) • DC Power IN: 1 x 2P D-SUB (male) Amphenol FCC17
Product Dimensions and Weight:	W:483.00 [19.02"] x H:444.00 [17.48"] x D:82.00 [3.23"] mm [inch] Approx 7.3kg / 16.1lbs
Product Carton Size and Weight:	L:690.00 [27.17"] x W:240.00 [9.45"] x H:655.00 [25.79"] mm [inch] Approx. 10.3kg / 22.7lbs
Factory Options:	• Resistive or Capacitive Touchscreen • Keypad only or Keypad+Potmeter+Buzzer controls • Optical Bonding Technology • Speaker / Buzzer Color Calibrated models (ECDIS)
Accessories:
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance:	Standard: 160.00 [62.99"] - Steering: 105.00 [41.34"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IP66, ClassNK - Nippon Kaiji Kyokai GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register, CCS - China Classification Society, EU-RO-MR - Mutual Recognition, KR - Korean Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: June 3, 2025 @ 10:20
