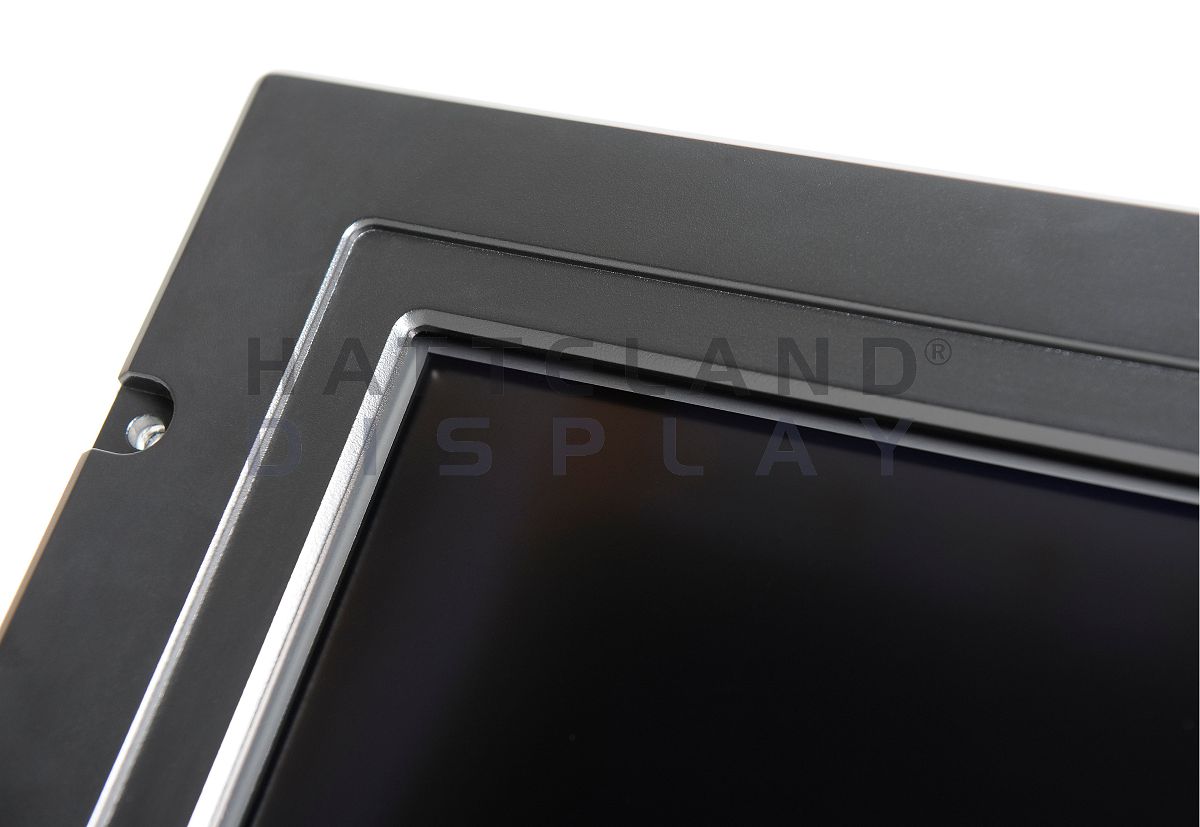

Monitor - CCFL - HATTELAND® Series 1 G1 - 19.0 inch

JH 19T14 STD

Hatteland Technology is a leading marine monitor and computer manufacturer with dedication to knowledge, quality and value. The Series 1 Industrial Monitor (STD) is useful for automation applications in maritime markets and general industrial applications.

CCFL-backlit

Send Request

Description

Specifications

Typenumber (Long):	JH 19T14 STD-AA1-AAAA
TFT Technology:	Active Matrix, Thin Film Transistor (TFT), MVA Premium™ Technology
Viewable Size and Active Area:	19.0 inch - 376.32 [14.82"] (H) x 301.05 [11.85"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm
Aspect Ratio and Response Time:	5:4 - 12ms (typ)
Light Intensity and Contrast Ratio:	300 cd/m² (typ) - 900:1 (typ)
View Angle and Max Colors:	85 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1280 x 1024 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
Composite Video Input(s):	None
Supported Video Signals:	None
Product Features:	Suitable for automation applications, Keypad button control, Hotkey Functionality, Dimmable 20-100%
Power Specifications and Consumption:	115/230VAC - 50/60Hz - 100W (max)

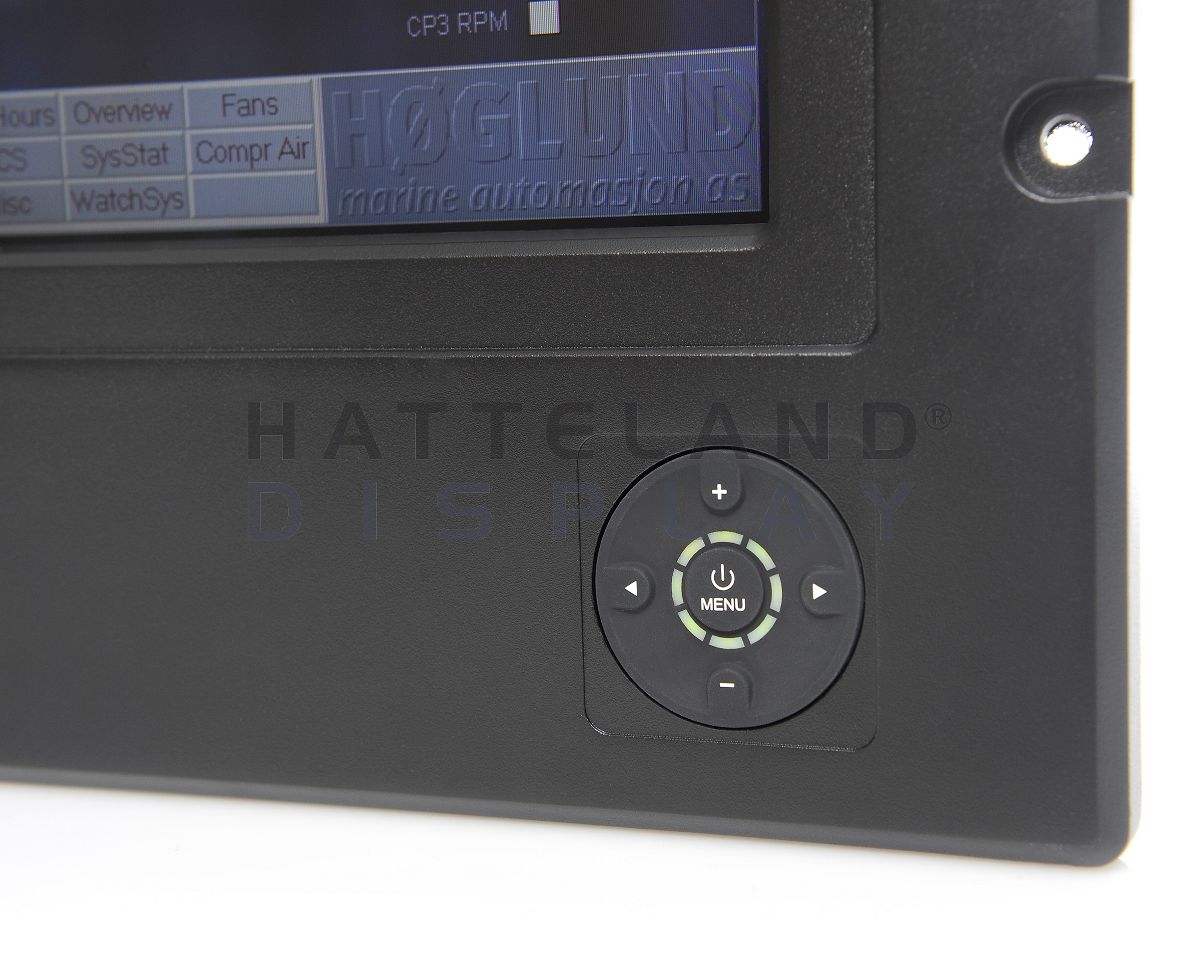

User Controls and Activity:	Power On/Off + On Screen Display Menu (push button), Brightness Control, Hotkeys (left/right - push buttons), Mode Status Illuminated LED-Ring Indicator

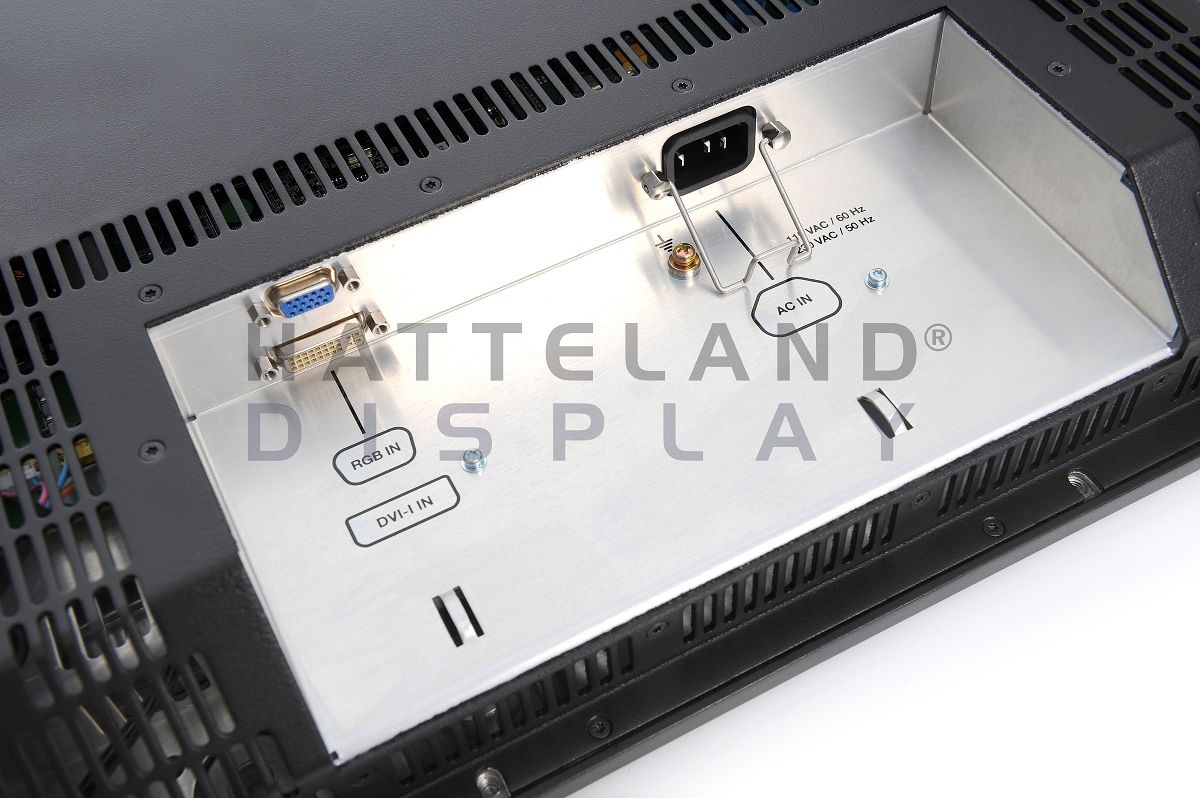

Connectors:	• DVI IN: 1 x DVI-I 29P (female) • VGA IN: 1 x HD D-SUB 15P (female)
Product Dimensions and Weight:	W:483.00 [19.02"] x H:444.00 [17.48"] x D:82.00 [3.23"] mm [inch] Approx 7.3kg / 16.1lbs
Product Carton Size and Weight:	L:600.00 [23.62"] x W:560.00 [22.05"] x H:220.00 [8.66"] mm [inch] Approx. 10.3kg / 22.7lbs
Factory Options:	None
Accessories:	• JH MMDBR STD-A1: Bracket • HD TMB STD-A1: Mounting Bracket EN60945 Tested • JH MMDRO STD-A1: Rotary Bracket • JH 19TSV STD-A1: Sun Visor • JH 19VED STD-A1: Vesa Bracket • JH 19TAP STD-A1: 21" CRT Adapter frame • JH 19TAP STD-B1: 21" CRT Custom Adapter frame • JH 19TAP STD-A2: 20" TFT Adapter frame • JH 19TWC STD-B1: Water Cover
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance:	Standard: 85.00 [33.46"] - Steering: 45.00 [17.72"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IP66, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register, CCS - China Classification Society, EU-RO-MR - Mutual Recognition Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m

Specifications last updated: August 18, 2025 @ 08:00
