JH 20T03 MIL

Overview

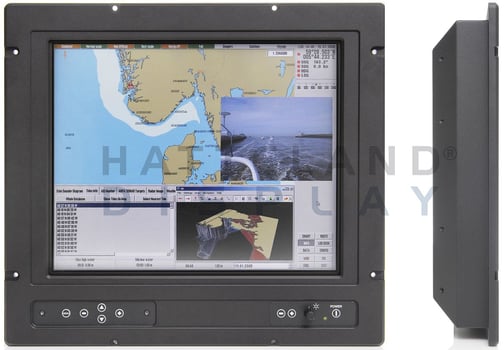

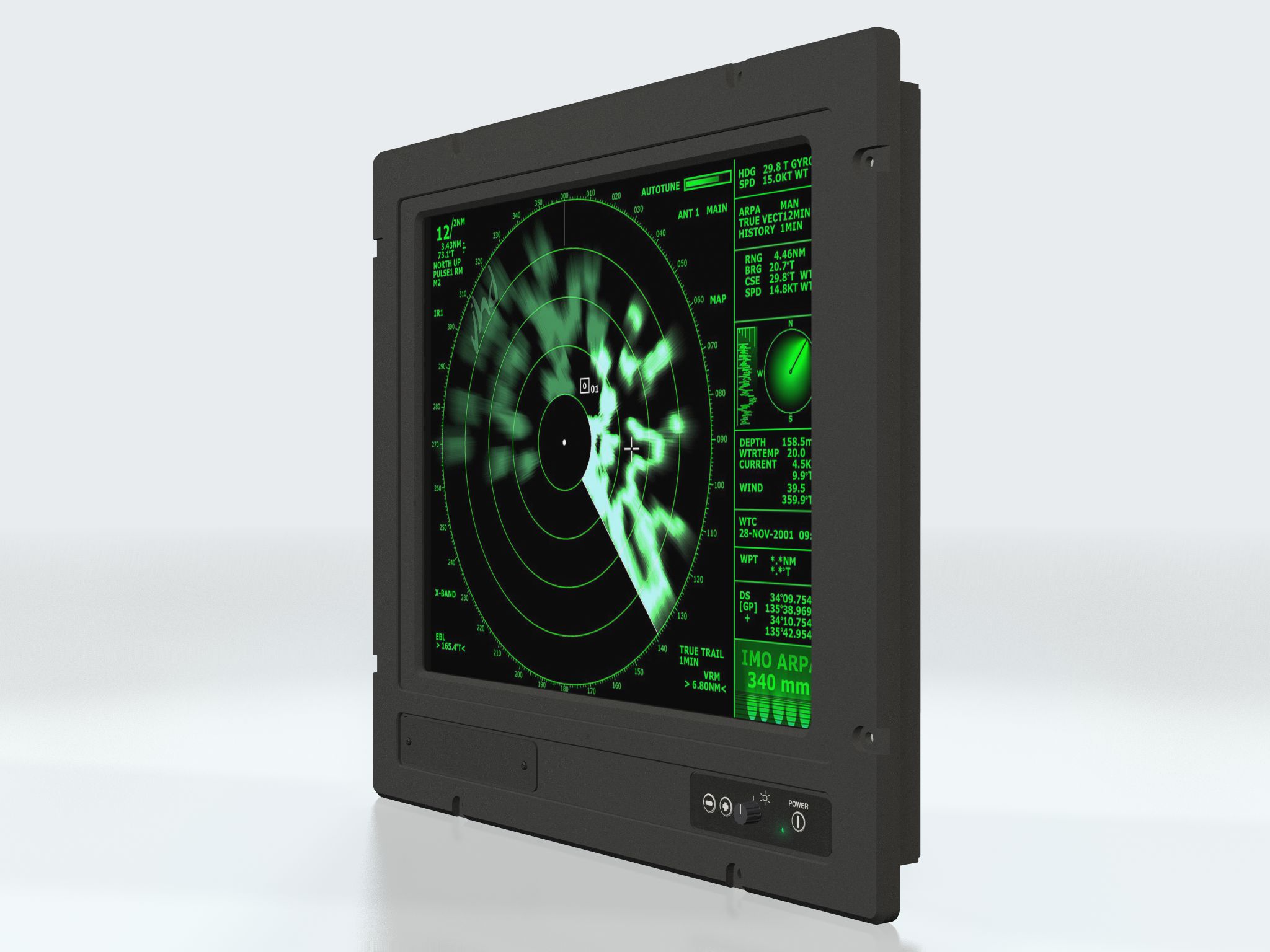

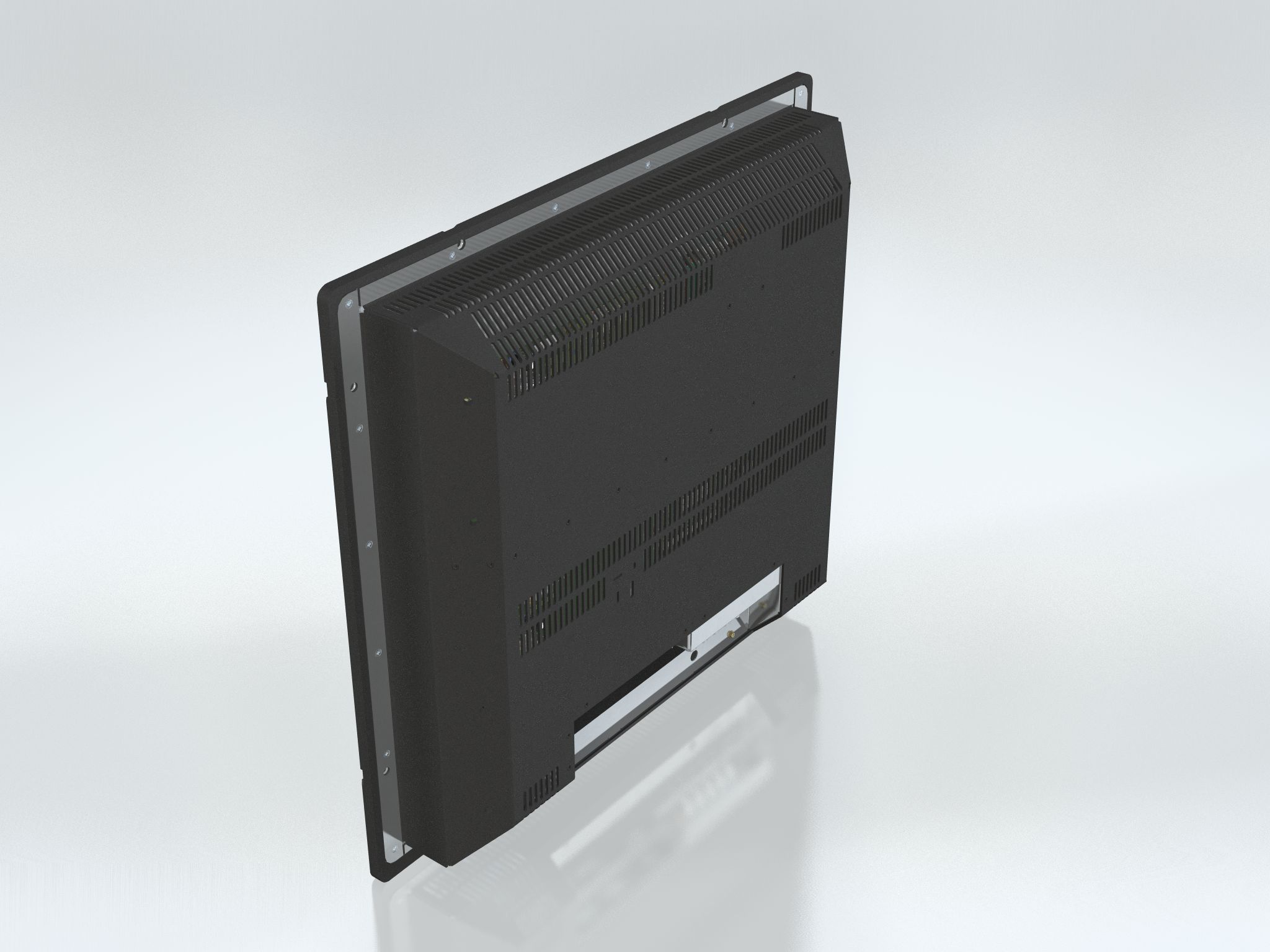

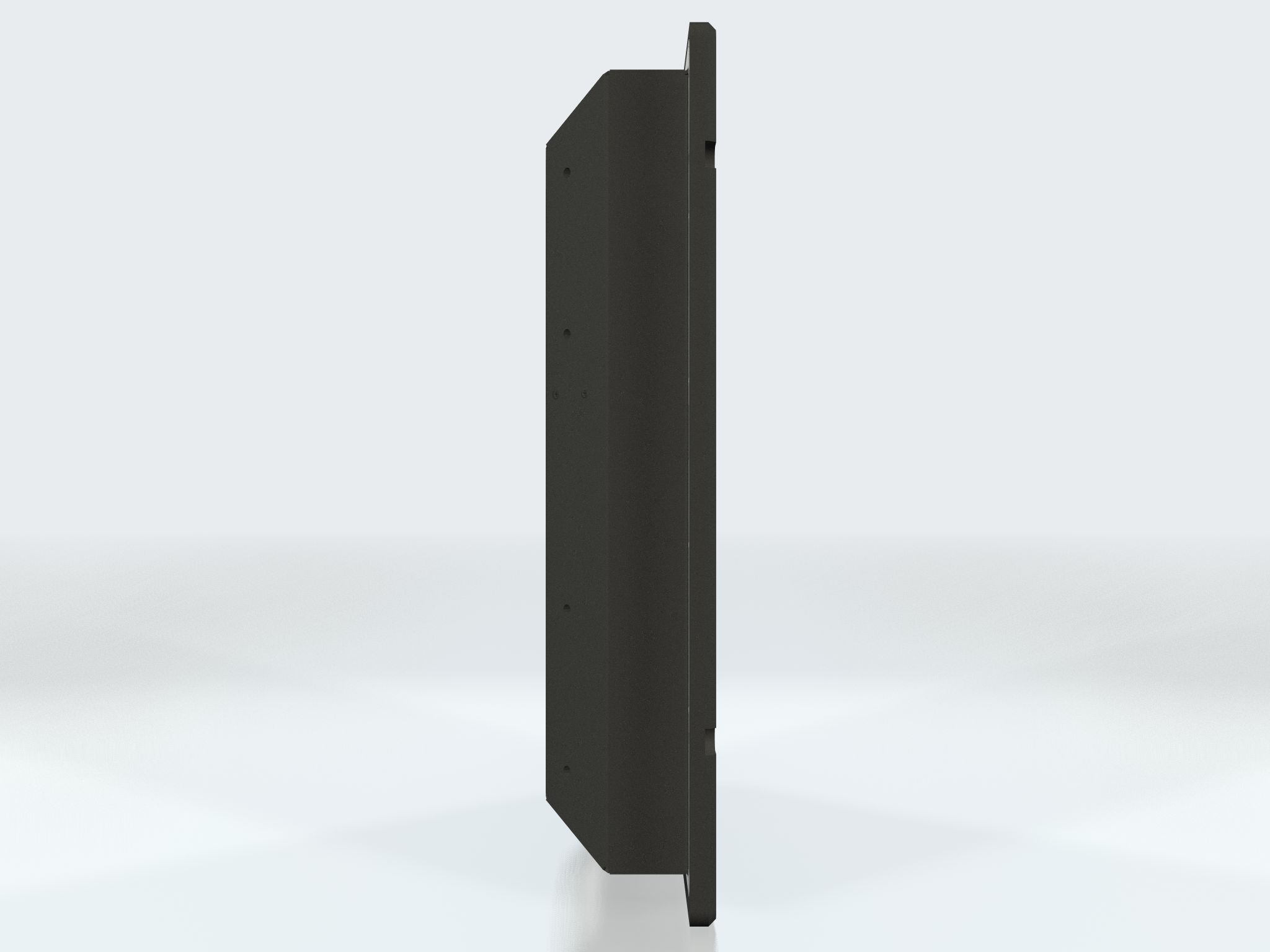

Monitor - CCFL - MIL Qualified - 20.1 inch

JH 20T03 MIL

The color monitor is an industrialized naval version of a high quality TFT based monitor with XtraView TFT technology. The MIL allows you to monitor professional applications with clarity and enhanced color and image quality.

icon
CCFL-backlit
Send Request
Description

Monitor - MIL Qualified

The controller and the high light intensity in combination with the high contrast and wide backlight adjustment control, allow the product to be used in many environments. The brightness is adjustable from 0 to 100%
Specifications
Typenumber (Long): JH 20T03 MIL-x1
TFT Technology: Active Matrix, Thin Film Transistor (TFT)
Viewable Size and Active Area: 20.1 inch - 399.36 [15.72"] (H) x 319.49 [12.58"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) - 0.312 (H) x 0.312 (V) mm
Aspect Ratio and Response Time: 5:4 - 25ms (typ)
Light Intensity and Contrast Ratio: 250 cd/m² (typ) - 300:1 (typ)
View Angle and Max Colors: 85 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
Composite Video Input(s): None
Supported Video Signals: None
Product Features: Fully adjustable backlight (0-100%), Serial Communication (SCOM) Interface, Suitable for navigation and automation
Power Specifications and Consumption: 115/230VAC - 50/60Hz - 76W [typ] - 100W (max)
Inrush Current:
Transient immunity, 100 ns risetime, 10 us duration, 325 VPEAK
Supply voltage variation test, 98 -> 138 VAC, 56.4 -> 63.6 Hz
Measurements of inrush current = 4 APEAK

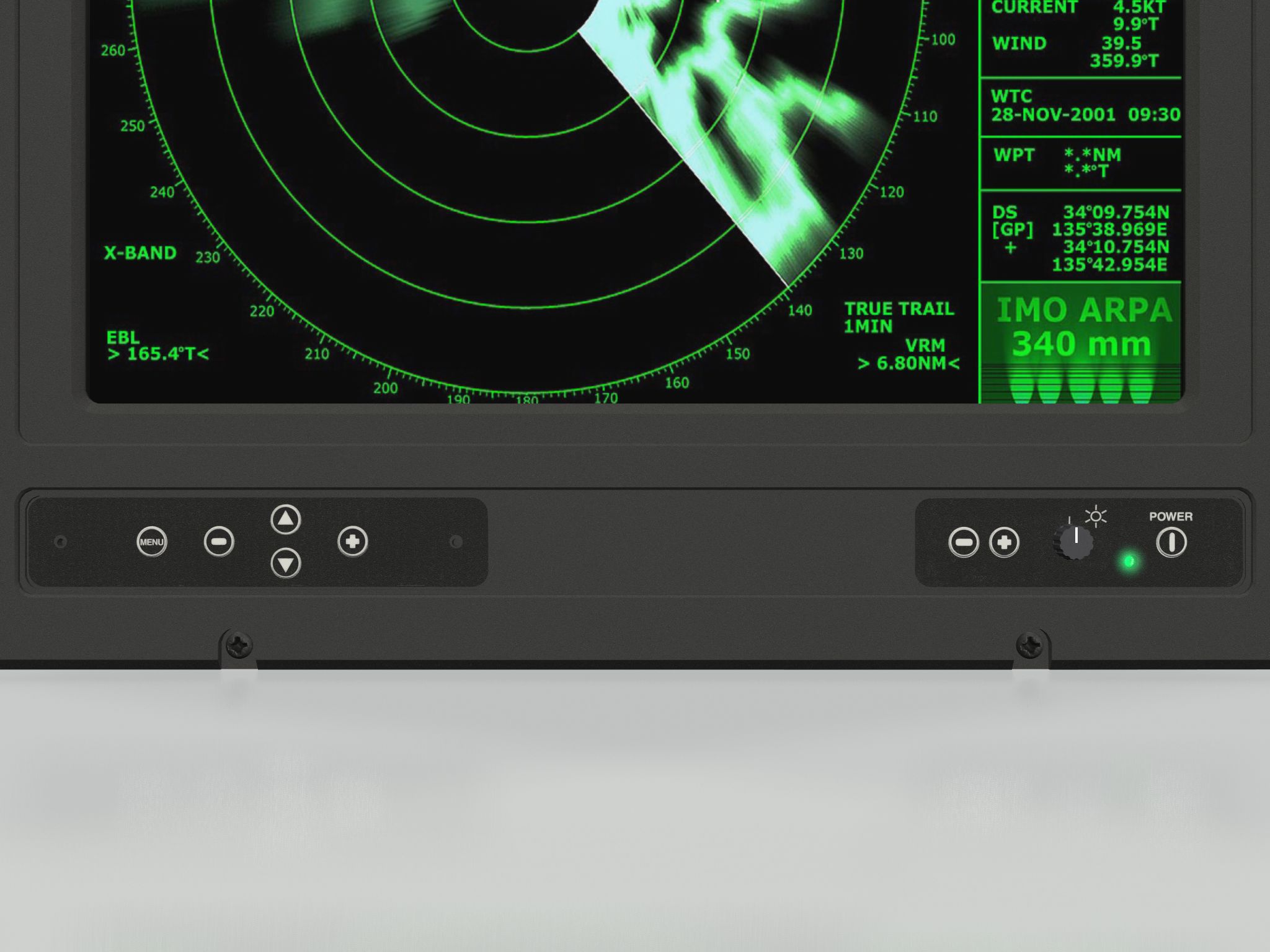

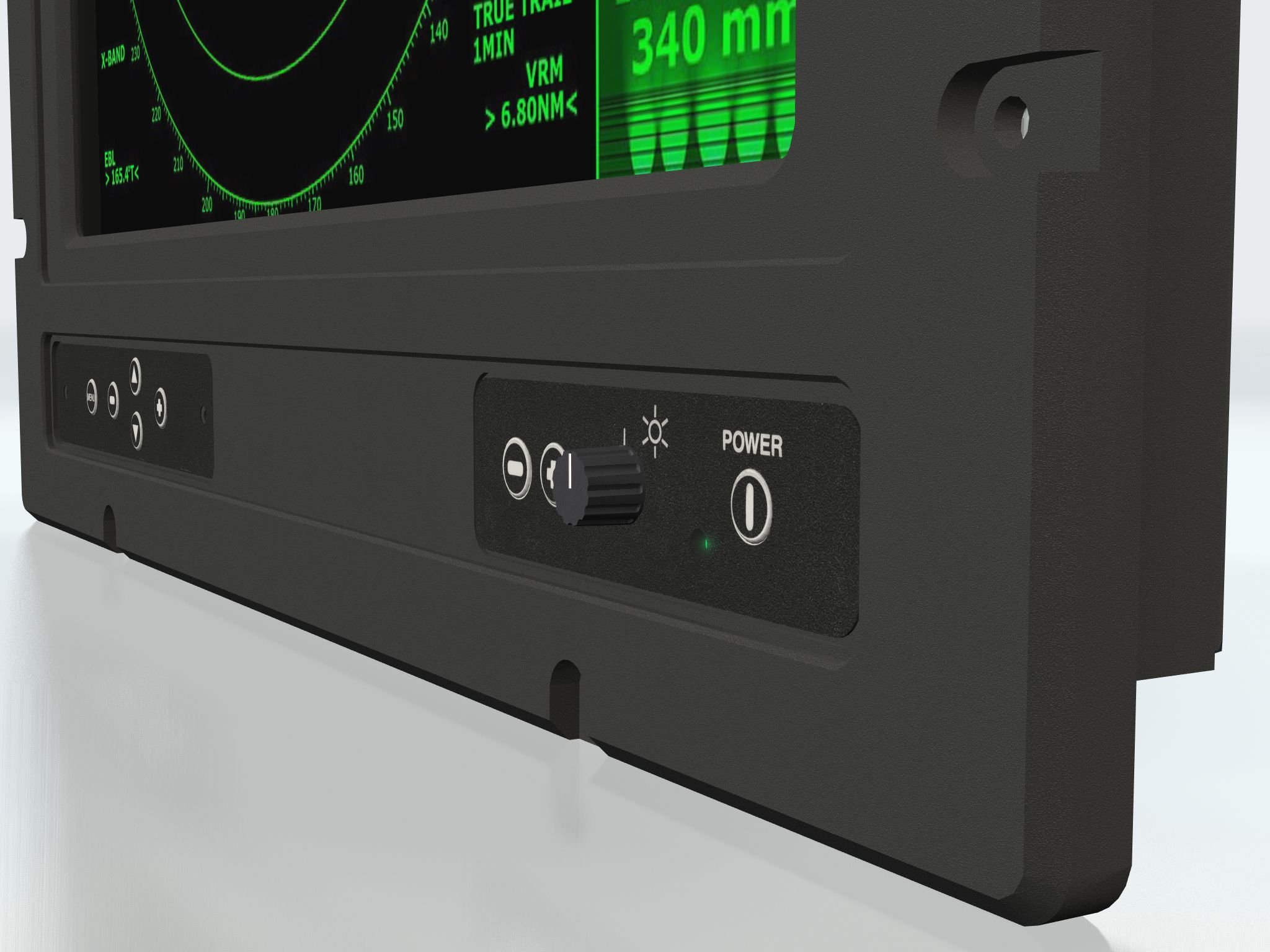

User Controls and Activity: Power On/Off (push button), Brightness Control Rotary Knob, 2 x hotkeys, Mode Status LED, On Screen Display control (OSD/OSM)

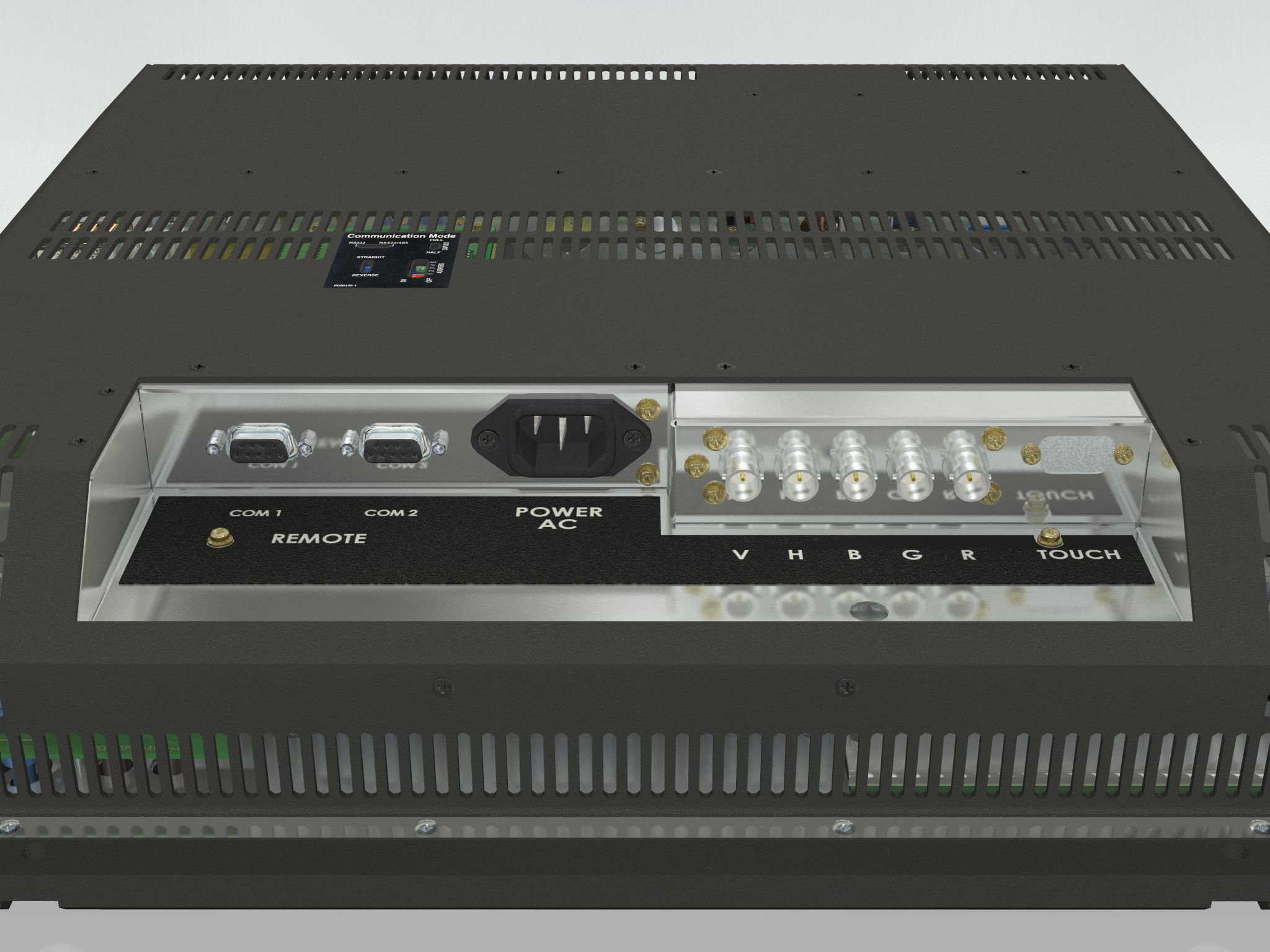

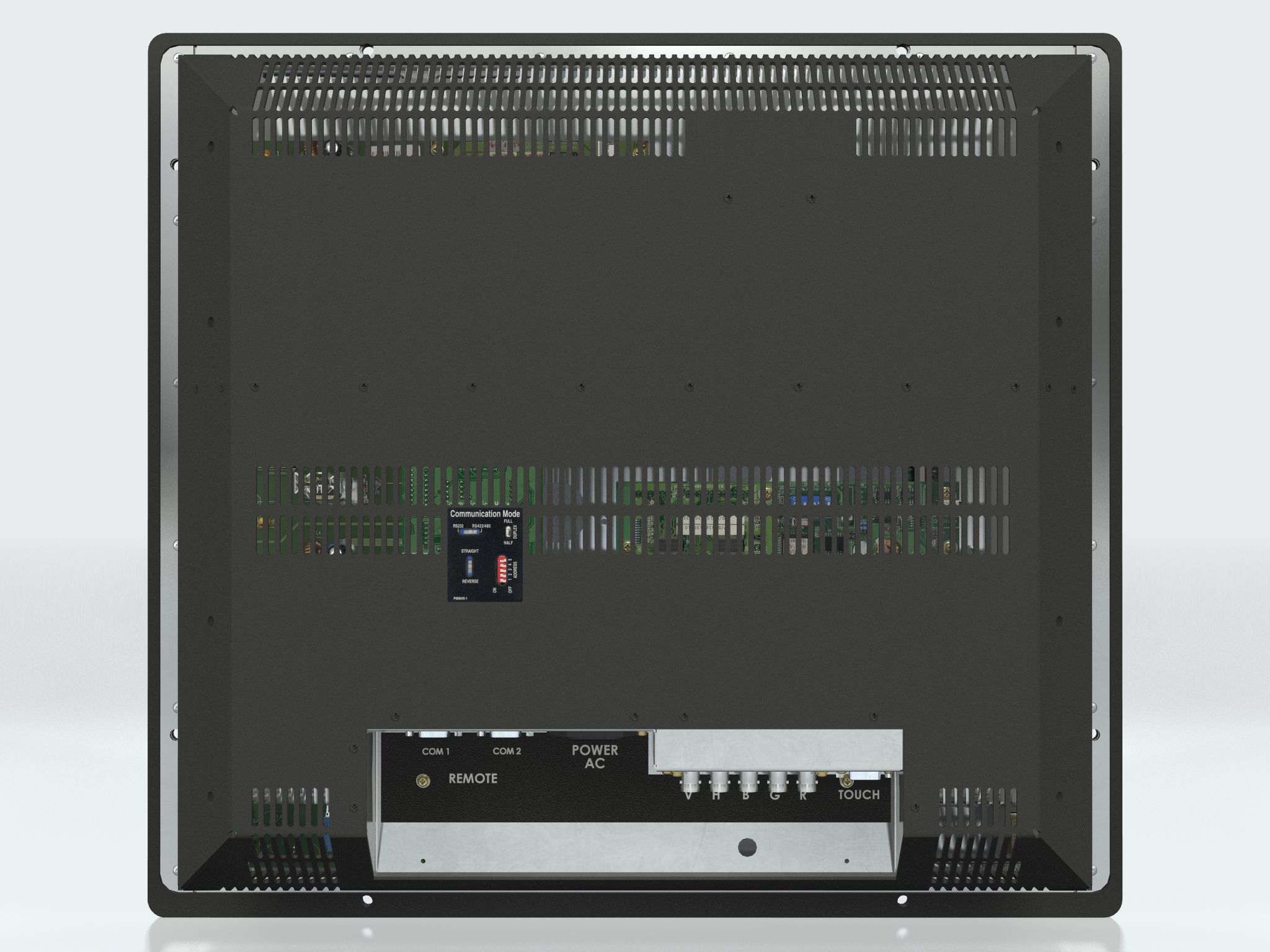

Connectors: • RGB IN: 5 x BNC Connectors (RGBHV)
• Touch Screen: 1 x D-SUB 9P (female)

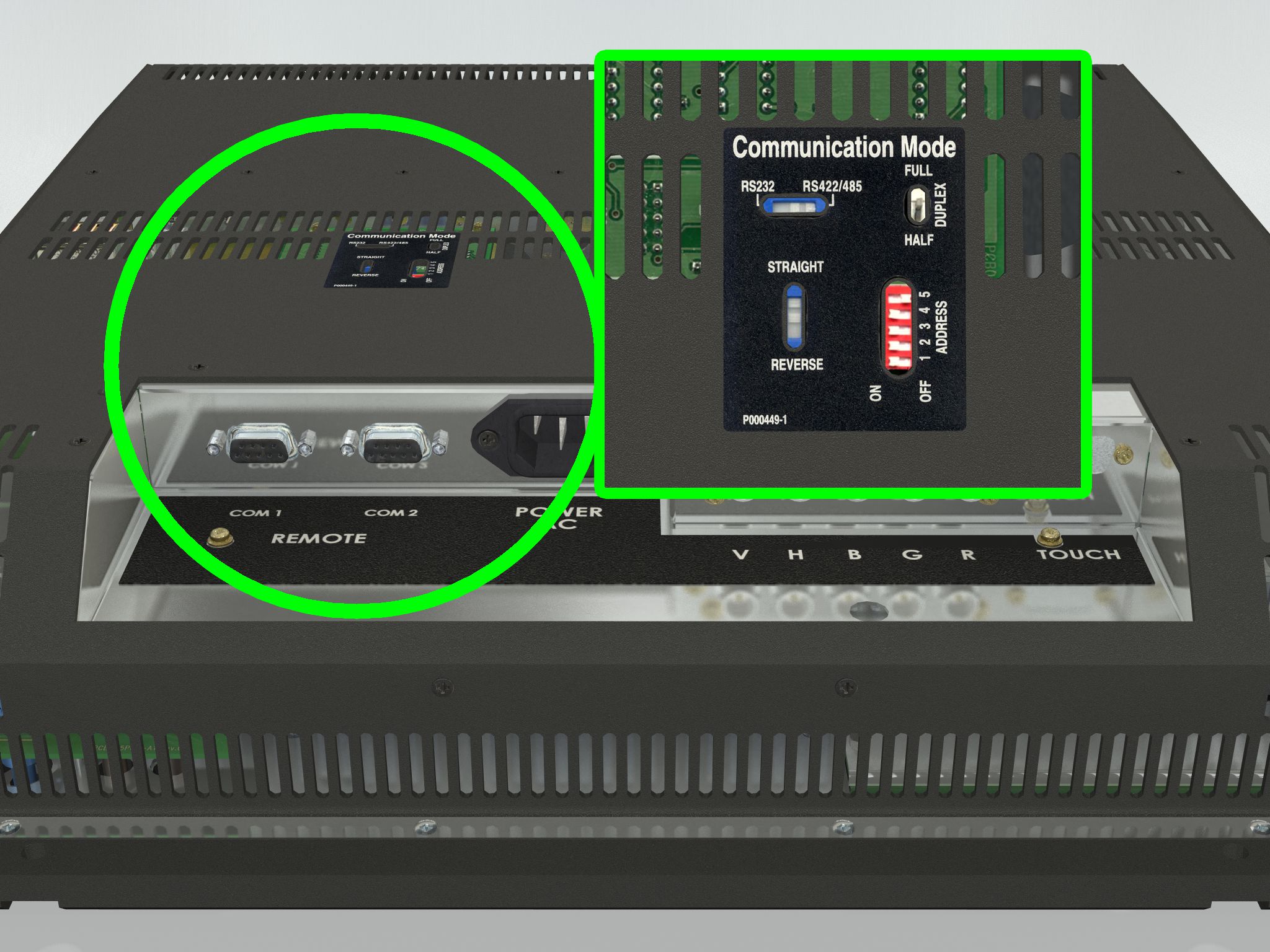

• Serial Remote Control: 2 x D-SUB 9P (female)
• AC Power IN: 1 x Std. IEC inlet

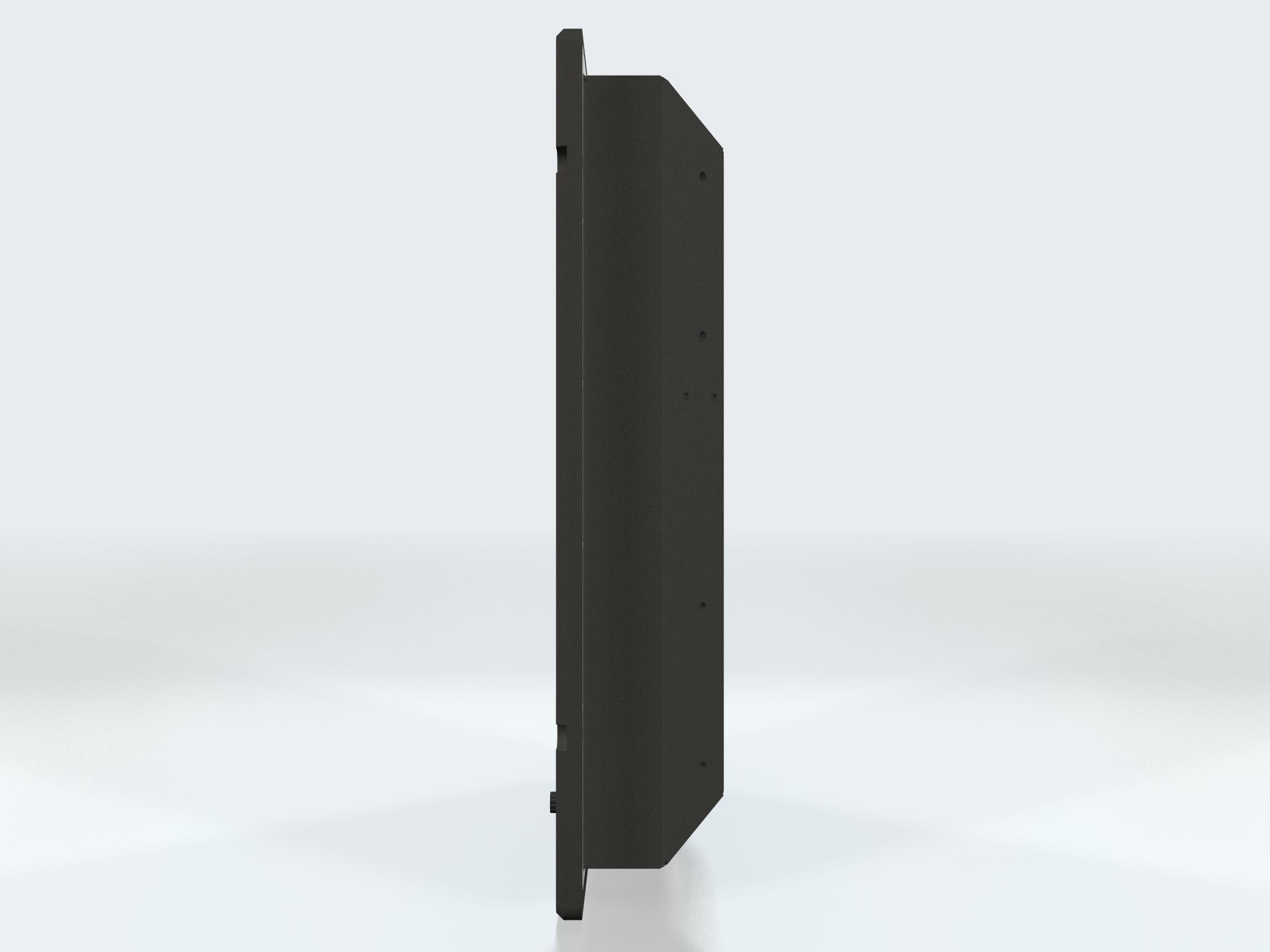

Product Dimensions and Weight: W:534.00 [21.02"] x H:485.00 [19.09"] x D:94.00 [3.70"] mm [inch]
Approx 14kg / 31lbs
Product Carton Size and Weight: L:700.00 [27.56"] x W:660.00 [25.98"] x H:220.00 [8.66"] mm [inch]
16.0kg / 35.2lbs
Factory Options: • Capacitive Touchscreen
• Color Calibrated models (ECDIS)
• Video Buffer
Accessories: Bracket (tilt up/down), Rotary Bracket (left/right), Sun Visor, VESA Bracket, Water Cover, External Power Relay
Capabilities - Prepared for: NA
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F
Storage Temperature: Dry Heat: 70.0°C / 158.0°F (IEC 60068-2-2 (1974), Test Bd)
Cold: -40.0°C / -40.0°F (IEC 60068-2-1 (1990), Test Ad)
Humidity up to 95%
IP Rating: Protection (EN60529): IP66 front - IP20 rear
Compass Safe Distance: N/A
Type Approval, Testing and Certificates: EN60945 3rd (IEC945 3rd), BV - Bureau Veritas
Specifications last updated: August 18, 2025 @ 08:00
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

10 Dec 2010
Printed User Manual and Driver CD/DVD

13 Sep 2006
RoHS Touchscreen

13 Dec 2005
RoHS Surface

End of Life Notifications (EOL):
13 Dec 2010
JH 20T03 Mxx

News Stories:
1 Jul 2001
New 20.1 inch Industrial Display
