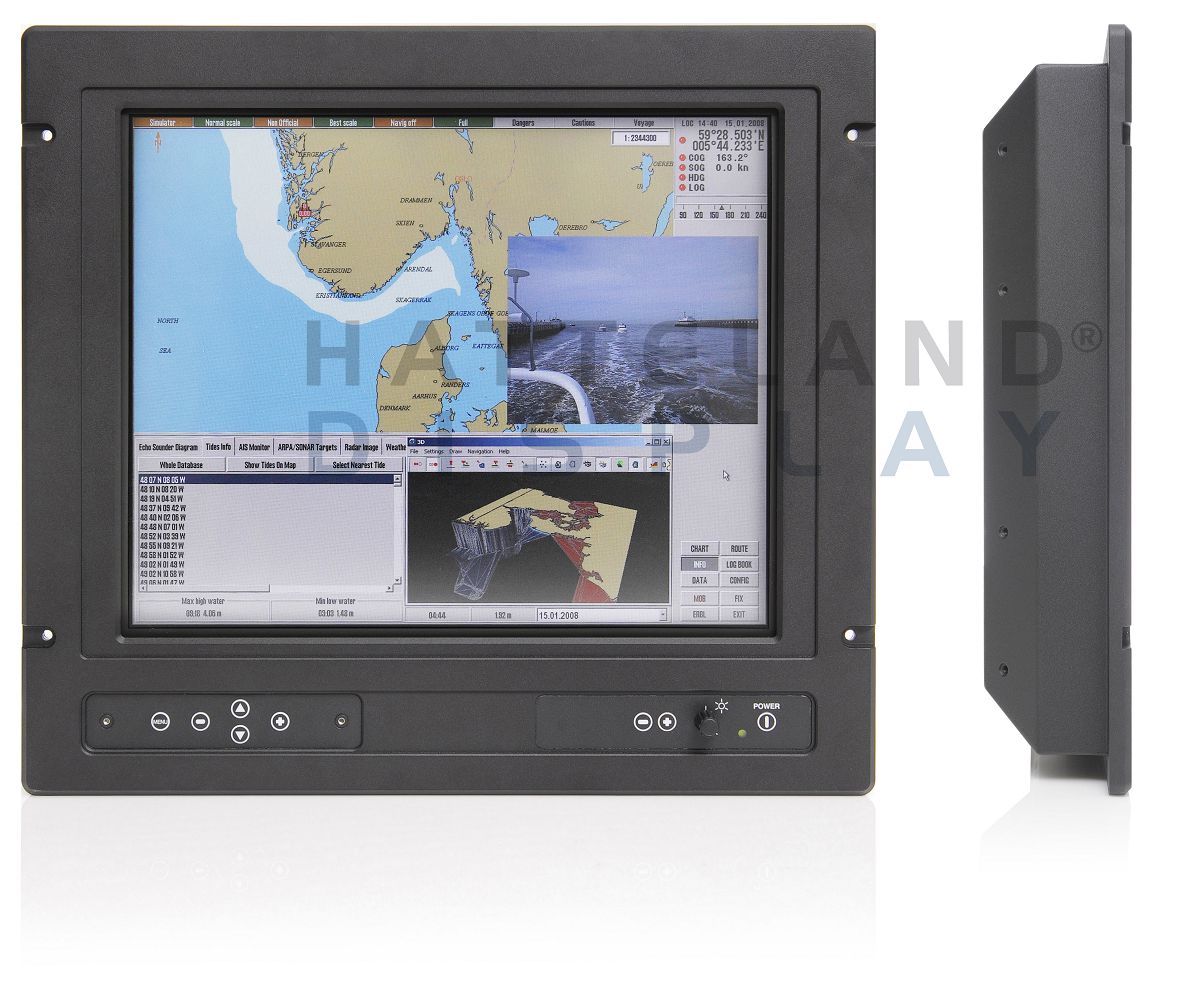

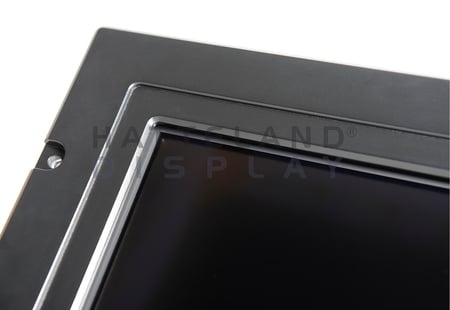

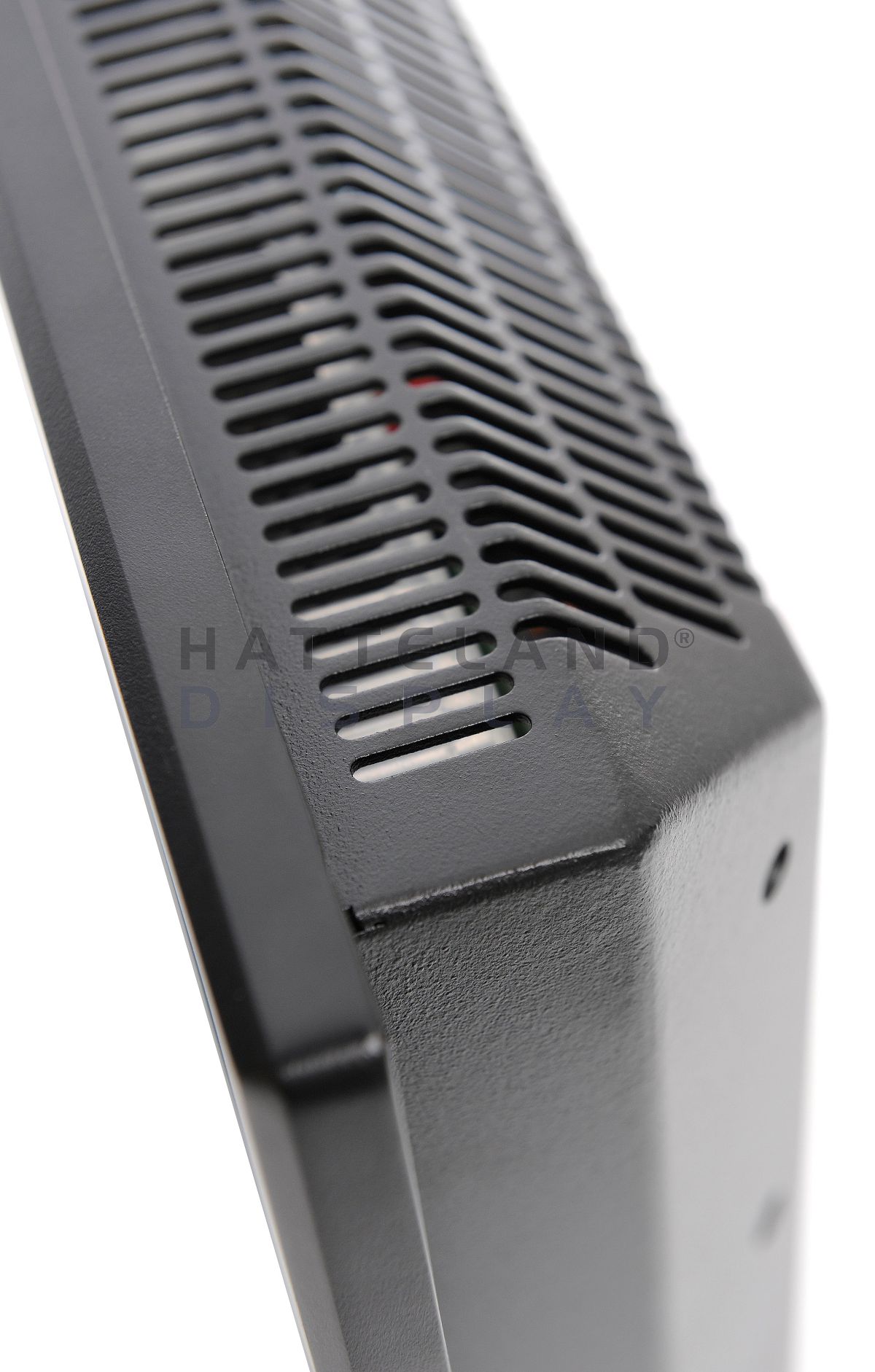

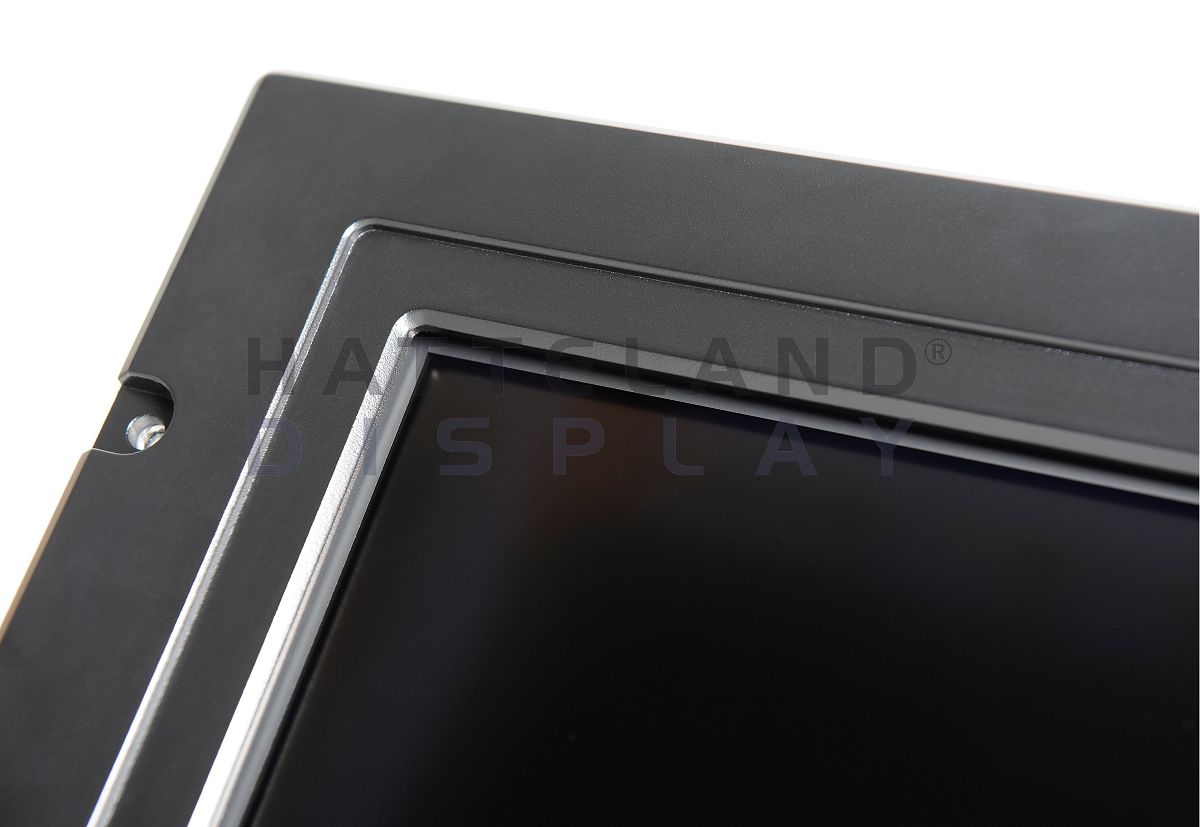

Monitor - CCFL - HATTELAND® Series 0 - 20.1 inch

JH 20T03 MMD (HW01)

Connections include DVI-D IN, RGB IN, Video IN (Composite/SVHS) and PiP (Picture in Picture) functionality.

CCFL-backlit

Send Request

Description

Specifications

Typenumber (Long):	JH 20T03 MMD
TFT Technology:	Active Matrix, Thin Film Transistor (Super-TFT)
Viewable Size and Active Area:	20.1 inch - 399.36 [15.72"] (H) x 319.49 [12.58"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1280 x 1024 (SXGA) - 0.312 (H) x 0.312 (V) mm
Aspect Ratio and Response Time:	5:4 - 25 ms (typical), "black" to "white"
Light Intensity and Contrast Ratio:	250 cd/m² (typ) - 300:1 (typ)
View Angle and Max Colors:	85 deg. (up/down/left/right) - 16.7 millions
Optimal Resolution and Hz:	1280 x 1024 @ 60 Hz Sync Signal: • Digital separate synchronisation • Composite synchronisation • Synchronisation on green. • Auto detects VGA -> SXGA, interlaced and non interlaced • Video Signal: Analog RGB 0,7Vp-p, Input Impedance 75 Ohm Synchronisation Range: • Horizontal: 31,5 kHz to 91,1 kHz • Vertical: 60 Hz to 85 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
Composite Video Input(s):	1 x RCA Phono plug 1 x S-Video (SVHS) plug
Supported Video Signals:	Video Signals: • Interlaced NTSC and PAL/SECAM video • Composite video • S-Video
Product Features:	PIP (Picture In Picture), Video Input (Composite/SVHS) inputs, Hotkey Functionality, Dimmable 0-100%, ECDIS Compliant
Power Specifications and Consumption:	Power Supply Options: • 115&230VAC - 50 / 60Hz: Model JH 20T03 MMD-A1 • 24 VDC: Model JH 20T03 MMD-A2 Power Consumption: • Operating: 75W (typ) - Measured at 230Vrms • Operating: 75W (typ) - Measured at 24VDC • Operating: 100W (max)

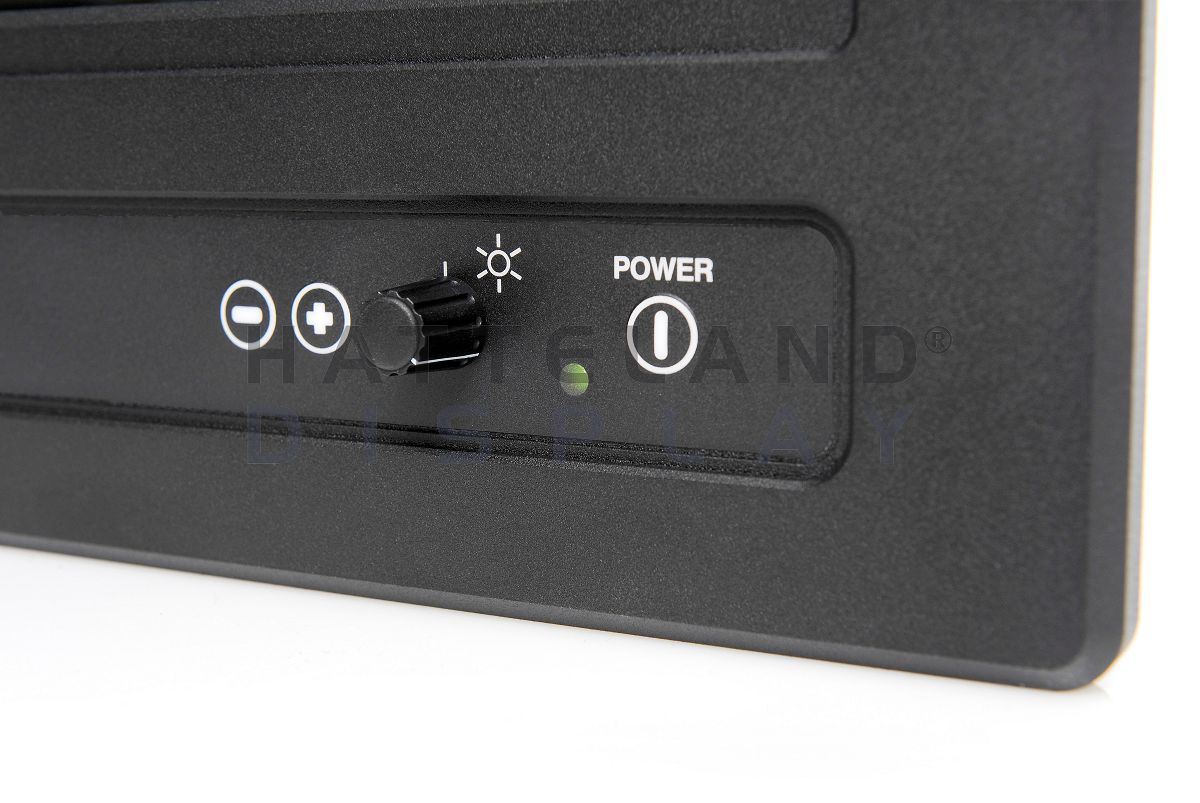

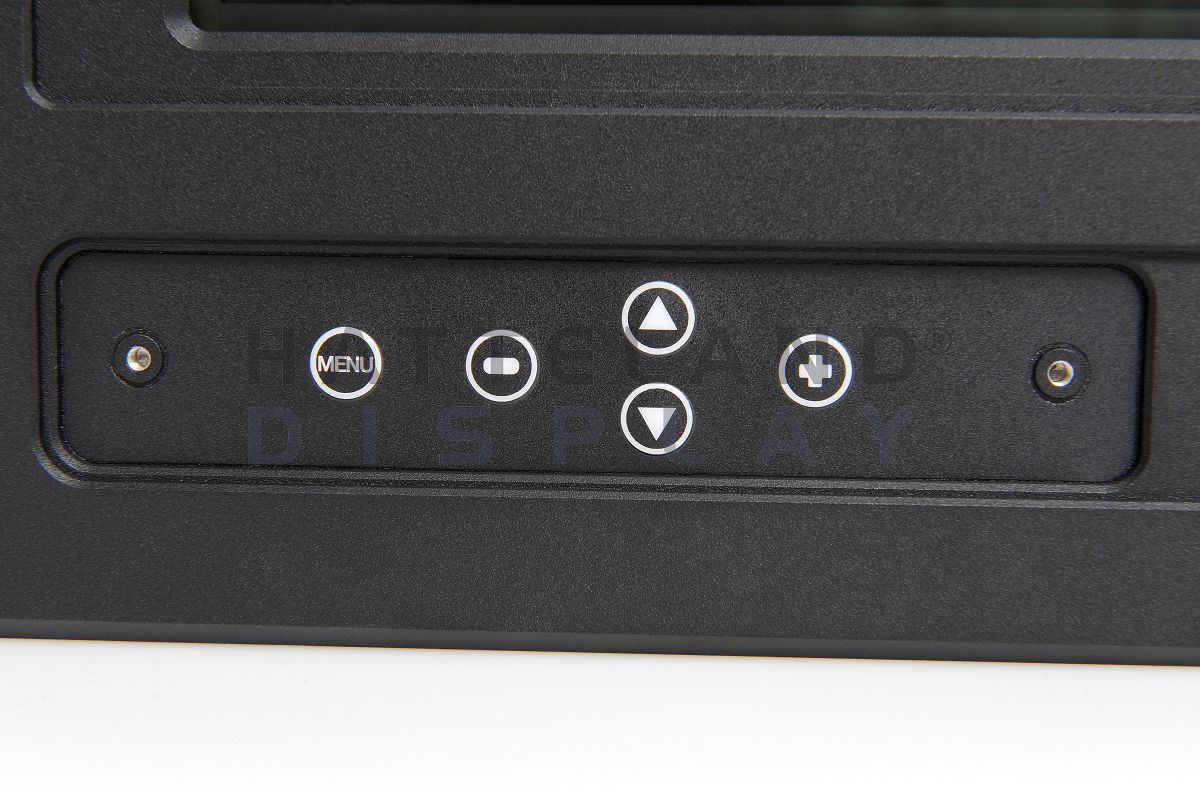

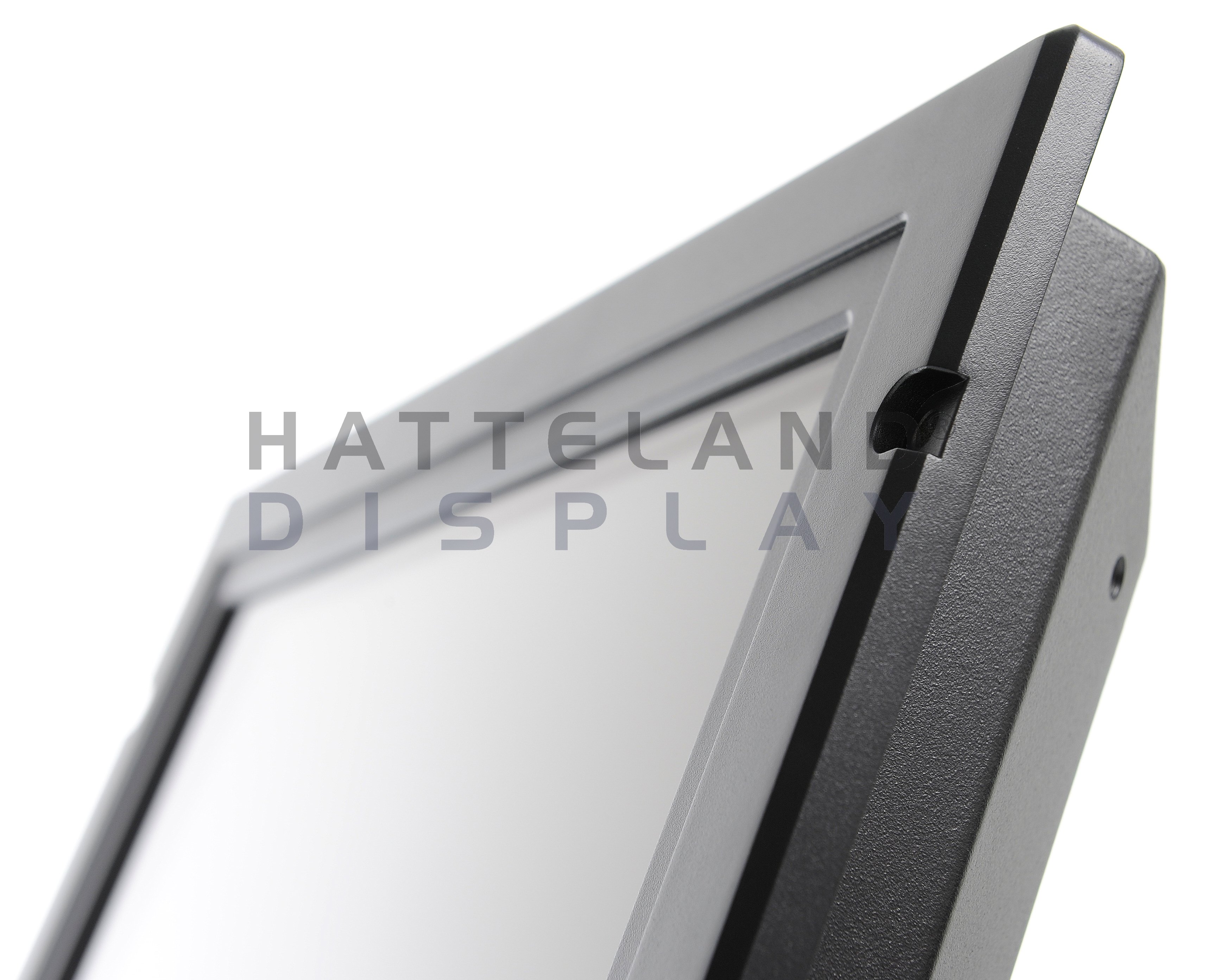

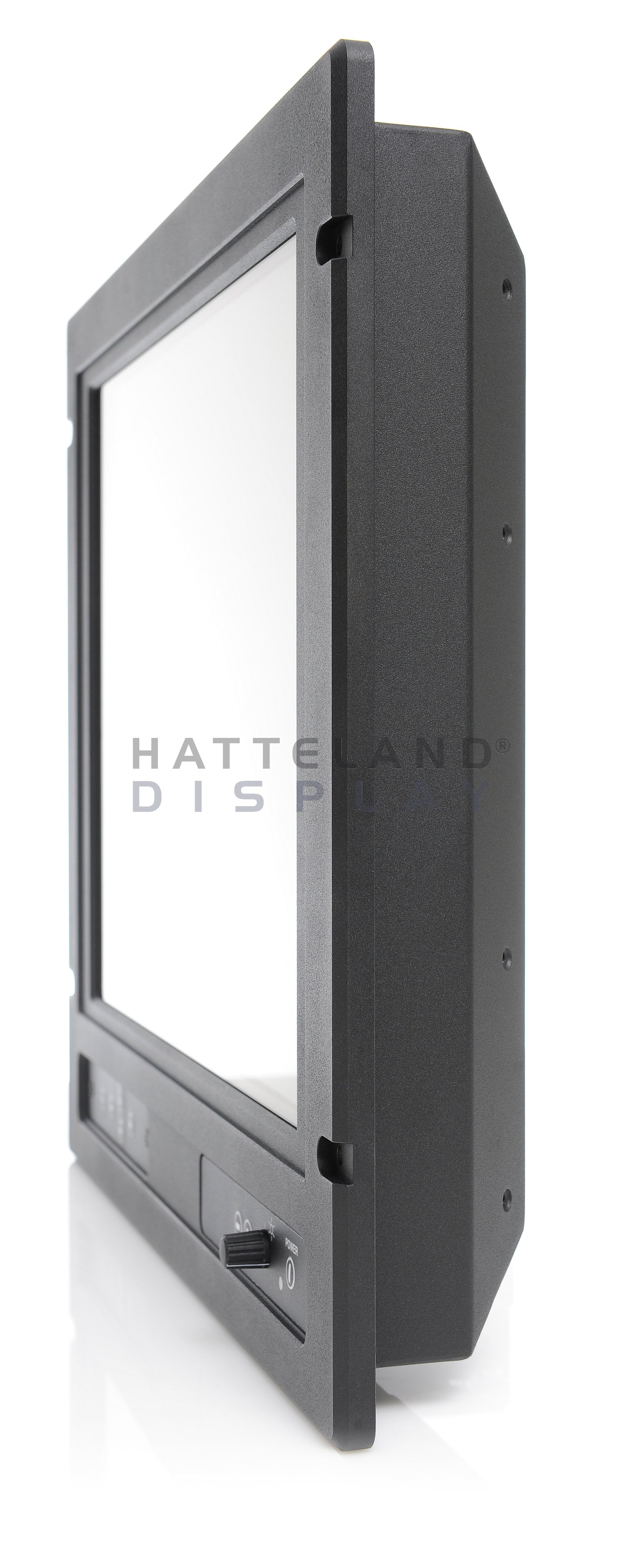

User Controls and Activity:	On front bezel: • Power On/Off (push button) • Brightness Control • 2 x hotkeys • Mode Status LED Behind hatch: • On Screen Display control (OSD/OSM)

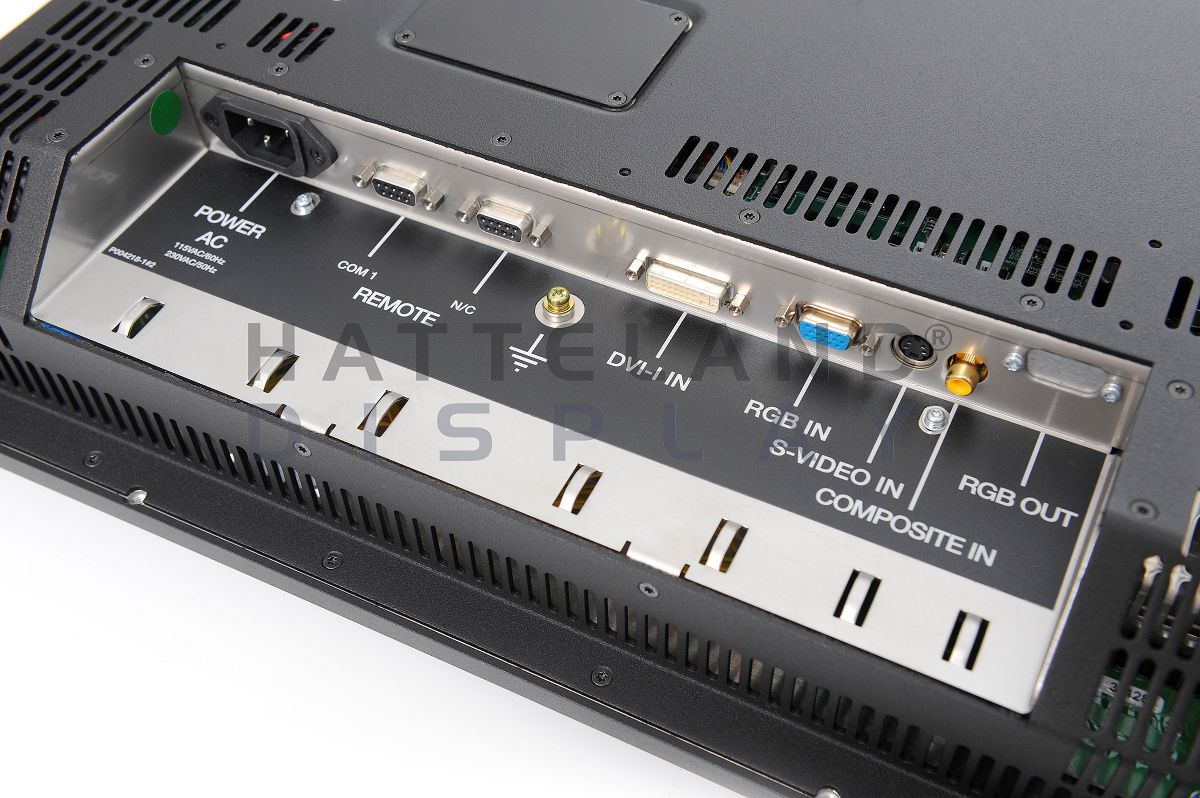

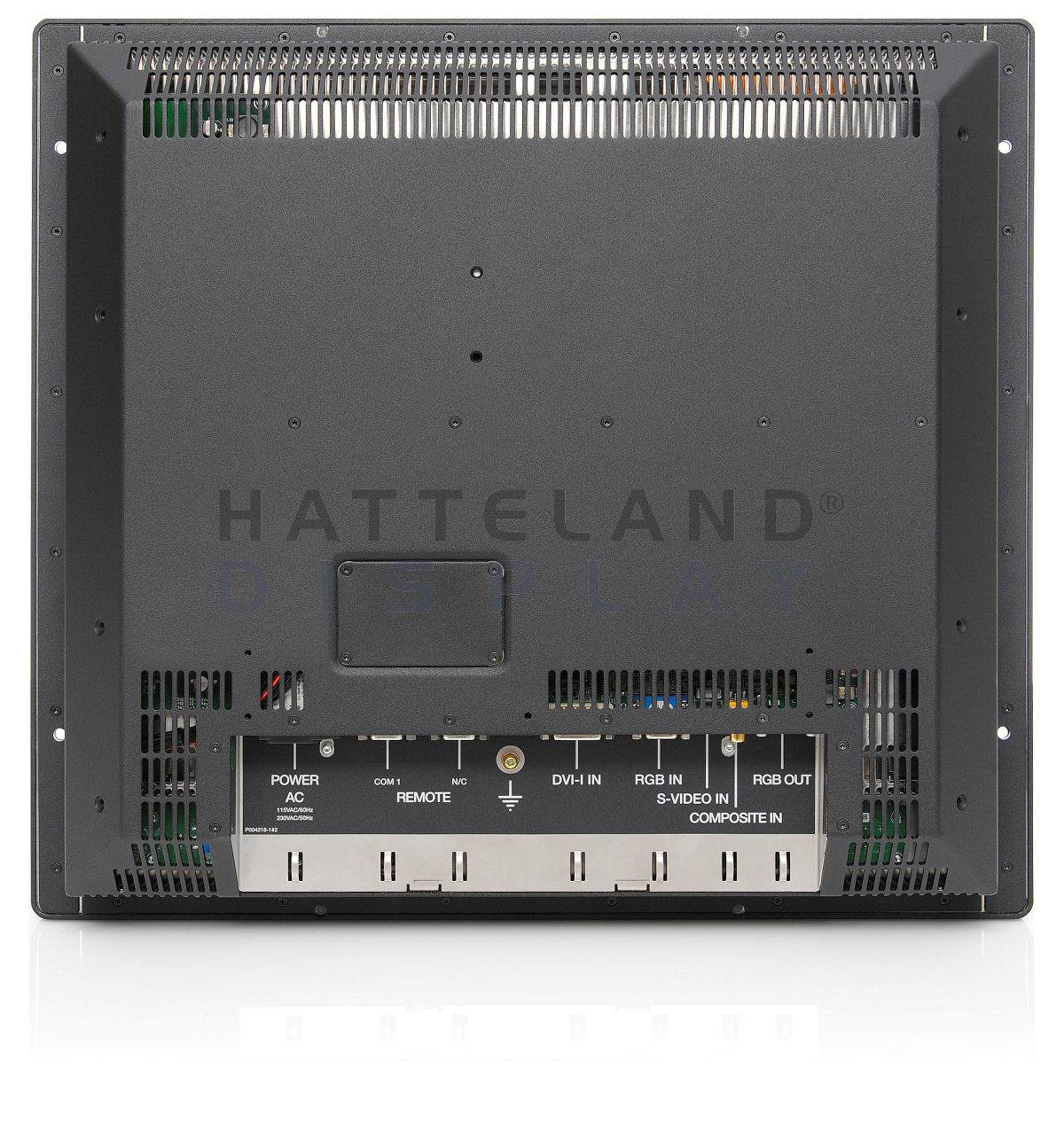

Connectors:	• DVI-I (PC) signal: DVI-I Input 29pin Connector • RGB (PC) signal: 15pin mini D-SUB (female - Input) • Composite Video: RCA Phono plug • S-Video signal: S-Video (SVHS) plug • AC Power signal: Std IEC Inlet Model JH 20T03 MMD-A1 • DC Power signal: Screw terminal Model JH 20T03 MMD-A2 • If Touchscreen: 1 x D-SUB 9P Connector (female) • If Remote Control: 2 x D-SUB 9P Connectors (female)

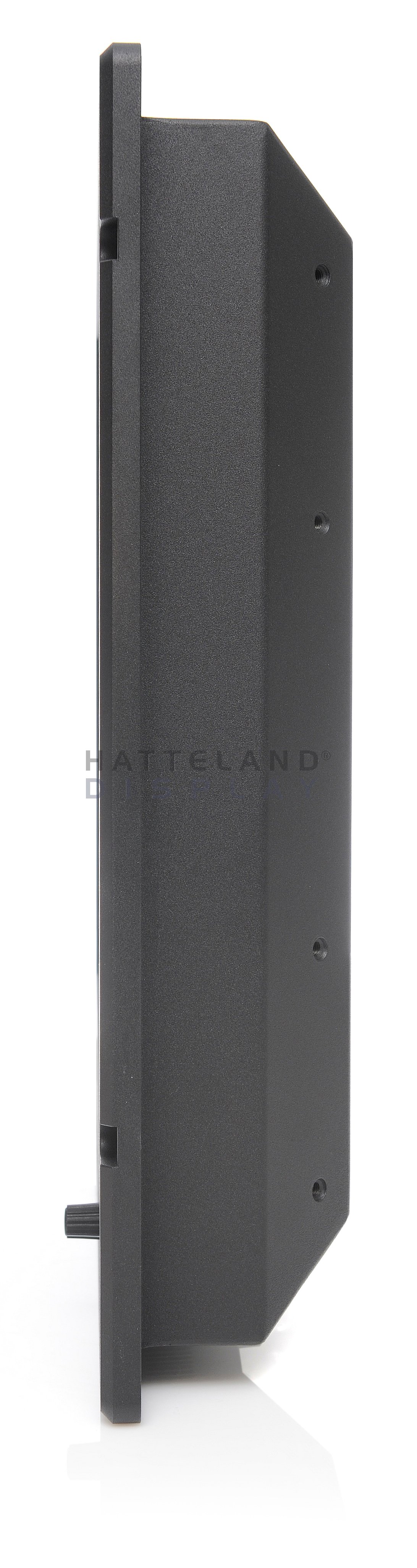

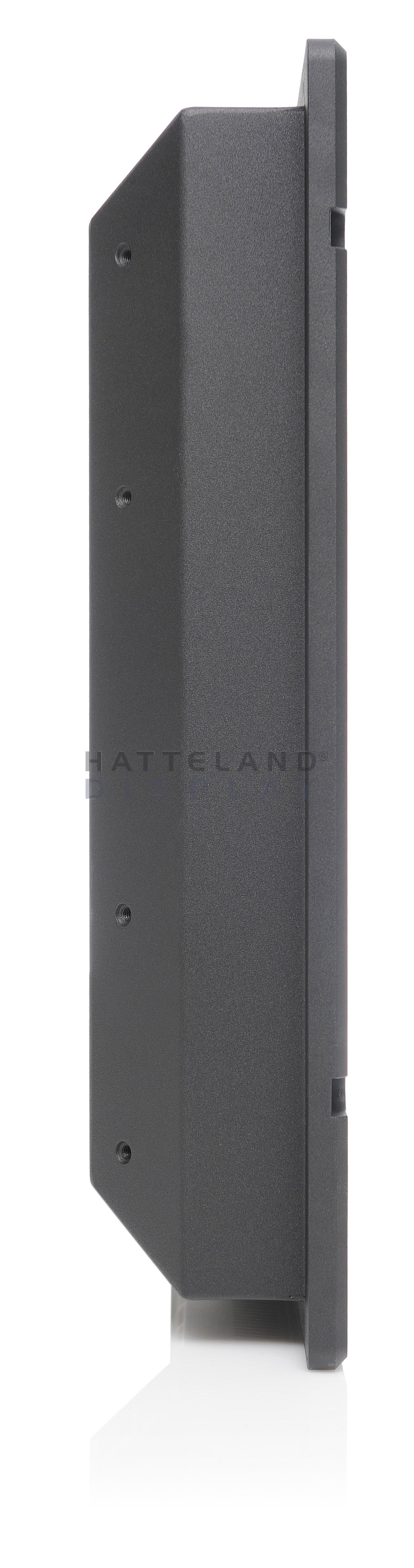

Product Dimensions and Weight:	534 (W) x 481 (H) x 93 (D) mm - 21.02" (W) x 18.94" (H) x 3.66" (D) • Weight: 14 kg (approx w/bracket)
Product Carton Size and Weight:	N/A
Factory Options:	• Color Calibrated models (ECDIS) • AC or DC model • Resistive or Capacitive Touch Screen • Video Buffer (JH VBUF)

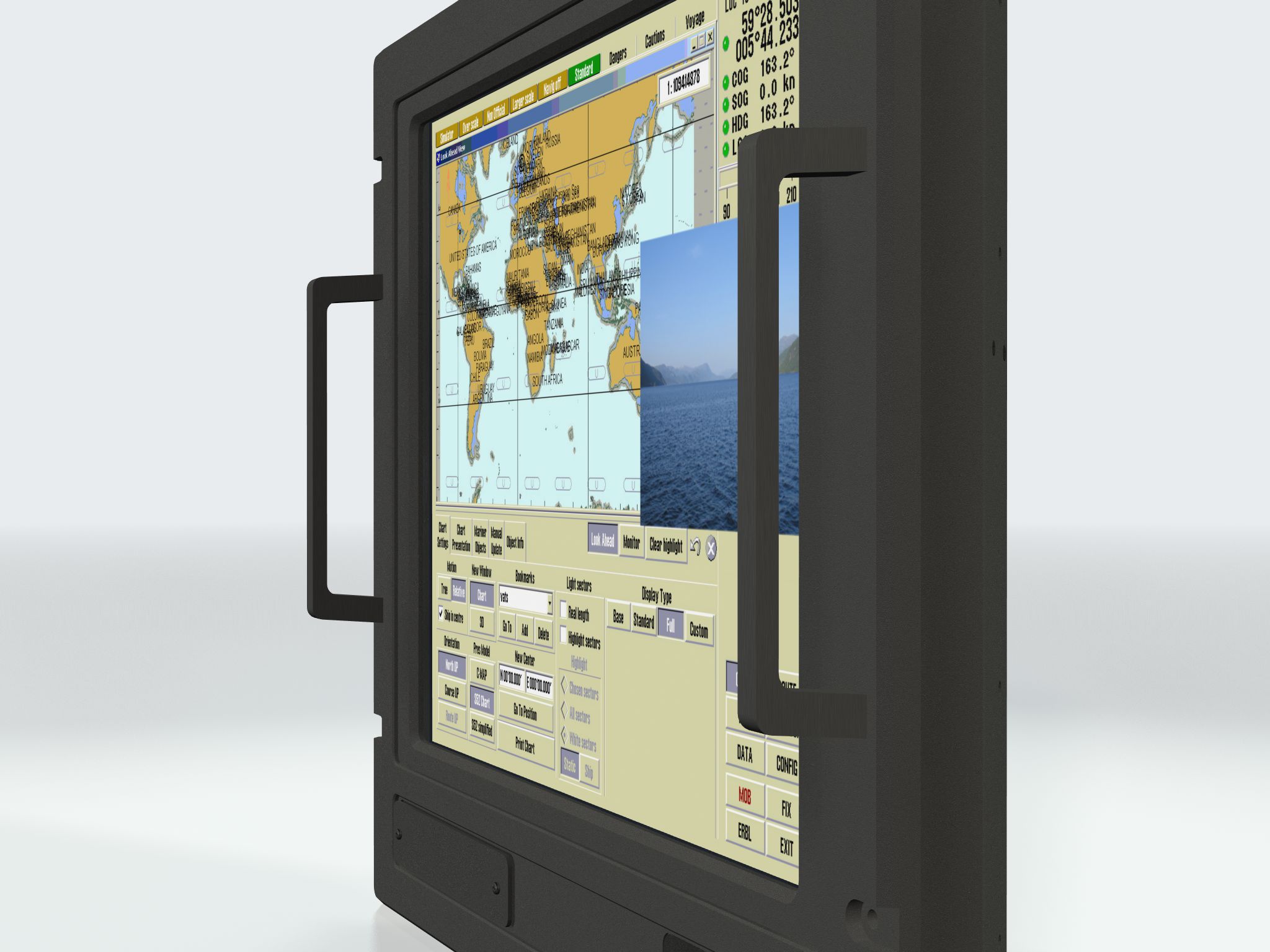

Accessories:	• JH MMD BR = Bracket • JH MMDRO = Rotary Bracket • JH 20TSV = Sun Visor • JH VESA 20T03 = Vesa Bracket • JH SCOM = Remote Control • JH XPR-A1 = External Power Relay
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to +55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to +60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	EN60529 (IP66) (Applies for flush mounting)
Compass Safe Distance:	Standard: 200.00 [78.74"] - Steering: 135.00 [53.15"] cm [inch]
Type Approval, Testing and Certificates:	EN60945 3rd (IEC945 3rd), LRS - Lloyd's Register of Shipping (1,2), ClassNK - Nippon Kaiji Kyokai (1,2), ABS - American Bureau of Shipping (1,2), GL - Germanischer Lloyd (1,2), DNV - Det Norske Veritas (1,2), BV - Bureau Veritas (1,2), EN61174 (IEC1174) - Bundesamt für Seeschiffahrt und Hydrographie (BSH) (1), RS - Russian Maritime Register of Shipping (1,2) 1=AC Version, 2=DC Version

Specifications last updated: August 18, 2025 @ 08:00

Type Approvals

Downloads

Accessories

Engineering Change Notifications (ECN):

28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

10 Dec 2010
Printed User Manual and Driver CD/DVD

15 Oct 2010
Revised packaging for Series 1 products

4 Nov 2008
Firmware update OSD MENU for Maritime Multi

2 Mar 2007
The Chipsets on the Video Controller (for MMD Series 1)...

13 Sep 2006
RoHS compliant touchscreens from our suppliers for

13 Dec 2005
Change of Surface Treatment on certain products

9 Sep 2005
Upgraded Video Controller for MMD series

26 May 2003
VGA Controller board upgraded to support DVI on all new...

End of Life Notifications (EOL):

13 Dec 2010
JH 20T03 MMD

Service Memo Notifications (SM):

24 Jan 2008
Information about potentional "no picture" failure for ...

News Stories:

31 Oct 2003
MMD and STD range now IP 66 compliant

19 Mar 2003
Our products are now approved by Bureau Veritas (BV)
