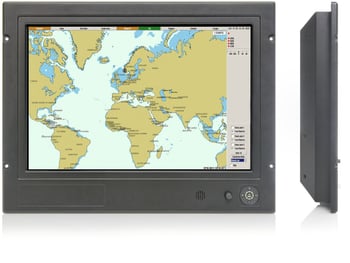

Monitor - Widescreen - CCFL - HATTELAND® Series 1 G1 - 22.0 inch

JH 22T11 MMD

The Series 1 Maritime Multi Display Widescreen (MMD) uses fewer cable connections than the previous generation, which increases reliability whilst reducing component costs. All models can be delivered with either AC or DC input as standard and connections include DVI-I in, VGA out, VGA in, IEC inlet, IEC outlet and USB I/O.

Widescreen

CCFL-backlit

Send Request

Description

Specifications

Typenumber (Long):	JH 22T11 MMD-xxx-Axxx
TFT Technology:	Active Matrix, Thin Film Transistor (TFT), RGB Vertical Stripe
Viewable Size and Active Area:	22.0 inch - 473.76 [18.65"] (H) x 296.10 [11.66"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1680 x 1050 (WSXGA) - 0.282 (H) x 0.282 (V) mm
Aspect Ratio and Response Time:	16:10 - 20ms (typ)
Light Intensity and Contrast Ratio:	300 cd/m² (typ) - 1000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1680 x 1050 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1680 x 1050
Composite Video Input(s):	With Multifunction Cable
Supported Video Signals:	SVHS&COMPOSITE Compatible
Product Features:	PBP (Picture By Picture), PIP (Picture In Picture), Dimmable 0-100% Multi-power AC&DC, Multifunction Connector, Hotkey Functionality
Power Specifications and Consumption:	Multi-power 100-240V AC - 50/60Hz + 24 VDC or Single-power 100-240V AC - 50/60Hz 85W (typ) - 156W (max)
User Controls and Activity:	Power On/Off + On Screen Display Menu (push button), rightness Control, Hotkeys (left/right - push buttons), Mode Status Illuminated LED-Ring Indicator OSD Key Codes: 321=Get access to OSD, 158=Advanced Mode
Connectors:	• DVI IN: 1 x DVI-I 29P (female) • VGA IN: 1 x HD D-SUB 15P (female) • VGA OUT: 1 x HD D-SUB 15P (female) • Multifunction: 1 x D-SUB 160P (female) • USB: 1 x Type B (female) • AC Power IN: 1 x Std. IEC inlet • AC Power OUT: 1 x Std. IEC outlet (5A max) • If DC Power IN: 1 x 2P D-SUB (male) Amphenol FCC17
Product Dimensions and Weight:	W:572.50 [22.54"] x H.444.00 [17.48"] x D:82.00 [3.23"] mm [inch] Approx 14.50kg / 31.9lbs
Product Carton Size and Weight:	L:720.00 [28.35"] x W:220.00 [8.66"] x H:685.00 [26.97"] mm [inch] 16.0kg / 35.2lbs
Factory Options:	• Capacitive Touchscreen (requires Optical Bonding Technology) • Optical Bonding Technology • Color Calibrated models (ECDIS) • Keypad only or Keypad+Potmeter+Buzzer controls
Accessories:	Bracket (tilt up/down), EN60945 Tested Bracket (tilt up/down), Rotary Bracket (left/right), Sun Visor, VESA Bracket. Multifunction Cable Options: 1 x RS-232 COM or 1 x RS-232 COM + 3 x BNC Video In or 1 x RS-232 COM + 3 x BNC Video In + 1 x COM Touch
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance:	Standard: 160.00 [62.99"] - Steering: 90.00 [35.43"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IP66, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register, CCS - China Classification Society, EU-RO-MR - Mutual Recognition, KR - Korean Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
