 Marine & Offshore  / Monitor  / HATTELAND® Series 1 G1  / JH 26T11 MMD

JH 26T11 MMD

Overview

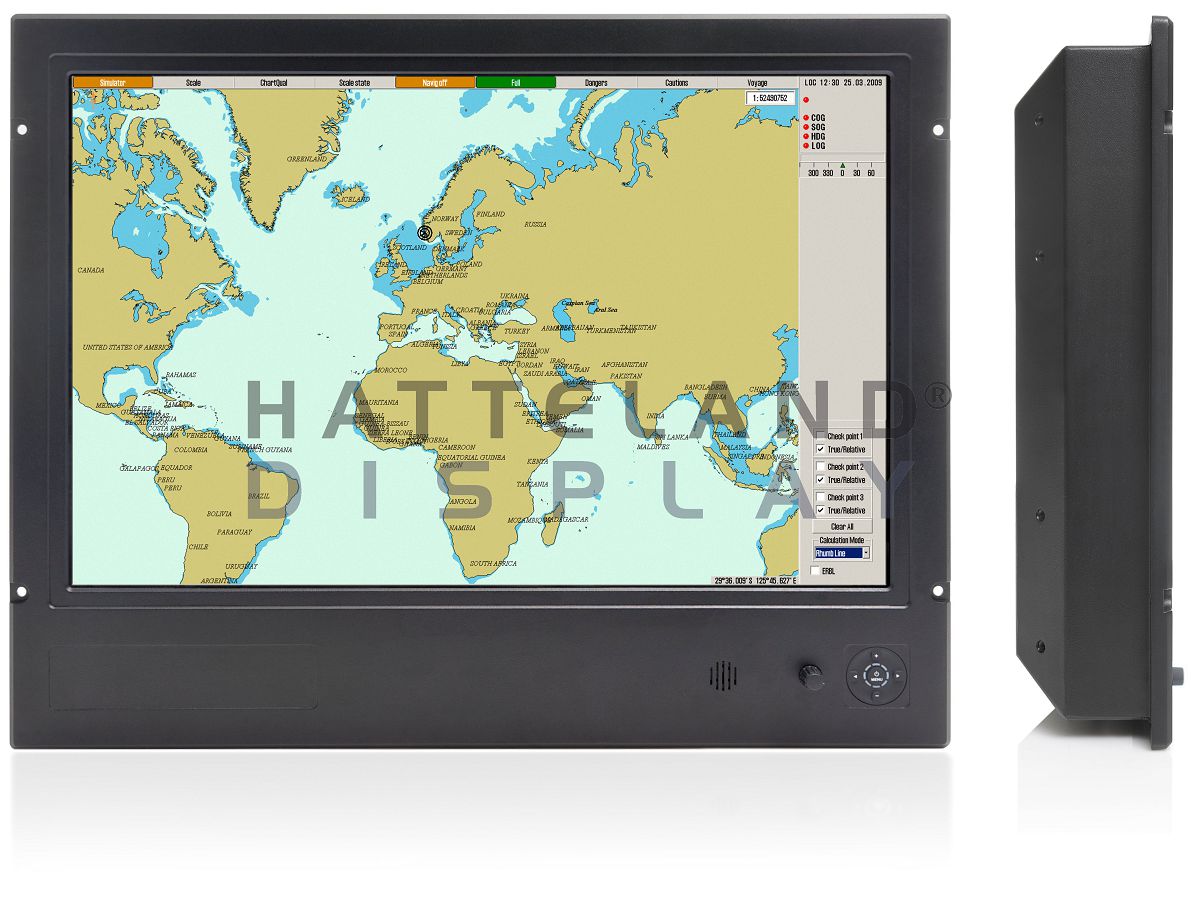

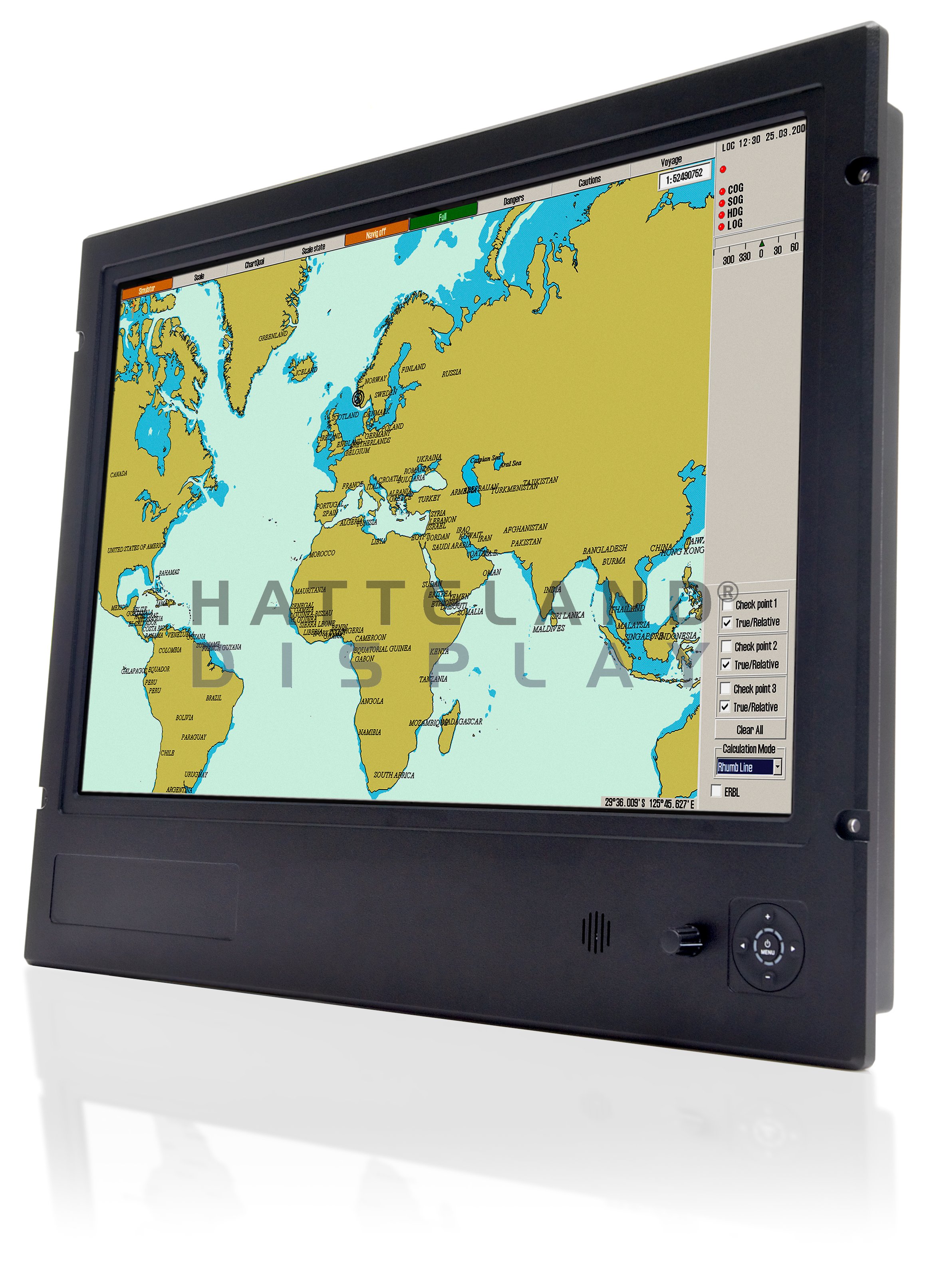

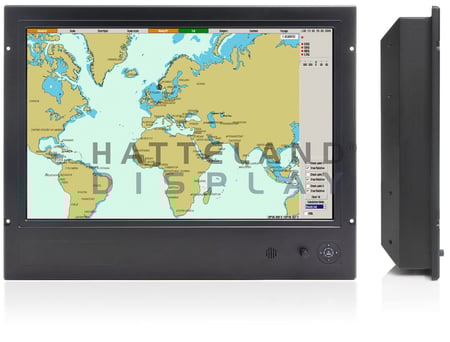

Monitor - Widescreen - CCFL - HATTELAND® Series 1 G1 - 25.54 inch

JH 26T11 MMD

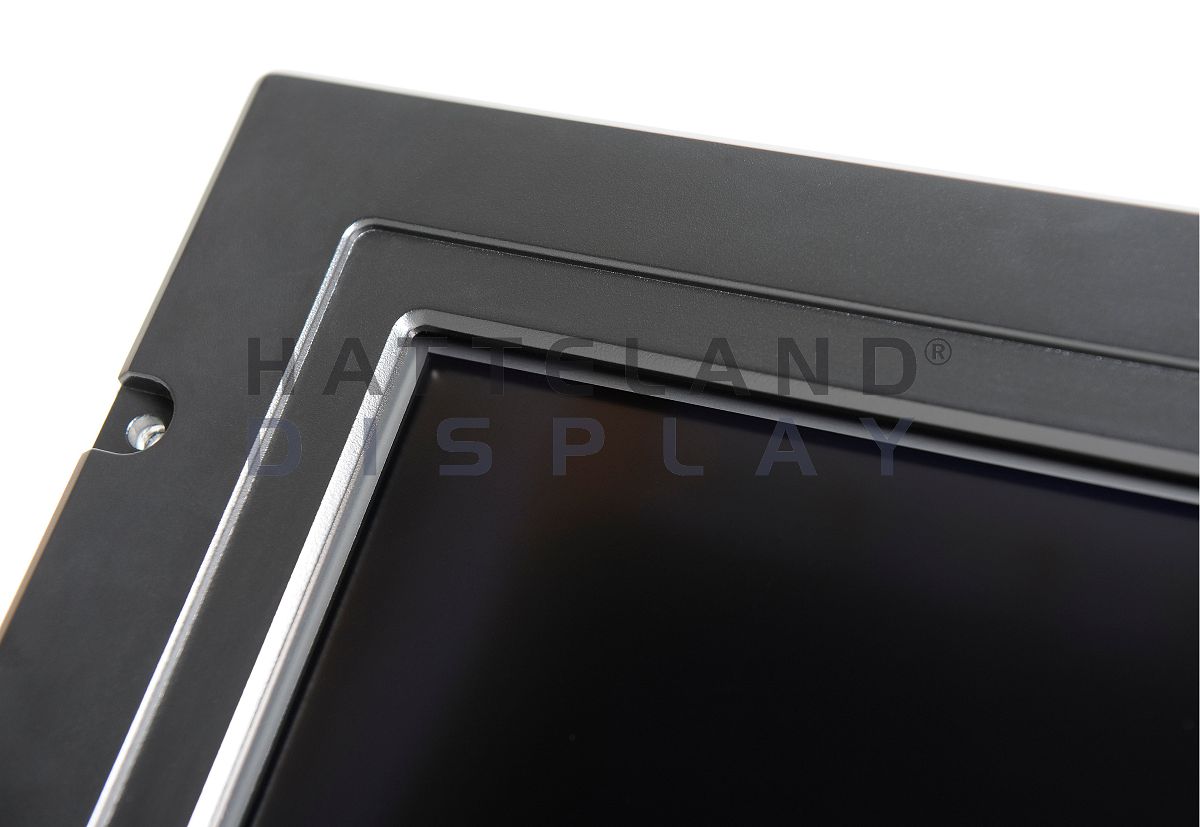

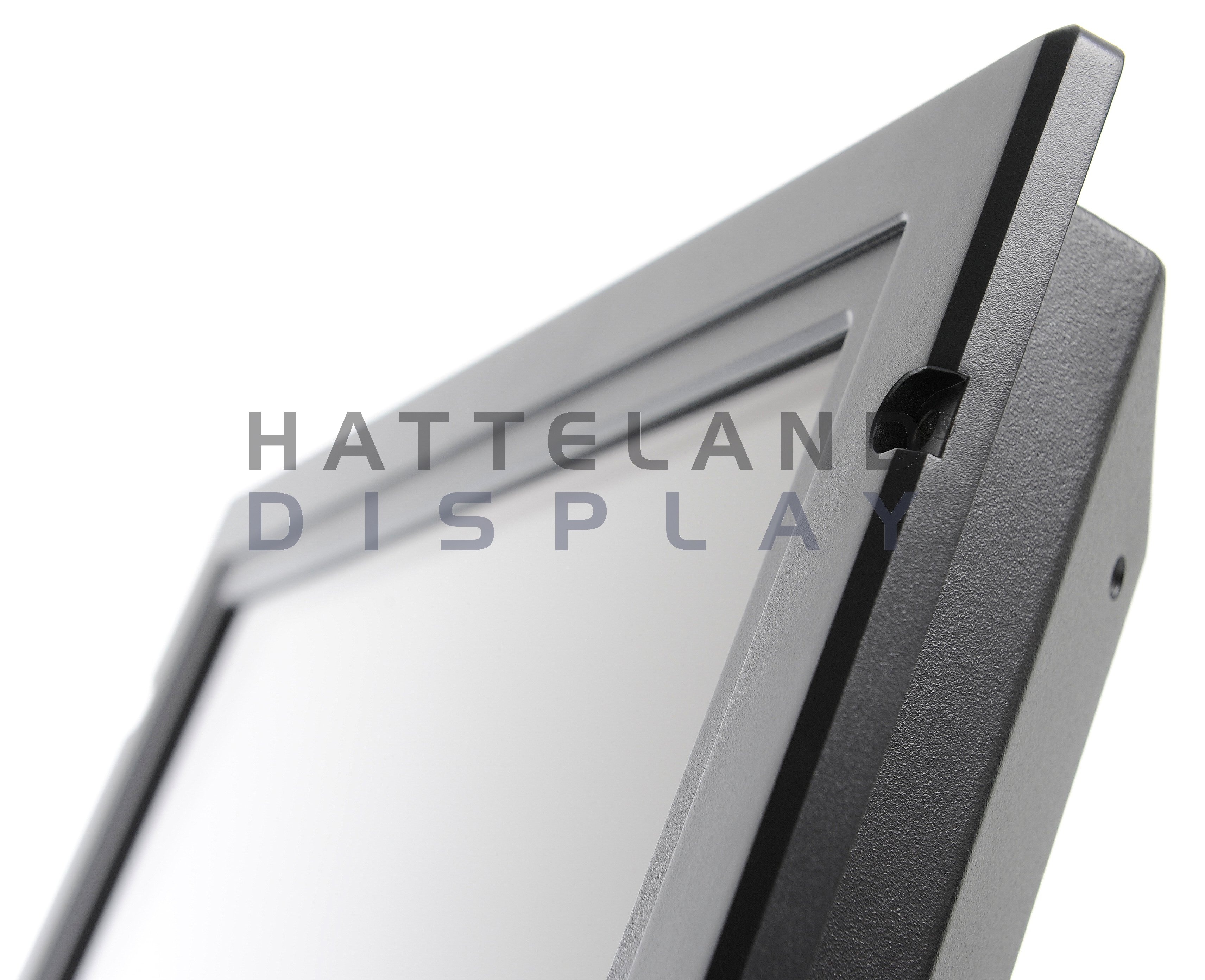

This Series 1 widescreen is by factory default optically bonded which ensures that the unit offers excellent viewing clarity and will not suffer from condensation or misting. Further, Optical Bonding Technology strengthens the monitor against impact, making it extremely durable in all conditions.

icon
Widescreen
icon
CCFL-backlit
Send Request
Description

Monitor - HATTELAND® Series 1 G1

Connections include DVI-I in, VGA out, VGA in, IEC inlet, IEC outlet and USB I/O. The Series 1 provide Picture-By-Picture (PBP) and Picture-In-Picture (PIP) functionality. The choice of power input can be AC only or Multi-power (AC and DC power input built in). Multi-power ensures that they are compatible with all power systems on all vessels. It will automatically switch to whatever power is connected, making it highly flexible for shipbuilders and system integrators alike.

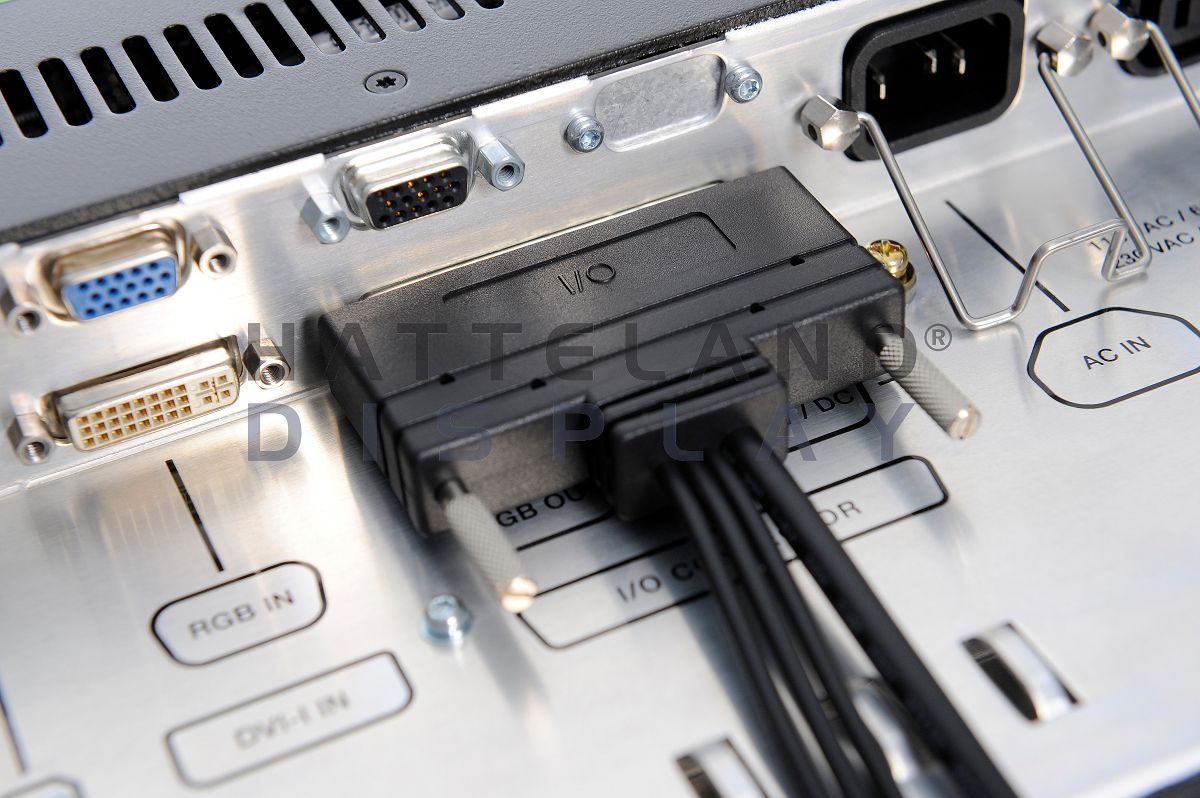

Signal input/output options can be increased upon request by using the Multifunction Connector, which allows the connection of many common signal types through a single cable connection, for common signals such as; Composite Video Input, Touch Screen and Serial Communication. By factory standards the unit is ECDIS Compliant.
Specifications
Typenumber (Long): JH 26T11 MMD-xxx-Axxx
TFT Technology: CCFL Backlight Technology, S-MVA, Active Matrix, Thin Film Transistor (TFT), RGB Vertical Stripe
Viewable Size and Active Area: 25.54 inch - 550.08 [21.66"] (H) x 343.80 [13.54"] (V) mm [inch]
Native Resolution and Pixel Pitch: 1920 x 1200 (WUXGA) - 0.2865 (H) x 0.2865 (V) mm
Aspect Ratio and Response Time: 16:10 - CCFL: 8ms (typ), LED: 20ms (Tr+Tf)
Light Intensity and Contrast Ratio: 350 cd/m² (typ) - 1500:1 (typ)
View Angle and Max Colors: 88 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz: 1920 x 1200 @ 60 Hz
Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1200
Composite Video Input(s): With Multifunction Cable
Supported Video Signals: SVHS&COMPOSITE Compatible
Product Features: Multi-power AC&DC, PBP (Picture By Picture), PIP (Picture In Picture), Multifunction Connector, Hotkey Functionality, Dimmable 0-100%
Power Specifications and Consumption: Multi-power 115/230VAC - 50/60Hz + 24 VDC
122W (typ) - 185W (max)

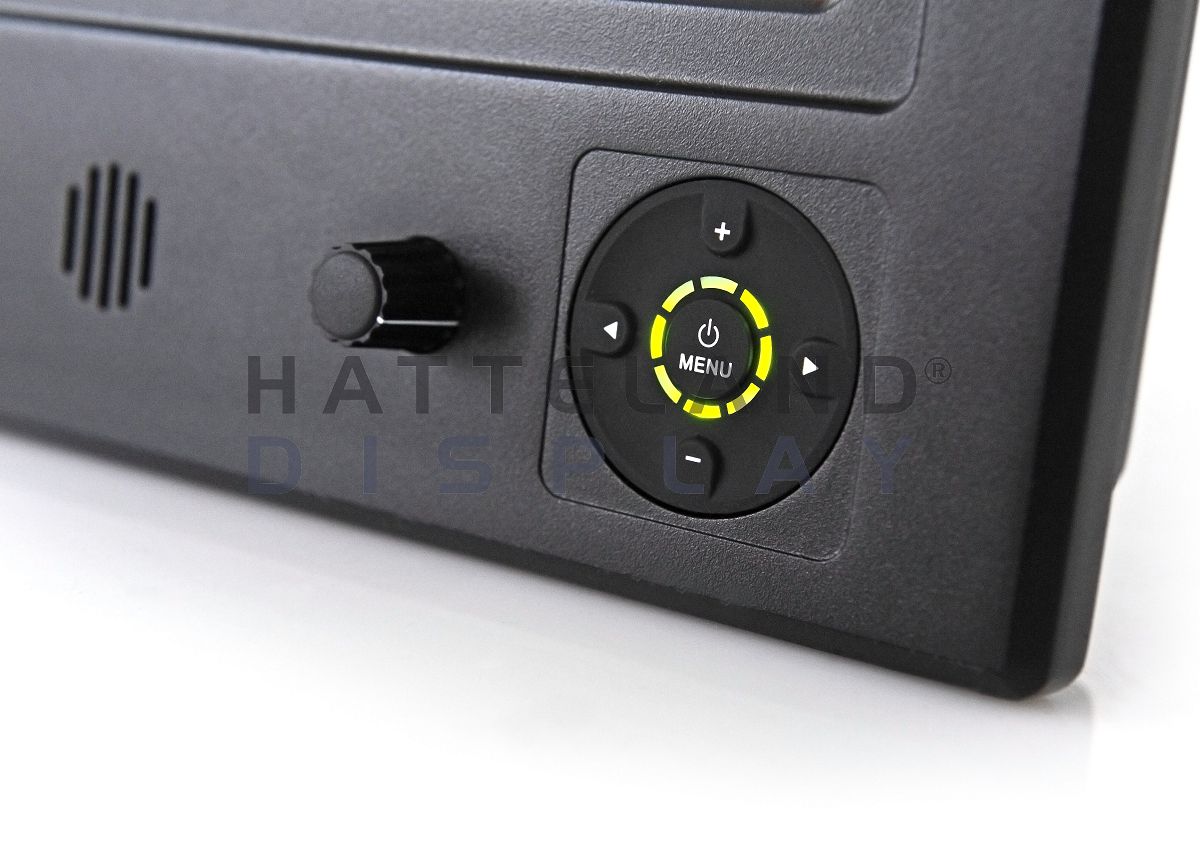

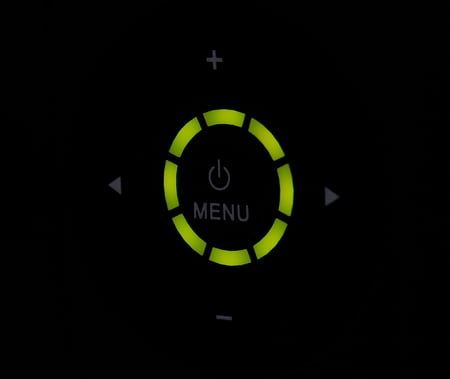

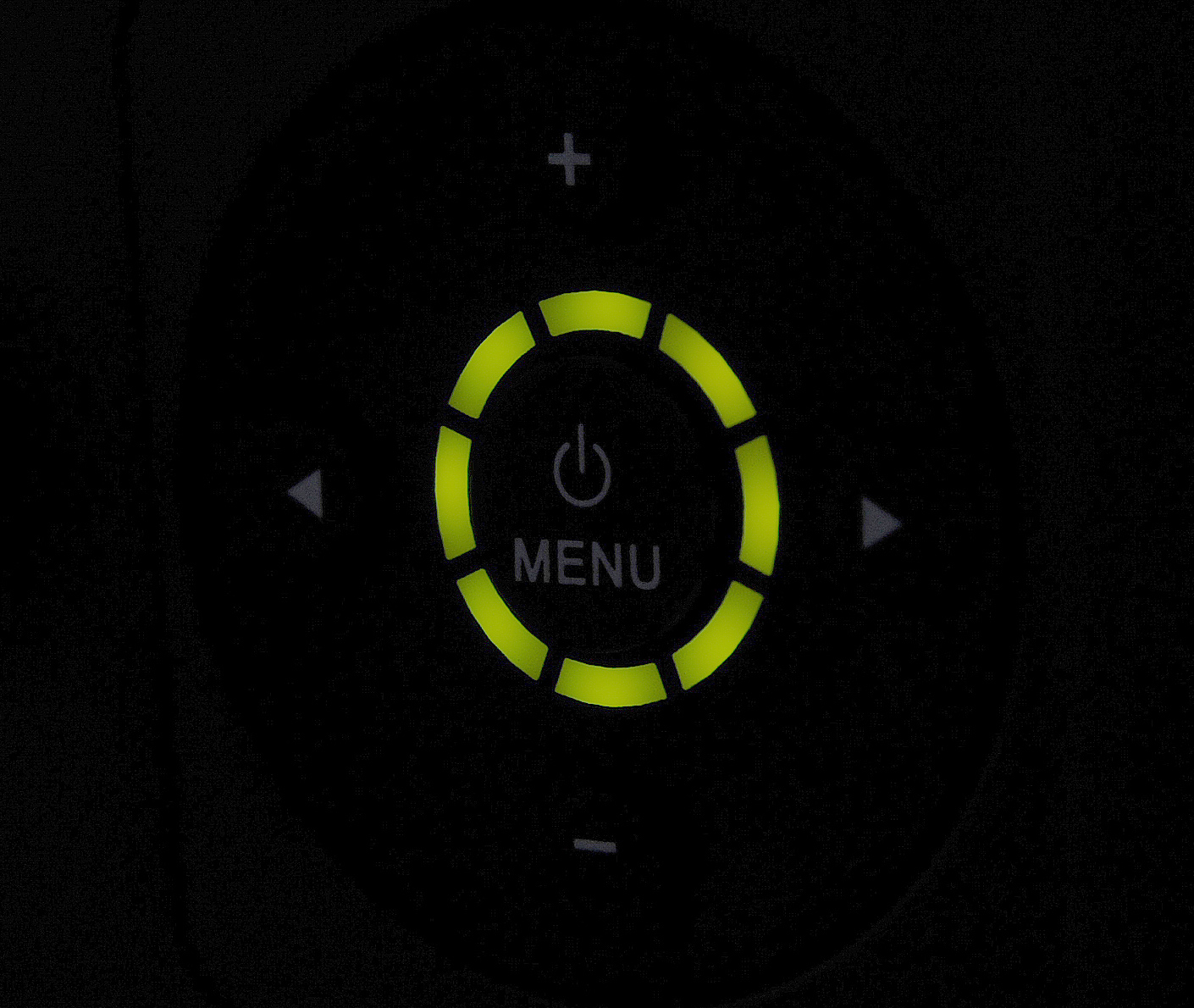

User Controls and Activity: Power On/Off + On Screen Display Menu (push button), Brightness Control, Hotkeys (left/right - push buttons), Mode Status Illuminated LED-Ring Indicator

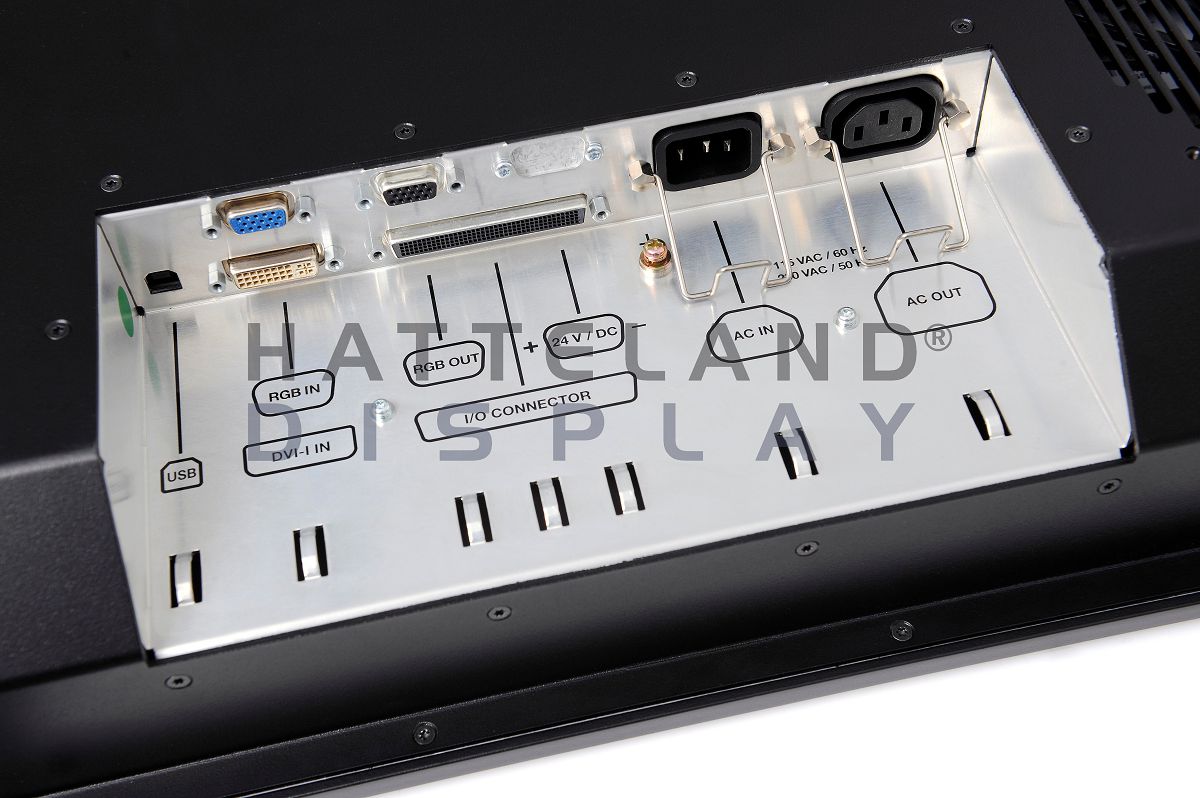

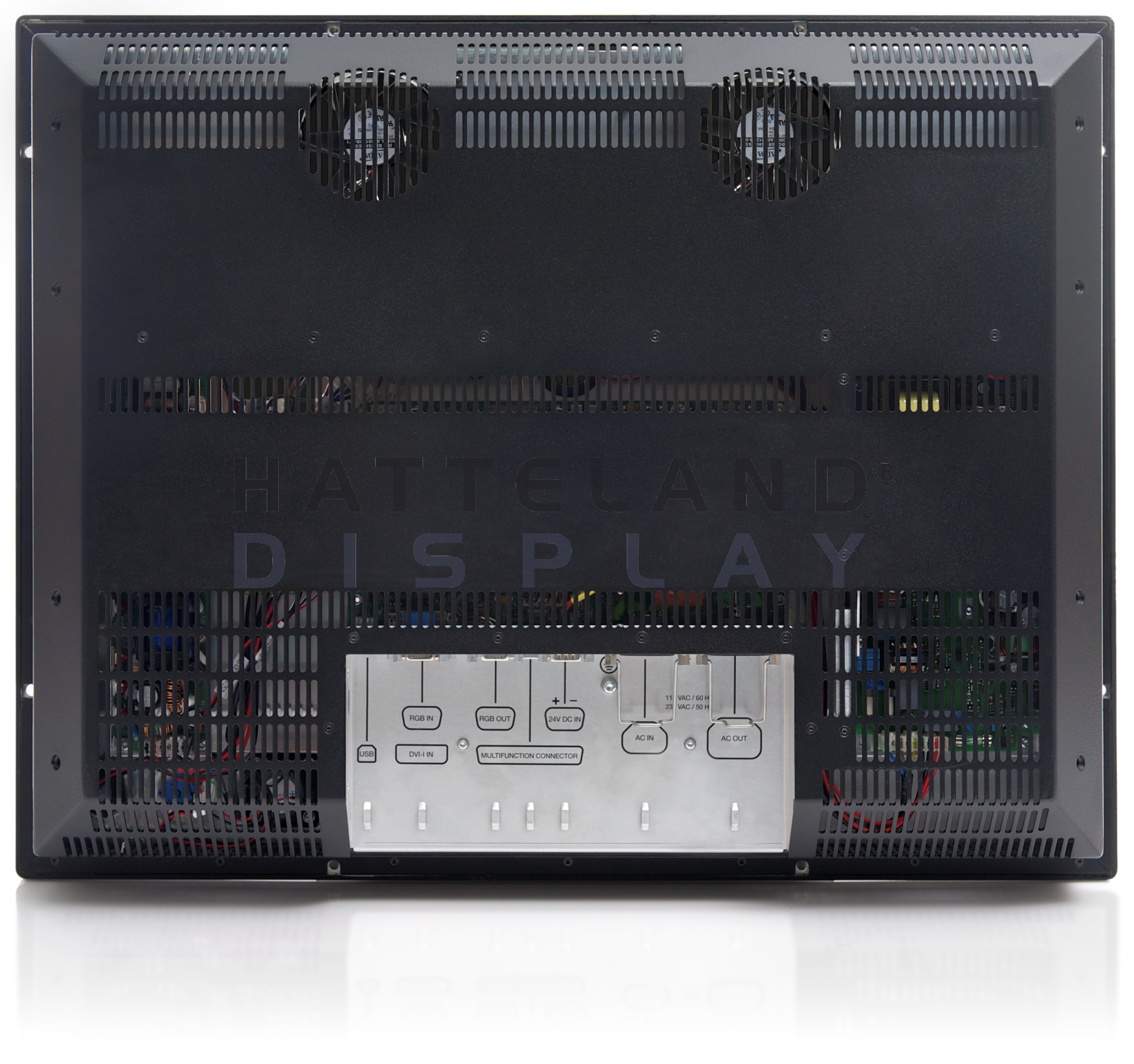

Connectors: • DVI IN: 1 x DVI-I 29P (female)
• VGA IN: 1 x HD D-SUB 15P (female)
• VGA OUT: 1 x HD D-SUB 15P (female)
• Multifunction: 1 x D-SUB 160P (female)
• USB: 1 x Type B (female)
• AC Power IN: 1 x Std. IEC inlet
• AC Power OUT: 1 x Std. IEC outlet (5A max)
• DC Power IN: 1 x 2P DSUB (male) Amphenol FCC17
Product Dimensions and Weight: W:635.00 [25.00"] x H:499.00 [19.65"] x D:101.50 [4.00"] mm [inch]
Approx 15kg / 33lbs
Product Carton Size and Weight: L:720.00 [28.35"] x W:200.00 [7.87"] x H:614.00 [24.17"] mm [inch]
18.0kg / 39.6lbs
Factory Options: • AC Power Input model Only
• Keypad only or Keypad+Potmeter+Buzzer controls
• Optical Bonding Technology
• Speaker / Buzzer
• Color Calibrated models (ECDIS)
• Capacitive Touchscreen
Accessories: • Cables = Custom Multifunction Cable to support more signals
• JH 26BRD STD-A1 = Mounting Bracket EN60945 Tested
• JH 26TBR STD-A1 = Mounting Bracket
• JH MMDRO STD-A1 = Rotary Bracket
• JH 26TSV STD-A1 = Sun Visor
• JH 26TAP STD-A1 = Adapter frame for HD 26T21 xxx, Series X)
• JH 26VED STD-A1 = Vesa Bracket
• JH 26TWC STD-A1 = Water Cover
Capabilities - Prepared for: N/A
Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature: -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating: Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance: Standard: 125.00 [49.21"] - Steering: 80.00 [31.50"] cm [inch]
Type Approval, Testing and Certificates: IEC 60945 4th (EN 60945:2002), IP66, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, EU-RO-MR - Mutual Recognition, LRS - Lloyd's Register

Shock: 5g/11ms
Vibration: 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m
Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
Specifications last updated: July 7, 2025 @ 10:01
Type Approvals
Downloads
Accessories

Latest Product Updates

Engineering Change Notifications (ECN):
28 Oct 2024
Changes packaging marking with UKCA symbol - all produc...

7 Aug 2023
Changes product marking - all products

9 Sep 2013
Firmware ECOM update for Maritime Multi Display Series ...

26 Feb 2013
26 inch Update - LED Backlight Technology implementatio...

20 Dec 2012
26 inch - LED Backlight Technology implementation

15 Nov 2012
New brightness potentiometer for Series 1

End of Life Notifications (EOL):
6 Jun 2014
SERIES 1 - JH 26T11 xxD has reached its

News Stories:
20 May 2011
26 inch ready for mass production!

24 Sep 2010
26 inch WUXGA, new product from Hatteland Display
