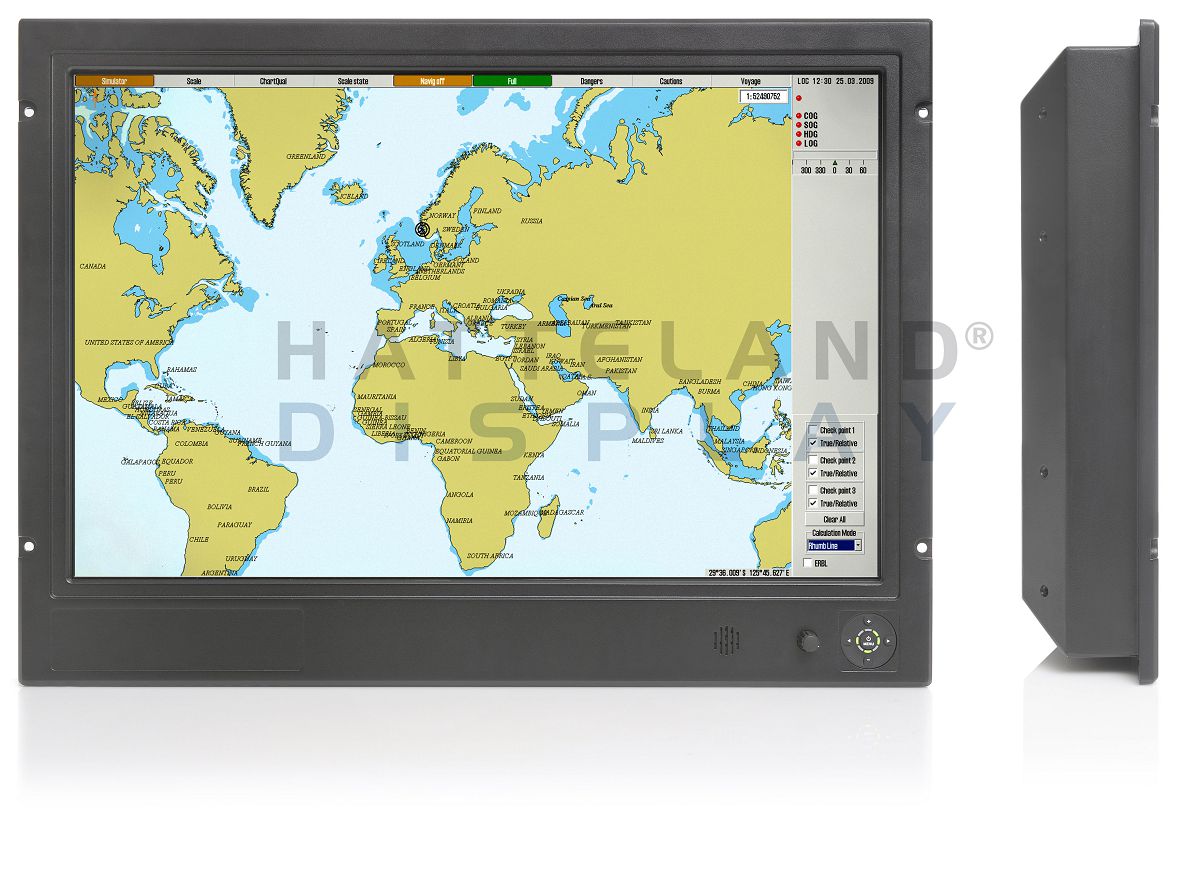

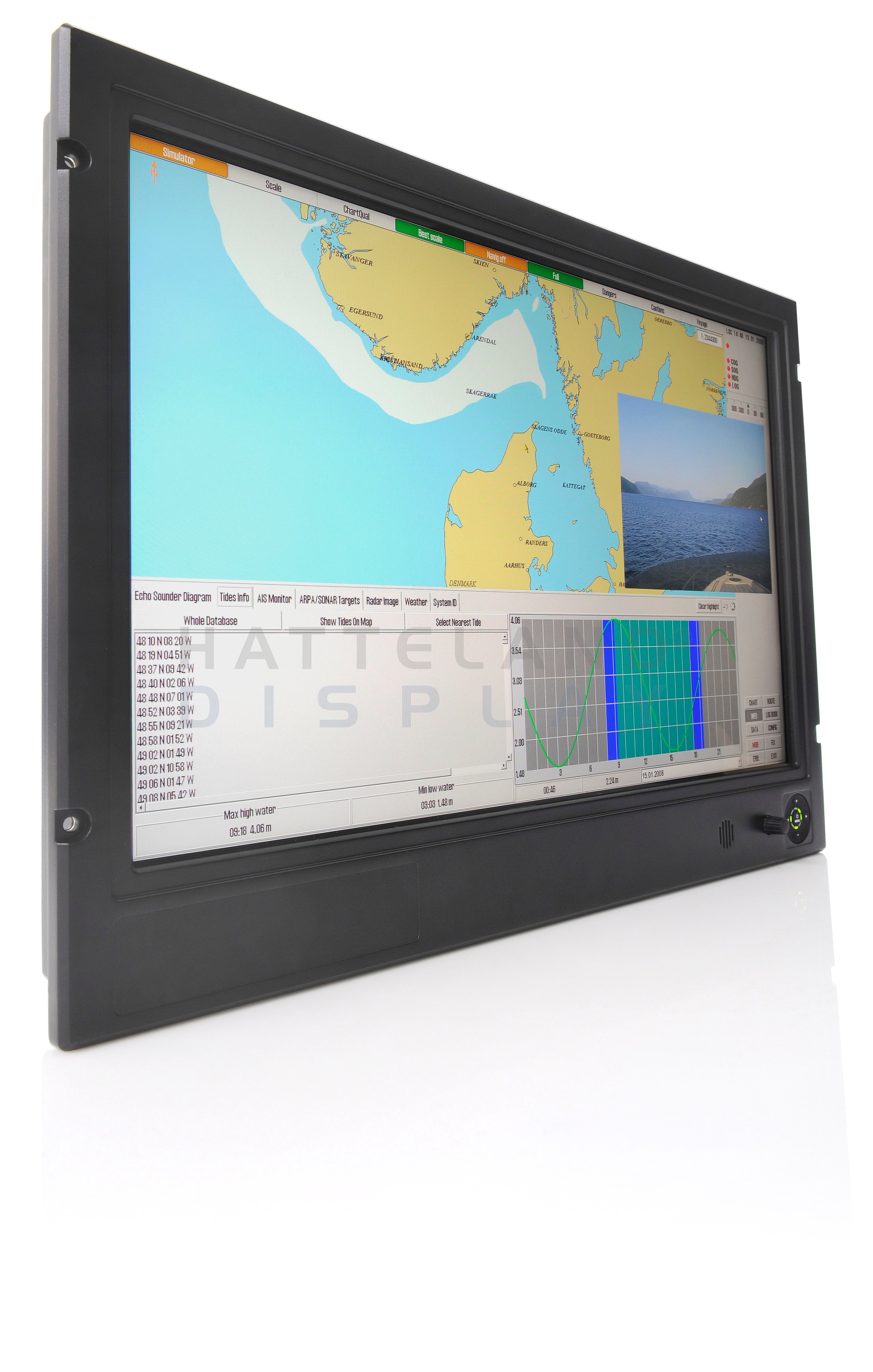

Monitor - Widescreen - CCFL - HATTELAND® Series 1 G1 - 27.0 inch

JH 27T11 MMD

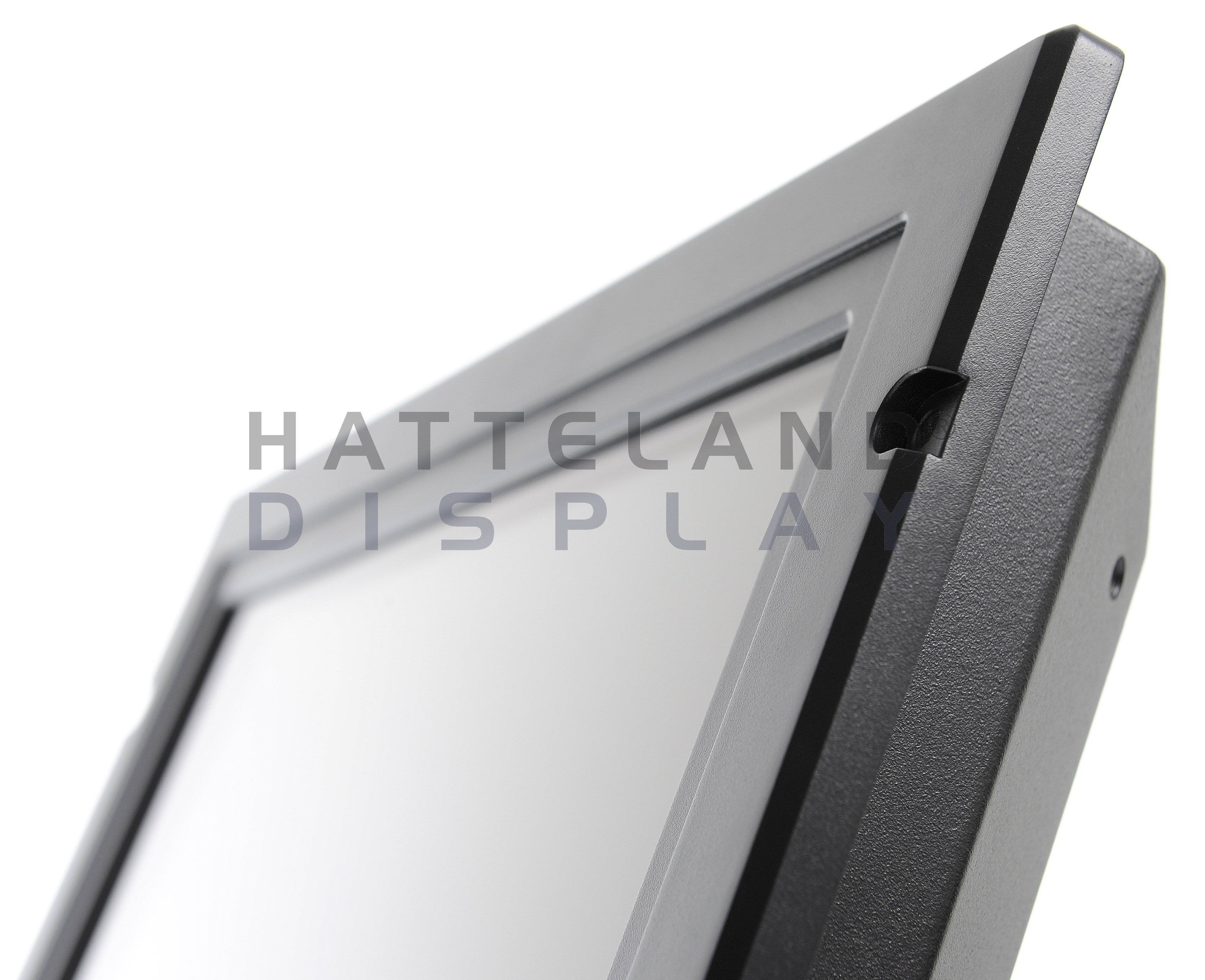

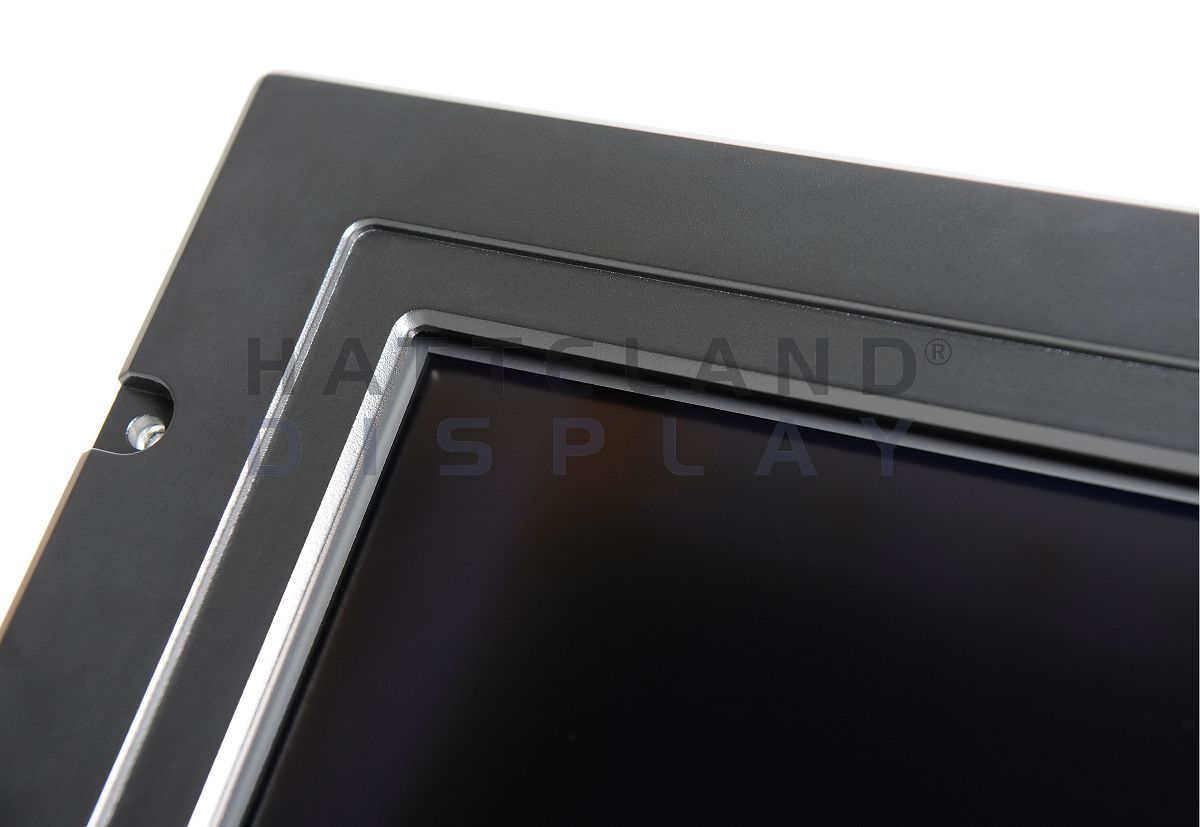

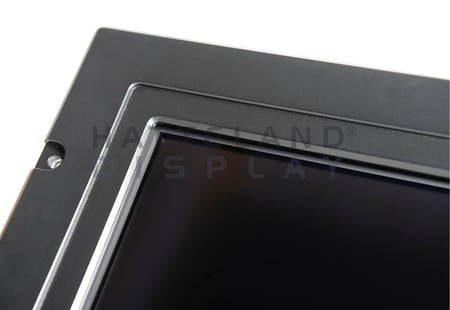

The Series 1 widescreen ensures that the unit offers excellent viewing clarity and will not suffer from condensation or misting with the optional Optical Bonding Technology. Further, bonding strengthens the monitor against impact, making it extremely durable in all conditions.

Widescreen

CCFL-backlit

Send Request

Description

Specifications

Typenumber (Long):	JH 27T11 MMD-xxx-Axxx
TFT Technology:	a-Si TFT (Thin Film Transistor) Active Matrix, SPVA (Super Patterned Vertical Alignment) mode
Viewable Size and Active Area:	27.0 inch - 581.76 [22.90"] (H) x 363.60 [14.31"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1920 x 1200 (WUXGA) - 0.303 (H) x 0.303 (V) mm
Aspect Ratio and Response Time:	16:10 - 6ms (typ)
Light Intensity and Contrast Ratio:	500 cd/m² (typ) - 1000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1920 x 1200 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1200
Composite Video Input(s):	With Multifunction Cable
Supported Video Signals:	SVHS&COMPOSITE Compatible
Product Features:	PBP (Picture By Picture), PIP (Picture In Picture), Multifunction Connector, Hotkey Functionality, Dimmable 0-100%
Power Specifications and Consumption:	115/230VAC - 50/60Hz - 200W (max)

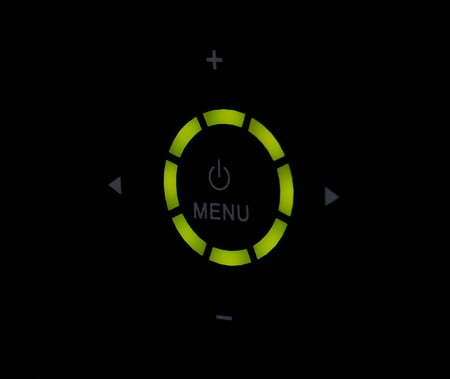

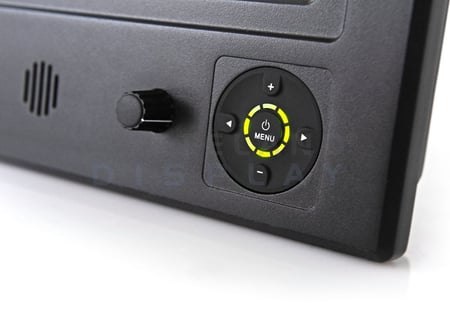

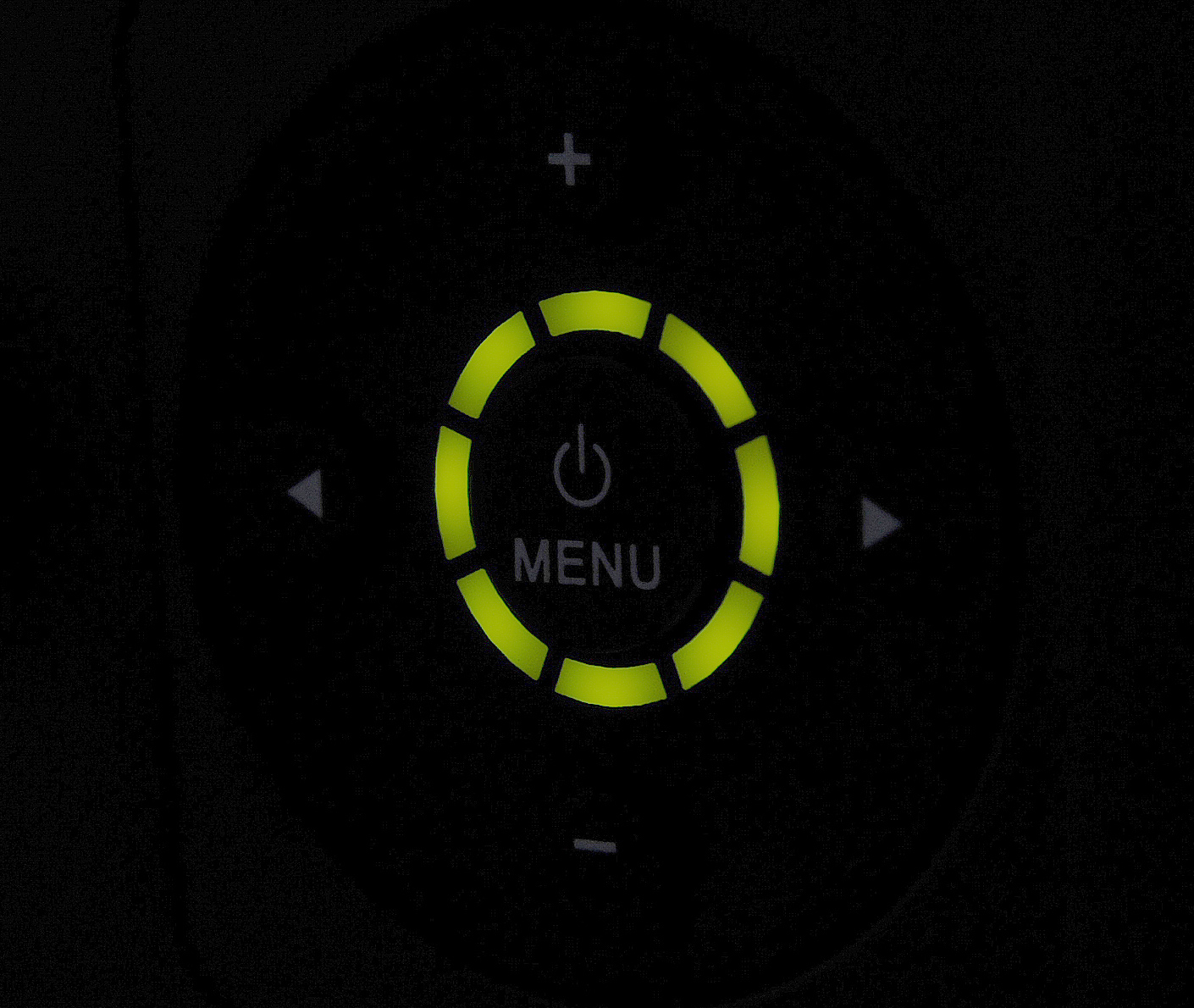

User Controls and Activity:	Power On/Off + On Screen Display Menu (push button), Brightness Control, Hotkeys (left/right - push buttons), Mode Status Illuminated LED-Ring Indicator

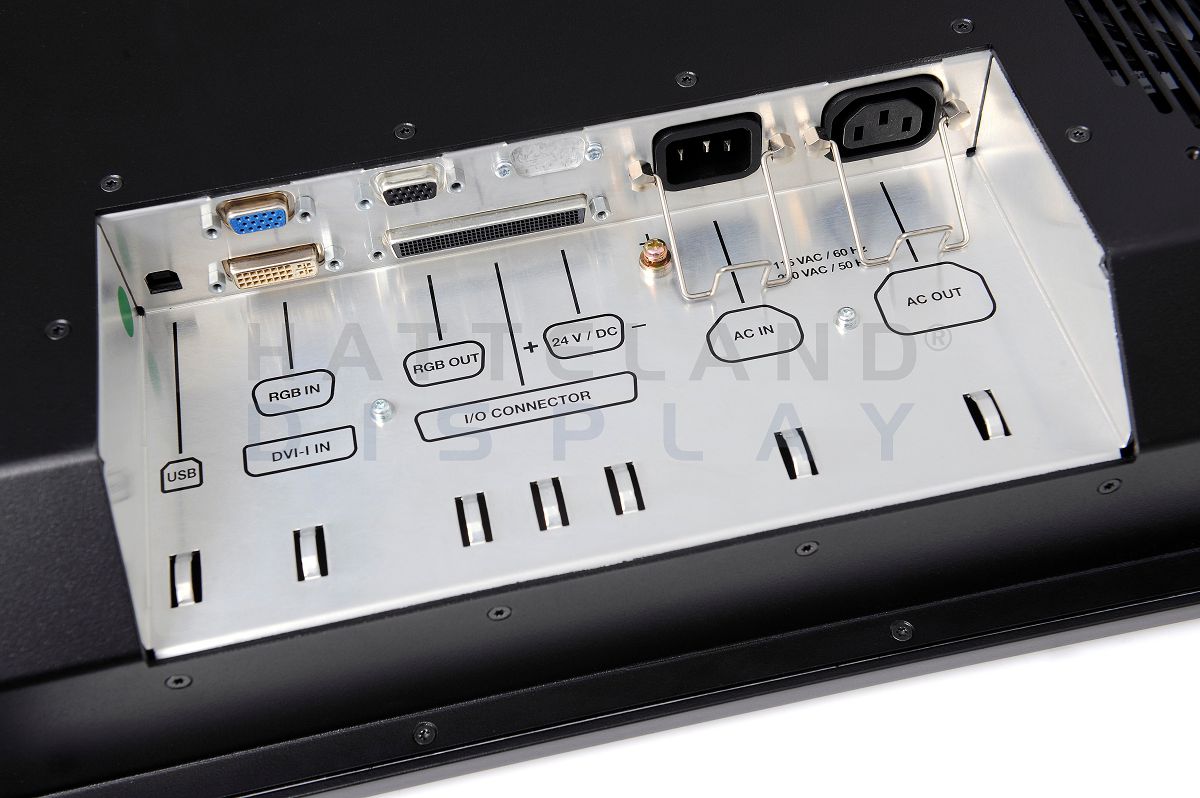

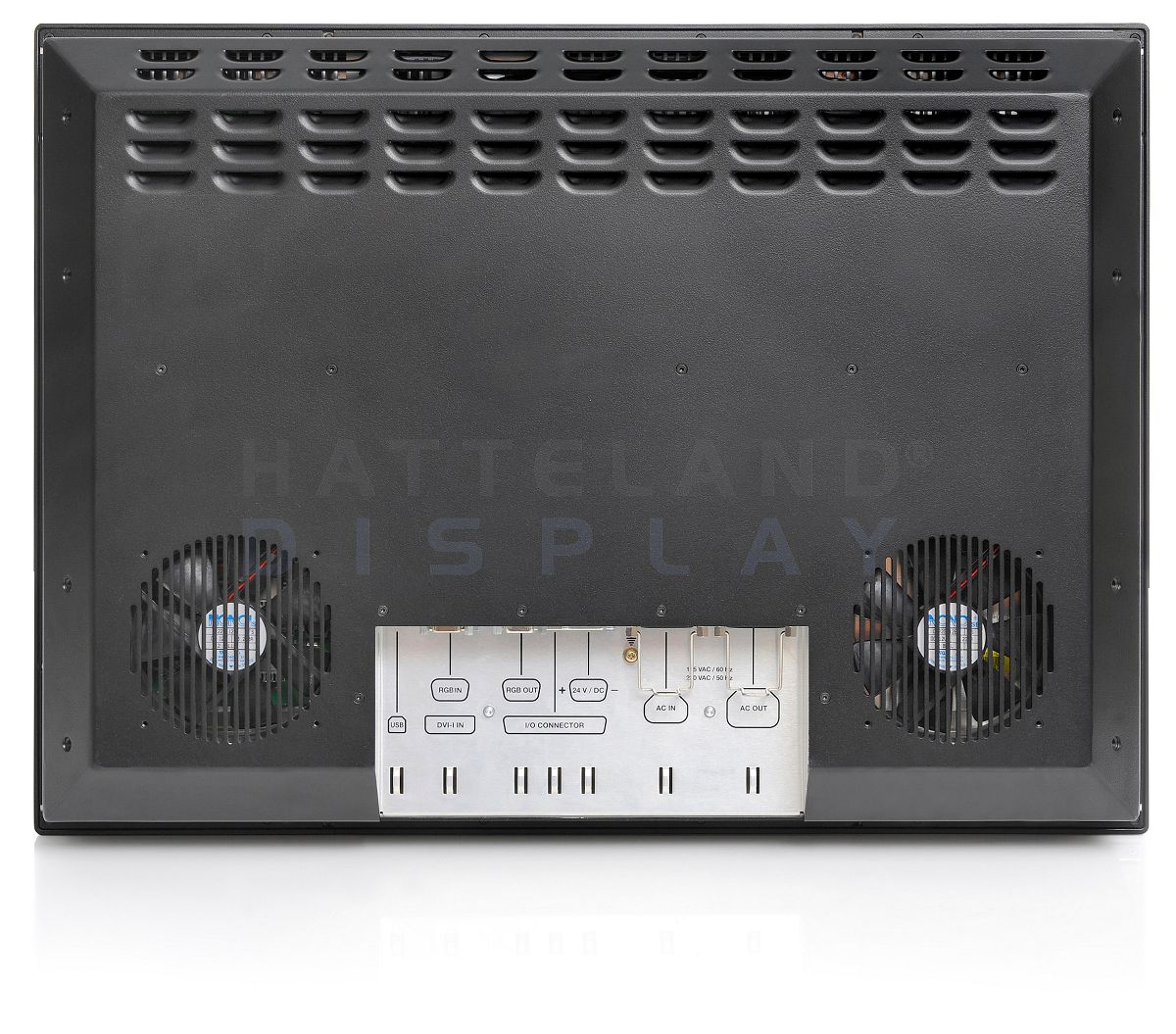

Connectors:	• DVI IN: 1 x DVI-I 29P (female) • VGA IN: 1 x HD D-SUB 15P (female) • VGA OUT: 1 x HD D-SUB 15P (female) • Multifunction: 1 x D-SUB 160P (female) • USB: 1 x Type B (female) • AC Power IN: 1 x Std. IEC inlet • AC Power OUT: 1 x Std. IEC outlet (5A max)

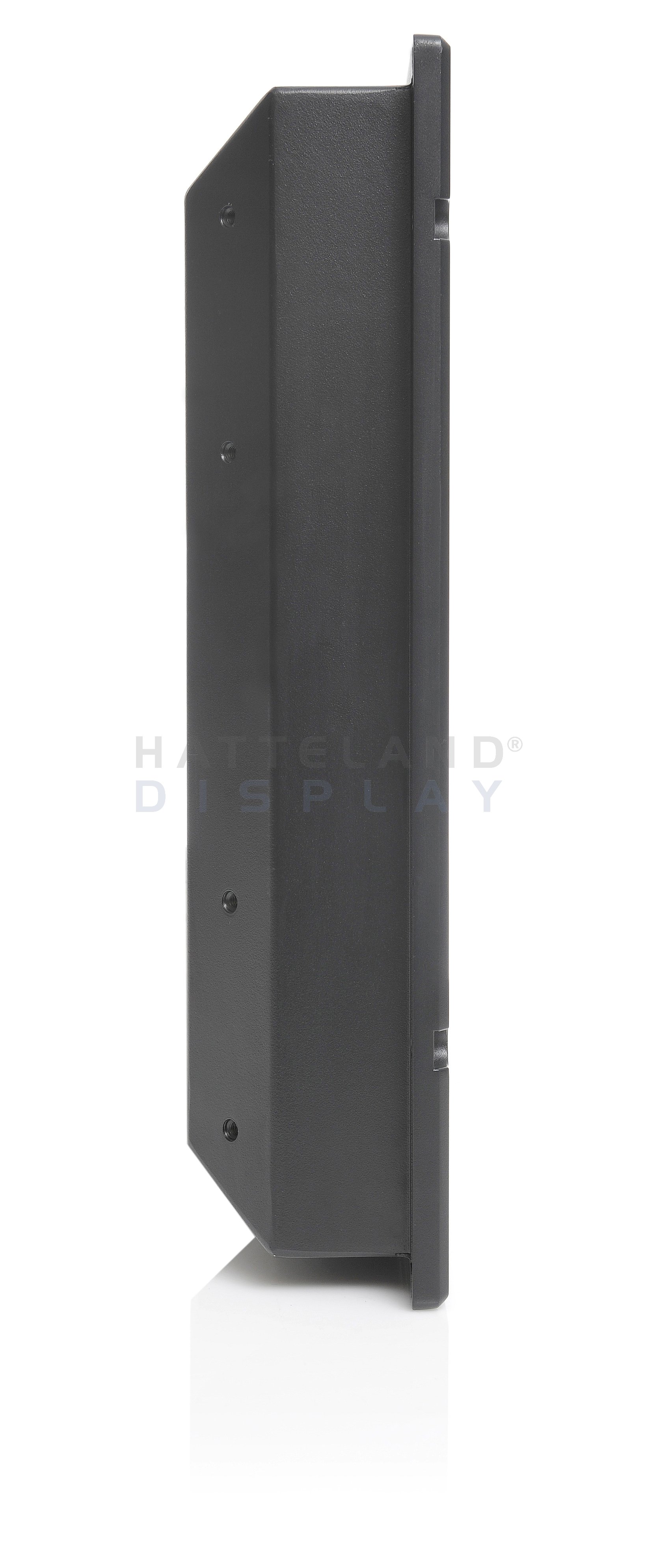

Product Dimensions and Weight:	W:660.00 [25.98"] x H:481.00 [18.94"] x D:101.50 [4.00"] mm [inch] Approx 16kg / 35lbs
Product Carton Size and Weight:	L:800.00 [31.50"] x W:250.00 [9.84"] x H:640.00 [25.20"] mm [inch] 18.0kg / 39.6lbs
Factory Options:	• Keypad only or Keypad+Potmeter+Buzzer controls • Optical Bonding Technology • Speaker / Buzzer • Color Calibrated models (ECDIS)

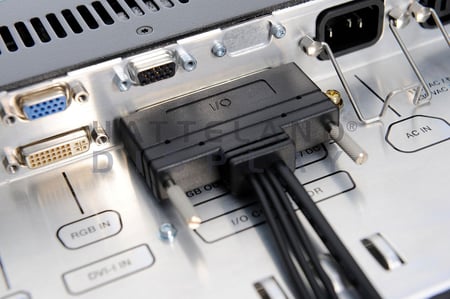

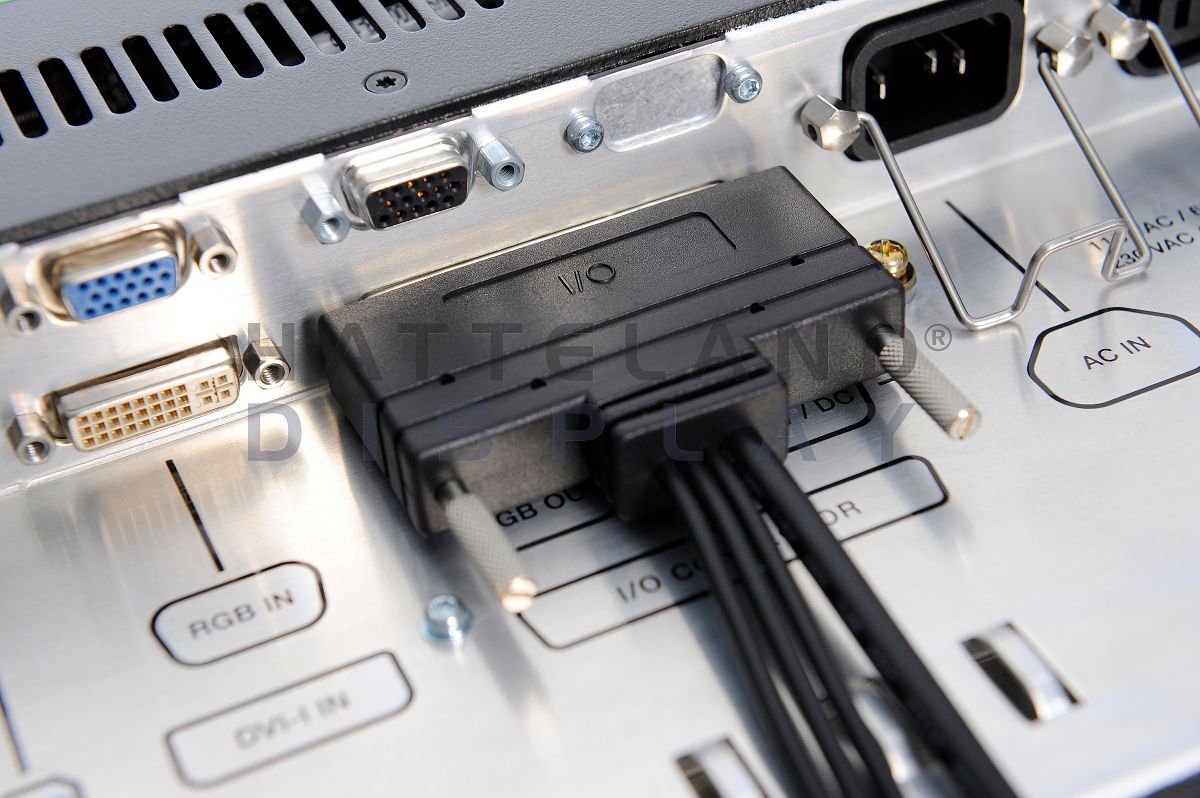

Accessories:	EN60945 Tested Table/Foot Bracket, Wall/VESA Bracket, Water Cover. Multifunction Cable Options: 1 x RS-232 COM or 1 x RS-232 COM + 3 x BNC Video In or 1 x RS-232 COM + 3 x BNC Video In + 1 x COM Touch
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance:	Standard: 50.00 [19.69"] - Steering: 30.00 [11.81"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IP66, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register, BV - Bureau Veritas, CCS - China Classification Society, EU-RO-MR - Mutual Recognition

Specifications last updated: July 7, 2025 @ 10:01

Type Approvals

Downloads

Accessories

Obsolete

JH 27T11 MMD

Monitor - Widescreen - CCFL - HATTELAND® Series 1 G1 - 27.0 inch

Widescreen

CCFL-backlit

Send Request

Typenumber (Long):	JH 27T11 MMD-xxx-Axxx
TFT Technology:	a-Si TFT (Thin Film Transistor) Active Matrix, SPVA (Super Patterned Vertical Alignment) mode
Viewable Size and Active Area:	27.0 inch - 581.76 [22.90"] (H) x 363.60 [14.31"] (V) mm [inch]
Native Resolution and Pixel Pitch:	1920 x 1200 (WUXGA) - 0.303 (H) x 0.303 (V) mm
Aspect Ratio and Response Time:	16:10 - 6ms (typ)
Light Intensity and Contrast Ratio:	500 cd/m² (typ) - 1000:1 (typ)
View Angle and Max Colors:	89 deg. (up/down/left/right) - 16.7 million
Optimal Resolution and Hz:	1920 x 1200 @ 60 Hz
Detectable Resolutions:	640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1200
Composite Video Input(s):	With Multifunction Cable
Supported Video Signals:	SVHS&COMPOSITE Compatible
Product Features:	PBP (Picture By Picture), PIP (Picture In Picture), Multifunction Connector, Hotkey Functionality, Dimmable 0-100%
Power Specifications and Consumption:	115/230VAC - 50/60Hz - 200W (max)
User Controls and Activity:	Power On/Off + On Screen Display Menu (push button), Brightness Control, Hotkeys (left/right - push buttons), Mode Status Illuminated LED-Ring Indicator
Connectors:	• DVI IN: 1 x DVI-I 29P (female) • VGA IN: 1 x HD D-SUB 15P (female) • VGA OUT: 1 x HD D-SUB 15P (female) • Multifunction: 1 x D-SUB 160P (female) • USB: 1 x Type B (female) • AC Power IN: 1 x Std. IEC inlet • AC Power OUT: 1 x Std. IEC outlet (5A max)
Product Dimensions and Weight:	W:660.00 [25.98"] x H:481.00 [18.94"] x D:101.50 [4.00"] mm [inch] Approx 16kg / 35lbs
Product Carton Size and Weight:	L:800.00 [31.50"] x W:250.00 [9.84"] x H:640.00 [25.20"] mm [inch] 18.0kg / 39.6lbs
Factory Options:	• Keypad only or Keypad+Potmeter+Buzzer controls • Optical Bonding Technology • Speaker / Buzzer • Color Calibrated models (ECDIS)
Accessories:	EN60945 Tested Table/Foot Bracket, Wall/VESA Bracket, Water Cover. Multifunction Cable Options: 1 x RS-232 COM or 1 x RS-232 COM + 3 x BNC Video In or 1 x RS-232 COM + 3 x BNC Video In + 1 x COM Touch
Capabilities - Prepared for:	N/A
Operating Temperature:	-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature:	-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
IP Rating:	Protection: IP66 front - IP20 rear (EN60529)
Compass Safe Distance:	Standard: 50.00 [19.69"] - Steering: 30.00 [11.81"] cm [inch]
Type Approval, Testing and Certificates:	IEC 60945 4th (EN 60945:2002), IP66, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, LRS - Lloyd's Register, BV - Bureau Veritas, CCS - China Classification Society, EU-RO-MR - Mutual Recognition

Specifications last updated: July 7, 2025 @ 10:01

Latest Product Updates

Engineering Change Notifications (ECN):

End of Life Notifications (EOL):

10 Jan 2013
JH 27T11 xxD has reached its

Service Memo Notifications (SM):

24 Aug 2010
Unexpected shut down

24 Aug 2010
Keypad locked in reprogramming sequence

31 Aug 2009
Moist/fog was discovered on some displays
