 Marine & Offshore  / Camera  / HATTELAND® SeaHawk  / HT FDFL WA

HT FDFL WA

Overview

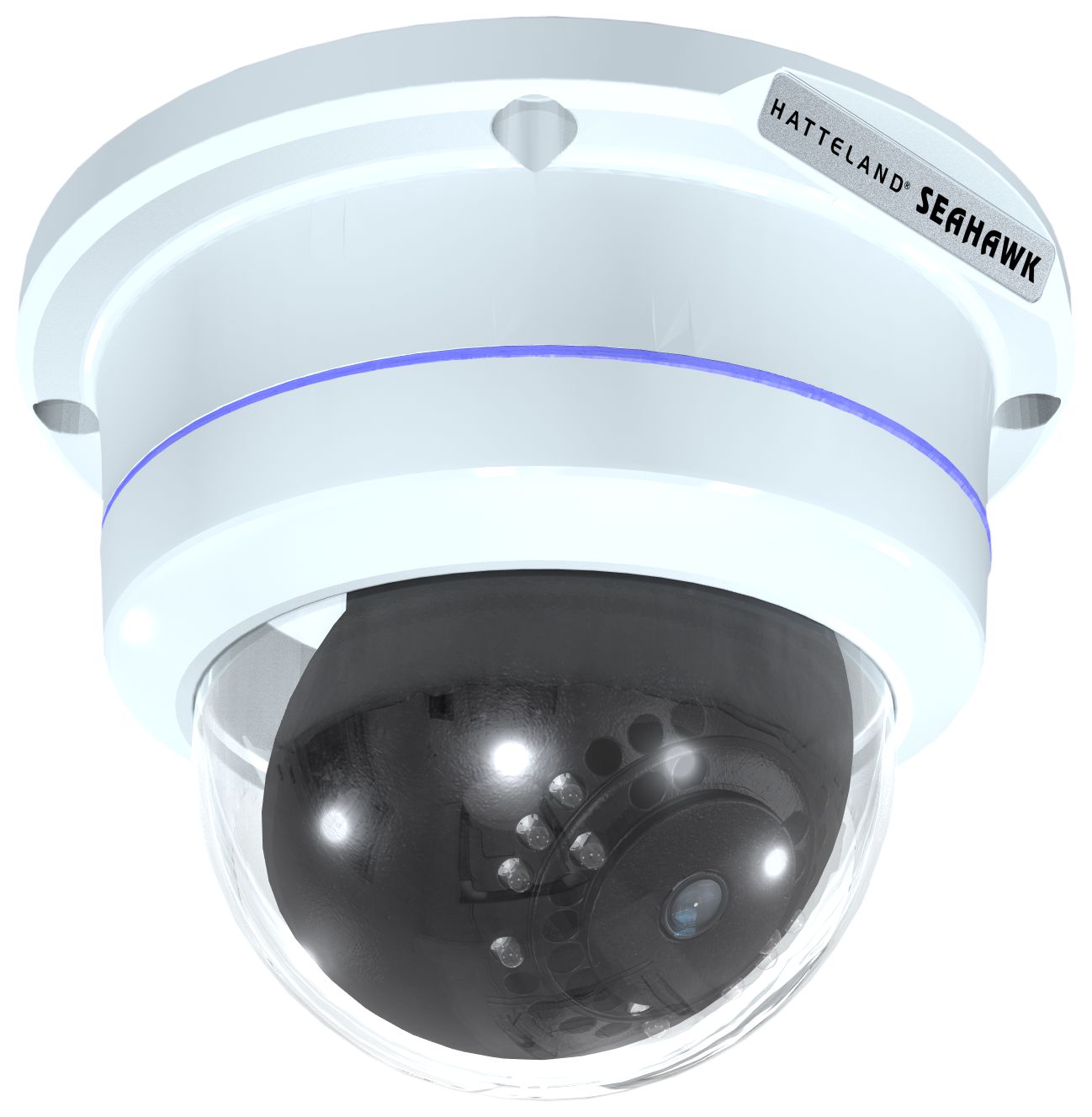

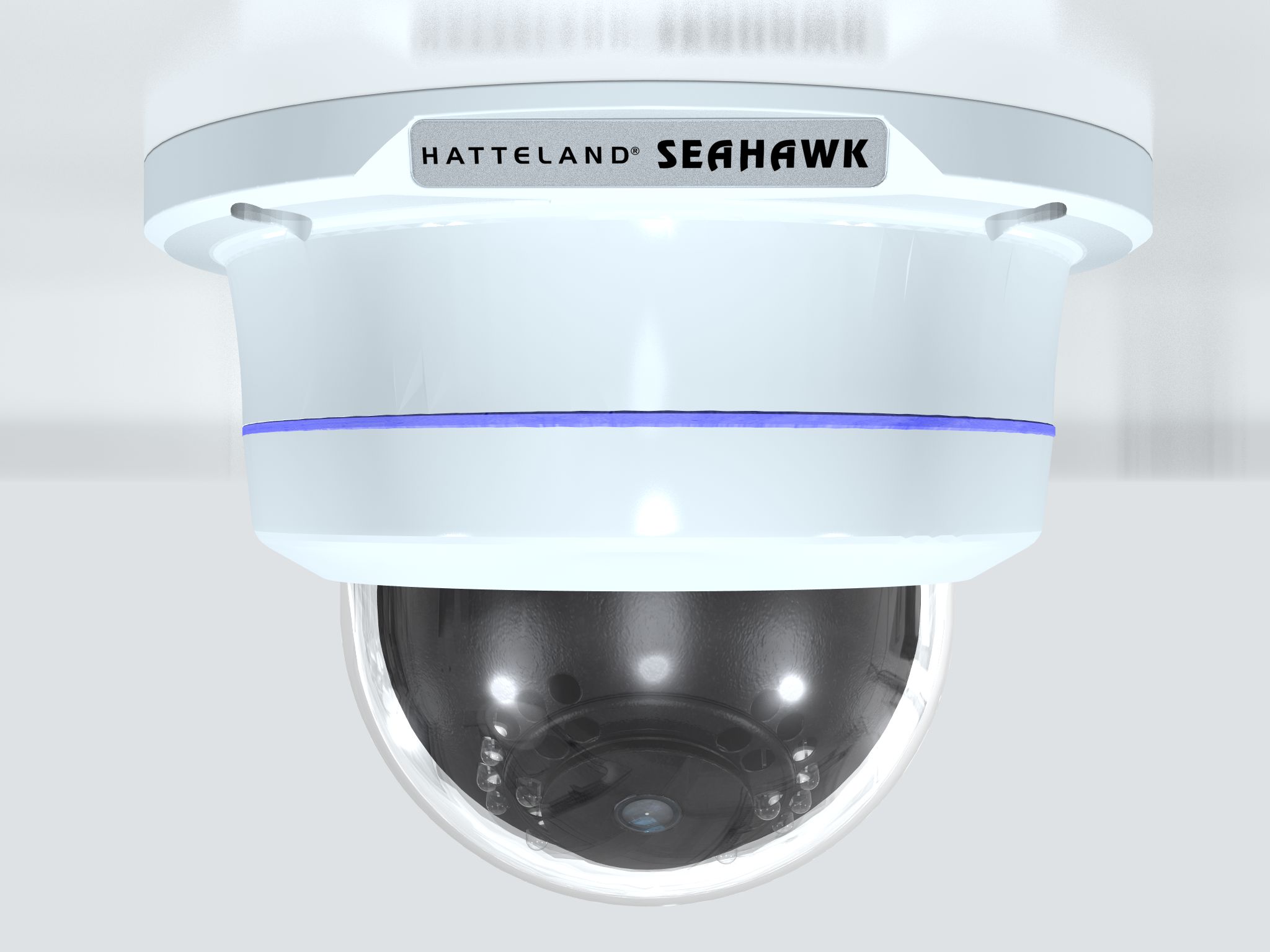

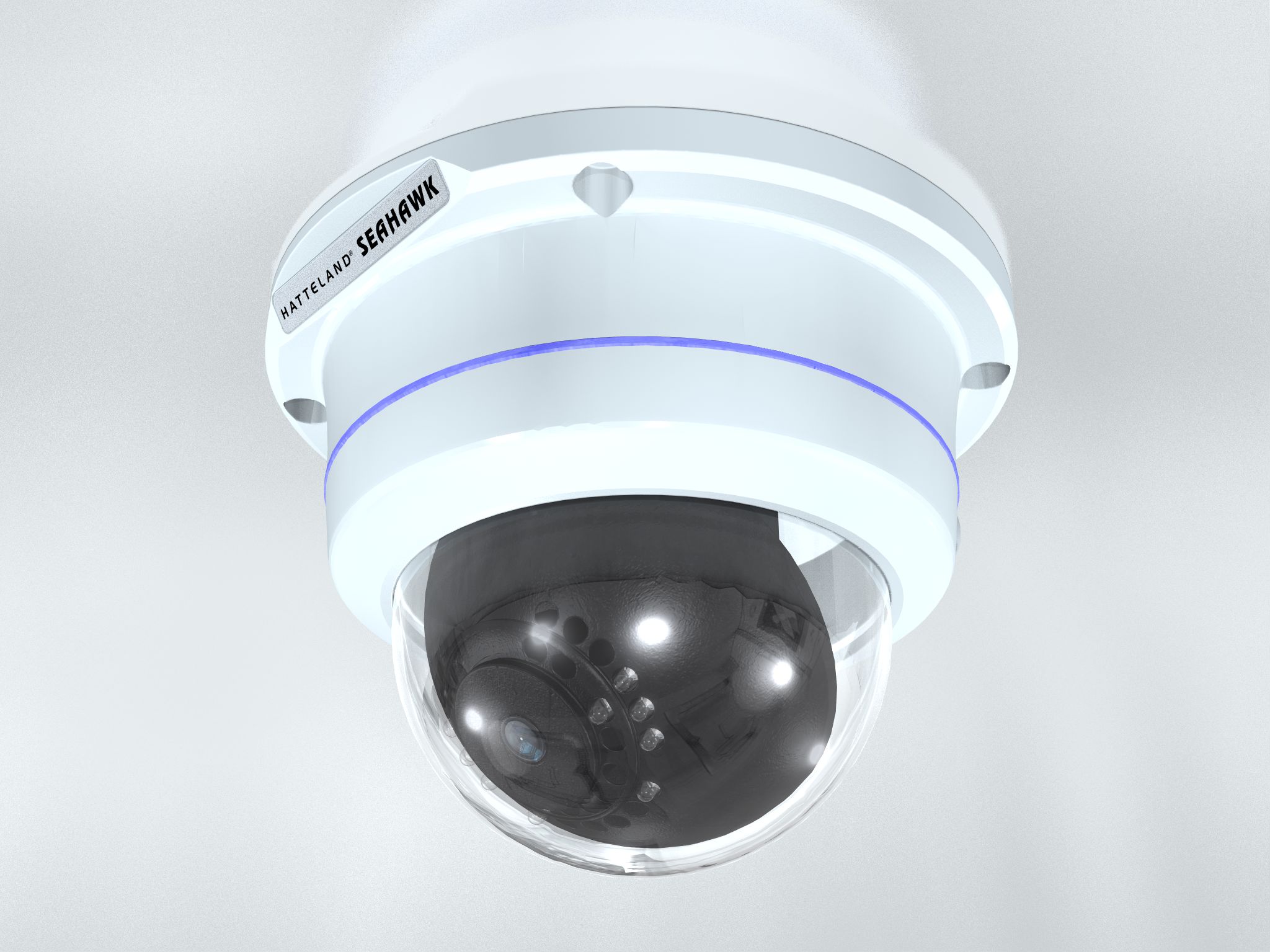

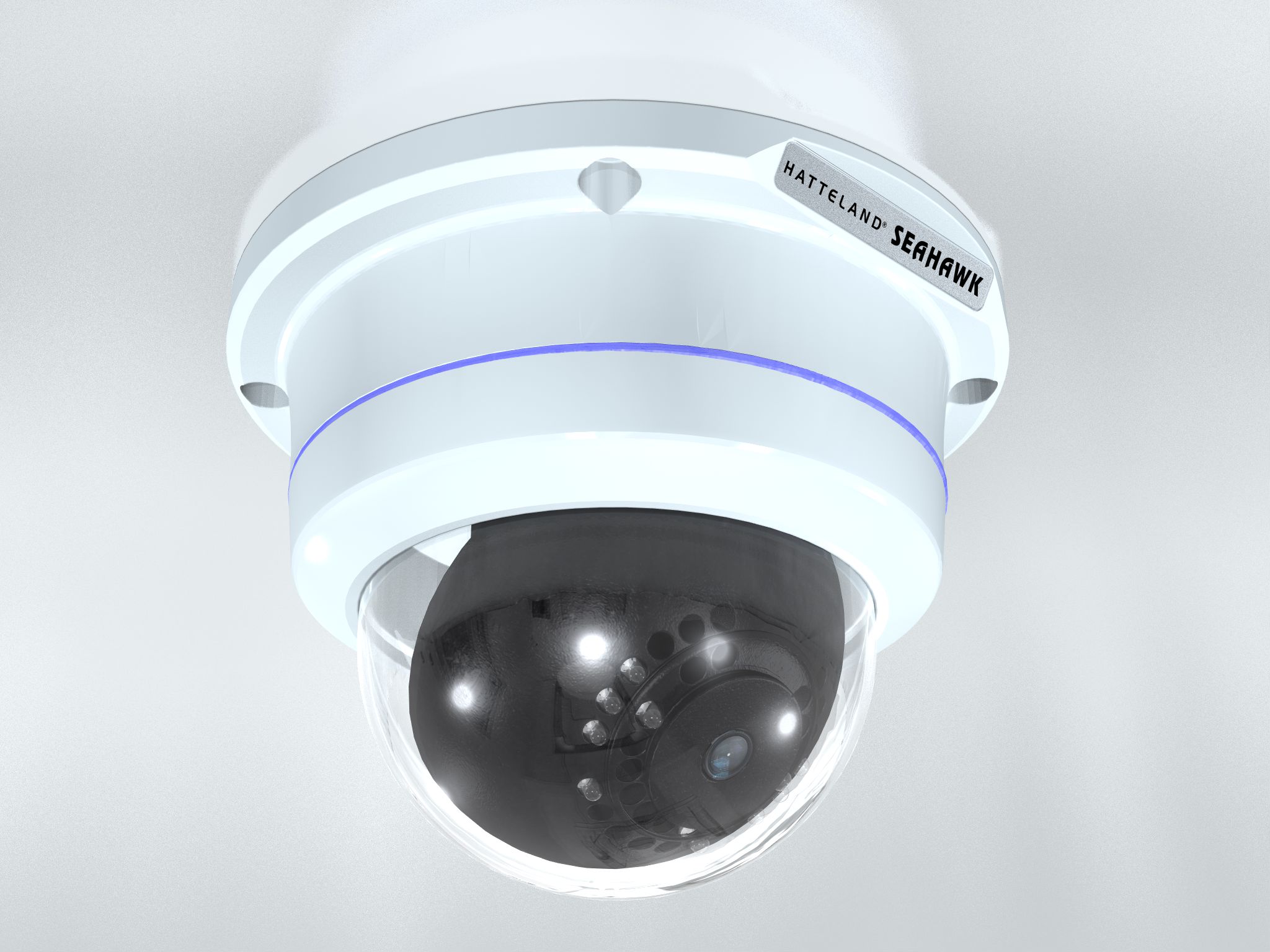

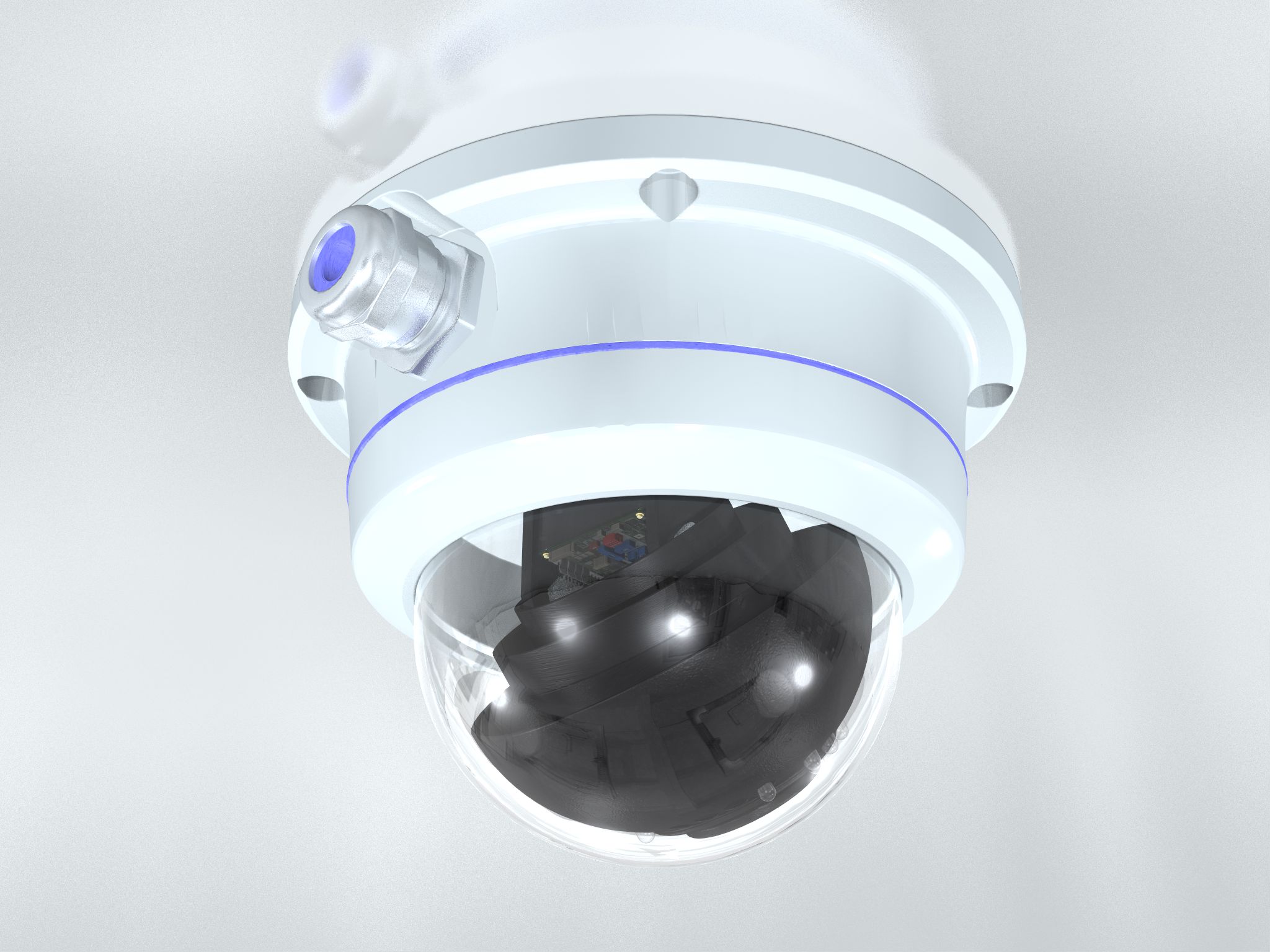

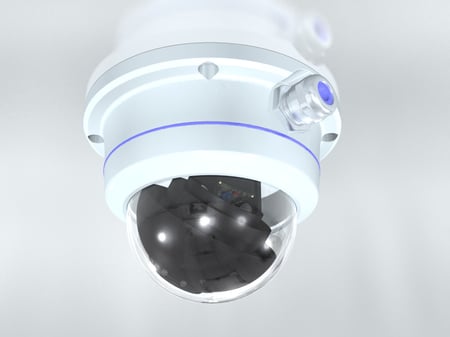

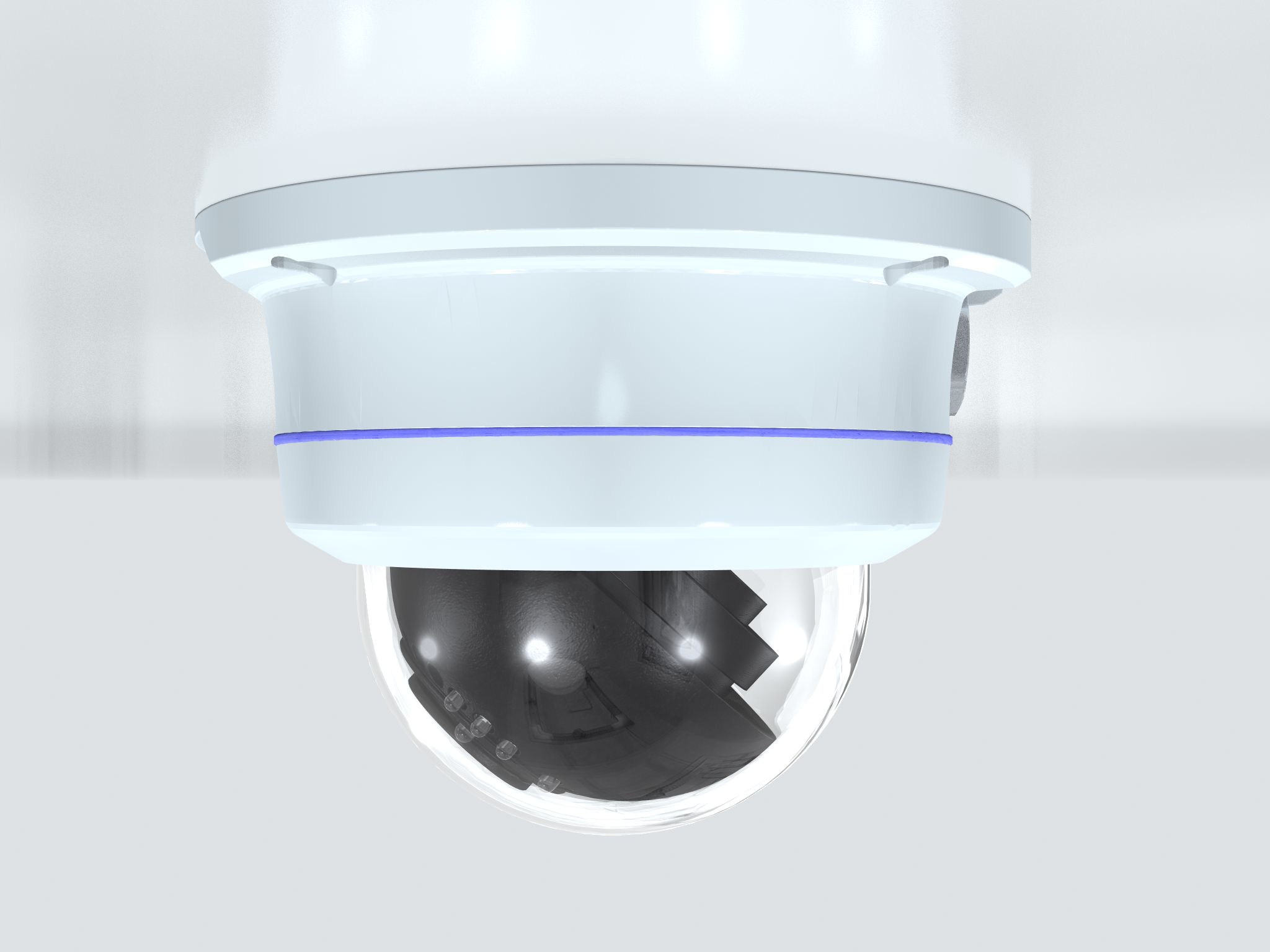

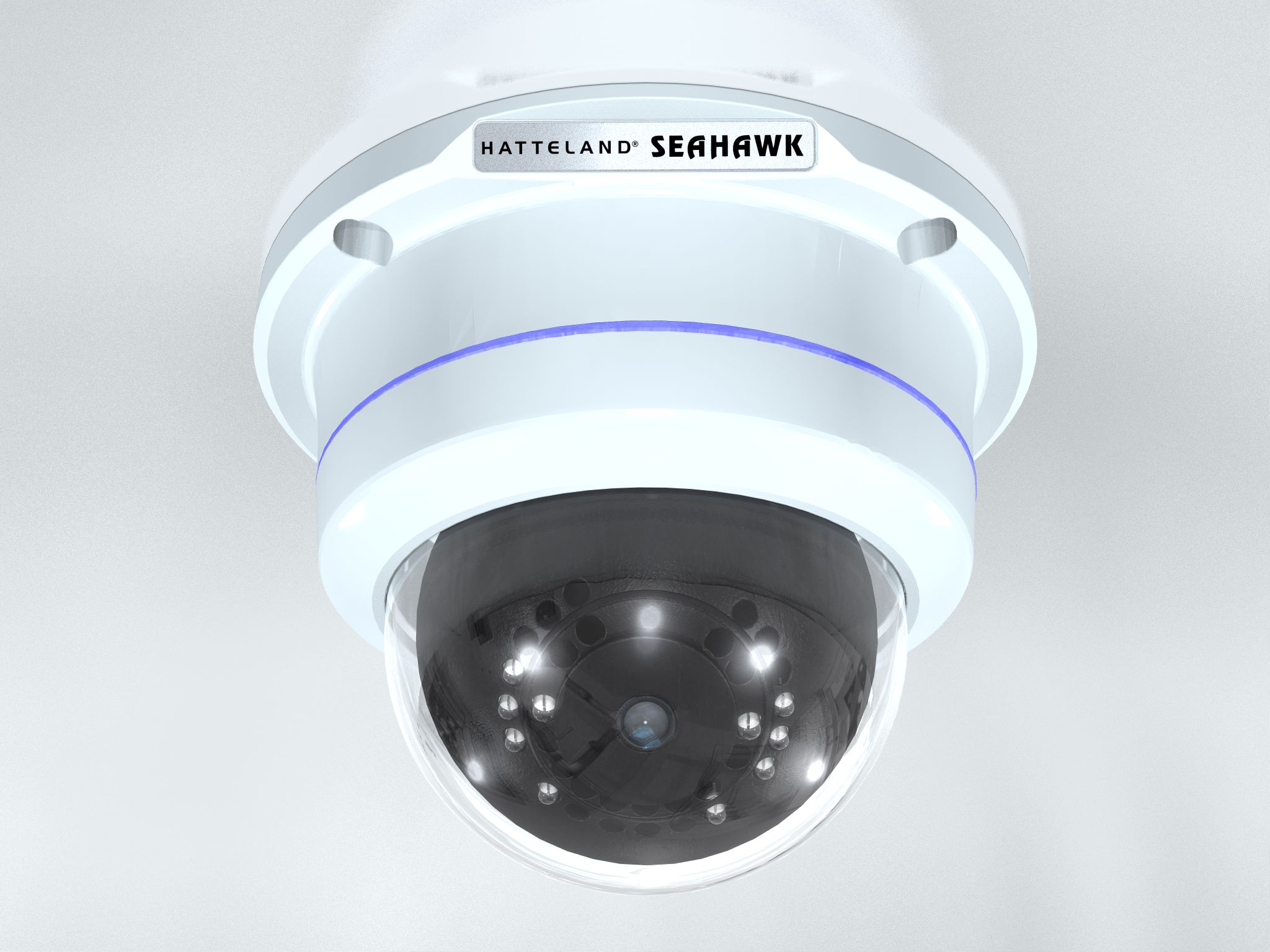

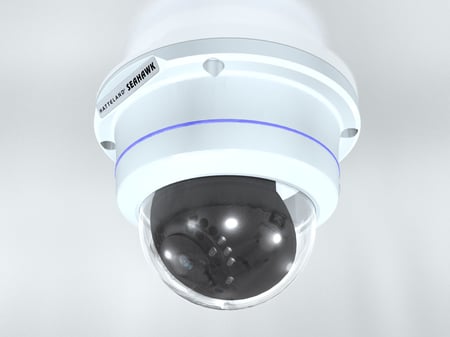

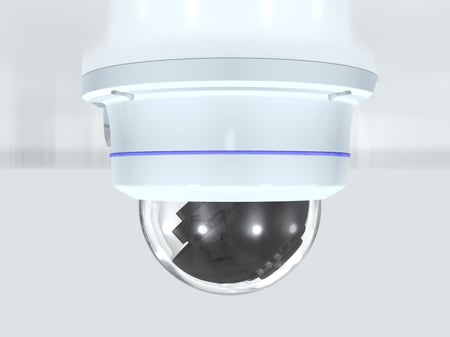

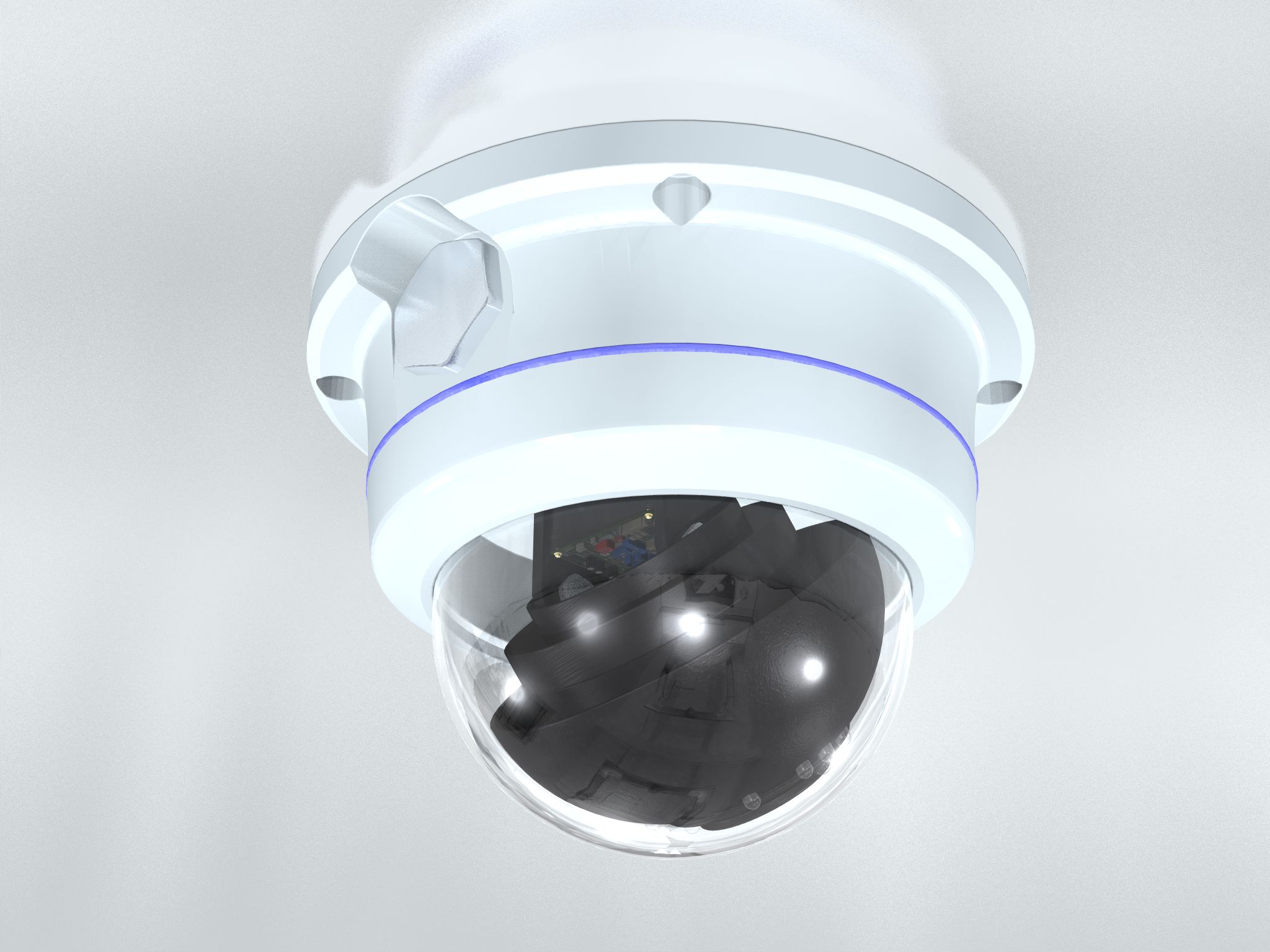

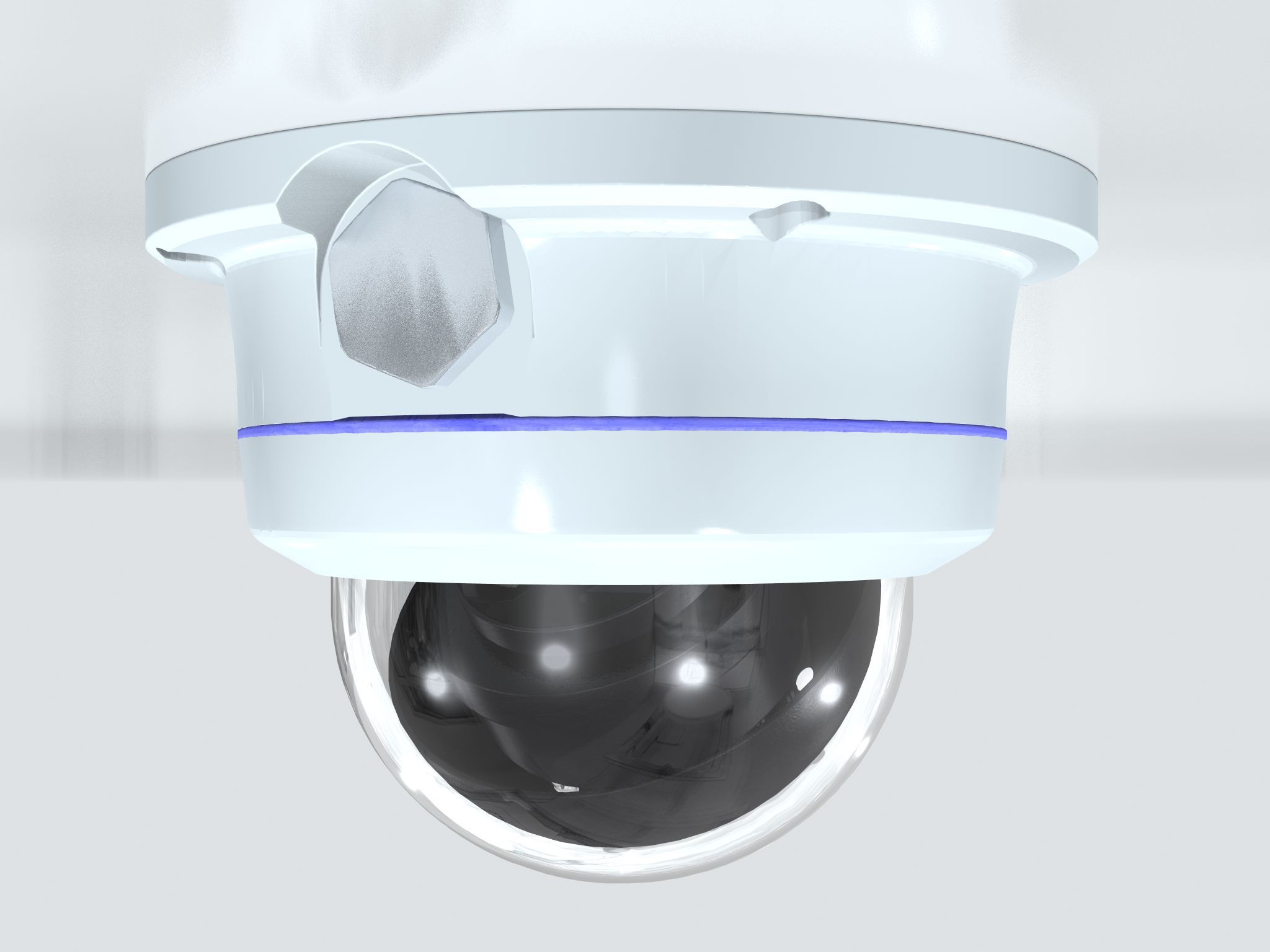

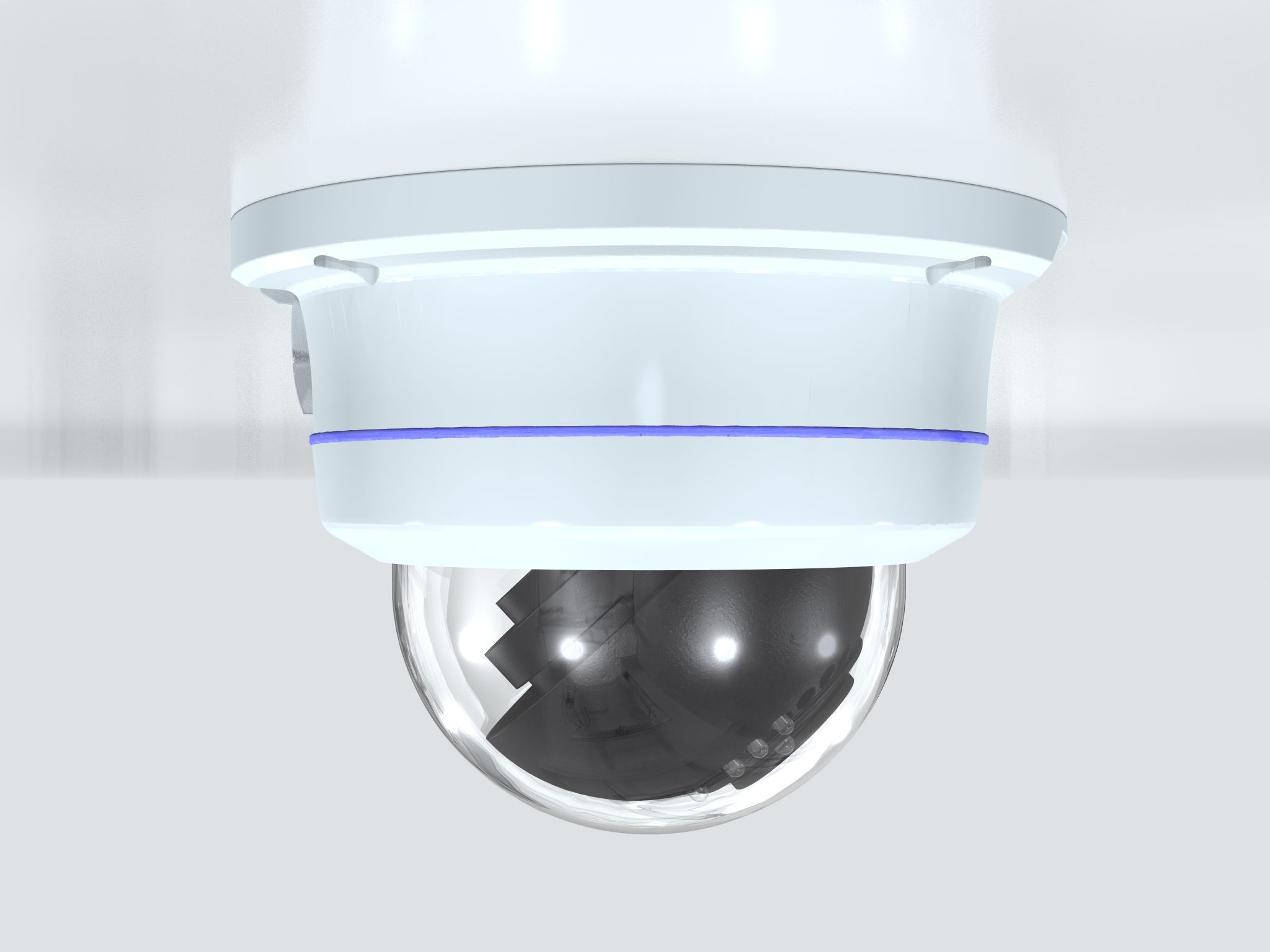

Camera - FixedDome - HATTELAND® SeaHawk - No Zoom - White

HT FDFL WA

HATTELAND® SeaHawk IP Camera from Hatteland Technology is the perfect IP camera solution with full HD resolution at 30fps. The camera housing is constructed in sturdy POM material or Aluminum material. PoE - Power over Ethernet, Stream compression H265/H264, Motion Detection, No sharp edges.

icon
FixedDome
Send Request

Description

Camera - HATTELAND® SeaHawk

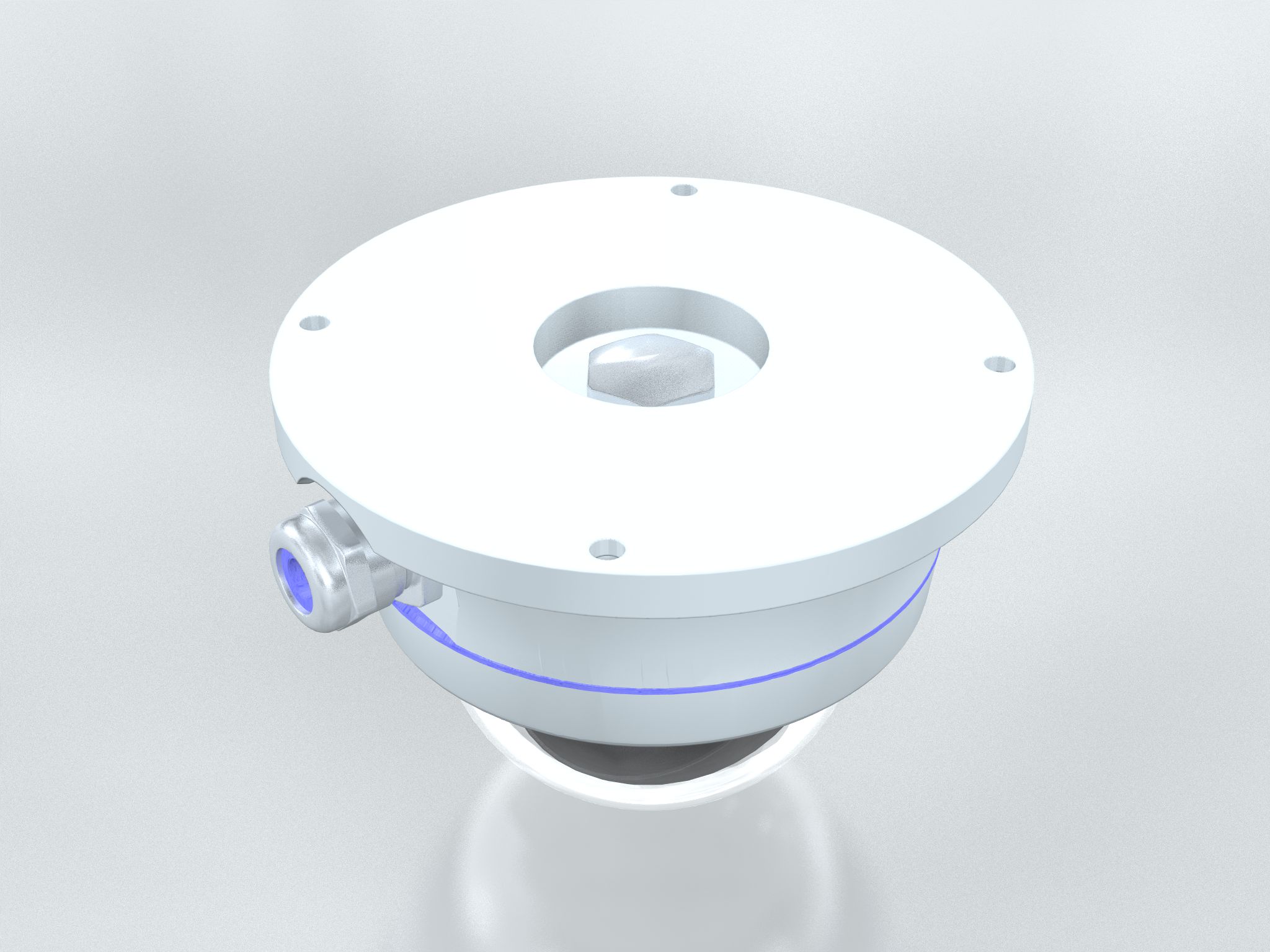

Designed to meet IEC60945 and IP66/IP67, Mounting Options: Ceiling/Wall
Day/night mode, Infrared LEDs 10 pcs
Specifications
Typenumber (Long): HT FDFL WA-X3
Image Sensor and Lens Type: 1/2.8" Progressive Scan CMOS
Fixed lens, IR cut filter
Zoom and Focal Length: No zoom
f=2.8mm
Maximum Aperature Ratio and Angle of View: F1.8
H: 105°, V: 87°
Electronic Shutter Speed: 1/1 ~ 1/10000 sec
Flip Mode and Image Enhancement: Horizontal, Vertical
AF, AWB, AE, NR, TDN, DSS, BLC, GAMMA, DPC, DEFOG, WDR, IR LED (10pcs)
Compression, Frame Rate and Bitrate: H265 / H264 / MJPEG
Max 30fps @ 1920 x 1080
Bitrate Primary: 32Kbps ~ 16Mbps. Secondary: 32Kbps ~ 4Mbps
Resolutions, Streaming and Burn-in OSD: 352 x 240 ~ 1920 x 1080
Streaming Primary: H265 / H264, Secondary: H265 / H264 / MJPEG
Multi-lingual
Interface: 1 x Ethernet 10/100base-T (RJ-45)
Protocol and Security: Protocols: IPv4/v6, TCP, UDP, IGMP (MULTICAST), ICMP, DHCP, HTTP, HTTPS, RTP, RTPS, FTP, SNMP, UPnP, WS-Discovery, Zero-configuration, NTP, DDNS
Secuirty: Password protection, IP address filtering, HTTPS encryption
API: ONVIF, PSIA, MPEG-TS
Event Sources and Event Actions: Event Sources: Motion, Sensor Input, Client disconnection
Event Actions: Notification (E-mail), FTP, Alarm control, Recording
Housing: POM (Polyoksymetylen), RAL 5012 (ring)
Power Supply and Consumption: PoE: 802.3af via RJ-45
6W (max)
Product Dimensions and Weight: W: 160.00 [6.30"] x H: 115.70 [4.56"] x D: 160.00 [6.30"] mm [inch]
1.15kg / 2.5lbs
Pigtail Cable: 2.5 [8.20] m [ft], Cat5e STP, RJ-45 terminated
Product Carton Size and Weight: TBD
Contents of Package: TBD
Available Models: • HT FDFL AA-X3:
SeaHawk FixedDome POM Black, Rear Cable Gland Output

• HT FDFL AB-X3:
SeaHawk FixedDome POM Black, Bottom Cable Gland Output

• HT FDFL WA-X3:

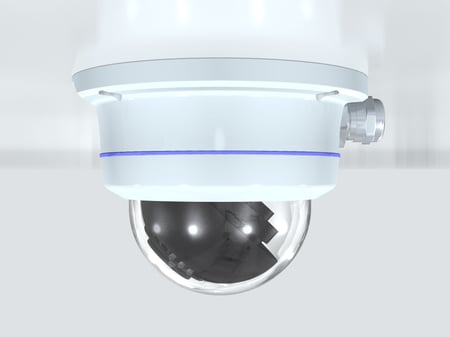

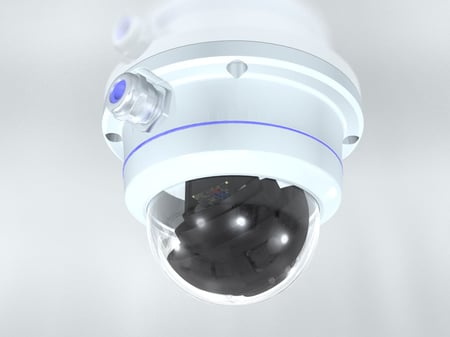

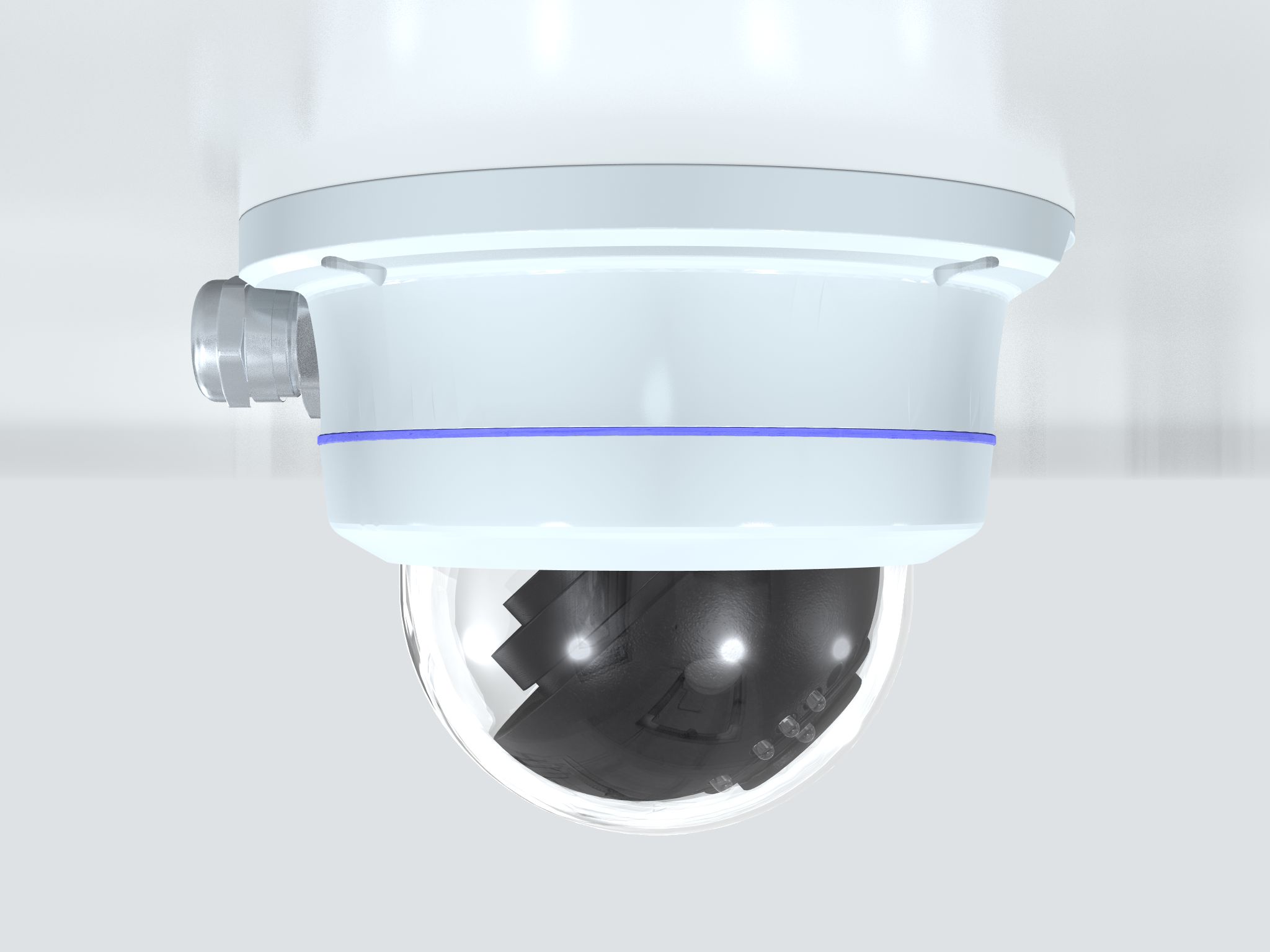

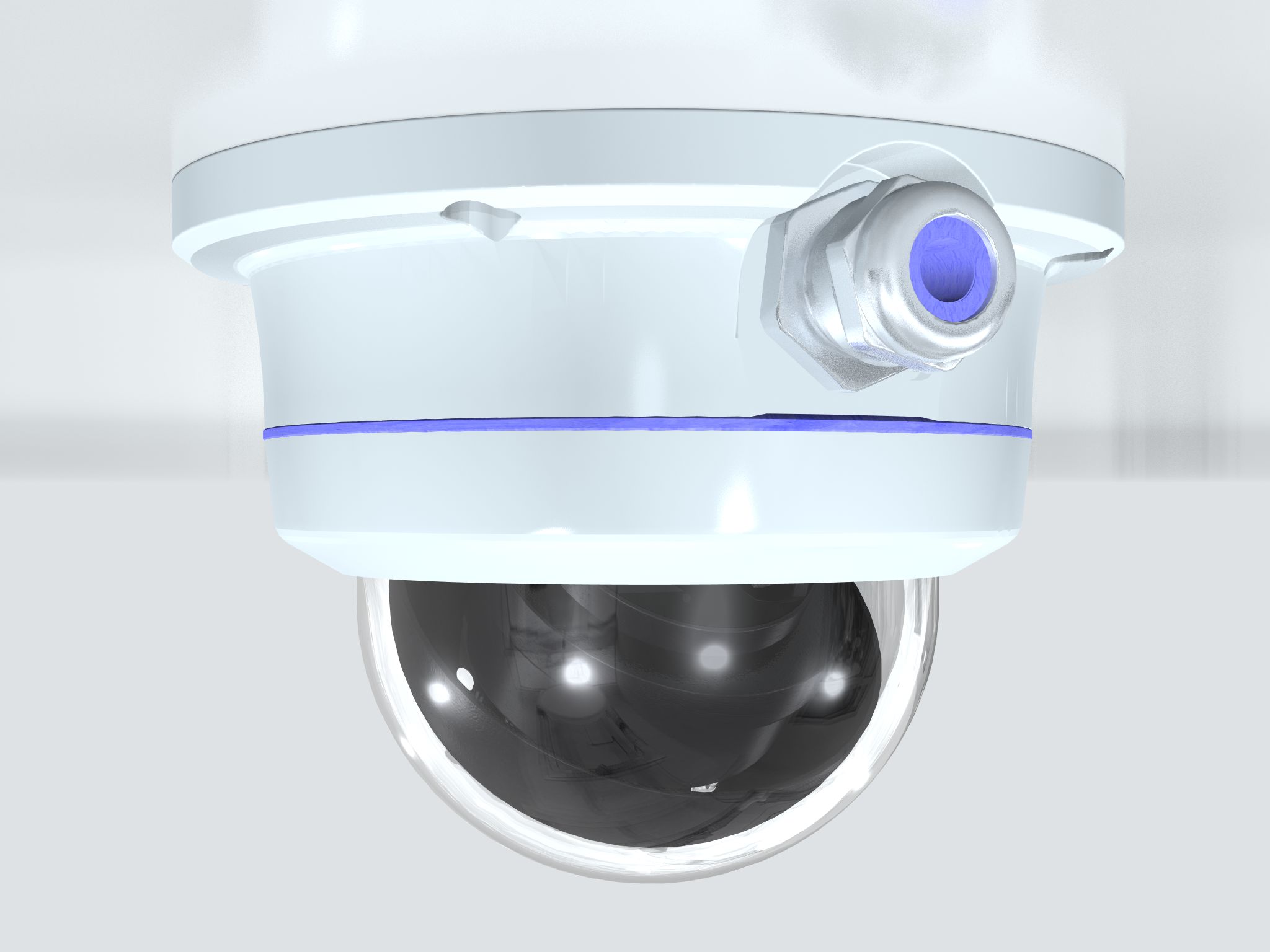

SeaHawk FixedDome ALU. White RAL9010, Rear Cable Gland Output

• HT FDFL WB-X3:

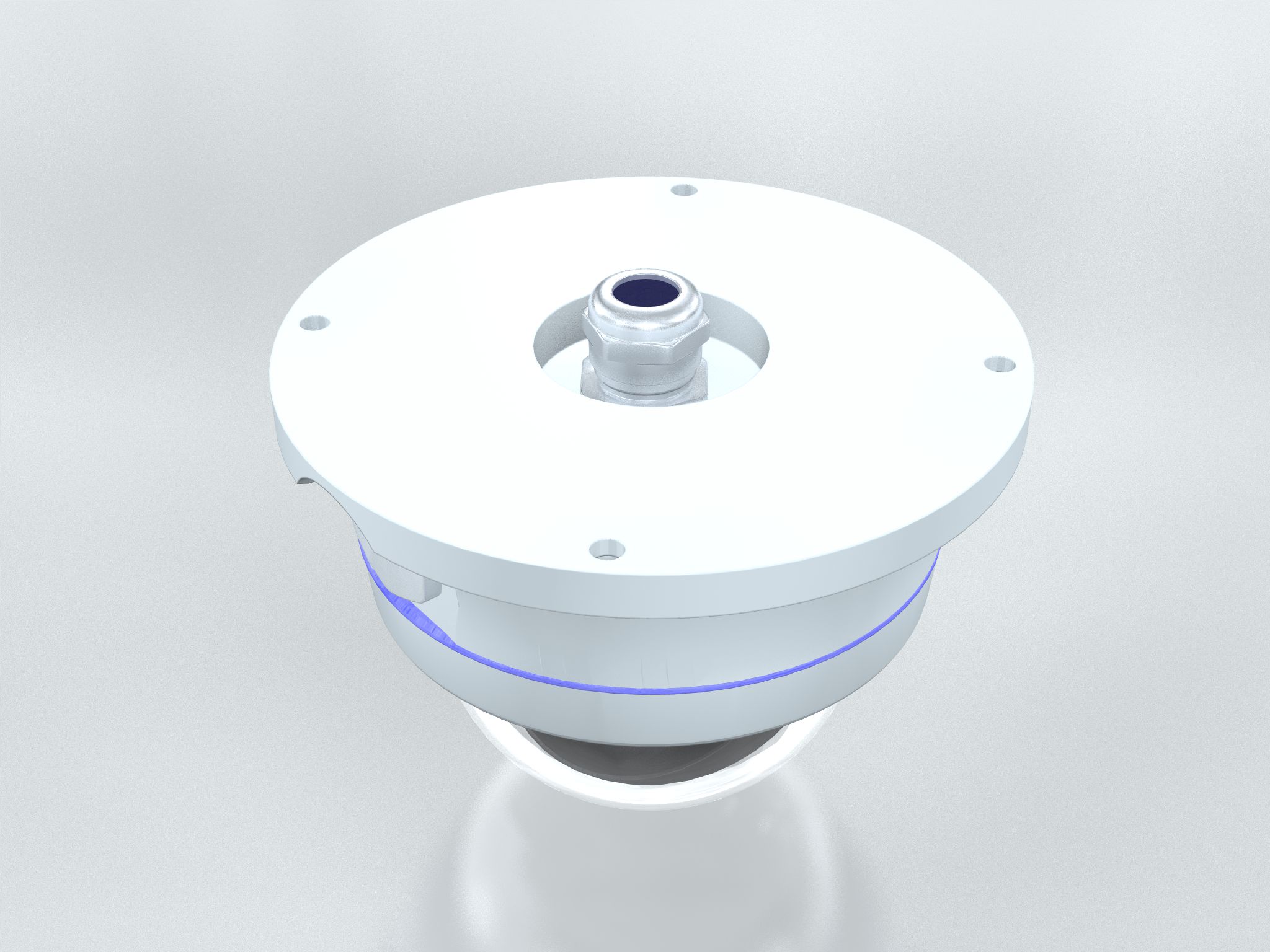

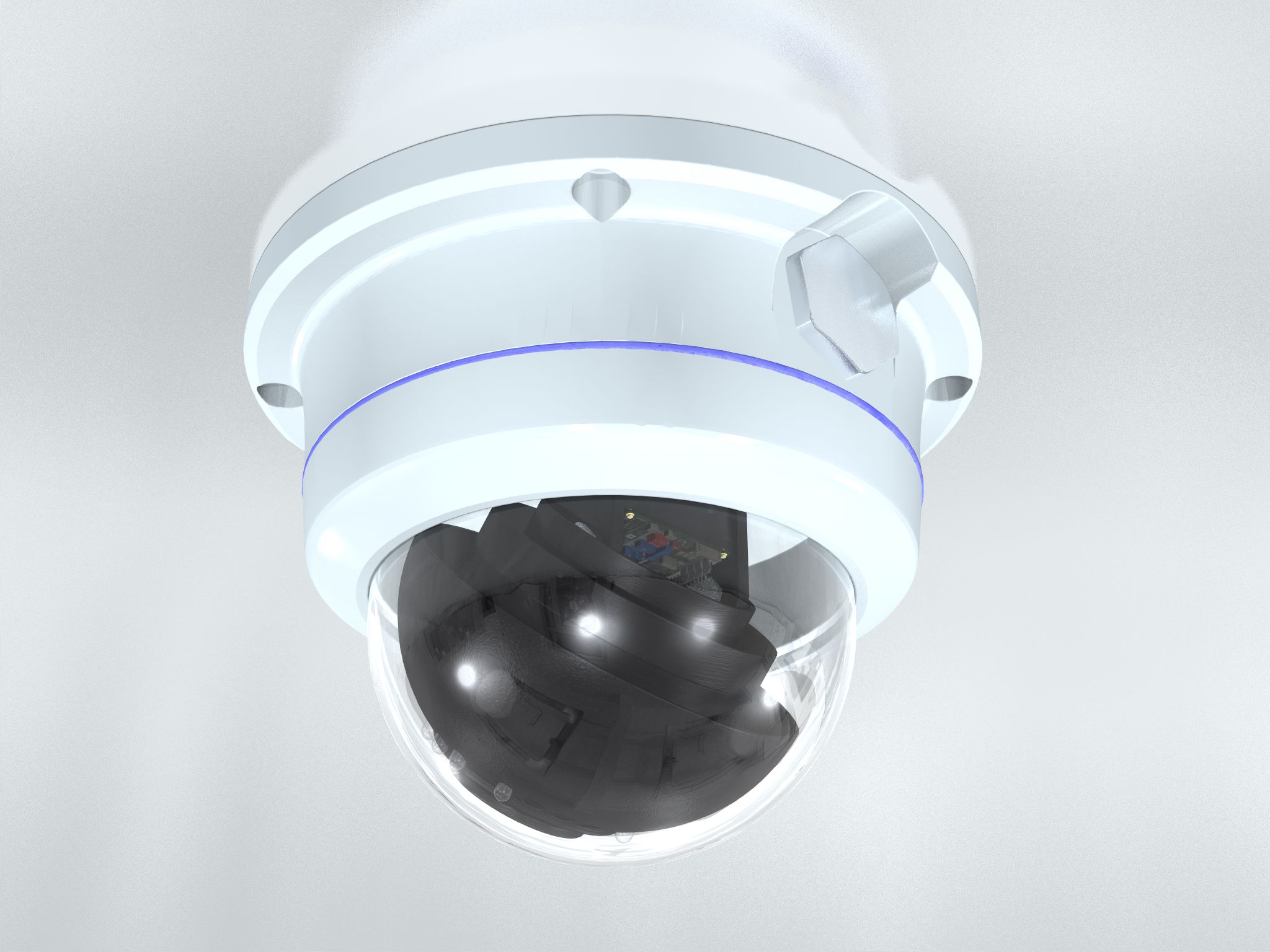

SeaHawk FixedDome ALU. White RAL9010, Bottom Cable Gland Output
Accessories: • LD-001: IP67 coupler for patch cable, 2 x RJ-45 female-to-female
Operating Temperature: -40°C to +65°C
Storage Temperature: TBD
Certification and IP-Rating: Designed to meet IEC60945, IP66/IP67
Specifications last updated: April 8, 2025 @ 07:50
Type Approvals
Downloads
Accessories

Latest Product Updates

End of Life Notifications (EOL):
27 Sep 2022
White Seahawk camera models

News Stories:
14 May 2020
Product released to website

Obsolete
